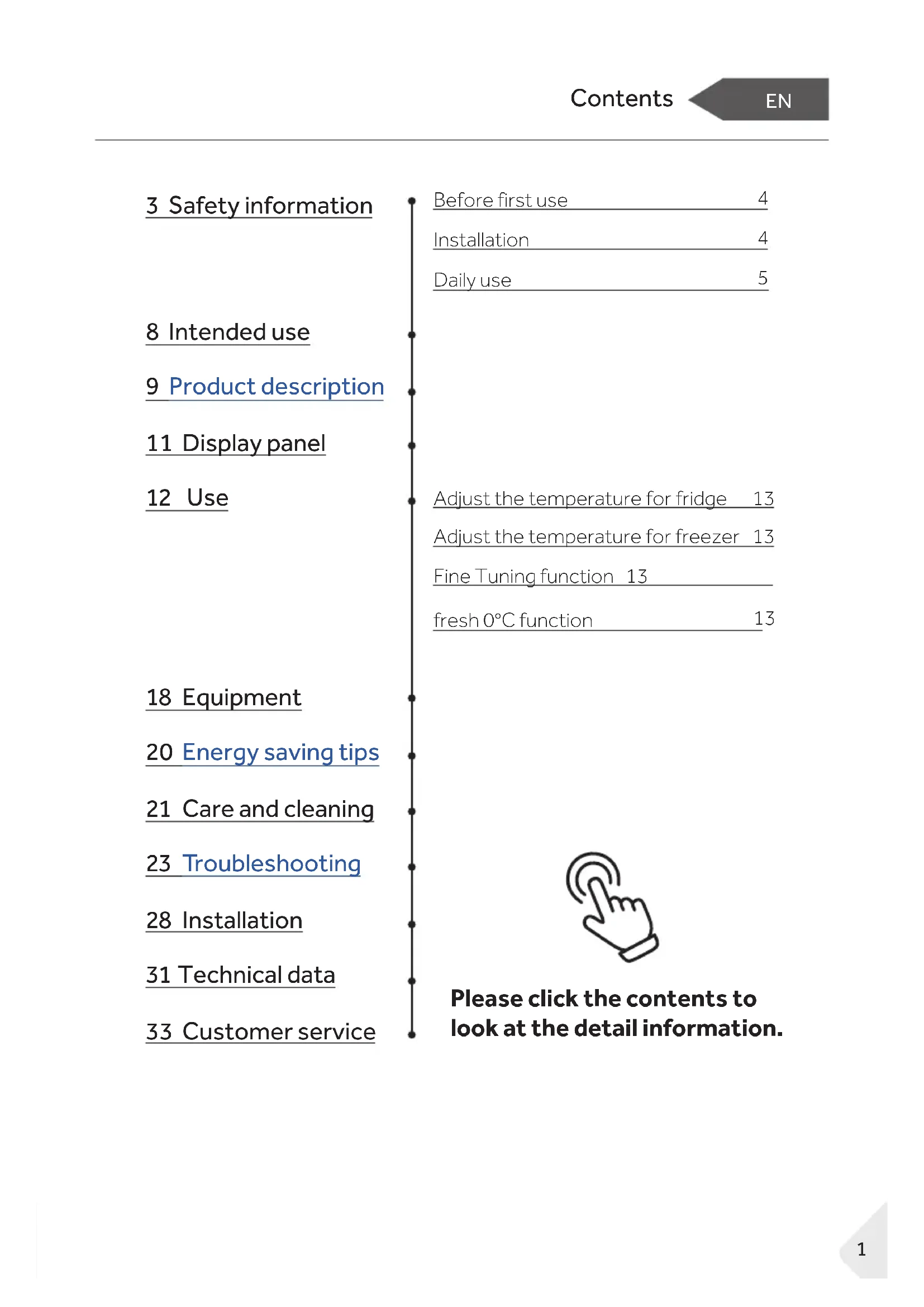

USER MANUAL CNCQ2T620DW CANDY
WARNING: Risk for brand/brandfar Liga material SV
Adjust the temperature for fridge 13
18 Equipment
Adjust the temperature for freezer 13
20 Energy saving tips
Fine Tuning function 13
21 Care and cleaning
fresh 0°C function 13
23 Troubleshooting
28 Installation
31 Technical data
33 Customer service
Please click the contents to look at the detail information.
Thank you for purchasing a Candy Product.
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.
Accessories
Check the accessories and literature in accordance with this list:
Cap insert
Energy label QuickWardenty card
Door hinges
Hinge Cover
Disposal
Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
WARNING!
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets from getting closed in the appliance.
Before switching on the appliance for the first time, read the following safety hints:
WARNING!
Before first use
Make sure there is no transport damage. Remove all packaging and keep it out of children's reach.

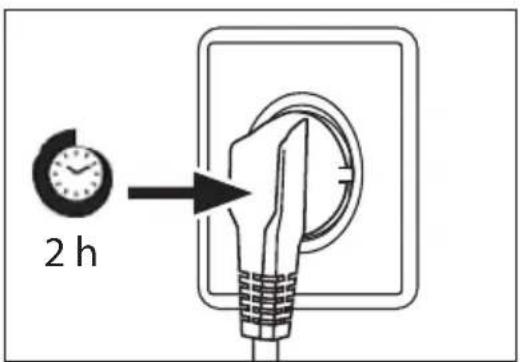

- Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. Handle the appliance always with at least two persons because it is heavy.
Installation

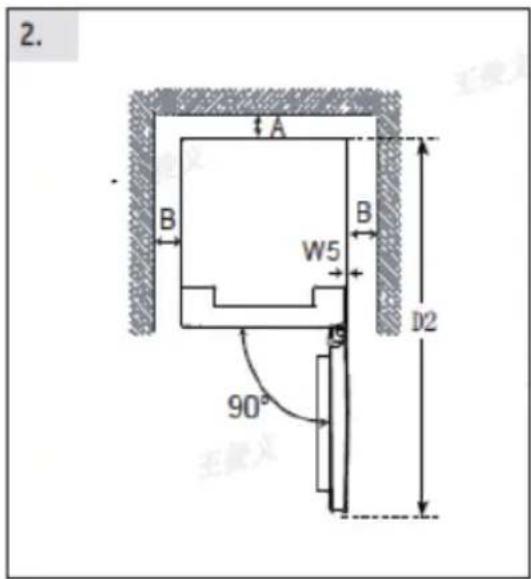

The appliance should be placed in a well-ventilated place. Ensure a space of at least 5 cm above and around the appliance. Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). Install and level the appliance in an area suitable for its size and use. Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature display or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. Do not use multi-adapter and extension cables. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.
WARNING!
- Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed.
Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
- Do not damage the refrigerant circuit.
Daily use
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised. Children shall not play with the appliance.
- If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.
- Notice that the appliance, for example CNCQ2T620E , CNCQ2T618E , ECN2CQTE 186, ECN2CQTE 206, (* = colour code: B,X,W), is set for operation at at a specific ambient range between 10°C and 38°C . The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
- Notice that the appliance, for example CNCQ2T620D , CNCQ2T620A , CNCQ2T618EXMA, CNCQ2T618EBMA, CNCQ2T618A , CNCQ2T618C , is set for operation at a specific ambient range between 10°C and 43°C . The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.
- Do not pull on the door shelves. The door may be pulled slant.
WARNING!
- Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
- Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Check the condition of food if a warming in the freezer has taken place. Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
- Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
- Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning Make sure children are supervised if they carry out cleaning and maintenance
- Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
- When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
WARNING!
- Hold the plug, not the cable, when unplugging the appliance.
- Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
- Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
- Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
- Do not spray or flush the appliance during cleaning.
- Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
WARNING!
The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If damage has occurred, keep away from open flames, thoroughly ventilate the room, and do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.
In case of eye contact with the refrigerant, rinse immediately under running water and call an eye specialist immediately.
Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices, and other working environments; farm houses; and by clients in hotels, motels, and other residential type environments, as well as in bed-and-breakfast and catering businesses. It is not intended for commercial or industrial use.
Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.
Standards and directives on CE UK CA
This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE or UKCA marking.
NOTICE
Due to technical changes and different models, some of the illustrations in this manual may differ from your model.
CNCQ2T620AX CNCQ2T620EX CNCQ2T620EW CNCQ2T620DX CNCQ2T620DW CNCQ2T620EB CNCQ2T620CB ECN2CQTEX206 ECN2CQTEW206 ECN2CQTEB206 A: Refrigerator compartment 1-Display panel 2-Glass shelf 3-Glass shelf 4-Glass shelf 5-Drawer cover 6-Humidity Area drawer 7-Drawer cover 8-Fresh 0°C storage drawer 9-Door balcony B: Freezer compartment 10-Upper freezer storage drawer 11-Middle freezer storage drawer 12-Lower freezer storage drawer

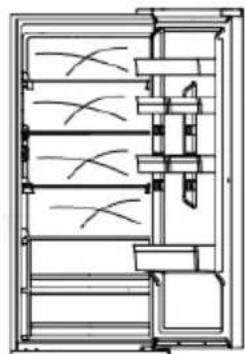

NOTICE
Due to technical changes and different models, some of the illustrations in this manual may differ from your model.
CNCQ2T618EW
CNCQ2T618EB
CNCQ2T618EX

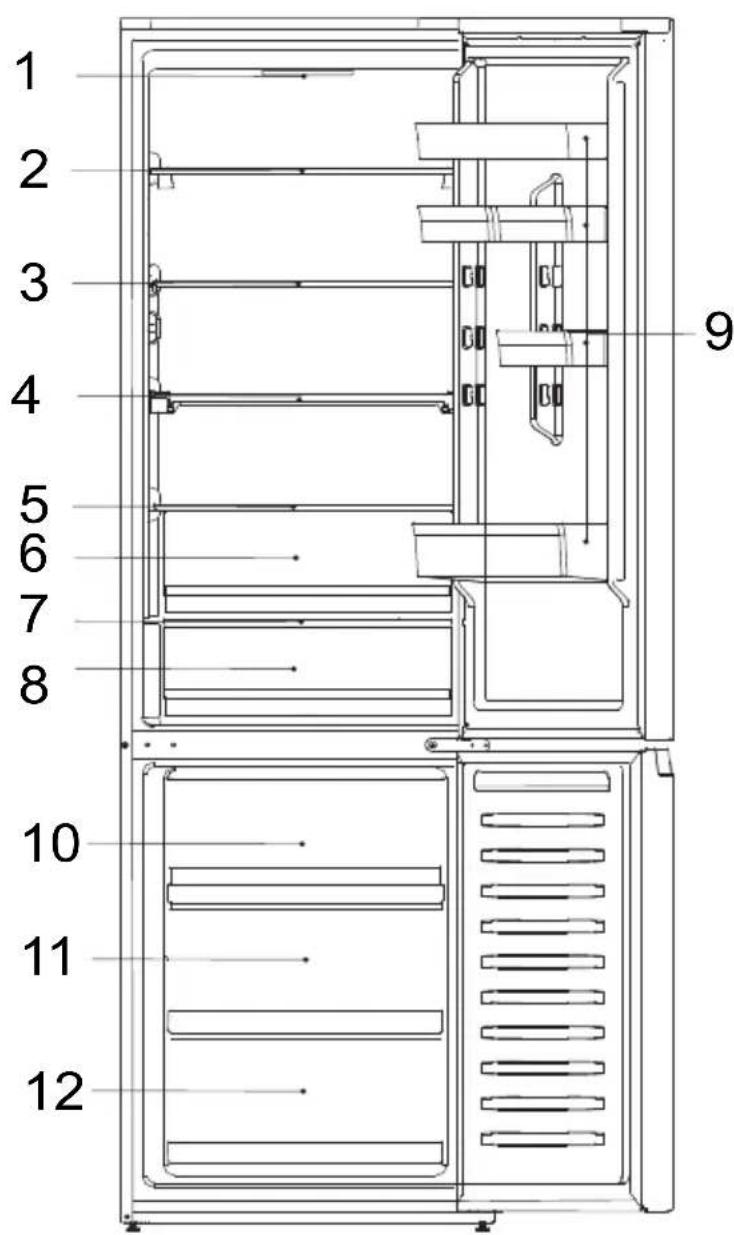

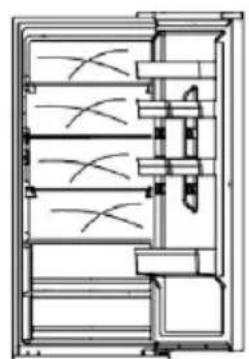

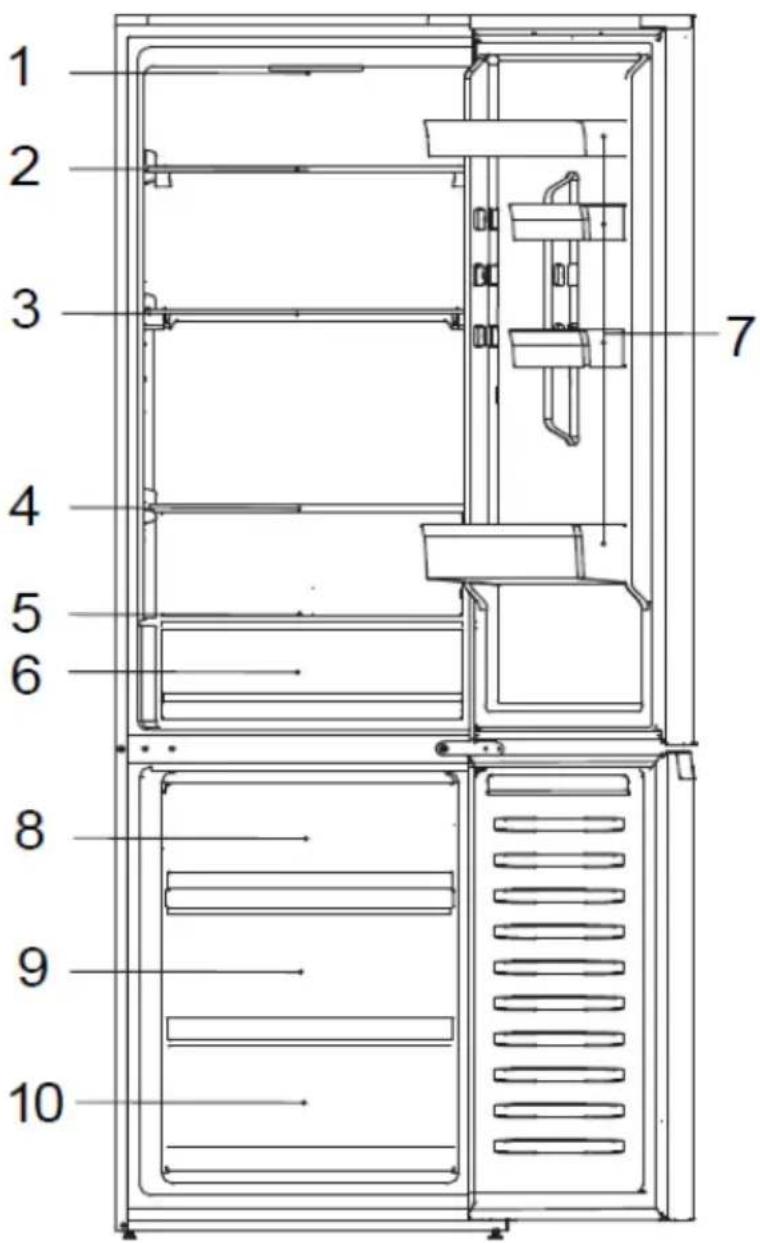

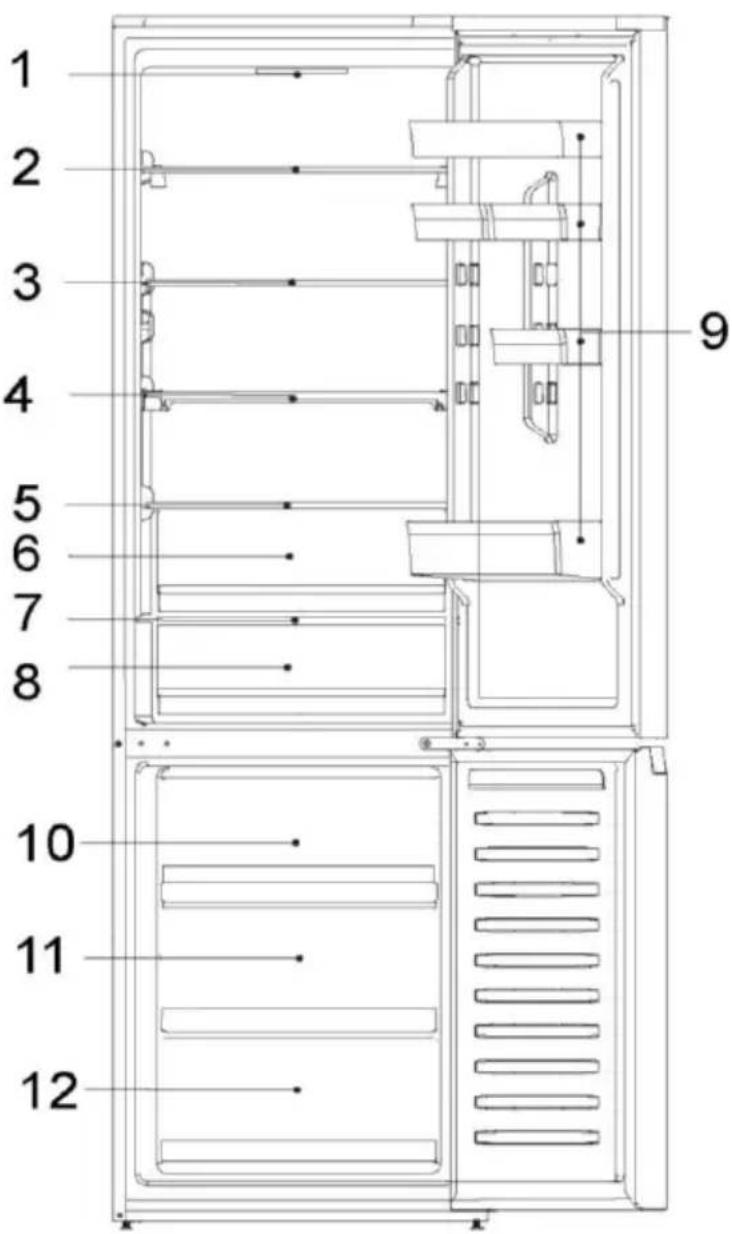

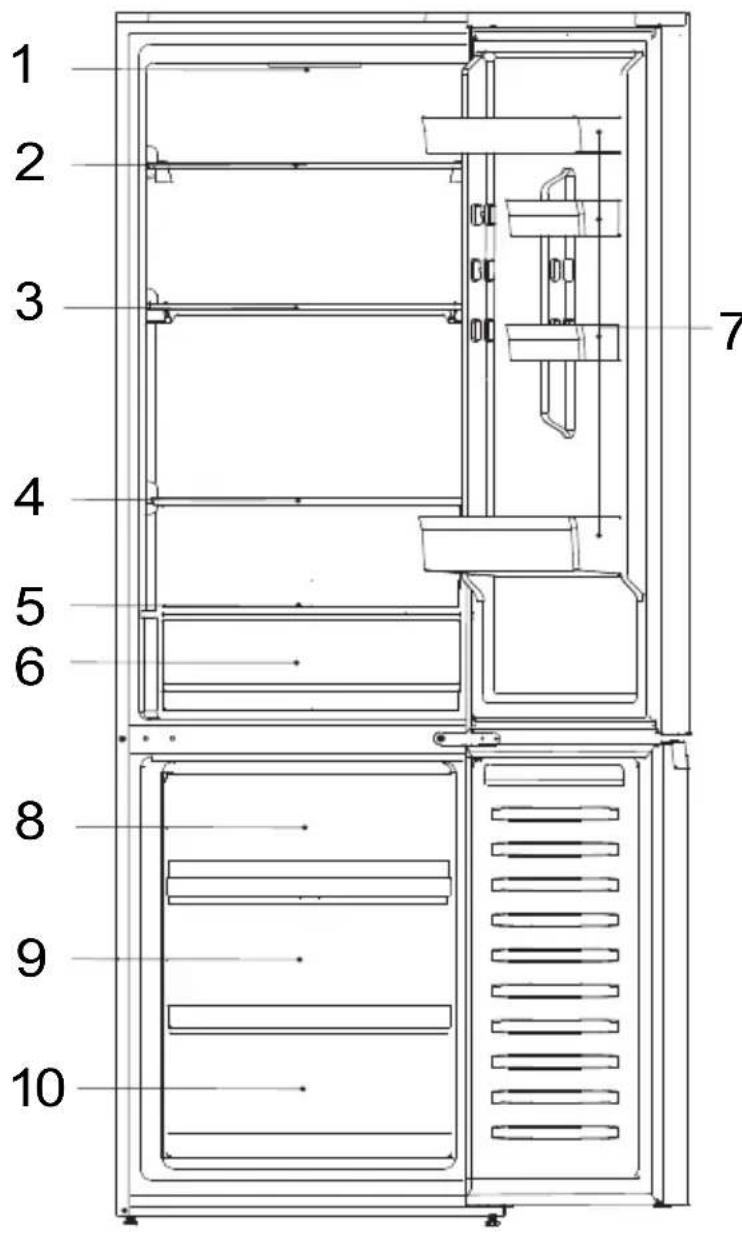

A: Refrigerator compartment
1-Display panel
2-Glass shelf
3-Glass shelf
4-Glass shelf
5-Drawer cover
6-Fresh 0°C drawer
7-Door balcony
B: Freezer compartment
8-Upper freezer storage drawer, 9-Middle freezer storage drawers, 10-Lower freezer storage drawer

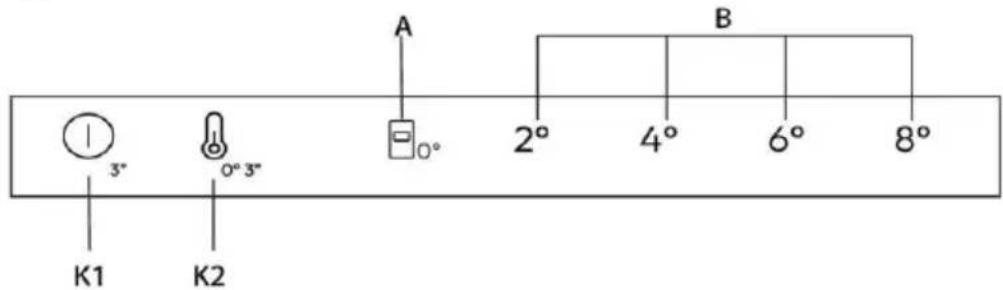

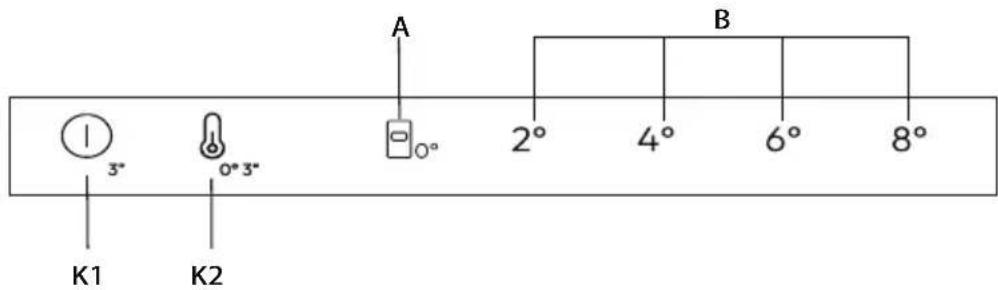

Display panel
K1 Power On/Off, used to switch On/Off the appliance. K2 Temperature selection/Fine Tuning
On/Off key, used to switch on/off fresh 0°C.
Indicators
A Fresh 0°C function, B Fridge temperature display
Before first use
- Remove all packaging materials, keep them out of children's reach and dispose them in an environment friendly way. Clean the inside and outside of the appliance as well as the interior and accessories with water and a mild detergent, and dry it well with soft cloth. After the appliance has been levelled and cleaned, please wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION. Precool the compartments at high settings before loading with food.
The buttons on the display panel are mechanical buttons.
Switch on/off the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the refrigerator is first powered on, the indicator "4" of "B" (Fridge temperature display) and the indicator "0" of fresh 0°C drawer illuminate. The fridge temperature and freezer temperature are automatically set to 4°C and -20°C respectively. The fresh 0°C drawer comes into operation.
NOTICE
The appliance is preset to the recommended temperature of 4°C. These are the recommended settings. If desired, you can change these temperatures manually.

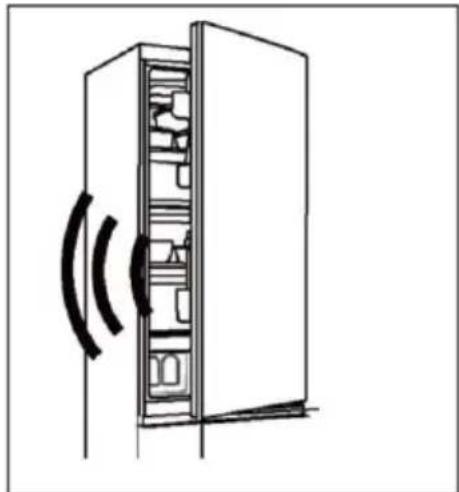

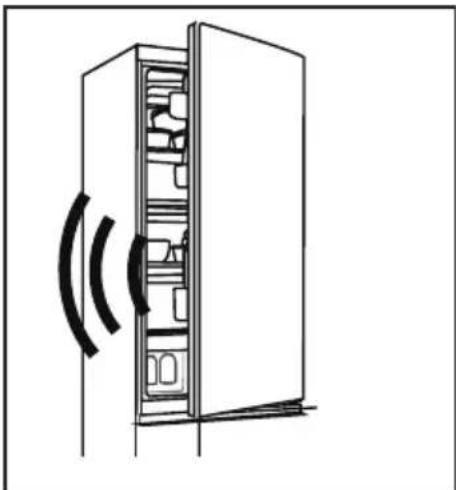

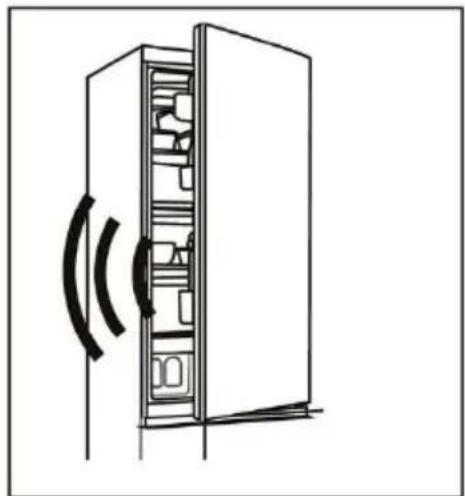

Door opening alarm
When the refrigerator door is open for more than 3 minutes, the door opening alarm will sound.
The alarm can be silenced by closing the door. If the door is open for more than 7 minutes, the light inside the refrigerator and the display panel illumination will automatically turn off.
Power on/off
When the appliance is in the power on state, press the K1 button for 3 seconds, the appliance enters standby mode, the compressor stops working, and the light extinguishes. When the appliance is in standby mode, press the K1 button for 3 seconds, the appliance is powered on, the compressor will work, and the light will be on.
Adjust the temperature
The indoor temperatures are influenced by the following factors:
Ambient temperature
Frequency of door opening
Amount of stored foods
Installation of the appliance
Adjust the temperature for fridge/freezer compartment

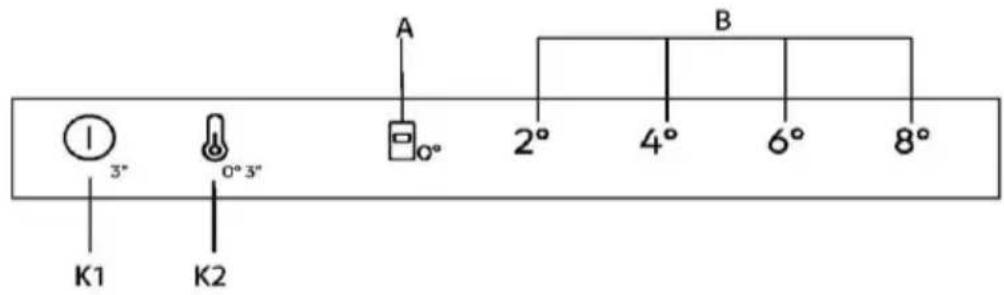

- Press the key "K2" (Fridge Temperature Selection) to select the Fridge Temperature;
- Indicator "B" (Fridge temperature display) will be bright alternately as below;
2° → 4° → 6° → 8°
- After about 3s, the setting will be confirmed.
- When selecting the Fridge temperature from the Display panel, the corresponding temperature for Freezer is 2°(-22°) → 4°(-20°) → 6°(-18°) → 8°(-16°).
Fine Tuning
The fine tuning selection mode gives the seven possibility to set the temperatures, such as, 2°, 3°(2°4°), 4°, 5°(4°6°), 6°, 7°(6°8°), 8°.
How to use the fine tuning function:
- Press the K2 key for 8 seconds to on/off fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of currently selected cooling level bright,
- By pressing the K2 key, the fine tuning setting increases and at each pressing, indicator "B" (Fridge temperature display) will be bright alternately as below;
2° → 3°(2°4°) → 4° → 5°(4°6°) → 6° → 7°(6°8°) → 8°
"Fresh 0°C" drawer
To enter "Fresh 0°C" mode, with the fridge door open, press K2 for 3 seconds. An acoustic signal will sound, the indicator will illuminate, and the temperature of the Fresh 0°C drawer will be near 0°C.
To exit "0°" mode, with the fridge door open, press K2 for 3 seconds. An acoustic signal will sound, the "0°" indicator will turn off, and the temperature of the "0°" drawer will change according to the refrigerator temperature.
NOTICE
- When the appliance enters Fine Tuning mode, the indicator "B" (Fridge temperature display) lights up as follows: 2° and 4° light up simultaneously, and the refrigerator operates at 3°; 4° and 6° light up simultaneously, and the refrigerator operates at 5°; 6° and 8° light up simultaneously, and the refrigerator operates at 7°. When the room temperature is below 8°C and the refrigerator is in 2° mode, whether "0°" mode is opened or closed, the temperature of the Fresh 0°C drawer will be near 0°C.
Tips on storing fresh food
Storing into the refrigerator compartment
Keep your fridge temperature below 5°C.
Hot food must be cooled to room temperature before storing in the appliance.
Foods stored in the refrigerator should be washed and dried before storing.
Food to be stored should be properly sealed to avoid odor or taste alterations.
Do not store excessive quantities of food. Leave spaces between foods to allow cold air to flow around them, for better and more homogeneous cooling.
Foods eaten daily should be stored at the front of the shelf.
Leave a gap between foods and the inner walls to allow air to flow. In any case, do not store foods against the rear wall: foods could freeze against the rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.
Frozen food can be gently defrosted in the refrigerator compartment. This saves energy.
The ageing process of fruit and vegetables such as courgettes, melons, papaya, bananas, pineapples, etc. can be accelerated in the refrigerator. Therefore, it is not recommended to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.
Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See Care And Cleaning.
Different foods should be placed in different areas according to their properties.
Storage into the freezer compartment
- Keep the freezer temperature at -18°C.
- Hot food must be cooled to room temperature before storing in the freezer compartment.
- Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg. It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic. In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.
WARNING!
Acid, alkali and salt etc. could erode the internal surface of the freezer.
- Do not place the food with these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately.
- Do not exceed the food storage time recommended by the manufacturers. Only take the required amount of food out of the freezer.
- Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may be less edible.
- Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate.
- Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables: 6-12 months). While freezing fresh food, avoid bringing them in contact with already frozen food. Risk of thawing!
When storing commercially frozen foods, please follow these guidelines:
Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines! - Try to keep the length of time between purchase and storage as short as possible to preserve food quality. - Buy frozen food, which have been stored at a temperature of -18°C or below. - Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and refrozen at some point-temperature rising affects the quality of food.
Due to different models, your product may not have all of the following features. Please refer to chapter Product Description.
Multi-air-flow
The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.
Adjustable shelves

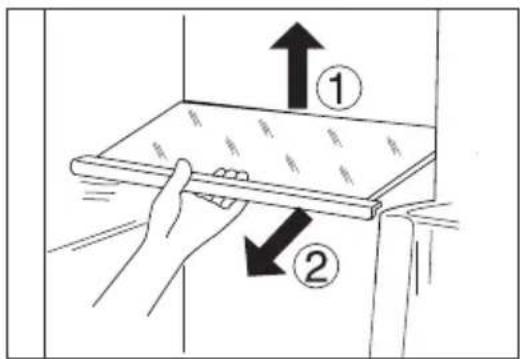

- The height of the shelves can be adjusted to fit your storage needs.

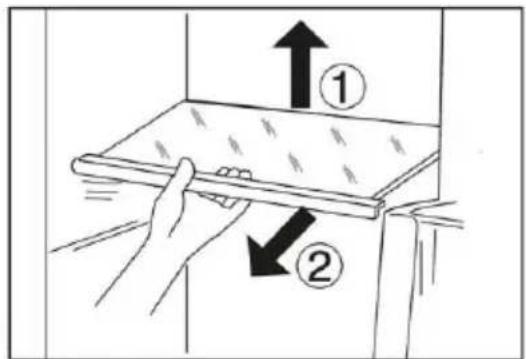

- To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
- To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides
Removable door racks/bottle holder

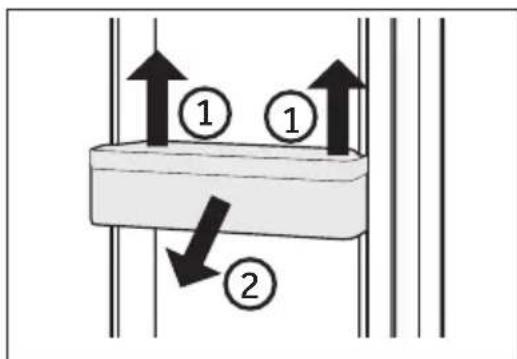

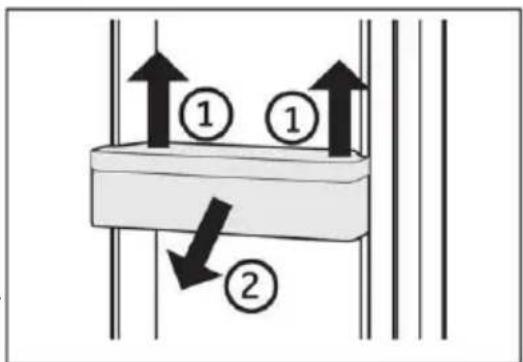

- The door racks can be removed for cleaning:
- Place hands on each side of the rack, lift it upwards (1) and pull it out (2).
- To insert the door rack, perform the above steps in reverse order.

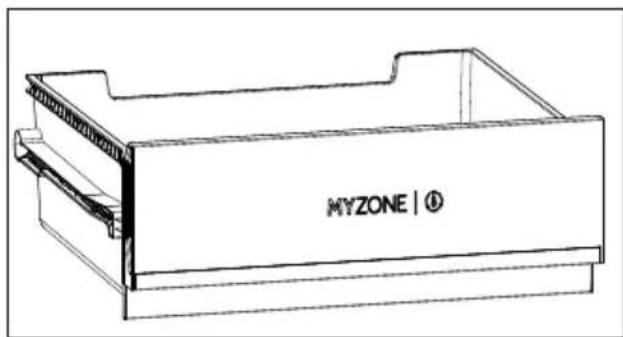

Fridge storage drawer
For using and setting the fridge storage compartment, please check the USE section.
Freezer drawer

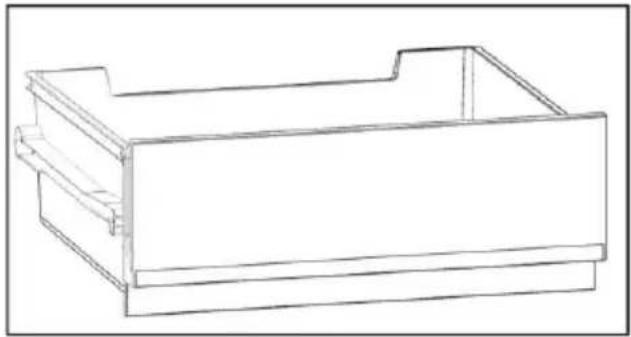

The freezer drawer can be extended straight out completely. They are mounted on easy-roll telescopic rails, so you can store and remove frozen goods comfortably. Because of the automatic door closing mechanism, handling is easy and you can save energy.
Removable drawer

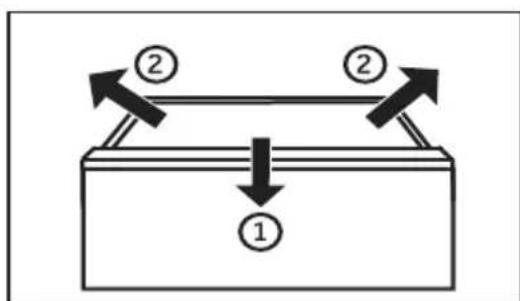

To remove the drawer, pull it out to the maximum extent (1), then lift and remove it (2).
To insert the drawer, perform the above steps in reverse order.
WARNING!
Do not overload the drawers: maximum load of each drawer is 35 kg!
The Light
The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliance's other settings.
Energy saving tips
Make sure the appliance is properly ventilated (see INSTALLATION). - Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). - Avoid unnecessarily low temperatures in the appliance. Energy consumption increases the lower the temperature is set. - Allow warm food to cool down before placing it in the appliance. - Open the appliance door as little and as briefly as possible. - Do not overfill the appliance to avoid obstructing air flow. - Avoid air within food packaging. - Keep door seals clean so that the door always closes correctly.
The most energy-saving configuration requires the drawer, food box, and shelves to be positioned in the appliance in a factory-fresh condition, and food to be placed without blocking the air outlet of the duct.
WARNING!
Disconnect the appliance from the power supply before cleaning.

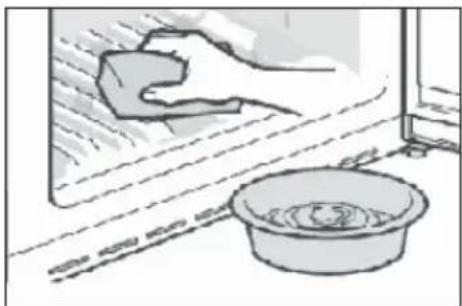

Cleaning

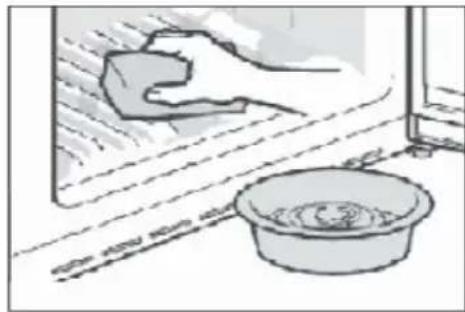

Clean the appliance when only little or no food is stored.
The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.
WARNING!
Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. - Do not spray or flush the appliance during cleaning. Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
Always keep the door gasket clean. Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent. - Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).
If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40°C for some time, then rinse with the flow water, dry and place it back into the fridge. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service
Rinse and dry with soft cloth. Do not clean any of the parts of the appliance in a dishwasher. - Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.
Defrosting
The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.
Replacing the LED-lamps
WARNING!
Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.
The lamps adopt LED as their light source, featuring low energy consumption and long service life. If there is any abnormality, please contact customer service. See CUSTOMER SERVICE.
Parameters of the lamps:
Refrigerator compartment: 12 V max 1.5 W
Non-use for a longer period
If the appliance is not used for an extended period of time:
Take out the food.
Unplug the power cord.
Clean the appliance as described above.
Keep the doors open to prevent the creation of bad odours inside.
NOTICE
Turn the appliance off only if strictly necessary.
Moving the appliance
- Remove all food and unplug the appliance.
- Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

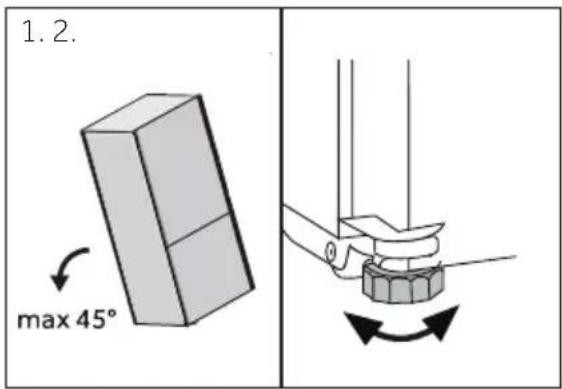

- Do not tilt the refrigerator more than 45 degrees to avoid damaging the refrigerating system.
WARNING!
Do not lift the appliance by its handles. Never place the appliance horizontally on the ground.
Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.
WARNING!
Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. - Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
| Problem Possible Cause | Possible Solution | |
| The compressor does not work. | •Mains plug is not connect-ed in the mains socket.
•The appliance is in the defrosting cycle | •Connect the mains plug.
•This is normal for an automatic defrosting |
| The appliance runs frequently or runs for a too long period of time. | •The indoor or outdoor temperature is too high.
•The appliance has been off power for a period of time.
•A door of the appliance is not tightly closed.
•The door has been opened too frequently or for too long.
•The temperature setting for the freezer compartment is too low.
•The door gasket is dirty, worn, cracked or mismatched.
•The required air circulation is not guaranteed. | •In this case, it is normal for the appliance to run longer.
•Normally, it takes 8 to 12 hours for the appliance to cool down completely.
•Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.
•Do not open the door/drawer too frequently.
•Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.
•Clean the door/drawer gasket or replace them by the customer service.
•Ensure adequate ventilation. |
| The inside of the refrigerator is dirty and/or smells. | •The inside of the refrigerator needs cleaning.
•Food of strong odour is stored in the refrigerator. | •Clean the inside of the refriger-erator.
•Wrap the food thoroughly.. |
| It is not cold enough inside the appliance. | ·The temperature is set too high.
·Too warm goods has been stored.
·Too much food has been stored at one time.
·The goods are too close to each other.
·A door/drawer of the appliance is not tightly closed.
·The door/drawer has been opened too frequently or for too long. | ·Reset the temperature.
·Always cool down goods be-fore storing them.
·Always store small quantities of food.
·Leave a gap between several foods allowing air flowing.
·Close the door/drawer.
·Do not open the door/drawer too frequently. |
| It is too cold inside the appliance. | ·The temperature is set too low. | ·Reset the temperature. |
| Moisture formation on the inside of the refrigerator compartment. | ·The climate is too warm and too damp.
·A door/drawer of the appliance is not tightly closed.
·The door/drawer has been opened too frequently or for too long.
·Food containers or liquids are left open. | ·Increase the temperature.
·Close the door/drawer.
·Do not open the door/drawer too frequently.
·Let hot foods cool to room temperature and cover foods and liquids. |
| Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer. | ·The climate is too warm and too damp.
·The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates. | ·This is normal in damp climate and will change when the humidity decreases.
·Ensure that he door/drawer is tightly shut. |
| Strong ice and frost in the freezer compartment. | ·The goods were not adequately packaged.
·A door/drawer of the appliance is not tightly closed.
·The door/drawer has been opened too frequently or for too long.
·The door/drawer gasket is dirty, worn, cracked or mismatched.
·Something on the inside prevents the door/drawer to close properly. | ·Always pack the goods well.
·Close the door/drawer.
·Do not open the door/drawer too frequently.
·Clean the door/drawer gasket or replace them by new ones.
·Reposition the shelves, door racks, or internal containers to allow the door/drawer to close. |
| The sides of the cabinet and door strip get warm. | ·--This is normal. | |
| The appliance makes abnormal sounds. | ·The appliance is not located on level ground.
·The appliance touches some object around it. | ·Adjust the feet to level the appliance.
·Remove objects around the appliance. |
| A slight sound is to be heard similar to that of flowing water. | ·--This is normal. | |
| You will hear an alarm beep. | ·The fridge storage compartment door is open. | ·Close the door. |
| You will hear a faint hum. | ·The anti-condensation system is working | ·This prevents condensation and is normal |
| The interior lighting or cooling system does not work. | •Mains plug is not connect- ed in the mains socket.
•The power supply is not intact.
•The LED-lamp is out of order. | •Connect the mains plug.
•Check the electrical supply to the room. Call the local elec- tricity company!
•Please call the service for changing the lamp. |
| | |
To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/
Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.
Power interruption
In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:
- Open the door/drawer as few times as possible.
Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment. An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.
Memory function during power interruption
After restoration of power the appliance continues with the settings that were set before the power failure.
Unpacking
WARNING!
The appliance is heavy. Always handle with at least two persons. Keep all packaging materials out of children's reach and dispose of them in an environmentally friendly manner. Take the appliance out of the packaging. Remove all packaging materials.
Environmental conditions
The room temperature should always be between 10°C and 38°C for this refrigerator, such as CNCQ2T620E, CNCQ2T618E, ECN2CQTE 186, ECN2CQTE 206, ( = colour code: B, X, W), or the room temperature should always be between 10°C and 43°C for this refrigerator, for example, CNCQ2T620D, CNCQ2T618C, CNCQ2T620A, CNCQ2T618A*, CNCQ2T618EXMA, CNCQ2T618EBMA, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

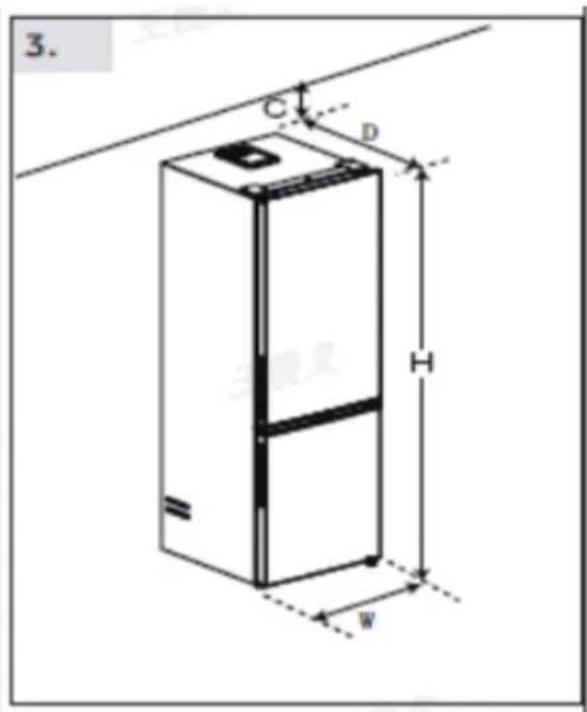

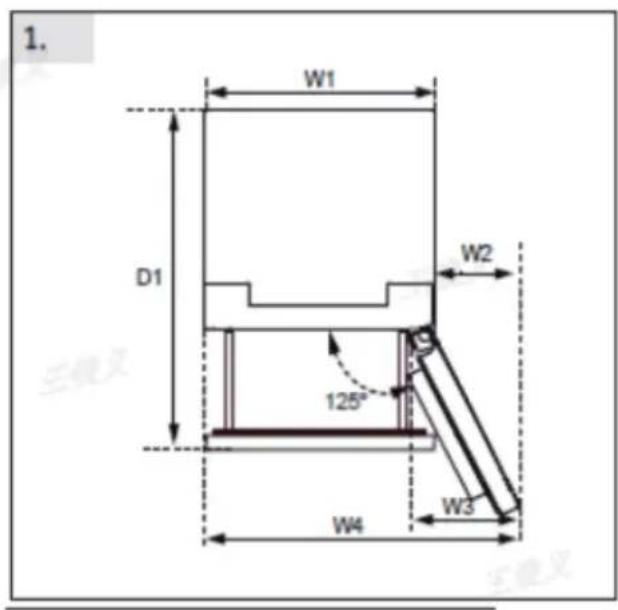

Recommended space when door is opened (Fig. 1.2.)
| (Unit: mm) | Dimension | Model#1 | Model#2 |
| Width | W1:595 | *186 | *206 |
| W2:323 | *3618* | *3620* |
| W3:383 | *5618* | *5620* |
| W4:918 | *1618* | *7620* |
| W5:3 | | *1620* |
| W:595 | | |
| Depth | D1:996 | | |
| D2:1220 | | |
| D:667 | | |
| Distance to back wall | A:50 | | |
| Distance to lateral walls | B:50 | | |
| Distance to ceiling | C:100 | | |
| Overall Height | H:1850/2050 | H:1850 | H:2050 |
WARNING!
When the refrigerator can be used normally, a minimum installation gap of 50 mm is required to ensure the refrigeration efficiency of the refrigerator. The obstruction around the refrigerator will increase its power consumption.
Aligning the appliance
The appliance should be placed on a flat and solid surface.
- Tilt the refrigerator slightly backwards.
- Set the feet to the desired level.
Make sure the distance to the wall on the hinge side is at least 100 mm for the door to open properly.
- The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.
NOTICE
For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

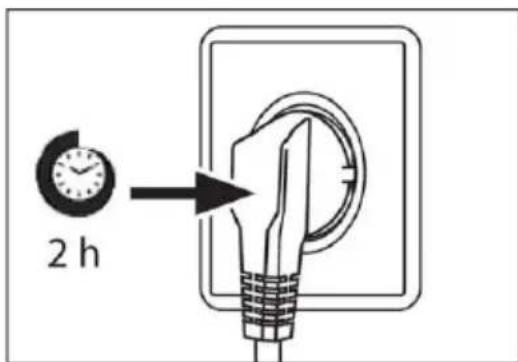

Waiting time
The maintenance-free lubrication oil is located in the compressor capsule. This oil can move through the closed pipe system during tilted transport. Before connecting the appliance to the power supply, wait at least 2 hours so that the oil runs back into the capsule.
Electrical connection
Before each connection, check if:
• The power supply, socket, and fusing are appropriate for the rating plate. The power socket is earthed and no multi-plug or extension is used. The power plug and socket are strictly according to regulations.
Connect the plug to a properly installed household socket.
WARNING!
To avoid risks, a damaged power cord must be replaced by the customer service (see warranty card).
Door Reversibility
Before connecting the appliance to the power supply, check whether the door swing must be changed from right (as delivered) to left, if required by the installation location and usability.
WARNING!
The appliance is heavy. Two persons are needed to carry out the door reversibility. Before any operation, first unplug the appliance from the mains. Do not tilt the appliance more than 45°C to prevent damage to the refrigeration system.
Assembly steps

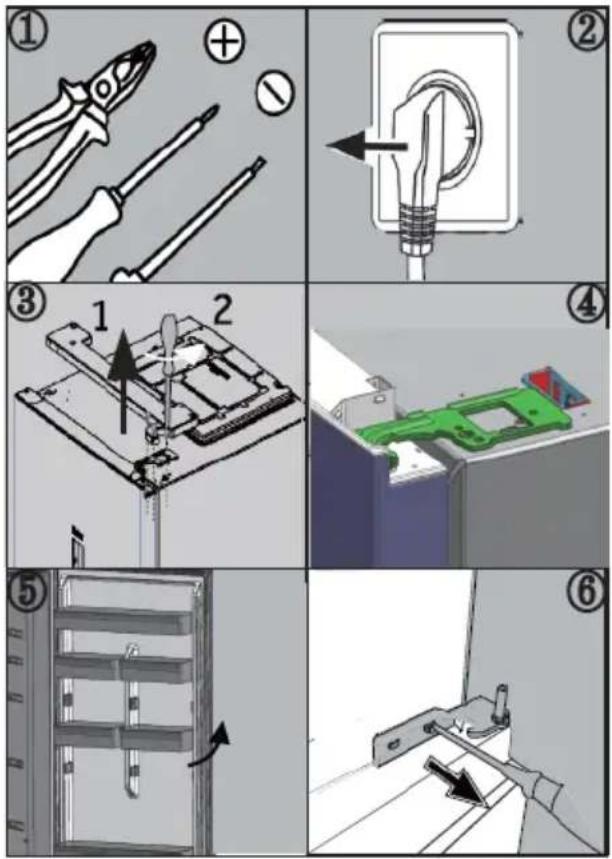

- Provide necessary tools.
- Unplug the appliance.
- Remove the upper hinge cover 1 and unscrew the upper hinge (three screws) on the right side 2.
- Remove the upper hinge.
- Lift the loose refrigerator door carefully off the middle hinge.
- Remove the middle hinge.

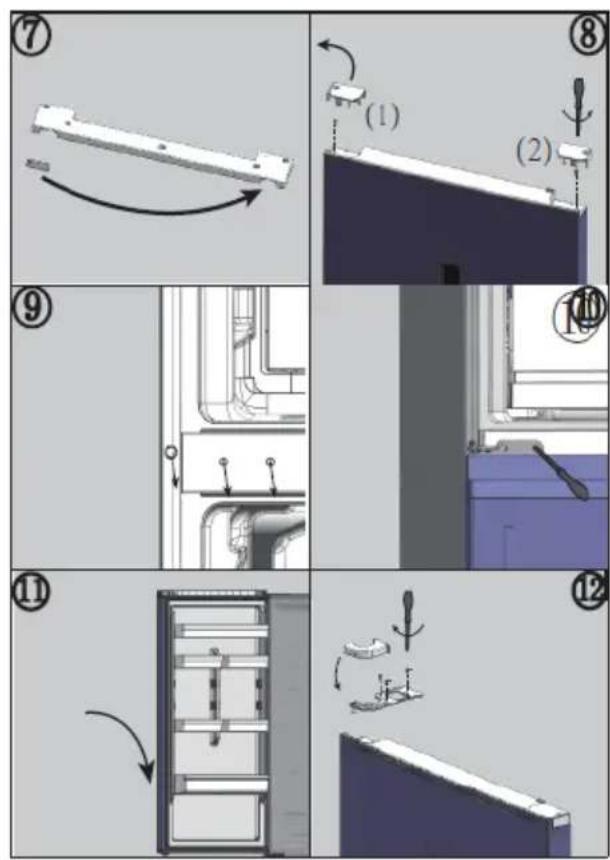

- Remove the small cover of the front panel from left to right side.
- Turn the door upside down and unscrew the cover (1). Take out the new cover (2) from the necessary bag and screw them to opposite side.
- Change the positions of the blanking plugs and the screw on the side.
- Screw the middle hinge to the left side of the appliance. Pay attention to inverting the pivot of the middle hinge, ensuring that the side with the gasket is facing upwards.
- Lift the upper door carefully on the middle hinge. And be sure the pivot fits into the hinge barrel of the lower door.
- Take out the new upper hinge and hinge cover from the accessory bag. Put the connection cable through the upper hinge and fix the upper hinge with three screws on left side of appliance. And then put the hinge cover over the hinge.
- Replace front panel and fix it with five screws.
After the change of the door, check if the door seals are located properly on the housing and all screws are tightened well.
Ambient temperatures
Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C.
Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C ;
Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C ;
Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C .
Product parameters according to regulation (EU)2019/2016
Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
| Model | CNCQ2T620EB
CNCQ2T620EW
CNCQ2T620EX
ECN2CQTEX206
ECN2CQTEB206
ECN2CQTEW206 | CNCQ2T620DW
CNCQ2T620DX | CNCQ2T618EW
CNCQ2T618EX
CNCQ2T618EB
CNCQ2T618EC
ECN2CQTEX186
ECN2CQTEB186
ECN2CQTEW186 | CNCQ2T620CB |
| Type of refrigerating appliance | Refrigerator-freezer | Refrigerator-freezer | Refrigerator-freezer | Refrigerator-freezer |
| Energy efficiency class | E D E C | | | |
| Annual energy consumption (kWh/annum) | 279 223 27 | 0 178 | | |
| Volume Refrigerator compartment(L) | 289 289 23 | 5 289 | | |
| Volume Freezer compartment(L) | 120 120 12 | 0 120 | | |
| Freezing Class | 4-star 4-star | 4-star 4-star | 4-star 4-star | |
| Defrosting type | Auto-defrost Auto-defrost Auto | Auto-defrost Auto-defrost |
| Temperature rise time(h) | 11 11 11 13 | | |
| Freezing capacity(kg/24h) | 6 6 6 6 | | | |
| Climate class | SN.N.ST SN.N.N.ST SN.N.ST.SN.N.ST.T | |
| Noise emission class and airborne acoustical noise emissions (dB(A) re 1 pW) | C(38) | B(35) | C(38) | B(35) |
Product parameters according to regulation (EU)2019/2016
Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
| Model | CNCQ2T620AX | CNCQ2T618CX
CNCQ2T618CW | CNCQ2T618AX
CNCQ2T618AW | CNCQ2T618EXMA
CNCQ2T618EBMA |
| Type of refrigerating appliance | Refrigerator-freezer | Refrigerator-freezer | Refrigerator-freezer | Refrigerator-freezer |
| Energy efficiency class | A CA | | | A+ |
| Annual energy consumption (kWh/annum) | 114 | 172 110 | | 290 |
| Volume Refrigerator compartment(L) | 289 | 235 235 | | 234 |
| Volume Freezer compartment(L) | 120 120 120 | | | 96 |
| Freezing Class | 4-star 4-star | 4-star | | 4-star |
| Defrosting type | Auto-defrost Auto-defrost Auto-defrost | Auto-defrost |
| Temperature rise time(h) | 16 13 16 | | | 13 |
| Freezing capacity(kg/24h) | 7 6 7 | | | 6 |
| Climate class | SN.N.ST.T | SN.N.ST.T | SN.N.ST.T | SN.N.ST.T |
| Note: Adopting standards | EN 62552-1:2020 EN 62552-3:2020 | EN 62552:2013 |
Product parameters according to regulation (EU)2019/2016
Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
| Model | CNCQ2T618DW
CNCQ2T618DX |
| Type of refrigerating appliance | Refrigerator-freezer |
| Energy efficiency class | D |
| Annual energy consumption (kWh/annum) | 216 |
| Volume Refrigerator compartment(L) | 235 |
| Volume Freezer compartment(L) | 120 |
| Freezing Class | 4-star |
| Defrosting type | Auto-defrost |
| Temperature rise time(h) | 13 |
| Freezing capacity(kg/24h) | 6 |
| Climate class | SN.N.ST.T |
| Noise emission class and airborne acoustical noise emissions (dB(A) re 1 pW) | B(35) |
Explanations:
(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C
Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C
Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C
Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C
Additional technical data
| Model | CNCQ2T620EB
CNCQ2T620EW
CNCQ2T620EX
ECN2CQTEX206
ECN2CQTEB206
ECN2CQTEW206 | CNCQ2T620DW
CNCQ2T620DX | CNCQ2T618CW
CNCQ2T618CX | CNCQ2T618EW
CNCQ2T618EX
CNCQ2T618EB
CNCQ2T618EC
ECN2CQTEX186
ECN2CQTEB186
ECN2CQTEW186 |
| Total volume(L) | 409 409 355 | | | 330 |
| Voltage/Frequency | 220~240V/
50Hz | 220~240V/
50Hz | 220~240V/
50Hz | 220~240V/
50Hz |
| Rated current(A) | 0.9 1.4 1.4 | | | 0.9 |
| Main fuse(A) | 15 15 16 | | | 15 |
| Note:
Adopting standards | EN 62552-1:2020 EN 62552-3:2020EN 62 |
| Model | CNCQ2T620AX | CNCQ2T618AX
CNCQ2T618AW | CNCQ2T620CB | CNCQ2T618EXMA
CNCQ2T618EBMA |
| Total volume(L) | 409 355 | 409 330 | | |
| Voltage/Frequency | 220~240V/50Hz | 220~240V/50Hz 220~240V/50Hz 220~240V/50Hz |
| Rated current(A) | 1.4 1.4 1.4 | 0.9 | | |
| Main fuse(A) | 16 16 | 16 | 16 | |
| Note:
Adopting standards | EN 62552-1:2020; EN 62552-2:2020;
EN 62552-3:2020 | EN 62552:2013 |
| Model | CNCQ2T618DW
CNCQ2T618DX |
| Total volume(L) | 355 |
| Voltage/Frequency | 220~240V/50Hz |
| Rated current(A) | 1.4 |
| Main fuse(A) | 16 |
| Note:
Adopting standards | EN 62552-1:2020;
EN 62552-2:2020;
EN 62552-3:2020 |
We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLESHOOTING.
If you cannot find a solution there, please contact
your local dealer or our European Call Service-Center (see listed phone numbers below) or ▶ the Service & Support area at www.haier.com where you can activate the service claim and also find FAQs.
To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.
Model
Serial No.
Also check the Warranty Card supplied with the product in case of warranty.
| European Call Service-Center |
| Country* | Phone number Costs |
| Haier Italy (IT) | 199 100 912 | |
| Haier Spain (ES) 902 509 123 | | |
| Haier Germany (DE) 0180 5 39 39 99 | • 14 Ct/Min Landline
• max 42 Ct/Min Mobile |
| Haier Austria (AT) 0820 001 205 | • 14,53 Ct/Min Landline
• max 20 Ct/Min all others |
| Haier United Kingdom (UK) | 0333 003 8122 | |
| Haier France (FR) | 0980 406 409 | |
- For other countries please refer to www.haier.com
Haier Europe Trading S.r.l
Branch UK
Westgate House, Westgate, Ealing
London, W5 1YY
*Duration of the guarantee of the refrigerating appliance:
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
*The period of spare parts for the repair of the appliance:
Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.
*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.
Westgate House, Westgate, Ealing
London, W5 1YY
Fresh 0°C drawer
WARNING!
Westgate House, Westgate, Ealing
London, W5 1YY
B: Freezer compartment
Westgate House, Westgate, Ealing
London, W5 1YY
Westgate House, Westgate, Ealing
London, W5 1YY
"Fresh 0°C " -lade
Westgate House, Westgate, Ealing
gaveta "Fresh 0°C
Substituir as lampadas LED
AVISO!
Westgate House, Westgate, Ealing
London, W5 1YY
"Fresh 0°C sahtel
"Fresh 0°C " stalcius
Noredami jjungti „Fresh 0°C rezima, kai saldytuvo durys atidarytos, paspauskite K2 ir palaiky kite 3 sekundes, kol pasigirs garsinis signalas, užsidegs indicatorius „", "o" „Fresh 0°C temperatura bus artima 0°C .
Westgate House, Westgate, Ealing
London, W5 1YY
∴ m = 3/11
CNCQ2T620AX
CNCQ2T620EX
CNCQ2T620CB
CNCQ2T620EW
CNCQ2T620DX
CNCQ2T620DW
CNCQ2T620EB
ECN2CQTEX206
ECN2CQTEW206
ECN2CQTEB206
A: Refrigerator compartment
1- Display panel 2- Glass shelf 3- Glass shelf 4- Glass shelf 5- Drawer cover 6- Humidity zone drawer 7- Drawer cover 8- Fresh storage drawer 0°C 9- Door bin
B: Freezer compartment
10- Upper freezer drawer 11- Middle freezer drawer 12- Lower freezer drawer
NOTICE
Westgate House, Westgate, Ealing
London, W5 1YY
*Duration of the refrigerator warranty:
A: Refrigerator compartment
1- Display panel 2- Glass shelf 3- Glass shelf 4- Glass shelf 5- Crisper drawer 6- 0°C Fresh drawer 7- Door shelves
B: Freezer compartment
Westgate House, Westgate, Ealing
London, W5 1YY
CNCQ2T620EW CNCQ2T620EX
CNCQ2T620EX, CNCQ2T620EW, CNCQ2T618EX, CNCQ4T618EW, CNCQ4T618EB, ECN2CQTEX186, ECN2CQTEB186, ECN2CQTEW186, ECN2CQTEX206, ECN2CQTEB206, ECN2CQTEX206
CNCQ2T620DW, CNCQ2T620DX, CNCQ2T620D*, CNCQ2T620A*, CNCQ2T618EXMA, CNCQ2T618EBMA
CNCQ2T618A, CNCQ2T618C
12
J 1
jgllll lolall j5x. (1) 1j000000000000000000000000000000000000000000
J 1
14wX.8.SJl 2jll lll coo ool ool
iilllll llll piaa aol, jaiil aalrjz jz jz jz jz jz jz jz jz jz jz jz
cbally gailg yss
J 7 1
bcll l 1
1ploal 1j
∴ a 1 = 2,a n + 1 = n1 + a n
a/b/c/ll/ajl
aIgol 1j
J 5
bcll l j 1
Humidity Area 6-6
Therefore, the area of triangle OBC equals the area of triangle ABC plus the area of triangle BOC.
CNCQ2T618EW
CNCQ2T618EB
CNCQ2T618EX
CNCQ2T618EC
ECN2CQTEX186
ECN2CQTEW186
ECN2CQTEB186
CNCQ2T618EXMA
CNCQ2T618EBMA
CNCQ2T618CW
CNCQ2T618CX
CNCQ2T618AW
CNCQ2T618AX
CNCQ2T618DW
CNCQ2T618DX
A
-1
( x) = ( ax + 1) x + b
( x,y) = ( ab,5/2a) - 3
( x,y) = ( ab,5/2aright)
2x 个以 lbc - 5
Fresh 0 ° C2 - 6 °
-7
B
8
bωgX|jzjz-9
10
J 0g
11
J1 J2
≥ 2µ > 0 k > 0
J/1J2000, J/1J2000 1oofresh 0°C
Fresh 09C a,b,
B a
JgJpds
.aaclj wlog aoboy
"uill"
pabll Jcag aIle cIaIscIg qsswJkWbIjX
aJlJpJr
jocJUJgEooaogsl/JsEo
aalblll aaii jia
"0" 8o g (a) Ll oar a daww) B" no "4" wgo yos. JgJg JI I J. .20-9 aagio oob 4 15 4
[{b} {2}^{2} + 1 = {a} {1}^{2} + {a}_{2}^{2}]
jglg,cbbiill ggswog,daLall wrlg,daLall wrell pIxswy jlgjcbi
pIaaiy buii I yagolg aaoal Jllall g alalal agoal Jllalg oogw81g,
auii iil aie g jgl
j1i jai i 1111111111
jlywsl jl lll oarla a > dr sds y. n - wll clll oar lal a b jll abi ci
∴ 2b + 1( 2b) - 2b( 2b) = 0
aaii joiogoo
aolly aoo a xiaowl pdswuy gulg 1s c b
ggo 1234567890
gllg aagjll g, ujj g, uuuu
aolllg aogaoo apio oolowlog
Therefore, S2 > [10 0 0]2 > 10
Westgate House, Westgate, Ealing
London, W5 1YY
https://eprel.ec.europe.eu /logl
Westgate House, Westgate, Ealing
London, W5 1YY
The legal warranty is 2 years for EU countries, 3 years for Turkey, 1 year for the United Kingdom, 1 year for Russia, 3 years for Switzerland, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, and for Tunisia no legal warranty is required.
* Pepio6oC 1a0eoc aVtAAkTuWv yla EtnOKeu nTnc OouKeu nC:
6-YeKMeJxKe Fresh 0°C
7-PaΦTHaBpaTaTa
8-TopHoYeKMeJxKe3a cbxpaHHeHnHaΦpN3epa
9-CpeiNo ueKMeJxKe 3a cbXpaHHeHnHa pni3ep
10-Долно уекMedже 3a cbхpaHeHne Ha φриЗepa
PanaelHaDnCnIeA
Бутон
K1 ByToH „On/Off" 3a BkIIOUBaHe/ɪЗкIIOUBaHe Ha ypeDa. K2 Ⅰ36opHaTeMnepaTpa/ΦiHaHacTpOiKa ByToH „On/Off" 3a BkIIOUBaHe/ɪ3KlIOUBaHe Ha Fresh 0°C
Poka3aTeJIi
A ΦyHKUaR Fresh 0°C B DnCnIe 3a TempepaTpaHa XlaAnHnKa
Ppei nbpBOHaJHa ynoTpe6a
OTCTpaHeTe BCnKo ONaKOBbHm MaTePnaJI,dpBXTe rN daJeU OT deca,INrN3XBbPJIeTe IIO PPINOOCbO6pa3eH HaunH. IOnuHCTeUpeaOTBbTpE N OTBbH, KaKTo N BbTpEshOCTTa n akcecoapnte, C BoJa N MEK IOuHCTBaU IIpeNaT IIOcVUte Do6pe C MeKa Kbpna. CleI KaTo UpeBTe HnBeJIpaH N NoUcTeH, MoJ, n3aKaIte NoHe 2 Yaca, PdeN da TcBbPKeTe KbM 3axPaHBaHeTo. BxTe pa3JeI .MOHTIPAHE" Ipei Da 3apeinte c xpaHa, IpeBapntelHo oxlaTe OEte Hnra Ta npn BnCOKn HaCTPOKn.
MexaHnUHn 6yToHn
BytoHnTe Ha nHeJa Ha dncnJe ca MexaHnUHN.
Switching on/off the appliance
Before loading food for work, the appliance was connected to the power supply. When the refrigerator is switched on for the first time, the indicator for the refrigerator temperature and the indicator for the Fresh 0°C compartment light up. The refrigerator and freezer temperatures are set automatically to 4°C and -20°C when Fresh 0°C is activated.
NOTE
These are the recommended temperature settings of 4°C. These are the recommended settings. You can change these temperatures as desired.
Door open alarm
When the refrigerator door is left open for more than 3 minutes, the audible door open alarm will sound.
The alarm stops when the door is closed. If the door is left open for more than 7 minutes, the lamp inside the refrigerator and the display lighting will switch off automatically.
Switching on/off
When you switch on the appliance, press button K1 for 3 seconds, the appliance enters standby mode, the compressor stops working and the lamp goes out; when the appliance is in standby mode, press button K1 for 3 seconds, the appliance switches on, the compressor will work and the lamp will light.
Temperature regulation
The temperature settings are affected by the following factors:
Ambient temperature
Frequency of door opening
Amount of stored food
Appliance installation
Set the temperature of the refrigerator/freezer compartment.
- Press the button "K2" (selection of refrigerator temperature) to select the refrigerator temperature; 2. The indicator "B" (refrigerator temperature display) lights up sequentially, as shown below;
2 ^ ° → 4 ^ ° → 6 ^ ° → 8 ^ °
- After 3 seconds the setting will be confirmed.
- When you select the refrigerator temperature from the panel display, the corresponding freezer temperature is 2°(-22°) → 4°(-20°) → 6°(-18°) → 8°(-16°) .
Fine adjustment
The fine adjustment mode allows you to set the temperature, such as 2° 3°(2°4°) 4° 5°(4°6°) 6° 7°(6°8°) 8° .
How to use the fine adjustment function:
1. Press button K2 for 8 seconds to enable/disable the fine adjustment mode. When the device enters the mode, an audible signal will be emitted and the LED light of the currently selected cooling level will light up. 2. After pressing button K2, the fine adjustment increases with each press, and the indicator "B" (refrigerator temperature display) will light up sequentially, as shown below:
2 ^ ° → 3 ^ ° (2 ^ ° 4 ^ °) → 4 ^ ° → 5 ^ ° (4 ^ ° 6 ^ °) → 6 ^ ° → 7 ^ ° (6 ^ ° 8 ^ °) ^ ° → 8 ^ °
Fresh 0°C compartment
To enter Fresh 0°C mode, with the refrigerator door open, press K2 for 3 seconds. After an audible signal, the indicator 0 lights up, and the temperature of the Fresh 0°C compartment will be about 0°C.
To exit Fresh 0°C mode, with the refrigerator door open, press K2 for 3 seconds. After an audible signal, the indicator 巧 will turn off; the temperature of the Fresh 0°C compartment will change together with the cooling temperature.
NOTE
1. When you enter the fine adjustment mode, the indicator "B" (refrigerator temperature display) 2°4° lights up simultaneously, the refrigerator temperature operates at 3°; 4° and 6° light up simultaneously, the refrigerator temperature operates at 5°; 6° and 8° light up simultaneously, the refrigerator temperature operates at 7° ; 2. When the ambient temperature is below 8°C and the cooling is in mode 2°, regardless of whether the mode is activated or not, the temperature of the Fresh 0°C compartment is about 0°C.
To preserve the freshness of food
Storage in the refrigerator compartment
The temperature in the refrigerator should be set to no more than 5°C
Perishable food must be brought to room temperature before being stored in the refrigerator.
Food stored in the refrigerator should be taken out and consumed promptly.
Food to be stored must be properly sealed to prevent odor transfer or taste changes.
Do not store excessive amounts of food. Leave space between items so that cold air can circulate around them, ensuring more even cooling.
Food consumed daily should be stored in the front part of the shelf.
Leave space between food items and the interior walls to allow air circulation. In any case, avoid placing food against the back wall, as it may freeze.
Avoid direct contact of food (especially fatty or acidic food) with the interior lining, as it may be damaged by fats or acids. When opening fatty/acidic meat, clean the shelf.
Frozen food can be slowly thawed in the refrigerator compartment. This saves energy.
The ripening process of fruits and vegetables such as tomatoes, peppers, pears, bananas, pineapples, etc., can be accelerated in the refrigerator. Therefore, it is not recommended to store them in the refrigerator. The ripening of many green fruits can be stimulated for a certain period. Onions, garlic, ginger, and other root vegetables and greens should be stored at room temperature.
Unpleasant odors in the refrigerator indicate that it is dirty and needs cleaning. See "Cleaning".
Different foods should be placed in different zones according to their properties.
Storage in the freezer compartment
- Set the freezer temperature to -18°C.
- The food must be cooled to room temperature before being stored in the freezer compartment.
Food placed in small portions freezes faster and is easier to thaw and cook. The recommended amount for each package is up to 2.5 kg.
It is best for food to be packaged before placing it in the freezer. The outside of the packaging must be dry to prevent the bags from sticking together. Packaging materials must be odorless, hermetically sealed, and free of toxic substances. To avoid shortening the storage times, please pay attention to the freezing date, the expiration date, and the name of the food on the packaging, according to the storage times for different foods.
WARNING!
Acids, alkalis, and similar substances may damage the interior surface of the freezer.
Do not place food with hot substances (e.g., hot dishes) directly on the interior surface. Salt water in the freezer must be cleaned immediately. Do not exceed the storage time for foods recommended by the manufacturer. Remove only the necessary amount of food from the freezer. - Consume thawed foods quickly. Thawed food cannot be refrozen unless it has been cooked; otherwise, its quality will deteriorate. Do not overload the freezer compartment with excessive amounts of fresh food. Check the freezing capacity of the freezer - see the technical data or the rating plate. Food can be stored in the freezer at temperatures down to -18°C for a period of 2 to 12 months depending on the characteristics (e.g., meat: 3-12 months, vegetables: 6-12 months). When freezing fresh food, avoid placing it next to already frozen food. Risk of thawing!
When storing commercially frozen products, follow these instructions:
Always follow the manufacturer's instructions for the maximum storage time of food. Do not neglect these instructions! - Try to store the food immediately after purchase and for as short a time as possible to preserve its quality. - Do not buy frozen foods that have been stored at temperatures above -18°C or at higher temperatures. - Avoid buying food that has ice or frost on the packaging - this indicates that the product may have been partially thawed and refrozen. An increase in temperature affects the quality of the food.
NOTE
Depending on the model, your product may not have all of the following functions. Please refer to the "Product Description" section.
Multi Air Flow
The appliance is equipped with a multi-airflow system that allows cold air streams to flow through every shelf. This helps maintain a constant temperature, so that food stays fresh longer.
- The height of the shelves can be adjusted according to your needs for storage.

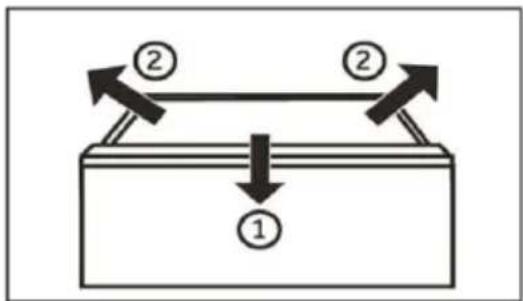

- To remove the shelf, first pull it out by lifting the front part ① and then pulling it towards you ②.
- To put it back, align the guides on both sides and push it to the rearmost position until the rear part of the shelf locks into the side openings.
Door shelves / Bottle holders
- The door shelves can be removed for cleaning:
- Hold the shelf with both hands, lift it upwards (1) and pull it out (2).
- To install the shelf on the door, follow the above steps in reverse order.
Instructions for storage and refrigerator
For use and adjustment of the storage compartment in the refrigerator, please refer to the section "Use".
Refrigerator defrosting
The refrigerator defrosting can be performed automatically. It is mounted on the rear wall of the refrigerator compartment. This way, you can conveniently store and remove products for freezing. Thanks to the mechanism for automatic door closing, the door closes easily and saves energy.
To install the refrigerator, pull it as far back as possible ①, then push it in ②.
To put the refrigerator back, follow the steps in reverse order.
WARNING!
Do not overload the refrigerator: maximum load on each shelf: 35 kg!
Lighting
The device must be placed on a flat and stable surface.
- Tilt the refrigerator slightly.
- Adjust the feet to the desired height. Make sure the distance to the wall from the sides of the appliance is more than 100 mm, so that the doors can open freely.
- Stability must be checked by sequentially pressing on the corners. In both directions, the appliance should tilt equally easily. Otherwise, the frame may warp, and as a result, the door seals may not fit tightly. The tilt adjustment is important for the door closing.
NOTE
For free-standing use: This refrigerator is not intended for built-in installation.
Time delay
The lubricating oil, which does not require topping up, is filled in the compressor capsule. This oil may be distributed through the refrigerant system if the device is transported in a tilted position. Before switching on the appliance, wait at least 2 hours so that the oil can return to the capsule.
Connection to the power supply
Please check the following:
The connection, contact and plugs are suitable according to the data table. The electrical contact is grounded and includes the disconnector and surge arrester. The plug and contact are in full compliance.
Connect the appliance to a properly installed contact for household use.
WARNING!
To avoid risks, a damaged connection and cable must be replaced by the service department (see warranty card).
Reversing the door
Before connecting the appliance to the power supply, check that the direction of the door opening must be changed from left (as delivered) to right, if required by the installation location.
WARNING!
The appliance is heavy. Two people are required to reverse the door. Before any operation, disconnect the appliance from the electrical supply. Do not tilt the appliance more than 45° to prevent damage to the cooling system.
Door reversal
1. Prepare the necessary tools. 2. Disconnect the appliance from the power supply. 3. Remove the cap on the top hinge 1 and lift the top hinge (the bracket) from the right side 2. 4. Remove the top hinge. 5. Carefully lift the refrigerator door off the middle hinge. 6. Remove the middle hinge. 7. Remove the bottom hinge and the adjustable foot from the left and right. 8. Turn the door upside down and remove the cap (1). Take the new cap (2) from the accessories bag and install it on the opposite side. 9. Change the position of the door handle to the opposite side. 10. Attach the middle hinge to the left side of the appliance. Do not forget to turn the washer on the middle hinge, making sure that the side with the protrusion is facing up. 11. Carefully lift the top door onto the middle hinge and make sure that the
hinge fits into the hole of the hinge on the bottom door. 12. Take the new top hinge and the hinge cap from the accessories bag. Route the connecting cable through the top hinge and fix the top hinge with the two screws on the left side of the appliance. Place the hinge cap on the hinge. 13. Replace the adjustable foot and secure it with the screw.
After closing the door, check that the door seals are correctly positioned on the body and that all screws are well tightened.
Ambient temperature
Extended temperate climate: This cooling appliance is intended for use at ambient temperatures ranging from 10°C to 32°C.
Climate class T: This appliance is intended for use at ambient temperatures ranging from 16°C to 32°C.
Subtropical climate class: This appliance is intended for use at ambient temperatures ranging from 16°C to 38°C.
Tropical climate class: This appliance is intended for use at ambient temperatures ranging from 16°C to 43°C.
Westgate House, Westgate, Ealing
London, W5 1YY
*Warranty conditions for the appliance:
Minimum warranty: 2 years for EU countries, 3 years for Turkey, 1 year for the United Kingdom, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, and no legal warranty for Tunisia.
*Period of availability of spare parts for repairing the appliance:
Thermostats, temperature sensors, printed circuit boards and light sources are offered for a minimum period of seven years after placing the last unit of the model on the market.
Door handles, door hinges, trays and baskets are offered for a minimum period of seven years, and door gaskets for a minimum period of ten years after placing the last unit of the model on the market.
- For more information about the product, please visit https://eprel.ec.europa.eu/ or scan the QR code on the energy label supplied with the appliance.
3 Safety information 8 Intended use 9 Product description 11 Control panel 12 Operation
16 Equipment 18 Energy saving tips 19 Care and cleaning 20 Troubleshooting 25 Installation 29 Technical data 32 Customer service
Before first use 4
Installation 4
Daily use 5
Setting the refrigerator temperature 13
Setting the freezer temperature 13
| (Unit: mm) | Dimension | Model#1 | Model#2 |
| Width | W1:595 | *186 | *206 |
| W2:323 | *3618° | *3620° |
| W3:383 | *5618° | *5620° |
| W4:918 | *1618° | *7620° |
| W5:3 | | *1620° |
| W:595 | | |
| Depth | D1:996 | | |
| D2:1220 | | |
| D:667 | | |
| Distance to back wall | A:50 | | |
| Distance to lateral walls | B:50 | | |
| Distance to ceiling | C:100 | | |
| Overall Height | H:1850/2050 | H:1850 | H:2050 |
Westgate House, Westgate, Ealing
London, W5 1YY
"Fresh 0°C drawer
Westgate House, Westgate, Ealing
London, W5 1YY
* Duration of refrigerator installation:
Standard directive
A: Refrigerator compartment
B: Freezer compartment
10- Upper freezer storage drawer 11- Central freezer storage drawer 12- Lower freezer storage drawer
NOTE
A: Refrigerator compartment
B: Freezer compartment
8- Upper freezer drawer 9- Central freezer drawer 10- Lower freezer drawer
Display panel
Buttons
Westgate House, Westgate, Ealing
London, W5 1YY
"Fresh 0°C" drawers
To enter "Fresh 0°C" mode, with the refrigerator door open, press K2 for 3 seconds until an acoustic signal sounds, the "O" indicator lights up, and the temperature of Fresh 0°C will be close to 0°C.
Westgate House, Westgate, Ealing
London, W5 1YY
* Duration of the warranty for the cooling appliance:
The minimum warranty is: 2 years for EU countries, 3 years for Turkey, 1 year for the United Kingdom, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, and for Tunisia no legal warranty is required.
Westgate House, Westgate, Ealing
London, W5 1YY
- Warranty period for the cooling appliance:
The minimum warranty is: 2 years for EU countries, 3 years for Turkey, 1 year for the United Kingdom, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, and in Tunisia no legal warranty is required.
- Availability period for spare parts for repairing the appliance:
Thermostats, temperature sensors, printed circuit boards, and light sources are available for at least seven years after the last unit of the model is placed on the market.
Door handles, door hinges, trays, and baskets are available for a minimum period of seven years, and door gaskets for a minimum period of 10 years, after the last unit of the model is placed on the market.
- For additional product information, see the website https://eprel.ec.europe.eu/ or scan the QR code on the energy label supplied with the appliance.
| D D A | CNCQ2T620EB
CNCQ2T620EW
CNCQ2T620EX
ECN2CQTEX206
ECN2CQTEB206
ECN2CQTEW206 | CNCQ2T620DW
CNCQ2T620DX | CNCQ2T618EW
CNCQ2T618EX
CNCQ2T618EB
CNCQ2T618EC
ECN2CQTEX186
ECN2CQTEB186
ECN2CQTEW186 | CNCQ2T620CB |
| < AIE. ān' āeAánPéneE
aAùU° | : ∥üüü°ō
Üüjáé°É | : ∥üüü°ō
Üüjáé°É | : ∥üüü°ō
Üüjáé°É | : ∥üüü°ō
Üüjáé°É |
| NÉB" 9E - DjɔðaɪðDjɔ | EDEC | | | |
| uòDó°Éé
óE°E°ó°ö°E°v - d
óDá°é | 279 223 | 270 178 | | |
| : ∥üüüüU°DááéDEi
é°óóöäüé | 289 289 | 235 289 | | |
| WJΩ'æP'EDaɪaEDEi
é°óóöäüé | 120 120 | 120 120 | | |
| WJΩ'æOàEyDjɔ | sθθ- θθ- sθ- θθ | sθθ- θθ- | sθθ- θθ- | |
| ^ ÓE°öæAùU° | °ö°E°E°E°E
á°öö°a | °ö°E°E°E°E
á°öö°a | °ö°E°E°E°E
á°öö°a | °ö°E°E°E°E
á°öö°a |
| > I E' U°E'I'EDoA'p'z'F-ε | 11 11 11 | 13 | | |
| WJΩ'æOa'ZUa'elue'U
E' Z' D'5sII-ε | 6 6 6 6 | | | |
| AÉ' āed'Di'j | SN.N.ST SN.N | ST.T SN.N.ST S | N.N.ST T | |
| D' O'U'æO'Ö'D'z'U'æO'U
E' N'aa'j'ñ'E'ö'ó'U'ñ'O'æ'E'ö'ü'E'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ú'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'í'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'ü'á'á'ü'á'ü'á'á'ü'á'á'ü'á'á'ü'á'á'ü'á'á'á'ü'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'á'ú'ü'v | C(38) B(35) | C(38) | B(35) | |
Installation of apparatus
Set the temperature in the refrigerator/freezer compartment
"fresh 0°C " - drawer
Warranty period for the refrigerator:
The minimum warranty is: 2 years for EU countries, 3 years for Turkey, 1 year for the United Kingdom, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, and Tunisia requires no legal warranty.
*Period for spare parts for repairing the appliance:
