USER MANUAL BT350 LEXIBOOK

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook® is under license. Other trademarks and trade names are those of their respective owners. © 2015 Bluetooth SIG, Inc. BT350seriesIM1035_9Jan_V10.indb 1 09/01/2015 12:14 PM1

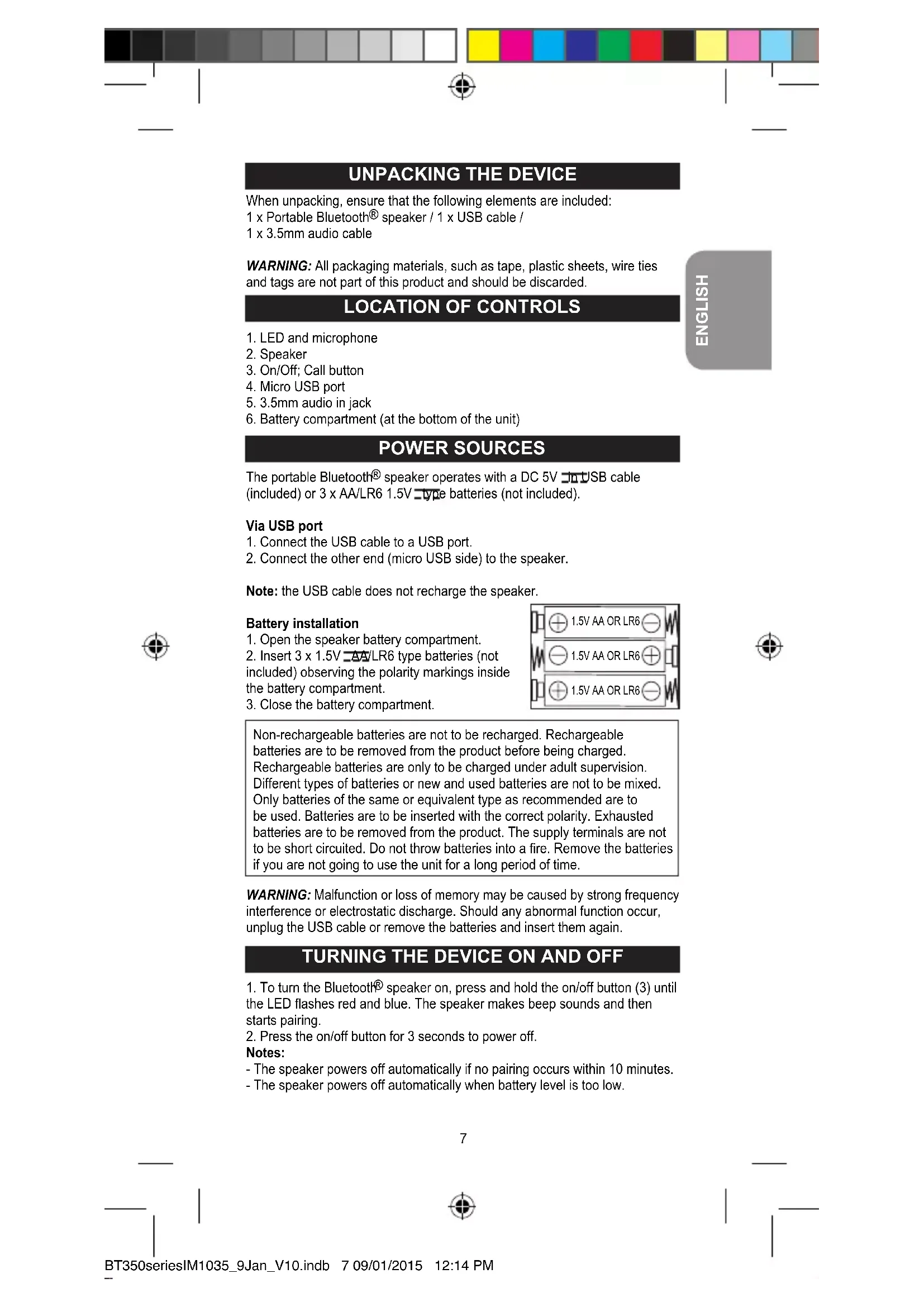

When unpacking, ensure that the following elements are included: 1 x Portable Bluetooth

WARNING: All packaging materials, such as tape, plastic sheets, wire ties

and tags are not part of this product and should be discarded.

UNPACKING THE DEVICE

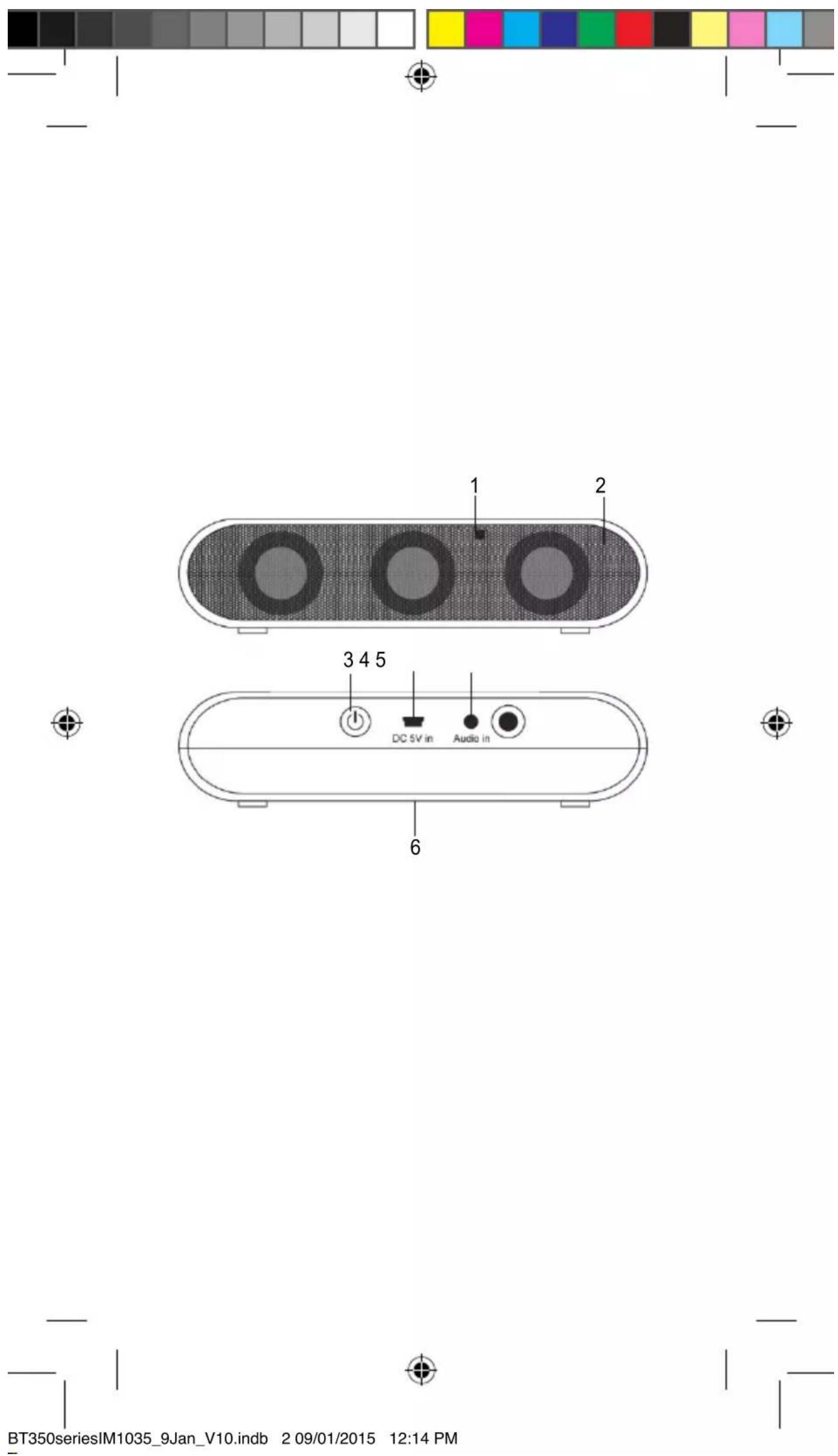

1. LED and microphone

5. 3.5mm audio in jack

6. Battery compartment (at the bottom of the unit)

speaker on, press and hold the on/off button (3) until the LED ashes red and blue. The speaker makes beep sounds and then starts pairing.

2. Press the on/off button for 3 seconds to power off.

Notes: - The speaker powers off automatically if no pairing occurs within 10 minutes. - The speaker powers off automatically when battery level is too low.

speaker operates with a DC 5V in USB cable (included) or 3 x AA/LR6 1.5V type batteries (not included). Via USB port

1. Connect the USB cable to a USB port.

2. Connect the other end (micro USB side) to the speaker.

Note: the USB cable does not recharge the speaker. Battery installation

1. Open the speaker battery compartment.

2. Insert 3 x 1.5V AA/LR6 type batteries (not

included) observing the polarity markings inside the battery compartment.

3. Close the battery compartment.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a re. Remove the batteries if you are not going to use the unit for a long period of time.

WARNING: Malfunction or loss of memory may be caused by strong frequency

We, Lexibook® S.A. 2, avenue de Scandinavie 91953 Courtaboeuf Cedex – France Declare under our sole responsibility that the following product: Kind of product: Bluetooth

Speaker Type designation: BT350series Is in compliance with the following standards: EN 60065: 2002 +A1 : 2006 +A2 : 2010 +A11 : 2008 +A12 : 2011 EN 55013: 2013 EN 55020: 2007 +A11 : 2011 EN 61000-3-2 : 2006 +A1 : 2009 +A2 : 2009 EN 61000-3-3:2013 EN 300 328 V1.8.1 EN 301 489-1 V1.9.2 EN301 489-17 V2.2.1 EN 62479 : 2010 We hereby declare that the above mentioned product is in compliance with the EMC Directive (2004/108/EC), with the Low Voltage Directive (2006/95/EC) and with the R&TTE Directive (1999/5/EC) of the European Commission. Yiu Wai Man Product Development Manager 30/01/2015 (Hong Kong) CONFORMITY DECLARATION Play/Pause Press the on/off button (3) to play or pause audio les. Notes: Some music players do not fully support Bluetooth

audio controls. Play/pause, previous and next buttons on the Bluetooth

speaker may not respond. The music player may also turn off. To get the best control experience in the said player, use the on-screen track controls of your music player rather than those on the speaker. CAUTION: Too high volume, can damage your hearing. For this reason, please turn the volume down. Speaker Phone

1. Press the call button (3) once to answer calls.

2. To reject a call, press and hold call button (3) for 2 seconds.

LED Status - The LED alternates between red and blue during searching and pairing. - The LED lights up red and blue simultaneously for 2 seconds during power on and power off. - The LED blinks twice in blue every 3 seconds when speaker is paired. - The LED blinks three times in red every 15 seconds when the battery is low. - The LED blinks once in blue every 3 seconds when devices are not paired. - The LED lights up blue when line-in is in use. Speaker (without Bluetooth

Connecting to an audio player

1. Connect the 3.5mm audio cable to your player.

2. Connect the other end of the cable to the speaker’s audio in jack (5). The

LED (1) lights up blue.

3. Click on your device’s play button to make the sounds come out of the

speaker and listen to your desired audio le.

4. You can also listen to audio les from Internet. Open your internet browser

and select an online player.

5. To turn the speaker off, unplug the cable from the speaker. The LED (1)

turns off. Connecting to a computer

1. Connect the 3.5mm audio cable to your computer.

2. Connect the other end of the cable to the speaker’s audio in jack (5). The

• Speaker 3W x 2, ø 32mm, frequency response 40Hz - 20kHz, impedance 4Ω±15%, distortion 7% max (with 1kHz 1W), bass booster x 1

• Supports BQB, A2DP/AVRCP

• Powered by 3 x AA batteries (not included) or power cable

• With 3.5mm audio in jack

• With USB input: DC 5V, 400mA

• Playing time: around 4-8 hours

• Standby current: 15mA

• Low battery indication

• Effective distance: 10m (straight line without obstacle) SPECIFICATIONS

function on your personal device (smartphone, MP3 player, etc.). Please refer to your device’s instruction manual on how to activate this function.

2. Turn the speaker on to activate the auto-detection of a nearby device. The

LED ashes blue and red during pairing. Notes: - If pairing is not automatic, please select “BT350” in the Bluetooth

list. - When turned on, the speaker automatically searches for the device it has previously synchronized with. - If no device is detected, the speaker will start pairing a new device. - If your Bluetooth

device requires a password, the default password is 0000. PAIRING

3. Open an audio player software on your computer. Click on the play button

to make the sounds come out of the speaker and listen to your desired audio le.

4. You can also listen to audio les from Internet. Open your internet browser

and select an online player.

5. To turn the speaker off, unplug the cable from the speaker. The LED (1)

turns off. BT350seriesIM1035_9Jan_V10.indb 8 09/01/2015 12:14 PM8 ENGLISH

We, Lexibook® S.A. 2, avenue de Scandinavie 91953 Courtaboeuf Cedex – France Declare under our sole responsibility that the following product: Kind of product: Bluetooth

Speaker Type designation: BT350series Is in compliance with the following standards: EN 60065: 2002 +A1 : 2006 +A2 : 2010 +A11 : 2008 +A12 : 2011 EN 55013: 2013 EN 55020: 2007 +A11 : 2011 EN 61000-3-2 : 2006 +A1 : 2009 +A2 : 2009 EN 61000-3-3:2013 EN 300 328 V1.8.1 EN 301 489-1 V1.9.2 EN301 489-17 V2.2.1 EN 62479 : 2010 We hereby declare that the above mentioned product is in compliance with the EMC Directive (2004/108/EC), with the Low Voltage Directive (2006/95/EC) and with the R&TTE Directive (1999/5/EC) of the European Commission. Yiu Wai Man Product Development Manager 30/01/2015 (Hong Kong) CONFORMITY DECLARATION Play/Pause Press the on/off button (3) to play or pause audio les. Notes: Some music players do not fully support Bluetooth

audio controls. Play/pause, previous and next buttons on the Bluetooth

speaker may not respond. The music player may also turn off. To get the best control experience in the said player, use the on-screen track controls of your music player rather than those on the speaker. CAUTION: Too high volume, can damage your hearing. For this reason, please turn the volume down. Speaker Phone

1. Press the call button (3) once to answer calls.

2. To reject a call, press and hold call button (3) for 2 seconds.

LED Status - The LED alternates between red and blue during searching and pairing. - The LED lights up red and blue simultaneously for 2 seconds during power on and power off. - The LED blinks twice in blue every 3 seconds when speaker is paired. - The LED blinks three times in red every 15 seconds when the battery is low. - The LED blinks once in blue every 3 seconds when devices are not paired. - The LED lights up blue when line-in is in use. Speaker (without Bluetooth

Connecting to an audio player

1. Connect the 3.5mm audio cable to your player.

2. Connect the other end of the cable to the speaker’s audio in jack (5). The

LED (1) lights up blue.

3. Click on your device’s play button to make the sounds come out of the

speaker and listen to your desired audio le.

4. You can also listen to audio les from Internet. Open your internet browser

and select an online player.

5. To turn the speaker off, unplug the cable from the speaker. The LED (1)

turns off. Connecting to a computer

1. Connect the 3.5mm audio cable to your computer.

2. Connect the other end of the cable to the speaker’s audio in jack (5). The

• Speaker 3W x 2, ø 32mm, frequency response 40Hz - 20kHz, impedance 4Ω±15%, distortion 7% max (with 1kHz 1W), bass booster x 1

• Supports BQB, A2DP/AVRCP

• Powered by 3 x AA batteries (not included) or power cable

• With 3.5mm audio in jack

• With USB input: DC 5V, 400mA

• Playing time: around 4-8 hours

• Standby current: 15mA

• Low battery indication

• Effective distance: 10m (straight line without obstacle) SPECIFICATIONS

function on your personal device (smartphone, MP3 player, etc.). Please refer to your device’s instruction manual on how to activate this function.

2. Turn the speaker on to activate the auto-detection of a nearby device. The

LED ashes blue and red during pairing. Notes: - If pairing is not automatic, please select “BT350” in the Bluetooth

list. - When turned on, the speaker automatically searches for the device it has previously synchronized with. - If no device is detected, the speaker will start pairing a new device. - If your Bluetooth

device requires a password, the default password is 0000. PAIRING

3. Open an audio player software on your computer. Click on the play button

to make the sounds come out of the speaker and listen to your desired audio le.

4. You can also listen to audio les from Internet. Open your internet browser

and select an online player.

5. To turn the speaker off, unplug the cable from the speaker. The LED (1)

turns off. BT350seriesIM1035_9Jan_V10.indb 9 09/01/2015 12:14 PM10 ENGLISH This product is not a toy. Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth

speaker once every 3 months in order to maintain the battery life. This product is covered by our 2-years warranty. For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modication on the colours and the details of the product shown on the packaging. NOTE: Please keep this instruction manual, it contains important information. Reference: BT350series Designed and developed in Europe – Made in China ©LEXIBOOK® United Kingdom & Ireland For any further information, please call 0808 100 3015 www.lexibook.com Environmental Protection: Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
