BS501 - Scale Duronic - Free user manual and instructions

Product Type	Connected impedance meter scale
Maximum capacity	183 kg
Increment	100 g (0.1 kg)
User memory	10 profiles (P0 to P9)
Age range	10 to 80 years
Height range	100 to 240 cm
Body measurements	Fat, water, muscle, bone mass, BMI, calories
Fat mass measurement range	5% to 50%
Water mass measurement range	10% to 80%
Muscle mass measurement range	10% to 80%
Bone mass measurement range	0.0 kg to 8.0 kg
Auto recognition	Yes, from 2.0 kg
Overload indicator	Err
Low battery indicator	Lo
Impedance error indicator	Err2
Measurement units	kg, lb, st (changeable)
Power supply	Batteries (type not specified)
Placement surface	Hard, flat surface (avoid carpet)
Maintenance	Clean with a soft, dry cloth
Waterproofness	Not waterproof, avoid moisture
Warranty	1 year
Manufacturer / Importer	Shine-Mart Ltd (RM3 8SB, EU)

Frequently Asked Questions - BS501 Duronic

How to set up a user profile?

Press the SET button to enter setup mode. Choose the user number (P0-P9) using the UP/DOWN buttons, then confirm with SET. Select gender (male/female) and activity level (normal or sporty). Then, set height and age. Confirm each step with SET.

What does error Err2 mean?

Error Err2 indicates an impedance reading problem. This may be due to cold feet, poor blood circulation, or if you stepped off the scale too early. To fix it, use the scale barefoot, make sure your feet are warm, well aligned with the electrodes, and stay still until the measurement ends.

How to change the measurement unit (kg, lb, st)?

Press the UNIT button to switch between available units: kilograms (kg), pounds (lb), and stones (st). The default unit is kilograms.

What is the maximum supported weight?

The maximum capacity is 183 kg. If this weight is exceeded, the screen displays Err.

How to clean the scale?

Clean the scale with a soft, dry cloth. Do not use detergents or abrasive products. Make sure the surface and your feet are dry before use to prevent slipping.

What to do if the screen displays 'Lo'?

The indication Lo means the batteries are low. Replace the batteries with new ones.

Why does the scale not automatically recognize my profile?

Automatic recognition works if your data has been properly saved. Step on barefoot and wait for stabilization. If two users have similar weight, manually select your profile with the UP and DOWN buttons.

What types of measurements are available?

The scale measures weight, fat mass, water mass, muscle mass, bone mass, BMI, and calories.

Is the scale waterproof?

No, the scale is not waterproof. Avoid exposing it to moisture. In case of contact with water, wipe it immediately with a dry cloth.

What is the warranty period?

The scale is warranted for 1 year from the date of purchase, by Shine-Mart Ltd (Duronic brand). The warranty covers manufacturing and electrical defects, but not normal wear, misuse, or unauthorized repairs.

USER MANUAL BS501 Duronic

Bathroom Scales - BS501

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

Contents

English Manual 5

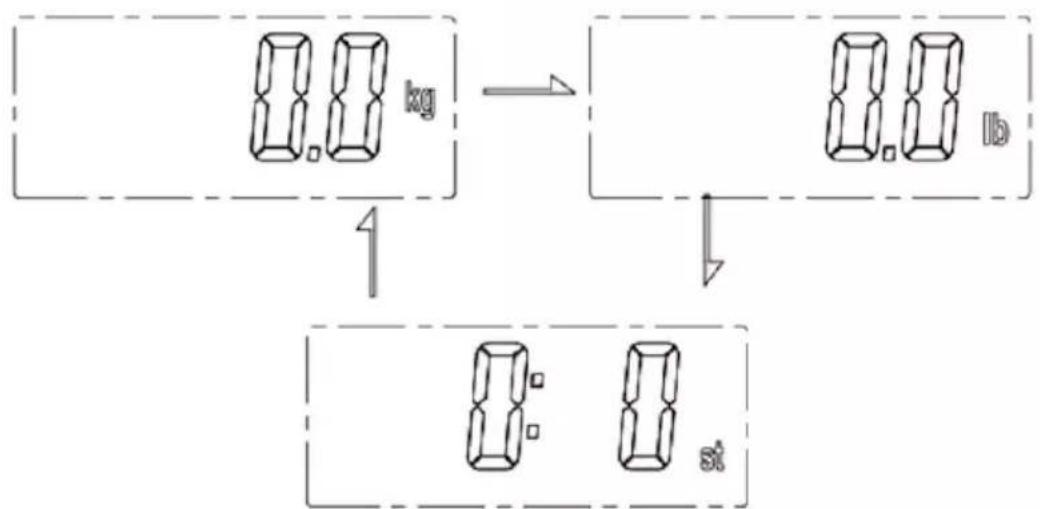

1. Default unit is kg.
2. Press UNIT button located on the back of the scale to convert units.

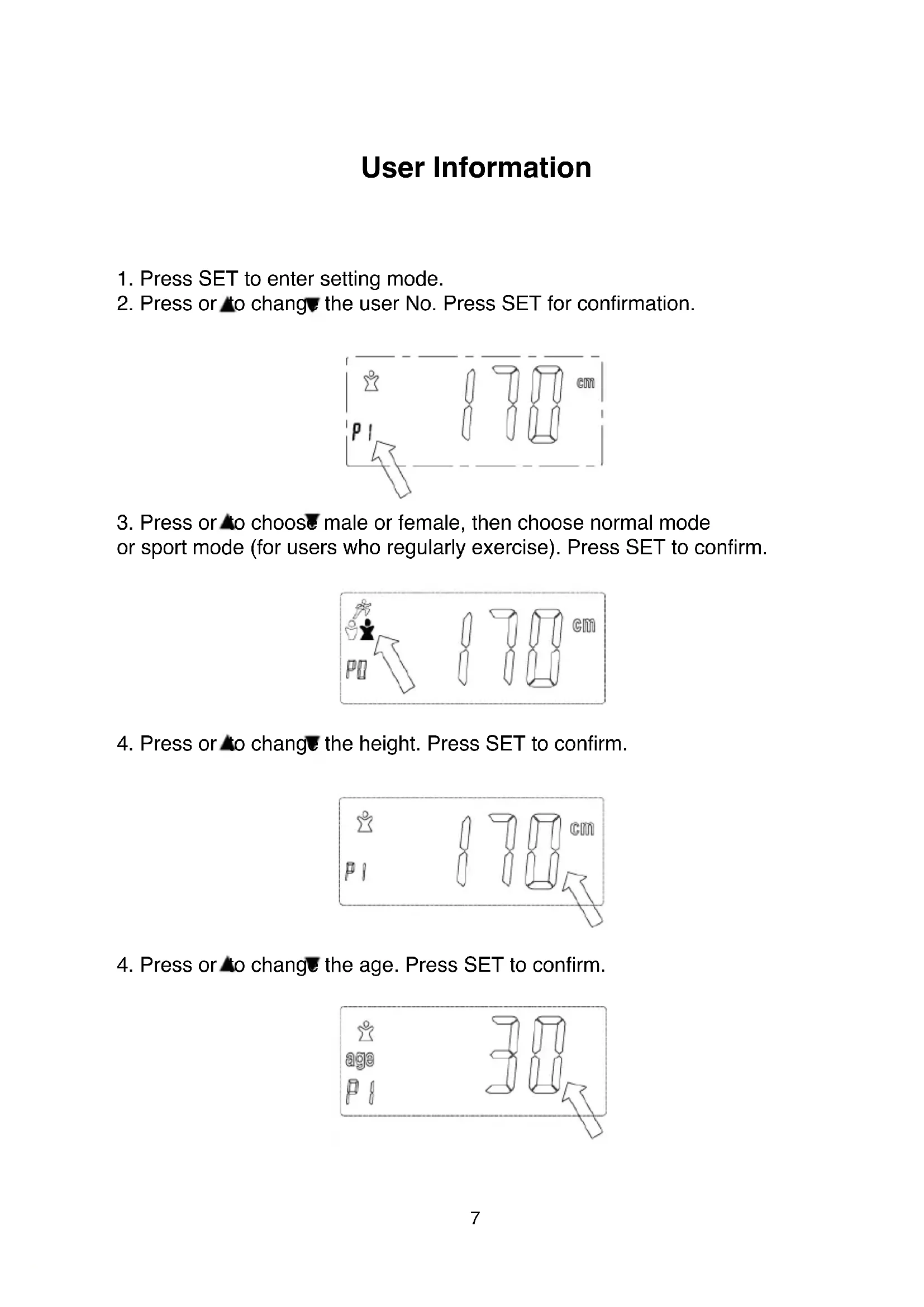

User Information

1. Press SET to enter setting mode.
2. Press or to change the user No. Press SET for confirmation.

1. Press or to choose male or female, then choose normal mode or sport mode (for users who regularly exercise). Press SET to confirm.

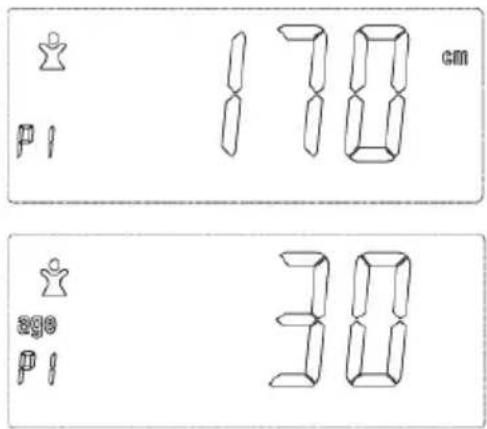

1. Press or to change the height. Press SET to confirm.

1. Press or to change the age. Press SET to confirm.

Weighing and Measuring Fat

1. After completing the settings, the scale will indicate "0.0"

1. Stand with bare feet on the scale and wait for a stable weight to display.

1. Four "O" will appear and disappear one by one from left to right.

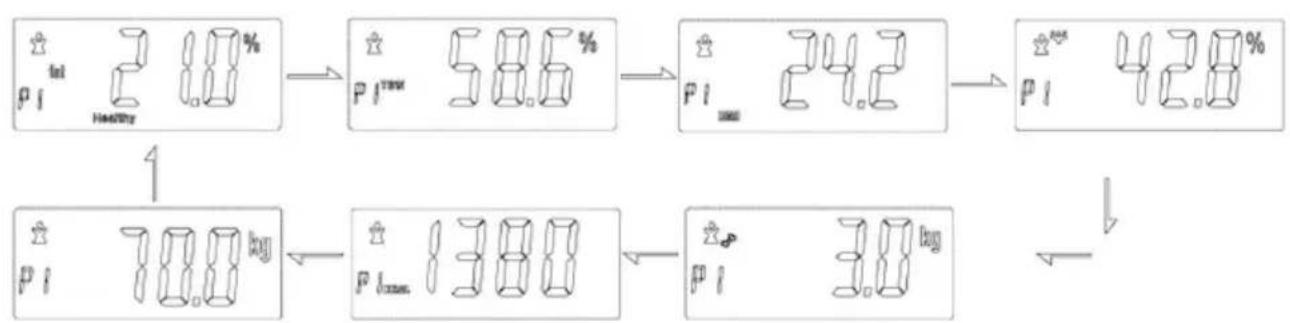

1. The measurements will be on display one by one. Body fat, water, BMI, muscle mass, bone mass, calorie and weight.

1. The scale will display the user information which will let the user confirm the information again. After the display, the scale will turn off automatically.

Important (Err2):

To analyse body mass, stand on the scale barefoot. If your feet are cold, if you have poor blood pressure, or if you step onto the scale too quickly, the measurement may be inaccurate. The Err2 message will display to indicate that there has been a problem. Make sure your feet are warm and aligned to the electrodes. Stand still with weight evenly balanced on each foot, and measure again.

Automatic Identification Range

1. If the user has correctly measured the fat weight, the scale will automatically memorize the user's weight and the user can directly stand on the scale to measure the fat weight next time without entering any information again.

2. Stand on the scale and wait for a stable weight to display.

1. Four "O" will appear and disappear from left to right when measuring.

1. The LCD display will indicate the body fat, water, muscle, bone, calorie and weight in a sequence.

1. If the scale identifies the weight is similar to 2 other users, the user should use UP or DOWN to choose the specific user.

Grade Standards

Body fat analysis (Unit %)
Age	Female				Male
	Underweight		Overweight		Underweight/Healthy	Overweight/Obese
10-39	<21	21-33	33-39	>39	<8	8-20	20-25	>25
40-59	<23	23-34	34-40	>40	<11	11-22	22-28	>28
60-80	<24	24-36	36-42	>42	<13	13-25	25-30	>30

Body water analysis (Unit %)
Age	Female Male
	Underweight	Healthy	Overweight	Underweight	Healthy	Overweight
10-15	<57 <67	57-67		<58 <72	58-72
16-30	<47 <57	47-57		<53 <67	53-67
31-60	<42 <52	42-52		<47 <61	47-61
60-80	<37 <42	37-47		<47 <56	42-56

BMI parameter (WHO)
		Normal Ove weight		ObeseUnderweight
BMI <18.5		18.5-25	25-30	<30

Body muscle analysis (UNIT: %)
Gender	Female	Male
Normal	>34% >40%

1. Ensure the scale is on a flat, even surface. Avoid carpet or soft surfaces.
2. The surface of the scale will be slippery when wet. Please make sure both the glass and your feet are dry before use.
3. This scale is not waterproof. Do not expose to moisture.
4. Clean the scale with a slightly damp cloth. Do not use any chemical cleaning agents to clean the scale.
5. Please remove the batteries, if the scale is not being used for a long period.
6. When using the scales for the first time, or when changing their position or location, they should be restarted twice and should be free of interferences to ensure accurate measurements. This is for calibrating your scale. If you do not perform these measures, the measurements may be incorrect.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
