USER MANUAL Nicer Dicer Pegasus GENIUS
1 SAFETY INSTRUCTIONS AND WARNINGS 9
1.1 Proper use 10
1.2 Safety instructions 10
2 Before first use 11
3 Product components 12
4 Nicer Dicer Pegasus in practical use 13
4.1 Assembly 13
4.2 Using 14
5 Care and cleaning 14
6 Disposal 15
Please take the time to read through this instruction manual carefully.
For your own protection and that of others, please pay particular attention to the safety instructions chapter and the warnings contained in the document.
Keep this instruction manual for future reference. Always be sure to include the instruction manual if giving the product to a third party.
The illustrations in this instruction manual are intended as a schematic representation of correct use. They may have details that differ from the original product.
1 SAFETY INSTRUCTIONS AND WARNINGS
Guide to the symbols used
CAUTION!
Failure to follow these instructions may lead to injury.
ATTENTION!
Damage to property may occur.

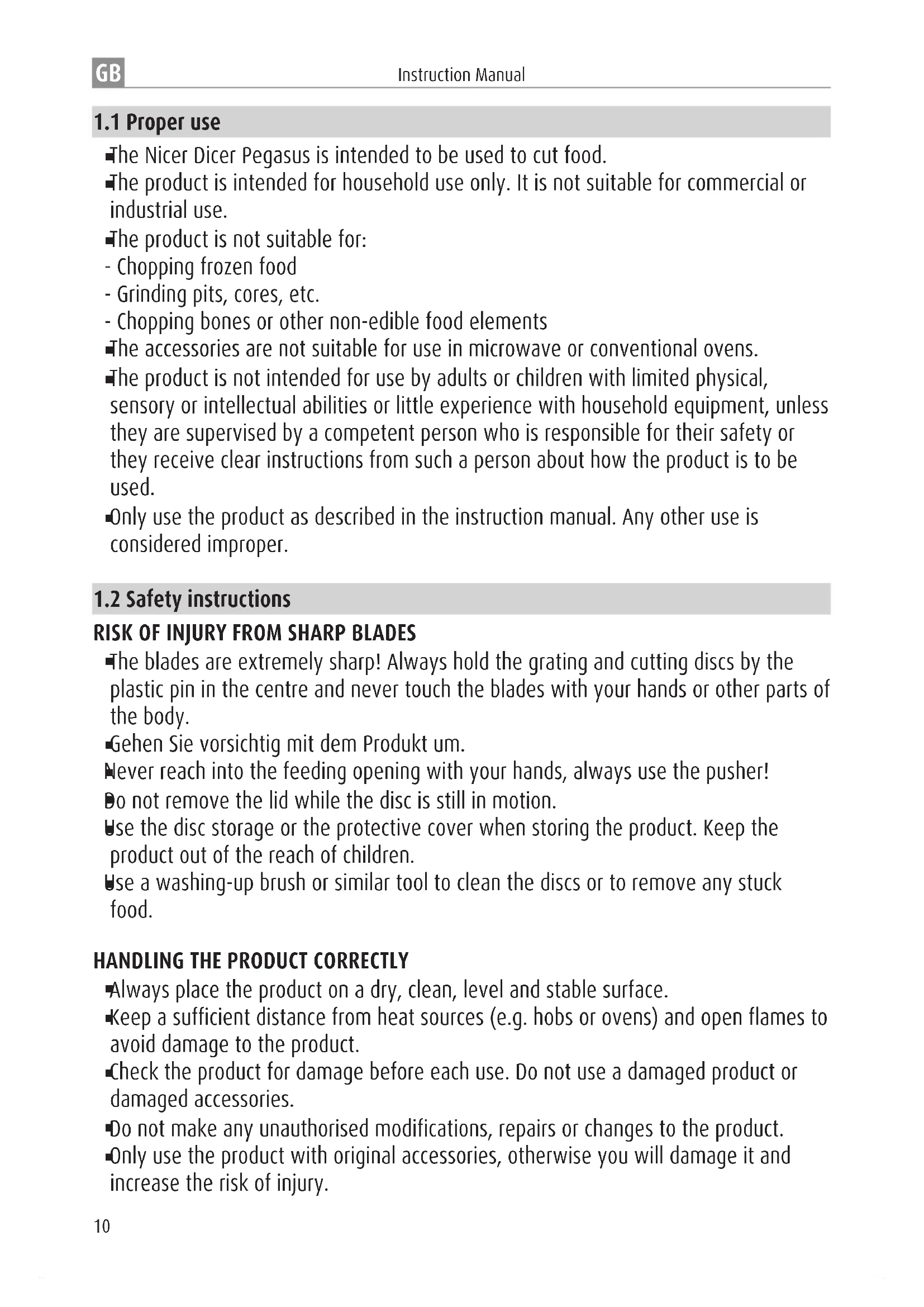

1.1 Proper use
The Nicer Dicer Pegasus is intended to be used to cut food.
The product is intended for household use only. It is not suitable for commercial or industrial use.
The product is not suitable for:
- Chopping frozen food
- Grinding pits, cores, etc.
- Chopping bones or other non-edible food elements
The accessories are not suitable for use in microwave or conventional ovens.
The product is not intended for use by adults or children with limited physical, sensory or intellectual abilities or little experience with household equipment, unless they are supervised by a competent person who is responsible for their safety or they receive clear instructions from such a person about how the product is to be used.
-Only use the product as described in the instruction manual. Any other use is considered improper.
1.2 Safety instructions
RISK OF INJURY FROM SHARP BLADES
The blades are extremely sharp! Always hold the grating and cutting discs by the plastic pin in the centre and never touch the blades with your hands or other parts of the body.
Gehen Sie vorsichtig mit dem Produkt um.
Never reach into the feeding opening with your hands, always use the pusher!
Do not remove the lid while the disc is still in motion.
Use the disc storage or the protective cover when storing the product. Keep the product out of the reach of children.
Use a washing-up brush or similar tool to clean the discs or to remove any stuck food.
HANDLING THE PRODUCT CORRECTLY
Always place the product on a dry, clean, level and stable surface.
- Keep a sufficient distance from heat sources (e.g. hobs or ovens) and open flames to avoid damage to the product.
- Check the product for damage before each use. Do not use a damaged product or damaged accessories.
Do not make any unauthorised modifications, repairs or changes to the product.
Only use the product with original accessories, otherwise you will damage it and increase the risk of injury.
2 Before first use
CAUTION!
Risk of suffocation from plastic sheeting and bags!
Keep children and animals away from packaging material.
Check the set to ensure that it is complete and no damage has occurred in transit. Details of what is supplied with the set that you purchased can be found on the packaging or the separate insert sheet.
Remove the packaging material and any stickers attached to the product for protection during transit or for advertising purposes.
Clean all parts before the first use to remove any production residue (see also "Care and cleaning").
3 Product components

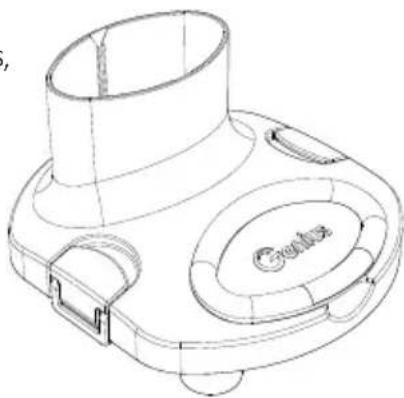

A Lid with locking clips, handle and feeding opening
6 Fine grating disc

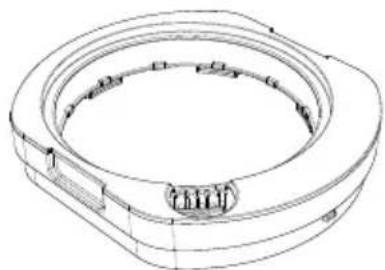

B Disc frame
H Coarse grating disc

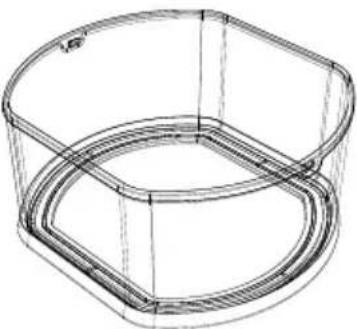

C Collecting container with silicone ring (capacity: 1,850 ml)
Fine cutting disc (1,2mm)
D Pusher
K Flexible fresh-keeping lid
E Divider
L Fresh-keeping lid
F Protective cover
M Top for disc storage
N Base for disc storage
This instruction manual covers all the accessories available for the device/product. Details of what is supplied with the set that you purchased can be found on the packaging or the separate insert sheet. Parts that are not included in your set can of course be bought at a later date.
4 Nicer Dicer Pegasus in practical use
4.1 Assembly
CAUTION!
Risk of cutting injuries!
The blades are extremely sharp. Always hold parts by the plastic and do not touch the blades with your hands or other body parts under any circumstances.
Store the product out of the reach of children and animals.

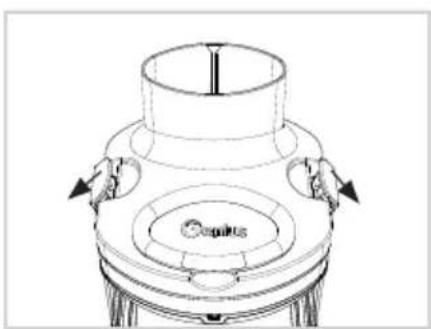

To insert or replace a disc, remove the lid from the disc frame. To do this, open the locking clips and thereby releasing the connection of the two parts.

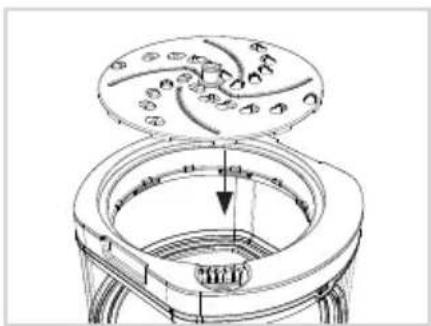

Insert the desired cutting or grating disc into the disc frame. Make sure that the marks (arrowheads) line up accordingly. When doing so only touch the disc at the plastic pin.

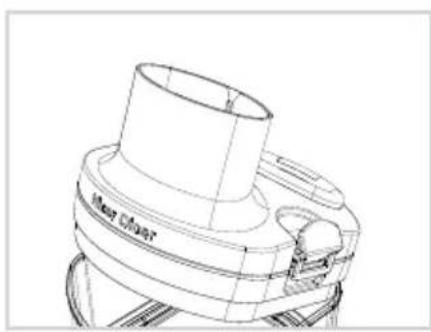

Put the lid back on the disc frame and close the locking clips. The outer clips of the closures hook onto the edge of the disc frame (see Fig.). The cover is now securely attached to the disc frame.

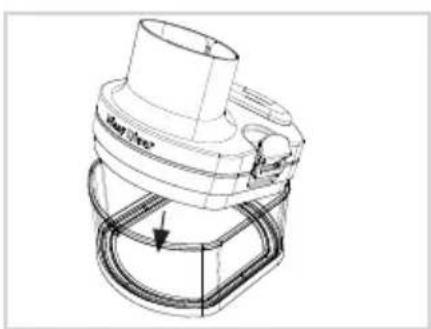

Place the lid with the disc frame on the collecting container by connecting the small tab on the disc frame below the handle to the notch provided in the collecting container.
If necessary, attach the silicone ring to the bottom of the collecting container.
4.2 Using

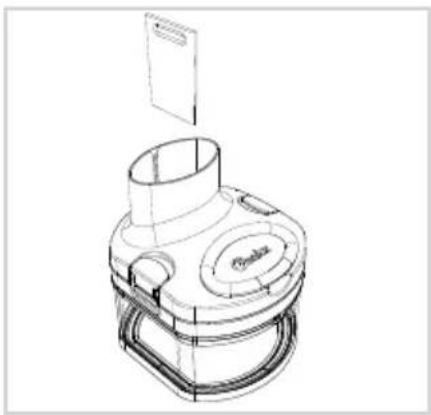

Place the product on a strong and dry work surface. If you want to slice or grate small foods or two ingredients at once, slide the divider into the groove provided in the feeding opening.

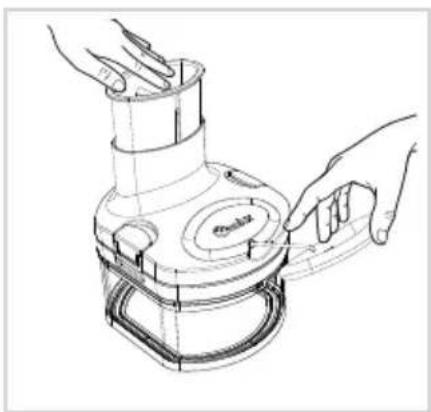

Apply light pressure to the food with one hand and pull the handle with the other hand to start the cutting process. Please do not reach into the feeding opening with your hand. Always use the pusher as soon as the food is shorter than the feeding opening.
Always move the cord in a horizontal direction for optimal use of the device. Do not release the handle suddenly, but follow the mechanism by hand while the wire is automatically pulled in.
Pull the handle several times until the food is completely chopped.

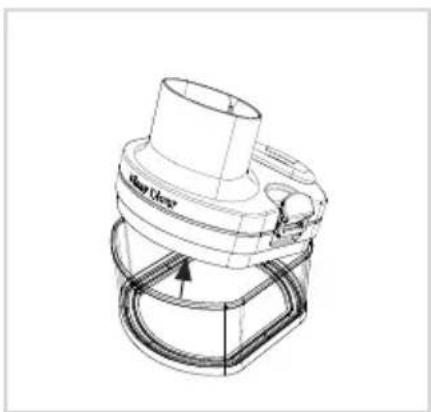

To remove the food, simply remove the entire lid (with disc frame) from the collecting container.
5 Care and cleaning
CAUTION!
Risk of cutting injuries due to sharp blades!
Do not touch the blades with your hands. Always hold the inserts by the plastic.
ATTENTION!
Clean the product immediately after use to avoid the build-up of germs or mould.
Dismantle the product before cleaning.
not use sharp or abrasive cleaning agents or cleaning pads.
Allow all parts to dry thoroughly before putting them away.
The lid is not suitable for cleaning in the dishwasher. It is best to wipe it with a damp cloth or rinse it under the tap. If possible, do not immerse the lid in water.
water enters the lid, open the bottom water drain with a coin and set the lid so that the water can drain completely.
The remaining parts are dishwasher-safe. However, we recommend manual cleaning of the grating and cutting discs to maintain quality and sharpness in the long term.
NOTE:
Some types of fruit and vegetables can stain the plastic parts (e.g. beets). The collecting container is not suitable for storing citrus fruits. These can lead to a surface change of the container material. However, this does not affect its functionality.
Frequent cleaning of the collecting container in a dishwasher can affect the material's transparency. This is normal and not a cause for concern; it does not limit the functionality.
6 Disposal
In the event that the product and/or accessories can no longer be used, they should be disposed of with the household rubbish. It can be disposed of by the municipal waste management services.
The packaging material can be recycled. Dispos of the packaging in an environmentally friendly way and take it to your recycling site.
If you have any questions about the device or spare parts/accessories, please contact your local retailer.
