USER MANUAL BP1001 BLAUPUNKT
This product is only suitable for well insulated spaces or occasional use.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.
DOT NOT COVER
WARNING: In order to avoid overheating, do not cover the heater.
Do not place the appliance immediately below a socket outlet.
Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
WARNING
ATTENTION: read this booklet carefully it contains important instructions for a safe installation, use and maintenance.
Important instructions to be kept for future reference.
Keep handy the guarantee, receipt of payment and these instructions for future use and reference.
After removing the packaging, check the appliance for any signs of
damage.
In case of visible damage, do not use it and contact a qualified technician. Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.
Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.
If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.
Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.
When you don't use the appliance disconnect it from the power supply and assure that the interruptor is off.
Do not tug on the power cable or on the appliance itself to remove the plug from the socket.
The use of any electrical appliance requires that a number of basic rules are observed, namely:
- Never touch the appliance with wet or humid hands.
- Do not leave the appliance exposed to weathering (rain, sunlight).
- Do not subject it to rough handling.
In case of a breakdown or malfunctioning of the appliance, disconnect it at once.
Do not attempt to repair it, but take it to a service centre approved by the manufacturer.
If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.
The power cable should be extended to its full lenght to avoid over heating.
For safety reasons, the appliance should never be opened.
The appliance has been designed and manufactured to operate in the home.
Any other use is considered inappropriate and dangerous. Do not insert objects through the safety grill or the air inlets.
During use, rest the appliance on a flat surface.
Do not use this heating appliance with programmers, timers, separate remote control systems (different to the ones provided with the appliance) or any other device that automatically turns on the appliance, as there is a risk of fire in the event the appliance is covered or positioned incorrectly. Do not use the heater in presence of flammable substances (petrol,paints,etc.).
Do not place the cord near sources of heat.
WARNING: DO NOT COVER THIS PRODUCT NEAR CURTAINS OR OTHER COMBUSTIBLE MATERIAL.
WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE AIR INLETS TO AVOID OVERHEATING.

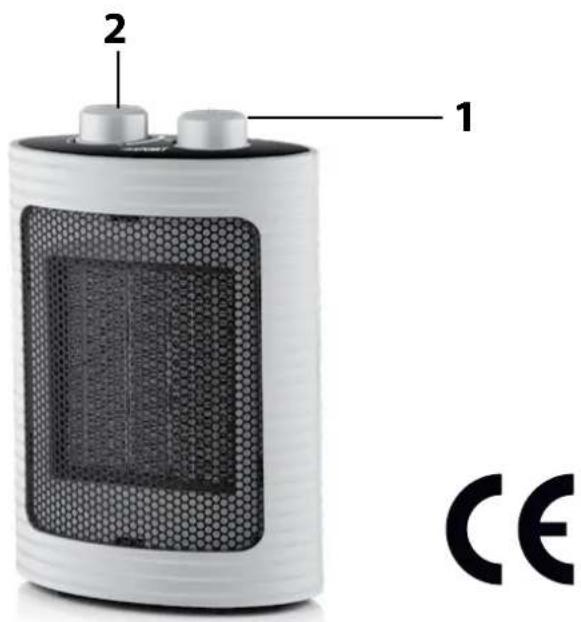

TECHNICAL INFORMATIONS
- Function switch
- Thermostat
Technical data indicated on the appliance
INSTRUCTIONS FOR USE
The appliance can emit both cold air and hot air depending upon the function selected by means of the function switch. Make sure that the function switch is in the OFF position before connecting or disconnecting the appliance.
To turn the appliance on, insert the plug in the power outlet, set the operation switch in the desired position and turn the temperature switch clockwise to the maximum position.
Once the desired room temperature is reached, turn the handle slowly, in a counter clockwise direction, until the appliance is turned off.
At this point, the product will automatically restart when the temperature in the room goes below the set limit.
The appliance is equipped with a shut-off switch if it accidentally tips over. Make sure that the appliance has cooled down completely before storing it in the box.
MAINTENANCE
This appliance does not require any special maintenance.
Disconnect the plug from the socket and let the appliance cool down well before cleaning it.
In order to clean the appliance, use a soft or slight damp cloth. Never use abrasives or chemical solvents.
Do not use very wet substances, liquids or cloths to prevent water from entering into the apparatus and irreparably damaging it.
NEVER IMMERSE THE APPLIANCE INTO THE WATER.
Information requirements for electric local space heaters
| BP1001 | |||
| ITEM SYMBOL VALUE UNIT ITEM UNIT | |||
| Heat output | TType of heat input, for electric storage local space heaters only (select one) | ||
| Nominal heat output | Pnom | 1,5 KW | Manual heat charge control, with integrated thermostat |
| Minimum heat output (indicative) | Pmin | 0,8 KW | Manual heat charge control with room and/or outdoor temperature feedback |
| Maximum continuous heat output | Pmax.c | 1,5 KW | Electronic heat charge control with room and/or outdoor temperature feedback |
| Auxiliary electricity consumption | Fan assisted heat output NO | ||
| At nominal heat output | elmax | N.A. KW | Type of heat output/room temperature control (select one) |
| At minimum heat output | elminx | N.A. KW | Single stage heat output and no room temperature control |
| In standby mode | elsb | 0,000 W | Two or more manual stages, no room temperature control |
| With mechanic thermostat room temperature control YES | |||
| With electronic room temperature control NO | |||
| Electronic room temperature control plus day timer | |||
| Electronic room temperature control plus week timer | |||
| Other control options (multiple selections possible) | |
| Room temperature control, with presence detection | NO |
| Room temperature control, with open window detection | NO |
| With distance control option | NO |
| With adaptive start control NO | |
| With working time limitation | NO |
| With black bulb sensor NO | |
GUARANTEE DOCUMENT
Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU
read the instruction book carefully, as this will contribute to the best performance of this article.
R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.
The Technical Assistance Service will resolve any repairs that may be required by this apparatus.
Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.
Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.
The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.
Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).
During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.
MANUFACTURED CHINA FOR BLAUPUNKT
DECLARATION OF CONFORMITY
Manufacturer Name: RAMSONS, S.A.
Adress: Pedro Munoz Torres n°1
Post Code: 41006
SEVILLA
We declare under our responsibility that the product:
Product Description: CERAMIC FAN HEATER
Model: BP1001
Brand: BLAUPUNKT
It complies with the European Union
legislation in compliance with the 2004/108/EU guidelines
The standards apply: EN 55014-1:2006+A1: +A2:
EN 55014-2: 1997+A1: +A2:
EN 61000-3-2:2006+A1:++A2:
EN 61000-3-3:2013
Name: Vivek Sadhwani
Position : manager
Date:
Signature:
Ramsons, S.A.
Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA
Tfn. 954 933 404 • Fax. 954 660 533
USER
DATE OF SALE
Seller's signature and stamp
IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.
To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice
INFORMATION ON RECYCLING
Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theo optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.
Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.
