Product type	Oven storage drawer
Brand	Whirlpool
Model	AKB 655 IX
Dimensions (W x H x D)	595 x 141.5 x 550 mm
Approximate weight	15 kg
Maximum load capacity	25 kg
Materials	Tempered glass, metal, plastic
Recommended cleaning	Damp cloth with mild detergent; wipe off acidic substances immediately
Prohibited cleaning products	Abrasives, chlorinated products, metal pads, steam cleaners
Intended use	Storage of dishes and kitchen utensils
Installation type	Built-in, mandatory fixing to the cabinet
Possible associated appliances	Coffee machine or microwave oven combination (same brand, suitable dimensions)
Max weight of associated appliance	60 kg
Important safety instructions	Do not leave children unattended; do not store flammable objects
Compliance standard	CE 1935/2004 (food contact)
After-sales service	Contact an authorized service center; service code on the rating plate

Frequently Asked Questions - AKB 655 IX WHIRLPOOL

How to clean the AKB 655 IX drawer?

Use a damp cloth with a mild detergent. For glass surfaces, a neutral detergent and warm water. Wipe off acidic substances such as vinegar or lemon immediately. Never use abrasive, chlorinated products or metal pads.

What is the maximum load capacity of the drawer?

The maximum load capacity of the drawer is 25 kg. Do not exceed this limit to avoid damaging the slides.

Can I install an oven above the drawer?

Yes, you can install a coffee machine or a microwave oven combination of the same brand and with suitable dimensions (see diagram in the manual). The total weight of the associated appliance must not exceed 60 kg.

What to do if the drawer does not open or close properly?

First check that no object or dish is blocking the movement. If the problem persists, contact the authorized after-sales service. Do not force the drawer open.

How to fix the drawer to the cabinet?

The drawer must be fixed immediately after installation using the screws provided, as indicated in the manual. This ensures safety and allows the installation of the associated appliance.

Which cleaning products are not recommended?

Avoid detergents containing soda, acids or chlorides, abrasive cleaners (powder or cream), abrasive sponges, descaling products and oven cleaners. Never use a steam cleaner.

Can I use the drawer to store food?

The drawer is intended for storing dishes and utensils. It complies with CE 1935/2004 standard for food contact, but it is not designed for preserving perishable foods.

How to obtain the service code for a repair?

The service code is on the rating plate located on the outer right edge of the drawer slide. It is also indicated in the warranty booklet. Mention it when you call the after-sales service.

Is the AKB 655 IX drawer compatible with all ovens?

It is designed to be installed under a coffee machine or a microwave oven combination of the same brand. The niche dimensions must be calculated by adding the drawer height to that of the associated appliance. Check the mounting dimensions in the manual.

What to do in case of tempered glass cracks?

If the glass breaks or cracks due to impact, immediately stop using the drawer and contact the authorized after-sales service. Do not attempt to repair it yourself.

USER MANUAL AKB 655 IX WHIRLPOOL

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

Close-up of wooden clothespins and clips, no text or symbols visible

Brugsanvisning

Bruksanvisning

Käyttöohje

Close-up of two transparent plastic bottles with black caps, arranged in a row (no visible text or symbols)

Black and white close-up of multiple glasses with blurred background (no text or symbols)

Οδηγίες χρήσης

Close-up of a metallic kitchen or oven with perforated ventilation slots and a handle (no visible text or symbols)

Návod k použití

Návod na použitie

Whirlpool

SENSING THE DIFFERENCE

Downloaded from www.vandenborre.be

Downloaded from www.vandenborre.be

BEDIENUNGSANLEITUNG

Seite

INFORMATIONEN ZUM UMWELTSCHUTZ 5

Technical line drawing of a screw fastener attached to a mechanical component (no text or symbols)

Einbaumaße

Downloaded from www.vandenborre.be

500 min 500 500 560-564 L=300 X H=30 587 (x) 551 595 441 455 470/540 22 596 488 554 550 595 134,5 526 22 141,5

IMPORTANT SAFETY INSTRUCTIONS 11

BEFORE USING THE DRAWER 12

APPLIANCE FITTING 12

CLEANING AND MAINTENANCE 14

TROUBLESHOOTING GUIDE 15

AFTER-SALES SERVICE 15

SAFEGUARDING THE ENVIRONMENT

Disposal of packing

• The packing material is 100% recyclable and marked with the recycling symbol
• Therefore the various parts of the packing must not be dispersed in the environment, but disposed of in compliance with the local regulations.

By ensuring that this product is correctly disposed of, the user can help prevent potentially negative consequences for the environment and human health.

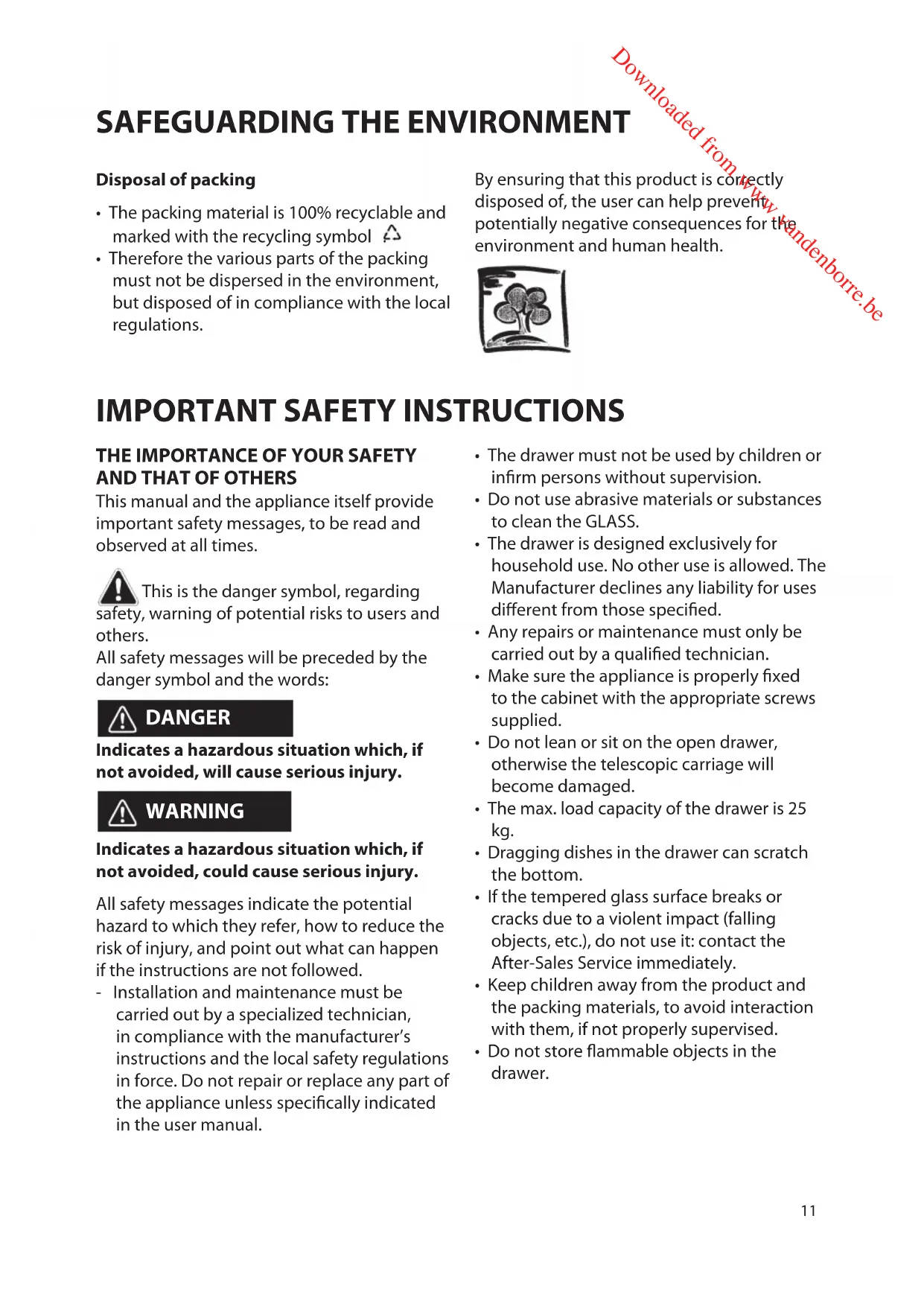

IMPORTANT SAFETY INSTRUCTIONS

THE IMPORTANCE OF YOUR SAFETY AND THAT OF OTHERS

This manual and the appliance itself provide important safety messages, to be read and observed at all times.

This is the danger symbol, regarding

safety, warning of potential risks to users and others.

All safety messages will be preceded by the danger symbol and the words:

DANGER

Indicates a hazardous situation which, if not avoided, will cause serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could cause serious injury.

All safety messages indicate the potential hazard to which they refer, how to reduce the risk of injury, and point out what can happen if the instructions are not followed.

- Installation and maintenance must be carried out by a specialized technician, in compliance with the manufacturer's instructions and the local safety regulations in force. Do not repair or replace any part of the appliance unless specifically indicated in the user manual.

• The drawer must not be used by children or infirm persons without supervision.
• Do not use abrasive materials or substances to clean the GLASS.
• The drawer is designed exclusively for household use. No other use is allowed. The Manufacturer declines any liability for uses different from those specified.
• Any repairs or maintenance must only be carried out by a qualified technician.
• Make sure the appliance is properly fixed to the cabinet with the appropriate screws supplied.
• Do not lean or sit on the open drawer, otherwise the telescopic carriage will become damaged.
• The max. load capacity of the drawer is 25 kg.
• Dragging dishes in the drawer can scratch the bottom.
• If the tempered glass surface breaks or cracks due to a violent impact (falling objects, etc.), do not use it: contact the After-Sales Service immediately.
• Keep children away from the product and the packing materials, to avoid interaction with them, if not properly supervised.
• Do not store flammable objects in the drawer.

BEFORE USING THE DRAWER

To open and close the drawer, push the middle of the panel as shown in the figure.

At first use, clean the appliance as follows:

• clean the surface with a damp cloth and then dry.
• After completing this operation, the appliance is ready for first use.
• Before use, remove:
• stickers placed on the front of the drawer, except the rating plate;
• keep children away from the product and the packing materials, to avoid interaction with them, if not properly supervised;
• any stickers from accessories when present.

Downloaded from www.vandenborre.be

APPLIANCE FITTING

Safety instructions for fitting the drawer

IMPORTANT: The drawer must be immediately fixed to the cabinet, following the instructions given below. The coupled appliance cannot be installed before fixing the drawer to the cabinet. This appliance must only be fitted and installed by qualified personnel who ensure conditions for its safe use.

Fix the drawer as shown in the figure.

The drawer can only be fitted in combination with other appliances not weighing more than 60 kg. To install the appliance that can be combined with the drawer, follow the instructions given in the relevant use and installation handbook.

Important: The coffee maker or combi microwave oven of the same brand and sized as shown on the following page, can be installed above the drawer. For installation, carefully follow the directions given in the instruction handbooks supplied with the coffee maker and the combi microwave oven.

Technical line drawing of a screw assembly with a magnified inset showing the screw (no text or symbols)

Fitting dimensions

The size of the recess is obtained from the size of the drawer plus the size of the appliance combined with it.

All measurements are in mm.

500 min 500 500 560-564 L=300 X H=30 587 (x) 551 595 441 455 470/540 22 596 488 554 550 595 134,5 526 22 141,5

(*) In case of 595 cabinet recess height, the drawer must be installed with the 4 feet and respective 1 mm washers (included in the packaging) in the lower part.

CLEANING AND MAINTENANCE

WARNING

IMPORTANT: Do not use detergents containing soda, acids or chlorides, abrasive detergents (powder or cream), abrasive sponges (e.g. scouring pads) or sponges containing residuals of abrasive detergents, detergents that dissolve scale, dishwasher detergents, oven sprays.

Drawer exterior

• Clean with a damp cloth. If very dirty, add a few drops of washing up liquid to the water. Dry with a dry cloth.
• Do not use corrosive or abrasive detergents, otherwise dull areas will form. If one of these products accidentally comes into contact with the drawer, clean it immediately with a damp cloth.
• Slight differences in color on the front of the appliance are due to the use of different materials, such as glass, plastic and metal.

For drawers with iXelium treatment, proceed as follows:

• Use a soft cloth (preferably microfiber) with water or a normal glass cleaning detergent.
• Do not use paper towels, which could leave traces of paper and streaks on the surface.
• Do not use abrasive or corrosive products, chlorine-based products or scouring pads.
• Do not use flammable steam cleaning devices.
• Do not leave acid or alkaline substances, such as vinegar, mustard, salt, sugar or lemon juice, on the surface.

For glass surfaces, proceed as follows:

• use a neutral detergent and lukewarm water, then dry with a soft cloth.
• Do not leave acid or alkaline substances such as vinegar, mustard, salt, sugar or lemon juice, on the surface.

Tempered glass drawer base

Cleaning the bottom of the drawer frequently will ensure that dirt does not build up, and makes cleaning easier.

• Use a clean cloth, paper towels and washing up liquid, or specific products for cleaning the tempered glass.
• Do not use abrasive products, bleach, oven cleaner spray or metallic scouring pads.

TROUBLESHOOTING GUIDE

If the drawer does not open/close, check that:

- there are no objects or dishes preventing opening or closing.

AFTER-SALES SERVICE

Before contacting the After-Sales Service:

1. See if you can solve the problem yourself with the help of the "Troubleshooting guide".

For the following problems, contact a qualified technician or the After-Sales Service:

If the runners do not working properly:

• the drawer is held back during opening or closing.
• the drawer becomes blocked during opening or closing.

If the problem persists after the above checks, contact the nearest After-Sales Service.

Always specify:

• a brief description of the fault;
  • the product type and exact model;
• the Service number (the number after the word Service on the data plate), located on the outer right edge of the drawer runner. The Service number is also given in the warranty booklet;
• your full address;
• your telephone number.

SERVICE

00 0000 00000

If any repairs are required, contact an authorized After-Sales Service Center (to ensure the use of original spare parts and correct repairs). Failure to comply with these instructions can compromise the safety and quality of the product.

DECLARATION OF CONFORMITY CE

- This drawer is intended to come into contact with foodstuffs and complies with Regulation (EC) no. 1935/2004.
