USER MANUAL Aerox 5 Wireless STEELSERIES

PRODUCT INFORMATION GUIDE

WELCOME TO AEROX 5 WIRELESS

Your new mouse is the result of our unyielding pursuit of perfection since 2001. We poured our hearts into creating the best possible ultra lightweight gaming mouse, optimizing it for speed and performance. The SteelSeries Aerox 5 Wireless is engineered to get the fastest swipes, so you can beat the competition to the trigger. When milliseconds count, speed matters.

TABLE OF CONTENTS

General 5
Product Overview 7
Setup 8
Battery Level Indicator 9
Default CPI 9
Translations 10

Deutsch. 10
Espanol 11

Français 13
Italiano 14
Polski 15
Portugues 17
Pycckn 18

日本語 20

简体中文 21
繁體中文 22
24

Regulatory 26

PACKAGE CONTENTS

Aerox 5 Wireless Mouse

USB Type-C to USB Type-A Super Mesh Data Cable (6.56 ft / 2 m)

USB Type-C Wireless Dongle

Extension Adapter

Product Information Guide

SYSTEMCOMPATIBILITY

PC

Mac

Xbox

PlayStation

STEELSERIES ENGINE

To enjoy GameSense integration, program macros, and customize lighting effects and other mouse settings on your new Aerox 5 Wireless mouse, download SteelSeries Engine at

steelseries.com/engine

steelseries.com/gg

Engine is part of SteelSeries GG that comes with free apps and content we know you'll love. You can try out Moments, an app that allows you to easily clip, edit and share your gaming highlights with friends.

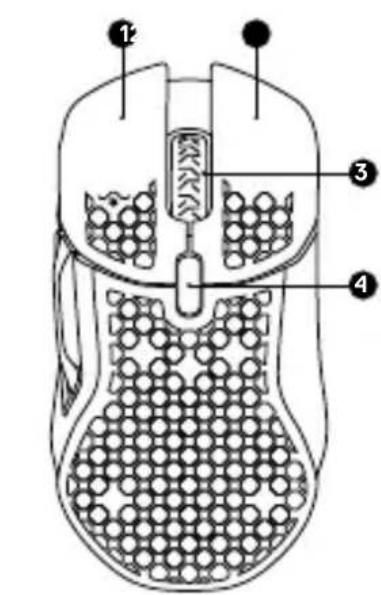

MOUSE

1 Left Trigger
2 Right Trigger
3 Scroll Wheel
4CPIButton
5 USB-C Jack
6 Virgin-grade PTFE Feet
7 Wireless Mode Switch
8 TrueMove Air Sensor
9 Side Button 1
10 Side Button 2
11 Side Button 3 Up
12 Side Button 3 Down
13 Side Button 4

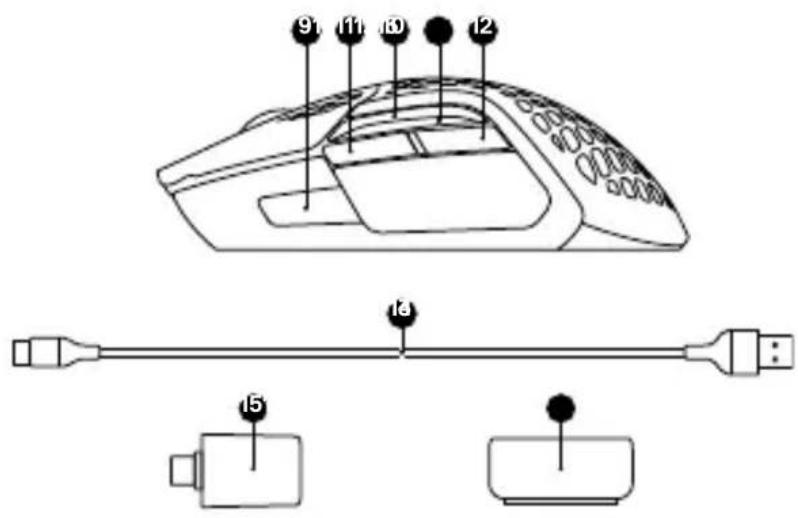

ACCESSIONS

14 USB Type-C to USB Type-A Super Mesh Data Cable
15 USB Type-C Wireless Dongle
16 Extension Adapter

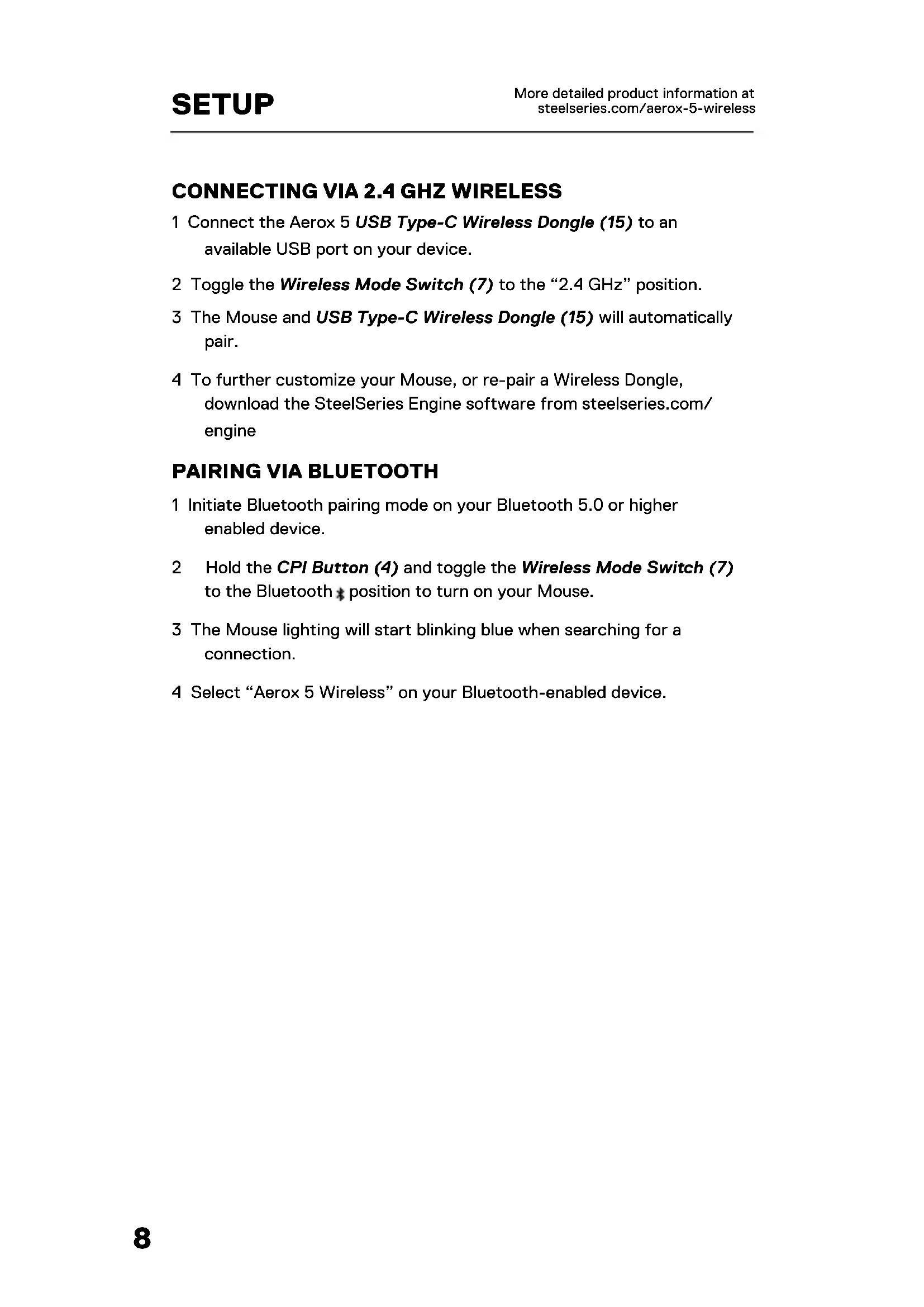

CONNECTING VIA 2.4 GHZ WIRELESS

1 Connect the Aerox 5 USB Type-C Wireless Dongle (15) to an available USB port on your device.
2 Toggle the Wireless Mode Switch (7) to the "2.4 GHz" position.
3 The Mouse and USB Type-C Wireless Dongle (15) will automatically pair.
4 To further customize your Mouse, or re-pair a Wireless Dongle, download the SteelSeries Engine software from steelseries.com/ engine

PAIRING VIA BLUETOOTH

1 Initiate Bluetooth pairing mode on your Bluetooth 5.0 or higher enabled device.
2 Hold the CPI Button (4) and toggle the Wireless Mode Switch (7) to the Bluetooth ^ 喜 position to turn on your Mouse.
3 The Mouse lighting will start blinking blue when searching for a connection.
4 Select "Aerox 5 Wireless" on your Bluetooth-enabled device.

BATTERY LEVEL INDICATOR

During use, the mouse will flash red when 5% or less battery remains.

When turning on or waking from sleep, the mouse will flash a color to indicate remaining battery level:

Red 0-5% battery

Yellow 6-10% battery

Green 11-100% battery

When charging, the lighting will flash green for 5 seconds before resuming default lighting.

DEFAULTCPI

Aerox 5 Wireless comes with 5 preset CPI settings that can be selected using the CPI Button (4) on the top of the mouse. Each setting has its own lighting indicator for ease of selection.

Step CPI Indicator Color
#1 400 Purple
#2 800 Blue
#3 1200 Green
#4 2400 Yellow
#5 3200 Red

DEUTSCH

ALLGEMEIN

LIEFERUMFANG

Aerox 5 Wireless Maus

USB-C-Wireless-Dongle

Erweiterungsadapter

steelseries.com/gaming-accessories

CONFIGURACION

CONECTAR MEDIANTE INALÁMBRICO DE 2.4 GHZ

ASSOCIATION VIA BLUETOOTH

6 Piedini in PTFE vergine

Mblb Aerox 5 Wireless

Ka6eIb IJIpepaHn daHHbIX c ONJIeTKoI n3 MeJIKOJ ceTKU USB Type-C - USB Type-A (2 M)

BecnpobOndHoi KJIou USB Type-C

YdnnHnTeIbHbI aanTep

PykoBODCTBO CnHΦopMaunéo6 n3dJIIN

CNUCTEMHAR COBMECTUMOCTb

PIK, Mac, Xbox, PlayStation

STEELSERIES ENGINE

Чтобь ВOCПОЛБОВТСЕИНТERTРАЦЕ GameSense, nporpaMMHbIMMaKPOCAmN, NaCTPANBAEMbIMN эффektamN NOCDBeTKN IpyrIMN HAcTPOIKAmN Ha CBOeHOBOМbluN AeroX 5 Wireless,ckaayte SteelSeries Engine no aDpecy steelseries.com/ engine

Engine yBnIeTc yacbTo SteelSeries GG, KOtOpoe nocTabJeTc BMeCTe C 6ecnlaTHbIMn npINOxKeHnMn N KOHTeHOM, KOtOpbN Bam O6raTeNbHO noHpabITcR. Bbl MoKeTe nonpo6oBaTb npINOxKeHne Moments, KOtOpoe No3BOJNT

Bam JereKo CHImaTb, peDaKTnPoBaTb N DeJIuTbCra C Dpy3bMaN CBOUMN INrpoOBIMN DOCTXKeHnA M. steelseries.com/gg

OB3OP N3dEINIA

Mblb

1JIeBbI TpNtrep

peKIma

2 PpaBbI TpRtrep

8Датунк TrueMoveAir

3KoIeO npokpyTKn

9 Bokobar KhoIka 1

4 Khonka CPI

10 BOKOBAR KHONKa 2

5 Pa3bem USB-C Jack

11 Bokobar KhoNka 3 BBepx

6 HoKKn n3 NTΦE nepBorO copTa

12 BOKOBAR KHONKa 3 BHIN3

7 BecepnoBODHn nepeKIOUoateIb

13 BOKOBAR KHONKa 4

AKCECCYAPbl

14 Ka6eIb IJIa nepeJaU dAHhBIX c onJIeTKo I3 MeJIKO CEtKu USB Type-C -USB Type-A

15 BecepnoBODHOn KJIIOU USB Type-C

16 YdInHnteIbHbI aanTeP

*AkecccyapbI n 3anacHbIe Yactn MOxHo NaHTn no aDpecy steelseries.com/gamingaccessories

YCTAHOBKA

BECIPOBOHOE NOKJIIOYEHNE YEPE3 2.4 T

11ПоdkлочteAerox5WirelessBecnpobodnoiKIOUYUSBType-C(15)KdoctynHomyUSB-nopTyHaBaawemycTroiCTBe.
2 NepeKIOUHTe BecnpoBODHOI nepeKIOUaTeIb peXmA (7) B noIOxKeHne «2.4 TgU>.
3MbIbB BecnpoBHOH KIOU USB Type-C (15) ABTOMaTHueCKN COpRyTCra.
4Дядальншин HabtroponKn BaWeM bIuN nII NOBTOPO COnpJxHnC 6ecnpoBOdHBIM KJIouOM cKaaYTe nporpaMMHoe oBeCneueHne SteelSeries Engine c caTa steelseries.com/engine

CONPRAKHEHNE YEPE3 BLUETOOTH

1 BkIIOUHTe peKIM cOpJKeHnYepe3 Bluetooth Ha BaWem ycTpoiCTBe C BkIIOUeHHbIM Bluetooth 5.0 nII 6Olee no3dneBercnn.
2 YdepKnBaTe HOnKa CPI (4) npekeKIOUaTe BeecnpoBHOnepeekIOUaTeIb peXmAs (7) B noLoKeHne Bluetooth+TO6bl BKIOUHTbMbIb.
3ПОДСВЕТКaMbIинHaЧNETMnIgTbCINHmцBeTOMBOBpeMЯПОИСКА ПОДКЛЮЧЕНЯ.
4 Bb6epnte «Aerox 5 Wireless» Ha BaWe m yCtpoiCTBe C BKJIoueHNbIM Bluetooth. Bolee noopnoHyo nHΦopMauno 6 n3dEInn MoXHo haiTn no aDpecy steelseries. com/aerox-5-wireless

HДИΚATOP UPOBHA 3APRA AKKUMYJTA TOPA

Bo BpemnncnoB3OBAHnMbIb NaHET MNaTb KpaChbIM cBeTom, KOrda OCTaHETcR 5% nnn MeHee 3apya aKKymyIaTopa.

*在 steelseries.com/gaming-accessories 查找配件和替换件

设置

2.4GHZ无线连接

*在steelseries.com/gaming-accessories查找配件和替换件

設定

2.4 GHZ無線連接

Quah's 5 Wireless MaUsS wth GameSense thc, ProgoLk MxKoRwAeH
LaiT He and f t a MaUs stgng to gigi Wt h sere, steeleries.com/engineep
SteelSeries Engine to dOn roDhahsivso.

*steelseries.com/gaming-accessorieswhere subchokpand dchaokp to houtsimso

首长

2.4 GHZ 末尾用法

Europe - EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: https://support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff

Operating Temperature: 0 to +40C.

SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Frequency bands and Powers (Mouse and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

EIRP: /4 -DQPSK: 1.7 dBm (Mouse)
EIRP: GFSK: 1.86 dBm (Mouse)
EIRP: n/4-DQPSK: -2.82 dBm (Transceiver)

c. Firmware Version: V1.8.0 (Mouse); V1.2.16 (Transceiver)

UK CA

UK Declaration of Conformity

Hereby, SteelSeries ApS. declares that the following equipment which is compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy.

The full text of the UK declaration of conformity is available at the following internet address: https://support.steelseries.com/hc/en-us/categories/360001256111-Other-Stuff

WEEE

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Turkey RoHS Compliance

Republic of Turkey: In conformity with the EEE Regulation

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.

FCC ID: ZHK-M00025 (Mouse)

FCC ID: ZHK-M00025TX(Transceiver)

Frequency bands and Powers (Mouse and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz

b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:

• Conducted Peak Power/π/4-DQPSK: -1.79 dBm Mouse)

Conducted Peak Power/GFSK: -1.65 dBm (Mouse/Bluetooth)
Conducted Peak Power/π/4-DQPSK: 4.97 dBm (Transceiver)

c. Firmware Version: V1.8.0 (Mouse); V1.2.16 (Transceiver)

Industry Canada Statement

This device complies with RSS standards of the Industry Canada Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

The appliance must not be exposed to splashes or drops of water and it should not be used as a support for any object filled with liquid, such as a vase.

Radiation Exposure Statement

The device has been evaluated to meet general RF exposure requirement, The device can be used in portable exposure condition without restriction.

RISK OF EXPLOSION IF BATTERY PACK IS NOT REPLACE BY SAME TYPE AS SPECIFIED BY THE MANUFACTURER.

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.

2. Please keep this battery pack away from fire and high heat sources due to the explosion that might happen. Do not place your battery pack close to any heater or hot location.

3. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
4. This battery pack shall not be exposed to moisture, dripping or splashing.
5. If any electrolyte flows out of this battery pack when touching the user's eyes and skin, please seek medical advice immediately.

"MISE EN GARDE!"

RISQUE D'EXPLOSION SI LE BLOC-PILES N'EST PAS REMPLACÉ PAR LE MÈME TYPE QUE SPECIFIÉ PAR LE FABRICANT.

IC: 9638A-M00025TX (Transceiver)

Restriction on Hazardous Substances statement (India)

This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

The RoHS test method is based on the standards JIS C 0950 and CNS 15663.

設備名稱:無線滑鼠 型號(型式):M-00025 Equipment name: Wireless Mouse Type designation: M-00025
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead(Pb)	汞 Mercury(Hg)	鎘 Cadmium(Cd)	六價鉻 Hexavalent chromium (Cr+6)	多溴聯苯 Polybromo- minated biphenyls (PBB)	多溴二苯醚 Polybromo- minated diphenyl ethers (PBDE)
塑膠外殼/ Plastic	○	○	○	○	○	○
電路板/PCBA	-	○	○	○	○	○
滾輪/Wheel	-	○	○	○	○	○
內部線材/ Internal Cable	-	○	○	○	○	○
外部線材/ External Cable	-	○	○	○	○	○
備考1. “超出0.1wt%”及“超出0.01wt%”係指限用物質之百分比含量超出百分比含量基準值。 Note 1: “Exceeding 0.1 wt%” and “exceeding 0.01 wt%” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. 備考2. ○係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: ○ indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3. -係指該項限用物質為排除項目。 Note 3: - indicates that the restricted substance corresponds to the exemption

Region Address Telephone
Asia 亞洲	4F.-4, No. 186, Jian 1st Rd., Zhonghe Dist., New Taipei City 235603, Taiwan 新北市中和區建一路186號4樓及4樓之4	[phone]
Europe Havneholmen 8, 1 st Floor, 2450 Copenhagen SV, Denmark		[phone]
USA 656 W	Randolph St., Suite 3E, Chicago, IL 60661, USA	[phone]

More information and support from steelseries.com

ACMA Compliance

(Australia/New Zealand)

Direct Current

Complies with

IMDA Standards

DA 106032

Singapore approval (IMDA)

Malaysia approval (SIRIM)

Product Name (產品名稱/产品名称): Wireless Mouse (滑鼠/鼠标)

Model No. (型號/型号): M-00025

Rated（規格/规格):5V = = 500mA

Accessories information (配件資訊/配件信息)

Product Name: (產品名稱/产品名称):Transceiver (收發器/收发器)

Model No. (型號/型号): M-00025TX

Rated (規格/规格): 5 V = = 30 mA

Operating Temperature: 0 to +40 °C

產品使用環境溫度：0-40度
