BT 2680 - Hand blender Orbegozo - Free user manual and instructions

Product type	Immersion blender
Brand	Orbegozo
Model	BT 2680
Power supply	220-240 V ~ 50/60 Hz
Speed	Variable with turbo function (switch I and II)
Blade material	Stainless steel
Body material	Plastic
Package contents	Blending shaft, measuring cup
Functions	Blending, emulsifying, preparing soups, sauces, mayonnaise, baby food, milkshakes
Maximum usage time	1 minute continuous (15 seconds for hard foods)
Maximum ingredient temperature	80 °C
Cleaning	Motor unit with damp cloth, other parts dishwasher safe
Safety	Do not immerse motor unit, sharp blade, do not use with dry foods
Warranty	24 months
Compliance	Low Voltage Directive 2014/35/EU and EMC 2014/30/EU
After-sales service	Orbegozo authorized service center
Usage	Household only
Control type	Two-speed switch (I: normal, II: turbo)

Frequently Asked Questions - BT 2680 Orbegozo

How to use the Orbegozo BT 2680 immersion blender?

Assemble the blending foot onto the motor unit until it locks. Insert the blender into the container, then press switch I (normal speed) or II (turbo). Do not exceed 1 minute of continuous use, and 15 seconds for hard foods.

What is the maximum usage time?

The immersion blender is designed for short-term operation: do not use it for more than 1 minute continuously, and no more than 15 seconds for hard foods.

How to clean the motor unit?

Unplug the appliance. Clean the motor unit only with a damp cloth. Never immerse the motor unit in water or under the tap.

What to do if the power cord is damaged?

If the cord is damaged, contact an authorized service center for replacement to avoid any hazard.

Can I blend hot foods?

Yes, but let hot ingredients cool to a maximum temperature of 80 °C before blending. Hotter liquid could cause the accessory to be ejected.

Are the parts dishwasher safe?

The plastic parts (cup, shaft) can be washed in the dishwasher. To prevent discoloration, wipe them with vegetable oil before placing in the dishwasher.

What is the warranty on the appliance?

The appliance has a 24-month warranty from the date of purchase, covering manufacturing defects. The warranty is valid with the invoice or receipt.

How to adjust the speed?

Use switch I for normal speed and switch II (turbo) for maximum speed. The speed control allows you to adapt the power according to your needs.

What to do if the appliance does not work?

Check that the appliance is properly assembled and plugged in. If the problem persists, contact an authorized service center. Do not attempt to repair the appliance yourself.

Is it suitable for baby food?

Yes, the immersion blender is perfectly suitable for preparing baby food, as well as soups, sauces, mayonnaise, and milkshakes.

USER MANUAL BT 2680 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

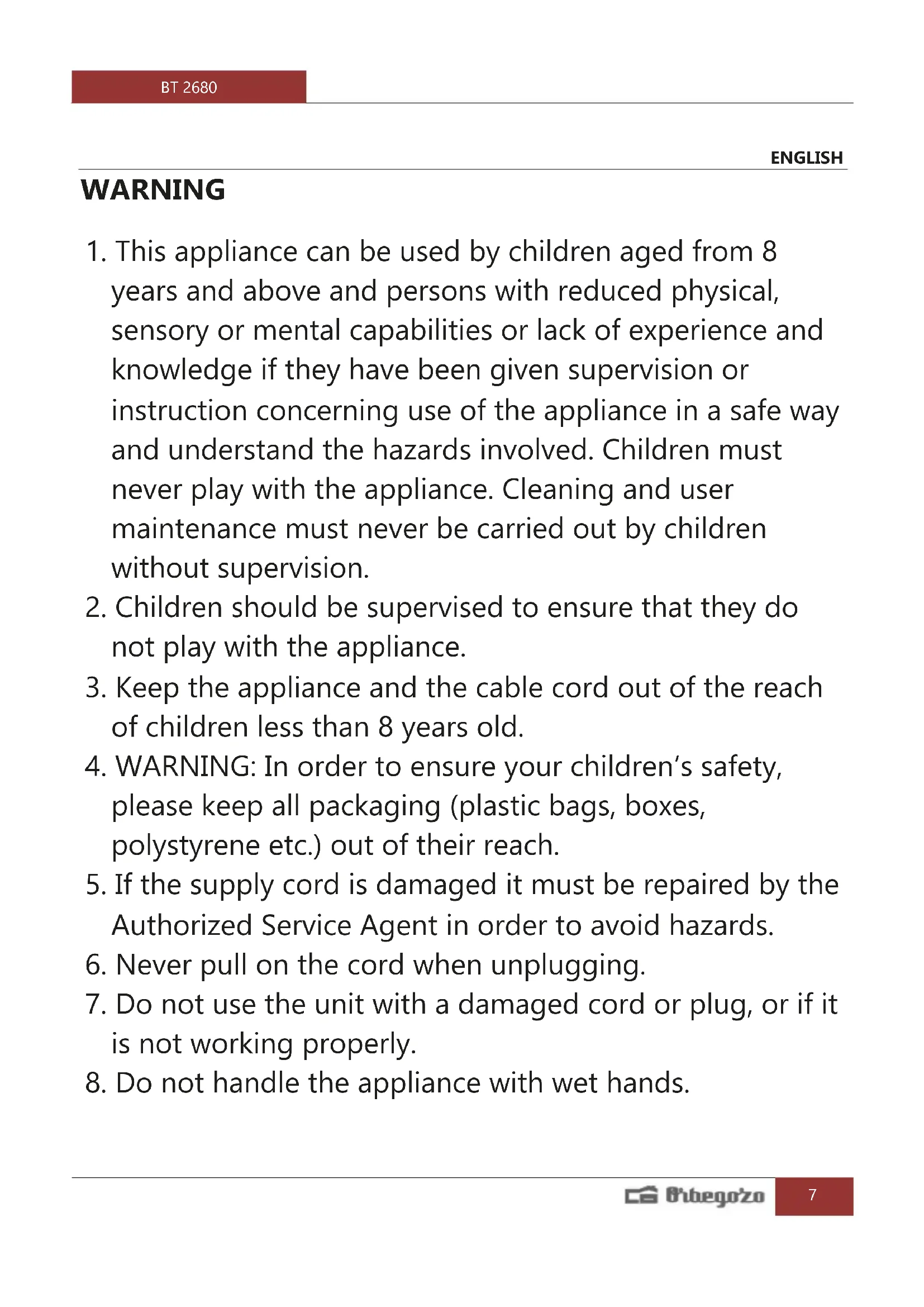

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14. WARNING: In case of misuse, there is a risk of possible injury.
15. Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
16. The appliance is at risk for injury in the event of misuse. Care should be taken when handling the cutting blades when the glass is empty and during cleaning.
17. Do not plug the appliance into the mains supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
18. Do not let the motor unit, cord or plug get wet.
19. Do not let cord hang over the edge of table or counter, or touch hot surfaces.
20. Do not use the blender in hot ingredients.

21. This appliance is designed to process normal household quantities.

22. Short-time operating. Do not use the unit for more than 1 minute and do not use on hard foods for more than 15 seconds.

23. Pressing the switch I, you can use the speed control to fit speed you need. But switch II is immutable.
24. Always unplug the appliance from the mains before you assemble, disassemble, clean or make adjustments to any of the accessories.
25. If not used properly someone might get hurt.
26. You will have to take care when handling sharp cutting blades, empty beaker or during cleaning.
27. Always use the blender on a flat, level work surface.
28. The use of accessories not supplied by the manufacturer may cause accidents.
29. Unplug the appliance before changing accessories or parts that can move during operation of the mixer.
30. Be careful if hot liquid is spilled over the device, the accessory can be ejected due to sudden temperature change.

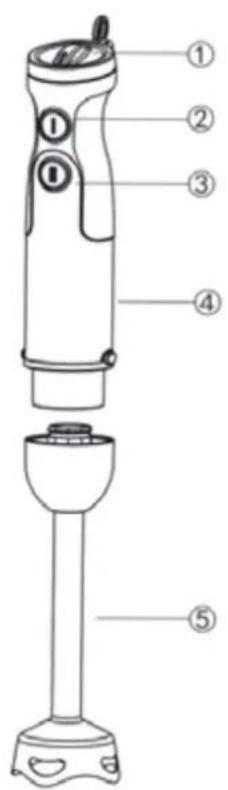

DESCRIPTION

1. Speed control.
2. Switch I, normal speed.
3. Switch turbo.
4. Motor unit.
5. S.S. stick.
6. Beaker.

BEFORE FIRST USE

Thoroughly clean the parts that come into contact with food before you use the appliance for the first time.

PREPARE FOR USE

1 Let hot ingredients cool down before you chop them, blend them or pour them into the beaker (max. temperature 80^ ).
2 Cut large ingredients into pieces of approximately 2cm before you process them.
3 Assemble the appliance properly before you put the plug in the wall socket.

USING THE APPLIANCE

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Insert the blender stick onto the motor unit until it locks.
2. Introduce the hand blender in the vessel, then transfer inching switch and press the switch to operate it. Press the switch I or switch II to operate it.
3. Use the hand blender for no longer than 1 minute.
4. Caution: the blade is very sharp!
5. Caution: Don't operate dry food!

CLEANING

Clean the motor unit only with a damp cloth. Do not immerse the motor unit in water!

1. Unplug the appliance before cleaning.
2. Also, be careful not to use an overdose of cleaner or decalcified in your dishwasher.
3. When processing food with color, the plastic parts of the appliance may become discolored wipe these parts with vegetable oil before placing them in the dishwasher.
4. The blades are very sharp, please attention.

Hand Blender
Vegetables soup	potatoes	100g	1 minute	2cm	II
	onion	100g		2cm	II
	carrots	100g		2cm	II
	Water	450g		/	II
Mayonnaise	Vegetable oil	150g	30sec	/	II
	egg	1		/	II
	vinegar	14g		/	II
Carrot juice	Carrot	300g	1 minute	2cm	II
	sugar	20g		/	II
	water	480g		/	II

Disposal of old electrical appliances.

The European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

ATTENTION

We hereby certify that the equipment stated in this Guarantee Card has gone through strict quality control checks and bears a full Guarantee of 24 months, which shall come in force from the date of purchase.

During the 24-month guarantee period, the present certificate covers repairs, workmanship and spare parts for all manufacturing defects, however this guarantee does not cover those defects that have been caused due to the following: defects of installation, blows, bad use, breakage of plastic parts and external causes not related to the equipment. This guarantee does not include installation and maintenance.

This certificate of guarantee is cancelled on those accessories and components which are worn due to continuous use. Those which are perishable, such as plastic components, glass, lamps, filters, rubber or enamelworks which get worn due to wrongful use or reaction to outside agents such as heating, water or chemical products.

The present certificate of guarantee shall be nullified if the equipment is handled by any unauthorised personnel.

Customer's rights:

The seller should be responsible over the customer in the event of lack of conformity when the product is purchased. It is recognised the right of the customer to get the product repaired, substituted, decreased its price or the resolution of the contract.

The present certificate is only valid if it is accompanied by the receipt or invoice of purchase.
