USER MANUAL RZ20K1133WW SAMSUNG

Chest Freezer user manual

English

imagine the possibilities

Thank you for purchasing a Samsung product.

Free Standing Appliance

SAMSUNG

contents

SAFETY INFORMATION 02

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Use this appliance only for its intended purpose as described in this instruction manual. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use

of the appliance by a person responsible for their safety.

-Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
- Because these following operating instructions cover various models, the characteristics of your freezer may differ slightly from those described in this manual. R-600a or R-134a is used as

English - 02

a refrigerant.

Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your freezer.

When this product contains flammable gas (Refrigerant R600a), contact your local authority in regard to safe disposal of this product.

Important safety symbols and precautions:

WARNING	Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION	Hazards or unsafe practices that may result in minor personal injury or property damage.
	Do NOT attempt.
	Do NOT disassemble.
	Do NOT touch.
	Follow directions carefully.

	Unplug the power plug from the wall socket.
	Make sure the machine is grounded to prevent electric shock.
	Call the contact center for help.
	Note.

These warning signs are here to prevent injury to you and others.

Please follow them carefully. After reading this section, keep it in a safe place for future reference.

SEVERE WARNING SIGNS FOR INSTALLATION

• Do not plug several appliances into the same multiple power board. The freezer should always be plugged into its own individual electrical outlet which has a voltage rating that matched the rating plate.

• This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires.

• If the wall socket is loose, do not insert the power plug.

• There is a risk of electric shock or fire.

• Do not use a cord that shows cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy articles on it.

• Do not use aerosols near the freezer.

• Aerosols used near the freezer may cause an explosion or fire.

• Connect the power plug in proper position with the cord hanging down.

• If you connect the power plug upside down, wire can get cut off and cause fire or electric shock.

• Make sure that the power plug is not squashed or damaged by the back of the freezer.

• When moving the freezer, be careful not to roll over or damage the power cord.

• This constitutes a fire hazard.

• This appliance should be positioned in such a way that it is accessible to the power plug.

• Failing to do so may result in an electric shock or fire due to electric leakage.

• This appliance must be properly grounded.

• Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

• You must ground the freezer to prevent any power leakages or electric shocks

caused by current leakage from the freezer.

• This may result in an electric shock, fire, explosion, or problems with the product.
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.

• If the power cord is damaged, have it replaced immediately by the manufacturer or its service agent.

• The fuse on the freezer must be changed by a qualified technician or service company.

• Failing to do so may result in an electric shock or personal injury.

SEVERE WARNING SIGNS FOR USING

• Do not touch the power plug with wet hands.

• This may result in an electric shock.

• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause a personal injury and/or material damage.
• Do not put a container filled with water on the freezer.
• If spilled, there is a risk of fire or electric shock.
  Children should be supervised to ensure that they do not play with the appliance.
• Keep fingers out of "pinch point" areas : clearances between the doors and cabinet are necessarily small. Be careful when you open the doors when children are in the area.
• There is a Risk of children entrapment. Do not let children enter inside the freezer.
• Do not keep volatile or inflammable objects or

English - 05

substances (benzene, thinner, propane gas, alcohol, ether, LP gas and other such products etc.) in the freezer.

• This freezer is for storing food only.
• This may result in fire or explosion.
• Do not place or use electrical appliance inside the freezer, unless they are of a type recommended by the manufacturer.
• Do not use a hair dryer to dry the inside of the freezer.
• Do not place a lighted candle in the freezer for removing bad odours.
• This may result in an electric shock or fire.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the

refrigerant circuit.

• This product is intended only for the storage of food in a domestic environment.

• Bottles should be stored tightly together so that they do not fall out.

• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the freezer.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.

• Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.

• When repairing or reinstalling the appliance is required, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.

• If the appliance generates a strange noise, a burning or smell or smoke, unplug the power plug immediately and contact your nearest service center.

• Failing to do so may result in an electric or fire hazards.

• Pull the power plug out of the socket before changing the interior lamps of the freezer.
• Otherwise, there is a risk of electric shock.
• If any dust or water is in the freezer, pull out power plug and contact your Samsung Electronics service center.
• Otherwise there is a risk of fire.

CAUTION SIGNS FOR INSTALLATION

• Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.

• Allow the appliance to stand for 2 hours after installation.

• The installation or any service of this appliance is recommended by a qualified technician or service company.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

CAUTION SIGNS FOR USING

• Wrap the food up properly or place it in airtight containers before putting it into the freezer.
• Do not put any newly introduced food for freezing near to already existing food.
• Do not place glass or bottles or carbonated beverages into the freezer.
• The container may freeze

English - 07

and break, and this may result in injury.

• Please observe maximum storage times and expiry dates of frozen goods.
  Children should be supervised to ensure that they do not enter and play with the appliance.
• If trapped inside, the child may become injury and suffocate to death.

CAUTION SIGNS FOR CLEANING AND MAINTENANCE

• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox, Chloride for cleaning.
• They may damage the surface of the appliance and may cause a fire.
• Do not spray inflammable gas near the freezer.
• There is a risk of explosion or fire.
• Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in an electric shock or fire.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in an electric shock or fire.

SEVERE WARNING SIGNS FOR DISPOSAL

• Leave the shelves in place so that children may not easily climb inside.

• Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.

• R-600a or R-134a is used as a refrigerant.

Check the compressor label on the rear of the appliance or the rating label inside the freezer to see which refrigerant is used for your freezer.

When this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

Cyclopentane is used as an insulation blowing gas.

The gases in insulation material require special disposal procedure.

Please contact your local authorities in regard to the environmentally safe disposal of this product.

Ensure that none of the pipes on the back of the appliances are damaged prior to disposal. pipes shall be broken in the open space.

• When disposing of this or other freezer/s, remove the door/door seals, door latch so that children or animals cannot become trapped inside.

Children should be supervised to ensure that they do not enter and play with the appliance.

• If trapped inside, the child may become injury and suffocate to death.
• Please dispose of the packaging material for this product in an environmentally friendly manner.

ADDITIONAL TIPS FOR PROPER USAGE

• In the event of a power failure, call the local office of your Electricity Company and ask how long it is going to last.
• Most power failures that are corrected in an hour or two will not affect your freezer temperatures. However, you should minimize the number of door openings while the power is off.
• But should the power failure last more than 24 hours, remove all frozen food.
• If the key is provided with freezer, the keys should be kept out of the reach of children and not be in the vicinity of the appliance.
  The appliance might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which

the freezing appliance is designed.

• Do not store food which goes bad easily at low temperature, such as bananas, melons.
• Temperature rise during defrosting can comply with ISO requirements. But if you want to prevent an undue rise in the temperature of the frozen food while defrosting the appliance, please wrap the frozen food up in several layers of newspaper.
• Any increase in temperature of frozen food during defrosting can shorten its storage life.
• Do not re-freeze frozen foods that have thawed completely.
• Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
• Hermetically sealed system.
• Do not vent gases into the atmosphere.
• Refrigerant type: R-134a
  Quantity: RZ20 : 0.15 kg
  RZ26 : 0.16 kg
  RZ31 : 0.19 kg
  RZ41 : 0.23 kg
  Global Warming Potential (GWP) = 1300

Saving Energy Tips

• Install the appliance in a cool, dry room with adequate ventilation.

Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example).

• Never block any vents or grilles on the appliance.
• Allow warm food to cool down before placing it in the appliance.
• Do not keep the door of the appliance open for too long when putting food in or taking food out.

The shorter time for which the door is open, the less ice will form in the freezer.

• Allow clearance to the right, left, back and top when installing.

This will help reduce power consumption and keep your energy bills lower.

• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

setting up your freezer

GETTING READY TO INSTALL THE FREEZER

Congratulations on your purchase of this Samsung Freezer.

We hope you enjoy state-of-the-art features and efficiencies that this new appliance offers.

• Please call installation engineer to install your new Freezer & then you can get more information from engineer about the performance of your Freezer.
• This Freezer must be properly installed and located in accordance with the manual before it is used.
• Use this appliance only for its intended purpose as described in this instruction manual.
• We strongly recommend that any servicing be performed by a qualified individual.
• Please dispose of the packaging material for this product in an environmental friendly manner.

Selecting the best location for the freezer

• A location without direct exposure to sunlight.
• A location with flat floor surface.
• A location with enough space for the Freezer door to open easily.

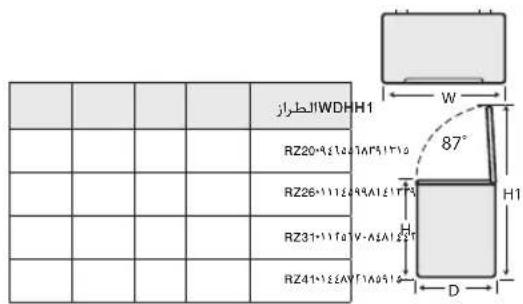

Model	W	D	H	H1
RZ20*	946	556	839		315
RZ26*	1114	599	814		1339
RZ31*	1125	670	848		1442
RZ41*	1448	721	859		1500

• Height of the product may be different depending on the models.

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

• Do not install the Freezer in a place with the temperature lower than 10^ .
• When you move the Freezer, unplug and clearly arrange the power cord. Also secure the glass shelf and the doors with a tape.

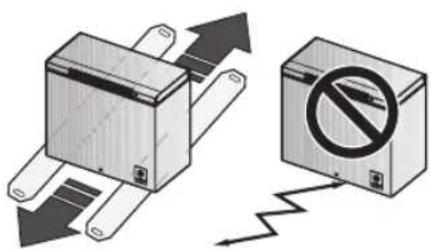

Pull the unit straight out when installing, servicing or cleaning behind the Freezer and push it straight back after work is complete. Make sure your floor can support fully loaded Freezer.
- Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.

FLOORING

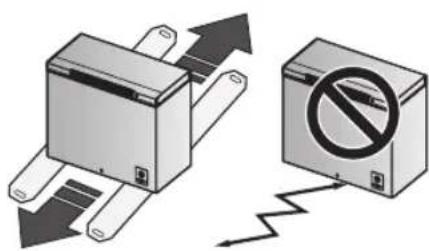

For proper installation, this freezer must be placed on a level surface of hard material that has the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded freezer (or approximately 65kg ). To protect the floor finish, cut a large section of the cardboard carton and place it under the freezer where you are working.

Pulling or pushing the freezer may damage the floor.

Moving the freezer after installation may damage the floor.

operating your freezer

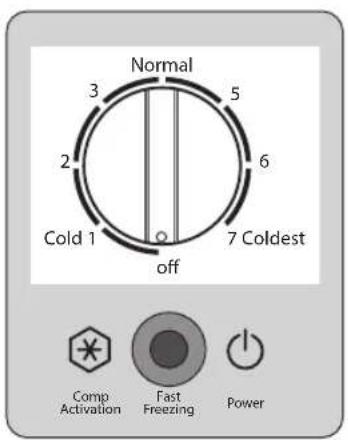

ADJUSTING THE TEMPERATURE CONTROL

• To adjust the temperature inside the freezer compartment, adjust the temperature control dial on front-bottom side of the chest freezer. Normally use chest freezer with temperature Normal. If the cooling performance is inadequate, turn the temperature control in the direction of 7. If it is too cold, turn the dial in the direction of 1.

• When you need the unit to stop running temporally, please turn the temperature control dial in the direction of off.

• Fast freezing: If you store large quantities of food, or want to make food freeze faster, turn the 'Fast Freezing' button On. Do not keep the fast freezing button On for long.

• Power : When the light is on, power is on.
  Comp activation : When the light is on, compressor is working.

• If the temperature where the Freezer is placed is lower than 5^ , set the temperature control to COLD. Because the temperature of the Freezer is affected by the temperature around the Freezer and it will be lower than the set value.

• Apart from knob settings mentioned above, if you desire to increase or reduce the cooling, turn the knob clockwise or anticlockwise to the degrees you want.

HOW TO DEFROST

1. Check the layer thickness of the frost/ice formed on the walls of the compartment. If frost is formed more than 4mm please defrost
2. Set the thermostat to "coldest" at least 12 hours before defrosting.
3. After this period has elapsed, switch off the freezer compartment by removing the plug from the main power supply.
4. Remove all food from freezer and wrap them in paper and store them in a cold place and leave the door open.
5. When the defrosting is finished, the compartment must be cleaned and wiped dry.

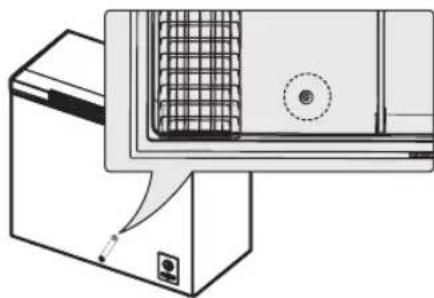

6. After defrosting, defrost water can flow out through the drain once you open the drain cap in/out side of the freezer.

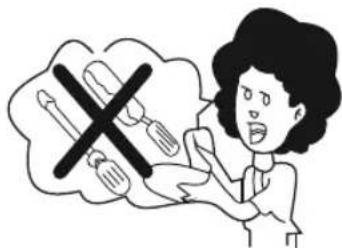

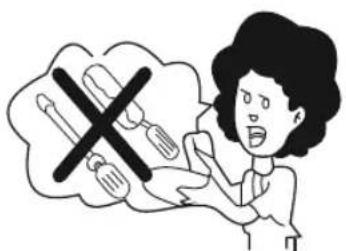

1. In order to remove ice from the ice making compartment, do not use a keen tool, knife or screw driver.

REMOVING THE INTERIOR PARTS

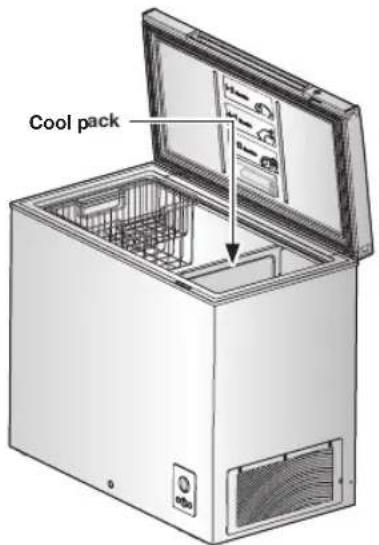

Cool pack

Pull the cool pack up through the guide.

No lamp for RZ20* model.

PROPER STORAGE OF FOOD ITEMS

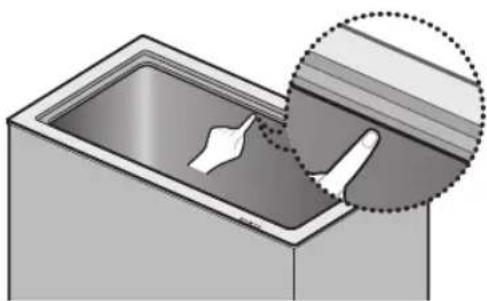

There is load limit along with the upper side of cap frame inner step. Please do not stack food items up above the load limit level.

CLEANING THE FREEZER

Do not use Benzene, Thinner or CloroxTM for cleaning.

They may damage the surface of the appliance and can create a risk of fire.

Do not spray the freezer with water while it is plugged in, as it may cause an electric shock. Do not clean the freezer with benzene, thinner or car detergent for risk of fire.

1. Unplug the power cord of the freezer.
2. Slightly dampen a soft lint-free cloth or paper towel with water.

Do not use any kind of detergent to clean the freezer because that can discolor or damage the freezer.

1. Wipe the inside and outside of freezer until it is clean and dry.
2. Plug the power cord of the freezer.

REPLACING THE LAMP

For lamp, please contact service engineer to replace it.

No lamp for RZ20* model.

troubleshooting

PROBLEM SOLUTION
The appliance is not operating at all or the temperature is too high or low.	Check the Freezer for the following:Check if the power plug is correctly connected.Check if the power fuse is blown.Is the temperature control or control panel correctly set?Does sun shine on the appliance or are there any heat sources nearby?Is the back of the appliance too close to the wall?Do not store the hot food till it comes to room temperature.Did you leave the freezer with freezer door open for a long time?If a problem occurs, contact your service agents.
There are unusual noises.	Check if the appliance is installed on a stable and even floor.Is the back of the appliance too close to the wall?Have any foreign objects fallen behind or under the appliance?Is the noise coming from the compressor in the appliance?A ticking sound occurs when the various accessories contract or expand.
The front corners and sides of the appliance are warm and condensation starts to form.	Heat-proof pipes are installed in the front corners of the appliance to prevent condensation from forming.When the surrounding temperature rises, this may not always be effective.However, this is not abnormal.In very humid weather, condensation may form on the outer surface of the appliance when the moisture in the air comes into contact with the cool surface of the appliance.
You can hear a liquid bubbling in the appliance.	This is the refrigerant, which cools the inside of the appliance.
There is a bad smell inside the appliance.	Is there any spoiled food inside of the Freezer?Make sure that strong smelling food (for example, fish) is wrapped so that it is airtight.Clean out your Freezer periodically and throw away any spoiled or suspect food.

memo

Ambient Room Temperature Limits

This freezer is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

Class	Symbol	Ambient Temperature range (°C)
		IEC 62552 (ISO 15502)	ISO 8561
Extended Temperate	SN	+10 to +32	+10 to +32
Temperate	N	+16 to +32	+16 to +32
Subtropical	ST	+16 to +38	+18 to +38
Tropical	T	+16 to +43	+18 to +43

Internal temperatures may be affected by such factors as the location of the fridge/freezer, ambient temperature and the frequency with which you open the door. Adjust the temperature as required to compensate for these factors.

English	Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
	(Applicable in countries with separate collection systems)
	This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
	Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items environmentally safe recycling.
	Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

COUNTRY CALL WEBSITE
AFRICA	SEWA NIGERIA 0800-726-7864		www.samsung.com/africa_en/support
	SEWA Ghana	0800-10077
		0302-200077
	SEWA Cote D'lvoire 8000 0077		www.samsung.com/africa_fr/supportSEWA SENEgal 800
	SEWA CAMEROON 67095-0077
	SEEA KENYA	0800 545 545	www.samsung.com/support
	SEEA UGANDA 0800 300 300
	SEEA TANZANIA 0685 889 900
	SEEA RWANDA	9999
	SEEA BURUNDI	200
	SEEA DRC	499999
	SEEA SUDAN	1969
	SSA SOUTH AFRICA	0860 SAMSUNG (726 7864)	www.samsung.com/support
	SSA BOTSWANA 800 7260000
	SSA NAMIBIA	08 197 267 864
	SSA ZAMBIA	0211 350370
	SSA MOZAMBIQUE	847267864 / 827267864
	SSA MAURITIUS	800 2550

RZ20*

RZ26*

RZ31*

RZ41*

120g/l

a1y1 1 a0

a

1. pL 2011 J L S O 2011 J L W L G a n g o

a 1

a 1

S_1 = 12 · 2^1 = 12

Samsung

10gdoa ydl aaiy lgl 1000000000000000000000000000000

1

LcLsLa 1

aJg> ygi 10:Logell jzjll Jg

山

JUaag aaoa aobaaogg 5

aoluswJf pooswnl

1iig iogoo gLoS laa dJ jaa 1jglg1is paxiwi

J

Juaiae Juaiae Juaaia Juaia Juaia Juaia

jai 8 aaiy jieill iigaiiill algo y oalil

A

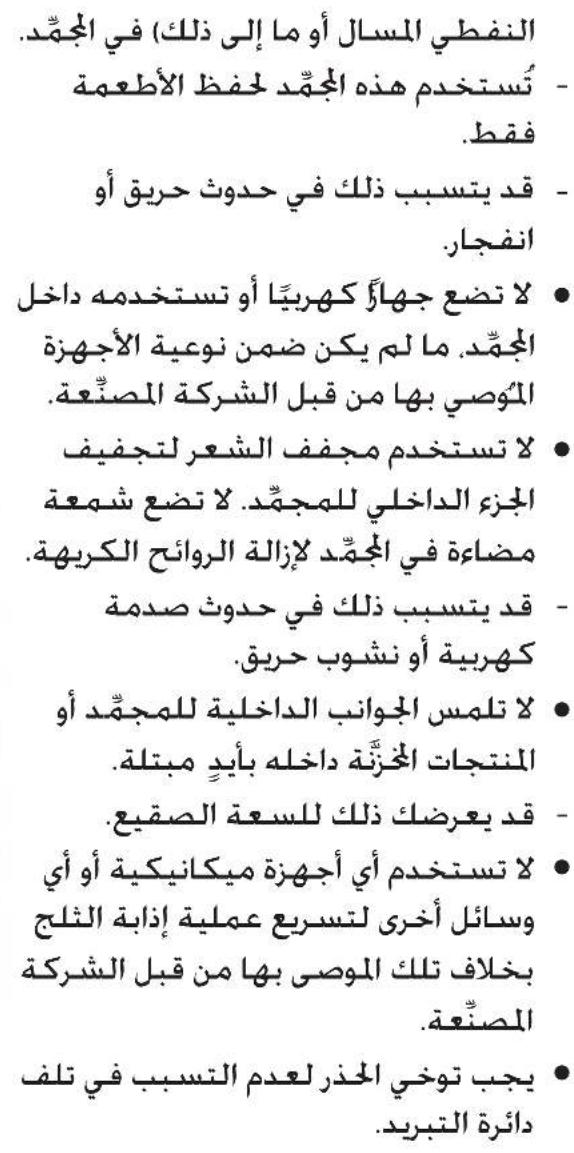

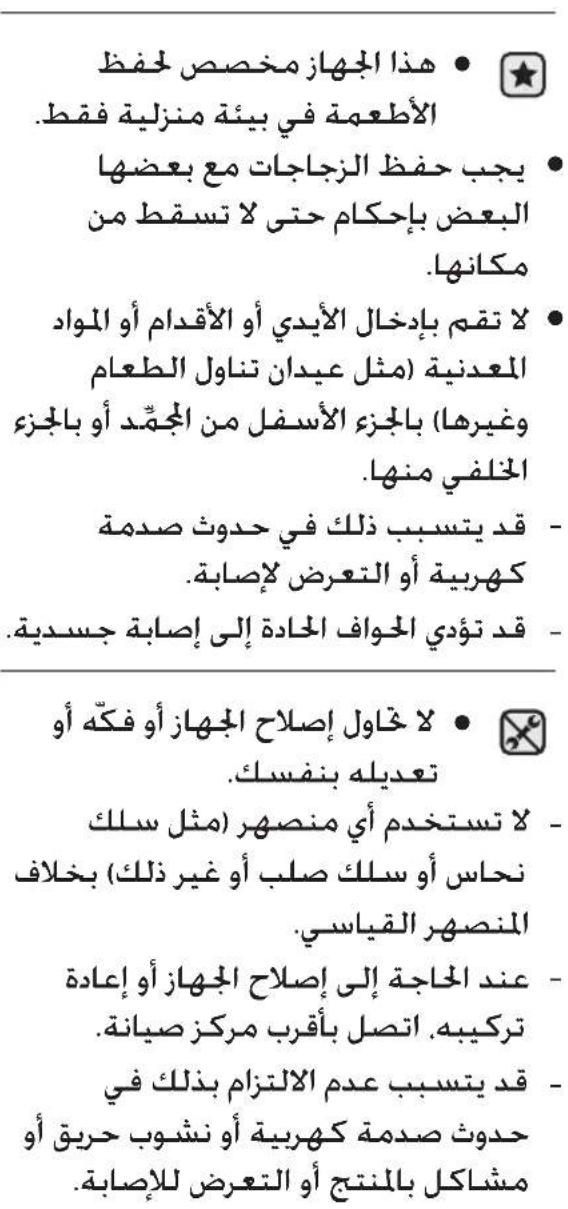

aolololololololololololololololololololololololololololololololololololololololololololololololololololololololol

Jnll Jnnnnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

gimwcbwJ50

a1 + a2 + a_3 = 6 .

jilll psswJg11 0a aai jia Lul

y 111111111111111111111

a 1

yI I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I

Jlalj Jglio jLgIc Ila 1

jbi jy wJg J 8 8
a g jg Jlg Jg J
a b Jg J Ld J
a lg b o j a o J
o J
o J
o J
o J
o J

1. -4

L121 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

a a
1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J J
J J
J J
J J
J J
J J
J J

9-

aolal 1 aaii j Lsle aiJg bii

gaiiaai1gai jiuui

1 1

2hww 1

gj

JLJIaIlaIcJz

g 1

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a a h b p s i w y jw gill blaig .abio ojgl aol

aegy8<1J LJI J

aB

1 111111111111111111111111111

aIJLJI JAcIy pJIg IiJ iJ

1 111111111111111111111111111

J! 15 JwSgclgJ 10

1

aobsl a xsl sglil gig jzjll

pcc 511 Jla8a aalg

J11 J11 111 111 11

aol1 a..lloLc

5

1c g 5g 2g p

cIb:0g>gl a-gal an

a 1

jLgJUaSjJI

jucLw dA1 pAsiwi jgjI

S BCD = S COD + S BDO - S BOC

abwglg jgjgs

aI 5

g 1

Jg 1

Lg

aolal aaii iolo

pL

1

Lgog Jggl 0s LgL

23 ①

aai

Jb

gJ 1

AaJcLgRgJ LgLj

gjgjgjLg

J.

J1

aJg

1 1

g 5

111 1

aal 1

1 1

a < 0 b > 0

J 1

Samsung Electronics

J 1

· = 0

V

Aolal 1

J 1

5 1

jglg1lglgo g jzjzjx 8
llj hawj aQyLg! gblj c -
g/og yduuauo! g uoyg lgl
jglgL

PcJ 151 JlaB21 aalr

gAaBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnBnB

joll 1 g1.0g2g1 a1a1g1 a

120 131 21 22 23 24 25

a 1

gioLw Jc bI 1Jg

1

RZ20*

RZ26*

RZ31*

RZ41*

· u1( t) J2

aLiL aLc

Samsung

SAMSUNG

lO = 12( lA + l_B)
