WGKT100S - Tea maker WOLF - Free user manual and instructions

Device type	Tea device
Capacity	1.2 liters
Material	Stainless steel
Features	Temperature control, keep warm function
Power supply	220-240 V, 50-60 Hz
Dimensions	25 x 15 x 20 cm
Weight	1.5 kg
Usage	Preparation of various types of tea at the ideal temperature
Maintenance	Clean with soapy water, do not immerse in water
Safety	Automatic shut-off, overheating protection
Warranty	2 years

Frequently Asked Questions - WGKT100S WOLF

How do I use the WOLF WGKT100S tea device?

To use the WOLF WGKT100S tea device, start by filling the water tank to the desired level. Then, select the appropriate water temperature for the type of tea you are preparing. Place the tea in the filter, then start the device.

How do I clean the WOLF WGKT100S tea device?

To clean the device, unplug it and let it cool down. Empty the water tank and remove the filter. Wash the tank and filter with warm water and mild soap. Do not immerse the device in water.

What should I do if the device does not turn on?

First, check that the device is properly plugged into a working outlet. Make sure the water tank is full and the lid is securely closed. If the device still does not turn on, contact customer service.

Does the WOLF WGKT100S tea device make noise during use?

Some noise is normal during the boiling process, but if the device makes unusual or loud noises, it is advisable to turn it off and check for any obstructions or debris.

Can I use loose leaf teas with this device?

Yes, you can use loose leaf teas. Use the provided filter to prevent tea leaves from getting into your cup.

How do I adjust the water temperature?

The WOLF WGKT100S tea device has several temperature settings. Use the control buttons to select the desired temperature based on the type of tea you are preparing.

Is there an automatic shut-off function?

Yes, the device is equipped with an automatic shut-off function that activates when the water reaches the set temperature or when the tank is empty.

Can I make iced tea with this device?

Yes, you can prepare hot tea and then cool it down to make iced tea. It is recommended to brew the tea at a higher temperature for optimal infusion.

Where can I find the user manual for the device?

The user manual for the WOLF WGKT100S tea device is usually included in the packaging. You can also download it from the official WOLF website.

USER MANUAL WGKT100S WOLF

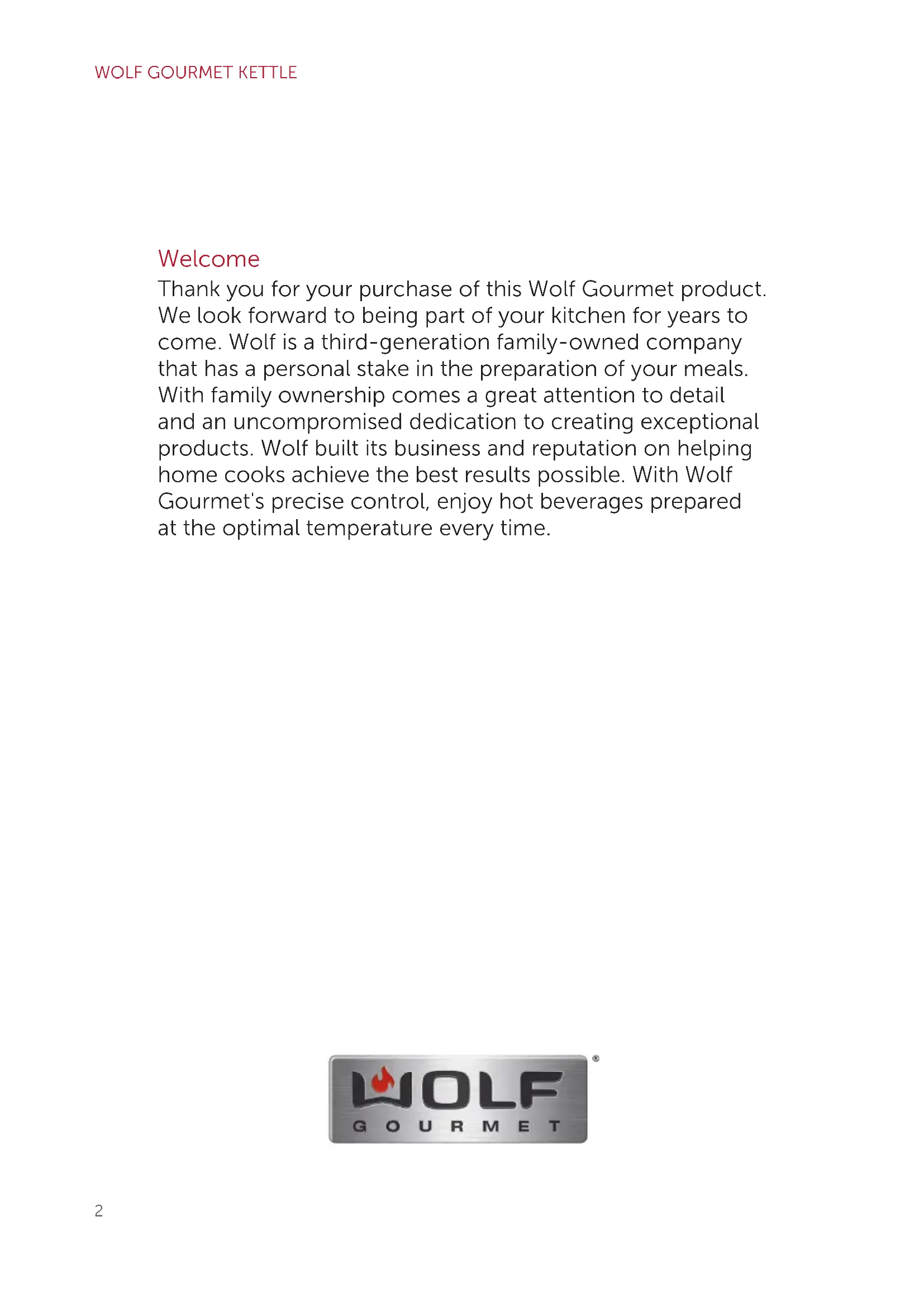

Welcome Thank you for your purchase of this Wolf Gourmet product. We look forward to being part of your kitchen for years to come. Wolf is a third-generation family-owned company that has a personal stake in the preparation of your meals. With family ownership comes a great attention to detail and an uncompromised dedication to creating exceptional products. Wolf built its business and reputation on helping home cooks achieve the best results possible. With Wolf Gourmet's precise control, enjoy hot beverages prepared at the optimal temperature every time.3 Contents

Warranty Customer Care As a Wolf Gourmet owner, you can count on our support. Our Customer Care Center is here to help you should the need arise. Simply call 844-885-8770 to speak with one of our customer experts. In Mexico, please contact the customer service center at 800-400-4372. We are confident this guide will answer your questions about the features, operation, and maintenance of your Wolf Gourmet product. If you have additional questions, please contact us by phone or visit us online at wolfgourmet.com. Register Your Product We strongly encourage you to register your Wolf Gourmet appliance. It is important to us that you get the most out of your products. By registering you will:

• Become a Wolf Gourmet culinary insider.

• Have ongoing support from Wolf Gourmet.

• Activate your warranty and record your purchase.

• Be alerted to any service updates.

• Receive occasional emails to help you maintain and enjoy your appliances. To register, visit wolfgourmet.com/registration or call 844-885-8770. In Mexico, please visit wolfgourmet.com.mx or call 800-400-4372.4 SAFETY PRECAUTIONS IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

• Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.

• Do not touch hot surfaces or hot water. Use handles or knobs. Care must be taken since burns can occur from touching hot parts or from spilled hot liquid.

• To protect against fire, electric shock, and personal injury, do not immerse cord, plug, power base, or electric kettle in water or other liquid.

• Unplug from outlet when kettle is not in use and before cleaning. Allow to cool before putting on or taking o parts and before cleaning.

• Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

• The use of accessory attachments not recommended by the manufacturer may result in fire, electric shock, or personal injury.

• Do not use outdoors.

• Do not let cord hang over edge of table counter or touch hot surfaces, including the stove.

• Do not place electric kettle on or near a hot gas or electric burner or in a heated oven.

• To disconnect electric kettle, stop any active function mode and then remove plug from wall outlet. Never pull on cord as this may damage the cord and eventually cause electric shock.

• Do not use appliance for other than intended use.5 This appliance is intended for household use only. WARNING Electrical Shock Hazard: This appliance is provided with a grounded (3-prong) plug to reduce the risk of electrical shock. The plug only fits in one way into a grounded outlet. Do not defeat the safety purpose of the plug by modifying it in any way or by using an adapter. If the plug does not fit into the outlet, a qualified electrician should replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance. Other Consumer Safety Information SAFETY PRECAUTIONS
• Do not use for other than heating water. Other liquids or food will contaminate the interior and void warranty.

• Do not allow kettle to boil dry.

• To avoid circuit overload, do not operate another high-wattage appliance on the same circuit.

• Scalding may occur if the lid is opened during the heating cycle.

• Be certain kettle lid is securely in place during operation and when pouring hot water. Do not use force when placing lid on kettle.

• The kettle outer surface is subject to residual heat after use. Allow to cool before touching.

• Do not fill above the MAX level (50 oz [1.5 liter]). If above this level, water can boil out of the kettle, creating a burn hazard.

• Do not spill water on base.

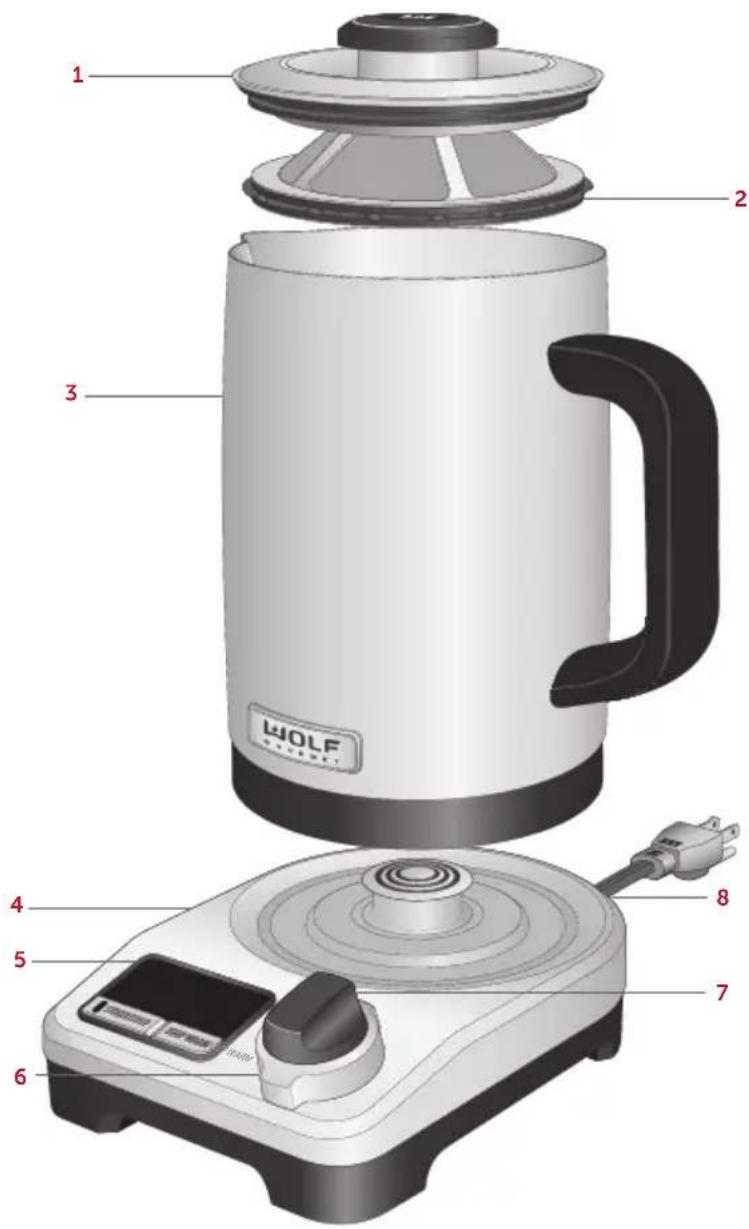

Removable Seal 3 Vessel 4 Base

1. Lid with Filter: The lid is used to keep dust and other contaminants from the water.

The filter is used to filter scale that may form in the water after boiling.

2. Removable Seal: Holds the lid in place.

3. Vessel: Holds the water to be heated.

4. Base: Provides a stable platform and electrical connection to the body.

5. Control Panel: Controls the functions of the kettle. See explanation of icons

7. Knob: Controls manual temperature or keep warm time.

8. Cord Storage: The bottom of the base allows for the cord to be stored.

Icon in the Display Function Mode Wolf Gourmet Logo – Kettle is in standby mode. ALL Indicates the set temperature, actual temperature, and the temperature scale. F = Fahrenheit C = Celsius ALL Indicates keep warm time in minutes. When time is less than 10 minutes, the time is in minutes and seconds. ALL Indicates actual temperature is increasing. ALL

CONTROL PANEL BUTTONS & KNOBS

Button/Knob Function Mode Press to start or stop the heating cycle. ALL Press to start keep warm mode. ALL Mode Selector Bezel – Turn to select mode. ALL Knob – For the MANUAL mode, turn knob clockwise to increase temperature; turn counterclockwise to decrease temperature. MANUAL Knob – For the KEEP WARM mode, turn knob clockwise to increase keep warm time, turn counterclockwise to decrease keep warm time. ALL8

1. Pull up on the lid to remove. Fill the vessel with water

to the MAX fill line on the Water Level Window.

2. Turn the mode selector bezel to MANUAL. The screen will

display 212°F (100°C). Press the START/STOP button to turn the kettle ON. The kettle will bring the water to a boil, then shut off automatically.

3. Discard water and repeat 2–3 times, rinsing out the vessel each time. The kettle is

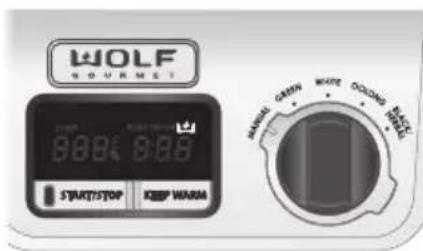

1. MANUAL mode allows you to set the kettle to a custom

3. WHITE mode sets the temperature to 180°F (82°C).

6. Standby mode. If no buttons are pressed for 30 seconds,

the kettle enters standby mode. Only the Wolf Gourmet logo is displayed. To wake from standby mode, press any button, turn the knob, or turn the mode selector bezel. CHANGING TEMPERATURE SCALE FROM °F TO °C

1. Press and hold the KEEP WARM button for more than 5 seconds,

then release it. The screen will automatically switch between °F and °C.

1. Plug the kettle into a grounded power outlet. Rotate

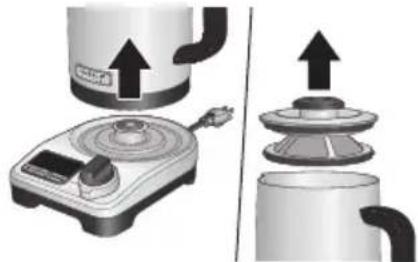

2. Remove the vessel from the base and the lid from

the vessel. Fill with the desired amount of water. WARNING Burn Hazard: Do not fill above the MAX level (50 oz [1.5 liter]). If above this level, water can boil out of the vessel, creating a burn hazard. NOTE: If your kettle is accidentally switched on without being filled with water, or is allowed to boil dry, the kettle will automatically switch o. You should:

• Unplug the kettle and wait about 20 minutes for the element to cool down.

• Refill the vessel; then use as normal.

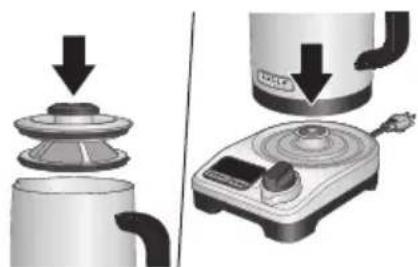

3. Place the lid on the vessel. Place the vessel on the base.

4. Turn the knob clockwise to increase the temperature, or

counterclockwise to decrease the temperature. The maximum temperature is 212°F (100°C). The minimum temperature is 95°F (35°C).

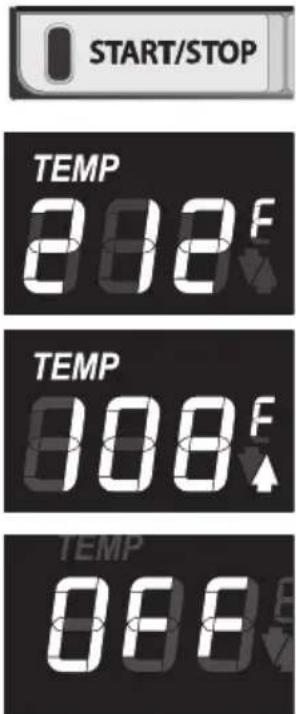

5. Press the START/STOP button to begin the heating cycle.

The kettle will chime once for confirmation.

6. As the water heats, the display will alternate between the

the kettle will chime three times and display OFF.

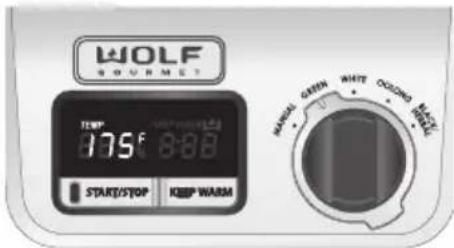

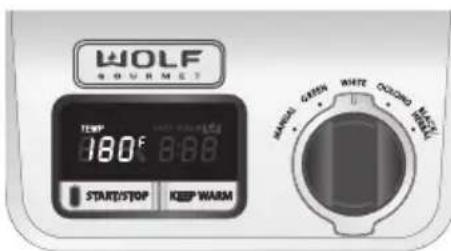

1. Plug the kettle into a grounded power outlet. Rotate the mode selector bezel to

the desired preset mode:

• GREEN mode sets the temperature to 175°F (80°C).

• WHITE mode sets the temperature to 180°F (82°C).

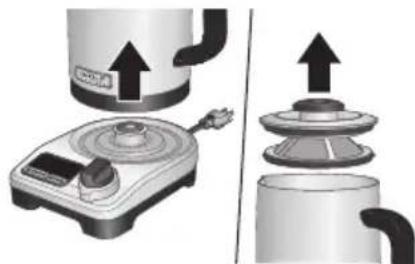

2. Remove the vessel from the base. Remove the lid from

the vessel. Fill with the desired amount of water. WARNING Burn Hazard: Do not fill above the MAX level. (50 oz [1.5 liter]). If above this level, water can boil out of the vessel, creating a burn hazard. NOTE: If your kettle is accidentally switched on without being filled with water, or is allowed to boil dry, the kettle will automatically switch o. You should:

• Unplug the kettle and wait about 20 minutes for the element to cool down.

• Refill the vessel; then use as normal.

KEEP WARMKEEP WARMSTART/STOPSTART/STOP11

3. Place the lid on the vessel. Place the vessel on the base.

4. Press the START/STOP button to begin the heating cycle.

5. As the water heats, the display will alternate between the

the kettle will chime three times and display OFF.12

USING THE KEEP WARM FUNCTION

1. The keep warm function works at all temperatures. The maximum keep warm time

2. To enable the keep warm function, press the KEEP WARM button

before you start the heating cycle.

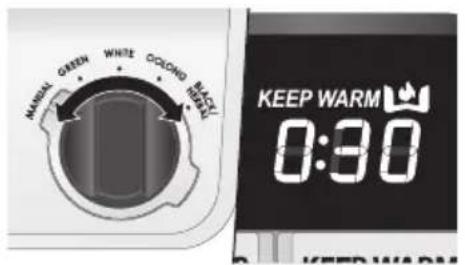

3. Set the keep warm time. Turn the knob clockwise to

increase the keep warm time, or counterclockwise to decrease the keep warm time. (If knob is not turned within 3 seconds of pressing the KEEP WARM button, the keep warm function will not be enabled.)

4. Press the START/STOP button to begin the heating cycle.

(If the START/STOP button is not pressed after setting the keep warm time, the keep warm function will not be enabled and the kettle will enter standby mode.)

5. After the actual temperature reaches the set temperature,

the keep warm timer will count down until 0:00 is reached. The kettle will chime three times and display OFF. NOTE: When the vessel is lifted from the base, the keep warm function stops. To resume the keep warm function, follow steps 2 and 3.

Your appliance should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire. BEFORE CLEANING Unplug the kettle and allow to cool completely. Care Recommendations WARNING Electrical Shock Hazard: Do not clean with metal scouring pads. Pieces can break o pad and touch electrical parts, causing a risk of electric shock. CLEANING Control Panel Display Wipe with a slightly damp sponge. Protect display when cleaning any other surfaces. Stainless Steel Exterior Use a nonabrasive stainless steel cleaner, such as Signature Polish, and apply with a soft, lint-free cloth. To bring out the natural luster, lightly wipe surface with a water-dampened microfiber cloth followed by a dry polishing cloth. Always follow the grain of stainless steel. Signature Polish can be ordered via their website at www.signaturepolishonline.com. Non-Stainless Steel Exterior Wipe outside of kettle with a damp cloth or spray with all-purpose cleaner. Wipe clean with a lint-free cloth. Do not use abrasive cleaners or metal scouring pads. Stainless Steel Vessel Allow vessel to cool before washing. Hand-wash in warm, soapy water with a sponge, dishcloth, or plastic pad. Do not fully immerse vessel in water. Avoid using steel wool, steel scouring pads, or harsh detergents. Although stainless steel is very durable, it is not indestructible. Pitting may result if undissolved salt is allowed to remain in the bottom of the vessel. Lid with Filter Hand-wash in warm, soapy water with a sponge or dishcloth. Vessel Interior If kettle floor discolors: It is normal for stainless steel heating elements to discolor. This does not aect the performance of the kettle. Do not use abrasive scouring pads or cleaners since this may damage the stainless steel surface. To avoid scale/lime deposit buildup, empty vessel after each use. To remove discoloration or scale/lime deposit from heating element: Place 1/2 teaspoon (3 g) cream of tartar (available in the spice aisle of grocery store) into vessel. Then fill vessel to MAX level (50 oz [1.5 liter]). Place lid on vessel. Place vessel on base. Plug kettle into a grounded power outlet. Rotate mode selector bezel to MANUAL. Turn knob clockwise to reach maximum temperature of 212°F (100°C). Press START/STOP button to begin heating cycle. When kettle reaches set temperature, kettle will chime three times and display OFF. Discard vessel water and rinse several times with clean tap water.14 Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc. Sub-Zero, Sub-Zero & Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens, The Fine Art of Kitchen Design and Ingredients are registered trademarks and service marks of Sub-Zero, Inc. (collectively, the ‘Company Marks’). All other trademarks or registered trademarks are property of their respective owners in the United States and other countries. Troubleshooting ‘E 01’ is on display.

• Press the KEEP WARM button. If ‘E 01’ is still on the display, contact our Customer Care Center. ‘E 02’ or ‘E 03’ is on display.

• Turn the knob clockwise or counterclockwise. If ‘E 02’ or ‘E03’ is still on the display, contact our Customer Care Center. ‘E 07’ is on display.

• Press the START/STOP button. If ‘E 07’ is still on the display, contact our Customer Care Center. ‘E 08’ is on display.

• Press the KEEP WARM and START/STOP buttons, and turn the knob clockwise or counterclockwise. If ‘E 08’ is still on the display, contact our Customer Care Center. ‘FIL H2O’ is on display.

• Fill the vessel with water and place the vessel back on the base. Press the START/ STOP button to begin heating. NOTES:

• If water overflows from the vessel spout during heating, too much water was added to the vessel. The MAX level is 50 oz. (1.5 liter).

• If the lid falls o of the vessel when pouring, the seal is not in place. Ensure the lower seal is properly installed in the lid before each use.15 Wolf Gourmet Residential Limited Warranty

This Wolf Gourmet product warranty applies only to appliances. Wolf Gourmet warrants appliances to be free from defects in materials or workmanship for a period of five (5) years from the date of original purchase.

LIFETIME LIMITED WARRANTY

This Wolf Gourmet product warranty applies only to cookware and cutlery products. Wolf Gourmet warrants cookware and cutlery to be free of defects in materials or workmanship for the lifetime of the product. Minor imperfections and discolorations are normal and are not considered defects.

TERMS APPLICABLE TO EACH WARRANTY

This Wolf Gourmet Residential Limited Warranty applies to appliances, cookware and cutlery purchased and used in the United States or Canada. This is the only express warranty for this product and is in lieu of any other warranty. During the warranty period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from negligence, accident, alteration, abuse, misuse, or improper service or repair. This warranty is void if the product is used for other than residential use or subjected to any voltage or waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). This warranty extends only to the original consumer purchaser or initial gift recipient. Wolf Gourmet excludes all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. EVERY IMPLIED WARRANTY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS DISCLAIMED EXCEPT TO THE EXTENT PROHIBITED BY LAW, IN WHICH CASE SUCH WARRANTY IS LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim visit the contact & support section of our website at wolfgourmet.com/warranty; or call 844-885-8770. For faster service, please locate the model, type, and series numbers on your product ratings label.16
