Technical specifications	WORX LeafJet WG585 high-pressure cleaner
Power supply type	Cordless electric
Maximum pressure	Not specified
Water flow rate	Not specified
Weight	Not specified
Dimensions	Not specified
Usage	Cleaning outdoor surfaces, garden debris
Maintenance	Regularly check the filter, clean the nozzles
Safety	Wear gloves and safety glasses, do not direct the jet towards yourself
General information	Ideal for small cleaning jobs, lightweight and easy to maneuver

Frequently Asked Questions - LeafJet WG585 WORX

How do I assemble the WORX LeafJet WG585?

To assemble the WORX LeafJet WG585, follow the instructions provided in the user manual. Make sure to securely clip all parts together and check that the tube is properly attached to the main unit.

Why won\u0027t my WORX LeafJet WG585 start?

Check that the battery is fully charged and correctly installed. Also ensure that the power button is in the \"on\" position. If the problem persists, contact customer service.

How do I clean the filter of the WORX LeafJet WG585?

To clean the filter, remove it from the device and rinse it with lukewarm water. Let it dry completely before putting it back in place.

My WORX LeafJet WG585 is overheating, what should I do?

If the device overheats, turn it off immediately and let it cool down. Check that the ventilation openings are not blocked and clean them if necessary.

What is the battery life of the WORX LeafJet WG585?

Battery life depends on usage, but generally it can last up to 30 minutes on a single charge. For optimal performance, make sure the battery is fully charged.

How do I store my WORX LeafJet WG585 for winter?

To store the WORX LeafJet WG585, clean the device, remove the battery, and store it in a dry, cool place. Avoid extreme temperatures to prolong battery life.

Are spare parts available for the WORX LeafJet WG585?

Yes, spare parts are available. You can order them through the official WORX website or authorized dealers.

How do I increase the blowing power of the WORX LeafJet WG585?

Make sure the blowing tube is properly attached and the filter is clean. You can also adjust the blowing speed using the power setting on the device.

My WORX LeafJet WG585 makes a strange noise, what should I do?

A strange noise may indicate a problem. Check that nothing is obstructing the fan and that the filter is clean. If the noise persists, contact customer service.

Can I use the WORX LeafJet WG585 in the rain?

The WORX LeafJet WG585 is not designed to be used in the rain. It is recommended to use it in dry weather to avoid damage to the device.

USER MANUAL LeafJet WG585 WORX

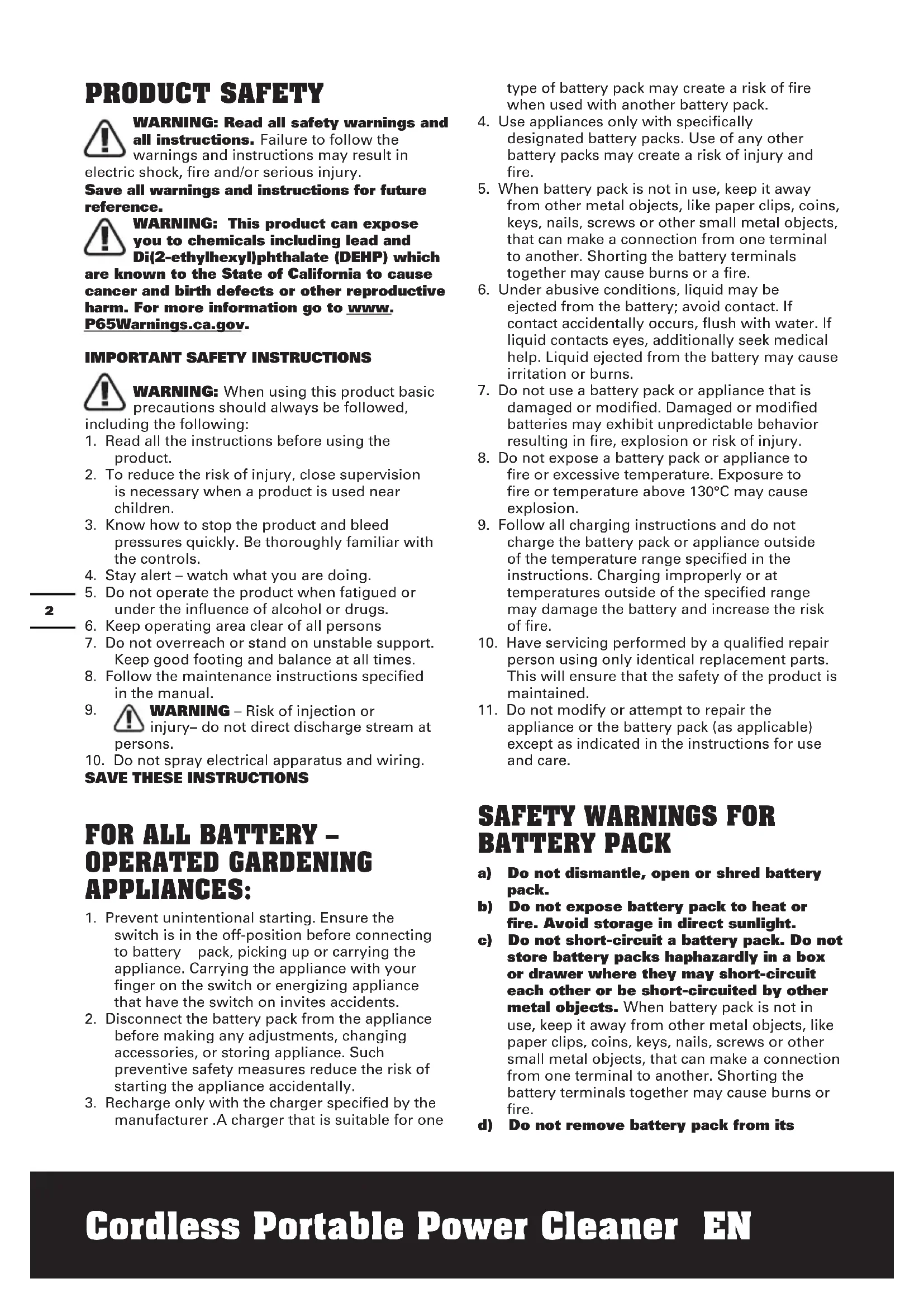

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in a shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

WARNING: This product can expose you to chemicals including lead and Di(2-ethylhexyl)phthalate (DEHP) which

are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this product basic precautions should always be followed,

including the following:

1. Read all the instructions before using the product.
2. To reduce the risk of injury, close supervision is necessary when a product is used near children.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
4. Stay alert - watch what you are doing.
5. Do not operate the product when fatigued or under the influence of alcohol or drugs.
6. Keep operating area clear of all persons
7. Do not overreach or stand on unstable support. Keep good footing and balance at all times.
8. Follow the maintenance instructions specified in the manual.
9. !WARNING - Risk of injection or injury- do not direct discharge stream at persons.
10. Do not spray electrical apparatus and wiring. SAVE THESE INSTRUCTIONS

FOR ALL BATTERY - OPERATED GARDENING APPLIANCES:

1. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
2. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
3. Recharge only with the charger specified by the manufacturer .A charger that is suitable for one

type of battery pack may create a risk of fire when used with another battery pack.

1. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
2. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
3. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
4. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
5. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
6. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
7. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
8. Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or fire.
d) Do not remove battery pack from its

Cordless Portable Power Cleaner EN

original packaging until required for use.
e) Do not subject battery pack to mechanical shock.
f) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
g) Observe the plus (+) and minus (-) marks on the battery back and equipment and ensure correct use.
h) Do not use any battery pack which is not designed for use with the equipment.
i) Keep battery pack out of the reach of children.
j) Seek medical advice immediately if a cell or battery has been swallowed.
k) Always purchase the battery pack recommended by the device manufacturer for the equipment.
1) Keep battery pack clean and dry.
m) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
n) Battery pack need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
o) Do not leave battery pack on prolonged charge when not in use.
p) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
q) Battery pack gives its best performance when it is operated at normal room temperature (20^ ± 5^) .
r) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
s) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
t) Retain the original product literature for future reference.
u) Use only the battery pack in the application for which it was intended.
v) Remove the battery pack from the equipment when not in use.
w) Dispose of properly.

SYMBOLS

To reduce the risk of injury, user must read instruction manual

Warning

Li-Ion battery, battery must be recycled

Remove battery from the socket before carrying out any adjustment, servicing or maintenance.

Do not burn

Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

CALL②recyclePOSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries' life cycle is ended, then please call 1-800-822-8837 for a free service that will properly dispose of the battery.

* Not all the accessories illustrated or described are included in standard delivery. Refer to the ACCESSORIES chart to review the options that are included with various product models. Visit work.com to learn more about these available accessory options.

1. PRESSURE SETTING SWITCH

2. LOCK-OFF SWITCH

3. ON/OFF SWITCH LEVER

4. BATTERY PACK *

5. HOSE ADAPTER

6. POWER NOZZLE

7. PRESSURE CLEANING LANCE

8. NOZZLE ADAPTER

9. DRAIN HOLE OF THE AIR RELEASE VALVE

10. MULTI-SPRAY NOZZLE

11. FIXING NAIL

12. BATTER POWER INDICATOR

13. HOSE CONNECTOR

14. HOSE FILTER

15. FLOATER

16. DRAW HOSE

17. HOSE CLIP

18. FILTER SCREEN (SEE FIG. R2)

19. QUICK CONNECT ADAPTER

20. SOAP BOTTLE*

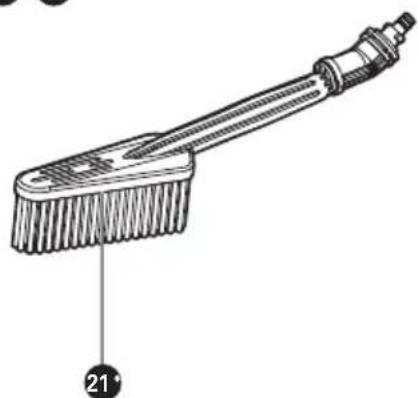

21. BRUSH*

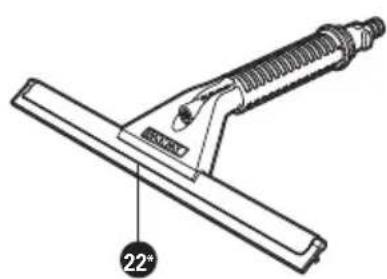

22. WINDOW SQUEEGEE WITH WATER SPRAYER *

23. TURBO NOZZLE*

24. BOTTLE CAP CONNECTOR*

TECHNICAL DATA

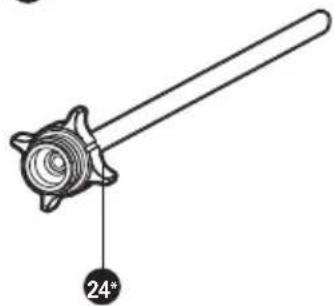

	WG644 WG644.1	WG644.9
Charger voltage 120V~60Hz /
Voltage 40V	--- Max. (2x20V Max.)**
	High / Low (based on garden hose connected)
Rated pressure max. 450psi / 290psi
Max. water flow rate 0.9gpm
Max. inlet water pressure 87psi (0.6MPa)
Water suction height max. 5ft.
Water temperature max. 104	° Fahrenheit
Battery type Lithium-ion /
Battery model WA3525 (2.0Ah) /
Charger model WA3770	/
Charger rating	Input: 120V~60Hz, 50W Output: 20V---, 2.0A	/
Charging time (approx.) Battery pack 2.0Ah (1pc) 2.0Ah (2pcs)	65mins 130mins	/
Weight (with lance)	7.3lbs	5.1lbs

** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

ACCESSIONS

	WG644	WG644.1	WG644.9
Draw hose 20ft. (6m)	1	1	1
Multi-spray nozzle	1	1	1
Pressure cleaning lance	1	1	1
Window squeezegee with water sprayer (WA4050)	/	1	/
Brush (WA4048)	/	1	/
Soap bottle (WA4036)	/	1	/
Battery pack (WA3525)*	2	2	/
Charger (WA3770)	1	1	/
Quick connect adapter (WA4017) 1	1
Bottle cap connector (WA4038)	/	1	/
Turbo nozzle (WA4037) / /	/
Extension lance (WA4012)	/	/	/

• Use only the following type and size batteries: WA3525, WA3578 (sold separately), WA3671 (sold separately). Only use the appropriate accessories intended for this tool. Accessory information can be found on the product packaging, at a Worx dealer or on our website at www.worx.com.

Cordless Portable Power Cleaner EN

Cordless Portable Power Cleaner EN

Cordless Portable Power Cleaner EN

M2*

N1*

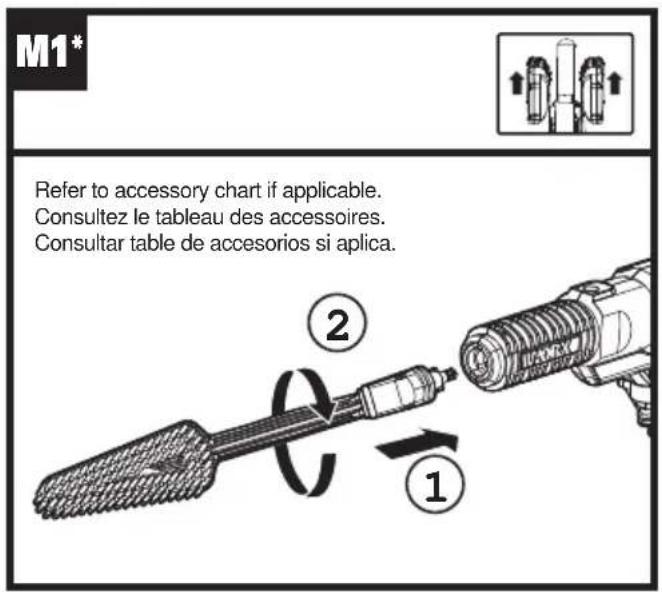

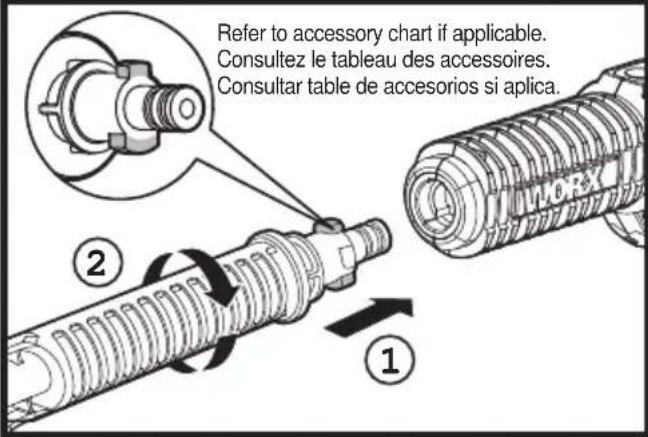

Refer to accessory chart if applicable. Consultez le tableau des accessoires. Consultar table de accesorios si aplica

N2*

N3*

N4*

01*

Easilyportable Power Cleaner EN

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ACTION FIGURE
BEFORE OPERATION

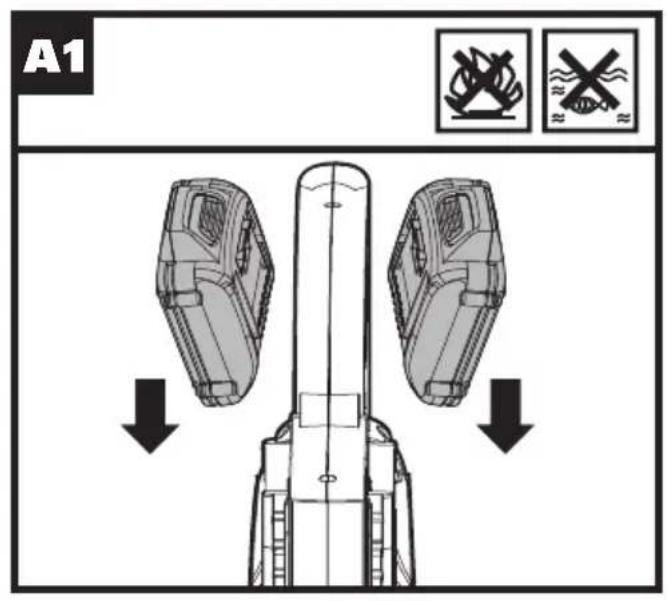

Installing the battery pack NOTE: This machine will only run when 2 batteries are installed. It is recommended to use the same two batteries and charge the two batteries at the same time. Using two batteries with different power, the machine will only run to the lower common denominator.	See Fig. A1

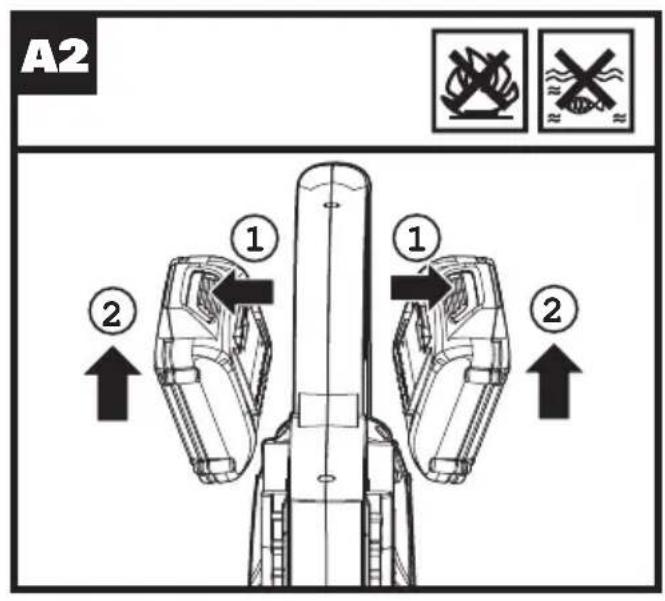

Removing the battery pack See Fig. A2

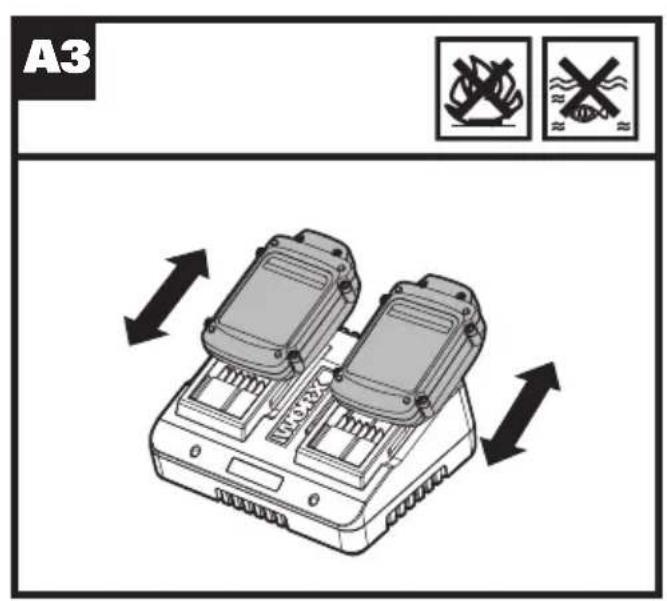

Charging the battery pack NOTE: The batteries are shipped uncharged. Each battery must be fully charged before the first use. Always fully charge the two batteries at the same time. More details can be found in WA3770's manual.	See Fig. A3
ASSEMBLY

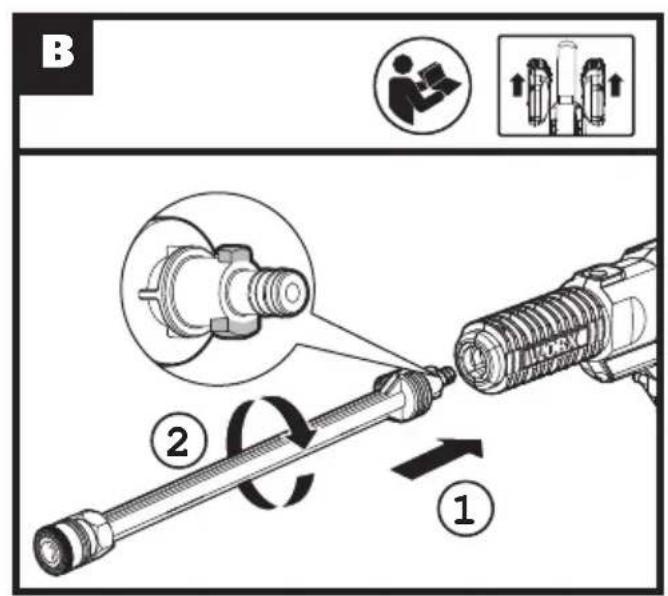

Attaching pressure cleaning lance to the power nozzle NOTE: When attaching, align the two projections on the lance with the grooves of the power nozzle as shown in Fig. B.	See Fig. B

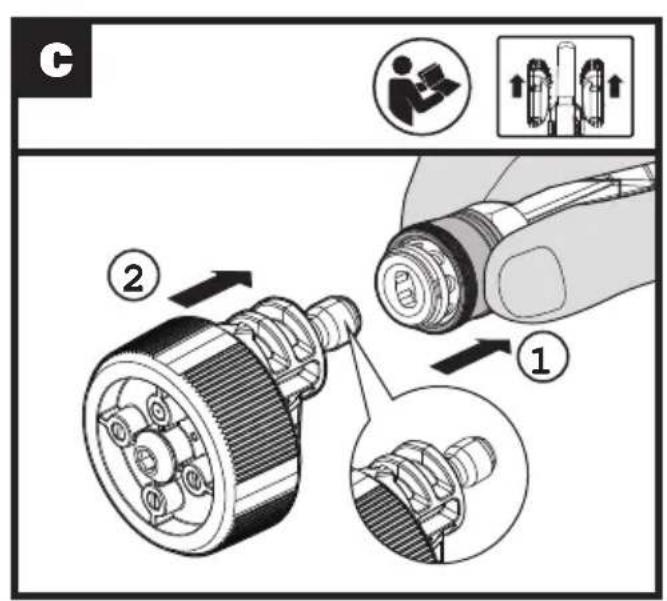

Attaching the multi-spray nozzle NOTE: When attaching, try gently pulling the nozzle to make sure it is locked into position securely.	See Fig. C

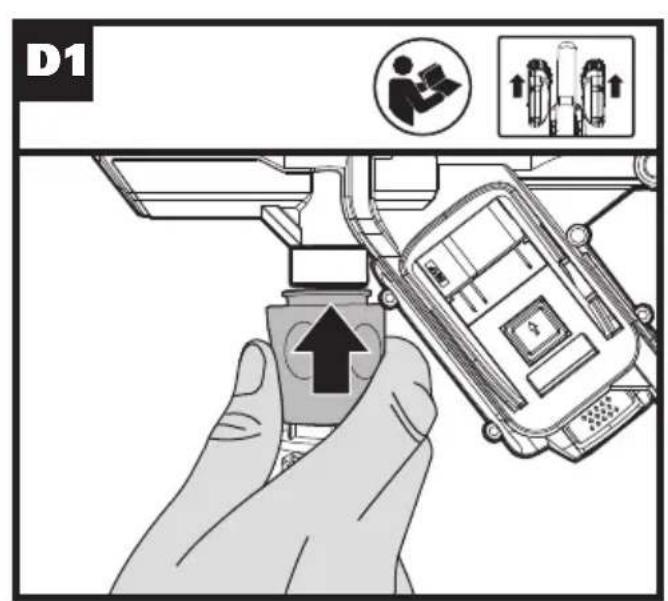

Attaching the draw hose to the power nozzle NOTE: After the draw hose is attached, check the connection by gently pulling upon the draw hose. It should not be pulled off.	See Fig. D1

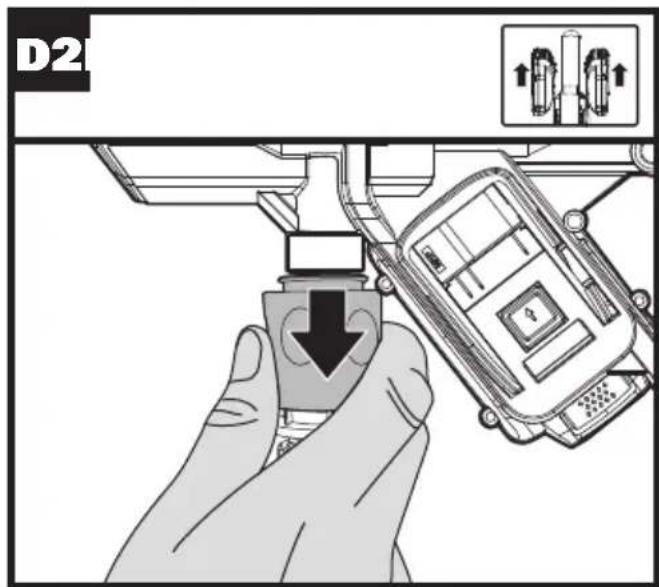

Detaching the draw hose	See Fig. D2

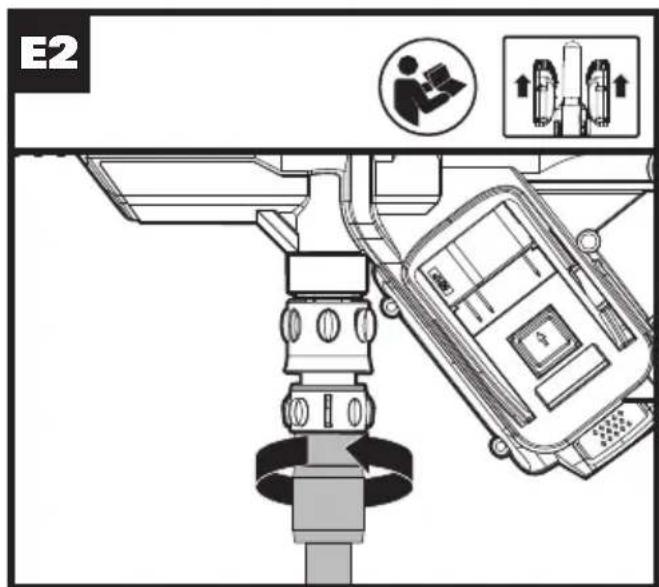

Attaching your own water hose (optional) 1. Attach the quick connect adapter 2. Attach your own household garden hose with suitable connectors 3. Using without quick connector can be done by directly connecting the garden hose to the machine (See Fig. R1) NOTE: Except for the draw hose supplied, you can also connect the power nozzle to your own water hose with suitable connectors. Leakage may occur. NOTE: Check whether the filter screen is missing before retightening the hose adapter. (Fig. R1, R2) When retightening the hose adapter, please tighten securely. Otherwise, it may not draw any water for proper operation. WARNING: It is not recommended to connect the draw hose to your garden hose or your home tap.	See Fig. E1, E2
OPERATION
Battery power indicator on the machine See details in BATTERY STATUS part	See Fig. F

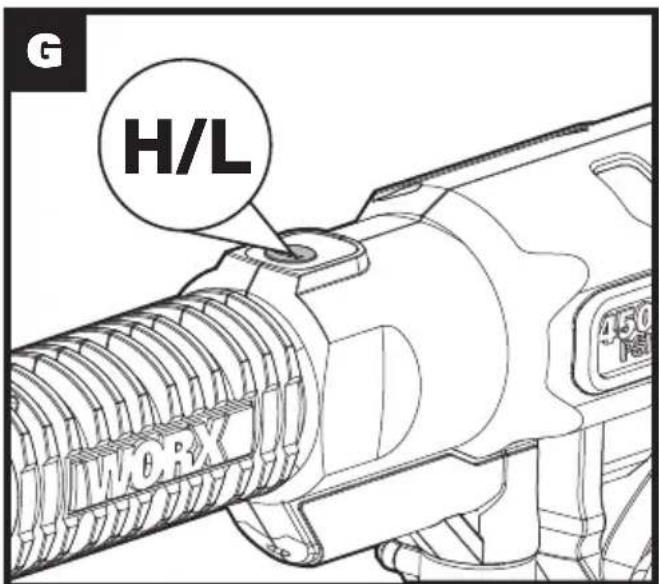

Pressure setting Your power nozzle has two pressure modes, High and Low, delivering different pressure settings per mode.	See Fig. G

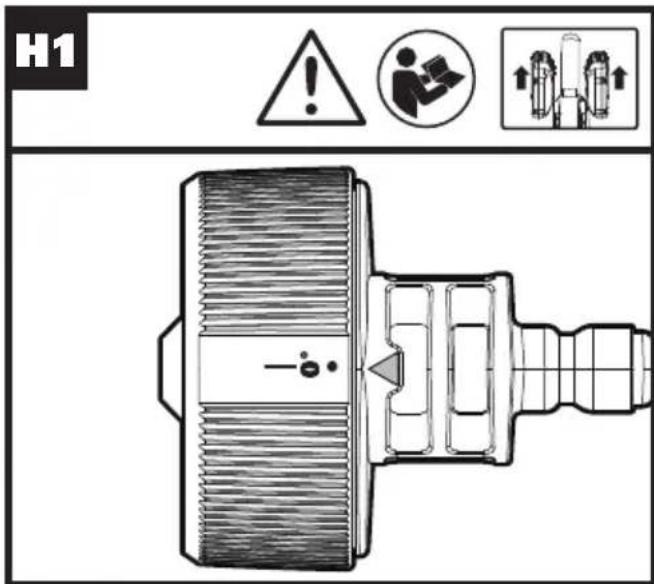

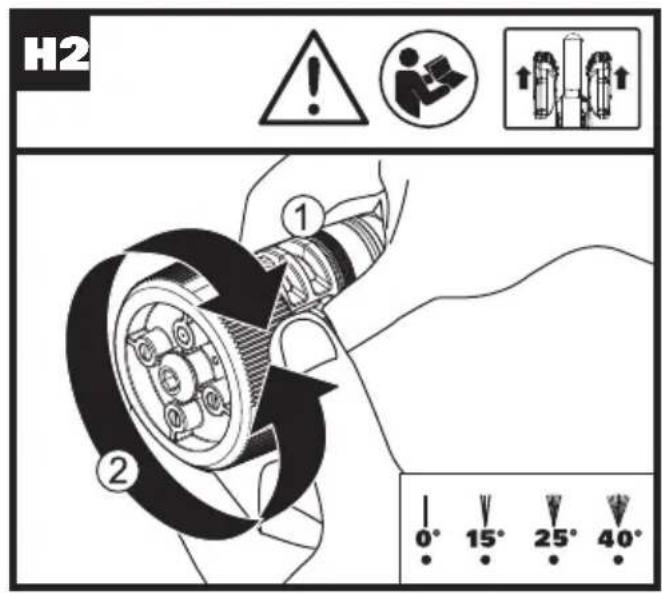

Selecting the nozzle pattern NOTE: Choose a suitable nozzle pattern according to your work. Spray patterns 0°, 15°, 25° and 40° are applicable for cleaning. WARNING: Do not shift the nozzle pattern when the tool is powered on due to potential temporary water leakage. Make sure the nozzle pattern symbol aligns with the indicator mark on tool, otherwise the nozzle will leak and there will be no sufficient working pressure.	See Fig. H1, H2

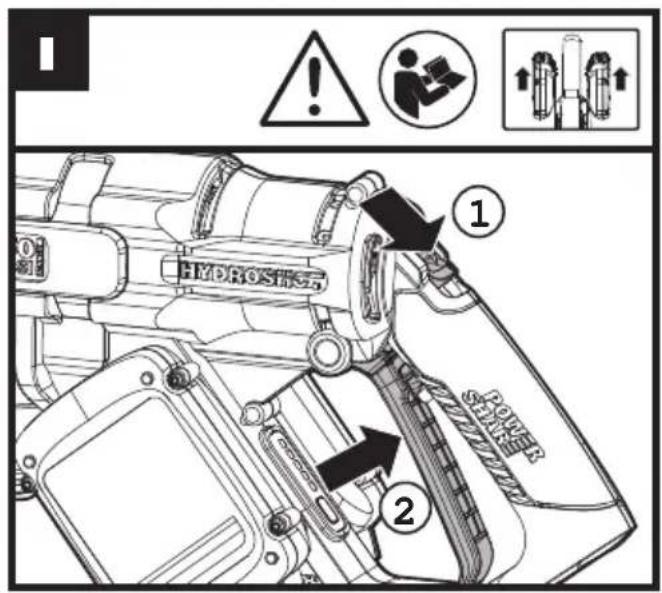

Start NOTE: At the first use, you need to empty the air in hose, place the power nozzle below waist level (<5ft/1.5m), then attach the pressure cleaning lance and set it at high pressure. It does not start working until the water goes up along the hose and sprays out. This could take up to 30 seconds or more depending on the fresh water source. NOTE: If air builds up within the hose or pump, the water pressure will drop. First, restart the machine, then air will be released through the multi-spray nozzle along with any excess water.

See Fig. I

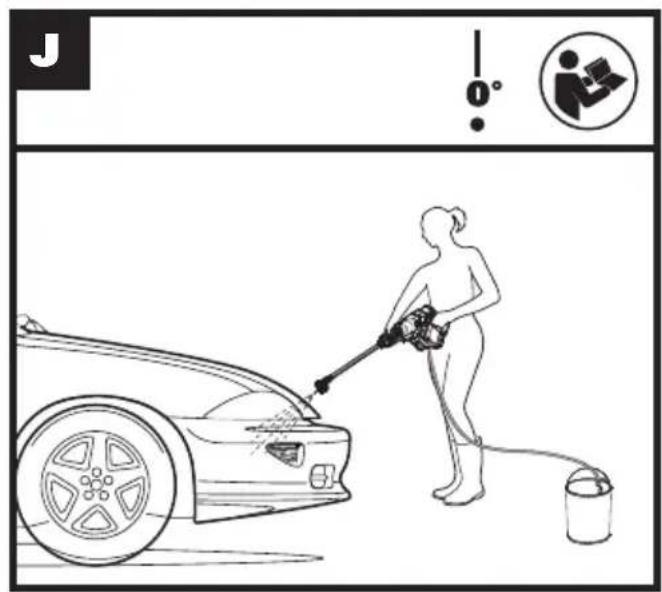

Cleaning WARNING: Do not connect the machine to water supplies that are dirty, rusty, muddy, or corrosive. (Including window cleaning liquids, plant foods, or fertilizers etc.) NOTE: It is recommended to use the high pressure mode for cleaning. Not recommended for use with salt water, immediately rinse with fresh water for proper maintenance.

See Fig. J

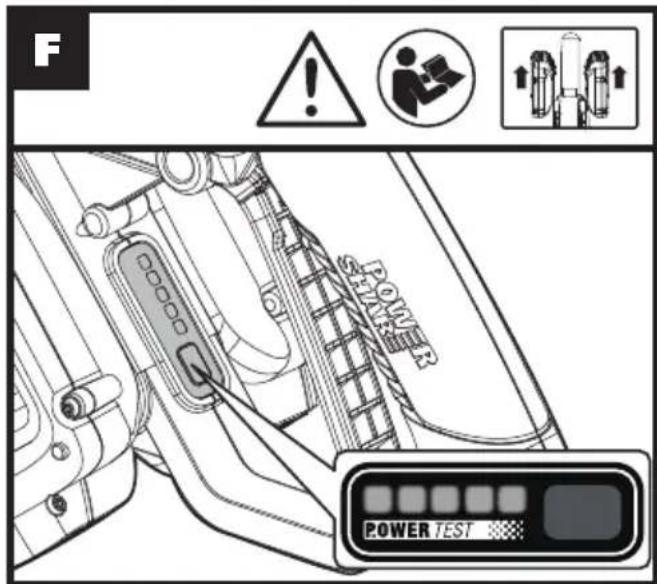

BATTERY STATUS (See Fig. F)

Before starting or after use, press the button beside the power indicator light on the machine to check the battery capacity. During operation, the battery capacity will be indicated automatically by the battery power indicator.

The indicator constantly senses and displays the battery condition as follows.

For a machine with 2 battery packs with different power levels, the power indicator light displays the battery condition with the lower power level of the two batteries.

Battery power indicator status	Battery condition
Five green lights (▲▲▲) are illuminated.	The two batteries are in a highly charged condition.
Two, three or four green lights are illuminated.	The two batteries have a remaining charge. The more lights are illuminated, the more battery capacity.
Only one green light (▲▲▲) is illuminated.	The battery level of at least one battery pack is very low. Please check and charge the battery pack.
No light is illuminated.	At least one battery is not fully installed or battery may be defective.

Only one light is flashing twice per cycle.	At least one battery is over discharged (please refer to the battery charge condition), please recharge the two batteries at once before use again or storage.
Only one light is flashing three times per cycle.	At least one battery is hot, wait for them cool down before start again.
Only one light is flashing four times per cycle.	The machine is over load.

ATTACHMENT OF ACCESSORIES

A number of accessories have been supplied with this product and are required for use in different applications. Do not attempt to use the cleaner with no lance or accessories attached.

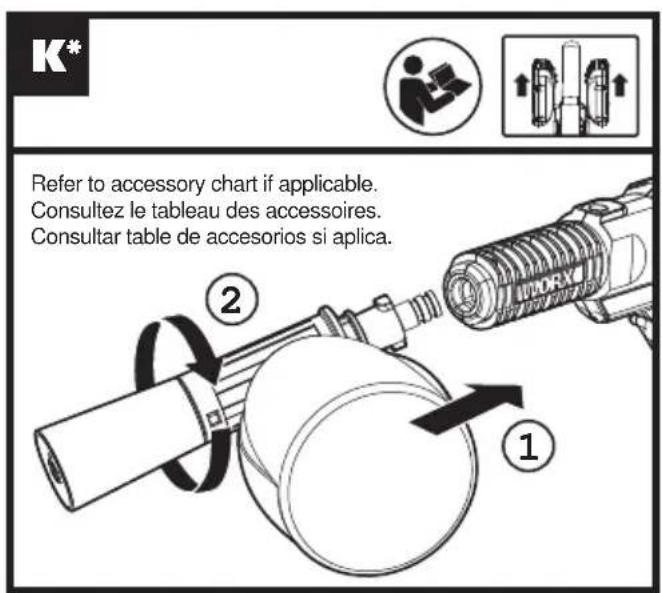

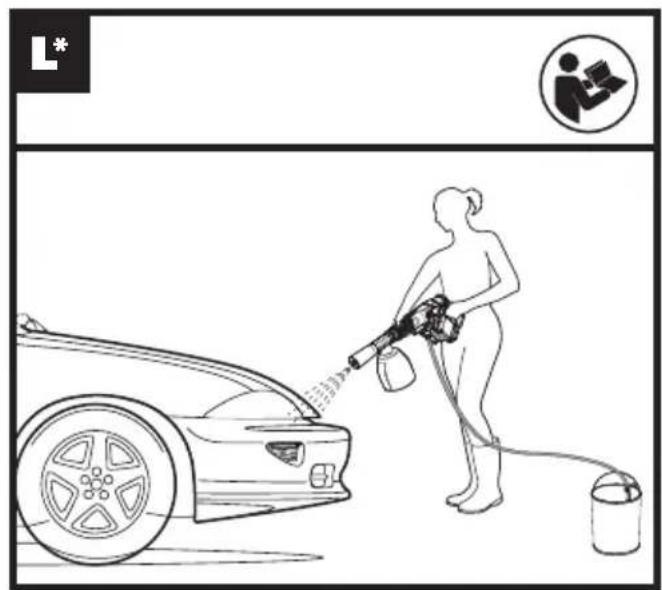

1. Soap bottle (WA4036, sold separately)

Soap bottle provides detergent suds for deeper cleaning of dirt. It is used in conjunction with power nozzle or extension lance (WA4012). (See Fig. K, L) NOTE: Make sure the machine is connected to the water source before using the soap bottle.

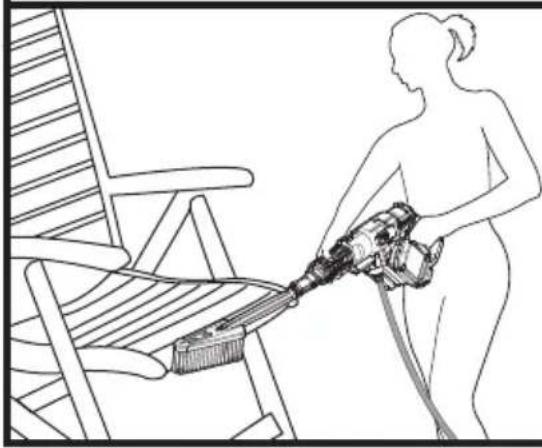

2. Brush (WA4048, sold separately)

Brush is for cleaning cars, boats, motorcycles etc. It is used in conjunction with power nozzle or extension lance (WA4012). (See Fig. M1, M2)

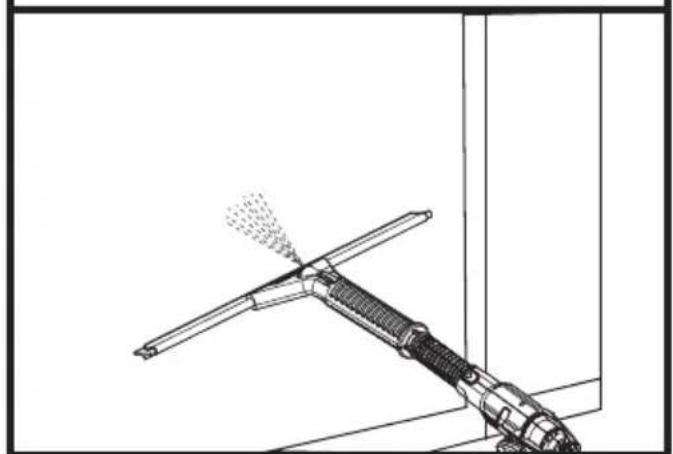

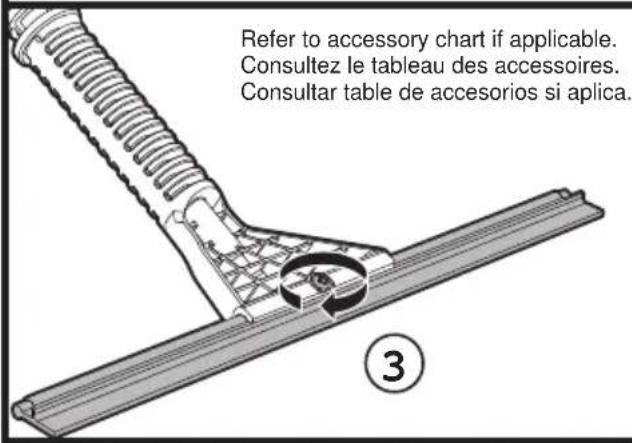

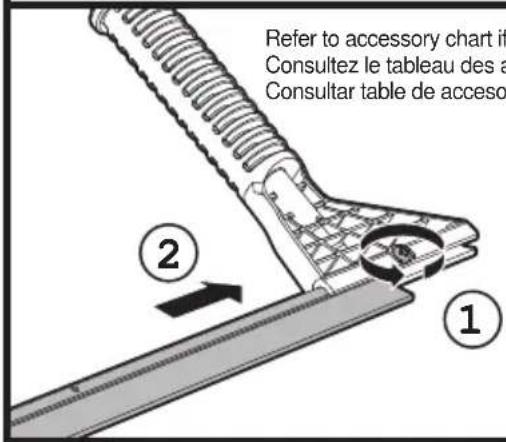

3. Window squeezegee with water sprayer (WA4050, sold separately)

The window squeezees quick connection easily snaps into the tool to spray water or wipe off water from glass or tiled surfaces. Suitable for the HYDROSHOT™ power cleaner or extension lance (WA4012). (See Fig. N1-N4)

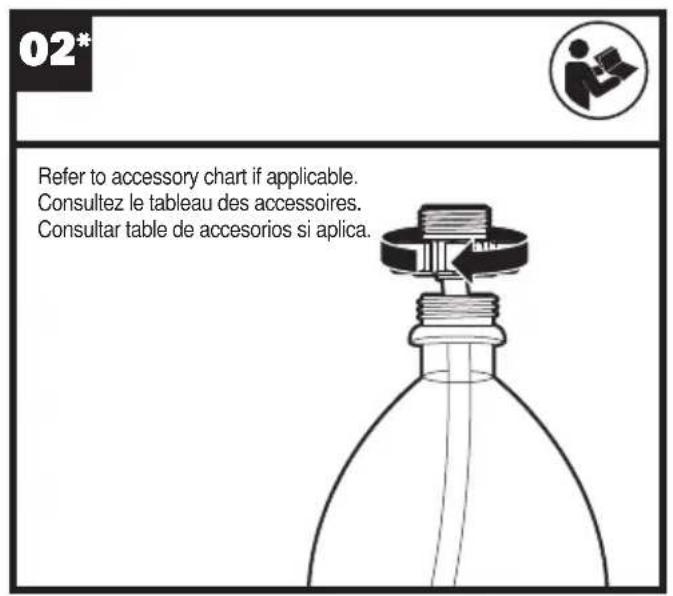

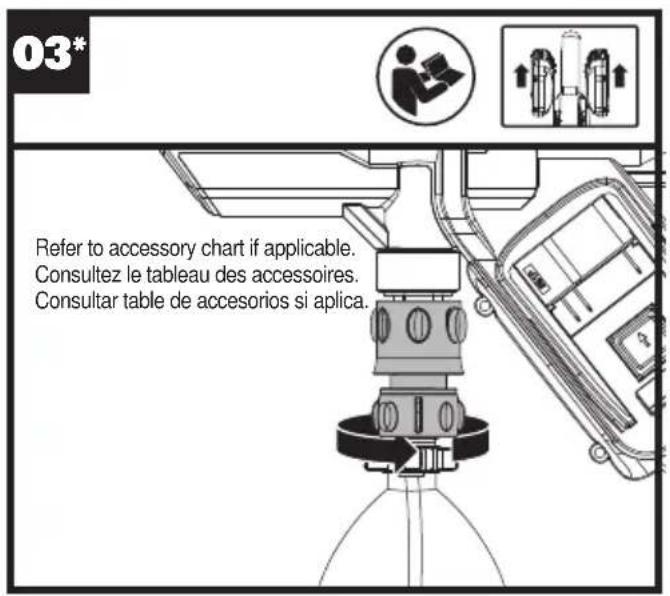

4. Bottle cap connector (WA4038, sold separately)

The bottle cap connector accessory allows the tool to directly connect with most 2 Liter bottles with approximately 1^ openings. (NOTE: May not fit all consumable soda and water bottles) (See Fig. O1-O3)

WARNING: Do not install the bottle cap connector accessory until it is ready to be used.

The accessories vents will leak liquid, if a bottle is installed, with the machine lying on a surface.

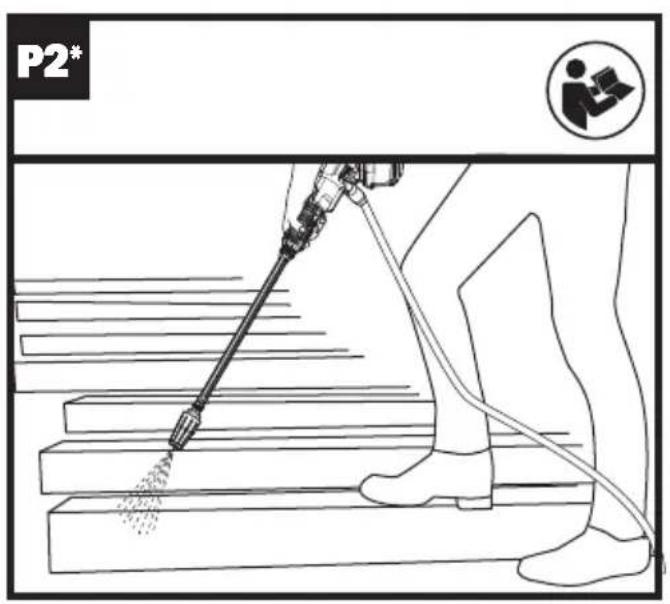

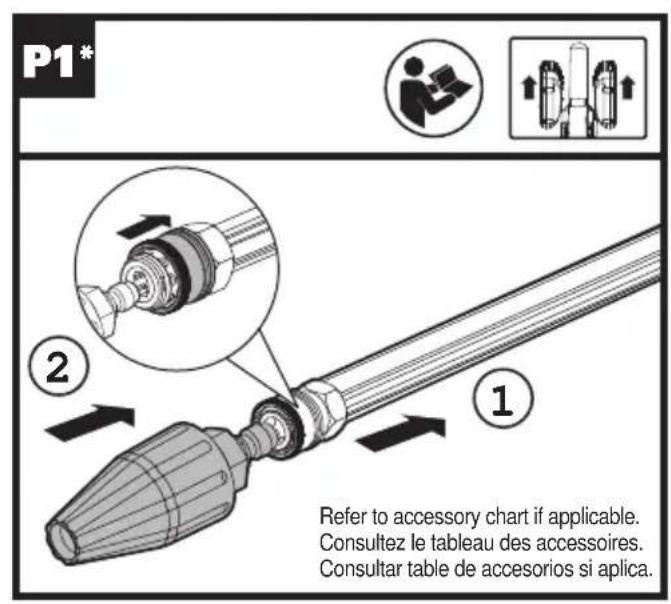

5. Turbo nozzle (WA4037, sold separately)

The turbo nozzle delivers 360^ of rotating water, which cleans a larger area than the 0^ water pattern during the same time period. Suitable with the pressure cleaning lance installed on the

HYDROSHOT. Recommend to use it with high pressure setting. (See Fig. P1, P2)

MAINTENANCE

Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.

Inspect the product for damaged or worn parts before each use. Do not operate it if you find damaged or worn parts. Contact your supplier or the manufacturer for replacement parts.

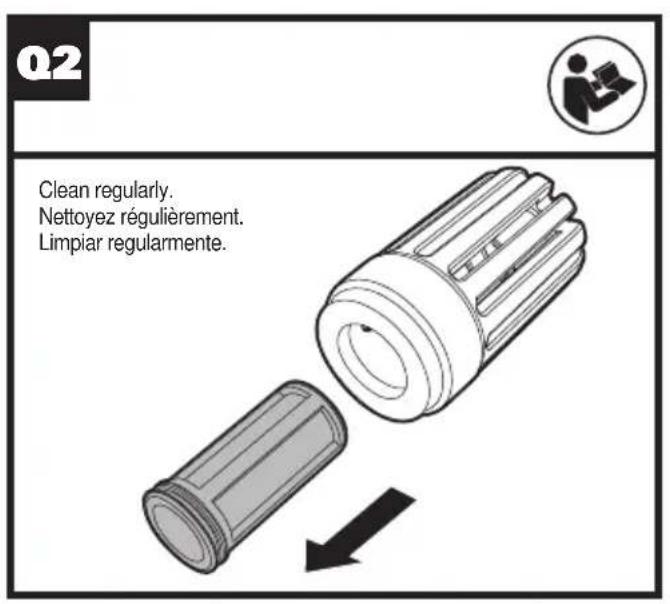

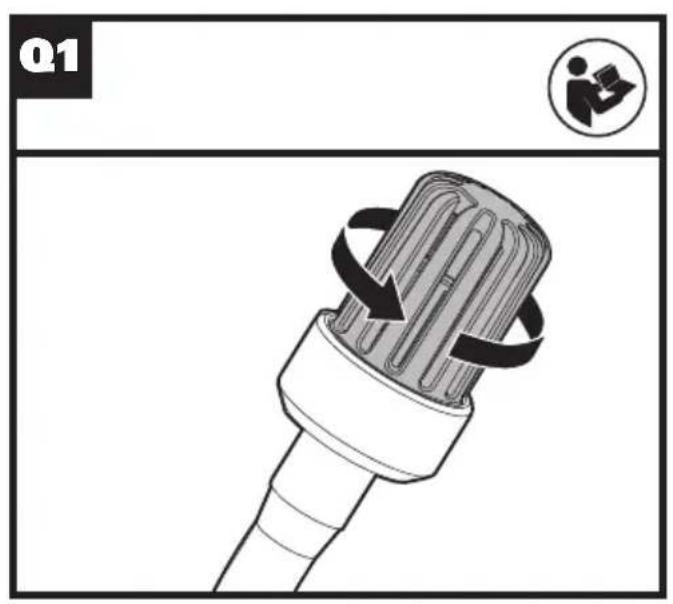

Hose filter maintenance

Unscrew the hose filter from the hose and remove the strainer. Rinse the parts with clean water before reassembling. (See Fig. Q1, Q2)

Filter screen maintenance

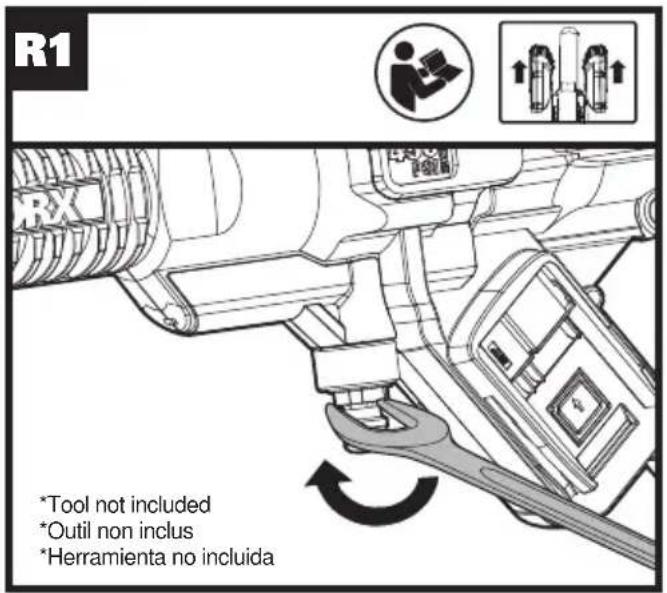

Remove the hose adapter to get the filter screen. (See Fig. R1, R2) Rinse it with clean water before reassembling.

NOTE: When retightening the hose adapter, please tighten securely. Otherwise, it may not draw any water for proper operation.

WARNING: Any other servicing should be performed by an authorized service representative.

CLEANING/STORAGE

Before storage, completely drain all the water from the machine and hose.

Clean the moulded plastic housing of the machine using a soft brush and clean cloth. Do not use water, solvents or polishes. Store in a secure and dry place out of the reach of children. Do not place other objects on the product.

Store the machine and the accessories in a frost free place.

TROUBLESHOOTING

Symptom Possible causes Solution
Machine turns on but it does not draw any water or there is not sufficient pressure.	Power nozzle is too high from the water source surface.	Lower the machine below 5ft/1.5m.
	Hose filter is blocked.	Take out the hose filter and rinse the parts with clean water. (See Fig. Q1, Q2)
	The users garden hose is not well connected to the machine.	Check and reattach the garden hose tightly. (See Fig. E2)
	Hose adapter looses. Tighten the hose	adapter securely with a spanner.
	The filter screen is missing. (See Fig. R1, R2)	Contact Worx service agent to get a filter screen.
	The filter screen is blocked. (See Fig. R1, R2)	Clean the filter screen regularly.
	Pump, hose, or other parts are frozen due to outside temperatures.	Wait for the pump, hose or other parts to thaw.
	Hose kinks. Straighten out the hose.
	Additional air could be sucked into the machine.	If air builds up within the hose or pump, the water pressure will drop. First, restart the machine, then air will be released through the multi-spray nozzle along with water.
Multi-spray nozzle leaks.	The nozzle pattern does not spray correctly.	Make sure the nozzle pattern symbol aligns with the indicator mark on tool.
	Fixing nail of the multi-spray nozzle loosens.	Tighten it with a hex key.
	Air built up within the hose or pump.	Continue to operate the machine for a few moments until leakage stops.
Outlet pressure increases suddenly.	Multi-spray nozzle is blocked. Replace with a new multi-spray nozzle.
Machine drains out water after stopping.	There is water remaining in the lance and pump after stopping.	Drain all the water completely before storage.
Soap accessory cannot spray out any detergent.	Blockage in the soap bottle. Clean it with fresh water.
	The machine is not connected to the water source.	Connect to the water source before turning on the machine.
Machine does not start.	The battery pack is not attached well. Reinstall the battery pack.
	Battery pack is empty.	Replace with a new battery pack or recharge the battery pack.
	Defective battery. Replace with a new battery pack.
Machine pressure is not consistent.	Additional air could be sucked into the machine.	Check connection between the hose adapter and the draw hose.
	It is at low pressure setting. No action need.
Machine stops automatically.	Battery pack is empty.	Replace with a new battery pack or recharge the battery pack.
	The multi-spray nozzle is blocked. The current protection is activated.	Remove the multi-spray nozzle and turn on the machine. If the machine works normally, replace with a new multi-spray nozzle.
The inlet hose emerges from the water.	There is water remaining in the machine.	Drain all the water completely and then put the inlet hose in the water.
Machine does not draw any water after long time storage.	Additional air could be sucked into the machine.	Connect the machine to the water source and then turns it on.

CONSIGNES DE SECURITE

WORX it's your nature

www.worx.com

Copyright © 2020, Positec. All Rights Reserved.
