Features	Details
Generator type	Portable inverter generator
Rated power	3.2 kVA
Engine type	4-stroke, air-cooled engine
Tank capacity	3.6 liters
Runtime	Up to 8 hours at 25% load
Weight	26 kg
Noise level	58 dB(A) at 7 m
Dimensions	49 x 29 x 42 cm
Usage	Ideal for camping, construction sites, and emergency rescue
Maintenance	Regular oil check, air filter cleaning
Safety	Equipped with overload breaker and low oil protection system
Warranty	2 years

Frequently Asked Questions - EU32i Honda

How do I start the Honda EU32i generator?

Make sure the tank is full, open the fuel valve, set the switch to \"ON\", and pull the starter cord until it starts.

What should I do if the generator won\'t start?

Check the oil level, ensure the fuel tank is full, and the switch is set to \"ON\". If the problem persists, consult the user manual for troubleshooting instructions.

How do I know if the generator is overloaded?

The overload indicator on the control panel lights up. If this happens, reduce the load by unplugging some devices.

What is the maximum load capacity of the Honda EU32i?

The maximum load capacity is 3.2 kVA, which is about 2,500 W for continuous operation.

How do I maintain the Honda EU32i generator?

For proper maintenance, regularly check the oil level, clean or replace the air filter, and ensure the fuel tank is clean and free of debris.

Is the generator quiet?

Yes, the Honda EU32i is designed to operate quietly, with a noise level of about 58 dB at full load.

How long does the generator run on a full tank?

The generator can run up to 8 hours at 25% load with a full 3.6-liter tank.

Can I use the generator in the rain?

It is recommended not to use the generator in rain or wet conditions. Use it in a dry and sheltered place.

How do I transport the Honda EU32i generator?

Use the built-in carrying handles to lift and move the generator. Make sure it is empty of fuel before transport.

Where can I find spare parts for the Honda EU32i?

Spare parts are available at authorized Honda dealers or online on the official Honda website.

USER MANUAL EU32i Honda

Original instructions

MANUEL DE L'UTILISATEUR

Notice originale

BEDIENUNGSANLEITUNG

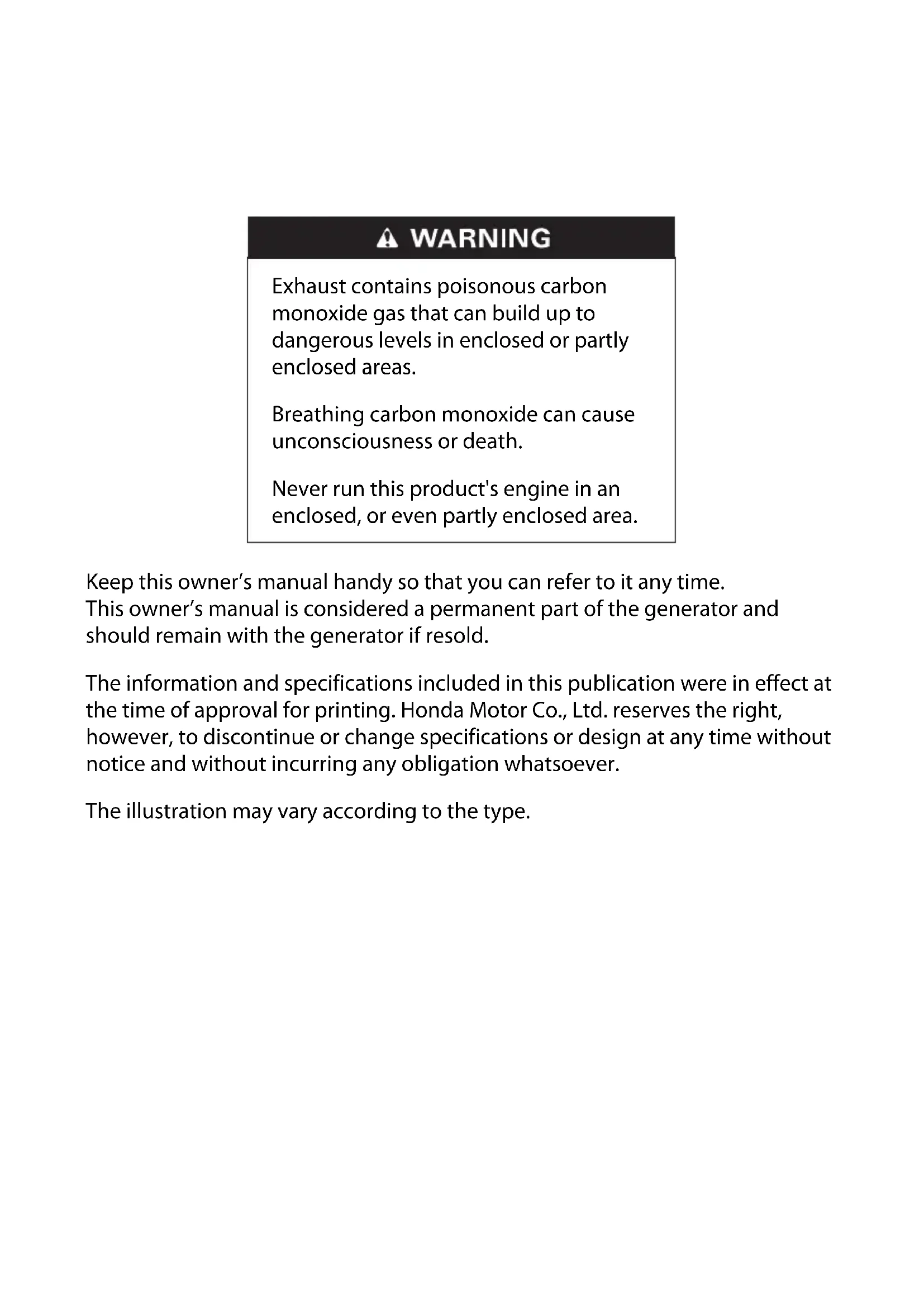

Exhaust contains poisonous carbon monoxide gas that can build up to dangerous levels in enclosed or partly enclosed areas.

Breathing carbon monoxide can cause unconsciousness or death.

Never run this product's engine in an enclosed, or even partly enclosed area.

Keep this owner's manual handy so that you can refer to it any time.

This owner's manual is considered a permanent part of the generator and should remain with the generator if resold.

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation whatsoever.

The illustration may vary according to the type.

INTRODUCTION

Thank you for purchasing a Honda generator.

We would like to help you get the best results from your new generator and to operate it safely. This manual contains the information on how to do that; please read it carefully.

We suggest you read the warranty to fully understand its coverage and your responsibilities of ownership.

When your generator needs scheduled maintenance, keep in mind that your Honda servicing dealer is specially trained in servicing Honda generators. Your Honda servicing dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.

A FEW WORDS ABOUT SAFETY

Your safety and the safety of others are very important.

We have provided important safety messages in this manual and on the generator. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully.

Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining a generator. You must use your own good judgment.

You will find important safety information in a variety of forms:

• Safety Labels — on the generator.
• Instructions — how to use this generator correctly and safely.
• Safety Headings — such as IMPORTANT SAFETY INFORMATION.
• Safety Messages — preceded by a safety alert symbol and one of three signal words, DANGER, WARNING, or CAUTION.

These signal words mean:

DANGER

You WILL be KILLED or SERIOUSLY HURT if you do not follow instructions.

WARNING

You CAN be KILLED or SERIOUSLY HURT if you do not follow instructions.

CAUTION

You CAN be HURT if you do not follow instructions.

This entire book is filled with important safety information - please read it carefully.

DAMAGE PREVENTION MESSAGES

In addition to the above, you will find information preceded by a symbol. That information is intended to help you avoid damage to your generator, other property, or the environment.

CONTENTS

INTRODUCTION 1

GENERATOR SAFETY 6

IMPORTANT SAFETY INFORMATION. 6
Operator Responsibility. 6
Carbon Monoxide Hazards. 7
Electric Shock Hazards 8
Fire and Burn Hazards 9
Refuel With Care. 9
Explosion proof 10
Vehicles and Transportation Hazards. 10
Disposal 10
Disposing of generator 10

SAFETY LABEL LOCATIONS 11

INITIAL USE INSTRUCTIONS 16

ENGINE OIL 16

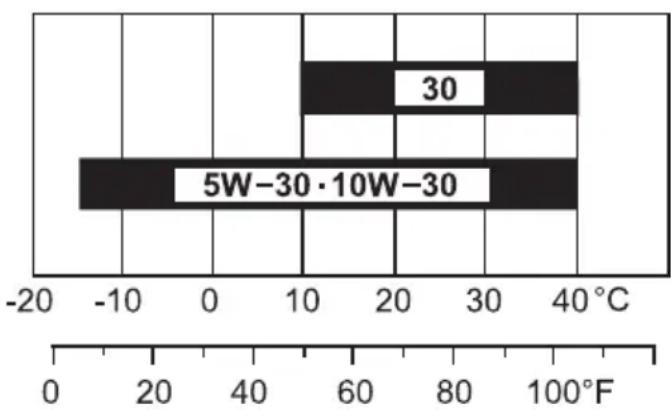

ENGINE OIL RECOMMENDATIONS 17
FUEL 18
FUEL RECOMMENDATIONS 20

CONTROLS & FEATURES 21

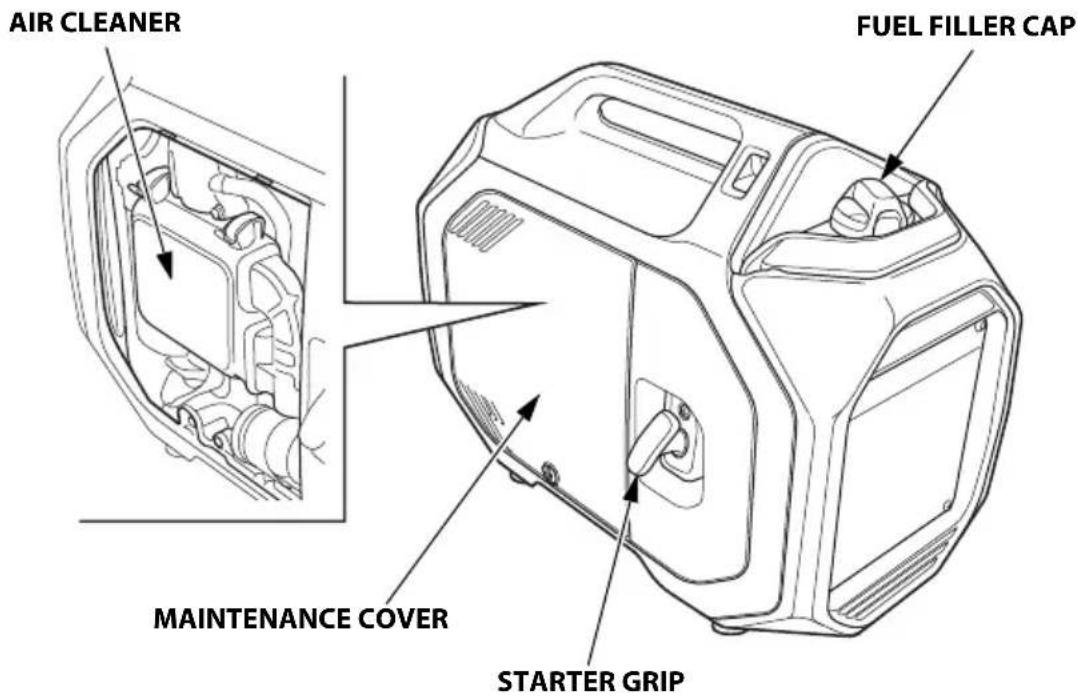

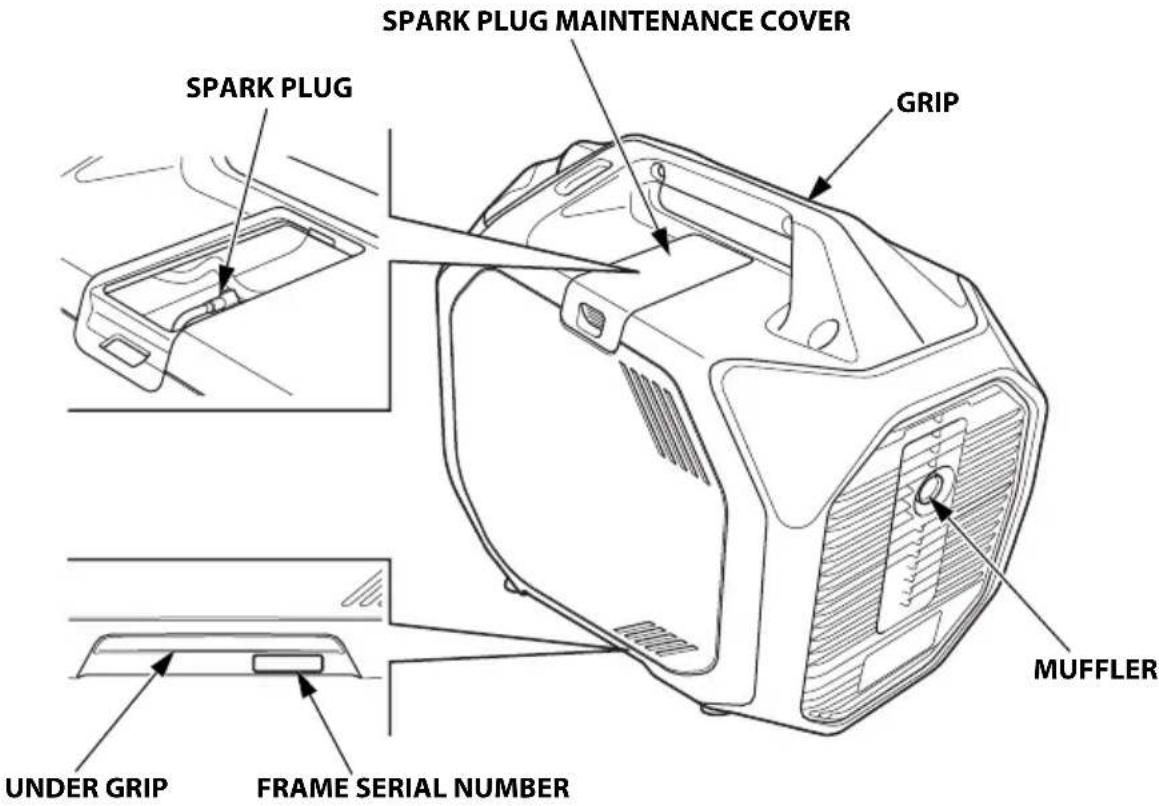

COMPONENT & CONTROL LOCATIONS 21
CONTROLS 23

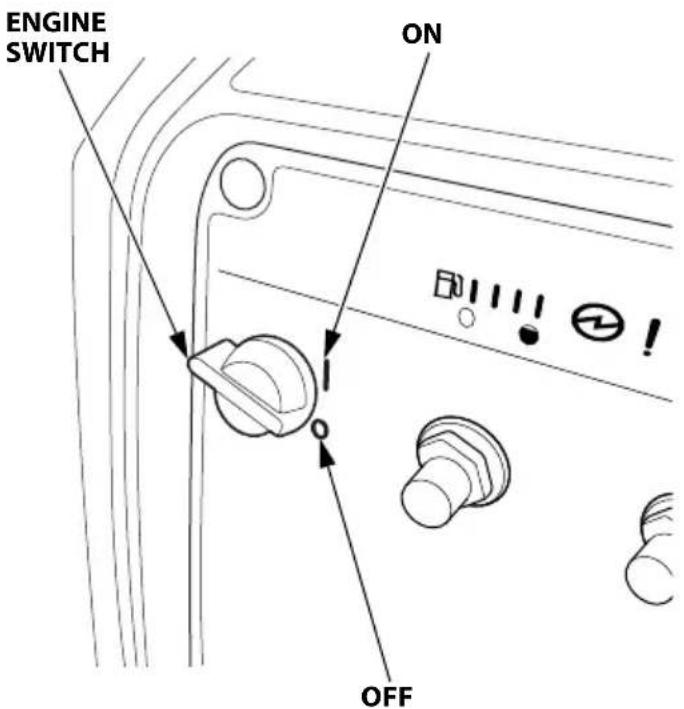

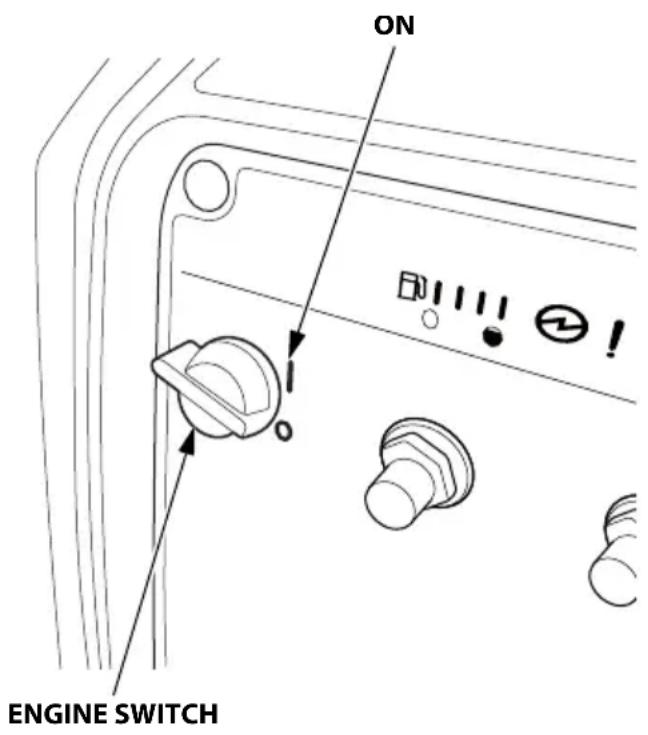

Engine Switch 23

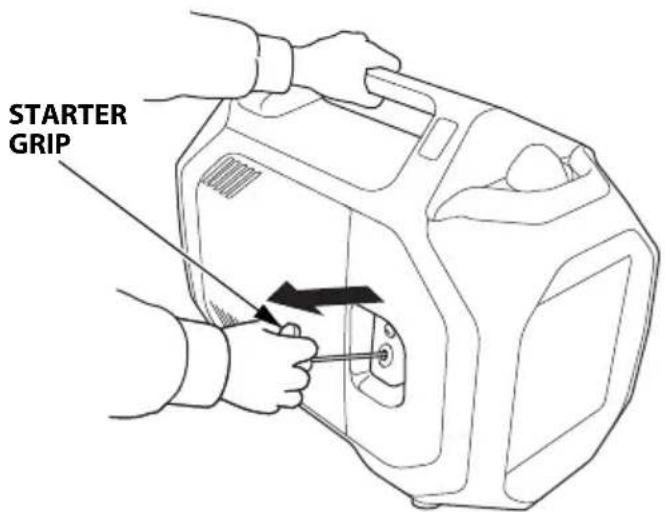

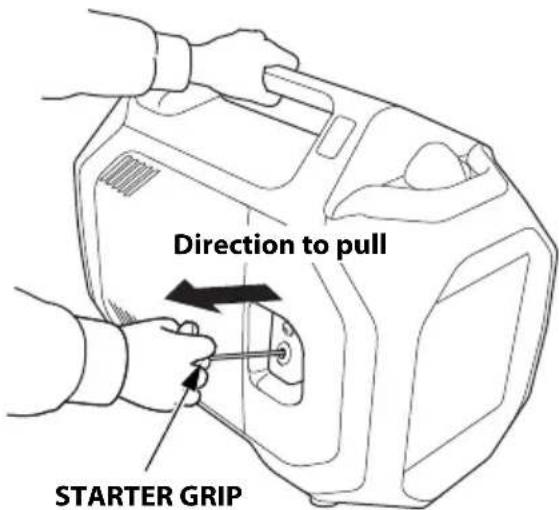

Starter Grip 23

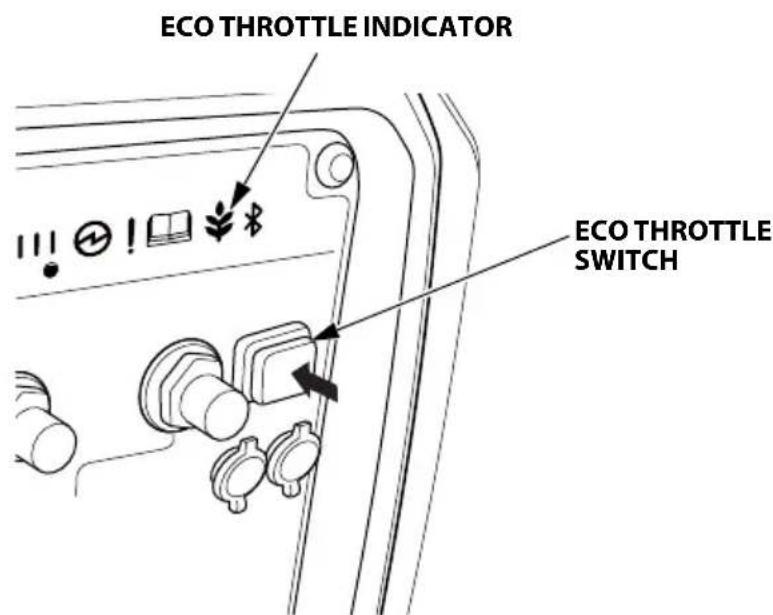

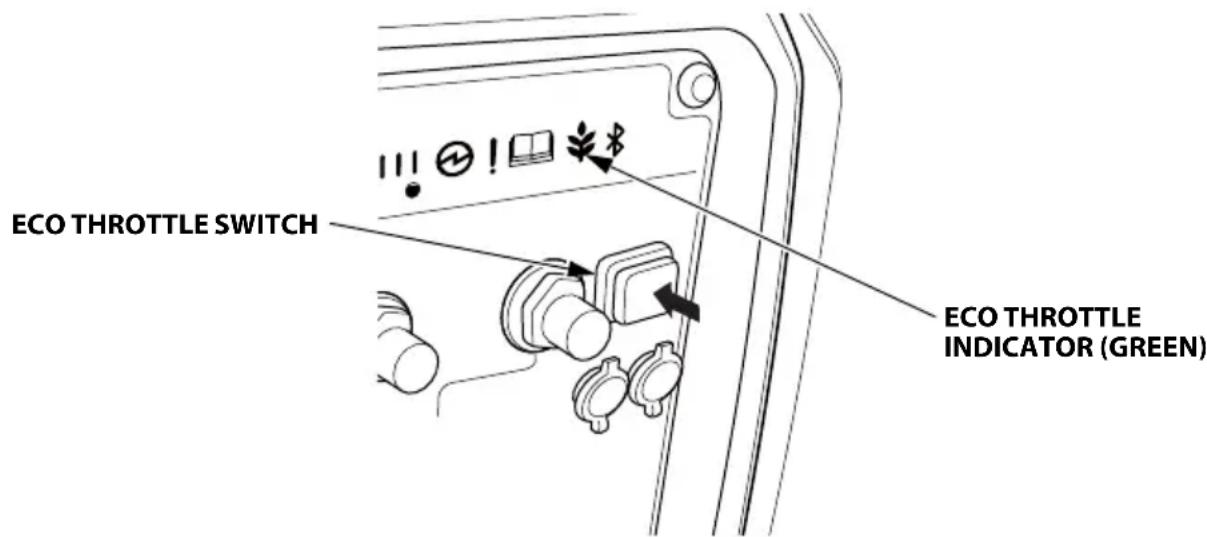

Eco Throttle Switch 24
Parallel Operation Outlets 25

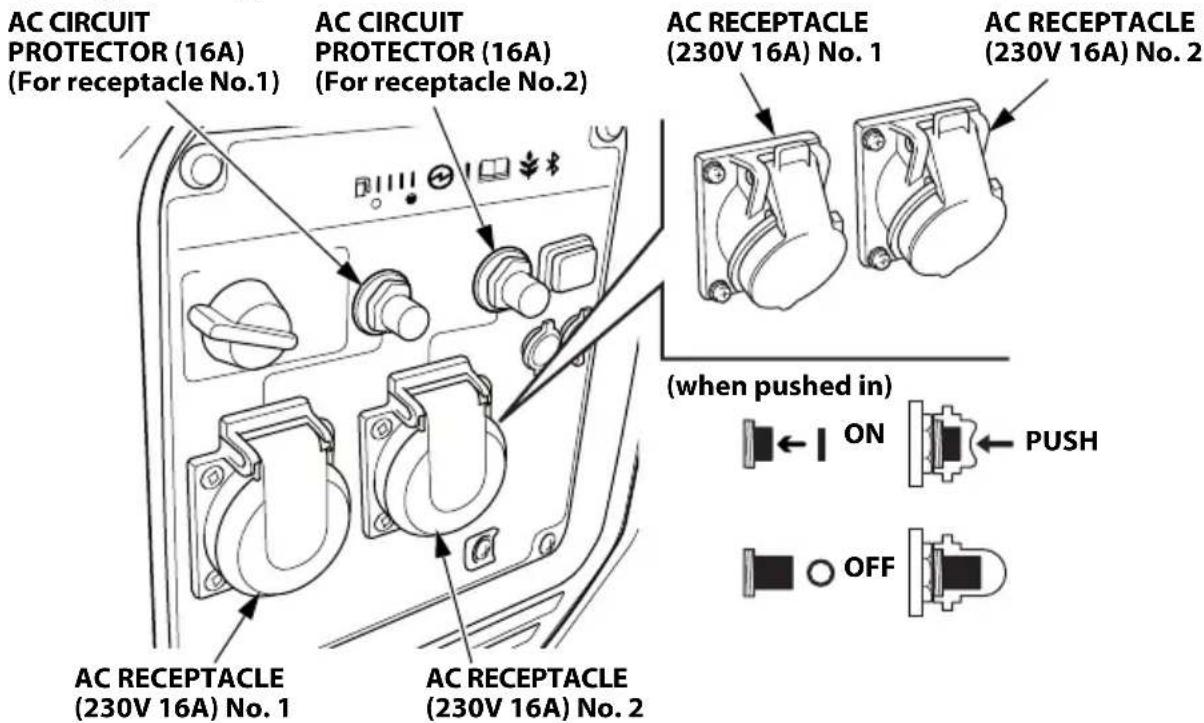

AC Circuit Protector 25

FEATURES 26

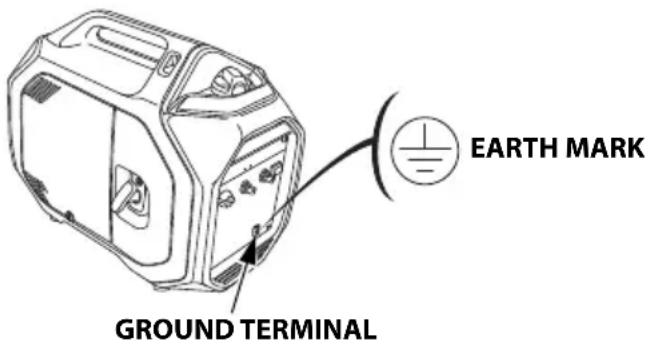

Ground Terminal 26

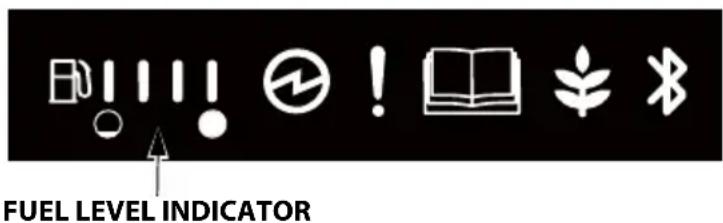

Fuel Level Indicator 27

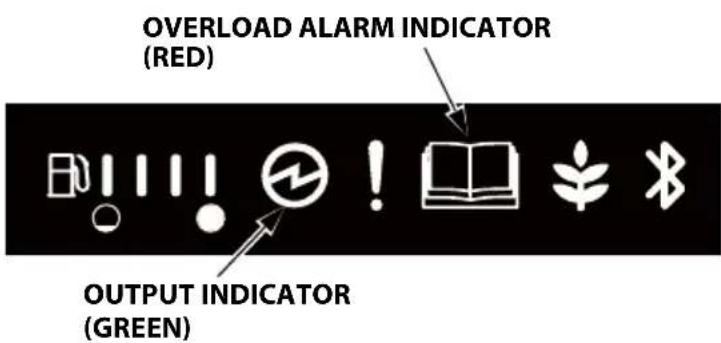

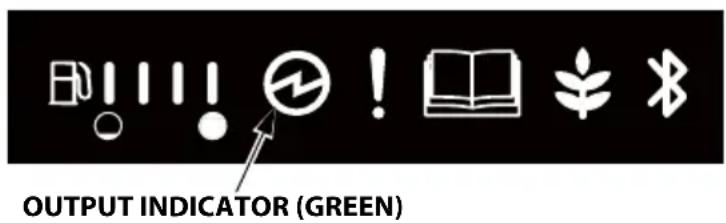

Output Indicator 27

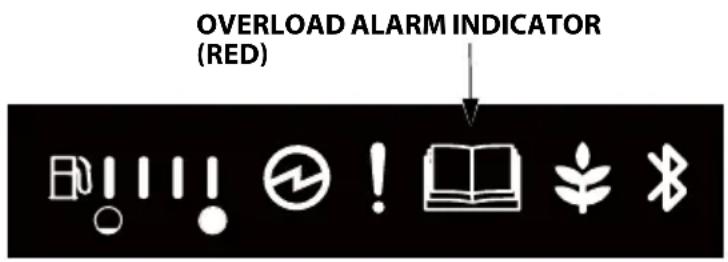

Overload Alarm (Indicator) 28

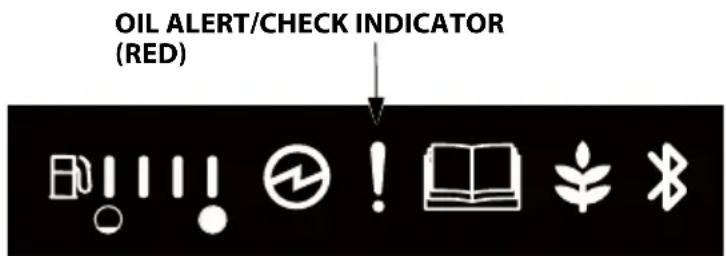

Oil Alert/Check Indicator 28

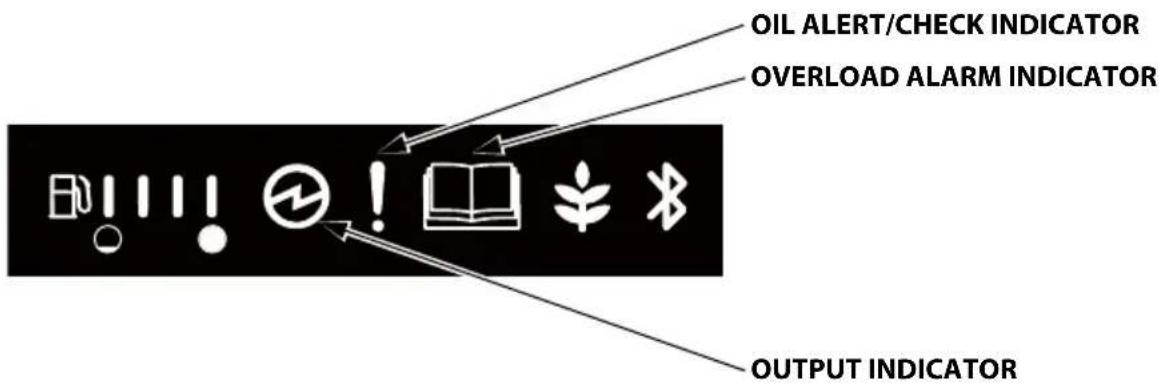

LED Light Patterns 29

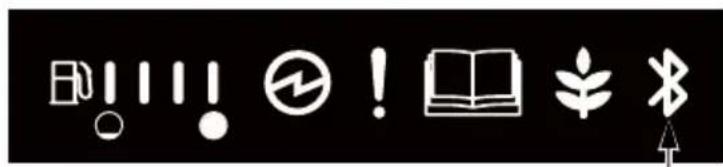

Bluetooth® Function 30
Smartphone application 30

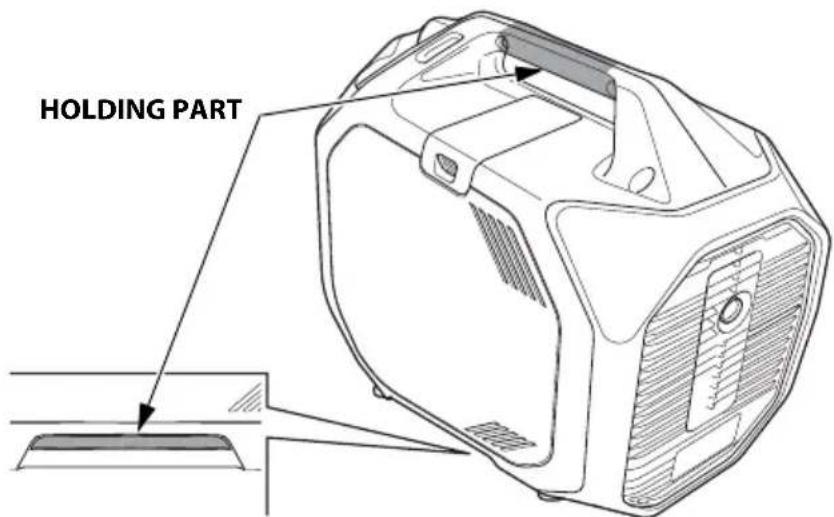

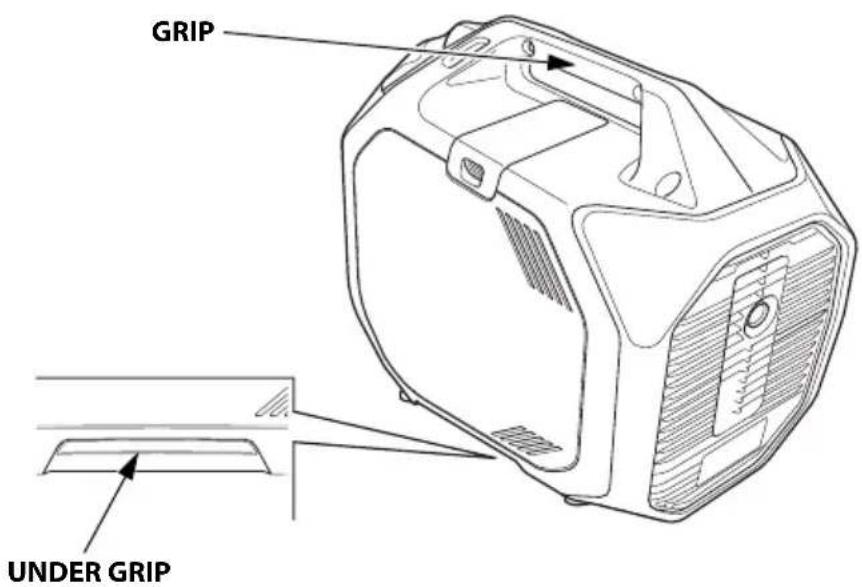

Grip and Under Grip 32

BEFORE OPERATION 33

ARE YOU READY TO GET STARTED? 33

Knowledge 33

IS YOUR GENERATOR READY TO GO? 33

Check the Engine 34

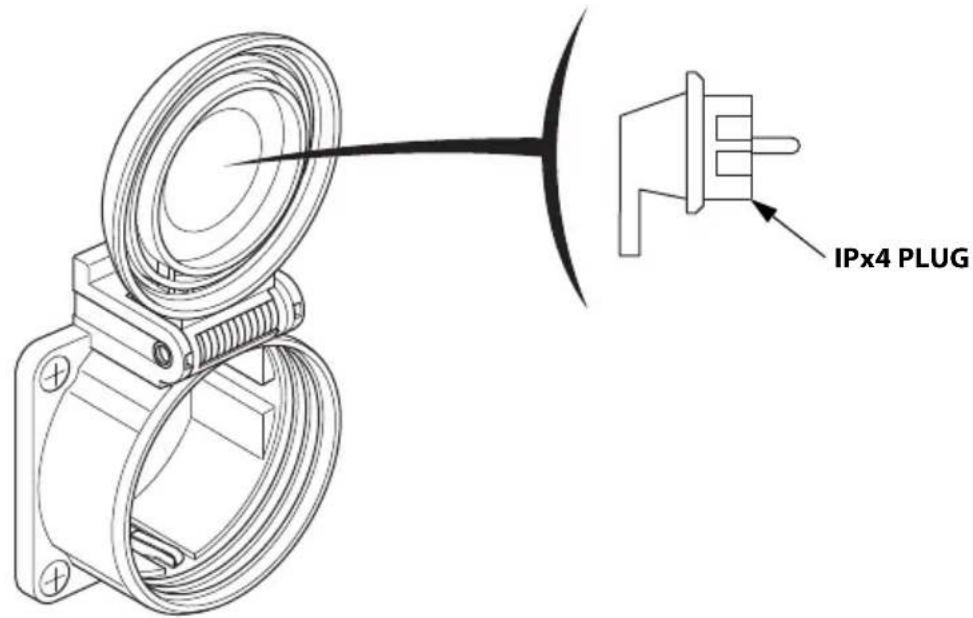

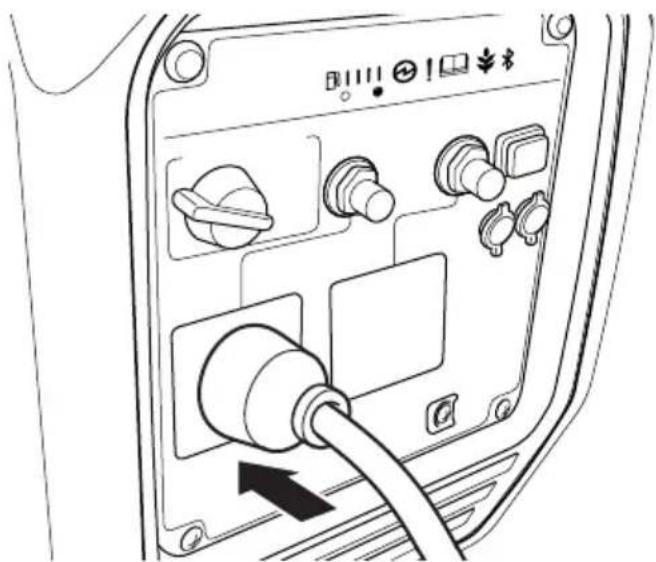

AC Appliance and Power Cord 34

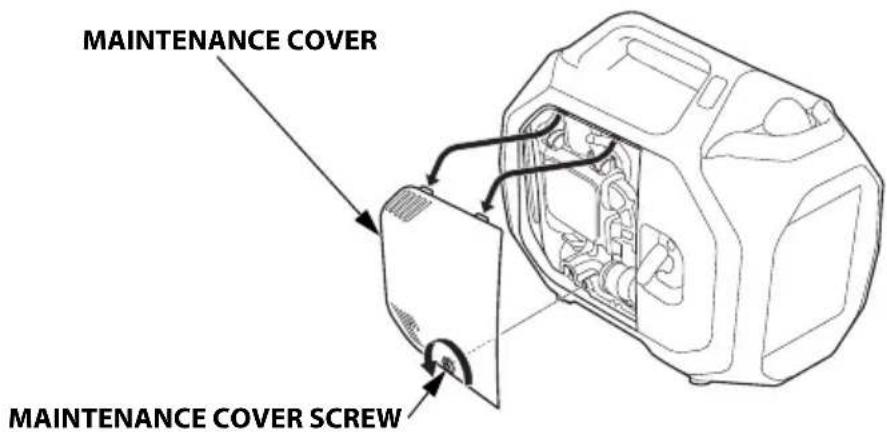

ENGINE OIL LEVEL CHECK 36

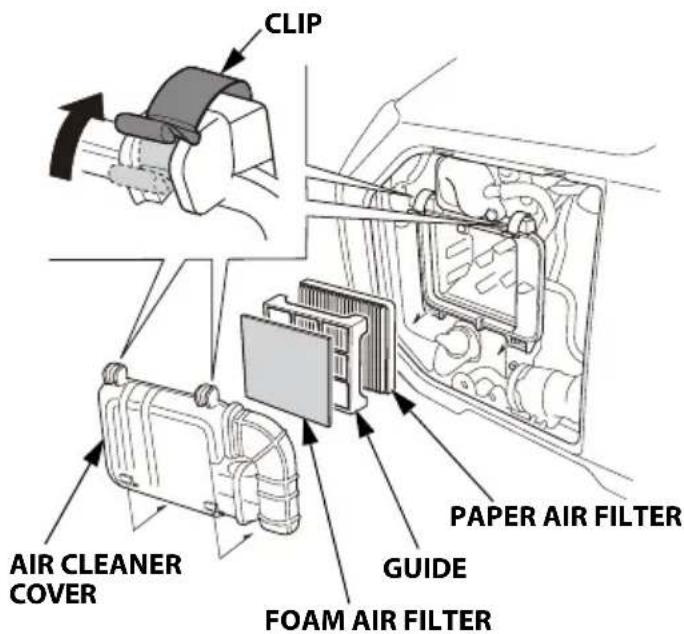

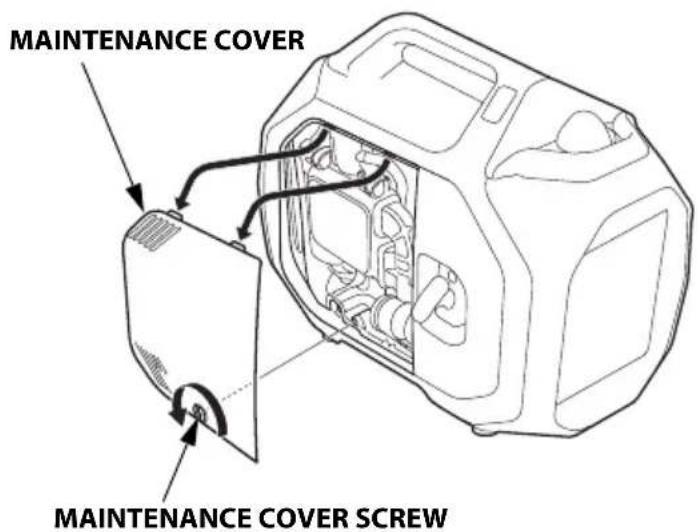

AIR FILTER CHECK 37

SAFE OPERATING PRECAUTIONS 39

OPERATION 40

STARTING THE ENGINE 40

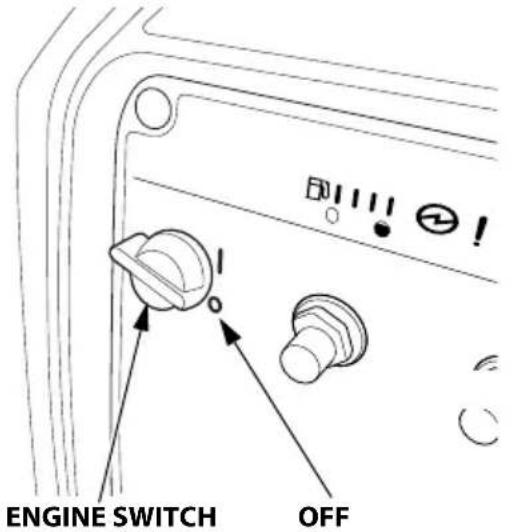

STOPPING THE ENGINE 42

STOPPING THE ENGINE with Bluetooth® ENABLED SMARTPHONE 43

AC OPERATION 44

AC Applications 46

AC Parallel Operation Applications 48

ECO THROTTLE SYSTEM 50

STANDBY POWER 51

Connections to a Building's Electrical System. 51

System Ground 51

Special Requirements. 52

SERVICING YOUR GENERATOR 53

THE IMPORTANCE OF MAINTENANCE 53

MAINTENANCE SAFETY 54

Safety Precautions 54

MAINTENANCE SCHEDULE 55

ENGINE OIL CHANGE 56

AIR CLEANER SERVICE 57

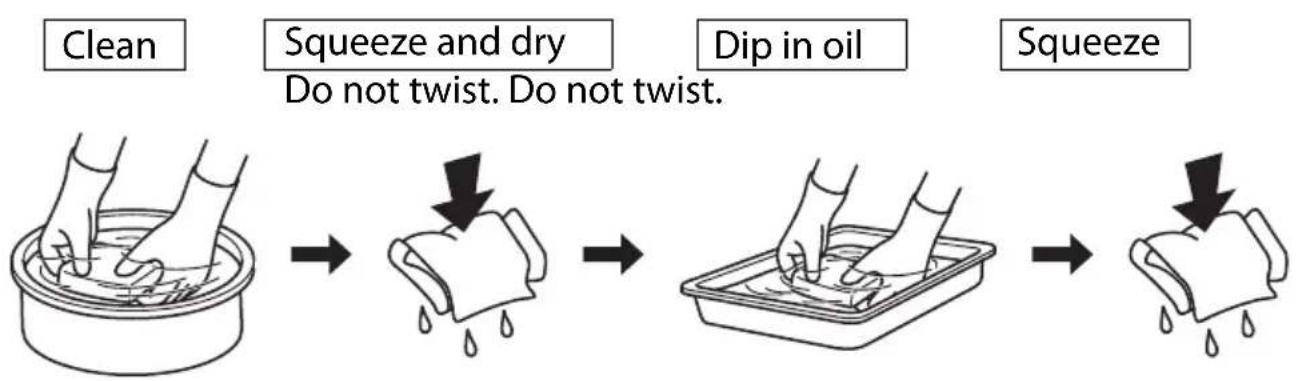

Foam Air Filter Cleaning. 57

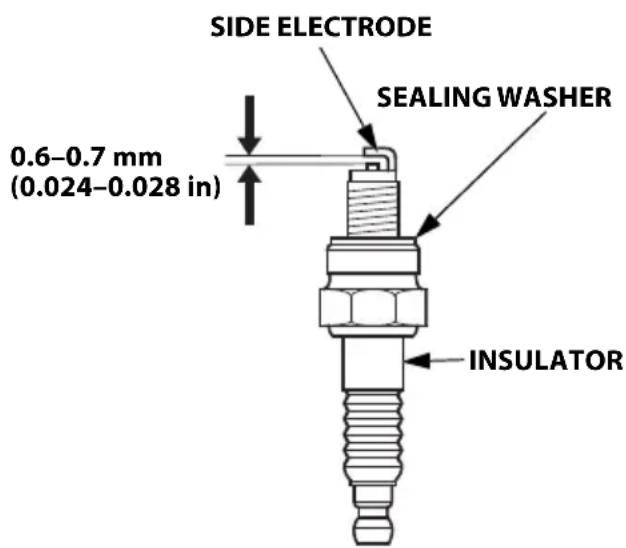

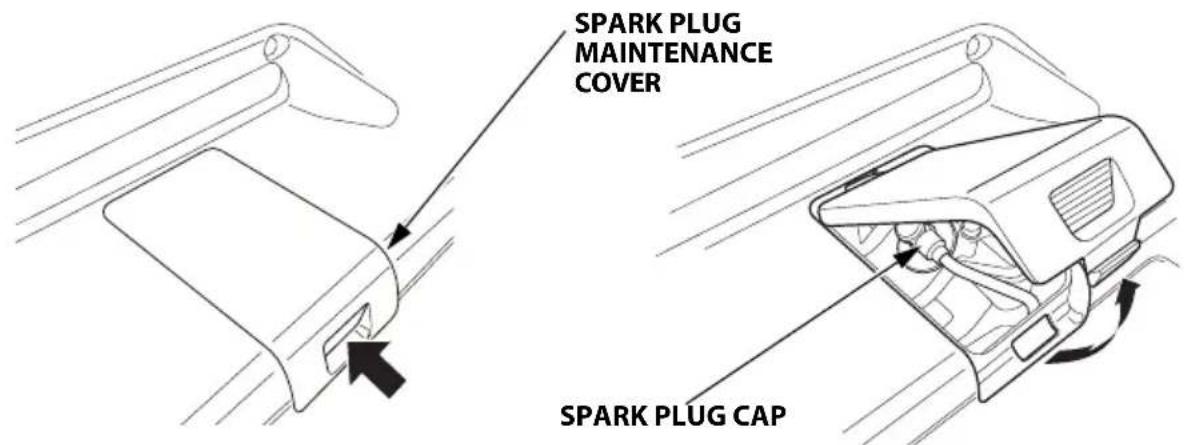

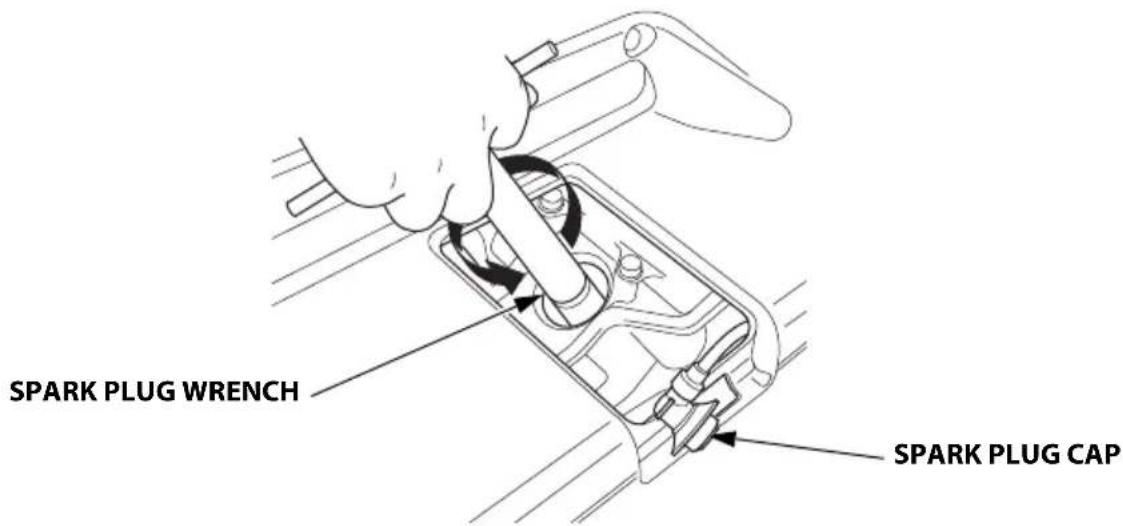

SPARK PLUG SERVICE 58

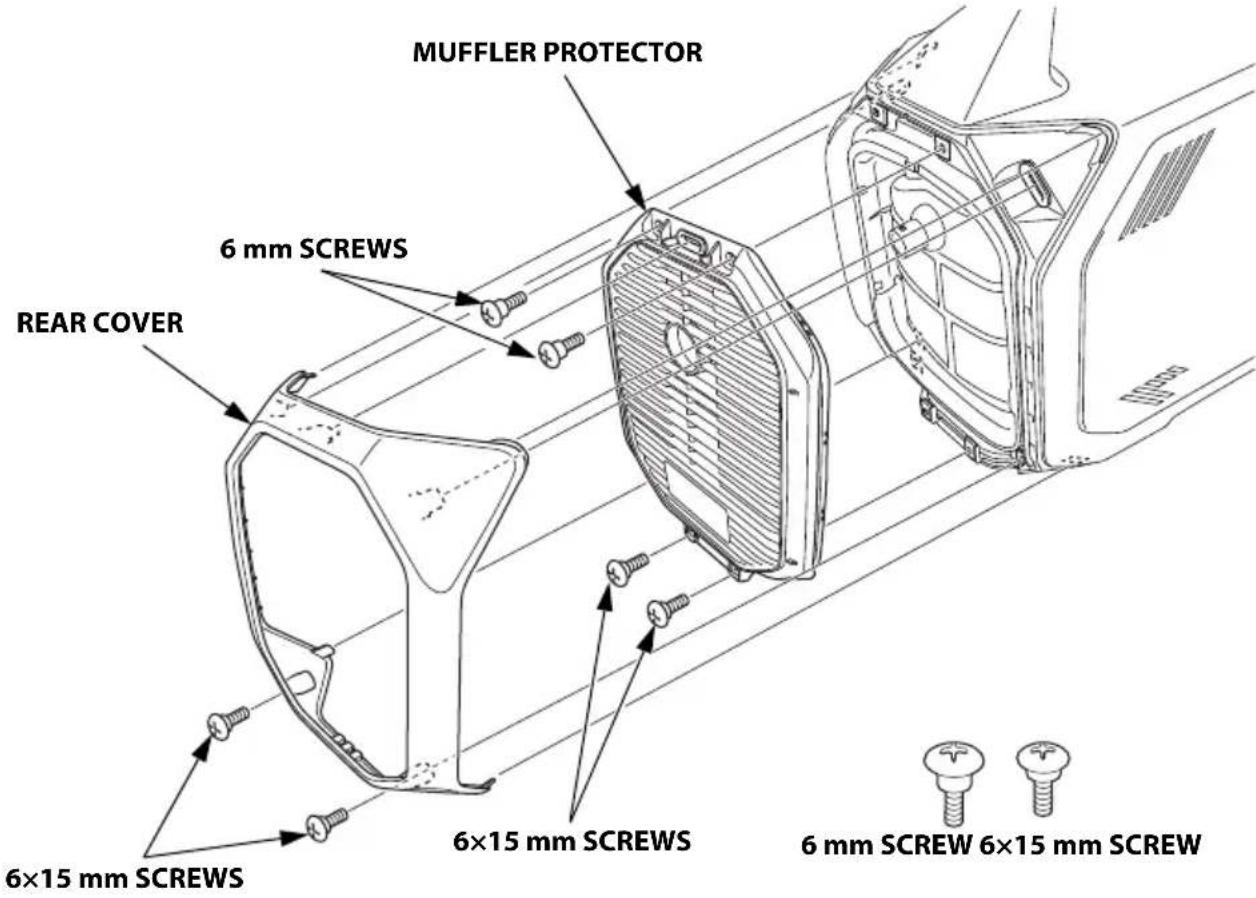

SPARK ARRESTER SERVICE 60

STORAGE 62

STORAGE PREPARATION 62

Cleaning 62

Fuel 62

Engine Oil 65

Engine Cylinder 65

STORAGE PRECAUTIONS 66

REMOVAL FROM STORAGE 66

TRANSPORTING 67

TAKING CARE OF UNEXPECTED PROBLEMS 69

ENGINE SPEED IS UNSTABLE OR WILL NOT START 69

ENGINE LACKS POWER 70

NO POWER AT THE AC RECEPTACLES 70

TECHNICAL INFORMATION 71

SERIAL NUMBER LOCATION 71

SPECIFICATIONS 72

REFERENCE INFORMATION 77

SUPPLEMENT end of the book

WIRING DIAGRAM
- MAJOR Honda DISTRIBUTOR ADDRESSES
- "UK Declaration of Conformity" CONTENT OUTLINE
- "EC Declaration of Conformity" CONTENT OUTLINE

GENERATOR SAFETY

IMPORTANT SAFETY INFORMATION

Honda generators are designed for use with electrical equipment that has suitable power requirements. Other uses can result in injury to the operator or damage to the generator and other property.

Most injuries or property damage can be prevented if you follow all instructions in this manual and on the generator. The most common hazards are discussed below, along with the best way to protect yourself and others.

Operator Responsibility

• Never attempt to modify the generator. It can cause an accident as well as damage to the generator and appliances. Tampering with the engine voids the EU type-approval of this engine.

• Do not connect an extension to the muffler.

• Do not modify the intake system.
• Do not adjust the governor.

• Do not remove the control panel or do not change the wiring of the control panel.

• Know how to stop the generator quickly in case of emergency.

• Understand the use of all generator controls, output receptacles, and connections.
• Be sure that anyone who operates the generator receives proper instruction.
• Protect children by keeping them at a safe distance from the generator.
• Be sure to observe the instructions in this manual for how to use the generator and maintenance information. Ignoring or improperly following the instructions can cause an accident such as an electric shock, and the condition of the exhaust gas may deteriorate.
• Do not operate the generator with any cover removed. You may get your hand or foot caught in the generator and it may cause accident.
• Consult your authorized Honda dealer for disassembly and service of the generator that are not covered in this manual.

• Obey all applicable laws and regulations where the generator is used.

• Gasoline and Oil is toxic. Follow the instructions provided by each manufacturer before use.

• Place the generator on a firm level place before operation.

Carbon Monoxide Hazards

A generator's exhaust contains toxic carbon monoxide, which you cannot see or smell. Breathing carbon monoxide can KILL YOU IN MINUTES. To avoid carbon monoxide poisoning, follow these instructions when operating a generator:

• Only run a generator OUTSIDE, far away from windows, doors, and vents with engine exhaust directed away from occupied structures.
• Never operate a generator inside a house, garage, basement, crawl space, any type of vehicle, trailer, or boat, or any enclosed or partly enclosed space.
• Never operate a generator near open doors, windows, vents, or hatches.
• Get fresh air and seek medical attention immediately if you suspect you have inhaled carbon monoxide.

Early symptoms of carbon monoxide exposure include headache, fatigue, shortness of breath, nausea, and dizziness. Continued exposure to carbon monoxide can cause loss of muscular coordination, loss of consciousness, and then death.

Electric Shock Hazards

The generator produces enough electric power to cause a serious shock or electrocution if misused.

• Do not use in wet conditions. Keep the generator dry.

• Do not use in the rain or snow.

• Do not use near pool or a sprinkler system.

• Do not use when your hands are wet.

• If the generator is stored outdoors, unprotected from the weather, check all of the electrical components on the control panel before each use. Moisture or ice can cause a malfunction or short circuit in electrical components that could result in electrocution.

• Do not connect to a building's electrical system unless an isolation switch has been installed by a qualified electrician.

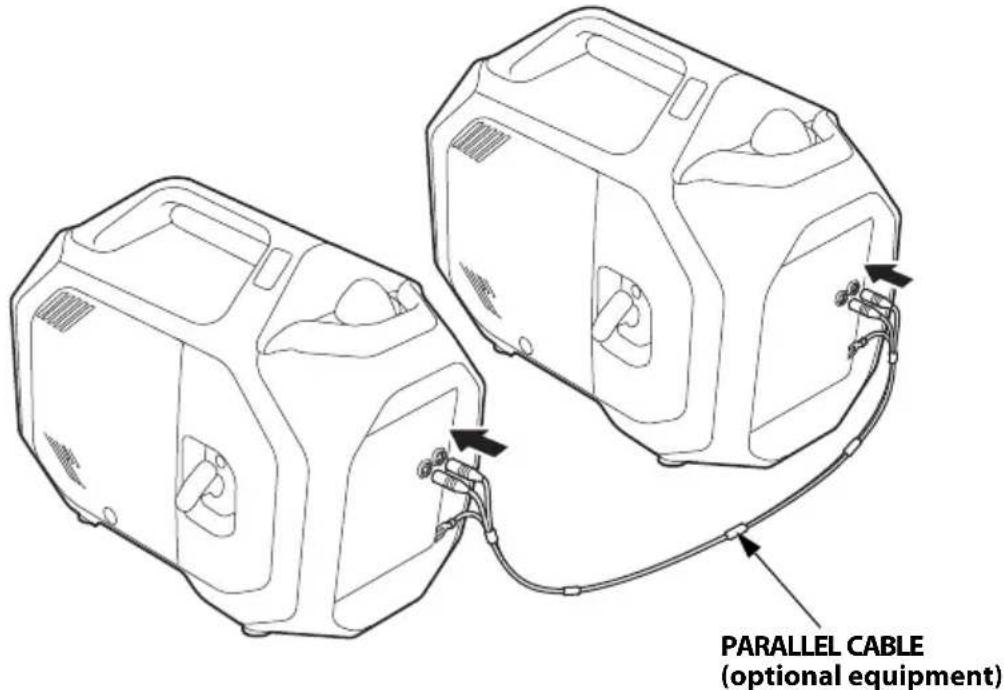

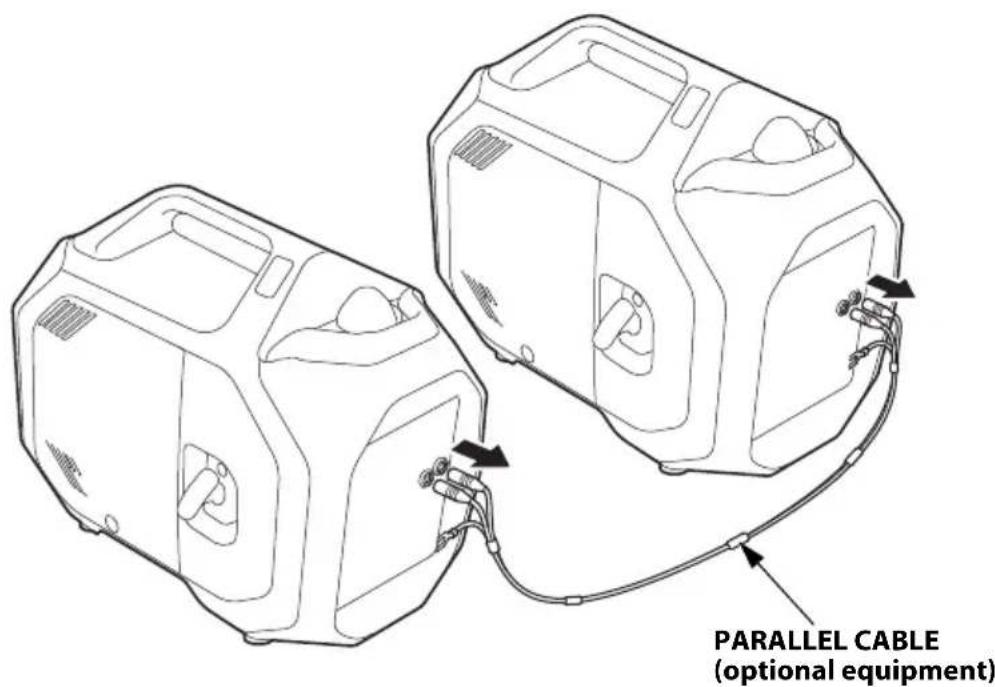

• For parallel operation, use only a Honda approved parallel cable (optional equipment) when connecting one EU32i to another EU32i generator.
• Never connect different generator models.
• If you get an electric shock, consult a doctor and have medical treatment immediately.

Fire and Burn Hazards

• The exhaust system gets hot enough to ignite some materials.

• Keep the generator at least 1 meter (3 feet) away from buildings and any type of vehicle, trailer, boat, or other equipment during operation.

• Do not enclose the generator in any structure.
• Keep flammable materials away from the generator.
• Do not block intake or exhaust vents, hoses, ports, or restrict air into or away from generator.

• Do not add, remove, or modify covers, panels, cowlings, or straps.

• Some parts of the internal combustion engine are hot and may cause burns. Pay attention to the warnings on the generator.

• The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Be careful not to touch the muffler while it is hot. Let the engine cool before storing the generator.
• Do not pour the water directly on the generator to put out the fire when it occurs. Use an appropriate fire extinguisher specially designed for electric fire or oil fire.
• If you inhale fumes produced by an accidental fire with the generator, consult a doctor and have medical treatment immediately.

Refuel With Care

Gasoline is highly flammable, and gasoline vapor can explode.

• Do not refuel during operation.
• Allow the engine to cool if it has been in operation.
• Refuel only outdoors in a well-ventilated area and on a level surface.
• Never smoke near gasoline, and keep other flames and sparks away.

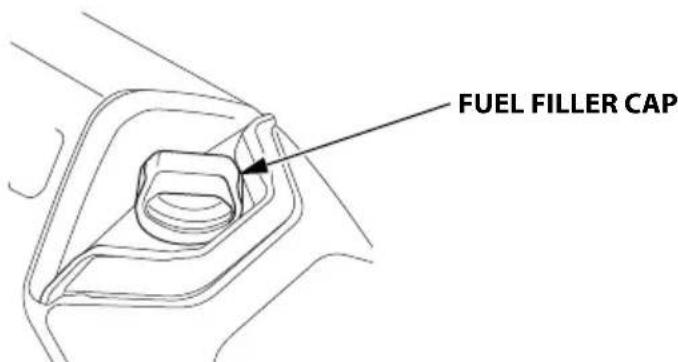

• Do not overfill the fuel tank.
• Make sure that any spilled fuel has been wiped up and cleaned before starting the engine.
• Always store gasoline in an approved container.

Explosion proof

This generator is not compliant with explosion proof.

Vehicles and Transportation Hazards

• Drain the fuel from the fuel tank when transporting.
• Do not operate the generator while it is being transported or while it is mounted to any type vehicle, trailer, or boat.
• Do not operate the generator when it is in a storage, cargo, or security enclosure, including any RV generator bay.
• Always completely remove the generator from the vehicle, RV, truck, trailer, boat, other equipment or structure during operation.
• The generator must remain stationary while in operation.

Disposal

To protect the environment, do not dispose of the used generator, battery, engine oil, etc. carelessly by leaving them in the waste.

Observe the local laws or regulations or consult your authorized Honda generator dealer to dispose of these parts.

Please dispose of used motor oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local service station for reclamation. Do not throw it in the trash or pour it on the ground.

An improperly disposed battery can hurt the environment. Always confirm local regulations for battery disposal. Contact your servicing dealer for a replacement.

Disposing of generator

Do not dispose of electric equipment together with household waste material. If electrical appliances are disposed of in landfills or dumps, substances can leak and react and enter into the foodchain, damaging your health and well-being. For further information on the disposal of this product, please contact your dealer or your nearest domestic waste collection service.

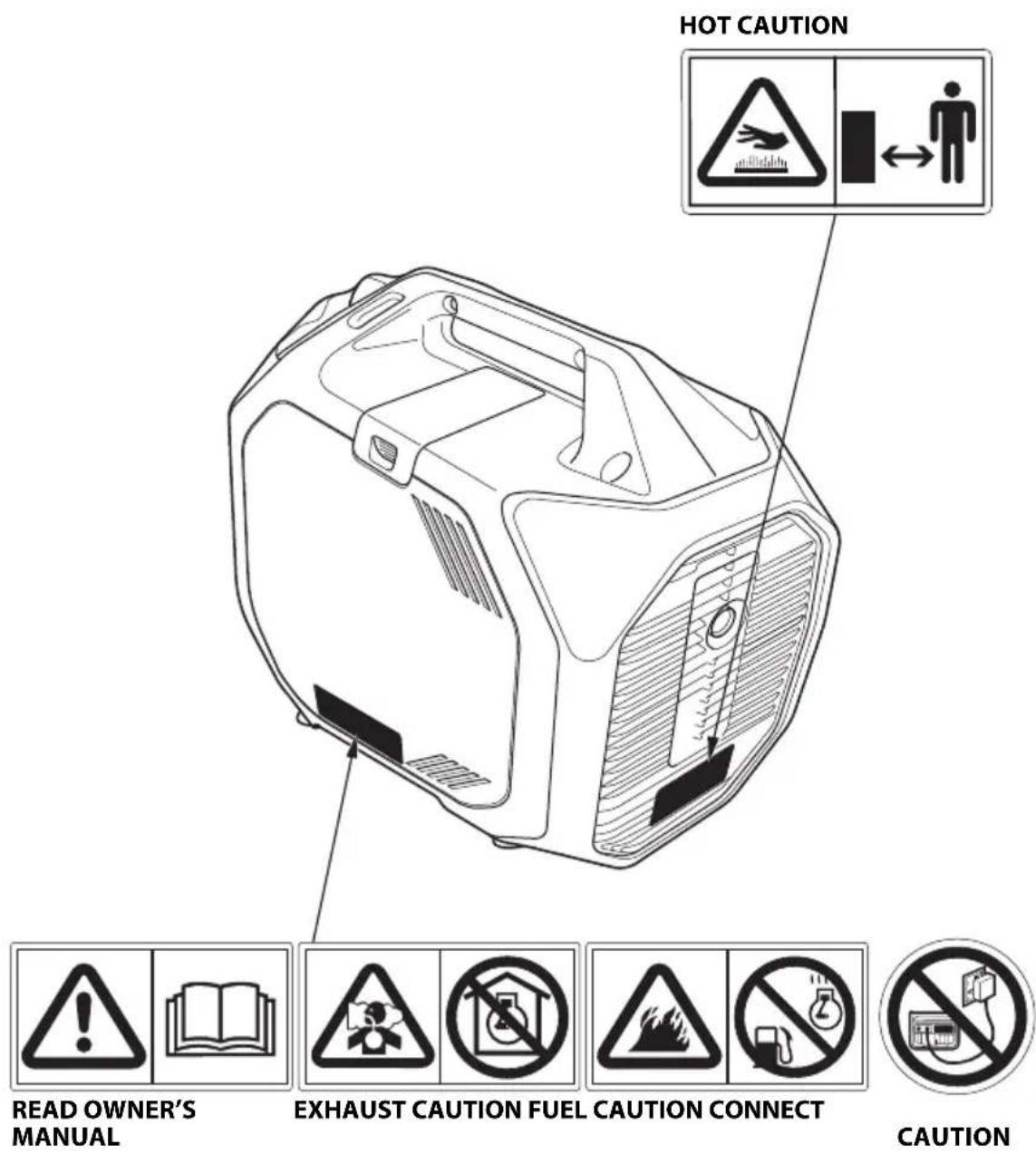

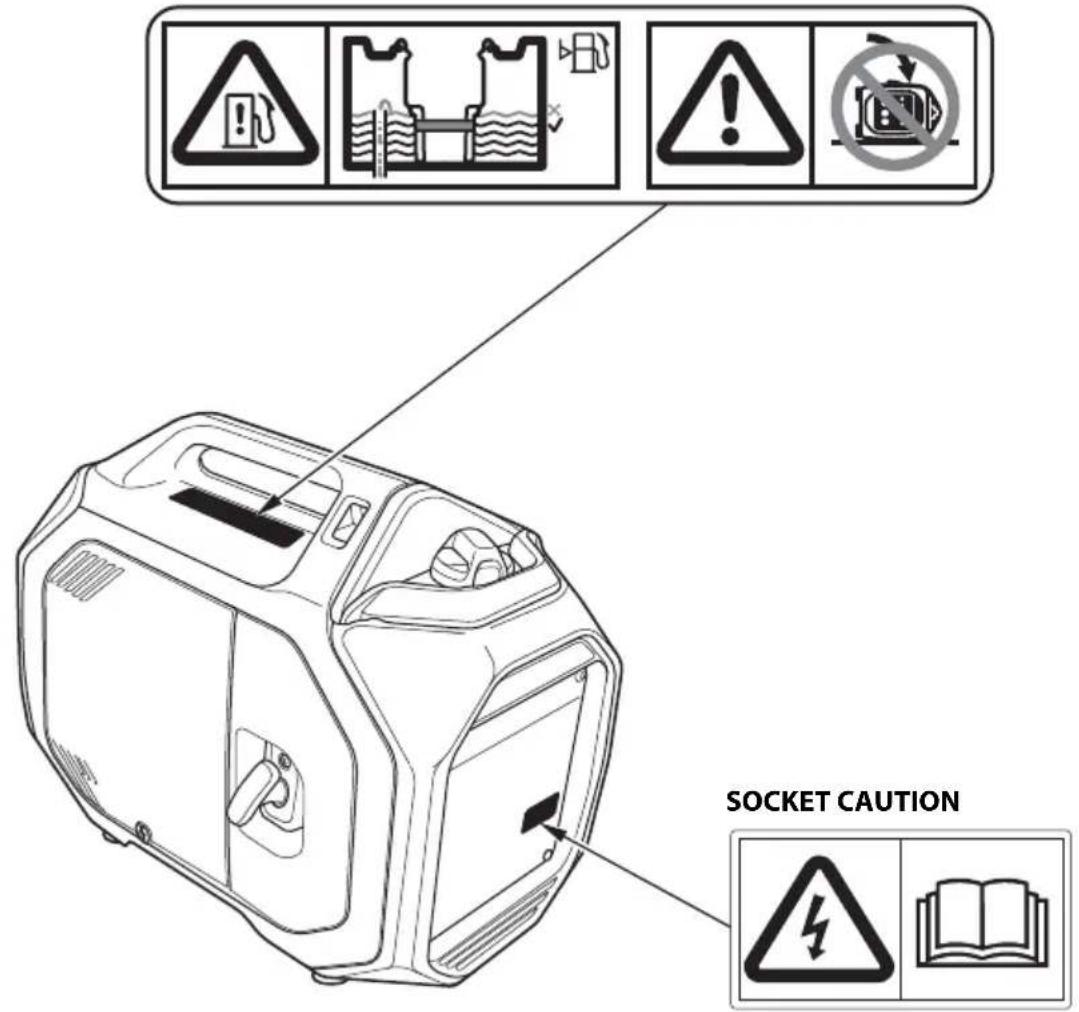

SAFETY LABEL LOCATIONS

These labels warn you of potential hazards that can cause serious injury. Read them carefully.

If a label comes off or becomes hard to read, contact your servicing dealer for a replacement.

DO NOT OVER FILL DO NOT TIP

• A hot exhaust system can cause serious burns. Avoid contact if the engine has been running.

• Honda generator is designed to give safe and dependable service if operated according to instructions. Read and understand the Owner's Manual before operating the generator. Failure to do so could result in personal injury or equipment damage.

• Exhaust contains poisonous carbon monoxide, a colorless, odorless gas. Breathing carbon monoxide can cause loss of consciousness and may lead to death.

• If you run the generator in an area that is confined, or even partially enclosed area, the air you breathe could contain a dangerous amount of exhaust gas.

• Never run your generator inside a garage, house or near open windows or doors.

Gasoline is highly flammable and explosive. Turn the engine off and let it cool before refueling.

• Improper connections to a building's electrical system can allow current from the generator to backfeed into the utility lines.

Such backfeed may electrocute utility company workers or others who contact the lines during a power outage, and the generator may explode, burn, or cause fires when utility power is restored.

Consult the utility company or a qualified electrician prior to making any power connections.

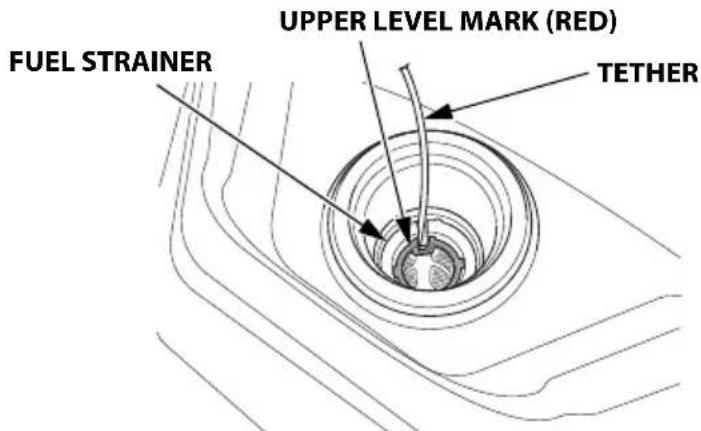

• Do not fill tank past red limit mark. Overfilling or tipping over the generator can result in fuel flowing through the vent tube and causing a leak and fire. You can be burned or seriously injured.

• Connect and remove the receptacle box for parallel operation with the engine stopped.

• For single operation, the receptacle box for parallel operation must be removed.

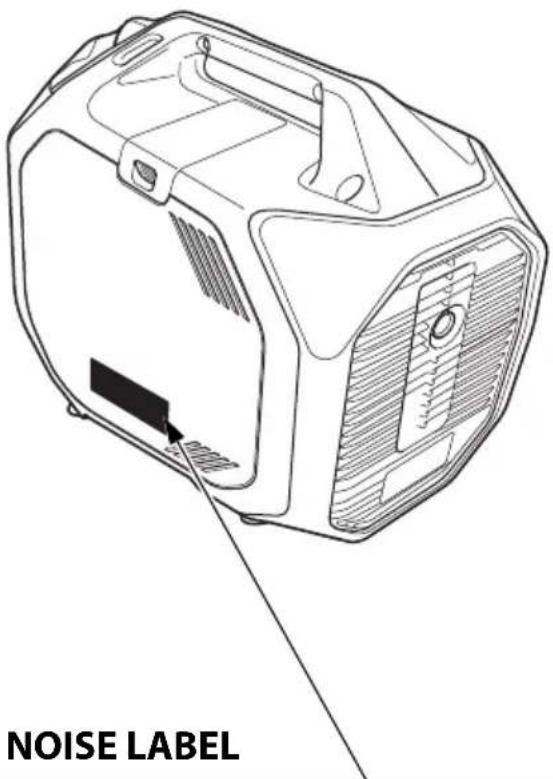

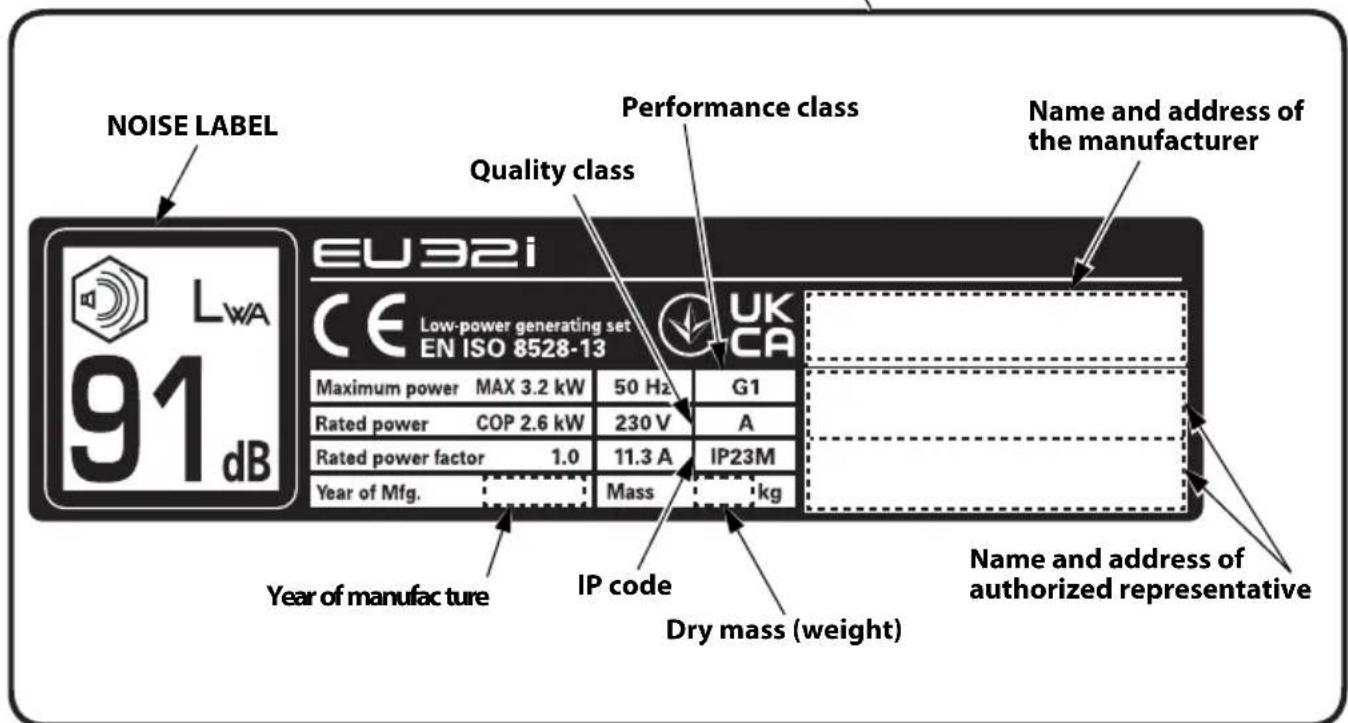

• CE mark, UKCA mark and noise label locations

CE MARK, UKCA MARK and NOISE LABEL

Name and address of manufacturer, authorized representative are written in the "Declaration of Conformity" CONTENT OUTLINE in this Owner's Manual.

INITIAL USE INSTRUCTIONS

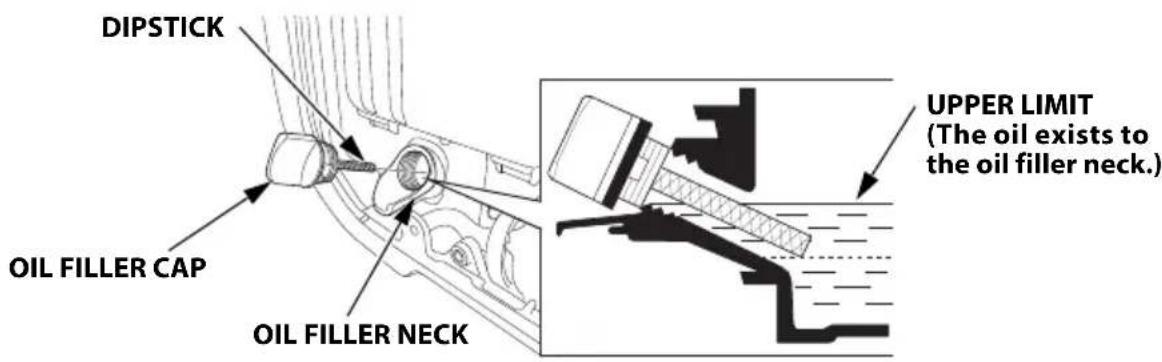

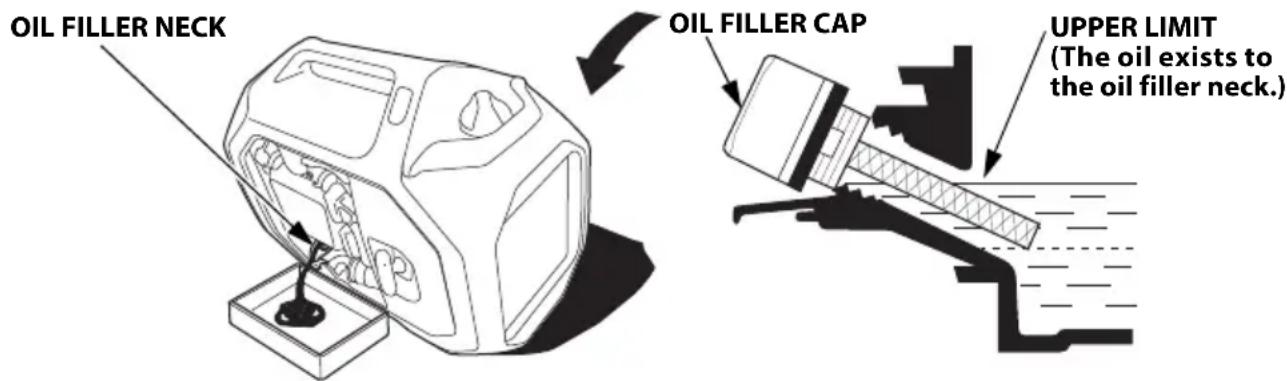

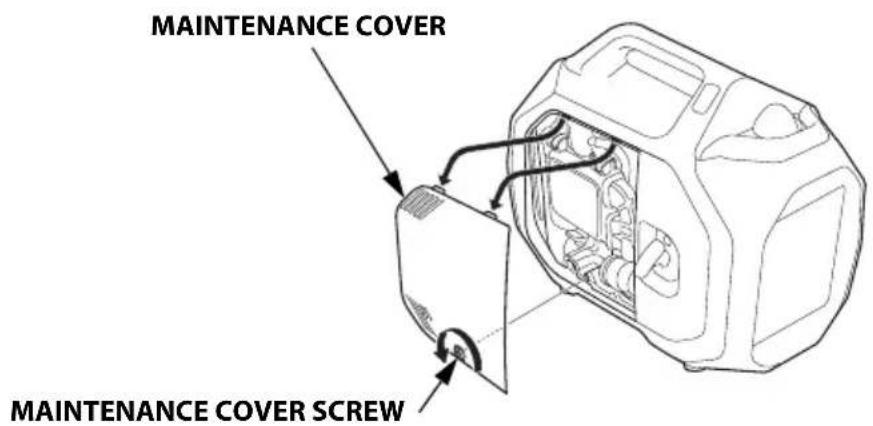

ENGINE OIL

The generator is shipped WITHOUT OIL in the engine.

1. Place the generator on a level surface.
2. Loosen the maintenance cover screw and remove the maintenance cover.

1. With the generator in a level position, remove the oil filler cap by turning it counterclockwise.
2. Add enough oil to bring the oil level to the upper limit of the oil filler neck. SAE10W-30 API service category SE or later (or equivalent) is recommended for general use; for additional recommendations (see page 17).

Maximum oil capacity: 0.46 L (0.48 US qt, 0.40 Imp qt)

Do not overfill the engine with oil. If the engine is overfilled, the excess oil may be transferred to the air cleaner housing and air filter.

1. Screw in the oil filler cap securely.

1. Reinstall the maintenance cover and tighten the maintenance cover screw securely.

ENGINE OIL RECOMMENDATIONS

Oil is a major factor affecting performance and service life. Use 4-stroke automotive detergent oil.

SAE 10W-30 is recommended for general use. Other viscosities shown in the chart may be used when the average temperature in your area is within the recommended range.

Lubrication oil specifications necessary to maintain the performance of the emissions control system: Honda genuine oil.

AMBIENT TEMPERATURE

Read the instructions on the oil container before use.

The SAE oil viscosity and API service category are in the API label on the oil container. Honda recommends that you use API service category SE or later (or equivalent) oil.

FUEL

Add fuel to the generator in a well-ventilated area. Fuel only outdoors. Keep gasoline away from appliance, such as pilot lights, barbecues, electric appliances, power tools, etc. Spilled fuel is not only a fire hazard, it causes environmental damage. Fuel carefully to avoid spilling fuel. Wipe up spills immediately. Do not fill the fuel tank above the upper level mark (red) on the fuel strainer. After fueling, reinstall the fuel tank cap securely.

When appropriate, with the engine stopped, check the fuel level indicator for the fuel level. If the fuel level is low, wait for the generator to cool off and refill the fuel tank.

This engine is certified to operate on unleaded gasoline with a research octane rating of 89 or higher. Refer to "FUEL RECOMMENDATIONS" (see page 20) for additional fuel recommendations.

WARNING

Gasoline is highly flammable and explosive.

You can be burned or seriously injured when handling fuel.

• Stop the engine and let it cool before handling fuel.
• Keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.

NOTICE

Fuel can damage paint and plastic. Be careful not to spill fuel when filling your fuel tank. Damage caused by spilled fuel is not covered under the Warranty.

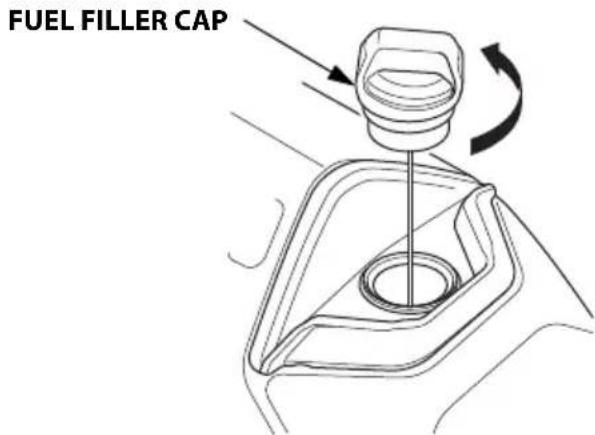

1. Remove the fuel filler cap.

1. Fuel carefully to avoid spilling fuel. Do not fill the fuel tank above the upper level mark (red) on the fuel strainer.

NOTICE

Fuel can damage paint and plastic. Be careful not to spill fuel when filling your fuel tank. Damage caused by spilled fuel is not covered under the Warranty.

1. After refueling, tighten the fuel filler cap until it clicks.

Move the generator at least 3 meters (10 feet) away from the fueling source and site before starting the engine.

FUEL RECOMMENDATIONS

This engine is certified to operate on unleaded gasoline with a research octane rating of 89 or higher.

Fuel specification(s) necessary to maintain the performance of the emissions control system: E10 fuel referenced in EU regulation.

Use unleaded gasoline only, or the catalyzer will lose its effectiveness and negatively affect exhaust emissions.

Never use gasoline that is stale, contaminated, or mixed with oil. Avoid getting dirt or water in the fuel tank.

You may use regular unleaded gasoline containing no more than 10% ethanol (E10) or 5% methanol by volume. In addition, methanol must contain cosolvents and corrosion inhibitors.

Use of fuels with content of ethanol or methanol greater than shown above may cause starting and/or performance problems. It may also damage metal, rubber, and plastic parts of the fuel system.

Engine damage or performance problems that result from using a fuel with percentages of ethanol or methanol greater than shown above and leaded gasoline are not covered under the Warranty.

If your equipment will be used on an infrequent basis, refer to the fuel section of "STORAGE" chapter (see page 62) for additional information regarding fuel deterioration.

CONTROLS & FEATURES

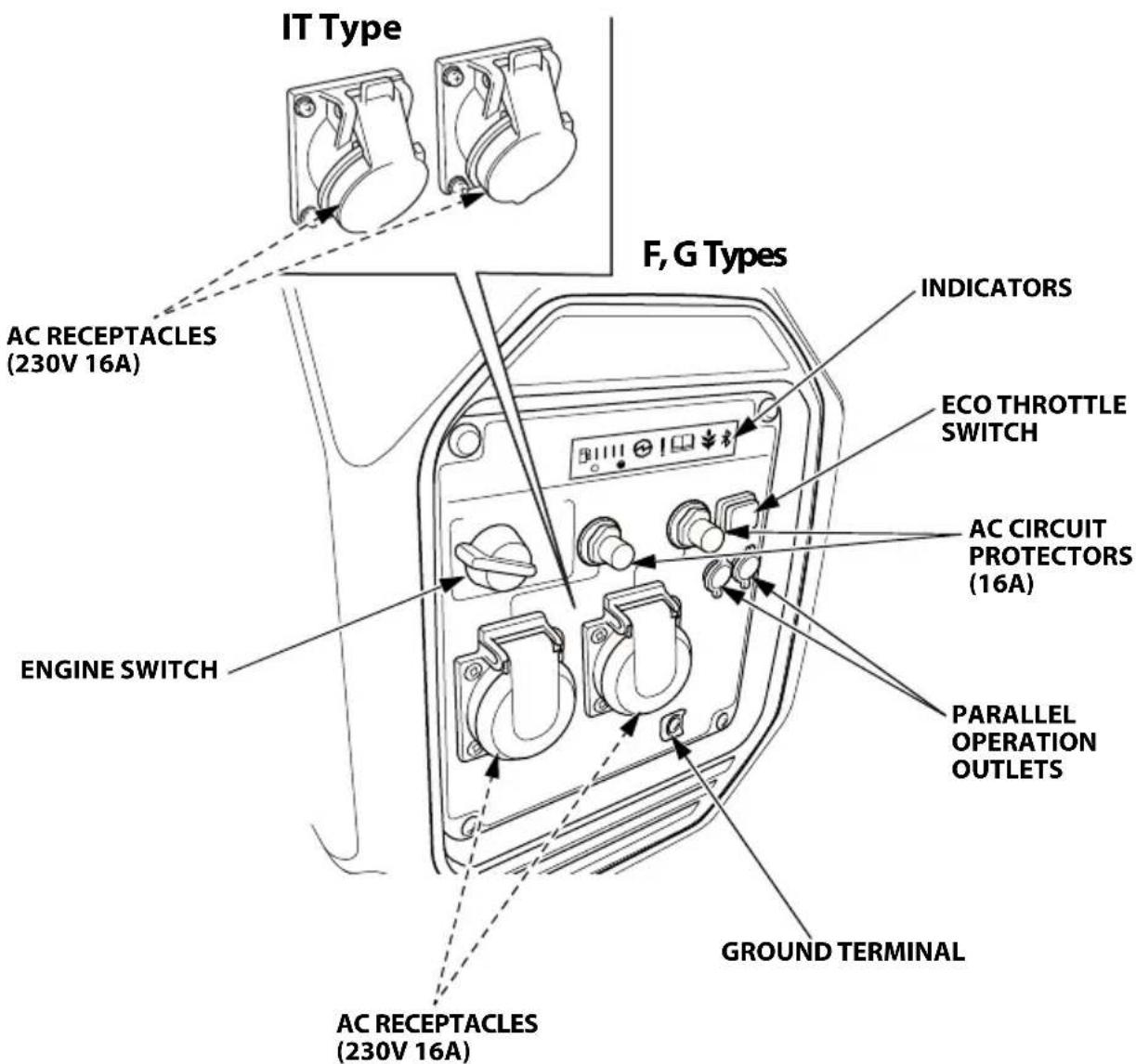

COMPONENT & CONTROL LOCATIONS

Use the illustrations on these pages to locate and identify the most frequently used controls.

CONTROLS

Engine Switch

The engine switch controls the ignition system.

OFF - Stops the engine.

ON - Running position, and for starting with the recoil starter.

Starter Grip

Pulling the starter grip operates the recoil starter to start the engine.

NOTICE

Do not allow the starter grip to snap back against the generator. Return it gently to prevent damage to the starter.

Eco Throttle Switch

The Eco Throttle system automatically reduces engine speed when loads are turned off or disconnected. When appliances are turned on or reconnected, the engine returns to the proper speed to power the electrical load.

Each time you push the Eco Throttle Switch, the system turns on and off. If high electrical loads are connected simultaneously, push the Eco Throttle system to the OFF to reduce voltage changes.

Eco Throttle system ON Indicator lights on (green) ·Recommended to minimize fuel consumption and further reduce noise levels when less than a full load is applied to the generator.

Eco Throttle system OFF Indicator lights off ·The Eco Throttle system does not operate.

OVERLOAD RESET:

If the power generation stops due to overload and the overload alarm indicator is blinking, overload reset is available. After removing the cause of the overload, power generation can be resumed by pressing and holding the Eco Throttle switch (for more than 3 seconds).

Parallel Operation Outlets

These outlets are used for connecting two EU32i generators for parallel operation (see page 47 through 49). A Honda approved parallel cable (optional equipment) is required for parallel operation. This cable can be purchased from your servicing dealer.

The AC circuit protectors will automatically switch OFF if there is a short circuit or a significant overload of the generator at each receptacle. If an AC circuit protector switches OFF automatically, check that the appliance is working properly and does not exceed the rated load capacity of the circuit before resetting the AC circuit protector ON.

F, G Types IT Type

FEATURES

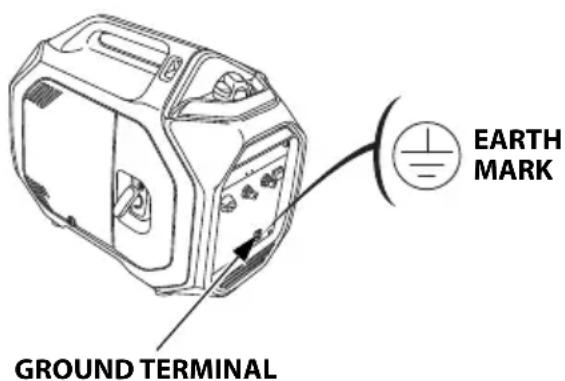

Ground Terminal

The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle.

Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

The generator produces enough electric power to cause a serious shock or electrocution if misused.

Be sure to ground the generator when the connected appliance is grounded.

To ground the terminal of the generator, use a copper wire with same or larger diameter than the cord of the connected appliance.

Use extension cord set with ground conductor when connecting an appliance with ground conductor.

To identify the Ground pin in the plug, see Receptacle page 76.

Fuel Level Indicator

The fuel level indicator is a mechanical device that measures the fuel level in the tank. To provide increased operating time, start with a full tank before operation. Check the fuel level with the generator on a level surface. Always refuel with the engine OFF and cool.

The indicator according to the generator's fuel level as follows:

80% or more 60-80% 40-60% 20-40% 20% or less

Output Indicator

The output indicator (green) is illuminated when the generator is operating normally. It indicates that the generator is producing electrical power at the receptacles.

In addition, the output indicator has a simplified hour meter function. When you start the engine, the indicator blinks according to the generator's cumulative operating hours as follows:

No blinks: 0-100 hours
- 1 blink: 100-200 hours
2 blinks: 200-300 hours
- 3 blinks: 300-400 hours
- 4 blinks: 400-500 hours
- 5 blinks: 500 or more hours

Overload Alarm (Indicator)

If the generator is overloaded (in excess of 3.2kVA ), or if there is a short circuit in a connected appliance, the overload alarm indicator (red) will come ON. The overload alarm indicator (red) will stay ON, and after about 10 seconds, when an overload or about 5 seconds in case of a short circuit, current to the connected appliance(s) will shut off, and the output indicator (green) will go OFF. However, the engine will continue to run.

If the overload alarm indicator (red) blink continuously, press and hold the ECO Throttle switch to reset it (see page 24).

Oil Alert/Check Indicator

The Oil Alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit or in the case of engine overheat, the Oil Alert/Check indicator (red) comes ON and the Oil Alert system automatically will stop the engine (the engine switch will remain in the ON position).

If the engine stops or the Oil Alert/Check indicator (red) comes ON when you pull the starter grip, check the engine oil level (see page 36) before troubleshootinging in other areas. Also, make sure to install the generator on a level surface.

The engine may stop due to the activating the oil alert system even if the engine oil level is the normal when the generator is tilted.

If the Oil Alert/Check indicator (red) blink continuously, it suggests an abnormal, contact your servicing dealer.

LED Light Patterns

Status Possible cause Output		Indicator	Oil Alert/Check Indicator	Overload Alarm Indicator
Normal Operating normally		○	●	●
Malfunction	Inverter unit failure etc.	○/●/○	○	●
Abnormal Output overcurrent		●	●	○/○
		Inverter unit overheat	●	●	○
Warning • Engine oil low	Tilt detection	●	○	●
	Engine overheat

Refer to "TAKING CARE OF UNEXPECTED PROBLEMS" on page 69 for failure diagnosis.

Bluetooth® Function

The generator is connected to a smartphone via a Bluetooth® connection.

• The range between your Bluetooth® enabled smartphone and the generator can be maximized when there is a clear, obstruction free, line-of-sight between devices. The connection distance is also affected by the type of smartphone used and the surrounding environment, structures, and electronic interference.

Smartphone application

The Honda "My Generator" smartphone application is for use only with Honda generators equipped with Bluetooth® technology. The application is able to do the following convenient functions:

• Remote stop:
  Can stop the generator engine from a distance
• Remote change the Eco Throttle system from a distance
• Remote monitoring:

Displays power output level and remaining fuel level etc.

• Receive notifications:

Can receive error and maintenance alerts

Downloading the app

Go to the App Store (iOS) or Google Play

(Android) and search for "Honda My Generator" to download the app.

iOS Android

Pairing (For first time connection only)

Refer to the Support on the Honda "My Generator" smartphone application to pair the smartphone with the generator.

• Perform the pairing operation within 30 seconds after starting the engine.

BLUETOOTH INDICATOR

BLUETOOTH PASSWORD

The indicator according to the Bluetooth® connection as follows:

• OFF: Not connected
• Fast Blinking: Malfunction
• Slow Blinking: Pairing available
  ON: Connected

Grip and Under Grip

Use the grip by your hand when lifting the generator.

In addition to using the grip, you can lift the generator using the under grip by the other hand if necessary.

BEFORE OPERATION

ARE YOU READY TO GET STARTED?

Your safety is your responsibility. A little time spent in preparation will significantly reduce your risk of injury.

Knowledge

Read and understand this manual. Know what the controls do and how to operate them.

Familiarize yourself with the generator and its operation before you begin using it. Know how to quickly shut off the generator in case of an emergency.

If the generator is being used to power appliances, be sure that they do not exceed the generator's load rating (see pages 46 and 49).

IS YOUR GENERATOR READY TO GO?

For your safety, to ensure compliance with environmental regulations, and to maximize the service life of your equipment, it is very important to take a few moments before you operate the generator to check its condition. Be sure to take care of any problem you find, or have your servicing dealer correct it, before you operate the generator.

WARNING

Failure to properly maintain this generator, or failing to correct a problem before operation, could result in a significant malfunction.

Some malfunctions can cause serious injuries or death.

Always perform a pre-operation inspection before each operation and correct any problems.

To prevent a possible fire, keep the generator at least 1 meter (3 feet) away from building walls, vehicles, and other equipment during operation. Do not place flammable objects close to the engine or exhaust.

Before beginning your pre-operation checks, be sure the generator is on a level and firm surface and the engine switch is in the OFF position.

Check the Engine

• Before each use, look around and underneath the engine for signs of oil or gasoline leaks.
• Check the engine oil level (see page 36). A low engine oil level will cause the Oil Alert system to shut down the engine.
• Check the air filters (see page 37). Dirty air filters will restrict air flow to the fuel system, reducing engine and generator performance.
• Check the fuel level (see page 18). Starting with a full tank will help to eliminate or reduce operating interruptions for refueling.

AC Appliance and Power Cord

Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.
• Inspect cords and plugs, and replace if damaged.
• Make sure that the appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.
• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.
• Do not exceed the current limit specified for any one receptacle.
• When an extension cable is required, be sure to use a tough rubber sheathed flexible cable (IEC 245 or equivalent).

When using an extension cable the resistance value shall not exceed 1.5

• Limit length of extension cables; 60m (200 feet) for cables of 1.5mm^2 (0.0023 in²) and 100m (330 feet) for cables of 2.5mm^2 (0.0039 in²). Long extension cables will lower usable power due to resistance in the extension cable.

• Keep the generator away from other electric cables or wires such as commercial power supply lines.

• G T y p e WARNING: When connecting an angled plug, be sure to use only a IPx4 plug.

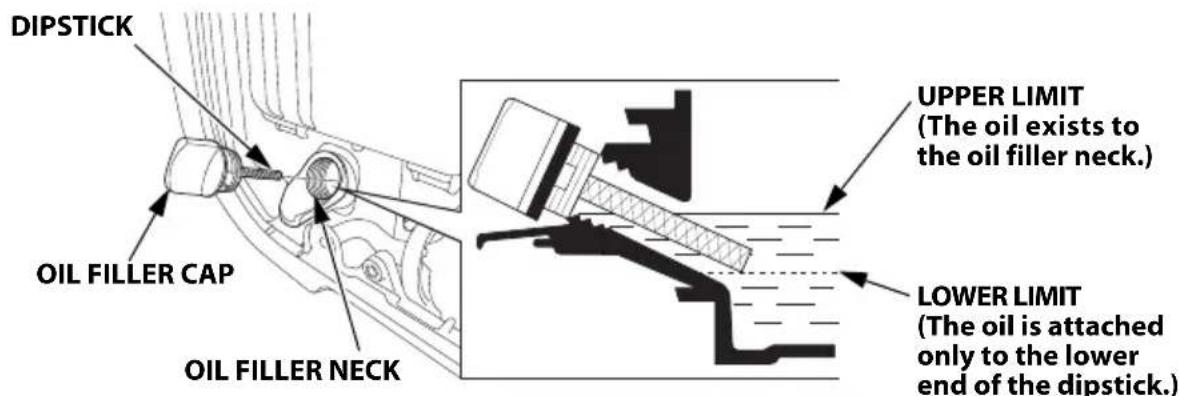

ENGINE OIL LEVEL CHECK

Check the engine oil level with the generator on a level surface and the engine stopped.

1. Loosen the maintenance cover screw and remove the maintenance cover.

1. Remove the oil filler cap by turning it counterclockwise. Wipe the dipstick clean.
2. Insert the dipstick into the oil filler neck as shown, but do not screw it in, then remove it to check the oil level.

3. If the oil level is near or below the lower limit, fill with the recommended oil to the upper limit. Do not overfill.

4. "Upper limit" means the oil exists to the oil filler neck.

5. "Lower limit" means the oil is attached only to the lower end of the dipstick.

Refer to "ENGINE OIL RECOMMENDATIONS" in page 17.

1. Reinstall the oil filler cap securely.
2. Reinstall the maintenance cover and tighten the maintenance cover screw securely.

The Oil Alert system will automatically stop the engine before the oil level falls below safe limits. However, to avoid the inconvenience of an unexpected shutdown, check the oil level regularly.

AIR FILTER CHECK

1. Loosen the maintenance cover screw and remove the maintenance cover.

1. Unsnap the air cleaner cover clips; remove the air cleaner cover.

2. Remove the foam air filter from the air cleaner cover.

1. Check the foam air filter to be sure they are clean and in good condition. If the foam air filter are dirty, clean them as described on page 57. Replace the foam air filter if they are damaged.

2. Reinstall the foam air filter in the air cleaner cover.

3. Remove the paper filter from the guide.

4. If the paper air filter is dirty, replace it with a new one. Do not clean the paper air filter.

5. Reinstall the paper air filter, the guide and the air cleaner cover.

6. Reinstall the maintenance cover, and tighten the maintenance cover screw securely.

NOTICE

Operating the engine without the air filters or with a damaged air filter will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by the Warranty.

SAFE OPERATING PRECAUTIONS

Before operating the generator, review chapters "GENERATOR SAFETY" (see page 6).

For your safety, do not operate the generator in an enclosed, or partly enclosed area such as a garage (even if the door is open) or near structures or vehicles. Your generator's exhaust contains poisonous carbon monoxide gas that can collect rapidly in such areas, structures, vehicles, trailers, or boats.

• Do not operate the generator when it is in a storage, cargo, or security enclosure, including any RV generator bay.
• Always completely remove the generator from the vehicle, trailer, boat or other equipment or structure during operation.
• The generator must remain stationary while in operation.

WARNING

Exhaust contains poisonous carbon monoxide gas that can build up to dangerous levels in enclosed or partly enclosed areas.

Breathing carbon monoxide can cause unconsciousness or death.

Never run this product's engine in an enclosed, or even partly enclosed area.

OPERATION

STARTING THE ENGINE

To prevent a possible fire, keep the generator at least 1 meter (3 feet) away from building or trailer walls, vehicles, trailers, boats, and other equipment during operation. Do not place flammable objects close to the engine or exhaust.

NOTICE

• Operating this generator less than 1 meter (3 feet) from a building, obstruction, or when it is in an enclosure, a storage or security compartment/bay, can cause overheating and damage the generator.
• For proper cooling, allow at least 1 meter (3 feet) of empty space above and around the generator. Keep all cooling holes open and clear of debris, mud, water, etc. Cooling holes are located on the side panel, the control panel, and the bottom of the generator. If the cooling holes are blocked, the generator may overheat and damage the engine, inverter, or windings.

Refer to "SAFE OPERATING PRECAUTIONS" on page 39 and perform the "IS YOUR GENERATOR READY TO GO?" checks (see page 33).

Refer to "AC OPERATION" (see page 44) for connecting loads to the generator.

1. Make sure that all appliances are disconnected from the AC receptacle.
2. Turn the engine switch to the ON position.

1. Pull the starter grip lightly until you feel resistance; then pull briskly in the direction of the arrow as shown.

NOTICE

Do not allow the starter grip to snap back against the generator. Return it gently to prevent damage to the starter.

1. If you don't wish to use the Eco Throttle system, push the Eco Throttle switch to Eco Throttle system OFF.

ECO THROTTLE INDICATOR (OFF)

STOPPING THE ENGINE

To stop the engine in an emergency, simply turn the engine switch to the OFF position securely. Under normal conditions, use the following procedure.

1. Turn off or disconnect all appliances that are connected to the generator.
2. Turn the engine switch to the OFF position securely.

1. If two generators were connected for parallel operation, disconnect the parallel cable after stopping the engines if you do not wish to resume parallel operation.

If the generator will not be used for a long period of time, refer to page 64 for information on "DRAINING THE FUEL TANK".

STOPPING THE ENGINE with Bluetooth® ENABLED SMARTPHONE

The engine can be stopped via a Bluetooth® enabled smartphone using a Bluetooth® application.

Refer to the Bluetooth® application to check the connection, operation, and for help pairing a smartphone.

AC OPERATION

If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn it off immediately. Disconnect the appliance, and determine whether the problem is in the appliance or the rated load capacity of the generator has been exceeded.

NOTICE

• Substantial overloading that continuously lights the overload alarm indicator (red) may damage the generator. Marginal overloading that temporarily lights the overload alarm indicator (red) may shorten the service life of the generator.
• Be sure that all appliances are in good working order before connecting them to the generator. Electrical equipment (including lines and plug connections) should not be defective. If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn off the generator engine switch immediately. Then disconnect the appliance, and examine it for signs of malfunction.

The generator produces enough electric power to cause a serious shock or electrocution if misused.

Be sure to ground the generator when the connected appliance is grounded.

To ground the terminal of the generator, use a copper wire with same or larger diameter than the cord of the connected appliance.

Use extension cord set with ground conductor when connecting an appliance with ground conductor.

To identify the Ground pin in the plug, see Receptacle page 76.

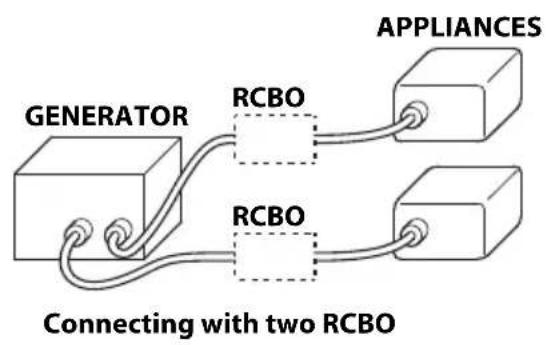

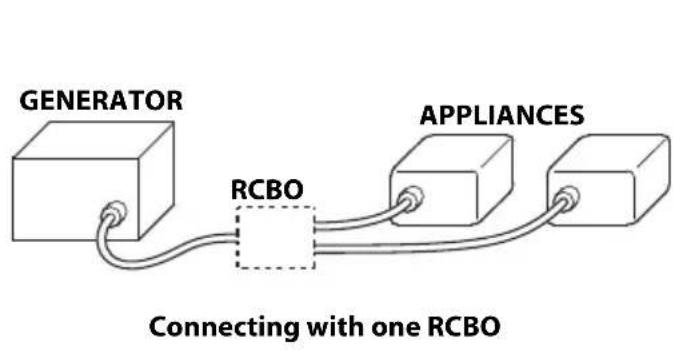

Connect a RCBO (Residual current circuit breaker with overload protection) of 30mA ground fault detection and cut-off of less than 0.4 seconds at more than 30A of output current, if you are using two or more appliance. Follow the instructions provided by each RCBO manufacturer before use.

1. Start the engine (see page 40) and make sure the output indicator (green) comes ON.

1. Plug in the appliance.

3. Turn on the appliance.

If the generator is overloaded (see page 46), or if there is a short circuit in a connected appliance, the overload alarm indicator (red) will go ON. The overload alarm indicator (red) will stay ON, and after about 10 seconds when an overload or about 5 seconds in case of a short circuit, current to the connected appliance(s) will shut off, and the output indicator (green) will go OFF. Stop the engine and investigate the problem.

Determine if the cause is a short circuit in a connected appliance or an overload. Correct the problem and restart the generator.

AC Applications

Before connecting an appliance or power cord to the generator:

• Make sure that it is in good working order. A faulty appliance or power cord can create a potential for electrical shock.
• If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn it off immediately. Disconnect the appliance, and determine whether the problem is the appliance or the rated load capacity of the generator has been exceeded.

Most appliance motors require more than their rated wattage for startup.
Make sure the electrical rating of the tool or appliance does not exceed the maximum power rating of the generator.

Maximum power is:

3.2 kVA

For continuous operation, do not exceed the rated power.

Rated power is:

2.6 kVA

In either case, the total power requirements (VA) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model number or serial number.

NOTICE

Substantial overloading that continuously lights the overload alarm indicator (red) may damage the generator. Marginal overloading that temporarily lights the overload alarm indicator (red) may shorten the service life of the generator.

Before connecting an appliance to either generator, make sure that the appliance is in good working order and that its electrical rating does not exceed that of the receptacle.

Most motorized appliances require more than their electrical rating for startup. When an electric motor is started, the overload alarm indicator (red) may come ON. This is normal if the overload alarm indicator (red) goes OFF within 4 seconds. If the Oil Alert/Check indicator (red) blink continuously, consult an authorized Honda servicing dealer.

During parallel operation, the Eco Throttle switch should be in the same position on both generators.

1. Connect the parallel cable between the two EU32i generators following the instructions supplied with the cable.

1. Start the engines (see page 40) and make sure the output indicator (green) on each generator comes ON (see page 44).

2. Plug in the appliance following the instruction provided with the parallel cable.

3. Turn on the appliance.

If the generators are overloaded (see page 49), or if there is a short circuit in a connected appliance, the overload alarm indicator (red) will go ON. The overload alarm indicator (red) will stay ON, and after about 10 seconds when an overload or about 5 seconds in case of a short circuit, current to the connected appliance(s) will shut off, and the output indicator (green) will go OFF. Stop both engines and investigate the problem.

Determine if the cause is a short circuit in a connected appliance or an overload.

Correct the problem and restart the generator.

AC Parallel Operation Applications

Follow the instructions included with the parallel cable.

Before connecting an appliance or power cord to the generator:

• Make sure that it is in good working order. A faulty appliance or power cord can create a potential for electrical shock.
• If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn it off immediately. Disconnect the appliance, and determine whether the problem is the appliance or the rated load capacity of the generator has been exceeded.
• Never connect different generator models and types.
• Use only a Honda approved parallel cable (optional equipment) when connecting two EU32i generators for parallel operation.
• Never connect or remove the parallel cable when the generator is running.
• For single generator operation, the parallel cable must be removed.

Most appliance motors require more than their rated wattage for startup.
Make sure the electrical rating of the tool or appliance does not exceed the maximum power rating of the generator.

Maximum power in parallel operation is:

6.4 kVA

For continuous operation, do not exceed the rated power. Rated power in parallel operation is:

5.2 kVA

In either case, the total power requirements (VA) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model number or serial number.

NOTICE

Substantial overloading that continuously lights the overload alarm indicator (red) may damage the generator. Marginal overloading that temporarily lights the overload alarm indicator (red) may shorten the service life of the generator.

ECOTHROTTLESYSTEM

Each time you push the Eco Throttle Switch, the system turns on and off.

With the system in the ON, engine speed is automatically lowered when loads are reduced, turned off, or disconnected. When appliances are turned on or reconnected, the engine returns to the proper speed to power the electrical load. In the OFF, the Eco Throttle system does not operate.

Appliances with large start-up power demands may not allow the engine to reach normal operating rpm when they are connected to the generator. Turn the Eco Throttle system to the OFF and connect the appliance to the generator. If the engine still will not reach normal operating speed, check that the appliance does not exceed the rated load capacity of the generator.

If high electrical loads are connected simultaneously, turn the Eco Throttle system to the OFF to reduce voltage changes.

The Eco Throttle system is not effective for use with appliances or tools that require only momentary power. If the tool or appliance will be turned ON and OFF quickly, the Eco Throttle system should be in the OFF.

Eco Throttle system ON Indicator lights on (green)

Recommended to minimize fuel consumption and further reduce noise levels when less than a full load is applied to the generator.

Eco Throttle system OFF Indicator lights off

The Eco Throttle system does not operate.

STANDBY POWER

Connections to a Building's Electrical System

Connections for standby power to a building's electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes.

WARNING

Improper connections to a building's electrical system can allow current from the generator to backfeed into the utility lines.

Such backfeed may electrocute utility company workers or others who contact the lines during a power outage, and the generator may explode, burn, or cause fires when utility power is restored.

Consult the utility company or a qualified electrician prior to making any power connections.

In some areas, generators are required by law to be registered with local utility companies. Check local regulations for proper registration and use procedures.

System Ground

This generator has a system ground that connects the generator frame components to ground terminals in the AC output receptacles. The system ground is not connected to the AC neutral wire.

Special Requirements

NOTICE

Do not lay the generator on its side when moving, storing, or operating it. Oil and fuel may leak and damage the engine or your property.

There may be applicable laws, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction.

• In some areas, generators are required to be registered with local utility companies.

• If the generator is used at a construction site, there may be additional regulations that must be observed.

SERVICING YOUR GENERATOR

THE IMPORTANCE OF MAINTENANCE

Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution.

To help you properly care for your generator, the following pages include a maintenance schedule, routine inspection procedures, and simple maintenance procedures using basic hand tools. Other service tasks that are more difficult or require special tools are best handled by professionals and are normally performed by a Honda technician or other qualified mechanic.

The maintenance schedule applies to normal operating conditions. If you operate your generator under unusual conditions, such as sustained high-load or high-temperature operation, or use it in dusty conditions, consult your servicing dealer for recommendations applicable to your individual needs and use.

WARNING

Failure to properly maintain this generator, or failing to correct a problem before operation, could result in a significant malfunction.

Some malfunctions can cause serious injuries or death.

Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

Remember that an authorized Honda servicing dealer knows your generator best and is fully equipped to maintain and repair it.

To ensure the best quality and reliability, use only new, Honda Genuine parts or their equivalents for repair and replacement.

MAINTENANCE SAFETY

Some of the most important safety precautions follow. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

WARNING

Improper maintenance can cause an unsafe condition.

Failure to properly follow maintenance instructions and precautions can cause serious injuries or death.

Always follow the procedures and precautions in this owner's manual.

Safety Precautions

Read the instructions before you begin, and make sure you have the tools and skills required.

• Make sure the engine is off before you begin any maintenance or repairs. This will eliminate several potential hazards:

• Carbon monoxide poisoning from engine exhaust

Operate outside away from open windows or doors with engine exhaust directed away from occupied structures.

• Burns from hot parts

Let the engine and exhaust system cool before touching.

• Injury from moving parts

Do not run the engine unless instructed to do so.

• To reduce the possibility of fire or explosion, be careful when working around gasoline. Use only a non-flammable solvent, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from all fuel-related parts.

MAINTENANCE SCHEDULE

Failure to follow this maintenance schedule could result in non-warrantable failures.

REGULAR SERVICE PERIOD (3)Perform at every indicated monthor operating hour interval,whichever comes first.	Item	Eachuse	Firstmonthor20 Hrs.	Every3monthsor50 Hrs.	Every6monthsor100 Hrs.	Everyyearor300 Hrs.	Page
Engine oil Check level o 36
	Change (first timefrom purchase)		o				56
	Change o 56
Air cleaner (element) Check o 37
	Clean o (1) 57
	Replace					o	37
Spark plug	Check-adjust				o 58
	Replace					o	58
Spark arrester	Clean				o 60
Timing belt	Check	After every 250 hrs. (2)					-
Valve clearance	Check-adjust					o (2)	-
Combustion chamber	Clean	After every 500 hrs. (2) —
Fuel tank Clean	Every 2 years or 1,000 hrs. (2) —
Fuel pump filter	Replace	Every 2 years or 1,000 hrs. (2)					-
Fuel tube	Check	Every 2 years (Replace if necessary) (2)					-
Canister	Check	Every 2 years (Replace if necessary) (2)					-
Purge tube	Check	Every 2 years (Replace if necessary) (2)					-
Charge tube	Check	Every 2 years (Replace if necessary) (2)					-
Air tube	Check	Every 2 years (Replace if necessary) (2)					-
Drain tube	Check	Every 2 years (Replace if necessary) (2)					-

(1) Service more frequently when used in dusty areas.
(2) These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures.
(3) For commercial use, log hours of operation to determine proper maintenance intervals.

This generator is equipped with a catalytic converter. If the engine is not properly maintained, the catalyst in the muffler may lose effectiveness.

ENGINE OIL CHANGE

Drain the oil while the engine is warm to assure rapid and complete draining.

1. Turn the engine switch to the OFF position (see page 42) to reduce the possibility of fuel leakage.
2. Loosen the maintenance cover screw and remove the maintenance cover (see page 36).
3. Place a suitable container next to the engine to catch the used oil.
4. Remove the oil filler cap, and drain the oil into the container by tipping the engine toward the oil filler neck.

NOTICE

Improper disposal of engine oil can be harmful to the environment. If you change your own oil, please dispose of the used oil properly. Do not discard it in a trash bin, dump it on the ground, or pour it down the drain.

1. With the generator in a level position, fill with the recommended oil to the upper limit. Do not overfill.

2. "Upper limit" means the oil exists to the oil filler neck. Refer to "ENGINE OIL RECOMMENDATIONS" in page 17.

Maximum oil capacity: 0.46 L (0.48 US qt, 0.40 Imp qt)

1. Reinstall the oil filler cap securely.
2. Reinstall the maintenance cover and tighten the maintenance cover screw securely.

Wash your hands with soap and water after handling used oil.

AIR CLEANER SERVICE

Foam Air Filter Cleaning

A dirty foam air filter will restrict air flow to the fuel system, reducing engine performance. If you operate the generator in very dusty areas, clean the foam air filter more frequently than specified in the Maintenance Schedule.

1. Clean the foam air filter in warm soapy water, rinse, and allow to dry thoroughly, or clean in nonflammable solvent and allow to dry.
2. Dip the foam air filter in clean engine oil, and then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the filter.

1. Wipe dirt from inside of the air cleaner cover using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the fuel system.

SPARK PLUG SERVICE

Recommended spark plug: CR6HSB (NGK)

To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.

NOTICE

An incorrect spark plug can cause engine damage.

If the engine is hot, allow it to cool before servicing the spark plug.

1. Remove the spark plug maintenance cover.

1. Disconnect the spark plug cap, and remove any dirt from around the spark plug area.

2. Remove the spark plug with a spark plug wrench.

1. Inspect the spark plug. Replace it if the electrodes are worn or fouled, or if the insulator is cracked or chipped. Clean the spark plug with a wire brush if it is to be reused.
2. Measure the spark plug electrode gap with a wire-type feeler gauge. Correct the gap, if necessary, by carefully bending the side electrode.

Spark plug gap:

0.6-0.7 mm (0.024-0.028 in)

1. Make sure that the spark plug sealing washer is in good condition, and thread the spark plug in by hand to prevent cross-threading.
2. After the spark plug is seated, tighten with a spark plug wrench to compress the washer.

If reinstalling a used spark plug, tighten 1/8-1/4 turn after the spark plug is seated.

If installing a new spark plug, tighten 1/2 turn after the spark plug is seated.

Torque: 12N· m (1.2 kgf·m, 9 lbf·ft)

NOTICE

A loose spark plug can overheat and damage the engine.
Overtightening the spark plug can damage the threads in the cylinder head.

1. Reinstall the spark plug cap on the spark plug securely.
2. Reinstall the spark plug maintenance cover.

SPARK ARRESTER SERVICE

If the engine has been running, the muffler will be very hot. Allow the muffler to cool before servicing the spark arrester.

Clean the spark arrester as follows:

1. Remove the two 6 × 15 ~mm screws, and the rear cover.

Remove the two 6 mm screws, two 6 × 15 mm screws and the muffler protector.

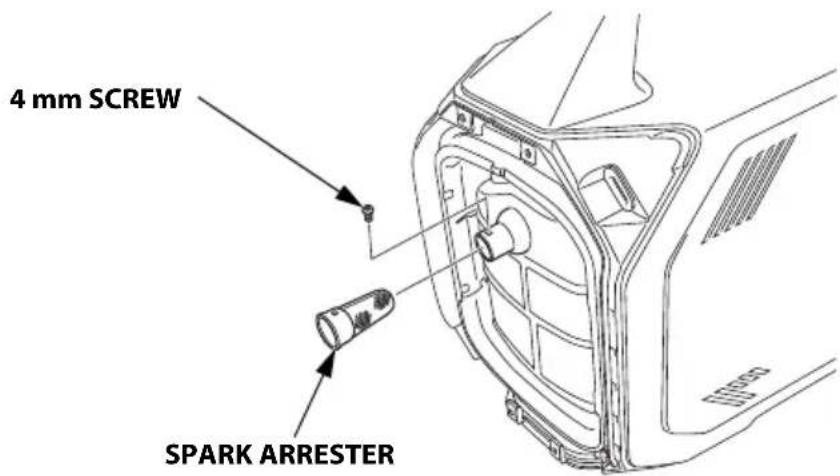

1. Remove the 4mm screw, and the spark arrester.

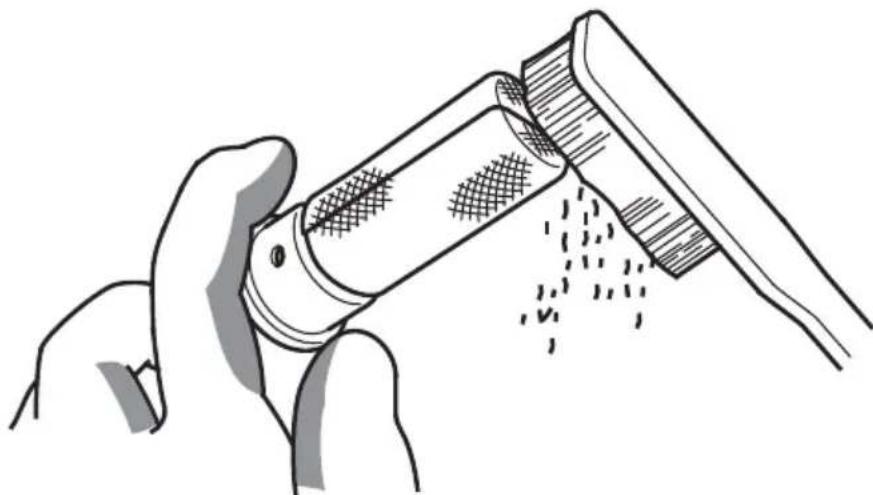

1. Use a brush to remove carbon deposits from the spark arrester screen. Be careful to avoid damaging the screen. The spark arrester must be free of breaks and tears. Replace the spark arrester if it is damaged.

1. Install the spark arrester, the muffler protector, and the rear cover in the reverse order of removal.

STORAGE

STORAGE PREPARATION

Proper storage preparation is essential for keeping your generator trouble-free and looking good. The following steps will help to keep rust and corrosion from impairing your generator's function and appearance, and will make the engine easier to start when you use the generator again.

Cleaning

Wipe the generator with a moist cloth. After the generator has dried, touch up any damaged paint, and coat other areas that may rust with a light film of oil.

Fuel

NOTICE

Depending on the region where you operate your equipment, fuel formulations may deteriorate and oxidize rapidly. Fuel deterioration and oxidation can occur in as little as 30 days and may cause damage to the fuel system. Please check with your servicing dealer for local storage recommendations.

Gasoline will oxidize and deteriorate in storage. Old gasoline will cause hard starting, and it leaves gum deposits that clog the fuel system. If the gasoline in your generator deteriorates during storage, you may need to have the fuel system components serviced or replaced.

The length of time that gasoline can be left in your fuel tank without causing functional problems will vary with such factors as gasoline blend, your storage temperatures, and whether the fuel tank is partly or completely filled. The air in a partly filled fuel tank promotes fuel deterioration. Very warm storage temperatures accelerate fuel deterioration. Fuel deterioration problems may occur within a few months, or even less if the gasoline was not fresh when you filled the fuel tank.

Service according to the table below:

STORAGE TIME RECOMMENDED SERVICE PROCEDURE TO PREVENT HARD STARTING

Less than 1 month No preparation required.

1 month to 1 year Drain the fuel tank (see page 64).

1 year or more Drain the fuel tank (see page 64).Remove the spark plug. Put a teaspoon of engine oil into the cylinder. Turn the engine slowly with the pull rope to distribute the oil.Reinstall the spark plug.Change the engine oil (see page 56).

DRAINING THE FUEL TANK

WARNING

Gasoline is highly flammable and explosive.

You can be burned or seriously injured when handling fuel.

• Stop the engine and let it cool before handling fuel.
• Keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Keep away from your vehicle.
• Wipe up spills immediately.

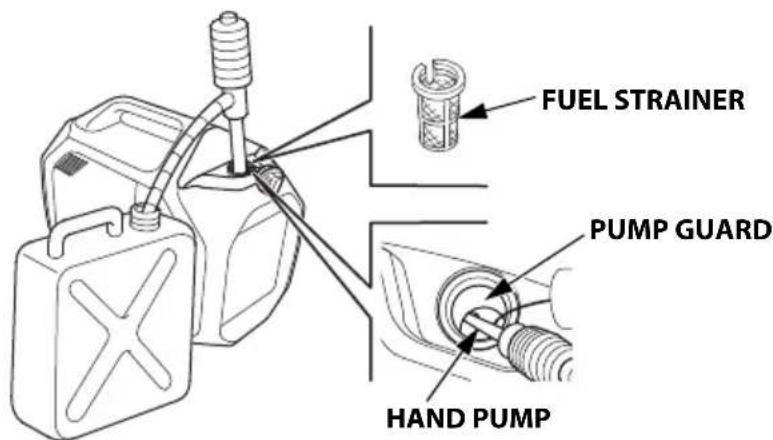

Unscrew the fuel filler cap (see page 19), remove the fuel strainer, and empty the fuel tank into an approved gasoline container. We recommend using a commercially available gasoline hand pump to empty the tank. Do not use an electric pump. Siphon the gasoline by inserting the tip of the hand pump into the side of the pump guard, as shown in the figure below. Reinstall the fuel strainer and the fuel filler cap.

Engine Oil

Change the engine oil (see page 56).

Engine Cylinder

1. Remove the spark plug (see page 58).
2. Pour a teaspoon (5cm^3) of clean engine oil into the cylinder.
3. Pull the starter rope several times to distribute the oil in the cylinder.
4. Reinstall the spark plug (see page 58).
5. Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression stroke and both the intake and exhaust valves are closed. Storing the engine in this position will help to protect it from internal corrosion. Return the starter grip gently.

STORAGE PRECAUTIONS

If your generator will be stored with gasoline in the fuel tank, it is important to reduce the hazard of gasoline vapor ignition.

Select a well-ventilated storage area away from any appliance that operates with a flame, such as a furnace, water heater, or clothes dryer.

Also, avoid any area with a spark-producing electric motor, or where power tools are operated.

If possible, avoid storage areas with high humidity, because that promotes rust and corrosion.

Place the generator on a level surface. Tilting or laying it on its side can cause fuel or oil leakage.

With the engine and exhaust system cool, cover the generator to keep out dust. A hot engine and exhaust system can ignite or melt some materials.

Do not use a plastic sheet as a dust cover. A nonporous cover will trap moisture around the generator, promoting rust and corrosion.

REMOVAL FROM STORAGE

Check your generator as described in the "BEFORE OPERATION" chapter of this manual (see page 33).

If the fuel was drained during storage preparation, fill the fuel tank with fresh gasoline. If you keep a container of gasoline for refueling, be sure that it contains only fresh gasoline. Gasoline oxidizes and deteriorates over time, causing hard starting.

If the cylinder was coated with oil during storage preparation, the engine may smoke briefly at startup. This is normal.

TRANSPORTING

CAUTION

An engine that has been running will remain very hot for a period of time.

A hot engine and exhaust system can burn you and ignite some material.

If the generator has been used, allow it to cool for at least 15 minutes before loading the generator on the transport vehicle.

Drain the fuel from the fuel tank when transporting.

To prevent spillage when transporting, the generator should be secured upright in its normal operating position.

NOTICE

Do not lay the generator on its side when moving, storing, or operating it. Oil or fuel may leak and damage the engine or your property.

Do not operate the generator while it is being transported or while it is mounted to any type of vehicle, trailer, or boat.

Take care not to drop or strike the generator when transporting. Do not place heavy objects on the generator.

To transport the generator, hold the holding part (shaded areas in the figure below).

Avoid a place exposed to direct sunlight when putting the generator on a vehicle. If the generator is left in an enclosed vehicle for many hours, high temperature inside the vehicle could cause fuel to vaporize resulting in a possible explosion.

TAKING CARE OF UNEXPECTED PROBLEMS

ENGINE SPEED IS UNSTABLE OR WILL NOT START

Possible Cause Correction
Engine switch is in the OFF position. Turn engine switch to the ON position (see page 40).
Out of fuel. Refuel (see page 18).
Bad fuel; generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain fuel tank (see page 64). Refuel with fresh gasoline (see page 18).
Low engine oil level caused Oil Alert to stop engine.	Turn the engine switch to the OFF position. Add engine oil. Then turn the engine switch to the ON position and restart the engine.
Spark plug faulty, fouled, or improperly gapped.	Gap or replace spark plug (see page 58).
Spark plug wet with fuel (flooded engine).	Dry and reinstall spark plug.
Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Take the generator to your servicing dealer, or refer to the shop manual.

ENGINE LACKS POWER
NO POWER AT THE AC RECEPTACLES

Possible Cause Correction
Air filter restricted. Clean or replace air filter (see page 57).
Bad fuel; generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain fuel tank (see page 64). Refuel with fresh gasoline (see page 18).
Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Take the generator to your servicing dealer, or refer to the shop manual.

Possible Cause Correction
Output indicator is OFF, and overload alarm indicator is ON.	Check AC load. Stop and restart the engine.
	Check the cooling air inlet. Stop and restart the engine.
Overload alarm indicator blink. After removing the cause of the overload, power generation can be resumed by pressing and holding the Eco Throttle switch (for more than 3 seconds) (see page 24).
AC circuit protector tripped. Check AC load and reset circuit protector (see page 25).
Faulty power tool or appliance. Replace	or repair power tool or appliance. Stop and restart the engine.
Faulty generator. Take the generator to	your servicing dealer, or refer to the shop manual.

TECHNICAL INFORMATION

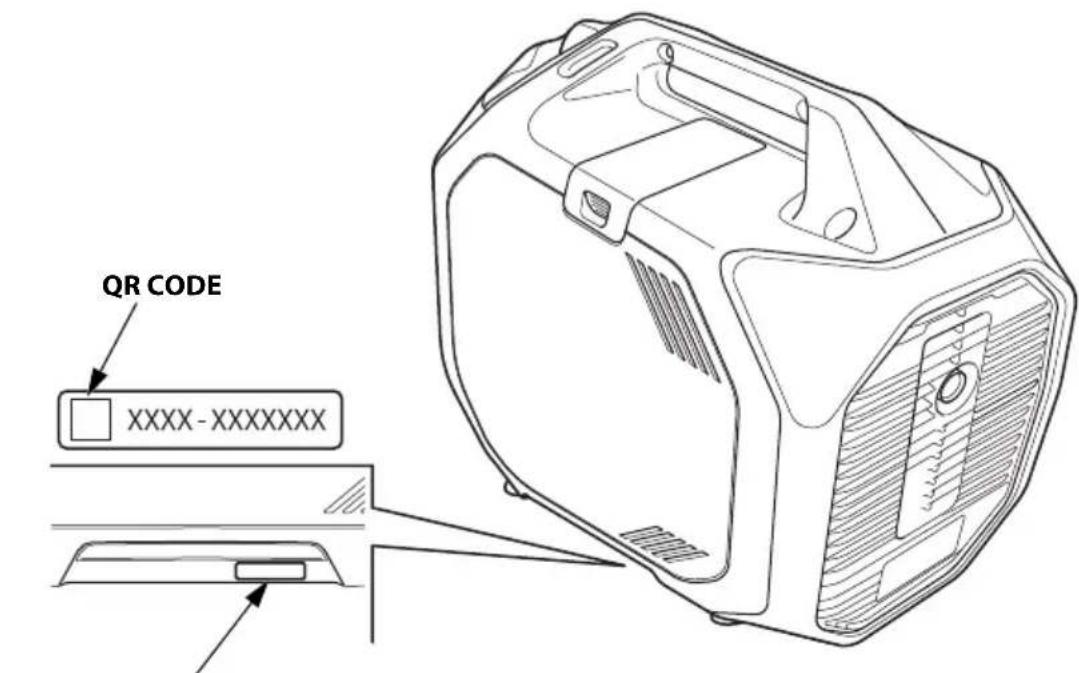

SERIAL NUMBER LOCATION

FRAME SERIAL NUMBER

Record the frame serial number and date purchased in the spaces below. You will need this information when ordering parts and when making technical or warranty inquiries.

Frame serial number:

Date purchased:

SPECIFICATIONS

Dimensions

Model EU32i
Type F, G IT
Description code EBKJ
Length 571 mm (22.5 in) 596 mm (23.5 in)
Width 306 mm (12.0 in)
Height 452 mm (17.8 in)
Dry mass [weight] 26.5 kg (58.4 lbs)

Engine

Model GX130
Engine type 4-stroke, overhead	camshaft, single cylinder
Displacement [Bore × Stroke]	130 cm³ (7.93 cu-in) [56.0 × 53.0 mm (2.20 × 2.09 in)]
Compression ratio 10.0:1
Engine speed	4,800 – 5,500 min-1(rpm) (with Eco Throttle system OFF)
Cooling system	Forced air
Ignition system Full transistor
Engine oil capacity 0.46 L (0.48 US qt, 0.40 Imp qt)
Fuel tank capacity	4.6 L (1.21 US gal, 1.01 Imp gal)
Spark plug	CR6HSB (NGK)

[Carbon dioxide (CO2) emissions*]

Please refer to "CO2 Information List" on

www.honda-engines-eu.com/co2

• The CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.

Generator

Model EU32i
Type F, G, IT
AC output Rated voltage 230 V
Rated frequency 50 Hz
Rated current 11.3 A
Rated output 2.6 kVA
Maximum output 3.2 kVA

Communication

Bluetooth® version 5.0 (Bluetooth® h Low Energy)
Frequency band (s) 2,402 MHz -	2,480 MHz
Maximum radio-frequency power	<4 dBm

Noise

Model EU32i
Type F, G, IT
Sound pressure level at the workstation (2006/42/EC)	73 dB (A) (with Eco throttle ON)
Microphone point MICROPHONE PANEL 1.60 m
Uncertainty 4 dB (A)
Measured sound power level (2000/14/EC, 2005/88/EC)	88 dB (A) (with Eco throttle ON)
Uncertainty 3 dB (A)
Guaranteed sound power level (2000/14/EC, 2005/88/EC)	91 dB (A) (with Eco throttle ON)

"the figures quoted are emission levels and are not necessarily safe working levels. Whilst there is a correlation between the emission and exposure levels, this cannot be used reliably to determine whether or not further precautions are required. Factors that influence the actual level of exposure of work-force include the characteristics of the work room, the other sources of noise, etc. i.e. the number of machines and other adjacent processes, and the length of time for which an operator is exposed to the noise. Also the permissible exposure level can vary from country. This information, however, will enable the user of the machine to make a better evaluation of the hazard and risk".

Specifications may vary according to the types, and are subject to change without notice.

Wiring Diagram

(See inside back cover)

Abbreviations

Symbol	Part name
ACCP	AC Circuit Protector
ACOR	AC Output Receptacle
BASE	Bank Angle Sensor
CPB	Control Panel Block
EcoSw	Eco Throttle Switch
ECG	ECU Ground
ECU	ECU
EgB	Engine Block
EgG	Engine Ground
ESw	Engine Switch
(F)	F Type
FrB	Frame Block
FP	Fuel Pump
GCU	Generator Control Unit
GeB	Generator Block
GT	Ground Terminal
IASe	IAT Sensor
IB	Inverter Block
IgC	Ignition Coil
In	Injector
IndU	Indicator Unit
(IT)	IT Type
IU	Inverter Unit
MASe	MAP Sensor
MW	Main Winding
NF	Noise Filter
OLSw	Oil Level Switch
O2Se	O2 Sensor
PC	Pulser Coil
POR	Parallel Operation
	Receptacle
SP	Spark Plug
SW	Sub Winding
TCM	Throttle Control Motor
TESe	TE Sensor

Wire color code

BI	Black
Br	Brown
G	Green
Gr	Gray
Bu	Blue
Lb	Light blue
Lg	Light green
O	Orange
P	Pink
R	Red
W	White
Y	Yellow
V	Violet
BE	Beige

ECO THROTTLE SW

"QR Code" is registered trademark of DENSO WAVE INCORPORATED.

Bluetooth

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Honda Motor Co., Ltd., is under license. Other trademarks and trade names are those of their respective owners.

MEMO

Honda EU32i

MANUEL DE L'UTILISATEUR

Notice originale

A VERTISSEMENT

RECOMMANDATIONS POUR LE CARBURANT

• Receivez des notifications :

PAS DE COURANT AUX PRISES CA

For further information, please contact Honda Customer Information Centre at the following address or telephone number:

ADRESSES DES PRINCIPAUX CONCESSIONNAIRES Honda

Harju County Estonia

Tel.: [phone]

Fax: [phone]

[e-mail]

BELARUS

JV "Scanlink" Ltd.

Montazhnikov lane 4th, 5-16

Minsk 220019

Republic of Belarus

Tel.: [phone]

Fax: [phone]

[e-mail]

BELGIUM

Honda Motor Europe Ltd

Doornveld 180-184

1731 Zellik

Tel.: [phone]

Fax: [phone]

http://www.honda.be

[e-mail]

BULGARIA

Premium Motor Ltd

Andrey Lyapchev Blvd no 34

1797 Sofia

Bulgaria

Tel.: [phone]

Fax: [phone]

http://www.hondamotor.bg

[e-mail]

CROATIA

AS Domzale Moto center d.o.o.

Brezence

SI-8216 Mirna Peč

Tel.: [phone]

http://www.honda-as.com

[e-mail]

CYPRUS

Powerline Products Ltd

Cyprus - Nicosia

Vasilias 18 2232 Latsia

Tel.: [phone]

[e-mail]

http://www.powerlinecy.com

CZECH REPUBLIC

BG Technik cs, a.s.

U Zavodiste 251/8

15900 Prague 5 - Velka

Chuchle

Tel.: [phone]

Fax: [phone]

http://www.honda-stroje.cz

DENMARK

TIMA A/S

Ryttermarken 10

DK-3520 Farum

10442 Athens, Greece

M50 Business Park, Ballymount

Dublin 12

Tel.: [phone]

Fax: [phone]

http://www.hondaireland.ie

[e-mail]

ISRAEL

Mayer's Cars and Trucks Co.Ltd. - Honda Division

Shevach 5, Tel Aviv, 6777936

Israel

[phone]

[e-mail]

ITALY

Honda Motore Europe Ltd

The Associated Motors Company Ltd.

New Street in San Gwakkin Road

Aries Power Equipment

Puławska 467

02-844 Warszawa

Tel.: [phone]

Fax: [phone]

http://www.ariespower.pl

http://www.grow.com.pt

[e-mail]

ROMANIA

Agrisorg SRL

Sacadat Str Principala

Nr 444/A Jud. Bihor

Romania

Tel.: [phone]

[e-mail]

SERBIA & MONTENEGRO

AS Domzale Moto center d.o.o.

Brezence

SI-8216 Mirna Peč

Tel.: [phone]

http://www.honda-as.com

[e-mail]

SLOVAK REPUBLIC

SPAIN & all Provinces

Greens Power Products, S.L.

Poligono Industrial Congost - Av Ramon Ciurans n°2

08530 La Garriga - Barcelona

Tel.: [phone]

Fax: [phone]

http://www.hondaencasa.com

SWEDEN

Honda Motor Europe Ltd filial Sverige

UK Declaration of Conformity

The undersigned, *2, on behalf of the authorized representative, herewith declares that the machinery described below fulfils all the relevant provisions of:

The Supply of Machinery (Safety) Regulations 2008 SI 2008 No.1597
The Electromagnetic Compatibility Regulations 2016 SI 2016 No.1091
The Noise Emission in the Environment by Equipment for use SI 2001 No.1701 Outdoors Regulations 2001
The Restriction of the Use of Certain Hazardous Substances in SI 2012 No.3032 Electrical and Electronic Equipment Regulations 2012
The Radio Equipment Regulations 2017 SI 2017 No.1206

Description of the machinery

a) Product: Generating sets
b) Function: producing electrical power

c) Model	d) Type	e) Serial number
*1	*1

Manufacturer

Honda Motor Co., Ltd.

2-1-1 Minamiaoyama, Minato-ku, Tokyo, JAPAN

Authorized representative and able to compile the technical documentation

Honda Motor Europe Ltd

Cain Road, Bracknell, Berkshire,

RG12 1HL, United Kingdom

References to applied standards

EN ISO 8528-13:2016

EN 55012:2007+A1:2009

EN 61000-6-1:2007

EN 62479:2010

EN 62368-1:2014+A11:2017

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 300 328 V2.2.2

Outdoor noise Regulations

a) Measured sound power (dB(A)): 1
b) Guaranteed sound power (dB(A)): 1
c) Noise parameter (kW): 1
d) Conformity assessment procedure: 2
e) Approved body:

Done at:

Aalst, BELGIUM

Date:

*2

*2

Head of Certification

Honda Motor Europe Ltd - Aalst Office

EC Declaration of Conformity

1. The undersigned, *2, on behalf of the authorized representative, herewith declares that the machinery described below fulfils all the relevant provisions of:

2. Directive 2006/42/EC on machinery

3. Directive 2014/30/EU on electromagnetic compatibility
4. Directive 2000/14/EC - 2005/88/EC on outdoor noise
5. Directive 2011/65/EU - (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

6. Directive 2014/53/EU on radio equipment

7. Description of the machinery

a) Product: Generating sets
b) Function: producing electrical power

c) Model	d) Type	e) Serial number
*1	*1

1. Manufacturer

Honda Motor Co., Ltd.

2-1-1 Minamiaoyama, Minato-ku, Tokyo, JAPAN

1. Authorized representative and able to compile the technical documentation

Honda Motor Europe Ltd - Aalst Office,

1. References to applied standards

EN ISO 8528-13:2016

EN 55012:2007+A1:2009

EN 61000-6-1:2007

EN 62479:2010

EN 62368-1:2014+A11:2017

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 300 328 V2.2.2

1. Outdoor noise Directive

a) Measured sound power (dB(A)): 1
b) Guaranteed sound power (dB(A)): 1
c) Noise parameter (kW): 1
d) Conformity assessment procedure: 2
e) Notified body:

1. Done at: Aalst, BELGIUM

2. Date: *2

*2

Head of Certification

Honda Motor Europe Ltd - Aalst Office
