Product Type	Row Cooler Piping Extension Kit
Model	SRCOOLLONGPKIT
Brand	Tripp Lite
Use	For SRCOOLDXRW row coolers
Included Components	Solenoid valve, solenoid coil, check valve
Main Function	Prevents compressor liquid slugging during long piping runs
Required Equivalent Piping Length	> 30 m (98 ft)
Max Distance Solenoid Valve to Indoor Unit	5 m (16 ft)
Coil Electrical Connection	2-wire power (L1, L2) + ground (PE)
Compatible Liquid Line Diameters	3/8, 1/2, 5/8, 3/4, 7/8 in
Additional Refrigerant	Yes, according to formula: liquid line length × ratio (e.g., 0.039 lb/ft for 3/8 in)
Additional Lubricating Oil	Yes, according to formula, max 4 L (synthetic oil RL68H or equivalent)
Refrigerant Addition Threshold	If connecting piping > 10 m (33 ft)
Oil Addition Threshold	If connecting piping > 10 m (33 ft)
Installation	On liquid line (solenoid valve) and gas line (check valve)
Connection Box	For 12 kW or 25 kW units
Ambient Temperature	Not specified (estimation: typical indoor use)
Weight	Approx. 1 kg (estimation)
Dimensions	Not specified (compact kit)

Frequently Asked Questions - SRCOOLLONGPKIT Tripp Lite

What is the function of this piping extension kit?

This kit prevents a large amount of liquid refrigerant from entering the compressor when it is stopped, thus avoiding liquid slugging at startup.

When should this kit be installed?

When the equivalent length of the one-way refrigerant piping exceeds 30 m (98 ft).

What components are included in the SRCOOLLONGPKIT kit?

The kit includes a solenoid valve, a solenoid coil, and a check valve.

Where to install the solenoid valve and check valve?

The solenoid valve is installed on the liquid line between the indoor and outdoor unit, within 5 m (16 ft) of the indoor unit. The check valve is installed on the gas line, closer to the outdoor unit.

How to wire the solenoid coil?

Connect the coil power supply to the indoor unit connection box on the terminals labeled solenoid valve power for extension pipe (L1 and L2). The ground cable connects to the left ground terminal (PE).

Is additional refrigerant required with this kit?

Yes, if the connecting piping between the cooler and condenser exceeds 10 m (33 ft). Use the formula given in the manual: additional amount (lb) = length ratio × liquid line length (ft).

Which lubricating oil to add and in what quantity?

Add synthetic oil RL68H (or equivalent) according to the formula L = (R × 0.25/0.9) × 1000 ml, where R is the additional refrigerant charge (kg). The maximum quantity is 4 liters.

Is this kit compatible with all Tripp Lite row cooler models?

This kit is designed for row coolers of the SRCOOLDXRW series.

What liquid line diameters are supported?

Supported diameters are: 3/8, 1/2, 5/8, 3/4, and 7/8 inch.

Are there safety precautions to follow during installation?

Follow the manual instructions: discharge the circuit before intervention, use appropriate tools, and ensure tightness of connections. Non-compliance may damage the compressor.

USER MANUAL SRCOOLLONGPKIT Tripp Lite

Extension Pipe Kit for SRCOOLDXRW In-Row Cooling Units

Model: SRCOOLLONGPKIT

When the equivalent length of the one-way pipeline on the refrigerant side exceeds 98 ft. (30 m), an extension pipe kit is required. This extension pipe kit prevents a large amount of liquid refrigerant from entering the compressor when the compressor is stopped, while also avoiding compressor liquid shock during the next startup.

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

1. Install Valve

The extension pipe kit includes a solenoid valve, valve coil and check valve.

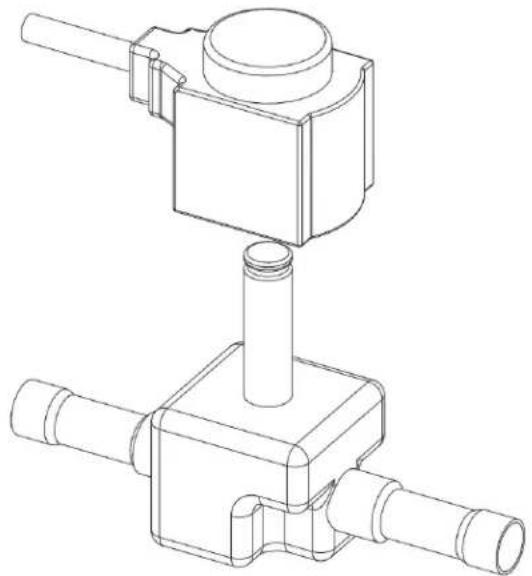

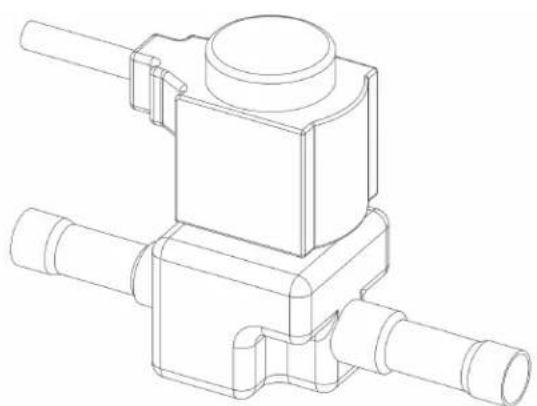

Coil and Valve Before and After Assembly

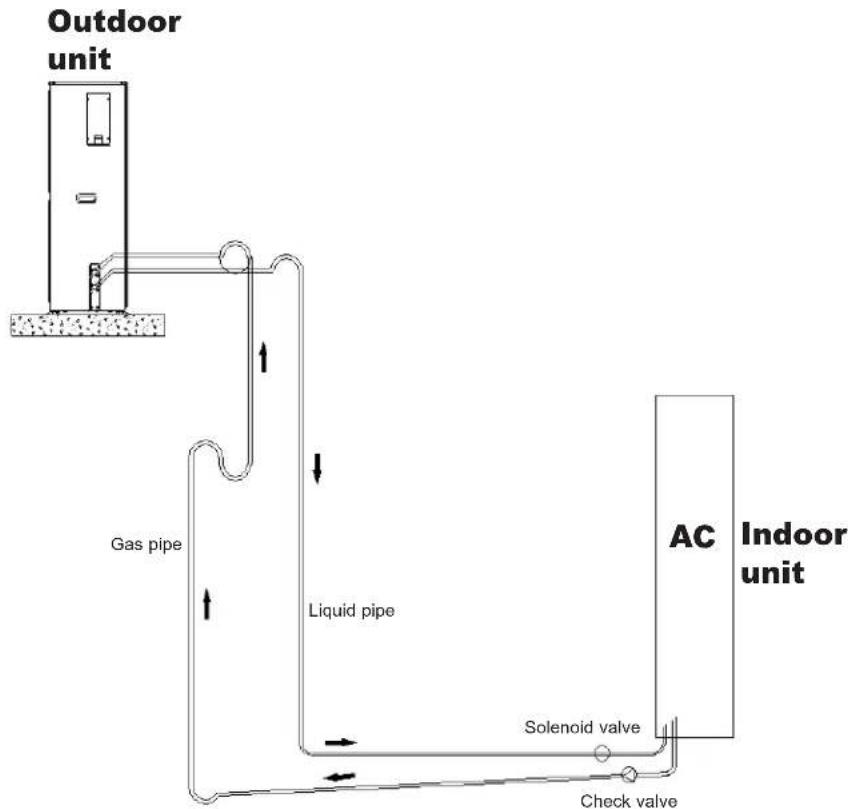

• Install the solenoid valve with the coil to the liquid pipe between the indoor unit and outdoor unit. The distance to the indoor unit should be as short as possible, no more than 16 ft. (5 m).
• Install the check valve at the gas pipe between indoor unit and outdoor unit (nearest to the outdoor unit).
• The coil cable connects to indoor unit.

2. Solenoid Valve Coil Wiring

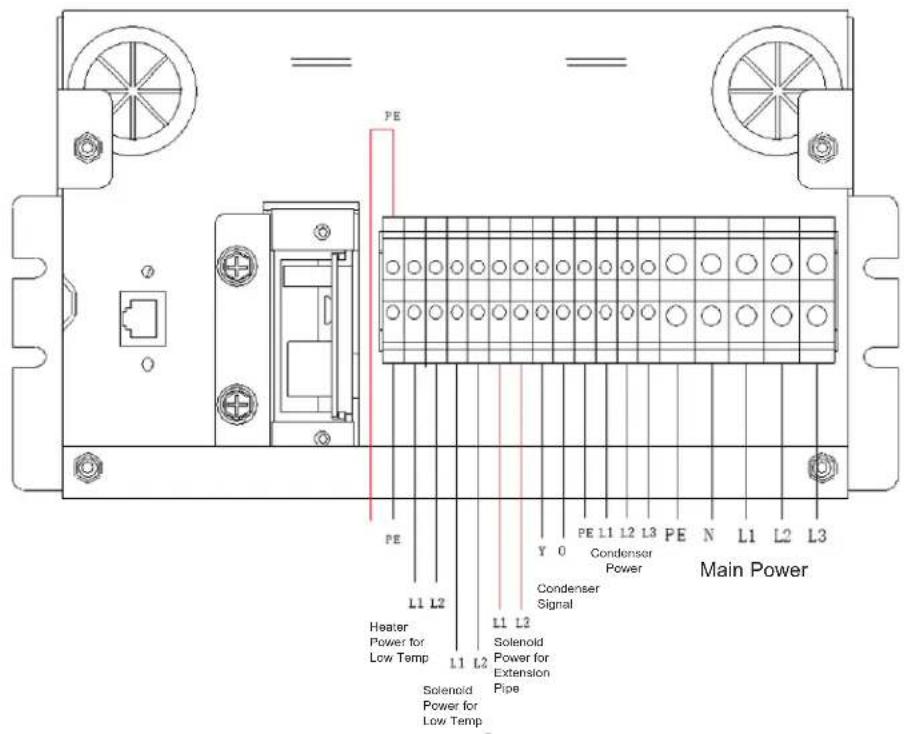

25kW Unit Connection Box

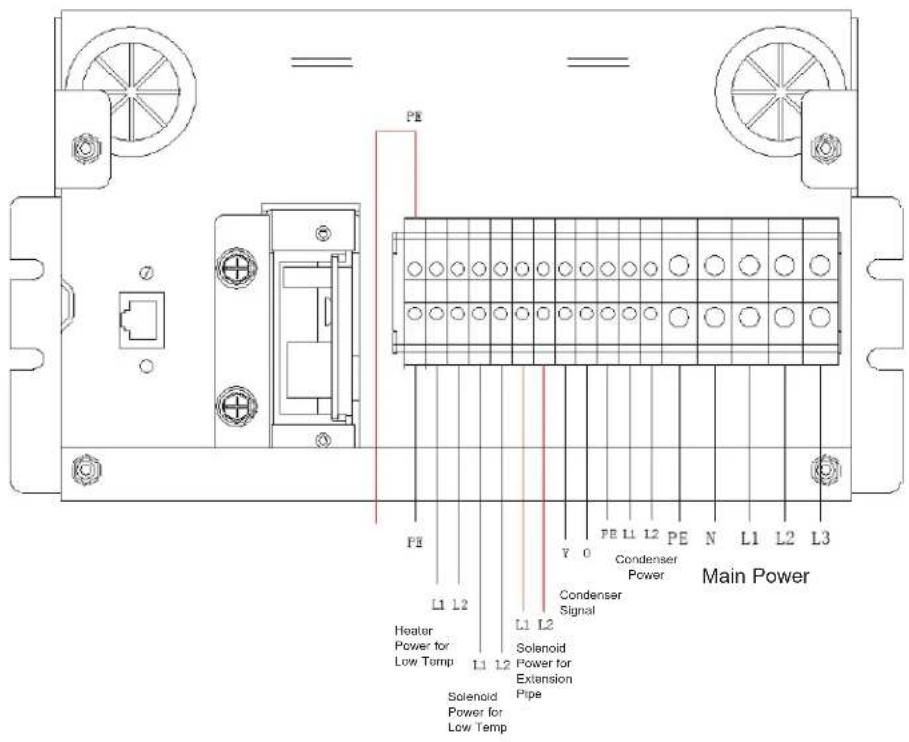

12kW Unit Connection Box

Connect coil power to the indoor unit connection box, labeled Solenoid Power for Extension Pipe (L1 and L2). The ground cable connects to the left grounding terminal (PE).

3. Refrigerant and Oil Charge

When the connecting piping between the In-Row Cooling Unit and the condenser exceeds 33 ft. (10 m), add more refrigerant. Use RL68H (or of the same viscosity) synthetic oil. Calculate the additional amount according to the following formula:

Additional amount (lb.) = Length ratio () x Liquid line length (ft.)

Liquid pipe diameter (in.) Length ratio (lb./ft.)
3/8 0.039
1/2 0.075
5/8 0.122
3/4 0.145
7/8 0.243

$$ R (k g) = \frac {A d d i t i o n a l a m o u n t (I b .)}{2 . 2} $$

When the length of the connecting piping exceeds 33 ft. (10 m), add lubricating oil using the following formula:

$$ \mathrm {L} = \frac {\mathrm {R} \times 0 . 2 5}{0 . 9} \times 1 0 0 0 $$

L: Amount of lubricating oil to add (ml)

R: Additional refrigerant charge (kg)

Note: Maximum additional oil is 4L. If calculation is over 4L, do not exceed 4L.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

21-10-329 934069_RevA
