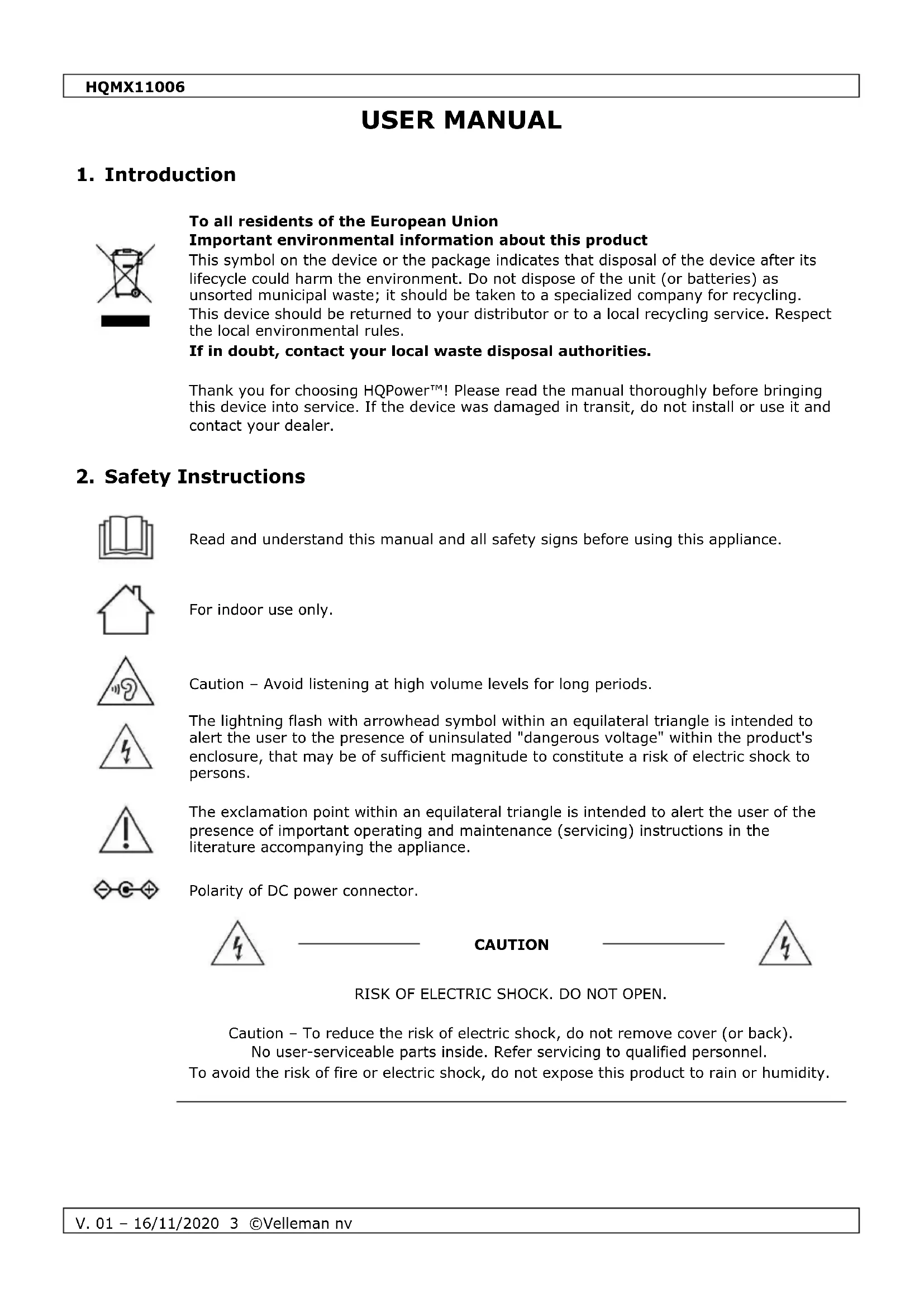

USER MANUAL HQMX11006 HQ Power

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

For indoor use only.

Caution - Avoid listening at high volume levels for long periods.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Polarity of DC power connector.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

Caution - To reduce the risk of electric shock, do not remove cover (or back).

No user-serviceable parts inside. Refer servicing to qualified personnel.

To avoid the risk of fire or electric shock, do not expose this product to rain or humidity.

HQMX11006

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Always install the device in a well-ventilated location.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• WARNING - Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Unplug this device during lightning storms or when unused for long periods of time.
• WARNING - To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.
• This device shall not be exposed to dripping or splashing, and no object filled with liquids, such as vases or beer glasses, shall be placed on the apparatus.
• The mains plug, an appliance coupler or power adaptor is used as the disconnect device, so the disconnect device shall remain readily operable.
• Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a period of time.
• In the event of an operating problem, stop using the device immediately.

3. General Guidelines

• Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) - of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Installation

• Install the device in a clean and dry environment.
• Before connecting the device to the power supply, fully turn down all the knobs and faders to minimum, except for the channel EQ and pan controls, which should be centred. Also, make sure all buttons are in the out position.
• Next, connect all necessary cables, input devices (microphones...) and output devices (amplifier, speakers...).

HQMX11006

5. Description

1. MIC Input

Connection for your microphone with 14 " jack.

2. Phones Level

Adjust the headphones volume level.

3. Phones Output

Connection for your headphones.

4. Line/USB

Select the input to be sent to the individual channel.

5. CH A/B Level

Adjust the volume level of channel A or B.

6. Power LED

Lights when the appliance is switched on.

7. Output Signal Level

Indicate the level of the output signal.

8. MIC Level

Adjust the microphone volume level.

9. Master Level

Adjust the master volume level.

10. Cue A/B

Select to direct channel A or B to the headphones.

11. A/B Crossfader

Mix the signal of one channel with the signal of the other. If the crossfader is on the centre position, both channels can be heard.

12. Power Switch

Press this switch to turn the appliance on or off.

13. DC Connection

Plug the adapter into this input.

14. Master Output

RCA connection to the main amplifier.

15. REC Output

RCA connection to a recording appliance.

16. USB Input/Output

Connection to a computer.

17. Line 1/2 Input

RCA connectors for channels A and B. Connect a turntable, rhythm machine or sampler to the phono socket, connect a CD/MP3 player to the line socket.

6. Care and Maintenance

Before starting any cleaning or maintenance activities:

1. Unplug the appliance from the mains.
2. Let the appliance cool down.

Cleaning

• Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Maintenance

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Storage

• Store the appliance and its accessories in the original package in a clean and dry area.

7. Technical Specifications

power supply 24 VDC/300 mA

1 kHz sine wave input microphone -45 dB/2k Ω phono -15 dB/27k Ω line 1/2 -15 dB/77k Ω (max. GAIN)

1 kHz sine wave output
master. +0 dB/600 Ω
rec. -5 dB/600 Ω
phones +5 dB/300 mW/32 Ω

noise
master. .82 dB line. .78 dB mic. .80 dB phono ..-80 dB frequency response 20 Hz to 20kHz± 2 dB distortion. < 0.02% S/N ratio >70 dB dimensions. 150× 140× 80~mm weight 1.2 kg
headphones power 300 mW, ≥ 16

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
