Product Type	High-Density Copper/Fiber Modular Cassette Enclosure
Model	N48400U
Brand	Tripp Lite (Eaton)
Dimensions (L x H x D)	48,3 cm x 4,4 cm x 3,2 cm (approx. 19 x 1,73 x 1,26 inches)
Weight	0,5 kg (approx. 1,1 lb)
Power Supply	Passive (no power required)
Housing Material	Steel with metallic finish
Slot Capacity	Up to 12 modular cassettes (depending on model)
Compatible Cassette Types	RJ45 copper, LC/MTP fiber cassettes, etc. (N484 series)
Rack Mounting	Vertical 0U rackmount (between mounting rails) or on metal surface
Cable Management	Removable cable management bracket (snap-in attachment)
Blanking Panels	Removable panels to protect empty slots
Cassette Fastening	Thumb screws for easy insertion/removal
Maintenance and Cleaning	Clean with a dry, lint-free cloth; avoid liquids
Operating Conditions	Dry indoor environment, avoid contact with active equipment
Safety	Do not use with life support devices; grounding required
Spare Parts and Repairability	Cassettes and brackets available separately; standard exchange repair
Warranty	Limited lifetime warranty (against material and workmanship defects)
Compliance	WEEE Directive (European Union)
General Information	Manufactured by Eaton; publication no. 23-08-374 / 93-341E_RevF

Frequently Asked Questions - N48400U Tripp Lite

How to install the cable management bracket?

The rear panel rails have notches. Choose the top or bottom notches, insert the bracket and slide it inward to secure.

Which models are compatible with this enclosure?

All models of the N484 series (N484-00U, N484-01U, N484-1M24-LC12, etc.) are compatible with this installation guide.

How to remove a blanking panel?

Unscrew the thumb screws on the opposite side of the blanking panel, then remove it.

Can I mount this enclosure horizontally?

No, the N48400U model is designed for vertical 0U mounting or on a metal surface.

What type of cassette can I use?

You can use RJ45 copper, LC or MTP fiber cassettes from the N484 series. Check compatibility with your application.

How to secure a cassette in the enclosure?

Align the cassette with the corresponding slot, insert it, then tighten the thumb screws to secure it.

Does the enclosure require electrical power?

No, this enclosure is passive. No power is required.

What is the maximum cassette capacity?

The enclosure can accommodate up to 12 modular cassettes, depending on the exact model.

How to maintain the enclosure?

Use a dry, lint-free cloth to dust it. Avoid any liquids or chemicals.

What to do in case of failure?

Contact Eaton support at Tripplite.Eaton.com/support/productreturns for replacement under limited lifetime warranty.

USER MANUAL N48400U Tripp Lite

High-Density Copper/Fiber Cassette Solutions

Modular Cassette Enclosures*

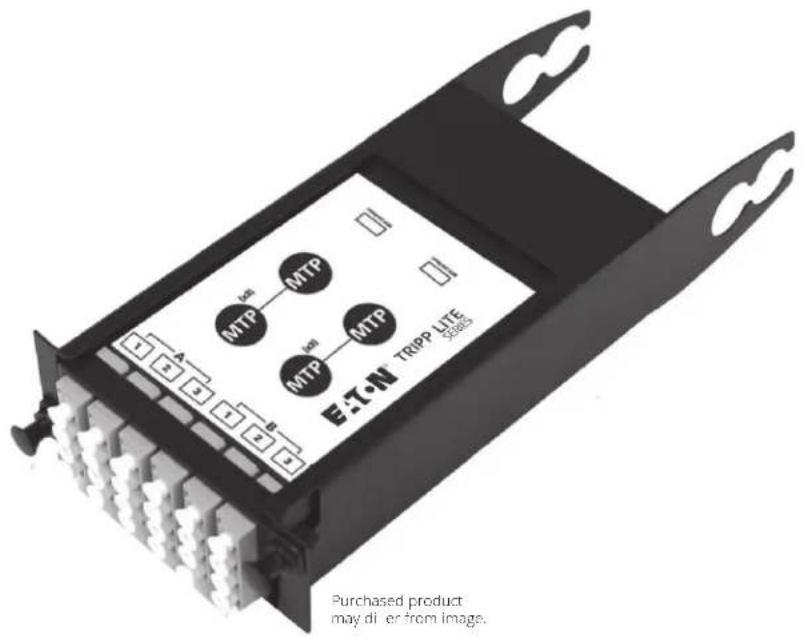

Cassettes*

• This Quick Start Guide covers installation of all N484-Series enclosures and cassettes. Any new models, even if not listed above, will include this Quick Start Guide and can be installed by following its instructions.

Models:

N484-00U

N484-01U

N484-01U-MINI

N484-1M24-LC12

N484-2M12-LC12

N484-3M8-LC12

N484-3M8L125

N484-2M24-6M12

N484-12LC

N484-12M12

N484-12M24

N484-12RJ

Espanol 4

Français 7

Deutsch 10

Italiano 13

Installation

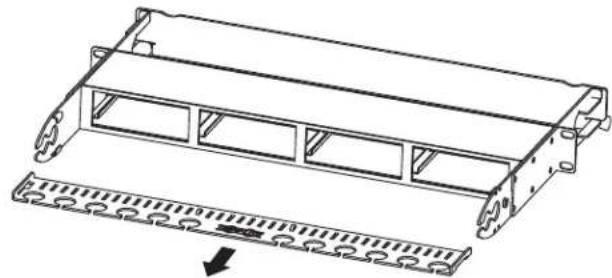

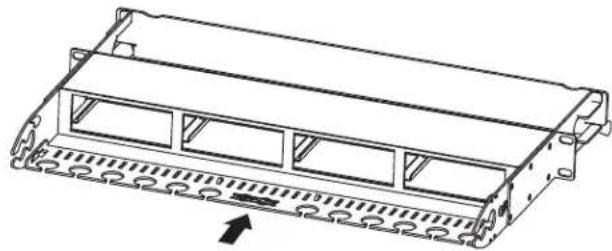

Installing the Cable Management Bracket:

The panel rails on the back of the N484-01U enclosure contain mounting notches that allow the cable management bracket to be installed on the top or bottom of the rails. Choose the top or bottom notches, insert the bracket into the notches, and slide the bracket inward to secure it into place.

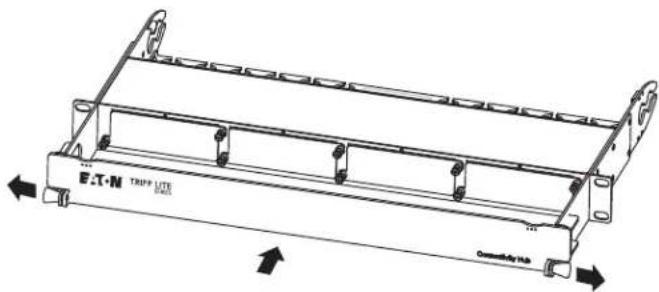

Installing the Panel Shield Bracket:

The N484-01U contains a shield bracket that attaches to the front of the enclosure. Mounting holes are located on the right and left front panel rails for bracket attachment. To attach the bracket, pull on the pull tabs found on each side of the bracket to move the connected pins outward. Then insert the bracket into the enclosure. Once the pins are lined up with the mounting holes on the panel rail sides, release the pull tabs to lock the bracket into place. The bracket slides up and down to allow access to the enclosure or to shield it from contact.

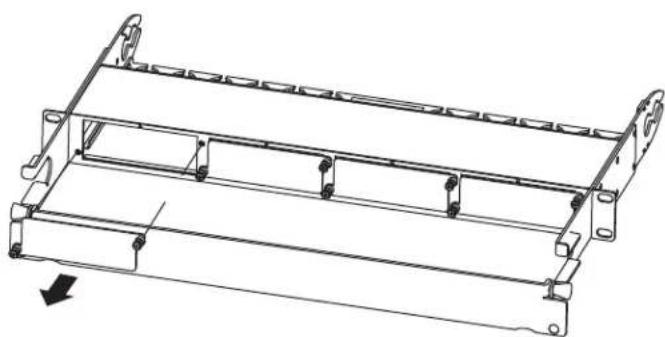

Inserting/Removing Blanking Panels:

The N482-01U comes with pre-installed blanking panels attached to the enclosure's cassette slots. When a slot is needed, remove the blanking panel by unscrewing the thumbscrews located on the opposite side of the blanking panel. To attach a blanking panel to an empty cassette slot, line up the blanking panel with the corresponding holes on the enclosure. Then tighten the thumbscrews to secure the blanking panel into place.

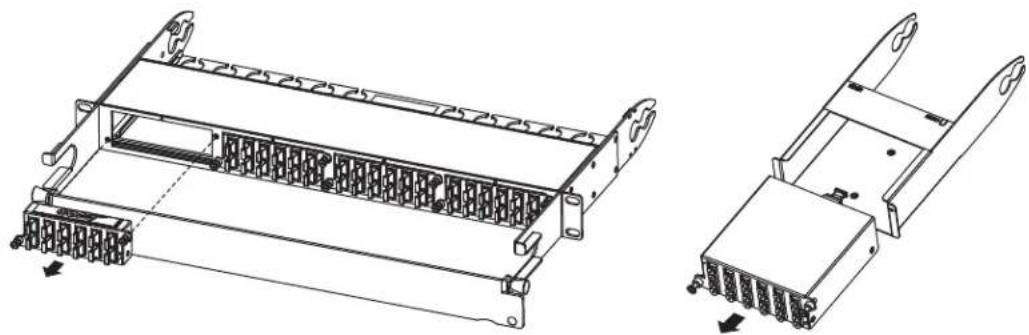

Inserting/Removing Cassettes:

After creating an open slot by removing a blanking panel, line up a cassette with the corresponding slot on the enclosure and insert the cassette into the slot. Then tighten the thumbscrews to secure it into place. To remove a cassette, unscrew the thumbscrews to release it from the enclosure.

Installation

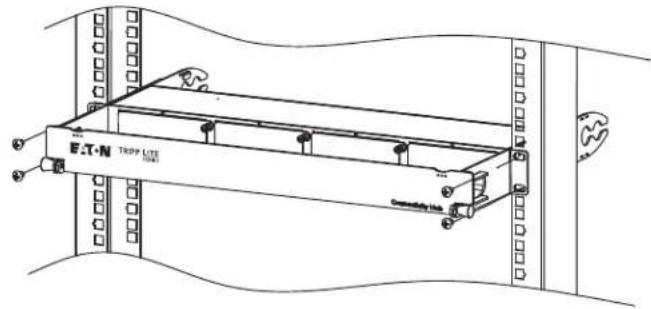

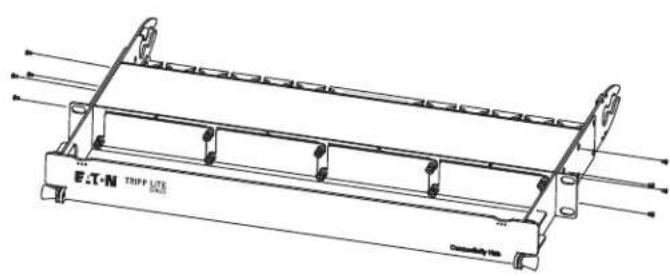

Mounting the Enclosure:

To mount the enclosure, you must rst fasten the included mounting brackets to the sides of the enclosure with the supplied screws. Once attached, secure the enclosure to the rack with appropriate user-supplied mounting hardware.

Note: The N484-00U's magnets are designed for mounting onto the metal surface of a rack enclosure, cable manager or other similar structure. Ideal placement should be away from direct contact with any active equipment (e.g., UPS, server, switch).

Warranty

Limited Lifetime Warranty

Eaton warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for life. If the product should prove defective in material or workmanship within that period, we will, subject to the foregoing terms and limitations, replace the product, in its sole discretion, as your exclusive remedy for our breach of the limited warranty. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair.

THIS LIMITED WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. Eaton MAKES NO WARRANTYIES OTHER THAN THE LIMITED WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations or exclusion of implied warranties, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate, or safe for the use intended. Because individual applications are subject to great variation, we make no representation or warranty as to the suitability or fitness of these devices for any specific application.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
