U437001CV2 - Audio adapter Tripp Lite - Free user manual and instructions

Product Type	USB-C to 3.5mm Audio Adapter with PD Charging
Brand	Tripp Lite
Model	U437-001-C-V2
Input Connector	USB Type-C Male
Output Connectors	USB Type-C Female (PD) and 3.5mm Female Jack
Audio Support	Built-in DAC, SNR 93 dB, sampling rate up to 96 kHz (44.1/48/96 kHz, 16/24 bits)
PD Charging	PD 3.0 up to 20 V / 3 A (60 W)
QC Charging	QC 2.0 up to 9 V / 2 A (18 W)
Compatible Operating Systems	macOS 8.6+, Linux, Chrome OS, Windows 10, Android
Plug and Play	Yes, no driver required
Dimensions (H x W x D)	0.9 x 4.99 x 1.28 cm
Weight	Approximately 15 g
Operating Temperature	0 to 45 °C
Storage Temperature	-10 to 70 °C
Operating Humidity	10% to 85% RH (non-condensing)
Storage Humidity	5% to 90% RH (non-condensing)
Standby Power Consumption	< 5 V / 10 mA
Operating Power Consumption	< 5 V / 85 mA
Warranty	3 years (limited)
Package Contents	U437-001-C-V2 Adapter, Quick Start Guide

Frequently Asked Questions - U437001CV2 Tripp Lite

Can I use this adapter to listen to music from my smartphone?

Yes, simply plug the USB-C connector into your smartphone and connect your headphones or speakers to the 3.5mm jack.

Does the adapter allow me to charge my device while listening to music?

Yes, thanks to the dedicated USB-C female port, you can plug in a PD charger (up to 60 W) to charge your host device while using the audio output.

What types of headphones can I use with this adapter?

All headphones or speakers with a standard 3.5mm plug are compatible.

My laptop no longer has an audio jack, can this adapter replace it?

Yes, it converts the digital signal from the USB-C port to an analog signal for audio output on a 3.5mm jack, perfect for devices without an audio jack.

Is the adapter compatible with Windows 11?

Yes, it is compatible with Windows 10 and later versions, including Windows 11, as well as macOS, Linux, Chrome OS, and Android.

What is the audio quality of this adapter?

It offers a signal-to-noise ratio of 93 dB and supports sampling rates up to 96 kHz at 16/24 bits, ensuring high-resolution sound.

Do I need to install drivers to use the adapter?

No, the adapter is Plug and Play: no additional drivers or software are required.

Can I plug the adapter into a USB-C hub?

Yes, it works with most USB-C hubs, but for optimal PD charging, plug it directly into the power source.

What should I do if the sound is stuttering or of poor quality?

Check that the USB-C connection is fully inserted, try another USB-C port, and ensure your headphones are in good condition. If the problem persists, test with another audio source.

Is this adapter compatible with iOS devices like the iPhone?

Yes, it works with iPhones and iPads equipped with a USB-C port (iPhone 15 and later models, iPad Pro, etc.). For older models with a Lightning port, a Lightning to USB-C adapter is required.

USER MANUAL U437001CV2 Tripp Lite

USB-C to Hi-Res 3.5 mm

Audio Adapter with

PD Charging

Model: U437-001-C-V2

USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

Maaaranae

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Product Features

• Connect speakers or a headset to the USB-C port on your smartphone, tablet, laptop or desktop computer
• Charge the host device at the same time with up to 20V/3A (60W) of power
• Bypass a defective audio port by using a USB-C port instead
  Supports Digital-to-Analog conversion with 93dB SNR for audio output
• DAC supports 44.1/48/96 Sample Rate, 16/24-Bit
• ADC input supports 41/48KHz Sample Rate, 16-Bit
  Supports Power Delivery (PD) 3.0 and Quick Charge (QC) 2.0 up to 9V/2A (18W)
• Plug and play - no software or drivers required
  Supports macOS 8.6 or above, Linux, Chrome OS, Windows 10 and Android operating systems

Package Contents

• U437-001-C-V2 USB-C to Hi-Res 3.5 mm Audio Adapter with PD Charging
• Quick Start Guide

Operation

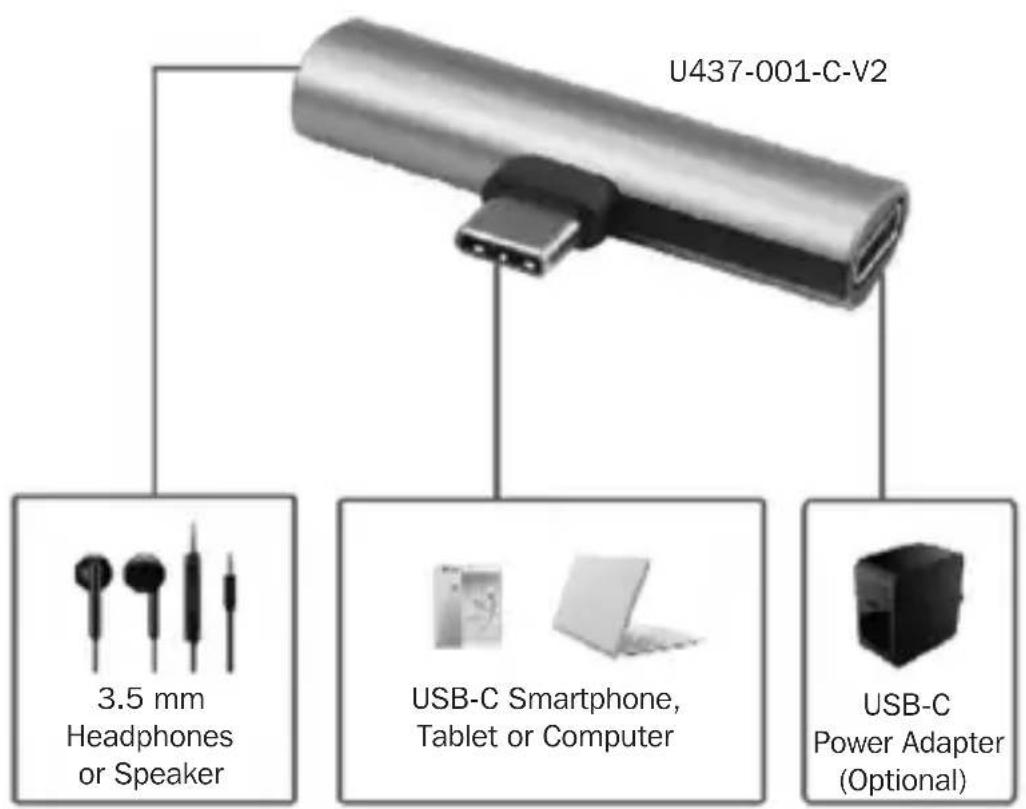

1. Connect the adapter's USB Type-C connector to the USB Type-C port on your smartphone, tablet, laptop or desktop computer.
2. Connect a set of headphones or a speaker to the adapter's 3.5 mm jack.
3. Optionally, connect a USB-C power adapter to the adapter's USB-C port to charge the host device.

Specifications

Connectors
USB (Input) USB Type-C (Male)
USB (Output) USB Type-C (Female)
Audio 3.5 mm (Female)
Charging
Power Delivery (PD) 3.0 20V/3A (60W)
Quick Charging (QC) 2.0 9V/2A (18W)
Power Source USB Bus or	PD Power Adapter (Up to 60W)
Audio
Channel Dual-Channel 2.0
SNR 93dB
Sampling Frequency 96KHz
Environmental
Operating Temperature Range 32 to 113F (0 to 45C)
Storage Temperature Range 14 to 158F (-10 to 70C)
Operating Humidity Range 10% to 85% RH (No Condensation)
Storage Humidity Range 5% to 90% RH (No Condensation)
Power Consumption
Standby Power Consumption <5V/10mA
Operating Power Consumption <5V/85mA
Physical
Unit Dimensions (HxWxD)	0.35 x 1.96 x 0.50 in. (0.9 x 4.99 x 1.28 cm)

Warranty and Product Registration

3-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of three (3) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Warranty and Product Registration

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

Machining Excavations

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

8

21-08-167·93-3FBF_RevA

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

24

21-08-167·93-3FBF_RevA

KpaTKoe pyKOBoIDCTBO nOlb30BaTeIa

AydnopepexodnK USB-C/ Hi-Res 3.5mm c3apaidko no Texholognn PD

Mодель: U437-001-C-V2

USB Type-C' n USB-C' yBnIOTc3apeRncTpnpoBaHHbIMN TOBaPbIMN 3HaKaMn KomnaHn USB Implementers Forum.

English 1 • Espanol 9
Français 17 • Deutsch 33

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Oxpanyetca ABTopcIM npabom © 2021 Tripp Lite. Iepeneutka zapeuetaetc.

XapakTepnCTnKn n3dennna

• Поклоча Te akyctny nii rapHtpy K nopTy USB-C cboero cMaprfoHa, nlaHweta, nopTaTnBHO nii CtauNoHapHOro KomnbTepa
  3apjkaTe xOCT-yCTpoiCTBO OndHOBpeMeHHO CnoaueNITaHnMoUHocTbIO Do 60 Bt (20 B/3 A)
• IcnoIb3yIe npT USB-C B cIyue HeIcnpaBHOCTn ayDIOIopTa
  -Подержkaцфpo-aHaIorOBOrОпpeo6pa3OBaHnC COOTHOseHnEM cnHan-шуm 93дБдЯaydnoBbIXOda
• LAP noidepKnBaet yactOtbl nckpeTn3aun 44,1/48/96 Kr npn pa3prndocn 16/24 6nt
  Bxodno pa3bem ADC noidepKnBaet yactOtu nckpeTnau 41/48 Kup npa3pndnoctn 16 6nt
• Побларжka Power Delivery (PD) 3.0 n Quick Charge (QC) 2.0do9B/2A (18 Bt)
• ABTomatnuecka NaCTPOIka pRn PNOKJIuOeHnNo TExHOJOrn Plug-andPlay 6e3 Heo6xOIMocTn IcnoJIb30BaHnN nporpaMMHoro oBecepeHn nn dpaBepOB
• Поведжka onepaционьх сстем macOS 8.6 ил 6олee позднх Верси, Linux, Chrome OS, Windows 10 u Android

CopejxHmoe ynaKOBKn

• AydnopepeoxoHnK USB-C / Hi-Res 3.5mm moJ. U437-001-C-V2 c 3apdkoI no TexHolorn Pd
  KpaTKoe pyKOBOCTBO nOJIb30BaTeJIa

Popraok 3Kcnnyatau

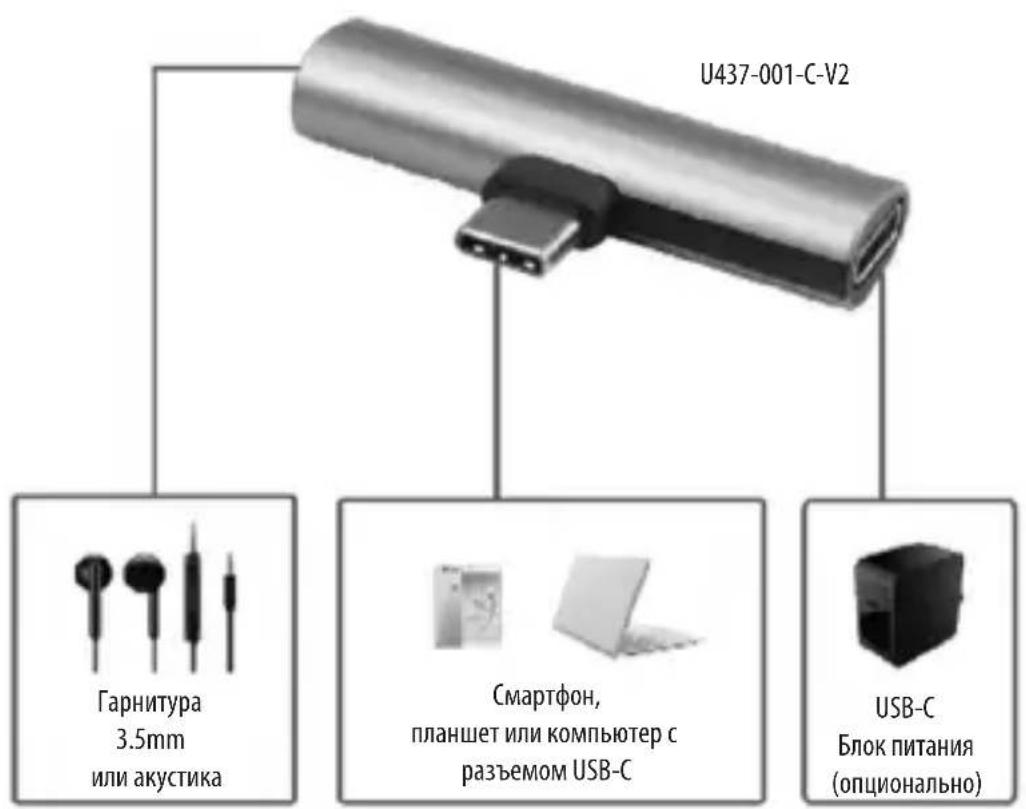

1. BCTaBbTe pa3bem USB Type-C nepexoHnka B nopT USB Type-C CBOero cMaprfoHa, PnaHseTa NnN npTaTNBHO/NaCTOJIbHOro KOMNbIOTepa.
