USER MANUAL PNHY501 SHARP

ENGLISH FRANÇAIS ESPAÑOL DEUTSCH РУССКИЙFOR CUSTOMERS IN U.K. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: GREEN-AND-YELLOW: Earth BLUE: Neutral BROWN: Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth or coloured green or green-and-yellow.

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Ensure that your equipment is connected correctly. If you are in any doubt consult a qualied electrician.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The lightning ash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of su󰀩cient magnitude to constitute a risk of electric shock to persons.The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or re. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future

3. Observe warnings — All warnings on the product and in the instructions must be observed closely.

4. Follow instructions — All operating instructions must be followed.

5. Cleaning — Unplug the power cord from the power outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.

6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result

in accidents. 7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.

8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.

Do not cover or block these vents and openings since insu󰀩cient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed. 9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. 10. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

11. Overloading — Do not overload power outlets or extension cords. Overloading can cause re or electric shock.

12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage ows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other

dangerous conditions. Request a qualied service person to perform servicing. 14. Repair — If any of the following conditions occurs, unplug the power cord from the power outlet, and request a qualied service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualied technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement

parts specied by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in re, electric shock and/or other danger. 16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method

recommended by the manufacturer.

18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating

products (including ampliers). 19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

• Use the specied batteries only.

• Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.

• Do not mix old and new batteries.

• Do not mix batteries of di󰀨erent types. Voltage specications of batteries of the same shape may vary.

• Replace an exhausted battery with a new one promptly.

• If you will not use the remote control for a long time, remove the batteries.

• If leaked battery uid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery uid that gets into your eye or your clothing may cause a skin irritation or damage your eye. 20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.ENGLISH

SAFETY INSTRUCTION - Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam. Do not use in an environment where there are corrosive gases (sulfur dioxide, hydrogen sulde, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to re. - Ensure that the monitor does not come into contact with water or other uids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to re or electric shock. - Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it. - Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of re. - Do not use the monitor in places where it may be exposed to direct sunlight. Risk of cabinet deformation and failure if the monitor is used in direct sunlight. - Please be sure to constantly remove dust and garbage that has attached to the ventilation opening. If dust collects in the ventilation opening or the inside of the monitor, it may lead to excessive heat, outbreak of re, or malfunction. Please request a cleaning of the inside of the monitor from an authorized SHARP servicing dealer or service center. - The power outlet shall be installed near the equipment and shall be easily accessible. The Power Cord - Use only the power cord supplied with the monitor. - Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in re or electric shock. - Do not use the power cord with a power tap. Adding an extension cord may lead to re as a result of overheating. - Do not remove or insert the power plug with wet hands. Doing so could result in electric shock. - Unplug the power cord if it is not used for a long time. - Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative. 21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection. STABILITY HAZARD If a monitor is not positioned in a su󰀩ciently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using xing devices like wall mount brackets recommended by the manufacturer.

• Only using furniture that can safely support the monitor.

• Ensuring the monitor is not overhanging the edge of the supporting furniture.

• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.

• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

• This equipment is not suitable for use in locations where children are likely to be present unsupervised. Especially for child safety - Don’t allow children to climb on or play with the monitor. - Don’t place the monitor on furniture that can easily be used as steps, such as a chest of drawers. - Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down. - Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.4

MOUNTING PRECAUTIONS

• This product is for use indoors.

• A mounting bracket compliant with VESA specications is required.

• Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.

• Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.

• Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward or downward.

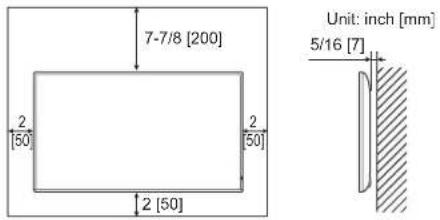

• This monitor should be used at an ambient temperature between 32°F (0°C) and 104°F (40°C). Provide enough space around the monitor to prevent heat from accumulating inside. For the monitor in landscape orientation Unit: inch [mm] Unit: inch [mm] For the monitor in portrait orientation 7-7/8 [200] 2 [50]

[50] 5/16 [7] 5/16 [7] 2 [50] 7-7/8 [200]

• If it is di󰀩cult to provide su󰀩cient space for any reason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 32°F (0°C) to 104°F (40°C), install a fan or take other measures to keep the ambient temperature within the required range.

• Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.

• Do not place the monitor on a device which generates heat.

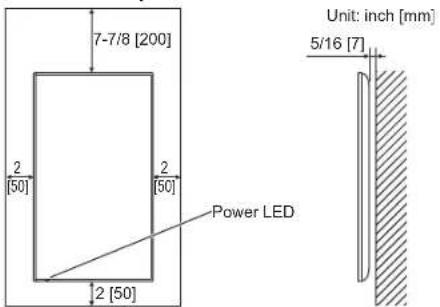

• Adhere to the following when installing the monitor in its portrait orientation. Failing to adhere to the following may cause malfunctions. - Install the monitor such that the power LED is located on the bottom side. - Set the THERMAL SENSOR SETTING on the SETUP menu to PORTRAIT. (See OPERATION MANUAL.) - Be sure to clamp the power cord (supplied) by using the supplied cable clamp (a󰀩xing type). When clamping the power cord, take care not to stress the terminal of the power cord. Do not bend the power cord excessively. Power cord Cable clamp Mounting the monitor laying at on a surface

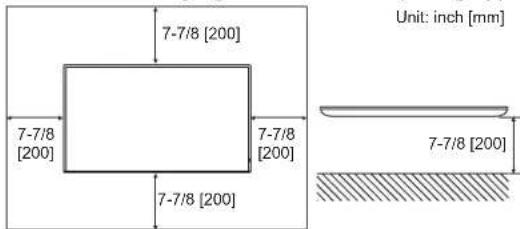

• When using the monitor laying at on a surface (when the monitor is tilted 20 degrees or more upward or downward from the perpendicular in relation to a level surface), consult an authorized SHARP dealer because there are some specic mounting conditions. Adhere to the following. Failing to adhere to the following may cause malfunctions. - Set THERMAL SENSOR SETTING in the SETUP menu to FACE UP or FACE DOWN. (See OPERATION MANUAL.) - Use the monitor at the ambient temperature within the range of 32°F (0°C) to 86°F (30°C). Provide 7-7/8 inch (200 mm) or more space between the monitor and the ceiling or other mounting surfaces and surrounding objects to prevent heat from accumulating inside. If it is di󰀩cult to provide su󰀩cient space or if the ambient temperature may be outside of the range of 32°F (0°C) to 86°F (30°C), install a fan or take other measures to keep the ambient temperature within the required range. For the monitor laying flat on a surface (facing up) Unit: inch [mm] Unit: inch [mm] For the monitor laying flat on a surface (facing down) 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] 7-7/8 [200] - Do not press hard on the LCD panel or otherwise subject it to impacts.ENGLISH

Supplied Components Preparing the Remote Control Unit

1. Place your nger on the part marked with the ▲, and then pull the cover o󰀨.

2. See the instructions in the compartment and put in the batteries (R03 or LR03 (“AAA” size) x 2) with their plus (+)

and minus (-) sides oriented correctly.

50/60 Hz Operating temperature * 32°F to 104°F (0°C to 40°C) Operating humidity 20% to 80% (no condensation) Power consumption 190 W 150 W 110 W 140 W 100 W Dimensions inch (mm) (excluding protrusions) Approx. 48-7/8 (W) x 2-1/2 (D) x 28-1/16 (H) (1241.8 x 63.5 x 712.6) Approx. 44-7/16 (W) x 2-1/2 (D) x 25-9/16 (H) (1128.4 x 63.5 x 649) Approx. 38-5/16 (W) x 2-1/2 (D) x 22-1/8 (H) (973 x 63.5 x 561.2) Weight lbs. (kg) Approx. 39.7 (18.0) Approx. 33.1 (15.0) Approx. 25.4 (11.5)

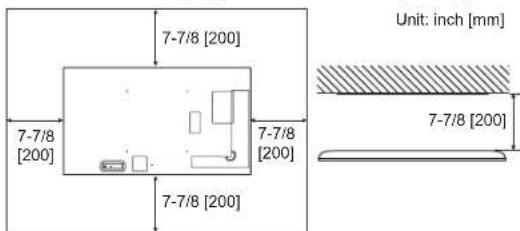

• When using the monitor laying at on a surface (when the monitor is tilted more than 20 degrees upward or downward from the perpendicular in relation to a level surface), use the monitor at a temperature between 32°F (0°C) to 86°F (30°C). Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specied by the optional equipments. As a part of our policy of continuous improvement, SHARP reserves the right to make design and specication changes for product improvement without prior notice. The performance specication gures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Remote control unit battery: 2

USB ash drive cover: 1

USB ash drive cover xing screw: 2

• SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.

• For environmental protection! Do not dispose of batteries in household waste. Follow the disposal instructions for your area.6

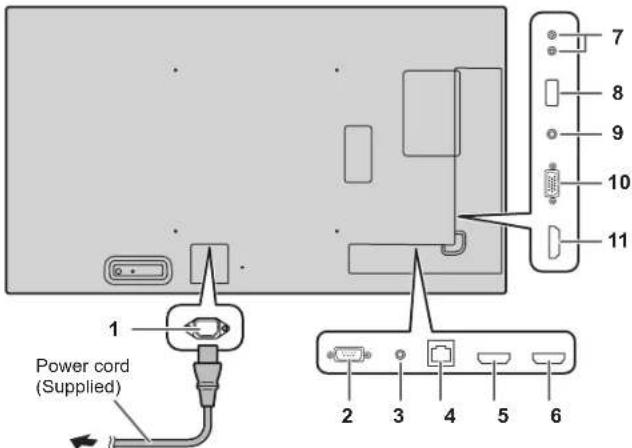

• Be sure to turn o󰀨 the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.

• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems. Power cord (Supplied) For power outlet

• The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe in the United States and/or other countries.

• VESA is either registered trademark or trademark of Video Electronics Standards Association in the United States and/or other countries.

• All other brand and product names are trademarks or registered trademarks of their respective holders.

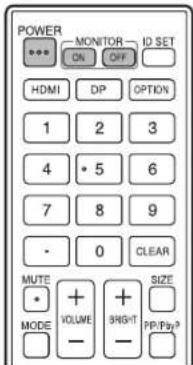

Turning Power On/O󰀨 Turning power on/o󰀨 Press the POWER button to turn the power ON/OFF. You can also turn the power ON/OFF by pressing the MONITOR ON button/MONITOR OFF button on the remote control unit. [Rear view] [Front view] POWER button Power LED Status Status of the monitor Green lit Power on Orange lit Power o󰀨 (Standby state*) Green ashing Input signal waiting state

• Standby mode when POWER SAVE MODE is set to ON. Networked standby mode when POWER SAVE MODE is set to OFF. Networked standby mode allows the monitor to be turned on via network (LAN, RS-232C, and HDMI CEC).

• Setting the SCHEDULE ashes the power LED alternately in red and orange in standby state. Caution

• Turn on the monitor rst before turning on the computer or playback device.

• When switching the main power switch or the POWER button o󰀨 and back on, always wait for at least 5 seconds. A short interval may result in a malfunction. Turning on the main power Main power switch O󰀨 mode, when main power is o󰀨. Caution

• The main power must be turned on/o󰀨 with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/o󰀨 while the main power switch is on.

For a complete electrical disconnection, pull out the main plug.8

• When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people.

• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.

• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation.

• This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.

• To attach a VESA-compliant mounting bracket, use M6 screws that are 3/8 inch (10 mm) to 1/2 inch (12 mm) longer than the thickness of the mounting bracket. Screw (M6) Mounting bracket Monitor mounting 3/8 - 1/2 inch (10 - 12 mm)

• Do not use an impact driver.

• When moving the monitor, be sure to hold it around the periphery. Do not grasp the screen. This may cause product damage, failure, or injury.

• After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.

• Do not use any screw holes other than those for mounting brackets, located on the rear of the monitor, for installation.

• When using the monitor laying at on a surface (when the monitor is tilted 20 degrees or more upward or downward from the perpendicular in relation to a level surface), consult an authorized SHARP dealer because there are some specic mounting conditions.

Operation mode When the monitor is turned on for the rst time after being shipped from the factory, the operation mode setting screen will be displayed. Set it to MODE1 or MODE2. MODE1 is the recommended setting and conforms to the “Normal Conguration” as dened in the EcoDesign Regulation (2019/2021). MODE1 ....POWER MANAGEMENT setting can not be changed. If there is no signal for approx. 5 minutes, this monitor automatically enters standby mode. OFF IF NO OPERATION and POWER SAVE MODE are set to ON. These settings can not be changed. If there is no operation for 4 hours or more, this monitor automatically enters standby mode. Power consumption in standby state is also minimized. MODE2 ....POWER MANAGEMENT is set to ON. OFF IF NO OPERATION and POWER SAVE MODE are set to OFF. These settings can be changed. Even after being set, changes can be made using OPERATION MODE, located in the menu of the monitor. (See OPERATION MANUAL.)

• If the time has yet to be set when the monitor is rst turned on, the date/time setting screen appears. Set the date and time.

• Be sure to set the date and time. Mounting Precautions (For SHARP dealers and service engineers)FRANÇAIS
