USER MANUAL RF29BB8600QL SAMSUNG

Refrigerator User manual Free Standing Appliance Untitled-21 1Untitled-21 1 2025-03-31 3:57:152025-03-31 3:57:15English2 Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols and precautions: 5 State of California Proposition 65 Warning 5 Important safety precautions 5 Severe warning signs for transportation and site 7 Critical installation warnings 8 Installation cautions 9 Critical usage warnings 10 Usage cautions 12 Cleaning cautions 13 Critical disposal warnings 14 Installation 15 Refrigerator at a glance 16 Step-by-step installation 20 Operations 37 Main panel 37 SmartThings 43 SMART GRID Function (Demand Response, applicable models only) 46 Special features 49 Maintenance 57 Handling and care 57 Cleaning 65 Replacement 66 Troubleshooting 70 General 70 Do you hear abnormal sounds from the refrigerator? 74 SmartThings 76 Smart Grid (applicable models only) 77

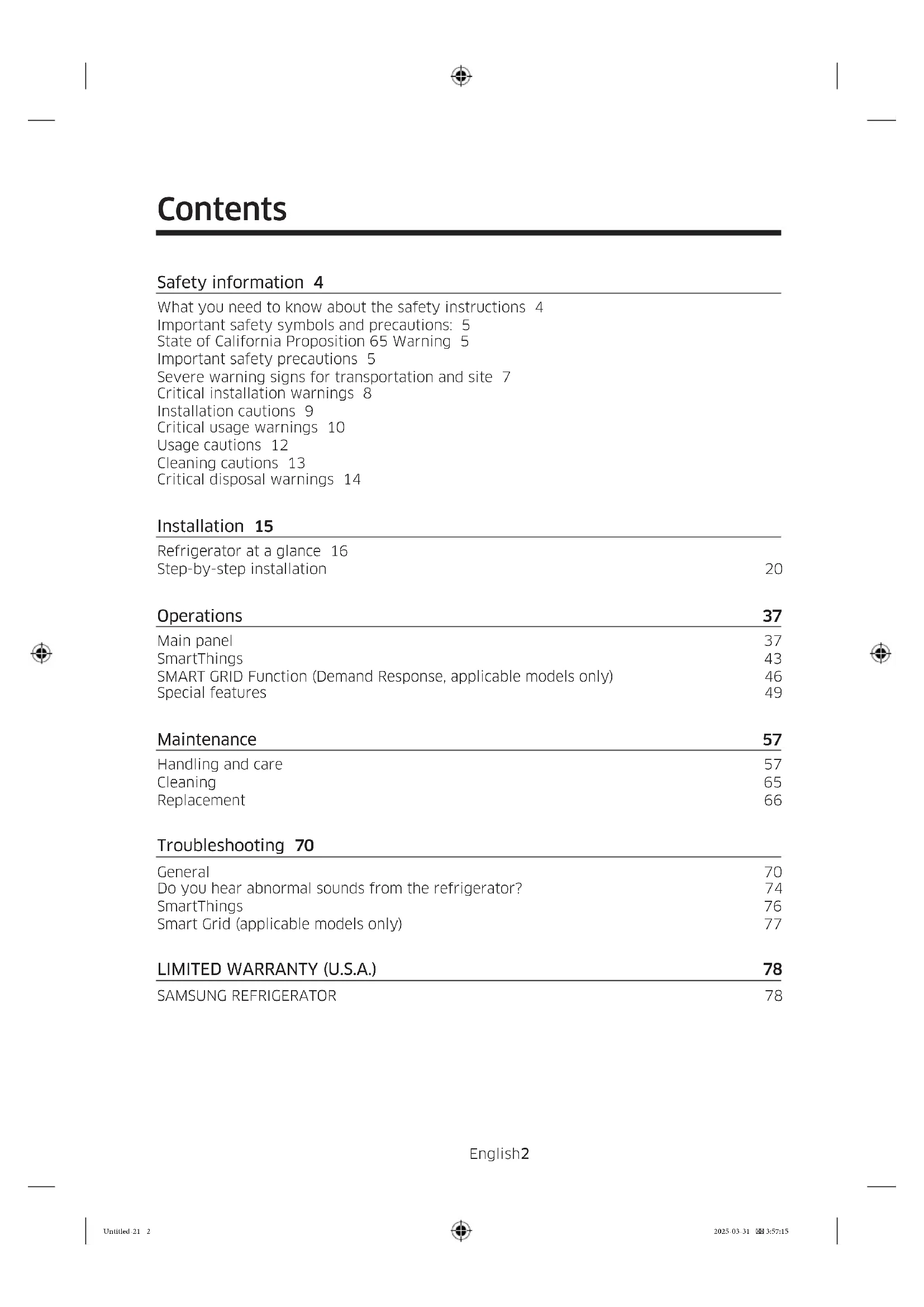

LIMITED WARRANTY (U.S.A.) 78

SAMSUNG REFRIGERATOR 78 Untitled-21 2Untitled-21 2 2025-03-31 3:57:152025-03-31 3:57:15English 3 Warranty Information (CANADA) 81 If your refrigerator needs service 81 Limited Warranty for Original Purchaser 81 Obligation to the Original Owner 82 Exclusions of the Warranty 82 Regulatory Notice 83 FCC Notice 83 IC Notice 84 Open Source Announcement 85 Untitled-21 3Untitled-21 3 2025-03-31 3:57:152025-03-31 3:57:15English4 Safety information Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efciently. What you need to know about the safety instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.

• If you have any question, contact us at 1-800-SAMSUNG or nd help and information online at www.samsung.com.

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked ames and move anything ammable away from the product and ventilate the room immediately. - Failing to do so may result in re or explosion.

• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded. Untitled-21 4Untitled-21 4 2025-03-31 3:57:152025-03-31 3:57:15English 5 Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. NOTE Useful information that helps users understand or benet from the refrigerator. These warning signs are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. State of California Proposition 65 Warning WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Important safety precautions WARNING; Risk of re / ammable materials WARNING

• R-600a is used as a refrigerant. This product contains ammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

• In order to avoid the creation of a ammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance.

• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc. Untitled-21 5Untitled-21 5 2025-03-31 3:57:162025-03-31 3:57:16Safety information English6

• If you use two products side by side, for safety reason, be sure to use certied products in explosive gas atmospheres.

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. WARNING

• Fill with potable water only.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.

• Connect to potable water supply only. WARNING

• Risk of child entrapment. Before you throw away your old refrigerator or freezer: - Take off the doors. - Leave the shelves in place so that children may not easily climb inside. Untitled-21 6Untitled-21 6 2025-03-31 3:57:162025-03-31 3:57:16English 7 CAUTION

• Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s Guide Before Attempting to Service This Product. All Safety Precautions Must Be Followed.

• Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used.

• Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used.

• To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer Or Refrigerator. This appliance is intended to be used in household and similar applications such

• staff kitchen areas in shops, ofces and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications. Severe warning signs for transportation and site WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes. - This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also ammable. Untitled-21 7Untitled-21 7 2025-03-31 3:57:162025-03-31 3:57:16Safety information English8 Critical installation warnings WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water. - Deteriorated insulation on electrical parts may cause an electric shock or re.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

• Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a re hazard.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock or re.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy objects on it.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This may result in an electric shock or re.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug rmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, re, and/or electric shock.

• Do not install this appliance near a heater or ammable material.

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or re.

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and cause a re or electric shock.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of children. - There is a risk of death from suffocation if a child puts the packing materials on his or her head.

• The appliance must be positioned so that the plug is accessible after installation. - Failing to do so may result in an electric shock or re due to electric leakage.

• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops). - Deteriorated insulation on electrical parts may cause an electric shock or re. Untitled-21 8Untitled-21 8 2025-03-31 3:57:162025-03-31 3:57:16English 9

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in an electric shock, re, problems with the product, or injury.

• You need to remove all the protective plastic lm before you initially plug the product in.

• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips. - There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. - Current leakage may result in an electric shock, re, explosion, or problems with the product.

• Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re.

• Only a qualied technician or service company should be allowed to change the fuse in the refrigerator. - Failing to do so may result in an electric shock or personal injury. Installation cautions CAUTION

• Allow sufcient space around the refrigerator and install it on a at surface. - Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.

• It is strongly recommended you have a qualied technician or service company install the refrigerator. - Failing to do so may result in an electric shock, re, explosion, problems with the product, or injury.

• Overloading one door may make the refrigerator fall, causing physical injury. Untitled-21 9Untitled-21 9 2025-03-31 3:57:162025-03-31 3:57:16Safety information English10 Critical usage warnings WARNING

• Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock.

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause a personal injury.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite.

• Do not put a container lled with water on the refrigerator. - If spilled, there is a risk of re or electric shock.

• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator. - This refrigerator is for storing food only. - This may result in re or explosion.

• Children should be supervised to ensure that they do not play with the appliance. - Keep ngers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• Do not let children hang on the door or door bins. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped.

• Do not insert your hands into the area under the appliance. - Any sharp edges may cause personal injury.

• Do not store pharmaceutical products, scientic materials, or temperature sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.

• If you smell smoke, pull out the power plug immediately, and then contact a Samsung Electronics service center.

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not let children step on a drawer. - The drawer may break and cause them to slip.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.

• Do not allow babies or children to go into a drawer. - It can cause death from suffocation by entrapment or personal injury. Untitled-21 10Untitled-21 10 2025-03-31 3:57:162025-03-31 3:57:16English 11

• Do not overll the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage.

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, re, or problems with the product.

• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker bucket. - It may cause a personal injury or material damage.

• Do not use or place any substances sensitive to temperature such as ammable sprays, ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, re, problems with the product, or injury. Do not put a container lled with water on the appliance. - If spilled, there is a risk of re or electric shock.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays.

• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work. - The glass shelf could fall and cause personal injury.

• Keep ngers out of "pinch point" areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air the room in which the appliance is standing for several minutes. - Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in an explosion or re.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall over or out.

• This product is intended only for the storage of food in a domestic environment.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself. - Unauthorized modications can cause safety problems. To reverse an unauthorized modication, we will charge the full cost of parts and labor.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung service center. - Failing to do so may result in an electric shock, re, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center. Untitled-21 11Untitled-21 11 2025-03-31 3:57:162025-03-31 3:57:16Safety information English12

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center. - Failing to do so may result in an electric or re hazards.

• Pull the power plug out of the socket before changing the interior lamps of the refrigerator. - Otherwise, there is a risk of electric shock.

• If you experience difculty changing a non-LED light, contact a Samsung service center.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself. - Contact a Samsung service center.

• Plug the power plug into the wall socket rmly.

• Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re. Usage cautions CAUTION

• Do not re-freeze frozen foods that have thawed completely.

• Use only the ice maker provided with the refrigerator.

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment. - Wrap food up properly or place it in airtight containers before putting it into the refrigerator. - Please observe maximum storage times and expiration dates of frozen goods.

• Do not put glass containers or bottles or carbonated beverages into the freezer. - The container may freeze and break, and this may result in injury.

• Service Warranty and Modication. - Any changes or modications performed by a 3rd party on this nished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modications.

• Do not block the air vents inside the refrigerator. - If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water lter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least ve minutes before plugging it back in.

• If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.

• Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator. Untitled-21 12Untitled-21 12 2025-03-31 3:57:162025-03-31 3:57:16English 13

• If the refrigerator is ooded, shut off the power to the refrigerator and contact your nearest Samsung service center. - There is a risk of electric shock or re.

• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it foul-tasting and difcult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry. - Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc. Cleaning cautions CAUTION

• Do not spray water directly on the inside or outside of the refrigerator. - There is a risk of re or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center. - Failing to do so may result in an electric shock or re.

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of re or electric shock.

• Do not clean the appliance by spraying water directly onto it.

• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator. - They may damage the surface of the appliance and may cause a re.

• Never put ngers or any objects into the dispenser outlet. - This can cause a personal injury or material damage.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or re.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets. - These can scratch or damage the material.

• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping. Untitled-21 13Untitled-21 13 2025-03-31 3:57:172025-03-31 3:57:17Safety information English14 Critical disposal warnings WARNING

• Children trapped inside a refrigerator can hurt themselves or suffocate to death.

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

• This product contains R-600a, a ammable gas, which is used as the refrigerant. Contact your local authorities regarding safe disposal of this product.

• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. - If trapped inside, the child could be injured or suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. Untitled-21 14Untitled-21 14 2025-03-31 3:57:172025-03-31 3:57:17English 15 Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING

• Use the refrigerator only for its intended purpose as described in this manual.

• Any servicing must be performed by a qualied technician.

• Dispose of the product packaging material in compliance with the local regulations.

• To prevent electric shock, unplug the power plug before servicing or replacing parts. Untitled-21 15Untitled-21 15 2025-03-31 3:57:172025-03-31 3:57:17Installation English16 Refrigerator at a glance The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country. Type A

Untitled-21 17Untitled-21 17 2025-03-31 3:57:172025-03-31 3:57:17Installation English18 01 AutoFill pitcher * A. Fridge B. Beverage Center ** C. Freezer

• Applicable models only ** Dispenser models only 02 Water dispenser ** 03 Fridge door bin 04 Fridge shelf 05 Quick Space shelf * 06 Crisper+ / Fridge Drawers 07 Water lter * 08 Control panel 09 Vegetable shelf 10 FlexZone 11 Freezer NOTE

• For energy efciency, keep all shelves, drawers, and baskets in their original positions.

• When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.

• If the vertical hinged section is reversed, put it back into the correct position, and then close the door.

• Moisture may form at times on the vertical hinged section.

• If you close a door forcefully, the other door may open.

• If the internal or external LED lamp is not working, contact a local Samsung service center. Door bins Your refrigerator ships with door bins of different types and sizes. If the door bins for your refrigerator were packaged separately, use the gure below to help you position the bins properly. NOTE The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country. Untitled-21 18Untitled-21 18 2025-03-31 3:57:172025-03-31 3:57:17English 19 Untitled-21 19Untitled-21 19 2025-03-31 3:57:172025-03-31 3:57:17Installation English20 Step-by-step installation STEP 1 Select a site The site must:

• Have a solid level surface without carpeting or ooring that may obstruct ventilation

• Be out of direct sunlight

• Have adequate room for opening and closing the door

• Be away from any heat source

• Provide room for maintenance and servicing

• Have a temperature range between 50 °F (10 °C) and 110 °F (43 °C) Clearance See the following gures and tables for installation space requirements.

more than 50 mm recommended 02 125°

/ 4" (1353 mm) NOTE The measurements in the tables may differ slightly from the actual measurements, depending on the measuring and rounding method. Untitled-21 21Untitled-21 21 2025-03-31 3:57:182025-03-31 3:57:18Installation English22 STEP 2 Flooring If the refrigerator cannot pass through the entrance due to its size, see STEP 3 Door removal for entrance. NOTE To prevent oor damage, make sure the front leveling legs are in the upright position.

• The surface you install the refrigerator on must support a fully loaded refrigerator.

• To protect the oor, put a large piece of cardboard along the path to the refrigerator's nal installation location.

• Once the refrigerator is in its nal position, do not move it unless necessary to protect the oor. If you have to move the refrigerator, place thick paper or cloth such as old carpets along the path of movement. Untitled-21 22Untitled-21 22 2025-03-31 3:57:182025-03-31 3:57:18English 23 STEP 3 Door removal for entrance If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 31 to continue the installation procedure. WARNING Unplug the power cord of the refrigerator before removing the doors. Tools required (not provided) Phillips screwdriver Flat-head screwdriver Socket wrench

1. With the doors closed, use a Phillips

screwdriver to remove the screws (x3) from the top cover. Pull up and remove the top cover with the connectors. Untitled-21 23Untitled-21 23 2025-03-31 3:57:192025-03-31 3:57:19Installation English24

2. Disconnect the two wire connectors

on the left door. The position of the connectors differs with the model. CAUTION

• Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.

• Make sure the refrigerator is off before disconnecting the connectors.

3. Disconnect the water tube from the

coupler on the left door as shown. - This step does not apply to the models without the AutoFill Pitcher and the water dispenser.

4. Gently draw up the clamp in several

steps. To prevent nger injuries, do not apply a sudden force to the clamp.

5. Pull up the clamp to remove.

holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.

7. Gently pull up the door vertically to

remove. Do not apply excessive force to the door. The door may fall, causing physical injury.

8. Lay the door down on a at surface.

9. Repeat steps 1-8 for the other door,

except for step 3. There is no water tube on the right side door. - Step 2 does not apply to the models without the Showcase door. Untitled-21 25Untitled-21 25 2025-03-31 3:57:202025-03-31 3:57:20Installation English26 To reattach the fridge doors

1. While holding the door open by more

than 90 degrees, insert the shaft on the middle hinge into the hole on the bottom of the door.

2. Put the top hinge into position on the

top of the refrigerator, and then insert the hinge shaft into the top hole of the door. Make sure the wires from the door pass through the hole in the hinge shaft.

3. Insert the clamp in the direction of the

4. Push back the clamp as shown.

Untitled-21 26Untitled-21 26 2025-03-31 3:57:212025-03-31 3:57:21English 27

5. Connect the wire connectors.

• Make sure the wire connectors are connected properly. Otherwise, the display will not operate.

6. Connect the water tube.

- This step does not apply to the models without the AutoFill Pitcher and the water dispenser. CAUTION

• To prevent water leaks, make sure the red clips tighten the coupler properly.

• Keep the clips out of children’s reach.

7. Repeat steps 1-5 for the other door.

- Step 5 does not apply to the models without the Showcase door.

8. Attach the top cover with the front side

rst, and then press down on its back to get it into position. Then, tighten the screws (x3).

01 Dispenser 02 Center of transparent coupler 03 Guidelines CAUTION To prevent water leaks from the dispenser, the water line must be fully connected. Make sure both tubes of the water line are inserted fully to the center of transparent coupler ( A) or the guidelines ( B). Untitled-21 27Untitled-21 27 2025-03-31 3:57:212025-03-31 3:57:21Installation English28 Detach the FlexZone drawer

1. Lift up to remove the FlexZone basket.

2. Remove the hex-head bolt on each side

of the drawer using a 10 mm socket wrench.

3. Lift up to remove the drawer front of

the FlexZone from the rail assembly. CAUTION

• Use caution when removing the rail assembly, which may fall off causing damage to the oor.

• Make sure to put the FlexZone drawer in place after removing or mounting the FlexZone basket. The FlexZone drawer may not open or close if the freezer drawer is not in place.

• Do not store too much food in the FlexZone drawer. This prevents the FlexZone drawer from closing properly, resulting in frost buildup. Untitled-21 28Untitled-21 28 2025-03-31 3:57:222025-03-31 3:57:22English 29 To reattach the FlexZone drawer After you have moved the refrigerator to its nal location, re-attach the FlexZone drawer by following the removal instructions in reverse order. CAUTION If the FlexZone or the indicator does not operate properly, make sure the connectors are connected properly. To detach the freezer drawer

1. Push the upper basket to the end, and

then pull up to remove.

2. Then, pull up to remove the lower

basket from the rail assembly.

3. Press down the hooks to unlock the rail

assembly. Untitled-21 29Untitled-21 29 2025-03-31 3:57:232025-03-31 3:57:23Installation English30

4. While holding the upper area of the

freezer drawer front, slide the drawer out all the way to remove the freezer drawer from the rail assembly. CAUTION

• Be careful not to scratch or dent the rail assembly.

• Make sure you mount the freezer baskets in the correct position. Otherwise, the door will not open or close properly, which causes frost to build up.

• Do not store too much food in the freezer drawer. This prevents the freezer drawer from closing properly, resulting in frost buildup. To reattach the freezer drawer Once the refrigerator is in or near it's nal location, re-attach the freezer drawer by following the directions in the reverse order of removal. Untitled-21 30Untitled-21 30 2025-03-31 3:57:242025-03-31 3:57:24English 31 STEP 4 Leveling the refrigerator CAUTION

• When installed, the refrigerator must be leveled on a at, solid oor. Not leveling the refrigerator can cause damage to the refrigerator or physical injury.

• Leveling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.

• For safety reasons, adjust the front a little higher than the rear. Level the refrigerator using the special screws (levelers) on the front legs. Use a at-head screwdriver to turn the levelers.

• To adjust the height of the left side: Insert a at-head screwdriver into the leveler of the left side front leg. Turn the leveler clockwise to raise the left side or turn it counterclockwise to lower.

• To adjust the height of the right side: Insert a at-head screwdriver into the leveler of the right side front leg. Turn the leveler clockwise to raise the right side or turn it counterclockwise to lower. Untitled-21 31Untitled-21 31 2025-03-31 3:57:242025-03-31 3:57:24Installation English32 STEP 5 Adjust the door height and the door gap Snap rings The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm). To adjust the height of a door

1. Check the height difference between the

doors, and then lift up and hold the door with the lower height.

between the door grommet (B) and the hinge as shown. CAUTION

• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.

• Keep the snap rings out of children’s reach and keep them for future use.

• Do not raise the door too much. The door can contact and damage the top cover. Untitled-21 32Untitled-21 32 2025-03-31 3:57:252025-03-31 3:57:25English 33 STEP 6 Connect the water dispenser line (applicable models only) A water dispenser with a lter is one of the helpful features on your new refrigerator. To help promote better health, the water lter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that. The water line also connects to the ice maker. For the ice maker to operate properly, water pressure must be between 30-125 psi (206-861 kPa). If the refrigerator is installed in an area with low water pressure (below 30 psi / 206 kPa), you can install a booster pump to compensate for the low pressure. After you have connected the water line, check if the water dispenser works properly. Press the water dispenser lever until the water runs from the water outlet. NOTE

• Water line installation kits are available at extra cost from your retailer. We recommend using a water line installation kit that contains copper tubing and a

1. Shut off the main water source.

2. Insert the pipe clamp (B) and the shutoff

valve (C) into the cold water line (A).

3. Connect the water line installation kit

(A) to the shutoff valve (B). Untitled-21 33Untitled-21 33 2025-03-31 3:57:252025-03-31 3:57:25Installation English34 Connect the water supply line to the refrigerator There are several items you must purchase to complete this connection. You may nd these items sold as a kit at your local hardware store. Copper Tubing

/ 4" plastic tubing Molded end (Bulb)

A. Refrigerator B. Household water supply line C. Water Line: must be kept straight. 01 Compression Nut (

/ 4") (Assembled) 02 Ferrule (Not supplied) 03 Copper tubing (Not supplied) 04 Plastic Tubing (Assembled) 05 Compression Fitting (Assembled) 06 Molded end (Bulb) 07 Compression nut (B) (

/ 4") (Not supplied) 08 Plastic Tubing (A) (Not supplied) NOTE If you have to relocate the refrigerator after connecting the water line (C), make sure the joined section of the water line is straight. Untitled-21 34Untitled-21 34 2025-03-31 3:57:262025-03-31 3:57:26English 35 CAUTION Do not mount the water lter on any part of the refrigerator. This may damage the refrigerator.

1. Connect the household water line to the assembled compression tting.

- If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown. - If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing (A) into the compression tting. CAUTION

• If you use plastic tubing (A), do not use it without the molded end (Bulb).

• Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure that the ice making function is turned "OFF" and do not attempt to use the water dispenser.

2. Tighten the compression nut (B) onto the compression tting. Do not over-tighten the

compression nut (B).

3. Turn the water on and check for any leakage. If you nd water drops or leakage in

the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.

4. Flush 3 gallons of water through the lter before drinking or using the water from

the refrigerator. (Flush approximately 5-6 minutes.) To ush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it, and then repeat.

5. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that

period of time, throw out the rst 1 or 2 buckets of ice the ice maker makes to ensure all impurities have been removed from the water line. NOTE Only connect the water line to a potable water source.

• If you have to repair or disassemble the water line, cut off

/ 4" of the plastic tubing to make sure you get a snug, leak-free connection.

• You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can ll a 5

/4 oz. (170 cc) cup in about 10 seconds. Untitled-21 35Untitled-21 35 2025-03-31 3:57:262025-03-31 3:57:26Installation English36 STEP 7 Initial settings By completing the following steps, the refrigerator should be fully functioning.

1. Plug the power cord into the wall socket to turn the refrigerator on.

2. Open the door, and check if the interior light lights up.

3. Set the temperature to the coldest setting, and wait for about an hour. Then, the freezer

will be slightly chilled, and the motor should be running smoothly.

4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready

for use. STEP 8 Final check When installation is complete, conrm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.

• The refrigerator is installed on a at, level surface with a reasonable clearance from walls and cabinets.

• The refrigerator is level and is sitting rmly on the oor.

• The door opens and closes freely, and the interior light turns on automatically when you open the door. Untitled-21 36Untitled-21 36 2025-03-31 3:57:262025-03-31 3:57:26English 37 Operations Main panel

• applicable models only Untitled-21 37Untitled-21 37 2025-03-31 3:57:262025-03-31 3:57:26Operations English38 NOTE

• When you change the temperature on the panel, the panel displays the actual temperature inside the refrigerator until the temperature matches the temperature you set. Then, the panel displays the new set temperature. Note that it will take time for the refrigerator to reach the new temperature. This is normal. During this time, you do not need to set the temperature again.

• The temperature in the refrigerator may rise if you open the door frequently or put a large amount of food into the refrigerator. If this happens, the temperature display blinks until the refrigerator returns to the specied temperature settings. While the temperature display is blinking, an alarm may occur. To stop the alarm, tap any button on the display.

• If a communication error occurs between the temperature display and the main controller, this blinking continues for an extended time. Contact a local Samsung service center for technical assistance.

• The display of the main panel turns on only if the door is opened and turns off if the door is closed.

• If you set Control Lock on the main panel, the main panel locks automatically 1 minute after inactivity. 01 Fridge / Peak Demand Off (3 sec) Fridge You can use the Fridge button to set the fridge temperature or to activate Power Cool .

• Press Fridge repeatedly to select a desired temperature between 34 °F (1 °C) and 44 °F (7 °C). - The temperature indicator displays the currently set or selected temperature.

• To activate Power Cool , press Fridge repeatedly until the Power Cool indicator ( ) lights up. - To deactivate Power Cool , simply press Fridge again while the Power Cool function is on. - Power Cool speeds up the cooling process at maximum power to lower the fridge temperature. The Power Cool process continues to run for several hours, and then turns off and the fridge returns to the previous temperature setting. - Use Power Cool to rapidly cool food that spoils quickly or to rapidly cool the refrigerator after the door has been left open for some time. NOTE Using Power Cool increases power consumption. Make sure you turn it off manually if you no longer need it, and then select the desired refrigerator temperature. Untitled-21 38Untitled-21 38 2025-03-31 3:57:272025-03-31 3:57:27English 39 Peak Demand Off The Peak Demand Off function activates/deactivates Smart Grid. (See Page 46) Press Fridge for 3 seconds to set/clear the Peak Demand Off function. 02 FlexZone / Soft Freeze (3 sec) FlexZone

• You can set the FlexZone mode from one of the following modes. - Wine: The temperature sets to 41 °F (5 °C). - Deli: The temperature sets to 37 °F (3 °C). - Beverage: The temperature sets to 34 °F (1 °C). - Meat/Fish: The temperature sets to 30 °F (-1 °C). Soft Freeze You can use this mode to keep meat and sh fresh for an extended time. The temperature sets to 23 °F (-5 °C) in this mode.

• Press and hold FlexZone for 3 seconds to activate the Soft Freeze mode.

• To deactivate the Soft Freeze mode, press and hold FlexZone again for 3 seconds. The Soft Freeze mode deactivates and the FlexZone returns to the mode that you previously used. CAUTION

• Select the FlexZone mode accordingly to the type of food you store in there.

• Do not store meat or food in the FlexZone with the Wine , Deli , or Beverage mode. Meat or food may spoil.

• Do not store glass bottles in the FlexZone in Soft Freeze mode. They may break and cause physical injury. Untitled-21 39Untitled-21 39 2025-03-31 3:57:272025-03-31 3:57:27Operations English40 03 Freezer / °F °C Freezer You can use the Freezer button to set the freezer temperature or to activate Power Freeze .

• Press Freezer repeatedly to select a desired temperature between 5 °F (-15 °C) and -8 °F (-23 °C). - The temperature indicator displays the currently set or selected temperature.

• To activate Power Freeze , press Freezer repeatedly until the Power Freeze indicator ( ) lights up. - To deactivate Power Freeze , simply press Freezer again while the Power Freeze function is on. - Power Freeze speeds up the freezing process at maximum power to lower the freezer temperature. The Power Freeze process continues to run for several hours, and then turns off and the freezer returns to the previous temperature setting. - To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting the food in the freezer. NOTE Using Power Freeze increases power consumption. Make sure you turn it off manually if you no longer need it, and then select the desired freezer temperature. °F °C You can also use the Freezer button to switch the temperature scale between Celsius and Fahrenheit. To switch the temperature scale, press and hold Freezer for 3 seconds to change the current temperature scale. 04 Ice Maker / Filter Reset (3 sec) Ice Maker The ice maker has 2 indicators ( Cubed Ice On/ Ice Bites On) to indicate its operating status.

• Cubed Ice * : You can start or stop making cubed ice.

• Ice Bites * : You can start or stop making ice bites. Untitled-21 40Untitled-21 40 2025-03-31 3:57:272025-03-31 3:57:27English 41 Filter Reset After about 6 months (and typically, about 300 gallons (1200 L) of water), the Filter indicator blinks red for several seconds when you open the door, reminding you that the lter needs to be replaced. When this happens, replace the lter, and then press and hold Filter Reset for 3 seconds. The lter lifecycle will be reset and the Filter indicator turns off. NOTE

• Some regions have relatively large amounts of lime in their water. This can reduce the lifecycle of the lter. In these areas, you will have to replace the water lter more often than specied above.

• If water is not dispensing properly, the water lter is most likely clogged. Replace the water lter. 05 AutoFill Pitcher AutoFill Pitcher

• You can set the AutoFill Pitcher mode from one of the following modes. - On: Set to ll your water pitcher automatically. - Off: Set to turn off the function. NOTE You can put tea or fruit into the infuser to make infused tea or water. If you want to keep the infused water in its initial concentration, turn the AutoFill Pitcher function off. (For more information, see the Water pitcher (AutoFill Pitcher) (applicable models only) section on page 49.) 06 Door Alarm / Lock (3 sec) Door Alarm If the door is left open for more than 2 minutes, an alarm will sound and the alarm indicator will blink. You can toggle the alarm on and off by pressing Door Alarm. The alarm is enabled by factory default. Lock To prevent accidental setting changes, press and hold Door Alarm for 3 seconds. The main panel will be disabled and the Lock indicator ( ) will turn on. When Lock is on, the indicator blinks if any button on the main panel is pressed. If you press and hold the button again for more than 3 seconds, Lock will be deactivated. However, Lock will be reactivated if no button is pressed within 1 minute. Untitled-21 41Untitled-21 41 2025-03-31 3:57:272025-03-31 3:57:27Operations English42 07 Network connection You can control and monitor your refrigerator on the SmartThings app. For more information, see the SmartThings section.

• If the Wi-Fi indicator ashes when opening or closing the fridge door, this indicates that the refrigerator is not connected with the SmartThings app. If this is the case, it is recommended to make connection again before using the refrigerator. 08 Sabbath Mode The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

• To activate Sabbath Mode, press and hold Door Alarm and AutoFill Pitcher simultaneously for 5 seconds. When the refrigerator is in Sabbath mode, the buttons, the display, and the internal lights do not function. The refrigerator and freezer, however, continue to cool.

• To deactivate Sabbath Mode, press and hold Door Alarm and AutoFill Pitcher simultaneously again for 5 seconds. NOTE If the refrigerator powers off and restarts (for example, if there is a power failure), the Sabbath mode remains active. To end Sabbath Mode, you must deactivate it as described above. 09 Cooling Off Cooling Off mode (also called Shop mode) is designed for use by retailers when they are displaying refrigerators on a retail oor. In Cooling Off mode, the refrigerator’s fan motor and lights operate normally, but the compressors do not run so neither the refrigerator nor the freezer become cold. To enter or exit the Cooling Off mode, press and hold Fridge and FlexZone simultaneously for 6 seconds. Then, when the display blinks, press Door Alarm. When the Cooling Off mode is on, the refrigerator chime sounds, and the refrigerator shows " 0" on the fridge temperature display and " FF" on the freezer temperature display. Untitled-21 42Untitled-21 42 2025-03-31 3:57:272025-03-31 3:57:27English 43 SmartThings Installation Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for "SmartThings". Download and install the SmartThings app provided by Samsung Electronics to your smart device. NOTE

• The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons.

• The SmartThings app is subject to change without notice to improve usability or performance. As the mobile phone OS version is updated every year, the SmartThings is also updated continually according to the latest OS. If you have enquiries regarding the items mentioned above, please contact us on st.service@samsung.com

• Recommended encryption systems include WPA/TKIP and WPA2/AES . Any newer or non-standard Wi-Fi authentication protocols are not supported.

• Wireless networks may be affected by the surrounding wireless communication environment.

• If your Internet service provider has registered the MAC address of your PC or modem for identication, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.

• The rewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.

• To congure the wireless access point (AP) settings, see the user manual of the AP (router).

• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols. (IEEE 802.11 n is recommended.)

• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators. Untitled-21 43Untitled-21 43 2025-03-31 3:57:272025-03-31 3:57:27Operations English44 Samsung account You are required to register your Samsung account to use the app. If you don’t have a Samsung account, follow the app’s onscreen instructions to create a free Samsung account. Getting started Turn on the device you want to connect, open the SmartThings app on your phone, and then follow the instructions below. If a pop-up appears saying that a new device has been found, tap ADD NOW. If a pop-up doesn't appear, tap the + button, and then select the device you want to connect from the list of available devices. If your device isn't in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specic device model. Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a "card" on your Devices screen. Refrigerator app Integrated control You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator page.

• Check the operation status or notications related to your refrigerator, and then change options or settings if necessary. NOTE Some options or settings of the refrigerator may not be available for remote control. Untitled-21 44Untitled-21 44 2025-03-31 3:57:272025-03-31 3:57:27English 45 Category Item Description Monitoring Fridge temperature Displays the desired temperature setting of the fridge. Freezer temperature Displays the desired temperature setting of the freezer. FlexZone settings Displays the settings of the FlexZone. Energy monitoring Checks the accumulated power consumption of the refrigerator for the last 180 days. Functions Ice making You can turn the ice making function on or off, and check the current settings of the function. You can also check the status and progress of ice making. Power Cool You can turn Power Cool on or off, and check the current settings. Power Freeze You can turn Power Freeze on or off, and check the current settings. Fridge temperature You can set the desired temperature of the fridge. Freezer temperature You can set the desired temperature of the freezer. FlexZone settings You can set the desired FlexZone mode. Sabbath Mode You can activate and deactivate the Sabbath mode. Alarms Abnormally high temperature This alarm is triggered when the fridge, the freezer, or the FlexZone has abnormally high temperatures. Door opening This alarm is triggered if the fridge door, the freezer drawer, or the FlexZone drawer is open for a specic time. AutoFill Pitcher overowing If the AutoFill Pitcher function senses an overow, it triggers this alarm to let you know the status of the overow. Water lter replacement This alarm reminds you that the water lter must be replaced. Untitled-21 45Untitled-21 45 2025-03-31 3:57:282025-03-31 3:57:28Operations English46 SMART GRID Function (Demand Response, applicable models only) When the refrigerator operates in SMART GRID (Demand Response) mode, the Energy Management Refrigerator function can control energy usage or delay the operation of some functions to save money when energy prices or demand are the highest. NOTE

• You can deactivate the SMART GRID (Demand Response) function at any time using the Peak Demand Off function.

• To use the SMART GRID (Demand Response) function, you need a separate contract with your electric utility company. In addition, to use the Smart Grid (Demand Response) function, you must register for the service with your electric company. The company must have an EMS (Energy Management System) that supports SEP (Smart Energy prole). Using the SMART GRID (Demand Response) Function This feature monitors energy prices and demand information from your utility company and sends notications to the refrigerator to run high energy consuming tasks during off- peak times when electricity costs and demand are lower. If the refrigerator receives a control signal from the utility company, the refrigerator will display the DAL ~ TALR levels on the refrigerator display and control the power consumption according to the level. [Exception condition] The DAL and TALR control signals from a utility company work as long as product performance is maintained. If the refrigerator receives the SMART GRID (Demand Response) signal ( DAL or TALR), the refrigerator will operate in Delay Appliance Load (DAL) or Temporary Appliance Load Reduction (TALR) mode.

• Delay Appliance Load (DAL): The refrigerator responds to a DAL signal by providing a moderate load reduction for the duration of the delay period. This function controls functions that consume a lot of energy such as adjusting the Cooling system, running the defrost cycle, and making ice. - When the refrigerator operates in DAL mode, " L3 " is displayed on the refrigerator display. - DAL mode is automatically deactivated after it lasts for the amount of time stipulated by the DAL signal (max. 4.5 hours) or when the Peak Demand Off key is pressed.

• Temporary Appliance Load Reduction (TALR): The refrigerator responds to a TALR signal by aggressively reducing the load for a short time period. This function reduces energy consumption by stopping the compressor and controlling the functions that consume a lot of energy such as the defrost cycle and making ice. - When the refrigerator operates in TALR mode, " L4 " is displayed on the refrigerator display. - TALR mode is automatically deactivated after it lasts for the received duration (max. 15 minutes), or when the Peak Demand Off key is pressed. The mode is immediately deactivated and the refrigerator returns to the normal state when the door is opened or closed, or the dispenser is used. Untitled-21 46Untitled-21 46 2025-03-31 3:57:282025-03-31 3:57:28English 47 To check the MAC address

1. In this mode, the MAC address appears

on the temperature panel (on both the freezer and the fridge sections of the panel) sequentially for 1 minute. Press and hold both Freezer and Fridge for 6 seconds. The temperature panel blinks. Then, press Freezer again to display the MAC address. The fridge beeps.

2. For example, if the MAC address is "11-

22-33-44-55-66", the temperature panel displays the address for 1 minute in this sequence: "-- / --" "11 / 22" "33 / 44" "55 / 66" "-- / --". After 1 minute, the MAC address disappears and the temperature panel returns to the normal state. NOTE The temperature panel displays "-- / --" for an unknown MAC address or if a Wi-Fi connection is not established or is lost. Peak Demand Off (Override mode) When you want the refrigerator to ignore the SMART GRID (Demand Response) signal from the utility company, you can activate Peak Demand Off (Override mode). When you activate Peak Demand Off (Override mode), the refrigerator ignores the SMART GRID (Demand Response) signal and is not controlled by the utility company. Activating and deactivating Peak Demand Off (Override mode)

1. Press and hold Fridge for 3 seconds.

2. A buzzer sounds and the Peak Demand Off (Override mode) icon ( ) turns on.

3. If the refrigerator receives a SMART GRID (Demand Response) signal from the utility

company, ’Or’ is displayed in the fridge temperature display.

4. To deactivate Peak Demand Off (Override mode), press and hold Fridge for 3 seconds.

5. A buzzer sounds and the Peak Demand Off (Override mode) icon ( ) turns off.

• Alternatively, you can activate or deactivate Peak Demand Off (Override mode) using the SmartThings app and the Energy Management function. See the next page. Untitled-21 47Untitled-21 47 2025-03-31 3:57:282025-03-31 3:57:28Operations English48 Using the Energy Management Function The Energy Management function enables you to control and monitor your Energy Management refrigerator using the SmartThings app for your convenience. NOTE

• To use the Energy Management refrigerator functions, you have to install the corresponding app rst.

1. Operational Status

- You can check the DR and Peak Demand status.

2. Energy Consumption Reporting

- Shows the accumulated power consumption. Power consumption data is updated every 10 minutes. NOTE The energy consumption report may differ from the power consumption specications of the product depending on the operating environment and the stored food.

3. Delay Defrost Capability

- The Delay Defrost Capability function saves energy by delaying the defrost operation to a time specied by the user. You can congure the time. and this function will save energy during the specied period in a 24 hour cycle. If the time is not set, the function works with the default time settings. The default time settings are below: - 6 am to 10 am: 1st. November ~ 30th. April - 3 pm to 7 pm: 1st. May ~ 31th. October To change the time setting for the Delay Defrost Capability You can change the time setting for the Delay Defrost Capability on the app. Provision for Open Access to the Connected Product Requirements

1. SGIP Open Standards (Smart Energy Prole 2.0 - http://www.csep.org/)

- Energy Consumption Reporting - Demand Response

A. Fridge door handle B. Beverage Center handle The left fridge door has two handles on the bottom. To use the autoll pitcher, drink cold or puried water, press handle (B) to open the Beverage Center. Water pitcher (AutoFill Pitcher) (applicable models only) Cold, puried water is always ready in the AutoFill Pitcher . You can put tea or fruits in the infuser to enjoy the various infused water you like.

01 Lid 02 Infuser holder 03 Infuser 04 Body Untitled-21 49Untitled-21 49 2025-03-31 3:57:292025-03-31 3:57:29Operations English50 To ll the Water pitcher

1. Grasp a handle groove of the lid, and

then pull up to open the lid.

2. Put tea leaves or fruit to your taste into

the infuser. NOTE If you want to keep the infused water in its initial concentration, turn the AutoFill Pitcher function off. A B

A. Type A models B. Type B models

3. Enable the AutoFill Pitcher function on

the control panel. Open the Beverage Center door (Type A) or the left door of the fridge (Type B), and then mount the water pitcher onto the holder. Push it straight in as shown in the gure. CAUTION Make sure the water pitcher ts in the water pitcher holder.

4. Close the door. The water pitcher will

start to ll with chilled water a short time later. A B

A. Type A models B. Type B models

5. To drink tea, open the Beverage Center

door (Type A) or the left door of the fridge (Type B), and then detach the water pitcher. Pull it straight out. Untitled-21 50Untitled-21 50 2025-03-31 3:57:292025-03-31 3:57:29English 51 CAUTION

• We recommend consuming fruit infused water within 24 hours. After that, the infused water can spoil over time.

• You must clean the water pitcher after you have consumed the infused water. Also clean the water pitcher if you haven't used it for a long time.

• To prevent the water pitcher from tipping over or leaking, make sure the water pitcher ts in the water pitcher holder.

• To prevent the water pitcher from spilling over or leaking, make sure the infuser holder is properly inserted. NOTE

• If the front side (specically marked area) of the water pitcher has too much moisture, the water pitcher may not fully ll. Remove the moisture, and then try again.

• AutoFill Pitcher function will stop supplying water to the water pitcher if the water pitcher does not ll after a certain amount of time. If this happens, check if the water line is properly connected. Remove and reinsert the water pitcher, and then try again. Untitled-21 51Untitled-21 51 2025-03-31 3:57:302025-03-31 3:57:30Operations English52

A. Type A models B. Type B models NOTE

• Wipe around the water pitcher holder if the water pitcher overows or leaks.

• Water drops off if the rubber cap is opened.

• An alert message appears on the control panel if there is a leak. In case of a leak, open the rubber cap so that the leaked water drains. If the alert message does not disappear after draining, there might be a system failure. Contact your local Samsung service center. NOTE

• You must clean the water pitcher after you have consumed the infused water. You must also clean the water pitcher if you have not used it for a long time or left the full pitcher for more than three days.

• If the infuser is not properly cleaned, the scent of the tea or fruits you previously used in the infuser may remain. If you are not going to use the infuser, separate it from the pitcher and store it safely.

• If you have not used the water lter for a long time, pour away the rst two pitchers of water. Then, clean the water pitcher thoroughly and use it. Untitled-21 52Untitled-21 52 2025-03-31 3:57:302025-03-31 3:57:30English 53 Water dispenser (applicable models only) To dispense chilled water, open the Beverage Center and press the dispenser lever. NOTE

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.

• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.

• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the rst 1-2 glasses of water. Water clouding Water supplied to the refrigerator ows through a core alkaline lter. During this ltering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds. Ice maker The refrigerator has a built-in ice maker that automatically dispenses ice.

• The overall design and/or accessories may differ with the model.

• This product has two types of ice makers. WARNING Choking hazard: Ice may cause choking in small children. Ice making After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice. Untitled-21 53Untitled-21 53 2025-03-31 3:57:302025-03-31 3:57:30Operations English54 For rst-time use

• Let the ice maker make ice for 1-2 days.

• Discard the rst 1-2 buckets of ice to remove impurities in the water supply system. Diagnosis

• The overall design and/or accessories may differ with the model.

• If ice does not dispense, rst check the status of ice maker using the Test button on the bottom of the ice maker.

• Press the Test button on the bottom of the ice maker. You will hear a chime (ding-dong) when you press the button. You will hear another chime if the ice maker is operating properly.

• Ice accumulating on one side of the tray is normal. Arrange the ice evenly in the tray to store more ice.

• Take caution when removing the ice bucket, the ice cubes may pour down from the tilt.

• When reinserting the ice bucket, remove any ice lump that are left over in the tray. Untitled-21 54Untitled-21 54 2025-03-31 3:57:312025-03-31 3:57:31English 55 CAUTION

• Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure to turn the ice making function (Cubed Ice / Ice Bites ) off.

• If the ice making chime rings repeatedly, contact the waterline installer or a local Samsung service center.

• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.

• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the refrigerator.

• Do not put ngers or any objects into the ice maker. This can cause physical injury or property damage.

• Due to sublimation, ice stored in the freezer for a long time gets smaller and then forms large ice chunks. Therefore, if it will be a long time before you use ice, turn the ice maker off.

• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set. The ice maker cover is designed to wrap up the ice bucket when the freezer door is opened. Improper insertion as shown below may cause the door not to be closed properly. If the cover breaks away from its correct course, lift up the cover and insert it again properly. See the gure below. Untitled-21 55Untitled-21 55 2025-03-31 3:57:312025-03-31 3:57:31Operations English56 FlexZone divider The FlexZone is a full-width drawer with adjustable temperature control. The FlexZone can be used for large party trays, deli items, pizza, beverages, or miscellaneous items. CAUTION

• Do not use the FlexZone to store most kinds of fruit or leafy vegetables. These food items may suffer coldtemperature damage.

• Do not store glass bottles in the FlexZone in Beverage mode. They may break and cause physical injury Untitled-21 56Untitled-21 56 2025-03-31 3:57:312025-03-31 3:57:31English 57 Maintenance Handling and care Ice bucket (applicable models only) If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket. CAUTION

• To prevent injury, make sure to clean up any ice or water that has fallen on the oor.

• To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.

• Use only the provided ice bucket. Third-party ice buckets may cause a system failure. NOTE

• The water pressure required for ice making is between 30-125 psi (206-861 kPa).

• Noise from the ice maker as it produces ice during the ice making process is normal. Where to keep the scoop Keep the scoop inside the scoop tray. You can also store the scoop inside the ice bucket. In this case, sit the handle of the scoop against the side wall of the bucket for easy access. Untitled-21 57Untitled-21 57 2025-03-31 3:57:322025-03-31 3:57:32Maintenance English58 AutoFill Pitcher (applicable models only)

1. Grasp a handle groove of the lid, and

then pull up to remove.

2. Grasp both sides of the infuser holder,

and then lift to remove.

3. While slightly twisting the infuser, pull

it out of the sealed mouth.

4. Clean the infuser with neutral agents

and running water. Rinse and dry well.

5. Reassemble the AutoFill Pitcher in the

reverse order of disassembly. CAUTION The water pitcher and lid are not microwave safe and can melt or deform if exposed to heat (including hot water). Please hand wash in cool or warm water as needed. Untitled-21 58Untitled-21 58 2025-03-31 3:57:322025-03-31 3:57:32English 59 Fridge shelves The appearance of the shelves differs by model. Top shelf

1. Lift the rear side of the shelf with one

hand, and then pull it out.

2. Tilt the shelf vertically as shown in the

3. Carefully pull out the shelf as shown in

the gure. Untitled-21 59Untitled-21 59 2025-03-31 3:57:322025-03-31 3:57:32Maintenance English60 Quick Space shelf *

• To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and pull out. NOTE Do not lift up the shelf fully when removing or reinserting the shelf. The rear wall of the fridge room can be dented.

• To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch. CAUTION

• The tempered glass shelves are heavy. Use caution when removing them.

• The shelf must be inserted correctly. Do not insert upside down.

• Glass containers may scratch the surface of glass shelves. Untitled-21 60Untitled-21 60 2025-03-31 3:57:332025-03-31 3:57:33English 61 Vegetable shelf NOTE You must remove the Quick Space shelf before removing the Vegetable shelf.

1. Pull the shelf out.

2. Press the front of the shelf to lift the

3. Hold the rear side of the shelf and tilt it

4. Carefully pull out the shelf as shown in

the gure. Untitled-21 61Untitled-21 61 2025-03-31 3:57:342025-03-31 3:57:34Maintenance English62 Door bins

• To remove the door bin, hold the front sides of the bin, and then gently lift up to remove.

• To reinsert, insert the door bin slightly above its nal location making sure that the back of the bin is against the door. Hold the rear of the door bin with both hands, and then press down so that it ts snugly. CAUTION

• Do not remove a bin that is lled with food. Empty the bin beforehand.

• Use caution when opening the door if the bottom bin contains larger bottles, which may fall over.

• Do not allow children to play with the bins. Sharp corners of the bin may cause injury. Crisper+ / Fridge Drawers Gently lift up the front of the drawer and slide out.

• We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.

• To reinsert, insert the drawer into the frame rails and then slide inward. Untitled-21 62Untitled-21 62 2025-03-31 3:57:342025-03-31 3:57:34English 63 FlexZone basket

• To remove, fully open the FlexZone drawer. Lift up the FlexZone basket, and then pull out with both hands.

• To reinsert, fully open the FlexZone drawer. While tilting up the front of the basket, insert the rear of the basket into the rail assembly. Lower the front until the basket is in place.

• If the divider lock does not function, wipe the bars to remove moisture on them. Freezer baskets Upper basket

• To remove, fully slide open the freezer drawer. Push the upper basket to the end, and then pull up to remove.

• To reinsert, align the front wheels of the upper basket with the end of the lower basket. Slide the upper basket to the front. Lower basket

• To remove, rst remove the upper basket. Then, tilt up the front of the lower basket to pull out.

• To reinsert, put the basket onto the rail assembly rear side rst. Untitled-21 63Untitled-21 63 2025-03-31 3:57:342025-03-31 3:57:34Maintenance English64 CAUTION

• Do not twist the basket when removing or reinserting the basket. The basket can be scratched.

• To prevent physical injury, property damage, or suffocation, keep children away from freezer baskets that have been removed.

• Do not remove the divider.

• Put the wheels of the upper basket on the end of the rails of the lower basket. Then, slide the upper basket all the way to the front. Otherwise, the drawer will not open or close properly, which will cause frost to build up. Untitled-21 64Untitled-21 64 2025-03-31 3:57:342025-03-31 3:57:34English 65 Cleaning Interior and exterior WARNING

• Do not use benzene, thinner, home/car detergent, or Clorox™ to clean the refrigerator. They may damage the surface of the refrigerator and cause a re.

• Do not spray water onto the refrigerator. This may cause electric shock. Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.

2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior

3. When done, use a dry cloth or paper towel to dry well.

4. Plug in the power cord.

Dispenser nozzle (applicable models only)

1. Hold the end of the dispenser nozzle (A).

2. While turning the dispenser nozzle (A)

left, pull it down to remove it from the dispenser.

3. Clean the dispenser nozzle thoroughly,

and then assemble it back. CAUTION

• Fully insert the dispenser nozzle, so it is back to its original position.

• Do not use a sponge with rough textures for cleaning the dispenser nozzle. Untitled-21 65Untitled-21 65 2025-03-31 3:57:352025-03-31 3:57:35Maintenance English66 Rubber seals If the rubber seals of a door become dirty, the door may not close properly and reducing refrigerator performance and efciency. Use a mild detergent and damp cloth to clean the rubber seals. Then, dry well with a cloth. Rear panel To keep cords and exposed parts of the rear panel free of dirt, vacuum the panel once or twice a year. CAUTION Do not remove the rear panel cover. Electric shock may occur. Replacement Water lter WARNING

• Do not use third-party water lters. Use only Samsung-provided or -approved lters.

• Unapproved lters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water lters. NOTE When the water lter is removed, water will not be supplied and therefore the ice maker and dispenser will not operate. The Filter Reset indicator ( ) turns red to let you know it is time to replace the water lter. Before replacing the lter, make sure the water supply line is shut off. Untitled-21 66Untitled-21 66 2025-03-31 3:57:352025-03-31 3:57:35English 67

1. Shut off the water supply line.

2. Open the lter cartridge cover.

3. Turn the knob of the lter cartridge

4. Pull out to remove the cartridge.

- If the water lter is severely contaminated, the cartridge may not be easy to remove. If that is the case, use force to remove the cartridge. - To prevent water leaks from the lter opening, pull the cartridge straight out while removing it.

5. Insert a new lter cartridge. Use only

Samsung-provided or approved lters.

7. Close the lter cartridge cover.

8. Press and hold Filter Reset on the main

panel for 3 seconds to reset the life cycle detector. The Filter Reset indicator ( ) turns off.

9. When you are done replacing the lter,

open the water valve and run water through the dispenser for about 7 minutes. This is to remove impurities and air from the water line. Untitled-21 67Untitled-21 67 2025-03-31 3:57:352025-03-31 3:57:35Maintenance English68 NOTE

• A newly installed lter may cause the water dispenser to spurt water briey. This is because air has entered the waterline.

• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the oor with a dry towel. Untitled-21 68Untitled-21 68 2025-03-31 3:57:362025-03-31 3:57:36English 69 Reverse osmosis water ltration system The water pressure of the water supply system to a reverse osmosis water ltration system must be between 30-125 psi (206-861 kPa). The water pressure of the reverse osmosis water ltration system to the refrigerator’s cold water line must be at least 30 psi (206 kPa). If the water pressure is below these specications:

• Check if the sediment lter in the reverse osmosis system is blocked. Replace the lter if necessary.

• Rell the water tank in the reverse osmosis system with water. For more information or servicing, contact a licensed plumbing professional. Ordering a new lter To purchase a new water lter, contact a local Samsung service center or visit www. samsung.com/us on the web. LED Lamps To replace the lamps of the refrigerator, contact a local Samsung service center. WARNING

• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock. Door panel (applicable models only) You can select the door panel you prefer for your BESPOKE refrigerator. Purchase the door panel at a Samsung retail store and an authorized installer will install the panel for you. CAUTION

• Disassembling or assembling the door panel on your own may result in product damage or personal injury. If you nd any problems with the door panel, contact a Samsung service center

• A service fee may be charged for panel replacement even within the warranty period. Untitled-21 69Untitled-21 69 2025-03-31 3:57:362025-03-31 3:57:36English70 Troubleshooting Before calling for service, review the symptoms and recommended solutions below. If none of the suggested solutions resolve your problem, please visit our website at www. samsung.com or call Samsung Customer Care at 1-800-SAMSUNG (726-7864). Note that you will be charged for any service visits in which no defects were found. General Temperature Symptom Possible causes Solution Fridge/freezer does not operate. Fridge/freezer temperature is warm.

• Power cord is not plugged in properly.

• Properly plug in the power cord.

• Temperature control is not set correctly.

• Set the temperature lower.

• Refrigerator is located near a heat source or direct sunlight.

• Keep the refrigerator away from direct sunlight or a heat source.

• Not enough clearance between refrigerator and nearby walls or cabinets.

• Make sure there is a gap of at least 2.5 inches (5 cm) between the refrigerator back and sides and any nearby walls or cabinets.

• The refrigerator is overloaded. Food is blocking the refrigerator vents.

• Do not overload the refrigerator. Do not allow food to block vents. Fridge/freezer is over-cooling.

• Temperature control is not set correctly.

• Set the temperature higher. Interior wall is hot.

• Refrigerator has heat-proof piping in the interior wall.

• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure. Untitled-21 70Untitled-21 70 2025-03-31 3:57:362025-03-31 3:57:36English 71 Odors Symptom Possible causes Solution Refrigerator has odors.

• Clean the refrigerator and remove any spoiled food.

• Food with strong odors.

• Make sure strong smelling food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the vents.

• Food is blocking the vents.

• Make sure no food blocks the refrigerator vents. Frost on interior walls.

• Door is not closed properly.

• Make sure food does not block the door. Clean the door gasket. Fruits or vegetables are frozen.

• Fruits or vegetables are stored in the FlexZone.

• Do not store most kinds of fruit or vegetables in the FlexZone. Condensation Symptom Possible causes Solution Condensation forms on the interior walls.

• If door is left open, moisture enters the refrigerator.

• Remove the moisture and do not leave a door open for extended periods of time.

• Food with high moisture content.

• Make sure food is wrapped airtight. Water/ice (dispenser models only) Symptom Possible causes Solution Water ow is weaker than normal.

• Water pressure is too low.

• Make sure the water pressure is between 30- 125 psi (206-861 kPa) Ice maker makes a buzzing sound.

• The ice maker function is activated, but the water supply to the refrigerator has not been connected.

• Turn off the Ice Maker. Untitled-21 71Untitled-21 71 2025-03-31 3:57:362025-03-31 3:57:36Troubleshooting English72 Symptom Possible causes Solution Ice maker does not make ice.

• Ice maker has just been installed.

• You must wait for 24 hours for the refrigerator to make ice.

• Freezer temperature is too high.

• Set the freezer temperature below 0 °F (-18 °C) or -4 °F (-20 °C) in warm ambient air.

• Ice maker is off. • Turn on the ice maker. Ice does not dispense.

• Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).

• If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.

• Ice bucket is not properly inserted.

• Make sure the ice bucket is properly inserted.

• Water line is not connected properly or water supply is not on.

• Check the water installation conditions. Untitled-21 72Untitled-21 72 2025-03-31 3:57:362025-03-31 3:57:36English 73 Symptom Possible causes Solution Water does not dispense.

• Water line is not connected properly or water supply is not on.

• Check the water installation conditions.

• A third-party water lter was installed.

• Use only Samsung-provided or approved lters.

• Unapproved lters may leak and damage the refrigerator.

• The " Replace water lter" message appears on the control panel.

• Replace the water lter. Then, on the control panel, go to More Options, and then run Filter Reset. Untitled-21 73Untitled-21 73 2025-03-31 3:57:362025-03-31 3:57:36Troubleshooting English74 Do you hear abnormal sounds from the refrigerator? Before calling for service, review the information below. If you still have questions about sounds your refrigerator is making, please call Samsung Customer Care at 1-800-SAMSUNG (726-7864). Note that you will be charged for any service visits related to normal operating sounds in which no defects were found. These sounds are normal.

• When starting or ending an operation, the refrigerator may make sounds similar to a car engine ignition. As the operation stabilizes, the sounds will decrease. Clicking! or Chirping!Buzzing!

• While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, the fan sound will stop. SSSRRR!Whir! Untitled-21 74Untitled-21 74 2025-03-31 3:57:372025-03-31 3:57:37English 75

• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds. HiSS!

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling!

• As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working. Cracking!

• For ice maker models: When the water valve opens to ll the ice maker, you may hear a buzzing sound.

• Due to pressure equalizing when you open and close the refrigerator door, you may hear a whooshing sound. Untitled-21 75Untitled-21 75 2025-03-31 3:57:372025-03-31 3:57:37Troubleshooting English76 SmartThings Symptom Action Could not nd "SmartThings" in the app market.

• The supporting software version of the SmartThings app is subject to change according to the OS supporting policy the manufacturer provides. In addition, as for the SmartThings app or the functions that the app supports, the new application update policy on the existing OS version can be suspended due to usability or security reasons. The SmartThings app fails to operate.

• The SmartThings app is available for applicable models only.

• The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models. The SmartThings app is installed but is not connected to my refrigerator.

• You must log into your Samsung account to use the app.

• Make sure that your router is operating normally.

• If the Wi-Fi icon on the refrigerator’s display is off, this indicates that no network connection has been established yet. In this case, use the SmartThings app to connect and register your refrigerator to the access point (AP) of your house. Could not log into the app.

• You must log into your Samsung account to use the app.

• If you don’t have a Samsung account, follow the app’s onscreen instructions to create one. An error message appears when I try to register my refrigerator.

• Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again. The SmartThings app is successfully connected to my refrigerator but does not run.

• Exit and restart the SmartThings app, or disconnect and reconnect the router.

• Power off the refrigerator, and then power it on again after 1 minute. The Wi-Fi icon is blinking. ( )

• Connect your refrigerator with the SmartThings app before use. When the connection is made successfully, the indicator stops blinking. - If you fail to make connection or don’t want to use the app, press and hold the Door Alarm button for 10 seconds. The indicator stops blinking with "O FF" shown on the temperature display. Untitled-21 76Untitled-21 76 2025-03-31 3:57:372025-03-31 3:57:37English 77 Smart Grid (applicable models only) Symptom Action What Do I Need to use the Energy Management and Smart Grid functions? To use the Smart Grid (Demand Response) and Energy Management functions on your refrigerator, you need the following: Devices

• A wireless access point (router)

• A Samsung Energy Management-supported refrigerator

• A smartphone Registration

• Connect your refrigerator to your home Wi-Fi network.

• Register for the EMS service with your electric company. Your electric company must have an EMS (Energy Management System) supporting SEP (Smart Energy prole). App

• Download the SmartThings app from the Google Play Store, Apple App Store, or Samsung Galaxy Apps.

• Install and run the SmartThings app on your smartphone. Why isn’t the Energy Management function working normally?

• Make sure that your home router is operating normally with proper Internet service and connection.

• Make sure that the refrigerator is connected to the AP (router). Checkpoints

• Connect your smartphone to the router (AP, Access Point), and then check if you can browse the Internet on the smartphone. Why isn’t the Delay Defrost Capability working normally?

• Make sure that your home router is operating normally with proper Internet service and connection. Untitled-21 77Untitled-21 77 2025-03-31 3:57:372025-03-31 3:57:37English78 LIMITED WARRANTY (U.S.A.) SAMSUNG REFRIGERATOR LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty periods, starting on the date of delivery to the original consumer purchaser: One (1) year parts and labor Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor, Evaporator, Condenser, Drier, and Connecting Tubing) Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale and/or proof of delivery must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service. SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. To receive in-home service, product must be unobstructed and accessible to the service agent. During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG. Untitled-21 78Untitled-21 78 2025-03-31 3:57:372025-03-31 3:57:37English 79 This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modication or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s nishes; damage caused by abuse, misuse, pest infestations, accident, re, oods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer’s responsibility. Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. Untitled-21 79Untitled-21 79 2025-03-31 3:57:382025-03-31 3:57:38LIMITED WARRANTY (U.S.A.) English80

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) www.samsung.com/us/support Untitled-21 80Untitled-21 80 2025-03-31 3:57:382025-03-31 3:57:38English 81 Warranty Information (CANADA) If your refrigerator needs service Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number if your product is not functioning properly. Limited Warranty for Original Purchaser This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods: Labor: 1 year (in-home) Parts: 1 year Inverter Compressor: 10 years (Part only) SECA further warrants that if this product fails to operate properly within the specied warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to nd out if in-home service is currently available in your area by using the contact information at the back of this warranty. All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To nd the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca) Untitled-21 81Untitled-21 81 2025-03-31 3:57:382025-03-31 3:57:38Warranty Information (CANADA) English82 Obligation to the Original Owner The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer. Exclusions of the Warranty This warranty does not cover damage due to accident, re, ood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics Canada Inc. 2050 Derry Road West Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) Untitled-21 82Untitled-21 82 2025-03-31 3:57:382025-03-31 3:57:38English 83 Regulatory Notice FCC Notice FCC CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Contains Transmitter Module FCC ID: A3LCCAR210R This device complies with Part 15 of FCC Rules. Operation is Subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that cause undesired operation. For products available in the US and Canadian markets, only channels 1~11 are available. You cannot select other channels. FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment to an outlet that is on a different circuit than the receiver.

• Consult the dealer or an experienced radio/TV technician for help. FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Untitled-21 83Untitled-21 83 2025-03-31 3:57:382025-03-31 3:57:38Regulatory Notice English84 IC Notice Contains Transmitter Module IC: 649E-CCAR210R The term "IC" before the radio certication number only signies that Industry Canada technical specications were met. Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For products available in the US and Canadian markets, only channels 1~11 are available. You cannot select other channels. IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.

SAVE THESE INSTRUCTIONS

Untitled-21 84Untitled-21 84 2025-03-31 3:57:382025-03-31 3:57:38English 85 Open Source Announcement The software included in this product contains open source software. The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product. Untitled-21 85Untitled-21 85 2025-03-31 3:57:382025-03-31 3:57:38Memo Untitled-21 86Untitled-21 86 2025-03-31 3:57:382025-03-31 3:57:38Memo Untitled-21 87Untitled-21 87 2025-03-31 3:57:382025-03-31 3:57:38Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Show

Untitled-4 82Untitled-4 82 2025-04-02 2:05:002025-04-02 2:05:00Español 83 Open Source Announcement The software included in this product contains open source software. The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product. Untitled-4 83Untitled-4 83 2025-04-02 2:05:002025-04-02 2:05:00Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Show

Untitled-5 83Untitled-5 83 2025-04-02 2:07:432025-04-02 2:07:43Français84 Open Source Announcement The software included in this product contains open source software. The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads to open source license information as related to this product. Untitled-5 84Untitled-5 84 2025-04-02 2:07:432025-04-02 2:07:43Mémo Untitled-5 85Untitled-5 85 2025-04-02 2:07:432025-04-02 2:07:43Mémo Untitled-5 86Untitled-5 86 2025-04-02 2:07:432025-04-02 2:07:43Mémo Untitled-5 87Untitled-5 87 2025-04-02 2:07:432025-04-02 2:07:43Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Show
