USER MANUAL NGM8648UC BOSCH

1.10 State of California Proposition 65 Warnings .............8

4 Familiarizing yourself with your appliance ............10

7.5 Normal behavior during operation ............................16

13.1 What this warranty covers & Who it applies to .........26

13.2 How long the warranty lasts.....................................26

13.3 Repair/replace as your exclusive remedy.................27

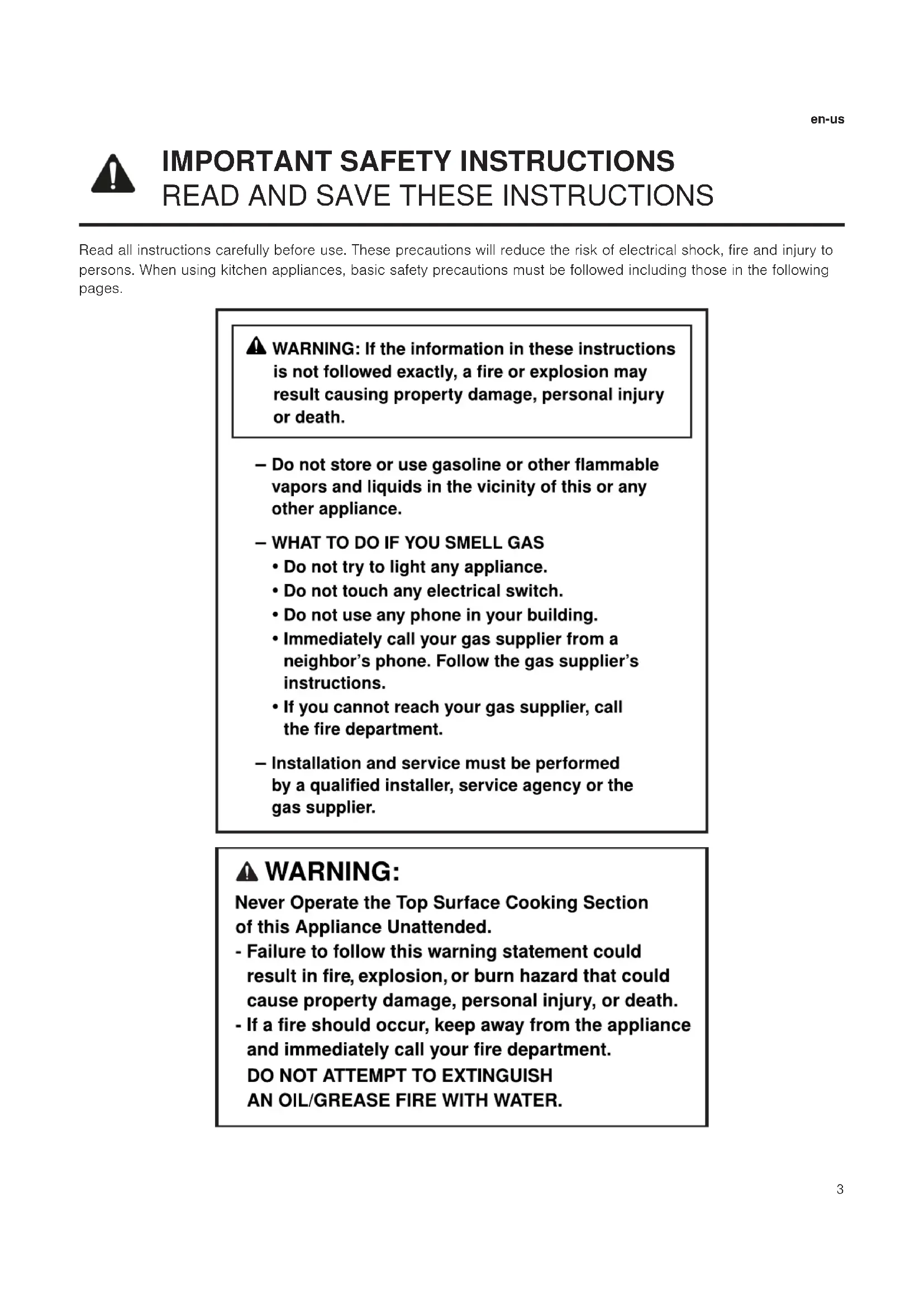

Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.

1.1 Safety definitions Here you can find explanations of the safety signal words used in this manual. WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advi- sory. Note:This alerts you to important information and/or tips. 1.2 General information ¡ Read this manual carefully. ¡ Keep the manual and the product information in a safe place for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.3 Intended use The appliance can only be used safely if it is correctly in- stalled according to the installation instructions. The in- staller is responsible for ensuring that the appliance works perfectly at its installation location. Only use this appliance: ¡ for cooking purposes. ¡ Under supervision. Never leave the appliance unat- tended when cooking for short periods. ¡ In private households and in a residential environment. Do not use the appliance: ¡ On boats or in vehicles. ¡ as a room heater. ¡ This appliance is not intended for operation with an ex- ternal time switch or external remote control. Call Customer Service if you want to convert your appli- ance to a different type of gas. 1.4 Restriction on user group This appliance is not intended for use by persons (includ- ing children) with reduced physical, sensory or mental ca- pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concern- ing use of the appliance by a person responsible for their safety. When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by quali- fied persons. Children should be supervised to ensure that they do not play with the appliance. Do not let children play with the appliance. 1.5 Safe use WARNING When properly cared for, your new appliance has been designed to be safe and reliable. ▶ Read all instructions carefully before use. These pre- cautions will reduce the risk of burns, electric shock, fire, and injury to persons. ▶ When using kitchen appliances, basic safety precau- tions must be followed, including those in the following pages. WARNING Overheated materials can cause fire or burns. ▶ Do not allow aluminum foil, plastic, paper or cloth to come in contact with a hot surface element, burner or grate. ▶ Do not allow pans to boil dry. Set the burner control so that the flame does not extend beyond the bottom of the pan. Take care that drafts like those from fans or forced air vents do not push the flames so that they extend beyond the edges of the pan. During a power failure, only the cooktop burners can be lit manually. Unattended cooking on a cooktop with fat or oil can be dangerous and may result in a fire. ▶ Do not leave the cooktop unattended when in use. A fire could occur during cooking. ▶ Always have a working smoke detector near the kitchen.

▶ Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance. If the cooktop is near a window, forced air vent or fan, be certain that flammable materials such as window cover- ings do not blow over or near the burners or heating ele- ments. They could catch on fire. Cooking fires can spread if extinguished incorrectly. ▶ Never use water on cooking fires. WARNING TO REDUCE THE RISK OF A GREASE FIRE ▶ Never Leave Surface Units Unattended at High Set- tings - Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium set- tings. ▶ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Ju- bilee, Peppercorn Beef Flambe’). ▶ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. ▶ Use proper pan size. Always use cookware appropriate for the size of the surface element. Flames can be drawn into the ventilation system. ▶ Whenever possible, do not operate the ventilation sys- tem during a cooktop fire. However, do not reach through fire to turn it off. Cookware Handles Should be Turned Inward and Not Ex- tend Over Adjacent Surface Units. ▶ To reduce the risk of burns, ignition of flammable mate- rials, and spillage due to unintentional contact with the cookware, the handle of a cookware should be posi- tioned so that it is turned inward, and does not extend over adjacent surface units. Wear Proper Apparel. Loose-fitting or hanging garments, such as ties, scarves, jewelry, or dangling sleeves, should never be worn while using the appliance. ▶ Tie long hair so that it does not hang loose. ▶ Secure all loose garments, etc. before beginning. CAUTION The cooking process has to be supervised. A short term cooking process has to be supervised continuously. WARNING To avoid risk of fire do not store items on the cooking sur- faces. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames. Do Not Use Water on Grease Fires. ▶ Smother fire or flame or use dry chemical or foam-type extinguisher. Adjust burner flame size so that it does not extend beyond the edge of the cookware. Proper relationship of cookware to burner flame reduces safety risks. WARNING Use Only Dry Potholders - Moist or damp potholders on hot surfaces may result in burns from steam. ▶ Do not let potholders touch hot heating elements. ▶ Do not use a towel or other bulky cloth. Hot oil is capable of causing extreme burns and injury. ▶ Use high heat settings on the cooktop only when nec- essary. ▶ To avoid bubbling and splattering, heat oil slowly on no more than a low-medium setting. ▶ Never move a pan of hot oil, especially a deep fat fryer. Wait until it is cool. Spills of hot food may cause burns. ▶ Hold the handle of the pan when stirring or turning food. This helps prevent spills and movement of the pan. DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. ▶ During and after use, do not touch, or let clothing, potholders, or other flammable materials contact sur- face units or areas near units until they have had suffi- cient time to cool. Among these areas are the cooktop and areas facing the cooktop. Clean Cooktop With Caution. ▶ If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. ▶ Some cleaners can produce noxious fumes if applied to a hot surface. ▶ Do not clean the appliance while it is still hot. After a spill or boilover, turn off the burner and allow the cooktop to cool. ▶ Clean around the burner and burner ports. ▶ After cleaning, check for proper operation. Inspect your cookware for damage or excessive wear be- fore using it.

WARNING Storage in or on Appliance - The use of corrosive chemi- cals in heating or cleaning will damage the appliance and could result in injury. ▶ Flammable materials, corrosive chemicals, vapors or non-food products should not be stored or used in an oven or on or near surface units. ▶ The appliance is specifically designed for use when heating or cooking food. This appliance is intended for normal family household use only. ▶ It is not approved for outdoor use. ▶ See the Statement of Limited Product Warranty. If you have any questions, contact the manufacturer. WARNING Use this appliance only for its intended use as described in this manual. ▶ NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monox- ide poisoning and overheating the appliance. WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE, OB- SERVE THE FOLLOWING. ▶ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CARE- FUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DE- PARTMENT. ▶ NEVER PICK UP A FLAMING PAN – You may be burned. ▶ DO NOT USE WATER, including wet dishcloths or tow- els – a violent steam explosion will result. ▶ Use an extinguisher ONLY if: - You know you have a Class ABC extinguisher, and you already know how to operate it. - The fire is small and contained in the area where it started. - The fire department is being called. - You can fight the fire with your back to an exit. Do not heat or warm unopened food containers. Build-up of pressure may cause the container to burst and cause injury. Failure to operate knobs properly may result in personal injury and damage to the appliance. Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cooktop or range-top service with- out breaking due to the sudden change in temperature. WARNING Moisture intrusion may cause an electric shock. ▶ Do not use any steam cleaners or high-pressure clean- ers to clean the appliance. If the appliance or the power cord is damaged, this is dan- gerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the power outlet. ▶ If the appliance or the power cord is damaged, immedi- ately unplug the power cord or switch off the breaker in the circuit breaker box and turn off the gas supply. ▶ Call Customer Service. → Page26 ▶ Repairs to the appliance must only be performed by an autorized service provider. IMPORTANT SAFETY NOTICE: The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn cus- tomers of potential exposure to such substances. The burning of gas cooking fuel can generate some by-prod- ucts which are on the list. To minimize exposure to these substances, always operate this unit according to the in- structions contained in this booklet and provide good ven- tilation. 1.6 Child safety This appliance is not intended for use by persons (includ- ing children) with reduced physical, sensory or mental ca- pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concern- ing use of the appliance by a person responsible for their safety. When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by quali- fied persons.

WARNING Do not allow children to use this appliance unless closely supervised by an adult. ▶ Children and pets should not be left alone or unat- tended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use. Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer. ▶ This can damage the appliance, and the unit may tip over, potentially causing severe injury. Do not let children play with the appliance. CAUTION Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance. Chil- dren climbing on the appliance to reach items could be se- riously injured. WARNING To avoid the risk of suffocation: ▶ Do not allow children to play with packaging material. ▶ Store small parts safely as they can be a choke hazard. 1.7 Gas safety WARNING To prevent carbon monoxide build-up, do not block appli- ance air vents. WARNING Have the installer show you where the gas shut-off valve is located. If a burner goes out and gas escapes, open windows and doors. Wait until gas dissipates before using the appli- ance. If you smell gas, your installer has not done a proper job of checking for leaks. If the connections are not perfectly tight, you can have a small leak and, therefore, a faint smell. If you smell gas, immediately shut off the unit and contact an authorized service provider to diagnose the is- sue. Read the WARNING about gas smell. WARNING Keep the igniter ports clean for proper lighting perfor- mance of the burners. It is necessary to clean these when there is a boilover or when the burner does not light even though the electronic igniters click. For proper burner performance, keep igniters clean and dry. CAUTION All igniters spark when any single burner is turned on. ▶ Do not touch any of the burners when the cooktop is in use. WARNING To prevent flare-ups all grates must be properly positioned on the cooktop whenever the cooktop is in use. Each of the feet must be placed into the corresponding dimples in the cooktop. ▶ Do not use a grate if the rubber feet are missing or damaged. To prevent flare-ups do not use the cooktop without all burner caps and all burner grates properly positioned. WARNING Use this appliance only for its intended use as described in this manual. ▶ NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monox- ide poisoning and overheating the appliance. WARNING The burning of gas cooking fuel can create small amounts of carbon monoxide, benzene, formaldehyde and soot. To minimize exposure to these substances the burners should be adjusted by a certified installer or agency to en- sure proper combustion. ▶ Ensure proper ventilation with an open window or use a ventilation fan or hood when cooking with gas. ▶ Always operate the unit according to the instructions in this manual. 1.8 Proper installation and maintenance WARNING Disconnect electrical and gas supply before servicing.

WARNING In the event of a malfunction, it might become necessary to turn off the power supply. ▶ Have the installer show you the circuit breaker or fuse. Mark it for easy reference. To avoid electrical shock hazard, before servicing the ap- pliance, turn power off at the service panel and lock the panel to prevent the power from being switched on acci- dentally. Proper Installation - Improper installation or grounding can cause electric shock. ▶ This appliance must be properly installed and grounded by a qualified technician. ▶ Connect only to properly grounded outlet. ▶ Refer to installation instructions for details. User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in this man- ual. ▶ All other servicing should be referred to an authorized service provider. WARNING Do not remove grommets as they will require Customer Service to refit and the cooktop must not be used without all parts fitted correctly. WARNING If the supply cord is damaged, it must be replaced by the manufacturer, its authorized service provider or similar qualified persons in order to avoid hazard. WARNING Malfunctions can cause injuries. ▶ Do not operate this appliance if it is not working prop- erly, or if it has been damaged. Contact an authorized service provider. 1.9 High altitude installation This appliance has been tested for operation up to an alti- tude of 10,100ft (3,080m) elevation above sea level. For altitudes above 2,000ft (610m) elevation above sea level, burner flame adjustments may be necessary. Burners should be checked at the lowest setting, if the flame is not stable the simmer should be increased until the flame is stable. This can be done by adjusting the by- pass screw in the valve. If flame performance is satisfac- tory, adjustment will not be required. It is required that a certified professional make the high altitude adjustments during installation. 1.10 State of California Proposition 65 Warnings This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

Preventing material damage 2 Preventing material damage Preventing material damage NOTICE: OPERATIONAL FAULT. ▶ Always turn the control knob to the OFF position when the appliance is not being used. Overheating can damage the cookware. ▶ Do not heat empty pots or pans. Aluminum foil and plastic melt on hot cooking zones. ▶ Do not let aluminum foil or plastic come into contact with hot cooking zones. ▶ Do not use cooktop protective film. A build-up of heat may damage the appliance. ▶ Never cover the cooktop, for example with aluminum foil or oven protectors. ▶ Do not place roasters, frying pans or grill stones on more than one burner at a time. ▶ Only use the accessories specified. Acidic liquids such as lemon juice or vinegar may damage the surface finish of the appliance. ▶ Remove spilled liquids immediately. Use caution while the burners are still hot. Heat may cause damage to adjacent appliances or furni- ture. If the appliance is in operation for an extended pe- riod, heat and moisture will be generated. Additional venti- lation is required. ▶ Open the window or switch on an extractor hood that discharges the extracted air and moisture outside the building. Environmental protection and energy-saving 3 Environmental protection and en- ergy-saving Environmental protection and energy-saving 3.1 Disposal of packaging The packaging materials are environmentally compatible and can be recycled. ▶ Sort the individual components by type and dispose of them separately. 3.2 Saving energy If you follow these tips, your appliance consumes less en- ergy. Select a cookware diameter that matches the burner. Center the cookware on the burner. Tip:For frying pans, cookware manufacturers usually state the top diameter of the cookware. The diameter of the pan base is usually smaller.

The energy is targeted at the cookware. If you use cookware that is too small, energy is wasted. If the cookware is too large, much energy is used to heat up the cookware. Close cookware with a fitting lid.

If you lift the lid, a lot of energy can escape. Use a glass lid.

If you use a glass lid, you can look inside the cookware without lifting the lid. Use cookware with a solid flat bottom.

Curved cookware bases increase energy consumption. Use a cookware size that matches the amount of food you want to cook.

Large cookware with little content consumes a lot of en- ergy. Cook with a small amount of water.

More water requires more energy to heat it up. Select a lower power level as soon as possible. Select a suitable power level to continue cooking.

For ongoing cooking a lower power level is sufficient.en-us Familiarizing yourself with your appliance Familiarizing yourself with your appliance 4 Familiarizing yourself with your appliance Familiarizing yourself with your applianceThis Use and Care Manual covers several models. Your model may have some but not all of the features listed. 4.1 Appliance Here you can find an overview of the parts of your appliance.

Burner grates Always position burner grates as shown.

Control knobs Control the burner indicated next to the control knob. 4.2 Control knobs You can use the control panel to configure all functions ofyour appliance and to obtain information about the operat-ing status.The markings around the control knobs show the availablepower levels. There are 9power levels. If you turn on anyburner, the indicator light on the control knob lights up.Familiarizing yourself with your appliance en-us Note:The image of the control knob is representative. De-pending on the available settings, the individual controlknobs may have some but not all functions described inthe following chart.Knob positionoff Burner turned offElectronic ignitionPower levelshi Highest power levello Lowest power levelsim Simmer setting Burner positions The markings next to each of the control knobs showwhich burner they control.Burner posi-tionsFront left burnerFront right burnerMiddle burnerBack left burnerBack right burner Indicator on the control knobs Each control knob is equipped with an indicator light withvarious display functions.Indicator MeaningNo light Burner turned OFFLights up: Red Burner turned ONFlashing: Red Appliance faultCall Customer Service.Slowly flashing: Red Appliance OFFResidual heat indicator Dual flame burner control For dual-flame burners, the inner and outer flames can becontrolled separately.Power level MeaningInner and outer flame onfull powerOuter flame on low power,inner flame on full powerInner flame on full powerInner flame on low power 4.3 Burner cap and burner base placement The burner caps must be properly placed for the cooktopto function properly.If the burner cap is not properly placed, one or more of thefollowing may occur:¡ Burner flames are too high¡ Flames shoot out of the burners¡ Stainless steel discolorations¡ Burners do not ignite¡ Burner flames light unevenly¡ Burner emits gas odorWARNINGTo prevent flare-ups do not use the cooktop without allburner caps and all burner grates properly positioned.CAUTIONTo prevent burns, do not touch burner caps or grates while hot. ▶ Turn the cooktop off and allow the burners to cool.

Igniteren-us Familiarizing yourself with your appliance

4.4 OptiSim® feature The OptiSim® burner cap has been designed to work with the small burner at the front left position of the cooktop. It is used to provide optimal simmering for delicate sauces while minimizing the risk of scorching. Installing the OptiSim® burner cap ▶ Place the burner cap on the burner base, so that the lower protrusion locks in place in the center of the burner base. a When properly installed the OptiSim® burner cap will extend beyond the burner base and raised surface. 4.5 Burner grates Place the burner grates correctly onto the cookop. Never operate the cooktop without the burner grates in place. ¡ For the correct position of the burner grates, refer to the appliance overview image → Page10

¡ Place the cookware on the burner grates. Never place cookware directly onto the burners. ¡ Always remove burner grates carefully. When you move one burner grate, the burner grates next to it may also move. 4.6 Sealed burners Your cooktop has sealed gas burners. There are no burner parts under the cooktop to clean, disassemble or adjust. Your cooktop has four different burner sizes; small, medium, large and dual-flame. Match every burner cap with the corresponding burner base. 4.7 Flame characteristics The color of the flame tells you if the gas supply is properly adjusted. Note:Allow the appliance to operate for 4 to 5minutes before evaluating the flame. Some yellow streaking is normal dur- ing the initial startup. Flame Image Measure Completely or mostly yellow Verify that the regulator is set for the correct fuel. Retest af- ter adjustment. Yellow tips on outer cone Normal for LP gasFamiliarizing yourself with your appliance en-us

Accessories 5 Accessories Accessories Only use original accessories. These are designed especially for your appliance. Accessories Use Wok ring ¡ Order number HEZ298102 ¡ Use for cooking with a wok pan. ¡ Only suitable for use on dual-flame burners. Use cookware with a rounded base. ¡ To extend the service life of the ap- pliance, we recommend using the wok ring. Griddle ¡ Order number HEZ9GR58UC ¡ Use this specially developed griddle for foods such as pancakes, French toast, grilled sandwiches, bacon, vegetables and hamburgers. ¡ The Bosch griddle is customized to fit on the two burners on the right side for all Bosch gas cooktops. 5.1 Accessories Accessories are available from Customer Service, special- ist retailers or online. You should only use original acces- sories as they are specially designed for your appliance. Accessories are appliance-specific. When purchasing, al- ways check for compatibility with your appliance model number (E no.). → Page26 You can find out which accessory is available for your ap- pliance in our catalog, the online shop or the Customer Service. www.bosch-home.comCookware en-us

Cookware 6 Cookware Cookware This information will help you save energy and avoid damaging your cookware. 6.1 Suitable cookware Only use cookware of a suitable size. The cookware must not overhang the edge of the cooktop. Burner Minimum diameter of the cookware base Maximum diameter of the cookware base Dual-flame burner 8⅔" (22cm) 11¾" (30cm) Large burner 7¾" (20cm) 10¼" (26cm) Medium burner 5½" (14cm) 7¾" (20cm) Small burner 4¾" (12cm) 6¼" (16cm) Cookware recommendations ¡ Aluminum or copper bottomed pans conduct heat evenly. ¡ Steel pans, if not combined with other metals, may cook unevenly. ¡ Cast-iron cookware absorbs heat slowly and cooks more evenly at low to medium settings. ¡ Flat heavy bottom pans provide even heat and stability. ¡ DO NOT USE pans that are thin, warped, dented or ridged as they heat unevenly. 6.2 Using cookware The selection and positioning of the cookware affects the safety and energy efficiency of your appliance. WARNING Flammable objects may ignite. ▶ Maintain a distance of at least 2½" (50ºmm) between the cookware and flammable objects. Note:When using certain pots or pans, a slight and tem- porary deformation of the steel cooking surface may oc- cur. This is normal and does not affect the functionality of the appliance. Ensure that the size of the cookware is suitable for the burner size. Never use small cookware on large burners. En- sure that the flame does not touch the sides of the cookware. Do not use deformed cookware. De- formed cookware is not stable on the cooktop and may tip over. Use cook- ware with a thick, flat base. Do not cook without a lid. Ensure that the lid does not move. When cooking without a lid, a large amount of the en- ergy will escape. Position the cookware in the middle of the burner, otherwise it may tip over. Do not position large cookware on the burners close to the controls. The con- trols may be damaged due to overheat- ing. Place the cookware on the burner grates. Never place the cookware di- rectly on the burner. Before using the appliance, ensure that the burner grates and the burner caps are posi- tioned correctly. Handle the cookware that is on the cooktop carefully. Do not bang on the cooktop. Do not place heavy weights on the cooktop. Never use multiple burners to heat up cookware, such as roaster, pan, grill stone. The build-up of heat that results from this will damage the appliance. When cooking with a wok, use the wok ring. Place the wok ring over the wok burner onto the burner grate. Ensure that the wok is stable on the wok ring when you are cooking. 6.3 Tips for using a wok Note the following information to ensure the safe use of a wok. WARNING An incorrectly positioned wok may cause injuries. The wok is not stable and may overturn. ▶ Use the wok only on the wok burner and the wok ring. Never set the wok ring and wok on the medium burner and large burner. Use a wok with a domed base. When cooking with a wok, you need a wok ring. Place the wok ring over the dual- flame burner onto the burner grate. Ensure that the wok is stable on the wok ring when you are cooking.en-us Operation

Operation 7 Operation Operation Here you will find everything you need to know about op- erating your appliance. 7.1 Turning on a burner The cooktop uses electric igniters to light the burners. NOTICE: Turning the control knob directly from position off to the lowest power level can cause damage. ▶ Never turn the control knob directly from off to lo or vice versa.

1. Place suitable cookware on the burner grate.2. Push in the control knob for the selected burner and

turn it counter-clockwise to . a Sparks are produced on all burners while you are press- ing and holding the control knob. a The flame on the selected burner ignites.

3. Release the control knob.

WARNING Escaping gas can ignite. ▶ If the burner does not turn on after 15seconds, turn off the control knob and open the door or window in the room. Wait at least 1minute before igniting the burner again. Turn the control knob to the desired position. a The indicator light on the control knob lights up.

5. If the burner does not ignite, turn it off and repeat the

steps described above. This time, hold the control knob down longer (up to 10 seconds). Note In order to ensure proper operation of the appliance, observe the following instructions: ¡ The burner parts and burner grates need to be properly positioned. ¡ Do not interchange the burner caps of the individual burners. ¡ It is important to keep the appliance clean. Clean the ig- niters regularly with a small non-metallic brush. Take care to prevent the igniters from suffering any heavy im- pacts. ¡ The burner holes and slots must be clean for the flame to be correct. Clean the burners regularly. 7.2 Manually igniting a burner In the event of a power failure, you can ignite the burners manually.

1. Hold down the control knob for the selected burner and

turn it counterclockwise to the highest power level.

2. Hold a lit lighter or a match against the burner.

7.3 Flame failure safety system Your cooktop is equipped with a safety system (thermo- couple) that cuts off the gas when the burners accidentally go out during operation, for example through a draft of air. In order to light the burner, the system that allows the pas- sage of gas must be activated. Carry out the following steps. WARNING If the burner flames are accidentally blown out, turn the control knob of the burner to the off position and do not try to relight it for at least 1minute.

1. Light the burner as usual without releasing the control

2. Hold the control knob down firmly for 4seconds after

lighting the flame. 7.4 Turning off a burner ▶ Turn the control knob clockwise to off. 7.5 Normal behavior during operation The following behavior during operation is normal. ¡ A soft whistling noise while the burner is operating. ¡ Release of odors during first use. These do not pose a risk and will disappear in time. ¡ An orange-colored flame is normal. It is caused by im- purities, such as the presence of dust in the atmosphere or spilled liquids. Recommended cooking settings 8 Recommended cooking settings Recommended cooking settings The charts list the optimal heat settings and cooking times for various types of food. The information given applies when cooking four portions. The cooking times and heat settings may vary depending on the type of food, its weight and quality, on the type of gas used, and on the material from which the cookware is made. To prepare these dishes, stainless steel cookware was mainly used. Always use cookware that is the right size and place it in the center of the burner.Refer to the overview of suitable cookware. Tips ¡ Recommendations for cooking: – Place all the ingredients into the cookware at the same time when cooking soups, creams, lentil stews or chickpeas. – Preheat the oil when frying. Once you have started frying the food, maintain the temperature by adjusting the power if necessary. Maintain the temperature of the oil between different batches and turn the food frequently. ¡ Recommendations to reduce the cooking time: – Use a pressure cooker to cook creamy soups and legumes. Follow the manufacturer's instructions of the pressure cooker. Add all the ingredients at the same time at the start. – Bring the water to a boil before adding pasta, rice or potatoes and then adjust the power level to continue boiling. – Use a lid to cook rice and potatoes.Recommended cooking settings en-us

8.1 Cooking charts Here you can find information on how to cook food on the different burners. We recommend using the burner that is listed first. Refer to the appliance overview to identify the burners. How to use the cooking charts Each type of food can be prepared in one or two steps. For each step you can find the following information. ¡ Cooking method ¡ Heat setting ¡ Cooking time in minutes Cooking methods featured in the cooking chart Bringing to the boil Continuing cooking Building up pressure in the pressure cooker Maintaining pressure in the pressure cooker Frying on high heat Frying gently Melting, liquefying Recommendations for different burner sizes Information on how to cook food on the different burners is displayed. We recommend using the first burner that is mentioned. The model overview describes all of the burn- ers on the cooktop.

"Familiarizing yourself with your appliance", Page10 Example for using the cooking charts for preparing fish soup using the large burner. Dish Burner Total time in min. Step 1 Cooking method Step 1 Heat set- ting Step 1 Time in min. Step 2 Cooking method Step 2 Heat set- ting Step 2 Time in min. Fish soup Large 12 - 17 8 7 - 9 1 5 - 8 Medium 17 - 22 8 11 - 13 1 6 - 9 Dual- flame

9 20 - 25 Sautéed fresh veg- etables Stir constantly Dual- flame

White sauce Stir constantly Small 10 - 15

5 2 - 6 Blue cheese sauce Stir constantly Small 4 - 6

Hamburgers, 4pcs. 0.4in (1cm) thick; 110g

7 2 - 5 Frozen vegetables Stir constantly Large 7 - 12

Medium 30 - 35 9 12 - 14 7 18 - 21 Custard Stir constantly Large 3 - 8

Cook without lid Cleaning and maintenance 9 Cleaning and maintenance Cleaning and maintenance To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. 9.1 Cleaning the appliance CAUTION All igniters spark when any single burner is turned on. ▶ Do not touch any of the burners when the cooktop is in use. WARNING Do not clean the cooktop while it is in operation. NOTICE: Humidity might enter the appliance interior, if you remove the control knobs during cleaning. This may damage the appliance. ▶ Do not remove the control knobs when cleaning the ap- pliance.

1. Let the appliance cool down.2. Clean with a sponge, water and soap.3. Dry with a soft cloth.

9.2 Cleaning the burners Clean the surfaces of the burners after every use to pre- vent them from becoming encrusted. NOTICE: Do not clean the burner parts in the dishwasher. They may be damaged. 1. Wait until the appliance has cooled.2. Scrub with a non-metallic brush and soapy water.3. Dry the burners completely. If there are water droplets or damp patches on the cooktop when you start cook- ing, the enamel may be damaged.

4. Reassemble the burner parts. Ensure that the burner

caps are correctly positioned on the burner bases.

"Burner cap and burner base placement", Page11 9.3 Cleaning the burner grates 1. Wait until the appliance has cooled.2. Carefully lift off the burner grates.3. Scrub with a non-metallic brush and soapy water. Care- fully clean around the rubber feet. If the rubber feet come off, the grates may scratch the cooktop surface.

4. Dry the burners grates completely. If there are water

droplets or damp patches on the cooktop when you start cooking, the enamel may be damaged.

5. Place the burner grates in their proper position.

"Burner grates", Page12Cleaning and maintenance en-us

9.4 Cleaning recommendations Follow these cleaning recommendations for the individual parts of your appliance. Part / Material Suitable cleaning method Important notes Burner base / alu- minum alloy ¡ Non-abrasive cleaner: Dish soap and hot water ¡ Mild abrasive cleaners: Bon Ami®

Rinse and dry immediately. ¡ Do not scratch or gouge the port openings. ¡ Clean ports with a wire or a straightened pa- per clip. ¡ Do not use a toothpick, it may break off. ¡ Do not soak burner bases. ¡ A toothbrush can be used for stubborn stains. Burner cap / porcelain enamel ¡ Non-abrasive cleaners: Dish soap and hot water, ammonia, Fantastic®

¡ For food stains: abrasive cleaners such as Zud®

Rinse and dry immediately. ¡ Acidic and sugar-laden spills deteriorate the enamel. Remove soil immediately after the appliance has cooled enough to touch. ¡ Do not use wet sponge or towel on hot porcelain. ¡ Do not soak burner caps. ¡ Always apply minimal pressure with abrasive cleaners. ¡ Dry thoroughly and make sure the burner cap is seated properly on the burner base after cleaning. Control knobs and grommets Non-abrasive cleaners: Dish soap and hot wa- ter Dry thoroughly after cleaning. ¡ Do not remove the control knobs when cleaning the appliance. The appliance may be damaged if moisture finds its way inside. ¡ Do not remove grommets. You will require Customer Service to refit them. DO NOT

USE THE COOKTOP WITHOUT ALL

PARTS FITTED CORRECTLY! ¡ Do not soak the control knobs or grommets. ¡ Do not clean the control knobs in the dish- washer, they may be damaged. ¡ Do not use abrasive scrubbers or cleaners, such as Bon Ami®

They may permanently damage the finish or remove graphics. Exterior finish / stain- less steel ¡ Clean with soapy water and soft cloth, then rinse and dry with a soft cloth. ¡ Condition steel with the Bosch Stainless Steel Conditioner (part # 00576696). Not for use on black steel. ¡ Hard water spots: Household white vinegar ¡ Mild abrasive cleaners: Kleen King®

stain- less steel liquid cleaner, Bon Ami®

Rinse and dry immediately. ¡ Do not use steel wool pads. They will scratch the surface. ¡ Stainless steel resists most food stains and pit marks providing the surface is kept clean and protected. ¡ Never allow food stains or salt to remain on stainless steel for any length of time ¡ Rub lightly in the direction of the grain. ¡ Chlorine or chlorine compounds in some cleaners are corrosive to stainless steel. Check the ingredients on the label before using. Burner grates and grate bridge / porce- lain enamel on cast iron ¡ Non-abrasive cleaner: Hot water and deter- gent, Fantastic®

¡ Stubborn stains: Soap filled steel wool pads ¡ Cleaning in the dishwasher: Remove burnt- on food prior to placing the burner grates in the dishwasher. Place the burner grates on the lowest rack of dishwasher and use the dishwasher manufacturer’s recommended detergent. Rinse and dry immediately. ¡ The grates are heavy; use care when you lift them up. Place them on a protected surface for cleaning. ¡ Blisters, crazing or chips are common due to the extreme temperatures on the grate fin- gers and rapid temperature changes. ¡ Acidic and sugar-laden spills deteriorate the enamel. Remove soil immediately after the appliance has cooled enough to touch. ¡ If you use abrasive cleaners too vigorously or too often they may eventually mar the enamel. ¡ Do not clean in a self-cleaning oven.

These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.en-us Cleaning and maintenance

Part / Material Suitable cleaning method Important notes Igniters / ceramic ¡ Carefully wipe with a cotton swab dampened with water or ammonia. ¡ Gently scrape the soil off with a toothpick. ¡ Avoid excess water on the igniter. A damp igniter will prevent the burner from lighting. ¡ Remove any lint that may remain after cleaning.

These marks are registered trademarks of their respective owners. All other trademarks are trademarks of BSH Home Appliances Corporation or its affiliated companies.Troubleshooting en-us

Troubleshooting 10 Troubleshooting Troubleshooting You can eliminate minor issues on your appliance your- self. Please read the information on eliminating issues be- fore contacting Customer Service. This may avoid unnec- essary repair costs. WARNING Improper repairs are dangerous. ▶ Only authorized service providers should repair the ap- pliance. ▶ If the appliance has an issue, call Customer Service. WARNING Improper repairs are dangerous. ▶ Repairs to the appliance should only be performed by authorized service providers. ▶ Only original spare parts may be used to repair the ap- pliance. ▶ If the power cord of this appliance becomes damaged, it must be replaced with a specific connection cord, which is available from the manufacturer or the manufacturer's Customer Service. Issue Cause and troubleshooting The general electrical system of the appliance is not working. The circuit breaker in the circuit breaker panel has tripped.

1. Check circuit breaker or fuse box to your house.

2. Make sure there is proper electrical power to the appliance.

The plug for the power cord is not plugged in. ▶ Connect the appliance to the power supply. There has been a power failure. ▶ Check whether the lighting in your kitchen or other appliances in the room are working. The automatic ignition is not work- ing. Food remnants, dirt, or cleaning products are located between the igniters and the burners. ▶ Clean the space between the igniter and the burner. Burner parts are wet. ▶ Carefully dry the burner parts. The burner parts are not positioned correctly. ▶ Position the burner parts correctly. The appliance is not connected properly to the power supply. ▶ Contact a qualified electrician. The burner flame is not uniform. The burner parts are not positioned correctly. ▶ Position the burner parts correctly. The grooves on the burner are dirty. ▶ Clean the grooves on the burner. The gas flow is not normal or there is no gas. The gas supply is blocked by intermediate gas valves. ▶ Open the gas valves. The gas cylinder is empty. ▶ Replace the gas cylinder. There is a smell of gas in the kitchen. A gas valve has been left on. ▶ Turn off the gas taps. Incorrect coupling of gas cylinder. ▶ Check the proper connection to the gas cylinder. The gas pipe to the appliance is leaking.

1. Shut off the gas supply at the main gas valve.

2. Ventilate the premises.

3. Immediately notify an authorised installation technician to check and certify the

4. Do not use the appliance until you can be sure there are no gas leaks in the gas

supply line or the appliance. The burner switches off immedi- ately after releasing the control knob. The control knob has not been pressed down long enough.

1. Keep the control knob pressed in for a few seconds after ignition.

2. Push the control knob in firmly.

The grooves on the burner are dirty. ▶ Clean the grooves on the burner.en-us Disposal

Issue Cause and troubleshooting The indicator light on the control knob flashes red. There is an electronics fault

1. Disconnect the appliance from the power supply.

2. Wait a couple of seconds and reconnect the appliance to the power supply.

3. If the message persists, call Customer Support.

Disposal 11 Disposal Disposal 11.1 Disposal of your old appliance Environmentally compatible disposal allows valuable raw materials to be recycled.

1. Unplug the appliance from the power supply.

2. Cut through the power cord.

3. Dispose of the appliance in an environmentally respon-

sible manner. Information about current disposal methods can be ob- tained from your specialist dealer or local authority. Customer Service 12 Customer Service Customer Service With any warranty repair, we will make sure your appli- ance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replace- ment parts for all repairs. Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website. If you contact the Customer Service, you will need the model number (E-Nr.) and the production number (FD) of your appliance. USA: 1-800-944-2904 www.bosch-home.com/us/owner-support/get-support www.bosch-home.com/us/shop CA: 1-800-944-2904 www.bosch-home.ca/en/service/get-support www.bosch-home.ca/en/service/cleaners-and-accessories 12.1 Model number (E-Nr.) and production number (FD) You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate. Making a note of your appliance's details and the Cus- tomer Service telephone number will enable you to find them again quickly. 12.2 Rating plate location You can find the rating plate of your appliance: ¡ On the appliance certificate. ¡ On the underside of the appliance. Rating plate

STATEMENT OF LIMITED PRODUCT WARRANTY

13.1 What this warranty covers & Who it ap- plies to The limited warranty provided by BSH Home Appliances (“Bosch“) in this Statement of Limited Product Warranty applies only to the Bosch appliance sold to you (“Prod- uct“), provided that the Product was purchased: ¡ For your normal, household (non-commercial) use, and has in fact at all times only been used for normal house- hold purposes. ¡ New at retail (not a display, "as is", or previously re- turned model), and not for resale, or commercial use. ¡ Within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply to the original pur- chaser of the product warranted herein and to each suc- ceeding owner of the product purchased for ordinary home use during the term of the warranty. Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for Bosch to notify you in the unlikely event of a safety notice or product recall. 13.2 How long the warranty lasts Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty-five (365) days from the date of the original pur- chase. The foregoing timeline begins to run upon the date of the original purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic de- fects in material and workmanship (such as scratches ofSTATEMENT OF LIMITED PRODUCT WARRANTY en-us

stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish) of the Product, for a period of thirty (30) days from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar fac- tors. This cosmetic warranty specifically excludes any dis- play, floor, “As Is”, or “B” stock appliances. 13.3 Repair/replace as your exclusive rem- edy During this warranty period, Bosch or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to re- pair the Product have been made without success, then Bosch will replace your Product (upgraded models may be available to you, in Bosch’s sole discretion, for an addi- tional charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become the property of Bosch at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Bosch's sole liability and responsibility hereun- der is to repair manufacturer-defective Product only, using a Bosch authorized service provider during normal busi- ness hours. For safety and property damage concerns, Bosch highly recommends that you do not attempt to re- pair the Product yourself, or use a non-authorized service provider; Bosch will have no responsibility or liability for re- pairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Bosch products, and who possess, in Bosch's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Bosch). Notwith- standing the foregoing, Bosch will not incur any liability, or have responsibility, for the Product if it is located in a re- mote area (more than 100 miles from an authorized ser- vice provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or envi- ronment; in any such event, if you request, Bosch would still pay for labor and parts and ship the parts to the near- est authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call. 13.4 Out of warranty product Bosch is under no obligation, at law or otherwise, to pro- vide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired. 13.5 Warranty exclusions The warranty coverage described herein excludes all de- fects or damage that are not the direct fault of Bosch, in- cluding without limitation, one or more of the following: ¡ Use of the Product in anything other than its normal, customary and intended manner (including without limi- tation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunc- tion with air or water-going vessels). ¡ Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including selfperformed "fixing" or exploration of the appliance's internal workings). ¡ Adjustment, alteration or modification of any kind. ¡ A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the prod- uct in strict conformity with local fire and building codes and regulations. ¡ Ordinary wear and tear, spills of food, liquid, grease ac- cumulations, or other substances that accumulate on, in, or around the Product. ¡ Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God. ¡ Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses or correct house wiring or plumbing. In no event shall Bosch have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products, on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connect- ing facilities, for proper foundation/flooring, and for any al- terations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RE- SPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABIL- ITY, OR NEGLIGENCE) OR OTHERWISE. THIS WAR- RANTY IS IN LIEU OF ALL OTHER WARRANTIES,

EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER

DAMAGES, LOSSES, OR EXPENSES, INCLUDING

WITHOUT LIMITATION TIME AWAY FROM WORK, HO-

TELS AND/OR RESTAURANT MEALS, REMODELLING

STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EX- CLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH. 13.6 Obtaining warranty service To obtain warranty service for your product, you should contact Bosch Customer Support at 1-800-944-2904 to schedule a repair.fr-ca
