Product Type	Jet motorcycle helmet
Brand	Crivit
Model	IAN 306771
Approval	ECE-R 22.05
Available sizes	S (55-56 cm), M (57-58 cm), L (59-60 cm), XL (61 cm)
Approximate weight	1200 g
Shell material	High density ABS (HCM)
Inner lining	Coolmax® and HeiQ Pure dynamiq (antibacterial, thermoregulation)
Visor	Anti-scratch, type DS-VISOR305, replaceable
Closure	Clip with adjustable chin strap
Ear pads	Removable, snap button attachment
Acoustic cushion	Removable, noise reducer
Suitable for glasses	Yes
Care	Clean with mild detergent and clear water; hand wash at 30 °C for ear pads
Storage	Dry, ventilated place, room temperature, away from heat sources
Warranty	3 years (material and manufacturing defects)
After-sales service France	0800 919270 / [e-mail]
After-sales service Belgium	070 270 171 (0,15 EUR/min) / [e-mail]
Manufacturing date	12/2017

Frequently Asked Questions - IAN 306771 CRIVIT

How to choose the right helmet size?

Measure your head circumference with a tape measure above the eyebrows. Consult the size chart: S (55-56 cm), M (57-58 cm), L (59-60 cm), XL (61 cm). The helmet should be well fitted without being too tight; the skin at the temples may slightly redden.

How to clean the visor without damaging it?

Use a soft, damp cloth to remove dirt (insects, sand, etc.), then wipe with a soft, dry cloth. Never use solvent, petroleum, or abrasive products.

How to replace the visor?

To disassemble, press and turn the inner cover plates (1a) counterclockwise, then remove the plates and visor. To assemble, position the visor on its support, fit the outer plate (L side on left), then the inner plate and turn clockwise.

Is the helmet suitable for glasses wearers?

Yes, this helmet is designed to accommodate glasses. Make sure the temples do not interfere with the fit and closure.

How to maintain the ear pads and acoustic cushion?

Wash them by hand at below 30 °C, let dry at room temperature. Avoid heat sources. They attach with snap buttons and Velcro.

What is the lifespan of a helmet?

A helmet must be replaced after a violent impact, even if it shows no visible damage. In normal use, it is recommended to change it every 5 years approximately.

What to do if the chin strap is too loose?

Use the webbing closure (clip) to adjust the chin strap. Press until you get a firm but comfortable position. The movable buckle allows you to fix the excess strap.

Can I paint or stick stickers on the helmet?

No, do not paint the helmet or apply stickers or labels. This could alter the protective properties and void the warranty.

How to get a replacement visor?

You can order a replacement visor (type DS-VISOR305) up to 5 years after the purchase date by contacting customer service at the numbers indicated (0800 919270 for France).

Is the helmet approved for road use?

Yes, it is approved according to the ECE-R 22.05 standard, which makes it compliant for road use with a motorcycle or moped.

USER MANUAL IAN 306771 CRIVIT

Instructions for Use

NL

JETHELM

Gebruksaonwilzig

E

CASCO JET

Before coding, I'd out the ilustrative page and got to know all of the functions of your cit.

GO/IE Instructions for use 10

18/96 Notca 15

NL/SE Gebruksgavmigzao 21

CZ Nocck 0sbs26

m = 311 ;

DE/A（CH）E

（）（）（）（）

4 41

DE AT CH

Bedienungsanleitung

Teilebezeichnung 6

Lieferumfang 6

Wichtige Information 6

Gebrauchsanleitung

Instructions for Use

Parts Overview 11

Scope of Delivery 11

Important Information 11

Instructions for Use

Safety Advice 11

Product Characteristics 12

Use and Installation Instructions

Snap-Fastener System 13

Ear pad 13

Acoustic Damping 13

Visor Replacement 13

Selecting the correct helmet size. 13

Maintenance and Care. 13-14

Storage 14

Disposal 14

Notes on the guarantee and service handling. 14

i

Congratulations!

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

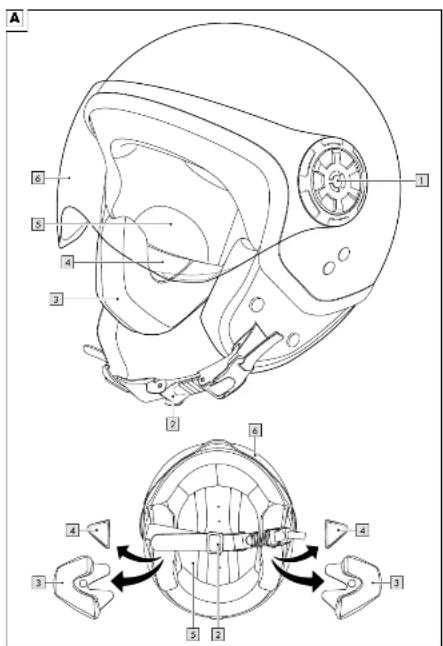

Parts Overview

Visor Mechanism
2 Chin Straps with Snap Fastener
3 Ear pad
4 Acoustic Damping
5 Inner Lining
6 Visor

Scope of Delivery

The scope of delivery for your helmet consists of the following:

• Acoustic damping
• Helmet bag
• Instruction manual

Important Information

Our helmets are manufactured in accordance with the latest technology and are specifically designed for motorcycling. Whether the owner deems them to be suitable for any other use, is up to him. Wearing a helmet does not exclude the possibility of injury should an accident occur.

To guarantee adequate protection this helmet must be well fitting and securely fastened. Every helmet that is exposed to a hard blow must be replaced.

We guarantee that this item is free of production and material defects. The guarantee does not apply to normal wear and tear and in case of improper use.

Instructions for Use

Safety Advice

• The helmet must fit tightly and the chin strap be closed.
  Always ensure that there is no airflow restriction inside the helmet.
• Ensure that your visor is clean and scratch-free at all times. Exchange damaged visors for a genuine replacement immediately.

You are able to obtain replacement visors from the stipulated service address for a period of 5 years from the purchase date.

Visor type: DS-VISOR305

• Never modify the helmet, its structure or the individual components.
• The helmet may not be painted or have stickers or labels.
• The helmet is designed to absorb the energy of a blow or a collision by destroying some of its components. In case of a further blow it wouldn't protect you any longer. After an accident, the helmet must be replaced even though it doesn't show external damages.
• Refrain from transporting your helmet by hanging it onto any part of your motorcycle. Keep it away from exhaust pipes and other sources of heat.
• Never clean the helmet with solvents containing petroleum or scouring agents, neither the outside nor the inside. Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth. Then wipe dry with a lint-free cloth. The pad may be cleaned with a little soap using a soft brush.
• Only use genuine spare parts for your helmet.

Product Characteristics

ECE-R 22.05 Homologation

This helmet is in compliance with ECE-R 22.05 standards and is homologised accordingly. The ECE-R 22.05 standard consists of uniform conditions for the approval of protective

helmets and its visors for drivers and passengers of motorcycles and mopeds. The basic principles for these tests are the so called ECE-Regulations of the Economic Commission for Europe.

Significant Tests of the ECE-Regulation 22.05

• Shock absorbance
• Dynamic test of wear features
  Field of vision test
• Design strength
• Sustainability test (Strip-off test)
• Chin straps and lock test
  Shear test for outside edges
  Friction performance test of the outer shell
• Visor test

(mechanical and visual characteristics)

Inside Padding with Coolmax® Inserts

Coolmax® by INVISTA is a high-performance fabric fibre

that supports its wearers during sport activities. Based on the patented DuPont-fibre technology, Coolmax® transports moisture from the body to the fabric surface where it dries quicker than with any other fabric.

The specially developed fibres of INVISTA that are used for Coolmax®-fabrics transport the moisture away from the body to the surface of the fabric where it has the opportunity to evaporate quickly. At the same time, the uniquely formed fibres offer maximum breathing activity, even in wet conditions. In addition, the breathing activity improves the heat regulating effect. Ear and forehead pads on this product are equipped with Coolmax®.

HeiQ Pure dynamiq

FREES & COMFOXTABLE THERMOREGULATING ANTRICROSSIAL

PURE Textile freshness

Experience the feeling of lasting freshness through the power of silver, keeping you odour-free all day long.

ADAPTIVE Thermal control

Feel good all over. The textile will cool you down when you're hot, and keep you dry longer in cold weather. Cools and minimises perspiration.

The inner lining of the article contains a biocidal active ingredient (PURE TF by HeiQ) as an antibacterial finish in the inner lining. Active ingredient: silver adsorbed on silicon dioxide (nano).

High-strength HCM outer shell

High Density Copolymer Matrix: High quality ABS plastic is formed under extreme heat and pressure to make a robust and impact-resistant outer shell.

Visor with anti-scratch coating

Suitable for eyeglass wearers

Safety lock closure

Date of manufacture (month/year): 12/2017

Use and Installation Instructions

Snap-Fastener System (Fig. B)

The snap-fastener enables an individual and quick vernier adjustment of the chin strap. Press the snap-fastener together until the helmet is sitting comfortably but firm.

The movable buckle may be used to fasten or secure excess chin strap.

Ear pad (Fig. C)

The ear pads (3) are secured to the helmet with two press studs. The pads may simply be pulled out.

You must hear each press stud lock when securing the ear pads inside the helmet.

Acoustic Damping (Fig. D)

The acoustic damping (4) is for noise reduction, in particular when driving at high speeds.

Press the acoustic damping into the cavity of the cheek pads. The acoustic side pad equipped with Velcro faces towards the helmet shell.

Visor Replacement (Fig. E)

Removing the visor

Press and turn the cover plate (1a) on both sides counter-clockwise to release. Remove the inner (1a) and outer cover plate (1b) and remove the visor (1c).

Installing the visor

Position the visor on the visor holder (1d) and place the outer cover plate over the visor.

Note: Be sure to attach the outer cover plate labelled "L" to the left side of the helmet.

Attach the inner cover plate to the outer cover plate and secure the visor by simultaneously pressing and turning clockwise.

Selecting the correct helmet size

• Measure the circumference of your head and select the helmet size based on this measurement. Try out several helmets before deciding. Ideally, the skin on your temples will move along when wearing the helmet.

• Ensure that even without the chin strap secured, the helmet does not move much on your head.

• The chin strap must be closed firmly for a secure fit. It is fitted correctly if it is difficult to slide your fingers under the chin strap. However, you must still be able to comfortably breathe, swallow and turn your head.
• Verify the helmet was tested according to the latest ECE standard.

Size table
Size Head circumference
S 55-56cm
M 57-58cm
L 59-60cm
XL 61cm

Maintenance and Care

Regular maintenance and care contributes to safety and maintaining the helmet.

Cleaning of the Helmet

• Never use solvents, petrol or other detergents when cleaning the shell and interior of your helmet.
  Always use pH-neutral detergent dissolved in clean water. Careful rub with a soft cloth. Then wipe dry with a lint-free cloth.

Visor care and cleaning

• After using the helmet, lightly wipe off any grime (e.g. dead insects, dirt, sand, dust etc.) from the visor with a soft cloth and then fully wipe it clean using a dry soft cloth.
• When the visor gets wet (e.g. rainwater) it should always be wiped with a soft cloth.
• When cleaning the visor, never use any petroleum-based solvents or detergents containing abrasives.

Cleaning of the Ear Pads and Acoustic Damping

• Hand wash below 30^ .
• Allow to dry at room temperature.
• Avoid sources of heat.
• When not in use, store in a dry, well ventilated place.

Storage

When not in use, store the helmet in a dry and well ventilated place at room temperature. Avoid sources of heat. Do not needlessly expose the item to heat, e.g. in the car in hot outside temperatures.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

Size S IAN: 292221

Size M IAN: 292218

Size L IAN: 292219

Size XL IAN: 292220

GB Service Great Britain

Tel: [phone]

(£0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

{O,08 EUR/Min., {peak})

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
