Technical Features	Active subwoofer, 12 inches, 300W RMS output power
Frequency Response	25 Hz - 150 Hz
Connectivity	RCA, XLR, and speaker inputs
Usage	Ideal for home theater systems and professional audio installations
Dimensions	Compact dimensions for easy integration into various spaces
Weight	Approximately 20 kg
Maintenance	Regular cleaning of the grille and checking connections
Safety	Use on a stable surface, avoid moisture
General Information	2-year warranty, technical support available

Frequently Asked Questions - Signature Sub 730A MAGNAT

How do I connect the MAGNAT Signature Sub 730A to my amplifier?

Use RCA cables to connect the subwoofer output of your amplifier to the input of the MAGNAT Signature Sub 730A. Make sure the amplifier is turned off before making the connections.

What is the weight of the MAGNAT Signature Sub 730A?

The weight of the MAGNAT Signature Sub 730A is 20 kg.

Can the MAGNAT Signature Sub 730A be used outdoors?

It is recommended to use the MAGNAT Signature Sub 730A indoors in a dry environment to avoid damaging the electronic components.

How do I adjust the volume level of the MAGNAT Signature Sub 730A?

The volume level can be adjusted using the volume knob located on the back of the subwoofer. Turn it clockwise to increase the volume.

Is the MAGNAT Signature Sub 730A compatible with surround systems?

Yes, the MAGNAT Signature Sub 730A is compatible with surround systems. Make sure to connect it properly to your AV receiver.

What should I do if the subwoofer is not working?

Check the connections, ensure the subwoofer is powered, and the volume level is set. If the problem persists, try resetting the subwoofer by unplugging the power for a few minutes.

What is the frequency response of the MAGNAT Signature Sub 730A?

The frequency response of the MAGNAT Signature Sub 730A is 25 Hz to 200 Hz.

Does the MAGNAT Signature Sub 730A have Bluetooth?

No, the MAGNAT Signature Sub 730A does not have Bluetooth functionality. It requires a wired connection.

How do I clean the MAGNAT Signature Sub 730A?

Use a soft, dry cloth to wipe the surface of the subwoofer. Avoid using chemical or abrasive cleaners.

USER MANUAL Signature Sub 730A MAGNAT

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

DER AKTIVE SUBWOOFER MAGNAT SIGNATURE SUB730A

Congratulations on your fine new loudspeakers and thank you very much for choosing MAGNAT! You have made an excellent choice. The high-quality speakers produced by MAGNAT are renowned all over the world.

Please study the instructions and information below carefully before using your new loudspeakers.

The triangle with a lightning symbol warns the user that high voltage is used within the device which can result in electric shock.

The triangle with an exclamation mark informs the user that important operating and maintenance instructions (repair) are contained in the accompanying instruction manual, which must be observed.

DO NOT OPEN! RISK OF ELECTRIC SHOCK!

CAUTION: In order to avoid electric shock do not open the speaker housing/mains adapters or remove the covers. The user is not to conduct any repairs him/herself. Repairs should only be conducted by qualified technicians! Do not use any sockets or extension cables that do not fully accommodate the plug of the device.

This device is designed for indoor use only.

This is Class II apparatus with double insulation, and no protective earth provided.

IMPORTANT SAFETY NOTICE

Please read through the instruction manual carefully before starting to use the device. This manual contains important information concerning operation and safety aspects. It is imperative you observe all of the information. Keep the manual in a safe location.

• Never subject the subwoofer to dripping or splashing water. Do not place any flower vases or other filled recipients on top of the subwoofer.
• The distance between the active subwoofer enclosure and the walls of the room or other objects (e.g. furniture, shelf units) may not be less than 5cm on any side.

The aluminium plate and cooling fins of the amplifier at the rear of the active subwoofer serve to cool the built-in amplifier; for this reason, they must also be at least 5cm away from all objects and must not be covered (e.g. by a curtain).

The bass reflex opening(s) on the active subwoofer must not be covered (e. g. by curtains, etc.) in order to guarantee adequate ventilation of the amplifier.

• The subwoofer should not be positioned near heat sources (heaters, ovens, radiant heaters, naked flames, etc.).
• Only operate the subwoofer at an ambient/room temperature from 10^ to 40^ . The active subwoofer may not be used in very humid rooms.
• Please do not place any items with naked flames (e.g. candles) on the active subwoofer.
• Please do not touch or connect the mains cable when your hands are damp.
• Keep the mains cable away from heaters.
• The device should not continue to be operated if there is visible damage to the mains cable. A damaged cable should not be repaired, but must be replaced.

• Never place heavy items on the mains cable.

• The mains plug is used as the disconnecting device. Disconnecting devices shall remain readily operable.

• If the device is not going to be used for a prolonged period (e.g. when on holiday), it should be disconnected from the mains by removing the plug. The device should also be disconnected from the mains in the event of a thunderstorm. Doing this will prevent damage caused by lightning and overvoltage.
• Do not use any cleaning agents or chemical solvents when cleaning, as these could damage the surface of the device.
• Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

THE ACTIVE SUBWOOFER MAGNAT SIGNATURE SUB730A

This subwoofer has been adapted to provide the best visual and acoustic match to the MAGNAT Signature range of loudspeakers. However, it goes without saying that it may be combined with other loudspeakers. When connecting your loudspeaker, please make sure that everything has been switched off. Furthermore, make sure that all loudspeaker cables are connected to the proper poles, i.e. the positive pole for the output is connected to the positive pole for the input and the negative pole with the negative pole. Please also refer to your receiver's/amplifier's and loudspeakers' instructions.

POSITIONING

The frequency range reproduced by the subwoofer cannot be pinpointed by the human ear. That's why positioning generally doesn't present any problems. However, it is preferable to place the speaker close to the front loudspeaker in front of the listening position. You should also make sure that the distance from the sides and from the rear to items and walls is at least 20 centimetres as otherwise bass reproduction may be impaired.

THE SUBWOOFER'S OPERATING ELEMENTS (FIG. 1)

Mains connection (10), mains-voltage switch (9)

The subwoofer is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable. The voltage selector has been set at the factory to 230V for operation in Europe. Warning: Connecting the subwoofer to a 230V mains outlet while the voltage selector is set to 115V will lead to immediate destruction of the amplifier!

Operating mode switch (2), operating state LED (1), power switch (8)

	Power switch ON Power switch OFF
Operating mode switch ON	Subwoofer is in permanent operation, the LED is blue. Favourable setting for the reproduction of programmes with long quiet passages (this prevents the subwoofer from switching off unintentionally).	The subwoofer is switched off, LED is off. This is the setting for when subwoofer isn't used over long periods.
Operating mode AUTO	The automatic switching on/off is activated (recommended setting). The subwoofer switches on automatically when it receives a signal from the receiver, the LED turns blue. It automatically switches to standby after receiving no signals for some minutes, the LED turns red.

AV input "LFE" (6)

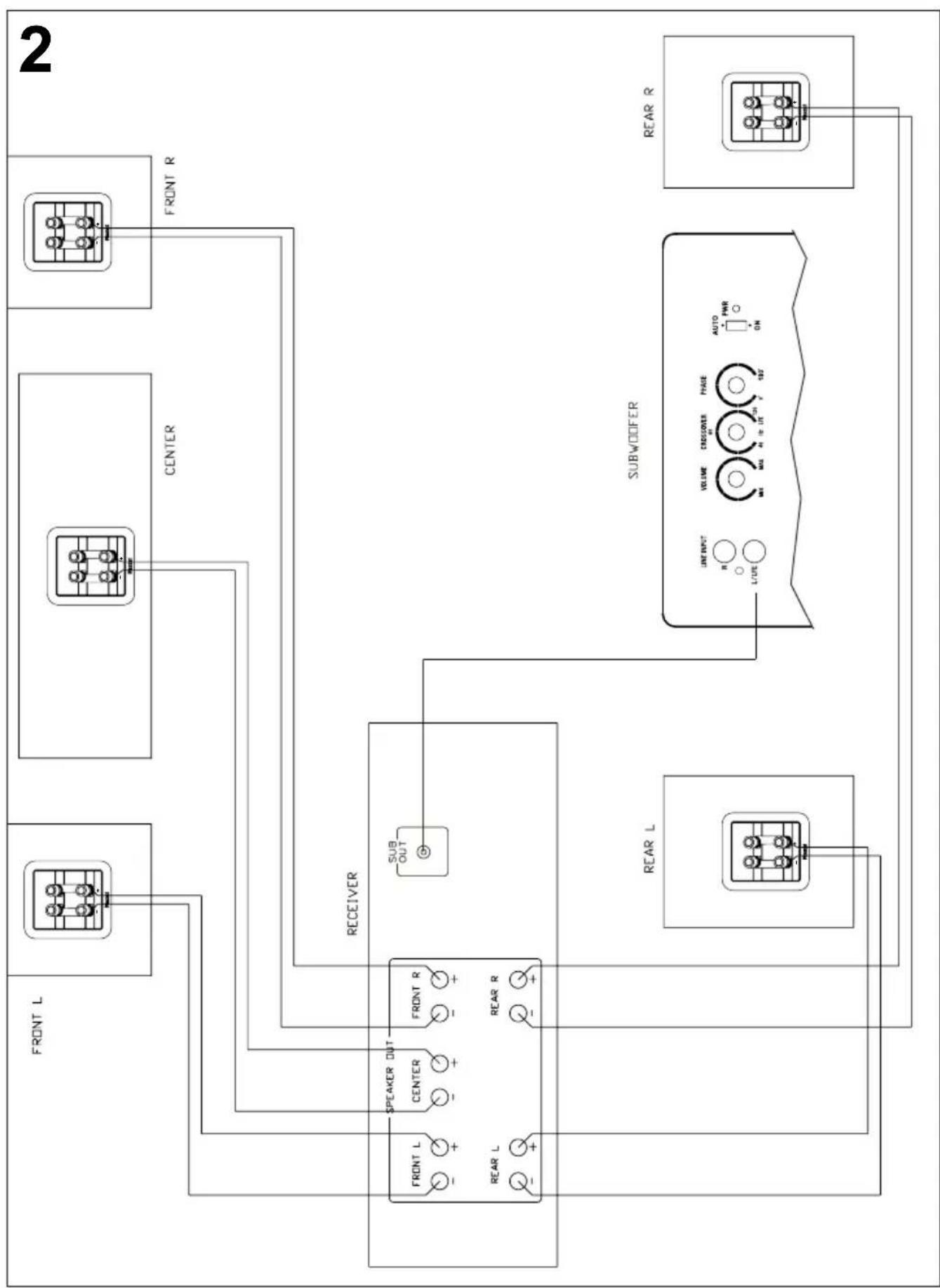

Connect your receiver's low-level subwoofer output (sub-pre-out) to the subwoofer's AV input (see Fig. 2). You will require a mono-cinch cable for this (not supplied). Note: Warning: when the subwoofer is controlled through the LFE input, the cross-over frequency control is not functional.

Line inputs (6/7)

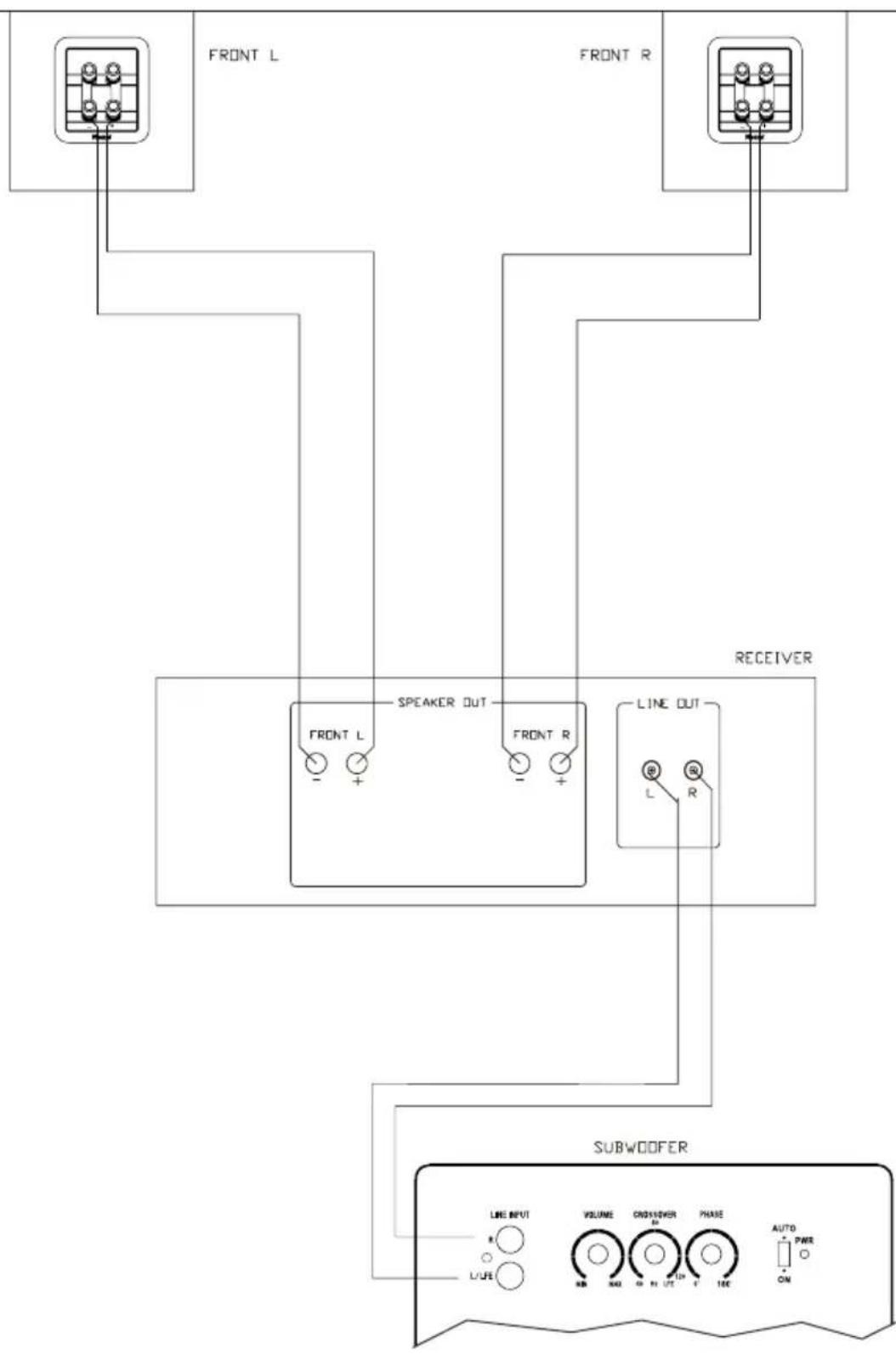

Please refer to fig. 3 for connecting to low-level outputs on a receiver/amplifier (stereo mode). The two channels are added to each other and are output by the subwoofer.

Level control (5)

This control is used to set the bass volume according to your preferences. Proceed as follows:

1. Set the bass control of your amplifier into its centre (linear) position.
2. Important: Set the level control to its left stop (lowest volume).
3. Now, play back some music and set the volume control of the amplifier to the desired level.
4. Set the subwoofer level control to the desired bass level.

Cross-over frequency control (4)

Used to set the upper limit of the subwoofer operating range. The cross-over frequency should be set to 40 to 120Hz when the system is used in combination with shelf loudspeakers or 50 to 100Hz when used with stand loudspeakers.

Phase regulator (3)

In normal use the phase control should be set to 0^ . However, in rare cases it may be advantageous to vary the phase to between 0 and 180^ (e.g. if the subwoofer is far away from the front satellites or in the event of unfavourable acoustics in the room). Generally speaking: the setting where the lower base tone area has a more natural sound is the correct one.

MAINTENANCE

The surface is best cleaned with a mild household cleaner. On no account use furniture polish or similar products.

SPECIFICATIONS

Configuration: bass reflex subwoofer 'Downfire'

Fitted with 30 cm long-stroke driver

Output power RMS/Max.: 190 / 380 watts

Frequency range: 19 - 200 Hz

Cross-over frequency: 40 - 120Hz ,adjustable

Dimensions (WxHxD): 400 x 525 x 465 mm

Accessories: mains cable

Subject to technical change.

Très cher client,

LE SUBWOOFER ACTIF MAGNAT SIGNATURE SUB730A

COMPOSITION DU SUBWOOFER (FIG. 1)

Configuration: bass reflex subwoofer, 'Downfire'

Uitrusting 30~cm long-stroke driver

EL SUBWOOFER ACTIVO MAGNAT SIGNATURE SUB730A

O SUBWOOFER ACTIVO MAGNAT SIGNATURE SUB730A

AKTIV SUBWOOFER MAGNAT SIGNATURE SUB730A

• 6pbI3ramn BOJbl. Kpome TOrO, Ha ca6ByΦep Hn B KOem cIyuae He cIeDyeT CTaBNTb Ba3bl IIN dpyrIne COcybl, HANOJIHeHHbIe XNIDKOCTbHO.
  PacctoHne ot kaxdoi cstopohbI Kopnyca AKTNBHO ca6Byepa Do CTEN KOMHaTbI IIN dpYnx obBeKToB (HaNPmEp, Me6eN, CTeJIaXeJ) DOJXHO COCTaBnTb He MeHee 5 cm.

AnomnneBa nactHa n OxnaJaOnue pe6pa ycHnte, paononoXeHHbIe Ha 3aHHe qactn AktNBHO ca6Byepa, npedHa3NaueHbI dIy OxnaJeHbN BCTpoEHHO ycHnte. PoTOMy OHn TaKKe DoJxHbI 6bITb paCNOIOXeHbI Ha pacCToAHn He MeHee 5 CM OT BCEx ObBeKTOB. Hx HeJIb3r NaKpbIbTa (HaNPmEp, 3aHaBeckO).

OTBepctne(-) bass reflex akTINBHO rCABBypepa He DOJNXHO 6bITb PpIKpbIto KaKIMN-Jn6o IpeDMeTAM (HaNP., 3aHabecMn, rapDNHAMn) dIra ObecneueHn JOcTaTOHOBHTNJrCnYcNInTeJI.

• AKTINBHyI ca6Byeep HeIb3y yCTaHaBnBaTb pIOM C nCTOuHnKaMn TeNna (HarpeBaTeN, neu, 3JIeKTPoKaMnHbl, OTKpbIToe nnam).
• 3Kcnpnyte yctpoictBO TOnbKO npn Tempeatype OkpykaOe Cpebl/B NOMEHIN B Dnana3OHe oT 10^ do 40^ . AKTNBHy ca6Byep HeIb3r nCnoIb3ObaTb B NOMEHINAX C

NOBblJEHOB BJIaXHOCTbIO.

• He cTaBbTe Ha aKTnBhI Ca6ByΦep npedMeTbI, RaJIaIOUeCRA NCTOCHKAMN OTKpbIToro ORHa (HapnMep, CBeu).
  He DToParuBaTbcra Do cTeBOrO Ka6eJn He NoDkNIOaTb erO BnaKhbIM pyKaMn.
  Cetebo Ka6eIb DOJIkeH HaxoINTBcRa Ha DoCTaTOUHOM pacCTOAHN OTOTOnITbeHBx np6OpOB.
• Ecni Ha cTeBOM ka6ene 6ydt obHapxKeHbI NobpeXdHnA, 3KcNlyaTnpoBaTb yCTpOietBO 60JIbHe HeIb3r. NOBpeXdHnBk Ka6eBp eMOHTnpoBaTb HeIb3r, erO HxKHO 3aMeHnTb.
• Hn B Koem cnyuae He Knaactb Ha CeTeBOi Ka6eJIb TjXkIbe npedMebl.
• Ceteboi uTeceJIb nCIOJIb3yeTcra kak OTKIIuOaIooee yCTpoIcTBo, IN Hemy DoJxH e6bITb o6ecneueh cBo6oHNbI DOCTyIN B IIO6oe Bpemr.
• Ecnn npnbop dntteIbHoe Bpem (Haep., B OTnyske) He nCNOB3yeTc, CneDuET OTCOeHNHTb CeTeBOI WTEKeP OT cetn nITaHn. Pnp6op cneDuET TAKKe OTcoeHNrTb OT cetn nITaHn BO Bpem rpo3bl. Tem cambl ppeDtBpaauTcra NobpeJdHne OT ydaP aMOJIHeN I NOBbUeHHOr HapjxHeHn.
  He nCnoIb3yIte YnCTaIe CpeIcTba IIN XIMnueckne paCTBOpHTeIN, TaK KaK OHN MOrY T NOBpeIITb NOBepxHOCTb.
• PemOHThbI pa60bI DOJIxHbI BcERda BblIOJIHTbcra KBaIIuΦnIupOBaHHbIMn CneUaJIntaMn, TAK KaK HNaYe MOKeT BO3HnKHyTb ONaCHOe BBICOKOE HaPRAKeHne NIN dpyRNe BnDbI OnaCHOCTN.

AKTUBHbI CAEBYΦEP (ΓPOMKΟΓOBOPHTeJIb ΠΙΑ HN3ΚNX YACTOT) MAGNAT SIGNATURE SUB730A

3TO yCTPOIcTBO ONTImaJIbHO HAcTpoEHO B PIIaHE ONTIKN I aKycTNI HA KOMNaKTHbIE rPOMKOROBOpNTeJInc cepnMAGNAT Signature, Ho MoKeT, KoHeuHO Je, 6bITb KOMbHInpObaHo N C dpyrIMn rPOMKOrOBopNTeJIaMI.

Ipn nodkluyeHH BaWei CnCTembl rpmKOROBOpTeJe CJeHTE 3a TeM, TTo6bI BCE npnbopbl 6bln BbIKIOueHb.I Daee Heo6XODIMO CJeHtB 3a TeM, TTo6bl BCE Ka6eJI rpmKOROBOpTeJe 6bln npabNlBHO NpJrpuN3OBAHbI, T. e. TTo6bl NpOJOHTeHbI NpIOUC COOTBeTCTByUOeBO BxOda 6bln CoedHNc N pIoXHTeHbIM NpIOOC MCOBTCTBYUOeBO BXOda, a OtpNUaTeHbI NpIOUC - c COOTBeTCTByUOzHM OtpNUaTeHbIM NpIOOC.MObIOnaTeTAKKe pyKOBoDCTBa nO ekCnpyaTuIN BaWnx pecuBepa/YcuiNTeJI rpmKOROBOpTeJe.

YCTAHOBKA

YeIIOBeueckoe yxo He MoKeT OnpedeJIb MeCTOHaxOxJdeHne B NOMEeHN BOCnpoN3BOIDMOrO ca6ByΦepom YactOTHoro dnaHa3OHa, PO3Tomy UcTaHOBKa, B ObSeM, He IpeDCTaBnAeT c6oB nPo6IeMbI. Ho paCnoIooKHe nepei MeCTOM cnUshaHnB 6bln3n fpoHTaNbHbIX rPOMKOROBOpNTeJe ABLaTeC8 CZe 60Jee 6laorponpIaHbIM. Kpome TOro Bbl DoJXhbl CpeIb 3a TeM, YTO6bl paCCTOaHne K npedMeTam n CTehAM COCTaBnJILO CO CTOpOHbI - He MeHee 20 cm, a c3aAn - He MeHee 20 cm, iHaue BOCnpoN3BeDeHne Hn3Knx TOHOB MoKeT 6blb HapuSeHo.

3JIEMEHTbI YNPABNEHnA CABByΦEPA (PNCYHOK 1)

IopknoueHne K 3neKtpocetn (10), nepeKnoyateJb HapjxHeHn cTe n (9)

Tak kak pech ndet o ca6bypepe co BCTpoeHHbIM ycNJInTeJeM, ero Heo6xOaHMo NOdkNIOHTb K JINHN 3JIeKTPocETn C nOMOsbIPO npJIOXeHHoro cNoBOrO Ka6eJI. IpeekIooaTeJIcTeBOrO HapJxKeHna YCTaHaBnBaETCa Ha 3aBoJe-n3roTOBtTeJe Ha 230 B dJa npImeHeHnB Ebponecknx CTpaHax.

Oueh Baxho: PoiKIOUeHne ca6Byepa B noIooKeHH 115 B K cetn c HapJxHHeM 230 B Hen36exHo npBODHT K pa3pyuHIO BCtpoEHoro ycNITe!

IpeekniouataJIb peKIMOB (2), INdkaTOp peKIMOB (1), BbIKIOUaTeJIb nHTAHN8 (8)

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WHEN SERVICING USE ONLY IDENTICAL PARTS.
CAUTION

TO REDUCE THE RISK OF FIRE REPLACE WITH ONLY THE SAME TYPE AND RATING FUSE.
DOUBLE INSULATION

3

D

Congratulations! You have made a wise selection in becoming the owner of a MAGNAT HiFi equipment. Due to high quality MAGNAT HiFi products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 5-years warranty for MAGNAT HiFi speakers and a 2-years warranty for MAGNAT HiFi-electronic components.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your MAGNAT HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.

2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequent damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.

3. Unauthorized tampering with the equipment will invalidate this guarantee.

4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that the component is packed in original factory packing in good condition the quality control card has been filled out and enclosed with the component your enclose your receipt as proof of purchase.

5. Exclued from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. • Consequential damages to other equipments. • Reimbursement of cools, without our prior consent, when repairing damages by third parties.

F

Toutes nos felicitations!

Name and address of the dealer/stamp

Käufer/Customer

Name/Name

Straße/Street

PLZ, Ort/City

Land/Country

Kaufdatum/buying date

No warranty without receipt!
