Brand	Steba
Model	AW 6M
Product Type	Air purifier with air washer and humidifier function
Power Supply	USB 5V, 1.5A (power adapter not included)
Power Consumption	7.5W max
Water Tank Capacity	0.75L
Airflow	Not specified
Dimensions (approx.)	25 x 25 x 30 cm
Weight (approx.)	1.5 kg
Power Levels	3 (1-3)
Main Functions	Purification, humidification, aromatherapy (essential oils), oscillation of air outlet
Filtration Type	Rotating disc air washer (no replaceable filter)
Recommended Room Size	Not specified
Noise Level	Not specified
Maintenance and Cleaning	Clean the discs and tank every 14 days with soapy water; descale if necessary with vinegar
Safety	Auto shut-off not mentioned; do not cover, do not use in bathroom, unplug before cleaning
Spare Parts and Repairability	Repairs only by authorized service center; original parts required
Material	Plastic
Color	Not specified
Warranty	Not specified

Frequently Asked Questions - AW 6M STEBA

How to use the Steba AW 6M air purifier?

Fill the water tank up to the MAX mark (0.75 L). You can add 2 drops of aromatic oil if desired. Press the unlock button to remove the motor unit, fill, then reattach. Connect the USB cable to a 5V/1.5A adapter. Press the on/off button to start at level 1. Press again to go to levels 2 and 3. The fourth press turns off the device.

How to clean the Steba AW 6M?

Unplug the device and let it cool down. Remove the motor unit from the tank. Wash all discs in warm soapy water. Clean the tank with a damp cloth. In case of limescale deposits, use vinegar or a descaling agent. Do not use harsh chemicals. Clean every 14 days for hygiene.

What is the water tank capacity?

The water tank has a capacity of 0.75 liters. Fill up to the MAX mark. If the device is not used for more than 3 days, change the water.

What power supply is needed for the Steba AW 6M?

The device operates via a USB cable. It requires a power adapter providing 5V and at least 1.5A. You can also plug it into a computer USB port, but the power must be sufficient.

Can essential oils be added?

Yes, you can add up to 2 drops of aromatic oil to the water tank. Do not spray air freshener directly into the device.

Is the purifier noisy?

The noise level is not specified in the manual, but like any ventilated device, it produces operating noise. Lower power levels are quieter. The device is designed for domestic use.

Do I need to change a filter?

No, the Steba AW 6M does not use a replaceable filter. It works by air washing: rotating discs are rinsed by water. Simply clean the discs and tank regularly.

Can the air outlet pivot?

Yes, the air outlet is pivoting (indicated in the manual). This allows you to direct the airflow in the room.

What to do if the device does not work?

Check that the adapter provides 5V/1.5A and that the USB cable is properly connected. Ensure the motor unit is correctly engaged. If the air washer does not work, clean the tank and check that the discs are not blocked. If the problem persists, contact customer service.

Where not to place the device?

Do not place the device on a hot surface, near flammable objects, in a bathroom or humid room. Never cover the air inlets and outlets. Keep the cable away from hot parts and do not leave it hanging to prevent tripping.

USER MANUAL AW 6M STEBA

Instructions for use 10

Mode d'emploi 16

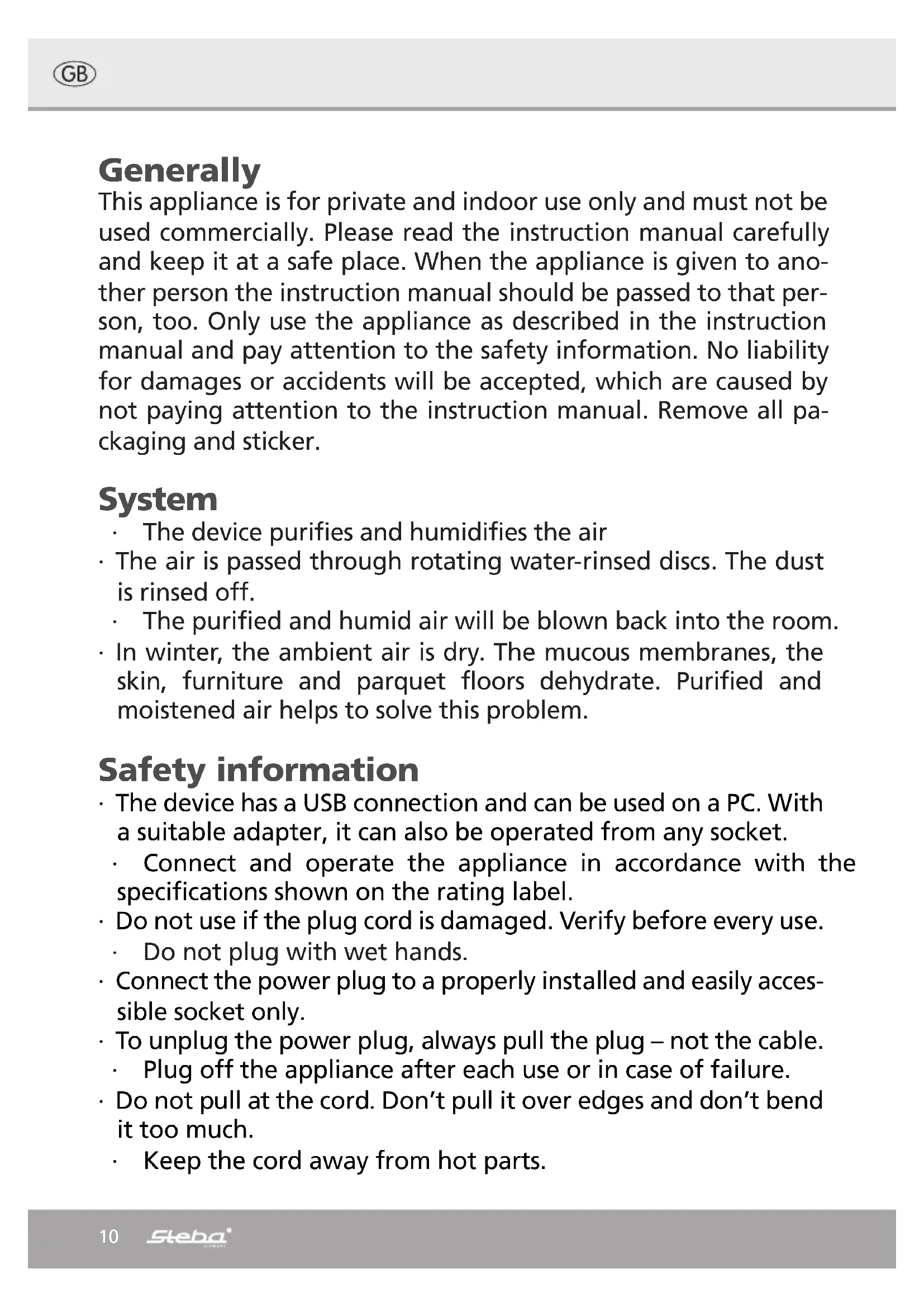

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker.

System

The device purifies and humidifies the air
- The air is passed through rotating water-rinsed discs. The dust is rinsed off.
The purified and humid air will be blown back into the room.
- In winter, the ambient air is dry. The mucous membranes, the skin, furniture and parquet floors dehydrate. Purified and moistened air helps to solve this problem.

Safety information

• The device has a USB connection and can be used on a PC. With a suitable adapter, it can also be operated from any socket.
• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments

o by clients in hotels, motels and other residential type environments

o bed and breakfast type environments.

• If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.

• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more then 3680 watts due to fire hazard.

• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
  Do not cover with a blanket or other things.
• Do not place sharp metal objects or fingers in the air outlet.
• Do not use the device in the bathroom or a room with a high level of air humidity
  . Do not spray anything into the device
  . Do not direct the air outlet to veneer etc .

Cleaning

Attention! Pull the plug before cleaning. Never immerse the unit into water.

• For hygienic reasons, the device should be cleaned every 14 days.
• If the device shouldn't be used for more than 3 days, the water in the water tank has to be replaced.
• Remove the motor part from the water tank and clean it with a damp cloth.
• Then, remove the water tray with the humid disc pack.
  · Clean the disc pack with warm soapy water.
• Depending on the water hardness, the limescale must be removed from the tray and the disc pack. Depending on the scale you can use water added with vinegar or descaler. Do not use aggressive detergents.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

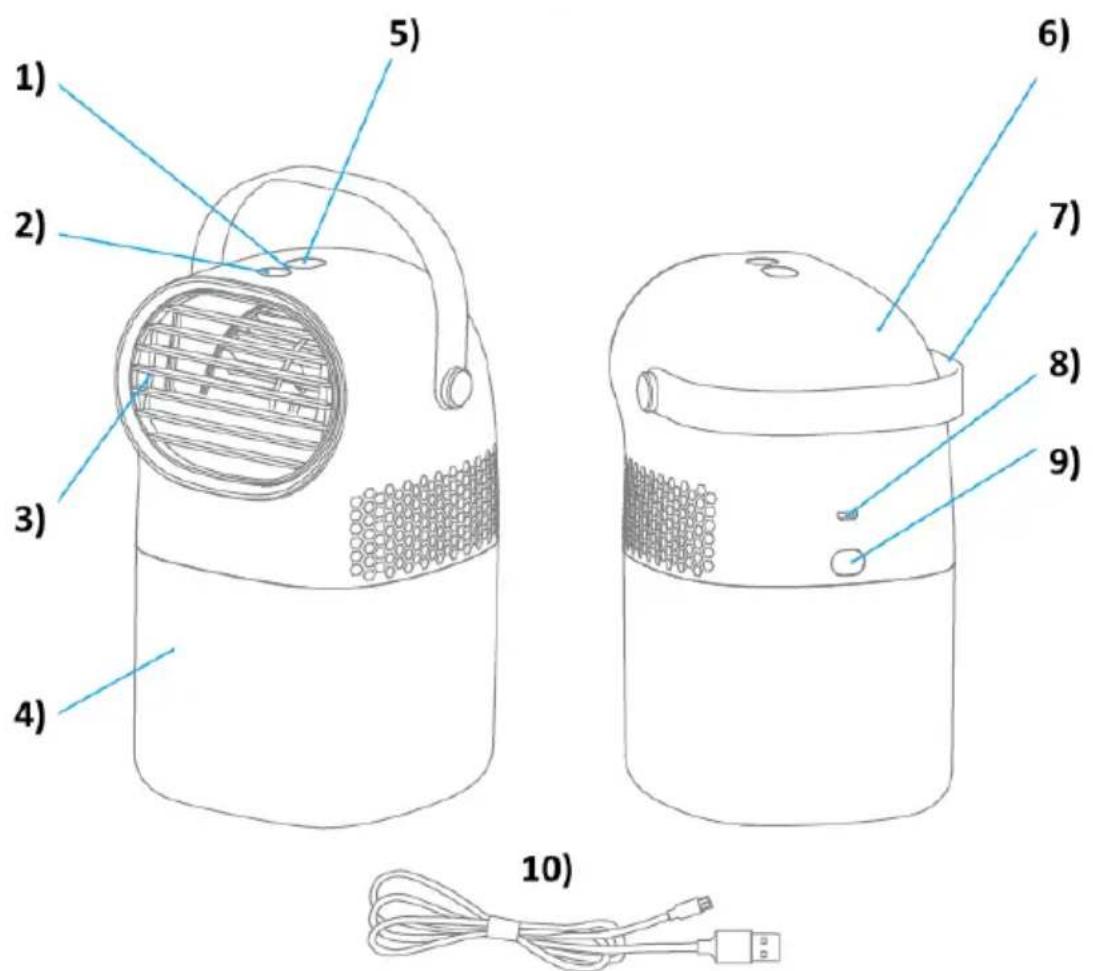

1. Power control light
2. Start/Stop, power level 1-3
3. Ait outlet
4. Water tank
5. Air washer function
6. Motor part
7. Handle
8. Power socket
9. Release button
10. USB cord

Getting started

• Doors and windows should be closed for an optimal cleaning performance.

①

②

(3)

• Press the release button on the back of the device to remove the motor part.
• Fill the water tank up to the "MAX" mark with water (0.75 liters). 2 drops of scented oil can also be added to the water.
• Then, snap the motor part back into place.
• Connect the device with the USB plug.
• By pressing the start / stop button, the device starts at level 1 and the control lamp lights up. Pressing it again increases the power level (1 - 3). The fourth press switches the device off again.
  The air washer function is switched on by pressing button 5.
  The air intake and outlet must never be covered.

Troubleshooting

Dear Client,

Thank you for buying this STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.

Problem Reason	Solution
Device does not work	·Wrong output voltage ·Power supply not connected	·Connect the plug ·Adapter power must be higher than 5V, 1.5A
Air washer does not work	·Bad contact ·The plate package is blocked ·Functional damage	·Put the motor part on correctly ·Clean the water tank ·Contact customer service

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
