KFN 910 - Coffee machine Orbegozo - Free user manual and instructions

Product type	Stovetop moka pot (Italian)
Brand	Orbegozo
Model	KFN 910
Material	Chrome steel
Capacity	Approximately 200 ml (estimate)
Dimensions (height)	Approximately 18 cm
Dimensions (base diameter)	Approximately 9 cm
Weight	Approximately 350 g
Power source	None (works on stovetop)
Heating type	Low heat (gas, electric, or ceramic hob)
Main functions	Preparation of ground coffee by steam percolation
Care and cleaning	Wash with hot water without abrasive detergents; dry thoroughly
Safety	Safety valve; do not use without water; do not heat when empty
Spare parts / Repairability	Spare parts available at usual retail outlets
Warranty	Legal warranty according to applicable legislation
General information	Manual available in multiple languages; technical support via Orbegozo website

Frequently Asked Questions - KFN 910 Orbegozo

How to use the Orbegozo KFN 910 coffee maker for the first time?

Unscrew the top, remove the funnel and filter plate. Rinse all parts with hot water, then fill the base with water up to the safety valve. Add ground coffee to the funnel without tamping, screw on the top, and place on low heat.

What type of coffee to use with the Orbegozo moka pot?

Use coarsely ground coffee, specifically for moka pots. Avoid instant coffee or extracts as they can clog the filter.

How to clean the Orbegozo KFN 910 coffee maker?

Wash it with hot water after each use, without abrasive detergents. For stubborn stains, use a mixture of water and vinegar. Dry all parts thoroughly before reassembling.

Can the coffee maker be used on an induction hob?

The manual does not specify. It is designed for gas or electric/ceramic hobs. Check your hob's compatibility; stainless steel moka pots generally work on induction if the base is magnetic.

Why is my coffee maker not producing coffee?

Check that the base has enough water (up to the safety valve), the filter is not clogged, and the silicone gasket is properly seated. Also make sure the heat is not too high.

What to do if the coffee maker leaks during use?

Stop the heat and let it cool. Check that the top is screwed on tightly (tighten by the body, not the handle). Inspect the silicone gasket: if worn, replace it.

Can I leave coffee in the coffee maker after use?

No, it is not recommended to keep coffee in the coffee maker. Clean and dry it immediately after use to prevent corrosion.

How to maintain the silicone gasket of the coffee maker?

After each use, clean it with clean water and dry it. Periodically check its condition; if cracked or deformed, order a replacement gasket from the manufacturer or in store.

How much water to put in the coffee maker?

Fill the base with cold or warm water up to the level of the safety valve, not above. Do not exceed this level to avoid overflow.

Is the coffee maker compatible with a gas hob?

Yes, it is designed for gas. Ensure the flame does not exceed the diameter of the coffee maker base to avoid burning the handle.

USER MANUAL KFN 910 Orbegozo

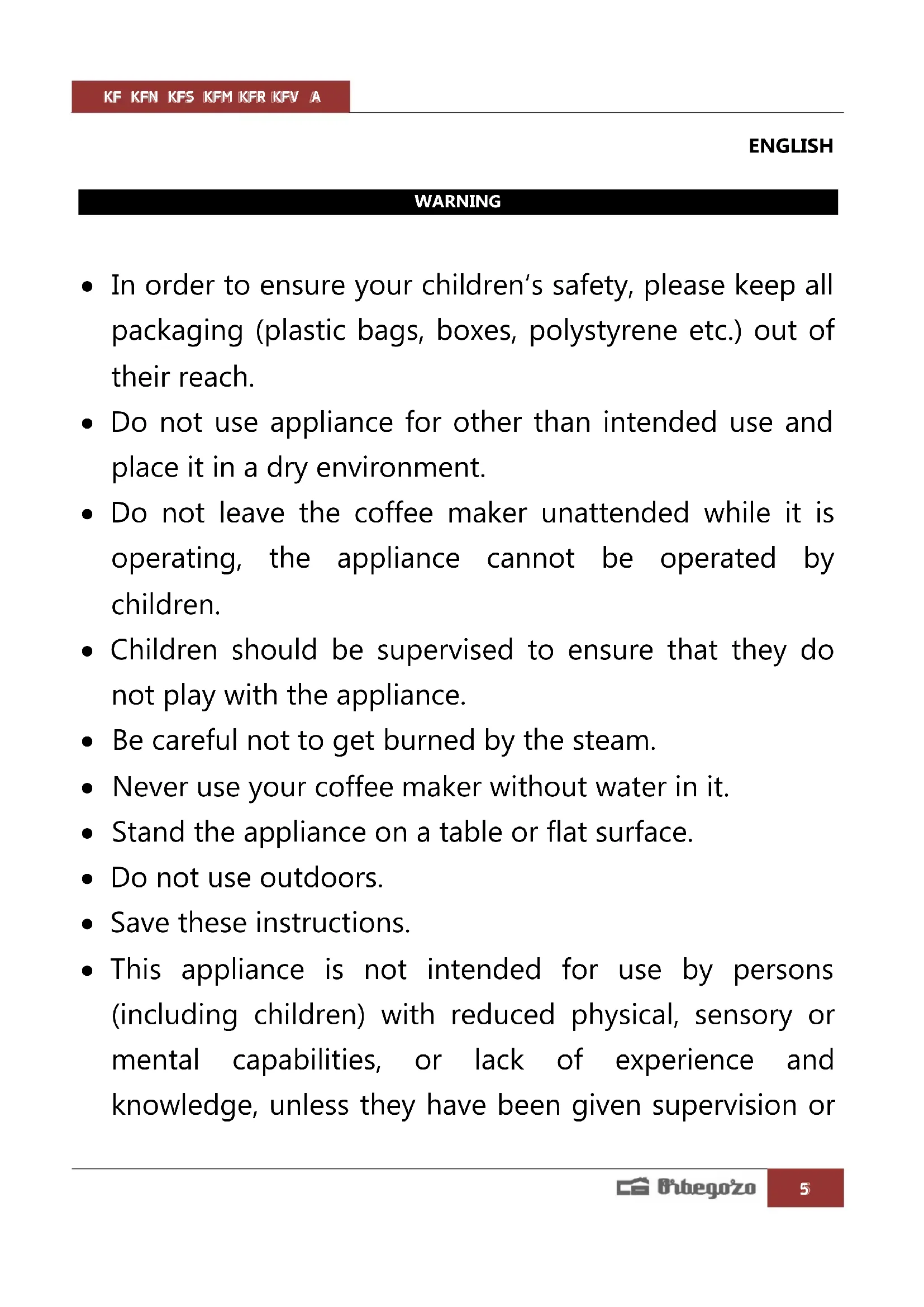

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• Do not use appliance for other than intended use and place it in a dry environment.
• Do not leave the coffee maker unattended while it is operating, the appliance cannot be operated by children.
• Children should be supervised to ensure that they do not play with the appliance.
• Be careful not to get burned by the steam.
• Never use your coffee maker without water in it.
• Stand the appliance on a table or flat surface.
• Do not use outdoors.
• Save these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliances by a person responsible for their safety.

• WARNING: Do not put the coffee maker on medium/high heat or without supervision. In this case the coffee maker may be damaged.
• WARNING: In case of misuse, there is a risk of possible injury.
• In case that you need a copy of the instruction manual, you can find it at www.orbegozo.com

SUITABLE FOR:
VITRO

ELECTRIC

GAS

DISHWASHER

INSTRUCTIONS FOR USE

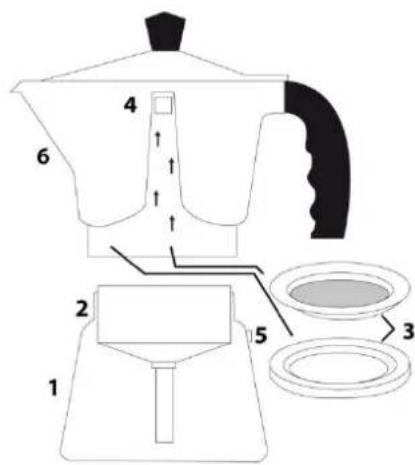

1. Before using the coffee maker for the first time, unscrew the top (6) from the base. (1) Remove the filter funnel (2) from the base; observe that the filter plate (3) is inserted in the top section, with the concave side showing and ensure it is held in position by the rubber washer (3) witch fits into the groove, and remove both these parts.
2. Wash all the parts in hot (but not boiling) water and correctly reassemble the top section.
3. Fill the base with cold, medium or hot water up to the level of the safety valve (5) and insert the filter funnel.
4. Fill the filter funnel with ground coffee, do not press the coffee.

5. Screw the top section firmly to the base from the body, not forcing the handle.

6. Put the coffee maker on a constant low heat, and if it is with a gas stove, let the flame not exceed the base of the coffee maker, and in a few minutes you will have your delicious coffee. It will boil up to the lid. The coffee maker is not suitable for keeping the coffee hot or for reheating as the base section will be empty and further heat will damage the base.

7. Cleaning and maintenance: We strongly recommend you to wash the coffee maker after each use. Only use coarsely ground coffee. Do not use instant coffee. Do not use other types of extracts. A) To wash, separate the top section and the base when cool; they will not unscrew easily wile hot. B) Do not use harsh scourers, soda or detergents witch could damage the polished surface. Use hot water. If the surface requires brightening up, liquid chrome polish may be used. C) After some time discoloration or depositis may form inside the base. This is unavoidable, especially in hard water areas; a mixture of water and vinegar may be used to remove stains. D) Always dry thoroughly and store all parts separately, to allow free access of air. E) Keep in mind that the coffee maker is not designed to hold coffee for long periods of time. Once you have finished using it, clean and dry it to avoid damaging it.
8. Important: Before using the coffee maker always make sure that no part is missing and that the parts are correctly assembled. Periodically check the condition of the filter funnel, filter plate and rubber washer. Share parts are readily available. Shoud the treads become worn, replace the coffee maker.

RECOMENDATIONS TO MAKE A GOOD CUP OF COFFEE

To give your coffee a better flavor and aroma, we recommend that you use recently ground coffee. The coffee should be medium ground and should not be too fine. Keep your coffee in a dry place. Once the coffee packet has been opened, keep it well closed in the refrigerator so as to maintain its aroma.

ATTENTION

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
