USER MANUAL ACB12K02 Fuave

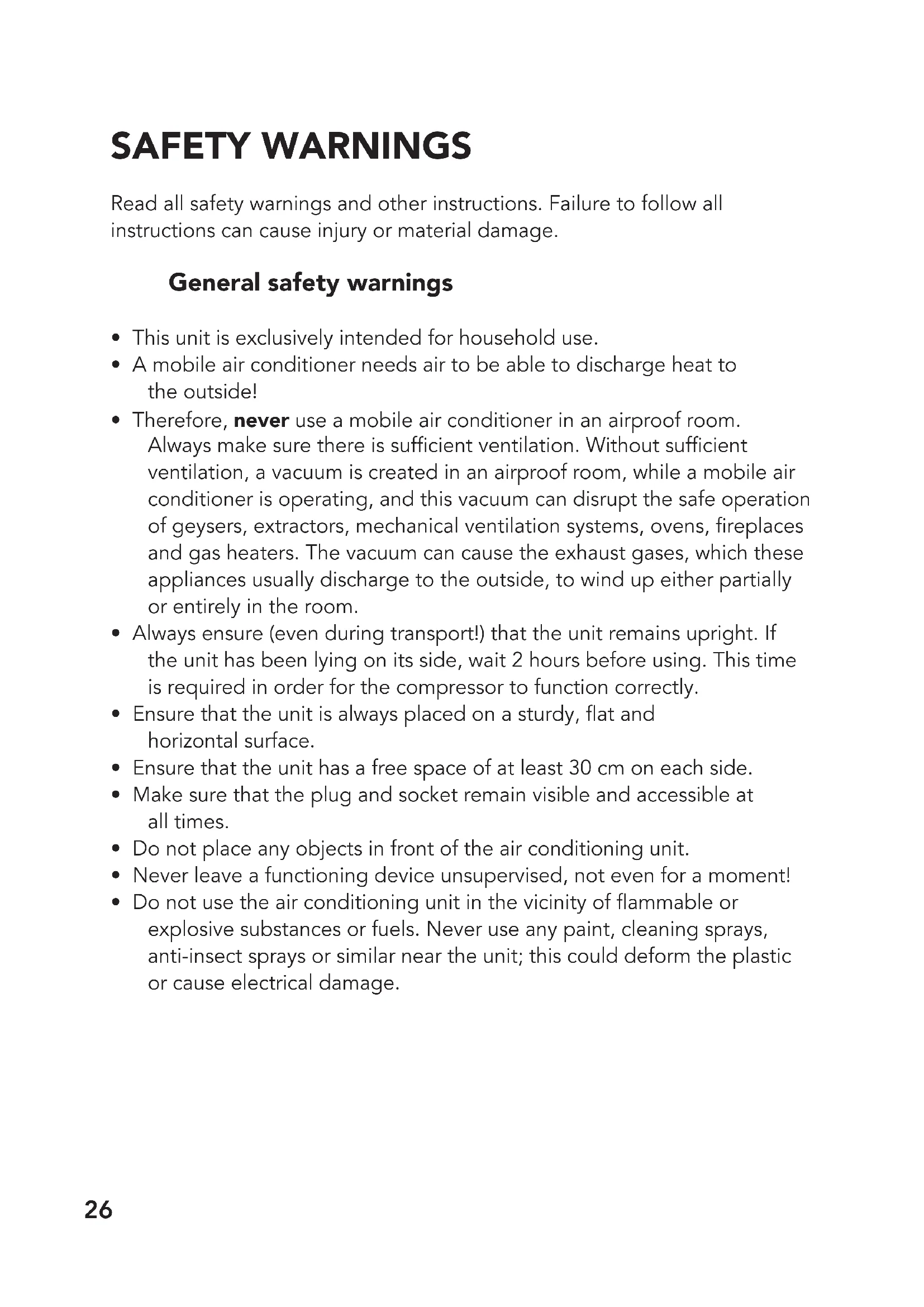

• This unit is exclusively intended for household use.

• A mobile air conditioner needs air to be able to discharge heat to the outside!

• Therefore, never use a mobile air conditioner in an airproof room. Always make sure there is sufcient ventilation. Without sufcient ventilation, a vacuum is created in an airproof room, while a mobile air conditioner is operating, and this vacuum can disrupt the safe operation of geysers, extractors, mechanical ventilation systems, ovens, replaces and gas heaters. The vacuum can cause the exhaust gases, which these appliances usually discharge to the outside, to wind up either partially or entirely in the room.

• Always ensure (even during transport!) that the unit remains upright. If the unit has been lying on its side, wait 2 hours before using. This time is required in order for the compressor to function correctly.

• Ensure that the unit is always placed on a sturdy, at and horizontal surface.

• Ensure that the unit has a free space of at least 30 cm on each side.

• Make sure that the plug and socket remain visible and accessible at all times.

• Do not place any objects in front of the air conditioning unit.

• Never leave a functioning device unsupervised, not even for a moment!

• Do not use the air conditioning unit in the vicinity of ammable or explosive substances or fuels. Never use any paint, cleaning sprays, anti-insect sprays or similar near the unit; this could deform the plastic or cause electrical damage.27

• Do not use the appliance: - close to a re source; - close to splashing oil; - in direct sunlight; - with splashing water; - in a bathroom or at a swimming pool.

• Never block the grilles for incoming or outgoing air (not even partially). In order to prevent over-heating, never cover the device!

• Never insert ngers or objects such as pens into the device via the grilles and ensure that the ventilator does not become blocked.

• Children, incapacitated persons and pets should be supervised.

• This appliance is not a toy, so children should not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Avoid children coming into contact or playing with the device.

• Cleaning and user maintenance shall not be made by children without supervision.

• Remove the plug from the socket when you hear strange noises, smell a strange smell, when there is smoke.

• Do not turn on the appliance if you have discovered damage to the appliance, cord or plug, if the appliance is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certied electrician for inspection and/or repair. Always ask for original parts.

• The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorised and qualied persons.28 Electrical safety

• The air conditioning unit is only suitable for indoor use.

• Only use the plug that is installed on the device in the factory and no other form of connector!

• The appliance shall be installed in accordance with national wiring.

• Before use, check that the electrical outlet you want to use is earthed, has no defects, and that the power supply to the electrical outlet corresponds to that on the rating plate of the appliance. Damage caused by a faulty voltage is not covered by the warranty!

• If the appliance is not being used, or if you are cleaning, servicing or moving it, switch it off rst and then unplug the appliance. Always move and / or move the device quietly!

• Even when you start using the appliance: rstly plug in the mains, then the switch to the ON position and only then use the control button!

• Do not use the device in a damp or wet environment, near a bath, shower or swimming pool and do not splash water, oil or any liquid on or in the appliance.

• Avoid using extension cords as much as possible. If this is unavoidable, use a cord with sufcient capacity (at least 3 x 1.5 mm²) and keep it outside the walking route!

• Do not move the appliance by pulling on the electrical cable and take the plug in your hand if you want to take it out of the socket.

• Do not pull on, deform or modify the electrical cable or immerse it in water. Pulling or misuse of the electrical cable will cause damage to the device and cause an electric shock.

• If the electrical cable, plug or the appliance itself is damaged, broken, or malfunctions, do not use it or switch it off immediately and remove the plug from the socket. Device, plug and / or cable must be repaired / replaced by an electrician or similarly qualied person. Repairs by inexperienced people will invalidate the warranty and can cause dangerous situations!29 Safety in relation to coolant R290

• This device contains the coolant R290. R290 is a coolant that complies with the relevant European Directives. Never perforate the coolant circuit. R290 is ammable (GWP 3)!

• Never use substances other than those recommended by the manufacturer for the defrosting process.

• This device must be used and stored in a room that does not contain sources of ignition, such as open ames or gas and electrical devices in operation.

• Do not perforate any of the components of the cooling circuit and do not set light to the device.

• If the device is installed, working or stored in an un-ventilated you must take measures to prevent re or explosions caused by leaked coolant. Ensure that there are absolutely no sources of ignition (such as re, heaters, sparking electrical equipment, lit cigarettes, etc.) in the same room!

• The device must be stored in such a way that mechanical defects are prevented.

• Do not install, operate or store the device in a room smaller than 15m².

• R290 is odourless, which means that you cannot smell leaks!

• Persons working on the cooling circuit must be in possession of the correct qualications that state the person in question is competent to use coolant in accordance with a special evaluation that is recognised by the sector association.

• The repairs must be executed on the grounds of the recommendations of the manufacturer of the device. Maintenance and repairs that require the assistance of other qualied persons must be executed under supervision of someone who is specialised in the use of ammable coolant.30 Lower heat loads 38 m² 105 m³ Higher heat loads 24 m² 66 m³ Fuave ACB12K02

• Do not place the unit in the vicinity of a heat source or in direct sunlight.

• Close windows and doors and keep curtains or hatches closed during the sunniest hours in the day.

• Modify temperature and ventilation settings once the area has reached the required condition. Maximum effect The maximum surface area, which this air conditioner can cool, depends on various conditions. Conditions that cause the air conditioner to cool smaller spaces are, for example: - Higher outdoor temperature - Many and/or large windows - Flat roof - Many people in the room - Many electrical appliances in the room If these conditions are present to a lesser extent (i.e. lower heat loads), the air conditioner can cool a larger surface area better than if more of these conditions are present (i.e. higher heat loads).31

6. Water drainage high

7. Air outlet backside

8. Elektrical cable with plug

9. Water drainage low

A. Outlet hose hot air B. Connector airconditioner C. Connector windowpanel D. Fabric Window Seal with Velcro strip E. Wall connector F. Remote control DESCRIPTION Description of the accessories32 INSTALLATION The Fuave ACB12K02 is a mobile airconditioning/dehumidifying units that can be moved from room to room. Install as follows:

• Remove all packaging material, keep it away from childeren and ensure that the unit remains in an upright position.

• Before use, check that all accessories are present and that there is no damage to the accessories or the unit itself. Do not use a damaged unit; take it back to your supplier!

• Place the unit on a sturdy, at, dry and horizontal base near an electrical socket and a discharge point for hot air, e.g. a window that can be opened slightly. Make sure that the unit has at least 30 cm of free space on all sides and take all safety instructions into account. Installation to dehumidier

• To use the dehumidication function, connect the water drainage hose to the water drainage point (high) (see picture). This hose should lead to a bucket or drain. The hose should not run upwards! Your unit is now ready for use.33 Installation to cool

• In order to use the cooling function, you do not need to connect the water drainage hose. Check that the sealing caps of the water drainage connections are in place.

• Install the fabric window seal on the window, see description below.

SEALING YOUR WINDOWS

Note: Install the air conditioner only after you have sealed your windows. This prevents the warm air discharged by the air conditioner from blowing back into the house. This type of window sealing is not suitable for tilt windows.

1. Velcro for the window frame

Clean the window and the window frame using cleaning agents or dish wash soap to make them free of dust and grease. Subsequently cut the Velcro to size and stick it to the window frame all around the window.

2. Velcro for the window

Subsequently stick the Velcro completely around the window. Watch out that you don’t stick it on the glass.

3. Sealing the window frame

Stick the narrow side of the window sealer on the Velcro attached to the window frame. Start working from the centre and stick the narrow side completely around the window frame.

4. Sealing the window

Put the window ajar and stick the wide side of the window sealer on the Velcro attached to the window. Leave sufcient space in the corners to prevent jamming the window sealer.

5. Opening the window seal

Open the window seal approx. 50 centimetres using the zipper of the window seal.34

6. Mounting the air discharge hose

Insert the air discharge hose of the air conditioner through the opening in the window seal. Subsequently close the zipper until the air discharge hose is positioned tightly. The window seal is now ready for use.

• Turn clockwise the connector for the air conditioning on one end of the drain hose.

• Slide the connector for the air conditioner into the appropriate slot on the rear of the unit.

• You can also hang the outlet hose out of an open window; this method is less efcient however.

• Avoid bends or pinches in the pipe. These will lead to a build-up of damp, waste air which can cause leaks, overheating or lead to the air conditioning unit switching off.35

• Warning! Do not use your air conditioner before it is installed according to the instructions described above!

• Warning! Ensure that no water can enter the device!

• Warning! The length of the drain pipe is specially adapted to the technology of this air conditioning. Do not replace it, therefore, and do not extend it with its own hose, as this can negatively affect the functioning of the air conditioner. The hose can be stretched, but in order to achieve an optimal effect you should keep the length as short as possible.

• Remember your intrusion prevention!36 WORKING Description of the control panel

1. Watertank full lamp

12. Signal receiving window

The control panel en the remote control have basically the same buttons. At the back of the remote control, insert two batteries (AAA-1.5V) into the appropriate compartment. Description remote control38 Before using the air conditioner, check:

• That it has been installed according to safety instructions.

• That it is not damaged or broken.

• That the electrical socket that you wish to use has the same voltage as is given on the unit’s specication plate (220-240V~50Hz).

• That no other devices are connected to the same socket. If this has all been checked, you can insert the plug into the socket.

• Switch the device on with the ‘power’ button.

• Press the ‘Mode’ button until the ‘Cool’ lamp is shown on the display.

• The display shows 25°C.

• Set the required temperature with the Temp+/Temp- button. The display shows the congured temperature. The temperature can be set between 16 and 31°C.

• Press the ‘Speed’ button to set the ventilator speed at low or high.

• Observe an interval of at least 3 minutes between every on/off.

2. Dehumidication function

• Press the ‘Mode’ button until the ‘Dehum’ lamp is shown on the display.

• Check if the water discharge high is connected correctly.

• The display automatically shows 2°C below the room temperature.

• The temperature cannot be changed.

• The ventilator speed is automatically set to normal.

• Observe an interval of at least 3 minutes between every on/off.39

3. Ventilation function

• Press the ‘Mode’ button until the ‘Fan’ lamp is shown on the display.

• The display shows 25°C.

• Set the power to low or high with the ‘Fan Speed’ button.

• The temperature cannot be changed.

• First set at which temperature and in which mode (cooling, dehumidifying or heating) you want the air conditioner to start.

• Switch off the air conditioner using the <On/Off> button. Now the air conditioner is in the stand-by position.

• Press the <Timer> button.

• Using the <Up> and <Down> buttons, set the number of hours after which the air conditioner has to start (1-24 hours).

• Press the <Timer> button once again. The display of the air conditioner shows the set number of hours. The air conditioner will automatically start with the entered settings after the lapsing of the set number of hours. Automatic stop:

• Press the <Timer> button while the air conditioner is operating.

• Using the <Up> and <Down> buttons, set the number of hours after which the air conditioner has to stop (1-24 hours).

• Press the <Timer> button once again. The display of the air conditioner shows the set number of hours. The air conditioner will automatically stop after the lapsing of the set number of hours.

The display shows the congured temperature or the timer settings. The display also shows the error codes, see further on in this manual.40 Additional comments

• When you start the device and opt for a specic function or change function, the ventilator will work but the compressor will not start immediately: the latter to protect the internal components. The symbol that belongs to the congured function blinks on the display, a sign of the ‘waiting mode’. This can last 3 to 4 minutes.

• In case of prolonged strong cooling, ice accretion can occur on the interior of the device . You notice this because the device performs less. To solve this you switch off the device and give it time to defrost.

• When the required cooling or heating temperature has been attained, the device will continue ventilating but the compressor discontinues operating.41 Water outlet During cooling and dehumidication, the device extracts water from the air. This largely evaporates again, but possibly. excess water accumulates in the water reservoirs. When full, the compressor and motor stop automatically and the “water tank full” (W.F) light turns on. In that case, switch off the air conditioning and remove the plug from the socket. You empty the water reservoirs by removing both sealing caps from the top and bottom water drainage point (see pictures) and draining the reservoirs into a drain or collecting them in a container or similar. Do not forget to replace the sealing caps on the drain afterwards! After this you can start using the air conditioning again.42 SAFETY The device is tted with an overheating safeguard that switches the unit off if it overheats. If this should occur, you must remove the plug from the socket and leave the equipment to cool for at least 30 minutes. Remove the cause of overheating - has the device been (partially) covered? Is it too close to a wall or another obstacle, preventing it sucking in or dispelling sufcient air? You can then use the device normally again but keep an eye on it for the rst 30 minutes to ensure there are no further problems. If the device is showing signs of problems or the overheating recurs, even though there is no obvious assignable cause, ask your supplier or a recognised electrician to check/repair the unit.

CLEANING AND MAINTENANCE

Note! Before cleaning or carrying out maintenance work on the air conditioning unit, always switch off and remove the plug from the socket! Regular cleaning is vital in order to keep the unit in good working order! Cleaning the housing Always remove the plug from the socket before cleaning the housing. Wipe the cabinet with a clean, soft, lint-free cloth or soft brush. Do not use aggressive cleaning agents, scouring pads or brushes and no chemical cleaning agents; this can damage the material. Never use ammable cleaning agents such as benzene or methylated spirits. Let the device dry completely before using it again. Never immerse the plug, electric cable or any part of the appliance in water or any other liquid. This can lead to an electric shock!43 Cleaning of the lter Clean the lter every two weeks; air conditioning with dirty lter does not operate properly. The lter is located behind the air intake grid at the back. You can easily open this grid and remove the lter. Use a vacuum cleaner or tap the lters lightly to remove loose dust and dirt. Then rinse the lter clean in, at most, lukewarm water (not warmer than 40°C.), potentially with a mild, neutral cleaning agent. Let the lter dry thoroughly in the shade before placing it back. Attention! Never operate the air conditioning without the lter! Einde-seizoen-reiniging If the device is to be stored for a long period, you must take the following measures!

• Remove the condensed water. Run the unit for a few hours on fan function so that the unit is completely dry inside.

• Then switch the air conditioning unit off and remove the plug from the socket.

• Clean the lters and reposition them or replace with a new ones.

• Unscrew the waste pipe from the device in order to prevent damage.

• Pack the air conditioning unit in its original packaging or in a plastic bag and place in a dry place for storage. Place a heavy object on the unit.

• Remove the batteries from the remote control.

• Store the device in a room smaller than 15m².44 TROUBLESHOOTING AND ERROR CODES Troubleshooting The unit does not start if I press the ON/OFF button

• Isthepluginthesocket?

• Is the earth leakage circuit breaker engaged? No power?

• Is the water tank full? Empty it.

• The room temperature is lower than the set temperature; amend the set temperature. The unit doesn’t seem to be very effective

• Measuret he outlet temperature; this must be approx. 10° cooler than room temperature.

• Is there direct sunlight? Shut the curtains.

• Are windows or doors open? Shut them.

• Are there too many people in the room? They produce heat!

• Is the space too big?

• Is there an object in the room that is generating (a great deal of) heat? Switch it off or remove it.

• Are the lters dusty or covered in dirt? Clean them.

• Is the air inlet or outlet (hose) blocked? Make sure there is free air ow. The unit is making a noise

• Is the surface under neath the machine sturdy and even?

• The ow of coolant in the unit also produces a little noise. This is perfectly normal. The unit switches itself off

• The overheating safeguard may have switched the unit off. See ‘Safety’.45 Error code Cause What to do E0 Error temperature sensor Have it replaced. The unit works without temperature setting. E1 Condenser temperature sensor defective Have the sensor replaced by an authorized and qualied person. E2 Water tank is full during cooling Switch off the appliance and empty the water tank manually via the lower water outlet point. Then turn on the device again. E3 Evaporator temperature sensor defective Have the sensor replaced by an authorized and qualied person. Error codes

Warning: Never attempt to repair the device yourself!46
