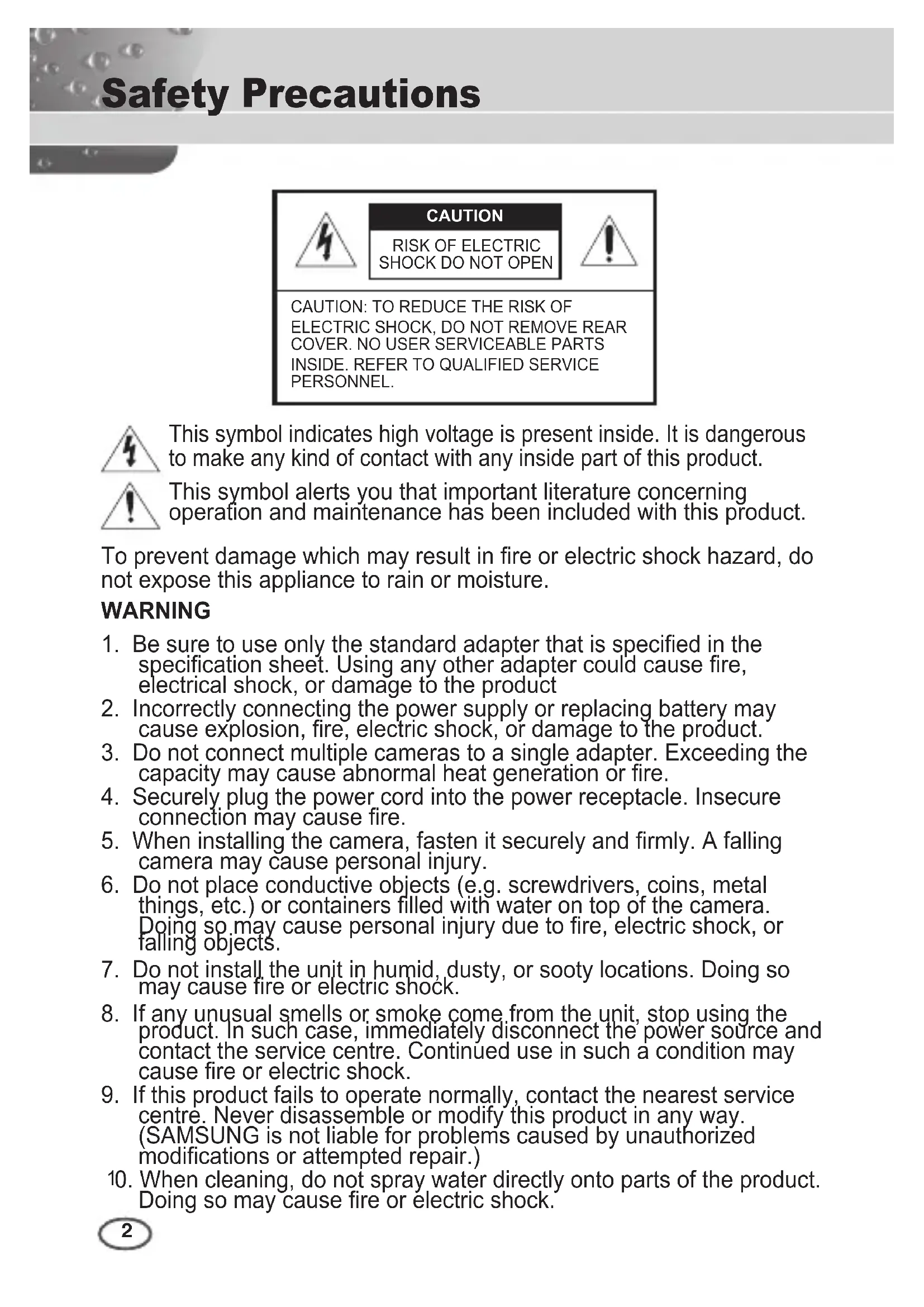

USER MANUAL SCCA2013P SAMSUNG

SCC-A2313(P)/SCC-B2313(P)

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product. To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. WARNING

1. Be sure to use only the standard adapter that is specified in the

specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product

2. Incorrectly connecting the power supply or replacing battery may

cause explosion, fire, electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the

capacity may cause abnormal heat generation or fire.

4. Securely plug the power cord into the power receptacle. Insecure

connection may cause fire.

5. When installing the camera, fasten it securely and firmly. A falling

camera may cause personal injury.

6. Do not place conductive objects (e.g. screwdrivers, coins, metal

things, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. Doing so

may cause fire or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the

product. In such case, immediately disconnect the power source and contact the service centre. Continued use in such a condition may cause fire or electric shock.

9. If this product fails to operate normally, contact the nearest service

centre. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)

0. When cleaning, do not spray water directly onto parts of the product.

Doing so may cause fire or electric shock. Safety Precautions

1. Do not drop objects on the product or apply strong shock to it. Keep

away from a location subject to excessive vibration or magnetic interference.

2. If you want to relocate the already installed product, be sure to turn

off the power and then move or reinstall it.

3. Remove the power plug from the outlet when then there is a

lightning. Neglecting to do so may cause fire or damage to the product.

4. Keep out of direct sunlight and heat radiation sources. It may cause

5. Install it in a place with good ventilation.

6. Avoid aiming the camera directly towards extremely bright objects

such as sun, as this may damage the CCD image sensor.

7. Apparatus shall not be exposed to dripping or splashing and no

objects filled with liquids, such as vases, shall be placed on the apparatus.

8. The Mains plug is used as a disconnect device and shall stay readily

operable at any time. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received including

interference that may cause undesired operation. Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. SCC-B2313_Euro_D.indd 3 2007-06-07 ｿﾀﾈﾄ 1:20:194 5

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

12. Use only with cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus.

13. Unplug this apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to avoid injury from tip-over.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or been dropped. SCC-B2313_Euro_D.indd 4 2007-06-07 ｿﾀﾈﾄ 1:20:194 5

Things to keep in mind during installation and use .............13 Connecting the Auto Iris Lens Connector ................

Setting the ALC lens selection switch ................

Adjusting the back focus .... 16 Connecting cables and checking operation ...........

Overview This enriched Day/Night camera activates the colour mode under the illumination over the normal value. Otherwise, it activates the B/W (Black/White) mode by removing the IR cut function to improve the sensitivity for identifying objects even in a dark area. It also incorporated the low speed shutter and Sens Up (Uses the field accumulation method) functions to enhance the low illumination feature. This camera can be mainly used in the dark places such as basement parking lots under comparatively low illumination. In daytime, it displays the colour screen with a horizontal resolution of 540 lines but at night, it uses the Day/Night feature along with the Sens Up function to identify objects in a dark area. You can also connect the infrared ray emission equipment to this camera. DAY/NIGHT This function can make the IR Cut filtering function inactive under the illumination below the normal value. SCC-B2313_Euro_D.indd 6 2007-06-07 ｿﾀﾈﾄ 1:20:206 7

ENG Special Features High Sensitivity It implements images of high sensitivity using the up-to-date I/T Exview-HAD, I/T Super-HAD CCD. Low Illumination It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera identify objects even in the worst environment. Superior Backlight Adjustment When an object has a bright illumination or sunlight behind it, this camera automatically improves the shaded object picture quality. Digital Power Synchronization The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the operationability and reliability of this camera. High Resolution This camera has realized high resolution of 540 lines using the top-notch full digital image processing and special algorithm technologies. Output Signal Setting You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy, Horizontal/Vertical profiling, and digital zooming. SCC-B2313_Euro_D.indd 7 2007-06-07 ｿﾀﾈﾄ 1:20:208 9

Part Names and Functions

Side View 1 Auto Iris Lens Connector This groove is used for screwing the mount adapter, a part of the bracket where the camera will be installed. 2 Mount Adapter Fixing Grooves These grooves are used when fixing screws of the mount adapter connected to the bracket when installing the camera on it. 3 Back Focus Control Bar You can adjust the back focus by moving it up and down. 4 Automatic Shutter Lens Control Cable This cable transmits the power and signals from the camera for controlling the lens shutter.

ENG 5 ALC Lens Selection Switch This switch is used to select the type of the Auto Iris lens for use. After this setting, you have to also set the lens type in the Setup menu (In AL C… submenu of IRIS).

DC: When the Auto Iris lens is installed for DC control signals, set the switch to “DC.”

VIDEO: When the Auto Iris lens is installed for Video control signals, set the switch to “VIDEO.” Auto Iris Lens (Optional) This lens is installed on this camera. Note When the camera lens becomes dirty, softly clean it with a lens tissue or a cloth soaked in pure ethanol. SCC-B2313_Euro_D.indd 9 2007-06-07 ｿﾀﾈﾄ 1:20:2110 11

ENG 1 Input/Output Connector This connector has input and output jacks for RS-485 control signals, Day & Night switching, and alarm output signals.

Function Description 1 RS-485 DATA+ Jack for connection to RS-485 DATA+ signal line

2 RS-485 DATA- Jack for connection to RS-485 DATA- signal line. 3 ALARM OUT Alarm out jack for motion detection

2 Setup Switch This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the Setup menu appears.

[Up/Down] movement: By pressing this switch up or down, you can move up or down on the menu.

Setting: When you press this switch in the menu, the selected value or function is confirmed. To enter a submenu, press this button. 3 Power Display LED When the power is normally connected, the red LED lights. 4 Video OUT Jack This is connected to the Video Input jack of the monitor and it outputs the Video signals. 5 Power Connection Jack This is connected to the Power cable. SCC-B2313_Euro_D.indd 12 2007-06-07 ｿﾀﾈﾄ 1:20:2212 13

Before Installation Checking the contents of the package Make sure that the following items are included in the package. Things to keep in mind during installation and use

Do not disassemble the camera on your own. Always be careful when handling the camera. Do not strike the camera by your fists or shake it. Please be careful not to be careless when storing and operating it.

Do not place or operate the camera in any wet environment such as rain or wet surfaces.

Do not clean the camera with rough sandpaper. Please always use a dry cloth when cleaning it.

Put the camera in a cool area free from direct sunlight. Otherwise, the camera may be damaged. Camera Camera Holder(Mount) C Mount Adapter Auto Iris Lens Connector User's Manual SCC-B2313_Euro_D.indd 13 2007-06-07 ｿﾀﾈﾄ 1:20:2414 15

Connecting the Auto Iris Lens Connector The Auto Iris Lens Connector that is provided with your camera consists of the following parts: Connect each uncovered shutter control cables to the Auto Iris Lens Connector as the following: Pin No. DC Control Type Video Control Type 1 Damp(-) Power (+12V) 2 Damp(+) Not applicable 3 Drive(+) Video Signal 4 Drive(-) Ground SCC-B2313_Euro_D.indd 14 2007-06-07 ｿﾀﾈﾄ 1:20:2514 15

Installing the Camera Mounting the lens When using the CS lens Mount the CS lens by rotating it clockwise as shown in the picture: When using the C lens After mounting the C-mount adapter by rotating it clockwise, turn the C lens clockwise until it is fixed as shown in the picture. CS lens C lens SCC-B2313_Euro_D.indd 15 2007-06-07 ｿﾀﾈﾄ 1:20:2616 17

Setting the ALC lens selection switch You can set the lens selection switch located on the side of the camera according to the lens type. When the mounted lens is an auto Iris lens of DC control type, set the switch to “DC.” When the mounted lens is an auto Iris lens of Video control type, set the switch to “VIDEO.”

Adjusting the back focus The back focus of the camera is adjusted at the factory before delivery but some lenses can be out of focus depending on the lens type. In this case, you have to adjust the back focus. The following describes how to adjust the back focus of the lenses. In case of the lens with no zooming function ① After exposing the camera to an object with high resolution (like a dart-patterned image) at a distance of more than 10m, set the lens focus ring to infinite (∞). ➁ Adjust the Back Focus Control Bar until the object is of best quality. ➂ Fix the screw of the Back Focus Control Bar. In case of the lens with zooming function ① After exposing the camera to an object with high resolution (like a dart-patterned image) at a distance of 3 to 5m, fully rotate the lens zoom to the TELE direction. Then adjust the lens focus ring until the object is of best quality. ➁ Fully rotate the lens zoom to the WIDE direction and adjust the Back Focus Control Bar until the object is of best quality. ➂ Repeat step 1 and 2 two or three times until the focuses of Zoom TELE and Zoom WIDE are clear enough. SCC-B2313_Euro_D.indd 16 2007-06-07 ｿﾀﾈﾄ 1:20:2616 17

ENG Connecting cables and checking operation

1. Connect one end of the BNC cable to the VIDEO OUT jack on

the rear of the camera.

2. Connect another end of the BNC cable to the VIDEO IN jack on

3. Finally connect the power adapter to the camera. You can

connect 2 lines of the power adapter to the camera using the Slot Head screwdriver as shown in the picture. (GND: cable with the white stripe line

Note Connect any power source of AC 24V and DC 12V irrespective of polarity.

CAMERA ID This CAMERA ID menu is used to assign a camera ID to this camera. If you press the Setup switch when the CAMERA ID menu is selected, the corresponding setup screen appears. You can input a camera ID composed of alphabets, numbers, and special characters up to 20 characters long. The input camera ID can be displayed at the desired location when using the LOCATION… submenu. When you press the Setup switch in RET, the screen returns to the upper menu.

IRIS The IRIS menu is used to set the automatic light control method for this camera. After setting the ALC Lens Selection Switch, select any of DC LENS and VIDEO LENS in the ALC... submenus. CAMERA ID ON... IRIS ALC... SHUTTER OFF AGC HIGH

ENG ALC... If you press the Setup switch when the ALC… submenu is selected, the corresponding screen appears. First select any of DC LENS and VIDEO LENS in TYPE. You can make the BLC (Back Light Compensation) function active or not. For setting the BLC zone, you can select any of BOTTOM…, TOP…, LEFT…, RIGHT…, and CENTRE… The actual location is displayed when you enter each item. In case of USER…, you can set the desired BLC zone by defining the size and location. You can set the Video output level in LEVEL. Its selectable range is from -9 to +9. ELC... If you press the Setup switch when the ELC… submenu is selected, the corresponding screen appears. You can make the ELC (Elec

tronic Light Control) function active or not. Like the same as the ALC configuration, you can set the BLC zone and assign the level of the high speed shutter.

SHUTTER The SHUTTER menu is used to set the high speed electronic shutter and AUTO low speed shutter. The high speed electronic shutter can be used 7 different speeds and is commonly used for imaging fast moving objects. (NTSC: from 1/100 to 1/10K, PAL: from 1/120 to 1/10K ). The low speed electronic shutter can be any of 13 speeds from X2 to X256 and it slows the shutter speed to make images clearer in dark illumination. If you select an AUTO low speed, the shutter speed is automatically lowered depending on the darkness level. If you keep pressing the LEFT/RIGHT Setup switch, shutter speeds toggles in the following order: OFF AUTO X2 AUTO X4 AUTO X6 AUTO X8 AUTO X12 AUTO X16 AUTO X24 AUTO X32 AUTO X48 AUTO X64 AUTO X96 AUTO X128 AUTO X256 OFF 1/100 (NTSC), 1/120 (PAL) 1/250 1/500 1/1000 1/2000 1/4000 1/10K Note When the IRIS mode is ELC or, you cannot use high speed shutters. CAMERA ID OFFIRIS ALC...SHUTTER AUTO X4MOTION SLOWMOTION DET OFFDAY/NIGHT DAY...WHITE BAL ATW2PRIVACY OFFSPECIAL ...RS-485 ...EXIT QUIT SCC-B2313_Euro_D.indd 22 2007-06-07 ｿﾀﾈﾄ 1:20:2922 23

AGC The AGC (Auto Gain Control) menu is used to set the AGC level of the camera. When the AGC is active, the camera automatically increases the sensitivity by amplifying the Video signal when the strength of the signal falls below the normal value. Only when OFF or a high speed shutter is selected in the SHUTTER menu, you can set the AGC level. You can select any of OFF, LOW, and HI GH. Note When the DAY/NIGHT is set to AUTO, the AGC is displayed with --- so you cannot change its setting. CAMERA ID OFFIRIS ALC...SHUTTER OFFAGC LOWMOTION DET OFFDAY/NIGHT DAY...WHITE BAL ATW2PRIVACY OFFSPECIAL ...RS-485 ...EXIT QUIT SCC-B2313_Euro_D.indd 23 2007-06-07 ｿﾀﾈﾄ 1:20:2924 25

MOTION The MOTION menu is used to set the intensity of the camera AGC level for monitoring motions. This function is available only in AUTO low speed mode. You can select any of S.SLOW, SLOW, NORM, FAST, and F.FAST according to the AGC intensity level. To monitor very fast moving objects in dark illumination, select F.FAST. To monitor non-moving objects in dark illumination, select S.SLOW.

MOTION DET The MOTION DET menu is used to configure the motion detection related settings. If you press the Setup switch when ON… is selected in the MOTION DET menu, the corresponding screen appears.

ENG There are 3 different types like 1, 2, and 3. You cannot change the setting for type 2 because it is prefixed with the full screen. In case of 1 and 3, you can set the motion detection area on your own. Those 3 types are like the following:

1. Window type: The selected area is displayed with a box. The

motion can be detected for the area only. You can manually set the motion detection area. You can use the UP/DOWN/LEFT/RIGHT Setup switch to set the size. To move to POSITION, press the switch. After setting the position using the UP/DOWN/LEFT/RIGHT Setup switch, press the Setup switch to move to the upper menu. To set the size and position for AREA, select any of 0, 1, 2, and 3.

2. Label type: The box-typed motion detection area is prefixed. The

detected area is displayed with size and position changing. You cannot change AREA because it is displayed with “---.” Window0 Window1 Label0 Label1 Label2 Label3 SCC-B2313_Euro_D.indd 25 2007-06-07 ｿﾀﾈﾄ 1:20:3026 27

3. Block type: The screen displays with small blocks. When a motion

is detected in the selected blocks, the small blocks are displayed on the screen.

PRESET: The whole screen becomes the motion detection area.

USER...: You can manually set the motion detection area. Use the UP/DOWN/LEFT/RIGHT Setup switch to set the area. To erase the selected block, press the Setup switch. In order to set the motion detection area on your own, you have to specify the size and location for the area setting. When ON is selected in DISPLAY, the detected motion is displayed on the screen and the camera sends the Alarm Out signal. You can also assign the sensitivity for motion detection.

DAY/NIGHT The DAY/NIGHT menu is used to configure the day and night related settings for this camera. This camera can turn the IR (Infrared) filter on or off.

ENG Note In case of B/W mode, it may fail to focus when B/W mode is converted to Color mode. That is because it must have the condition to have IRIS opened for the maximum before adjusting the Back-Focus. The smaller the F number of lens is, the lower the focus depth of field is (e.g. Using a high speed electronic shutter may lower the depth of the camera). It is required to set the focus under the condition that IRIS is open for the maximum in color mode. DAY... If you press the Setup switch when the DAY… submenu is selected, the corresponding screen appears. You can set the values for C-GAIN, AGC COLOUR, AGC DETAIL, and C-KNEE in Day mode. Colour images are implemented by these settings. Note When the value of AGC DETAIL becomes large, it also makes the noise stand out. (DAY)C-GAIN (7) IAGC COLOR ( 0) I AGC DETAIL (0) I C-KNEE (5) I RET SCC-B2313_Euro_D.indd 27 2007-06-07 ｿﾀﾈﾄ 1:20:3128 29

NIGHT... If you press the Setup switch when the NIGHT… submenu is se- lected, the corresponding screen appears. Even in night mode, you can see colour images in bright illumination. Therefore you can select any of COLOUR… and BW… In case of COLOUR…, you have to set the colour temperature for white balance. You can also specify the settings for red and blue colours on your own. In case of BW..., when the BURST is set to ON, the burst signals are output with the BW Composite Video signals. And no burst signals are output when the BURST is set to OFF. AUTO... This automatically converts the DAY mode to NIGHT mode and vice versa depending on illumination. In low illumination, it removes the IR filtering function to raise the sensitivity. Otherwise, it activates the IR filtering function to lower the sensitivity. If you press the Setup switch when the AUTO… submenu is selected, the corresponding screen appears. (NIGHT) COLOR/BW COLOR... RET (AUTO) LEVEL ( 0) I

ENG For this function, you can specify the level for each conversion between Day and Night. Note When the DAY/NIGHT is set to AUTO, the AGC is displayed with --- so you cannot change its setting. EXT This automatically converts the colour mode to BW mode and vice versa by interfacing with an external sensor.

WHITE BAL The WHITE BAL menu is used to configure the white balance related settings for this camera. To adjust the white balance, 4 different modes are provided as follows:

ATW2: Its colour temperature variation range is approximately from 2000°K to 10000°K.

AWC (Auto White Balance Control): The colour temperature setting is made once. After selecting this, expose to an object to memorize the colour temperature of it and press the Setup switch. The fixed colour temperature is applied.

MANU…: You can manually set the current colour temperature. You can also specify the settings for red and blue colours on your own.

PRIVACY The PRIVACY menu is used to configure the privacy related settings for this camera. If you press the Setup switch when ON… is selected in the PRIVACY menu, the corresponding screen appears. You can set 24 privacy zones in total. For configuration for 0 to 15 zones, you have to set the size, location, and colour. In case of configuration for 15 to 23 zones, you have to additionally set the type.

ENG In case of type1, a box type zone is set while a diamond type zone is set for the type 2. When the privacy is any from 0 to 15, four different sizes of mosaics are provided. When the privacy is any from 16 to 23, you cannot change the size of the mosaic because it is already prefixed. For 16 to 23 privacies, you cannot set the colour of the mosaic.

Note In case of LINE, it doesn’t support DC 12V, for which “---” is displayed. DIGITAL ZOOM You can set the level and ratio of digital zoom. If you press the Setup switch when ON… is selected in DIGITAL ZOOM, the corresponding screen appears. The first displayed number means the zoom ratio and the second displayed number is the magnification. When the level reaches 130, the magnification becomes 2. After the zooming position is selected, the digital zoom function applies. VIDEO SET You can configure the Video output related settings. If you press the Setup switch when … is selected in VIDEO SET, the corresponding screen appears. You can set the values for REVERSE, DETAIL, Y-LEVEL, C-LEVEL, and POSI/NEGA. In case of REVERSE, the camera provides 3 different reversion modes: horizontal (H), vertical (V), and both (H/V). (SPECIAL) LANGUAGE ENGLISH V-SYNC INT DIGITAL ZOOM ON... VIDEO SET ... DNR OFF FLICKERLESS OFF SYSTEM INFO ... RET (DIGITAL ZOOM) RATIO (000) I (X01) < LOCATION > RET (VIDEO SET) REVERSE OFF DETAIL ( 2) I Y-LEVEL ( 0)

ENG DNR You can configure the DNR (Digital Noise Reduction) related set- tings. If you press the Setup switch when ON… is selected in DNR, the corresponding screen appears. You can set the level for this configuration. FLICKERLESS When this is set to ON, the shutter speed is set to 1/100 sec (for NTSC) or 1/120 sec (for PAL) to prevent from flickering by the disac

cordance between vertical synchronization frequency and on-and-off frequency of the light. (SPECIAL) LANGUAGE ENGLISH V-SYNC INT DIGITAL ZOOM OFF VIDEO SET ... DNR ON... FLICKERLESS OFF SYSTEM INFO ... RET (DNR)

SYSTEM INFO You can check the system-related information. If you press the Setup switch when … is selected in SYSTEM INFO, the corresponding screen appears. You can find the system information about ROM version, EEP version, protocol, address, type, baudrate, and serial number.

RS-485 The RS-485 menu is used to configure the RS-485 communication related settings for this camera. You can connect to RS-485 through the rear panel.

ENG If you press the Setup switch when … is selected in the RS-485 menu, the corresponding screen appears. You can set the protocol, baudrate, and address (range: 0 to 255) for this communication

EXIT The EXIT menu is used to exit from the SETUP menu. You can select the following options:

QUIT: Ignores the change and returns to the previous settings.

SAVE: Saves the change. PRESET: Ignores the change and returns to the factory default settings.

ENG Memo SCC-B2313_Euro_D.indd 39 2007-06-07 ｿﾀﾈﾄ 1:20:34Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. SCC-B2313_Euro_D.indd 40 2007-06-07 ｿﾀﾈﾄ 1:20:34GER
