USER MANUAL DV22K6800EW SAMSUNG

Dryer User manual DV22K6800** DV22K6800-03650A-00_EN (US)_151211.indd 1 2015-12-11 7:15:41Contents English2 Contents Safety information 4 What you need to know about the safety instructions 4 Important safety symbols 4 Important safety precautions 5 Warnings 7 Cautions 7 Before installation 9 Key installation requirements 9 Location considerations 9 Ducting requirements 12 Exhausting requirements 13 Electrical requirements 14 Installation 16 What’s included 16 Step-by-step installation 18 Exhaust ducting guide 22 Changing the direction of the exhaust duct (optional) 23 Switching the door position 28 Before you start 33 Sort and load 33 Functional prerequisite 33 Operations 34 Feature panel 34 Simple steps to start 36 Cycle overview 37 Cycle guide 38 Special features 39 DV22K6800-03650A-00_EN (US)_151211.indd 2 2015-12-11 7:15:41Contents English 3 Maintenance 41 Cleaning 41 Troubleshooting 42 Checkpoints 42 Information codes 45 Specications 46 Fabric care chart 46 Protecting the environment 47 Specication sheet 48 Cycle chart 49 DV22K6800-03650A-00_EN (US)_151211.indd 3 2015-12-11 7:15:41Safety information

SAVE THESE INSTRUCTIONS

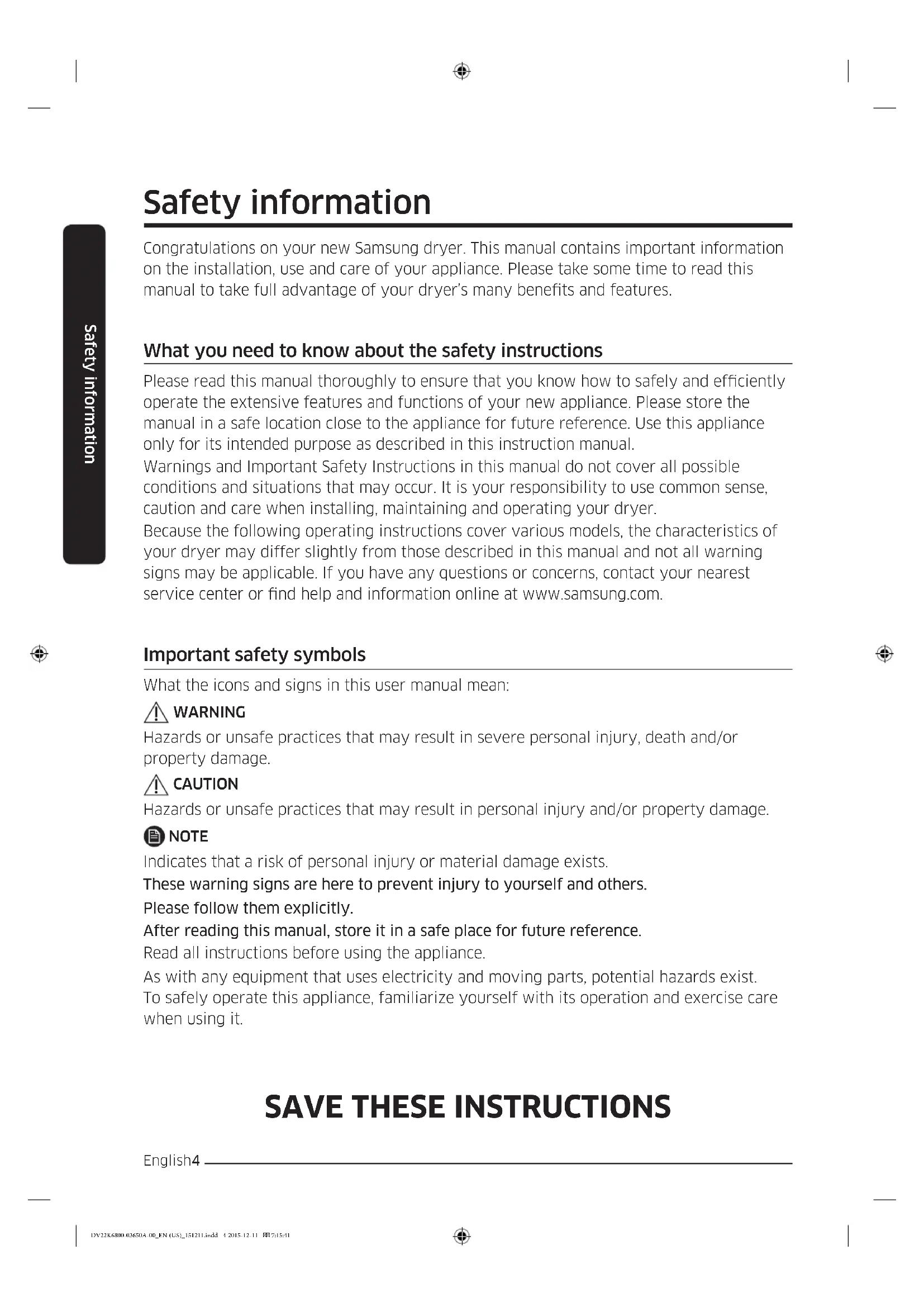

English4 Safety information Congratulations on your new Samsung dryer. This manual contains important information on the installation, use and care of your appliance. Please take some time to read this manual to take full advantage of your dryer’s many benets and features. What you need to know about the safety instructions Please read this manual thoroughly to ensure that you know how to safely and efciently operate the extensive features and functions of your new appliance. Please store the manual in a safe location close to the appliance for future reference. Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your dryer. Because the following operating instructions cover various models, the characteristics of your dryer may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or nd help and information online at www.samsung.com. Important safety symbols What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury, death and/or property damage. CAUTION Hazards or unsafe practices that may result in personal injury and/or property damage. NOTE Indicates that a risk of personal injury or material damage exists. These warning signs are here to prevent injury to yourself and others. Please follow them explicitly. After reading this manual, store it in a safe place for future reference. Read all instructions before using the appliance. As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate this appliance, familiarize yourself with its operation and exercise care when using it. DV22K6800-03650A-00_EN (US)_151211.indd 4 2015-12-11 7:15:41Safety information

• State of California Proposition 65 Warning (US only) This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualied installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with exible plastic venting materials. If exible metal (foil type) duct is installed, it must be of a specic type identied by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airow and increase the risk of re.

• To reduce the risk of severe injury or death, follow all installation instructions.

• Save these instructions. Important safety precautions WARNING To reduce the risk of re, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive substances, as they give off vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any ammable substance,

such as vegetable oil, cooking oil, machine oil, ammable chemicals, paint thinner, etc., or anything containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may cause the fabric to catch re by itself.

4. Do not store or use gasoline or other ammable vapors and liquids near this or any

5. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children. DV22K6800-03650A-00_EN (US)_151211.indd 5 2015-12-11 7:15:41Safety information

SAVE THESE INSTRUCTIONS

SAVE THESE INSTRUCTIONS

6. Before the appliance is removed from service or discarded, remove the door to the

7. Do not reach into the appliance if the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with internal controls.

10. Do not repair or replace any part of the appliance or attempt any service unless

specically recommended in the user-maintenance instructions or in published user- repair instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-

14. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

15. The interior of the appliance and exhaust duct should be cleaned periodically by

qualied service personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch re.

17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in

“Installation” section.

18. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

19. Do not insert your hand under the dryer.

• This may result in injury.

20. Take care that children’s ngers are not caught in the door when closing it.

• This may result in injury.

21. The Control board and inlet valve are intentionally not grounded and may present a

risk of electric shock only during servicing.

• Do not contact these parts while the appliance is energized. DV22K6800-03650A-00_EN (US)_151211.indd 6 2015-12-11 7:15:41Safety information

SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS

English 7 WARNING - To reduce the risk of re or explosion:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, or other ammable or explosive substances. They emit vapors that could ignite or explode. Any material that has been in contact with a cleaning solvent or ammable liquids or solids should not be placed in the dryer until all traces of these ammable liquids or solids and their fumes have been removed. There are many highly ammable items used in homes, such as acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers.

• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials on a heat setting. Heated foam rubber materials can, under certain circumstances, ignite spontaneously. Warnings WARNING

• Ensure pockets are free of small, irregularly shaped hard objects and foreign material, i.e. coins, knives, pins, etc. These objects could damage your dryer. Cautions CAUTION

• Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary when the appliance is used near children and pets.

• Before discarding or removing your dryer from service, remove the door to the drying compartment to prevent children or animals from becoming trapped inside.

• Do not reach into the appliance when the drum is moving.

• Do not install or store this appliance where it will be exposed to the weather.

• Do not tamper with the controls.

• Do not repair, replace, or attempt to service any part of the appliance unless specically instructed to in the user-repair instructions and you have the understanding and skills to carry out the procedure. DV22K6800-03650A-00_EN (US)_151211.indd 7 2015-12-11 7:15:42Safety information

SAVE THESE INSTRUCTIONS

SAVE THESE INSTRUCTIONS

• Do not use fabric softeners or products to eliminate static unless the softener or product is recommended for dryer use by the manufacturer of the fabric softener or product.

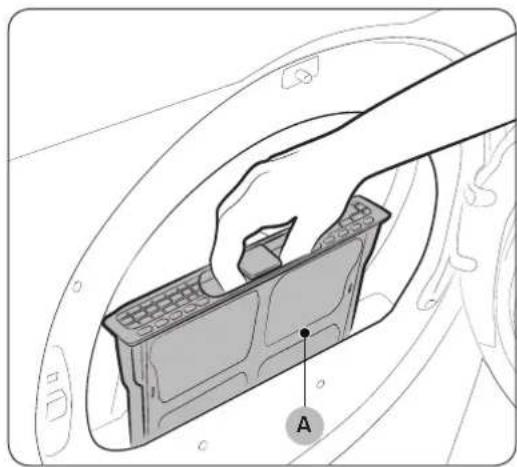

• Clean the lint screen before or after each load.

• Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

• The interior of the dryer and exhaust duct should be cleaned periodically by qualied service personnel.

• This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately or not in accordance with local and national codes. See the installation instructions for information about grounding this appliance.

• Do not sit on top of the dryer.

• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.

• Install and use in accordance with the manufacturer’s instructions.

• Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain signicant amounts of these oils.

• Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion increases when items containing vegetable oil or cooking oil are exposed to heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch re. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can create a re hazard.

• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous. Washing these items in hot water with extra detergent will reduce, but not eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never remove these items from the dryer hot or interrupt the drying cycle until the items have run through the Cool Down cycle. Never pile or stack these items when they are hot. DV22K6800-03650A-00_EN (US)_151211.indd 8 2015-12-11 7:15:42Before installation English 9 Before installation Read through the following instructions before installing the dryer, and keep this manual for future reference. WARNING The control board and inlet valve are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact these parts while the appliance is energized. Key installation requirements

• A grounded electrical outlet.

• A power cord for electric dryers (except in Canada).

• An exhaust system made of rigid metal or exible stiff-walled metal exhaust ducting. WARNING Remove the door from all discarded appliances to prevent a child from suffocating. Location considerations

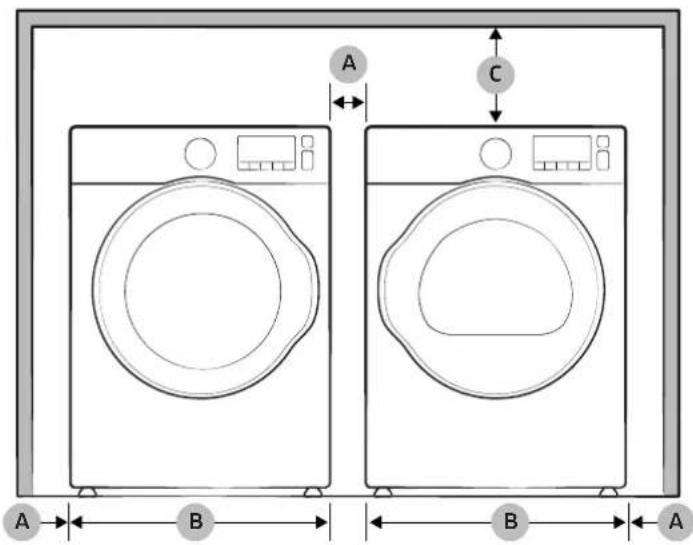

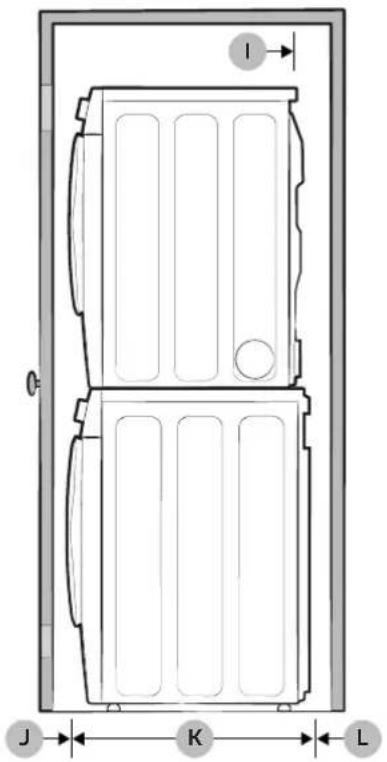

• Adequate clearances between the dryer and adjacent walls or other surfaces.

• Adequate air circulation for ventilation.

• Away from water and weather. WARNING

• Make sure to exhaust the dryer outdoors to reduce the risk of re.

• Keep the dryer area clear of combustible materials, gasoline, and other ammable vapors and liquids.

• Do not install other fuel-burning appliances around or in the same place as the dryer. Alcove or closet installation Minimum clearances between the dryer and adjacent walls or other surfaces are: 3” (76mm) in front, 17” (432 mm) on top, 0”(0mm) on either side, and 3’’ (76mm) in the back. The closet front must have two unobstructed air openings for a combined minimum total area of 72 in² (465 cm²) with 3” (7.6 cm) minimum clearance on the top and bottom. A louvered door with equivalent space clearance is acceptable. DV22K6800-03650A-00_EN (US)_151211.indd 9 2015-12-11 7:15:42Before installation Before installation English10 5.5” (140 mm) NOTE When the exhaust duct is installed at the rear of the dryer, the rear must have at least 5.5 inch (140 mm) clearance. Side by side installation

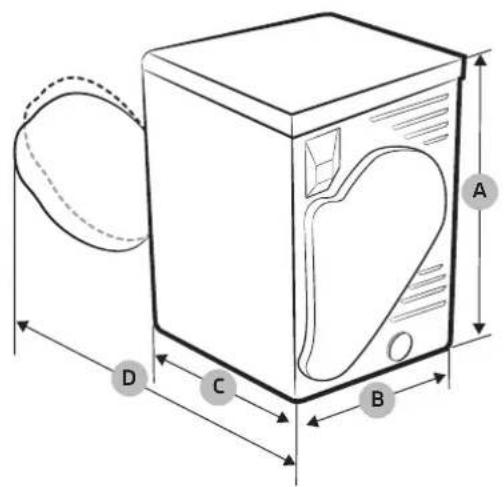

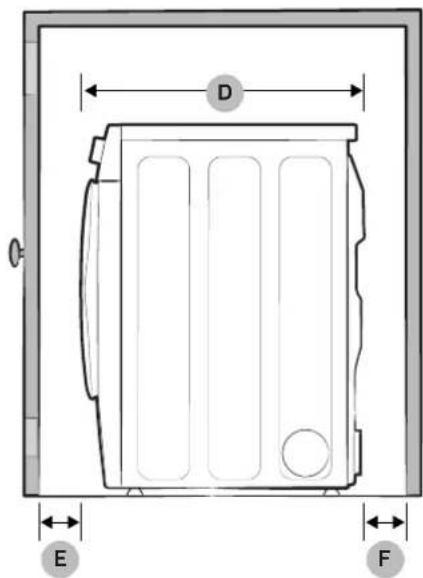

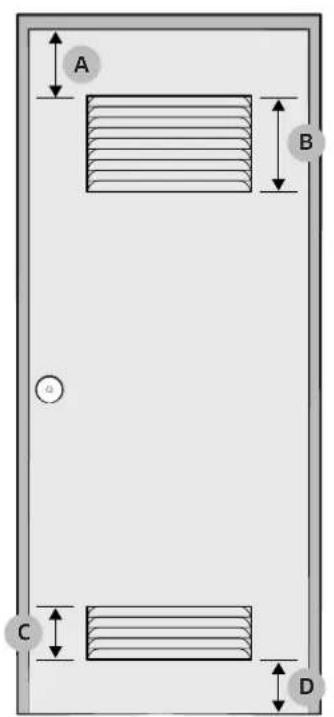

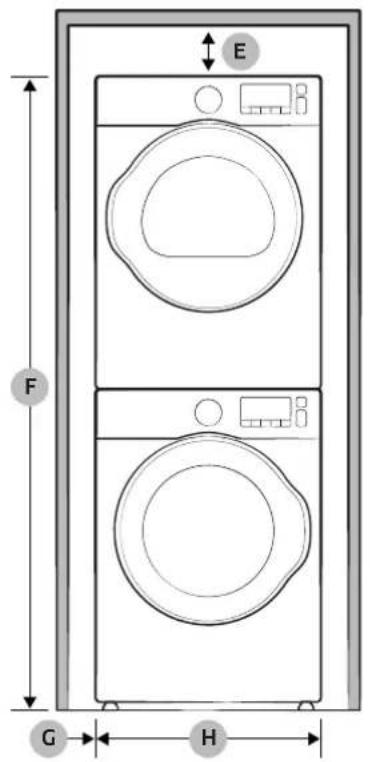

A* 1 in. (25 mm) D 25.8 in. (655 mm) B 23.6 in. (600 mm) E 3 in. (76mm) C 17 in. (432 mm) F 3 in. (76mm) *Disregard this minimum clearance if the dryer is installed alone. DV22K6800-03650A-00_EN (US)_151211.indd 10 2015-12-11 7:15:42Before installation English 11 Stacked installation (Model: SK-DH)

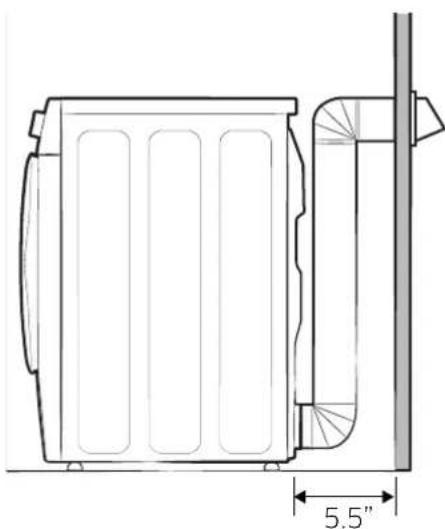

• Use a 4-inch (10.2 cm) diameter rigid aluminum or galvanized steel duct. If you integrate the dryer’s vent system with an existing exhaust system:

• Make sure the exhaust system meets all applicable local, state, and national regulations.

• Verify you are not using exible plastic duct.

• Make sure to check for and remove all lint buildup from inside the existing ducts.

• Conrm the duct is not kinked or crushed.

• Make sure the exhaust hood damper opens and closes freely. Manometer measurements The static pressure in any exhaust system must not exceed 0.83 inches of water column or be less than 0. Note that these values are measured with the dryer running with a manometer presented to the exhaust duct that connects to the dryer. The dryer tumbler must be empty and lint lter clean. DV22K6800-03650A-00_EN (US)_151211.indd 12 2015-12-11 7:15:42Before installation English 13 Exhausting requirements The dryer must not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space of a building. Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the room. In the United States and Canada

• All dryers must be exhausted to the outside.

• The required exhaust duct is 4 inches (10.2 cm) in diameter.

• See “Ducting requirements” in the “Installation” section for the maximum duct length and number of bends that can be used.

• The total length of exible metal duct must not exceed 7’ 10½” (2.4 m).

• Do not assemble the duct with screws or other fasteners that extend into the duct and can catch lint.

• For the United States only: Use only those foil-type exible ducts, if any, specically identied for use with the appliance by the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct. Use Subject 2158A.

• For Canada only: Use only those foil- type exible ducts, if any, specically identied for use with the appliance by the manufacturer. Outside the United States and Canada

• Refer to the local codes. WARNING

• You must exhaust the dryer to the outside to reduce the risk of re when you install the dryer in an alcove or closet.

• Do not use a plastic or non-metal exible duct.

• If your existing ductwork is plastic, non- metal, or combustible, replace it with metal.

• Use only a metal exhaust duct that is non-ammable to ensure containment of exhaust air, heat, and lint. DV22K6800-03650A-00_EN (US)_151211.indd 13 2015-12-11 7:15:43Before installation Before installation English14 Electrical requirements The wiring diagram is located on the plate under the control panel or rear frame. WARNING

• Improperly connecting the equipment grounding conductor can result in a risk of electric shock. Check with a qualied electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer – if it doesn’t t the outlet, have a proper outlet installed by a qualied electrician.

• To prevent unnecessary risk of re, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, in accordance with the National Electrical Code, ANSI/ NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical service for your dryer. Grounding This dryer must be grounded. In the event of a malfunction or breakdown, the ground will reduce the risk of electrical shock by providing a path of least resistance for the electrical current. WARNING

• Your dryer has an optional cord with an equipment-grounding conductor and a grounding plug. This cord is sold separately.

• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

• Do not modify the plug provided with your dryer – if it doesn’t t the outlet, have a proper outlet installed by a qualied electrician.

• If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to a permanently grounded metal wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dryer. Electrical connections Before operating or testing, follow all grounding instructions in the “Grounding” section. An individual branch (or separate) circuit serving only your dryer is recommended. Do not use an extension cord. DV22K6800-03650A-00_EN (US)_151211.indd 14 2015-12-11 7:15:43Before installation English 15 U.S. only Most U.S. dryers require a 120 / 240 volt, 60 Hz AC approved electrical service. Some require 120 / 208 volt, 60 Hz approved electrical service. The electric service requirements can be found on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.

• The power cord is not provided with U.S. electric model dryers. This cord is sold separately. WARNING Risk of Electric Shock When local codes allow, you can connect the dryer’s electrical supply with a new power supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of 120/240 volts, 30-amperes with three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be supported at the dryer cabinet by a suitable UL-listed strain relief.

• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. (Use a 4-prong plug for a 4 wire receptacle, NEMA type 14-30R.) Canada Only

• A 120 / 240 volt, 60 Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on both sides of the line is required.

• All Canadian models are shipped with the power cord attached. The power cord should be plugged into a 30-ampere receptacle. NOTE In Canada, you may not convert a dryer to 208 volts. DV22K6800-03650A-00_EN (US)_151211.indd 15 2015-12-11 7:15:43Installation English16 Installation This dryer must be installed by a qualied technician. The installer is responsible for connecting the dryer to the main power while observing the relevant safety regulations of your area. What’s included Make sure all the parts are included in the product package. If you have a problem with the dryer or the accessories, contact a local Samsung service center or the retailer.

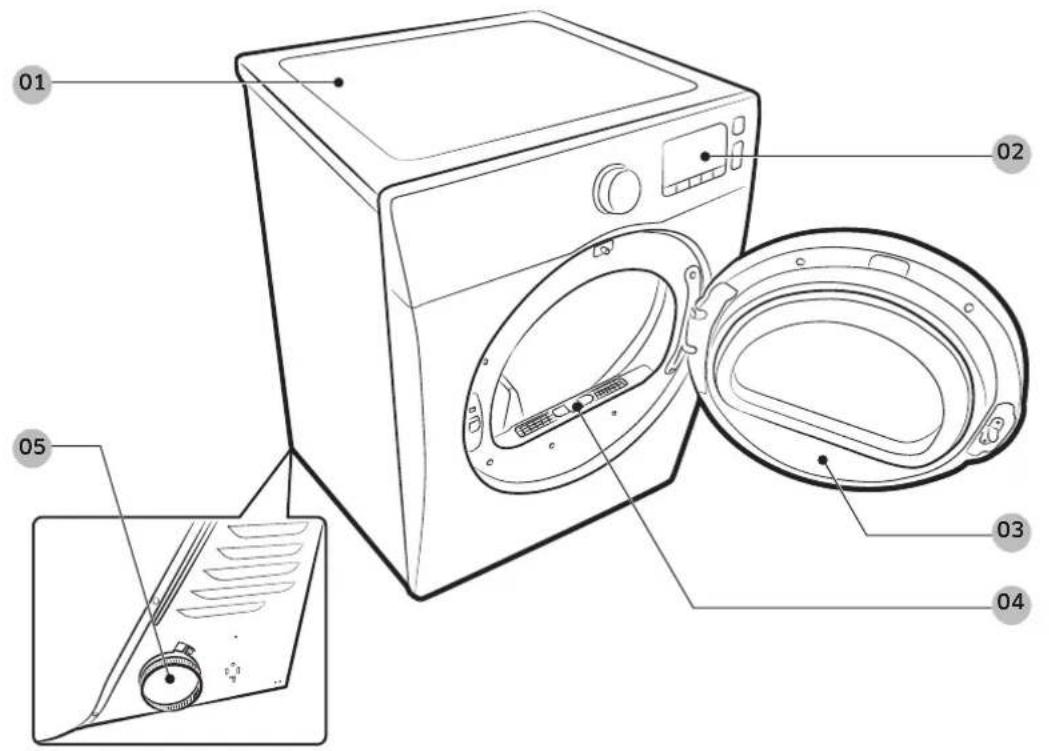

Dryer at a glance 01 Top cover 02 Feature panel 03 Door 04 Filter 05 Exhaust duct DV22K6800-03650A-00_EN (US)_151211.indd 16 2015-12-11 7:15:43Installation English 17 Accessories & tools Provided accessories DRYER STACKING KIT Stacking Kit (Canadian models only) Cover Plate Required tools Pliers Cutting knife Nut driver Level Philips screwdriver Duct tape Wrench WARNING Packing materials can be dangerous to children. Keep all packing materials (plastic bags, polystyrene, etc.) out of children’s reach. DV22K6800-03650A-00_EN (US)_151211.indd 17 2015-12-11 7:15:44Installation Installation English18 Step-by-step installation Make sure you have a qualied technician install the dryer. Step by step installation instructions start below. STEP 1 Install the exhaust system

1. Select a location and move the dryer to the site. For easy access, we recommend you

install the dryer in the same location as your washer.

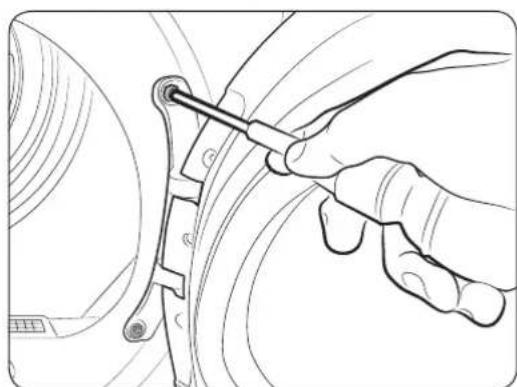

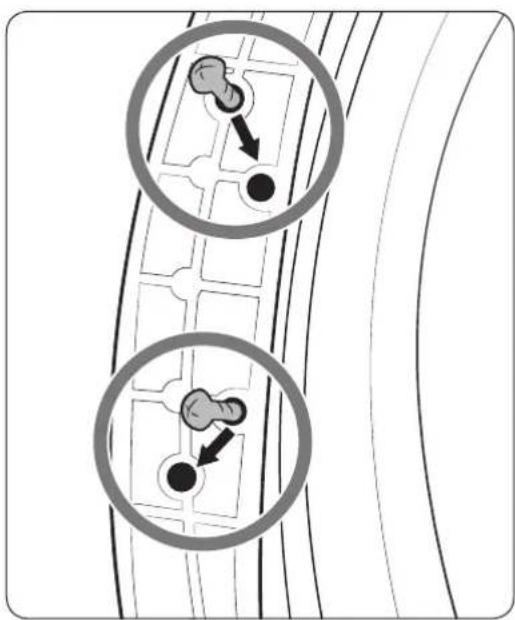

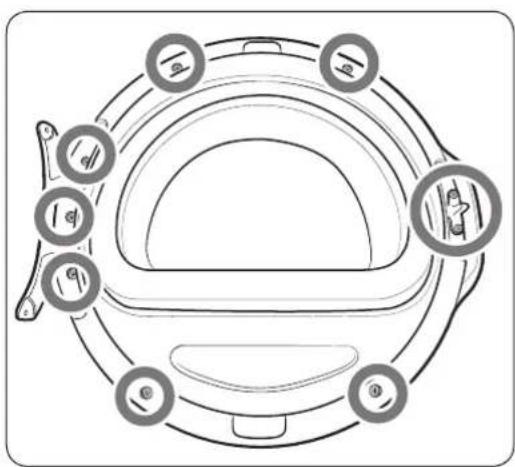

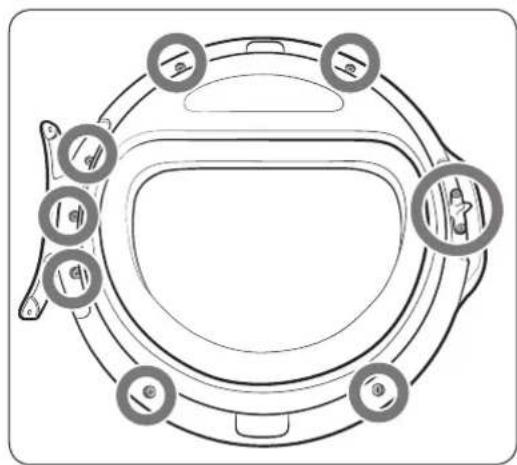

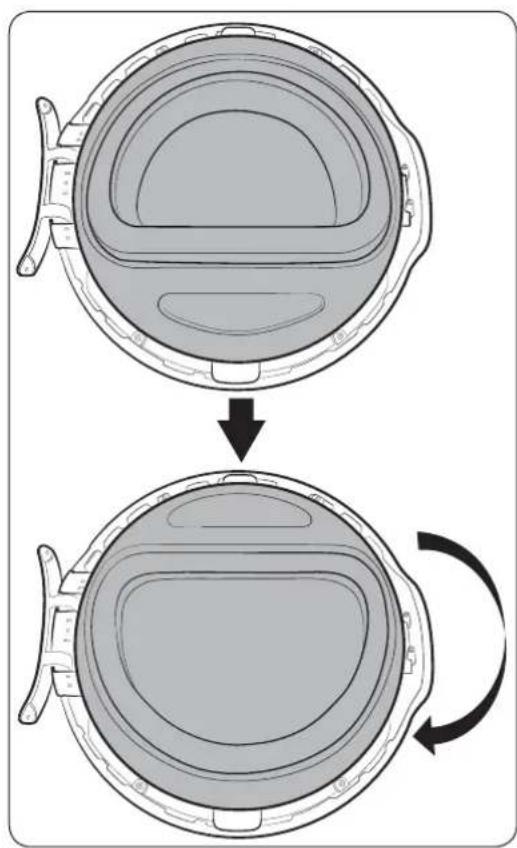

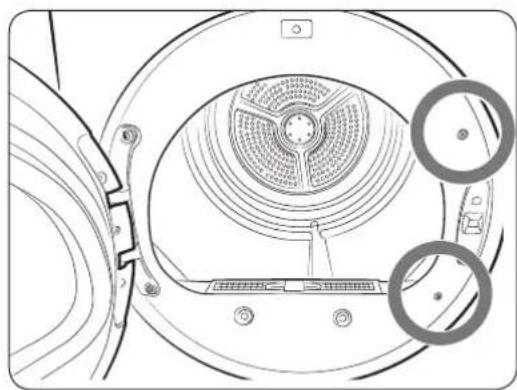

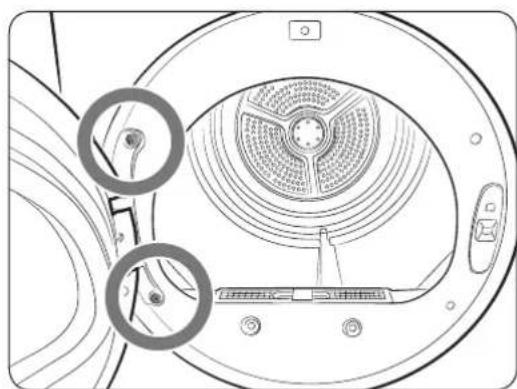

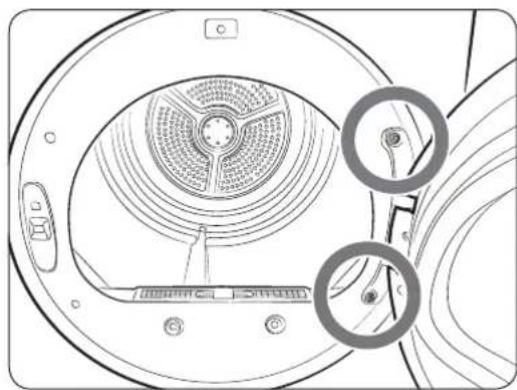

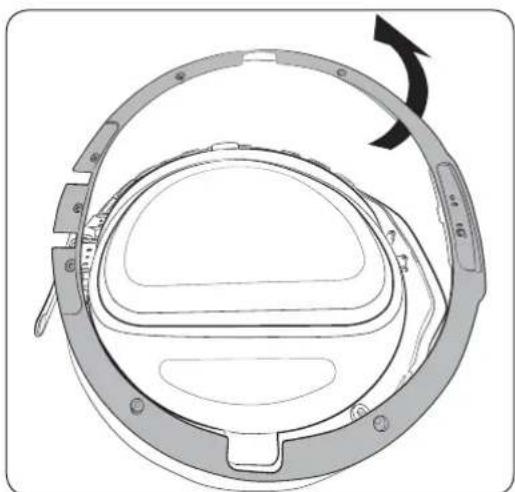

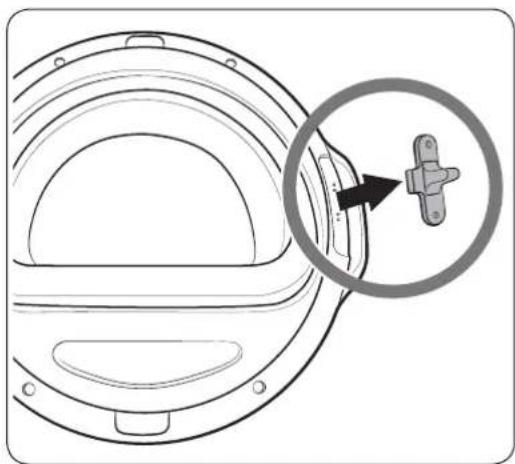

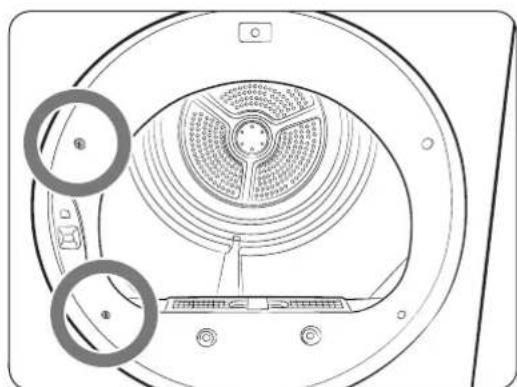

2. To change the door direction, see “Switching the door position”.

3. Install the exhaust system as instructed in the “Exhaust ducting guide” section.

• To move the dryer easily, lay two of the carton cushions from the packaging on the oor. Tip the dryer on its side so it lies across both cushion-tops. Push the dryer so that it is near its nal location, and then set the dryer upright.

• Secure room around the dryer to facilitate ducting and wiring. DV22K6800-03650A-00_EN (US)_151211.indd 18 2015-12-11 7:15:44Installation English 19 STEP 2 Connect the electrical wiring First, read through the “Electrical requirements” section, and then follow the instructions on this page or the next page. Instructions for a 3-wire system are on this page. Instructions for a 4-wire system are on the next page. For a 3-wire system

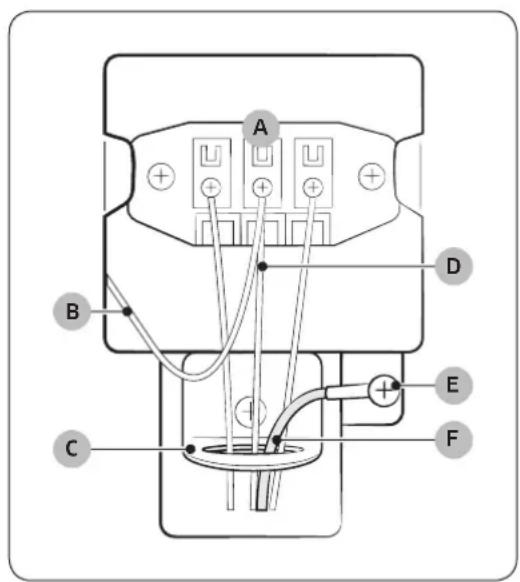

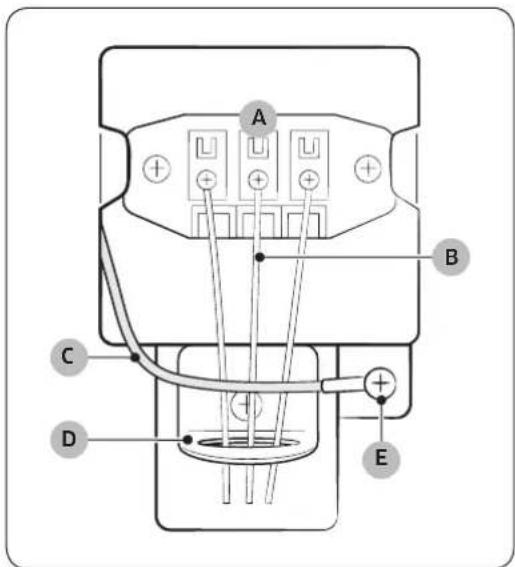

A. Center silver-colored terminal block screw B. Neutral wire (white or center wire) C. Neutral grounding wire (white or green/ yellow) D. ¾” (1.9 cm) UL-listed strain relief E. External ground connector

1. Loosen or remove the screws from the

center terminal block.

2. Connect the neutral wire (white or

center wire) of the power cable to the center, silver-colored terminal screw of the terminal block. Tighten the screws.

3. Connect the other wires to outer

terminal block screws. Tighten the screws.

4. Tighten the strain relief screws.

5. Insert the terminal block cover into the

rear panel of the dryer. Then, secure the cover with a hold-down screw. CAUTION

• To convert from the 4-wire system to 3-wire system, connect the ground strap to the terminal block support to ground the dryer frame to the neutral conductor.

• Ring-type terminals are recommended. If using strap terminals, make sure they are tightened. DV22K6800-03650A-00_EN (US)_151211.indd 19 2015-12-11 7:15:44Installation Installation English20 For a 4-wire system

A. Center silver-colored terminal block screw B. Neutral grounding wire (white or green/ yellow) C. ¾” (1.9 cm) UL-listed strain relief D. Neutral wire (white or center wire) E. External ground connector F. Green or bare copper wire of power cord

1. Remove the external ground

connector’s screw, and connect the ground wire (green or unwrapped) of the power cable to the screw. CAUTION

• To connect the ground wire to the neutral position without through contact A (cabinet ground), contact a technician. This is not user serviceable.

• Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

2. Loosen or remove the screws from the

center terminal block.

3. Connect the neutral wire (white or

center wire) and ground wire (white) to the center, silver-colored terminal screw of the terminal block. Tighten the screw.

4. Connect the other wires to the outer

terminal block screws. Tighten the screws.

5. Tighten the strain relief screws.

6. Insert the tab of the terminal block

cover into the rear panel of the dryer. Then, secure the cover with a hold- down screw. WARNING

• All U.S. models are designed for a 3-wire system connection. The dryer frame is grounded to the neutral conductor at the terminal block. A 4-wire system connection is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral. If you use the 4-wire system, you cannot ground the dryer frame to the neutral conductor at the terminal block.

• Remove the terminal block cover plate. DV22K6800-03650A-00_EN (US)_151211.indd 20 2015-12-11 7:15:44Installation English 21

• Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet near the terminal block.

• A strain relief must be used.

• Do not loosen the nuts already installed on the terminal block. Be sure they are tight.

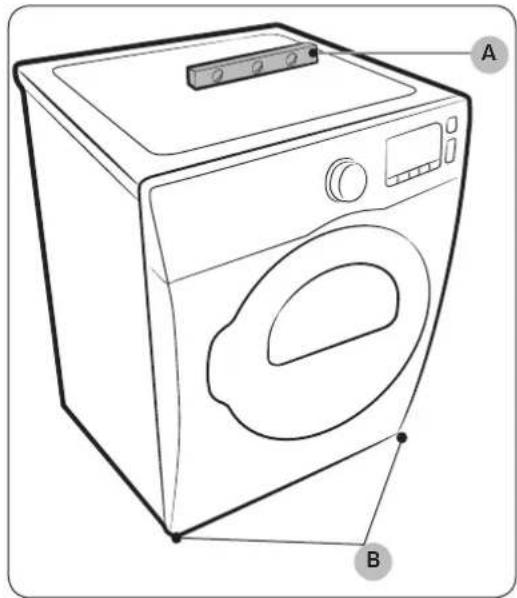

• Use a 3/8” (1 cm) deep well socket. STEP 3 Level the dryer To ensure optimal performance, the dryer must be level.

is level side to side and then front to back. If the dryer is not level, adjust the leveling feet (B) at the bottom of the dryer. Then, check if the dryer is level again. A B NOTE

• To set the dryer to the same height as your washer, fully retract (A) the leveling feet by turning them counterclockwise, then loosen (B) the feet by turning them clockwise. Once the dryer is the same height as the washer, follow the directions above to level the dryer.

• Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate. DV22K6800-03650A-00_EN (US)_151211.indd 21 2015-12-11 7:15:45Installation Installation English22 STEP 4 Final Check When installation is complete, conrm that:

• The dryer is plugged into an electrical outlet and grounded properly.

• The exhaust ductwork is connected and the joints are taped.

• You have used rigid or stiff-walled exible metal duct material, not plastic exible duct.

• The dryer is level and is sitting rmly on the oor.

• The dryer starts, runs, heats, and shuts off properly. Exhaust ducting guide Ducting

1. Make sure the dryer is installed properly so the air exhausts freely.

2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection.

Never use lint-trapping screws.

3. To facilitate the exhaust, keep the ducts as straight as possible.

Cleaning Clean all old ducts before installing the dryer, and make sure the vent ap opens and closes freely. We recommend that you to clean the exhaust system annually or on a regular basis. WARNING

• To prevent re, do not use plastic, thin-foil, or non-metal exible ducts of any kind.

• Do not use a poor exhaust system because it slows down the dryer’s performance.

• Do not use excessively long ducts that have multiple elbows.

• Do not use crushed or clogged venting or ducts. DV22K6800-03650A-00_EN (US)_151211.indd 22 2015-12-11 7:15:45Installation English 23 Changing the direction of the exhaust duct (optional) WARNING Before performing this exhaust installation, disconnect the dryer from its electrical supply. Wear gloves to protect your hands and arms from sharp edges when working inside the cabinet. Side venting

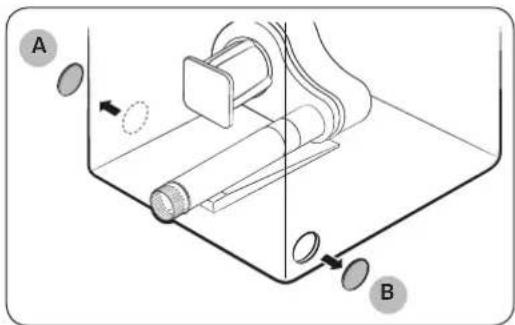

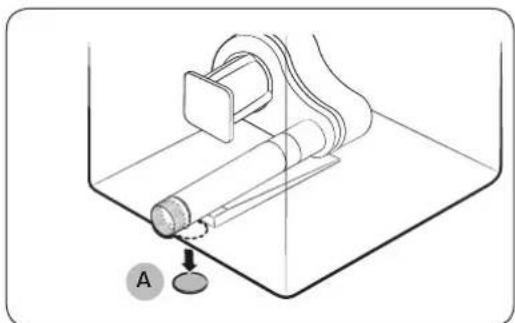

knockout as desired.

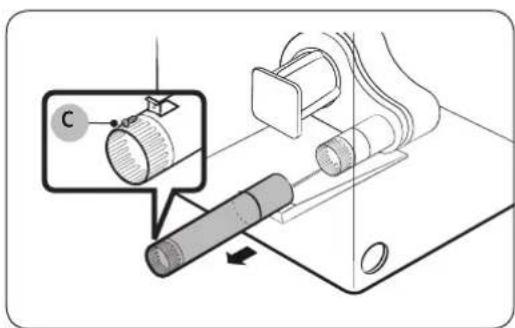

2. Pull the duct out of the dryer, and then

remove the screw (C) from the duct. Set screw (C) aside. You will need it in a later step.

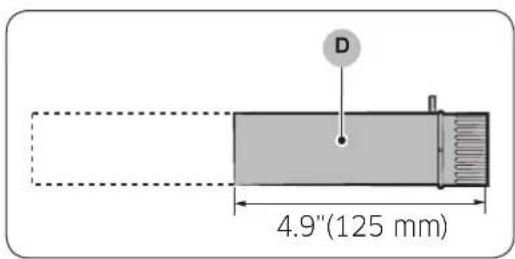

3. Cut the duct as shown and keep the

cut portion of the duct (D). DV22K6800-03650A-00_EN (US)_151211.indd 23 2015-12-11 7:15:45Installation Installation English24

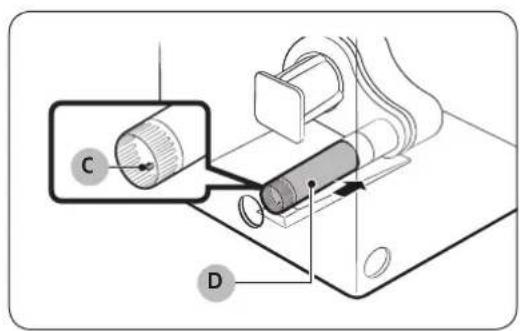

4. Reconnect the cut portion of the duct

(D), and then fasten it to the ramp on the appliance base with the screw (C) which you set aside in Step 2.

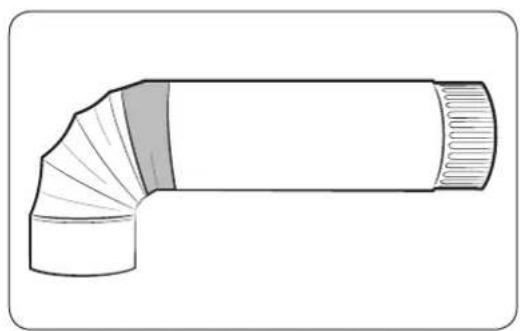

5. Connect a duct to an elbow, and then

tape the duct and the elbow together with duct tape.

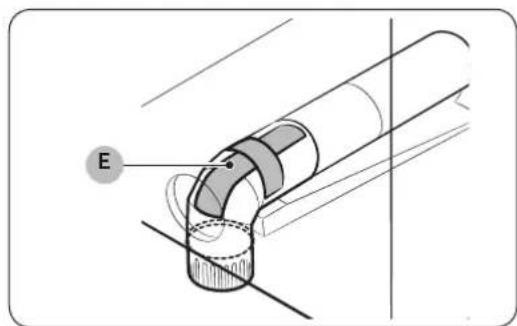

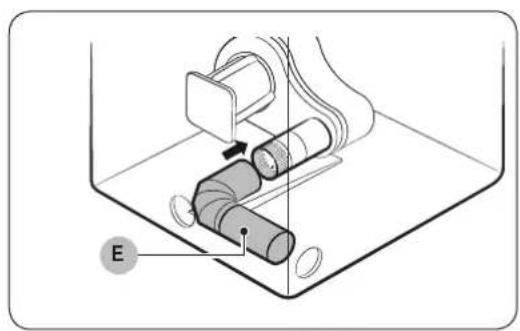

6. Insert the duct with elbow (E) through

the rear opening, and then connect it to the internal duct. CAUTION Wire components in the dryer may interfere slightly with the duct. Do not pull or damage the electrical wires inside the dryer when inserting the duct.

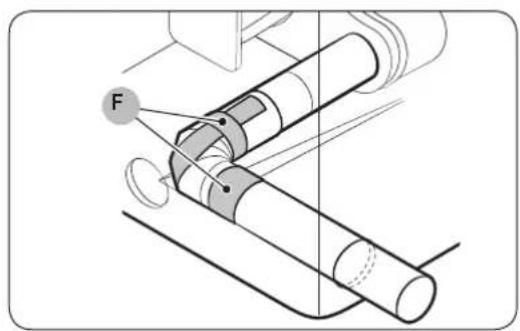

7. Apply duct tape (F) on all joints as

shown. CAUTION All joints must be secured with duct tape, otherwise, they may separate and cause a safety hazard. DV22K6800-03650A-00_EN (US)_151211.indd 24 2015-12-11 7:15:46Installation English 25

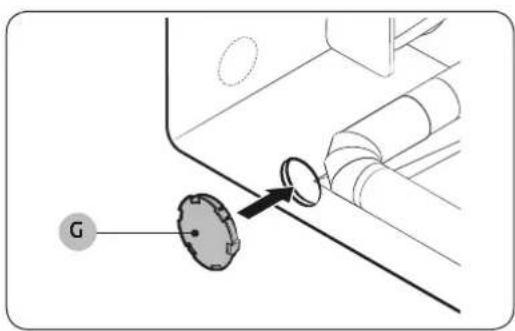

8. Cover the back opening with a cover

plate (G). WARNING Never leave the back opening uncovered. It must be covered with a cover plate. Bottom venting

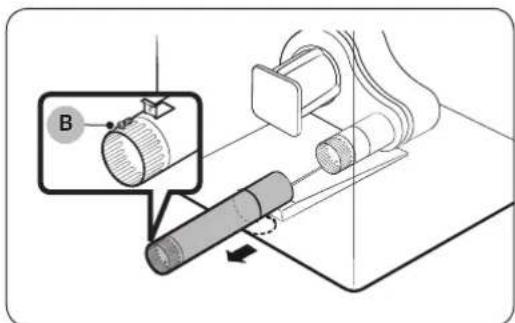

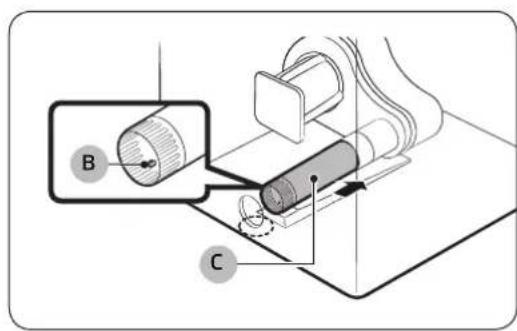

2. Pull the duct out of the dryer, and then

remove the screw (B) from the duct. Set screw (B) aside. You will need it in a later step.

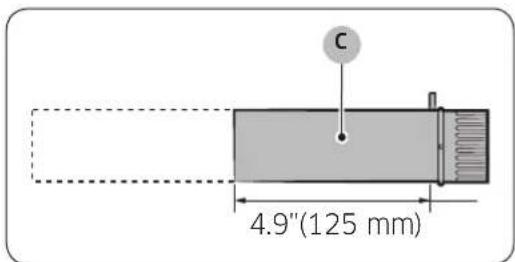

3. Cut the duct as shown and keep the

cut portion of the duct (C). DV22K6800-03650A-00_EN (US)_151211.indd 25 2015-12-11 7:15:46Installation Installation English26

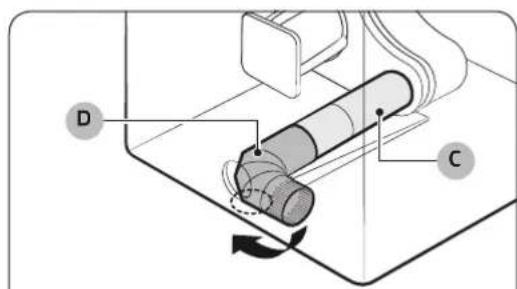

4. Reconnect the cut portion of the duct

(C), and then fasten it to the ramp on the appliance base with the screw (B) which you set aside in Step 2.

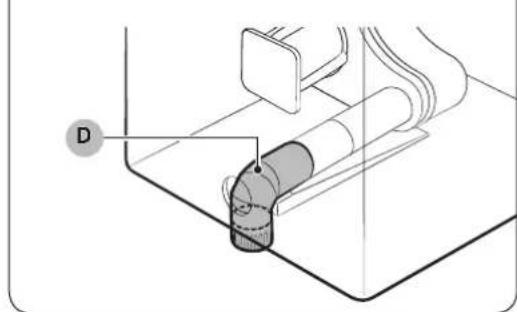

5. Insert the elbow (D) through the rear

hole and connect it to the duct (C).

6. Rotate the elbow (D) through the

bottom opening. CAUTION Do not to pull or damage the electrical wires inside the dryer when inserting the duct.

7. Apply duct tape (E) on the joint as

shown. CAUTION All joints must be secured with duct tape, otherwise, they may separate and cause a safety hazard. DV22K6800-03650A-00_EN (US)_151211.indd 26 2015-12-11 7:15:47Installation English 27

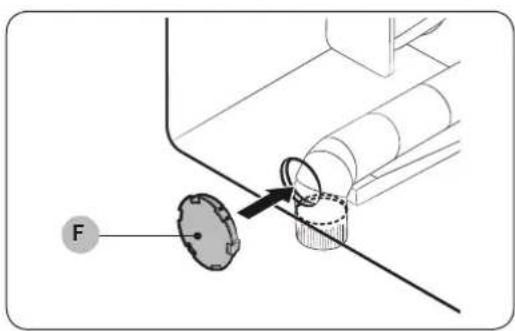

8. Cover the back opening with a cover

plate (F). WARNING Never leave the back opening uncovered. It must be covered with a cover plate. DV22K6800-03650A-00_EN (US)_151211.indd 27 2015-12-11 7:15:47Installation Installation English28 Switching the door position To reverse the direction of the door, we recommend that you contact a qualied technician.

1. Unplug the power cord of the dryer.

2. Remove the two hinge screws from

the door, and then remove the door by lifting it up slightly.

3. Remove the two screws on the

opposite side of the door hinge. DV22K6800-03650A-00_EN (US)_151211.indd 28 2015-12-11 7:15:47Installation English 29

4. Locate and remove the 9 screws from

9. Move the location of the screws, used

to x the door hinge, as shown.

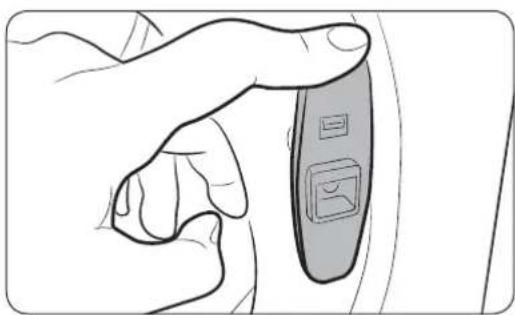

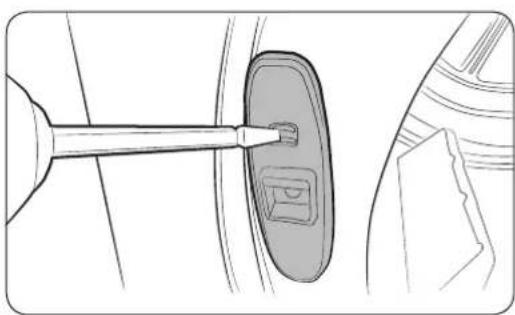

10. Remove the lever cover by pressing

11. Put the lever holder on the other side

as shown. DV22K6800-03650A-00_EN (US)_151211.indd 31 2015-12-11 7:15:48Installation Installation English32

12. Insert and tighten the two hinge

13. Insert and tighten the two screws on

the opposite side of the door hinge. DV22K6800-03650A-00_EN (US)_151211.indd 32 2015-12-11 7:15:48Before you start English 33 Before you start Here are a few things you should know before starting your dryer. Sort and load

• Put one wash load in the dryer at a time.

• Do not mix heavy and lightweight items together.

• To improve drying efciency for one or two items, add a dry towel to the load.

• For best results, untangle items before inserting them into the dryer.

• Overloading reduces the tumbling action, resulting in uneven drying and wrinkling.

• Unless recommended on the care label, do not dry woolens or berglass items.

• Avoid drying unwashed items.

• Do not dry items soiled with oil, alcohol, gasoline, etc. Functional prerequisite Lint lter

To prevent a risk of re, make sure to clean the lint lter before or after every load.

1. Turn off the dryer.

2. Open the door, and pull out the lint

lter (A) from inside the tumbler.

3. Remove the lint that has accumulated,

and then clean the lint lter.

4. Reinsert the lint lter, and then close

• Do not operate the dryer without the lint lter in place.

• Do not use a damaged or broken lint lter. This may reduce performance and/or cause re. DV22K6800-03650A-00_EN (US)_151211.indd 33 2015-12-11 7:15:48Operations English34 Operations WARNING To reduce the risk of re, electric shock, or injury to persons, read the “Safety information“ before operating this appliance. Feature panel

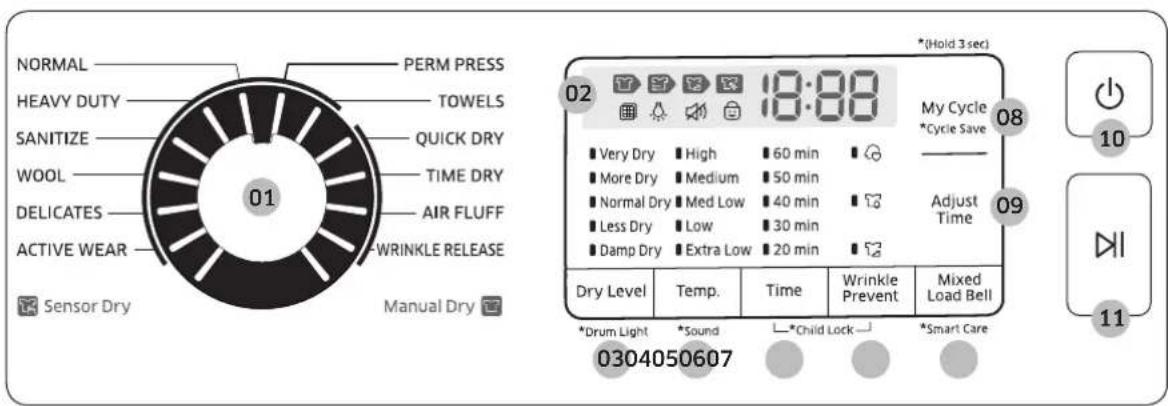

01 Cycle selector Turn the cycle selector to select a desired cycle. When a cycle is selected, the cycle indicator lights up. 02 Digital graphic display Displays all cycle information, including the cycle time, information code, operating status, and indicators. 03 Dry Level Press to adjust the dryness in the Sensor Dry cycles. The corresponding indicator turns on.

• Larger or bulkier loads may require Very Dry or More Dry for complete dryness.

• Less Dry is best suited for lightweight fabrics or for leaving some moisture in the clothing at the end of the cycle.

• Damp Dry is designed to partially dry items. Use for items that lay at or hang to dry. NOTE This option is not available with SANITIZE, WOOL, and ACTIVE WEAR. DV22K6800-03650A-00_EN (US)_151211.indd 34 2015-12-11 7:15:48Operations English 35 04 Temp. Press to change the temperature of the current cycle.

• High: For sturdy cottons or those labeled Tumble Dry.

• Medium: For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium.

• Med Low: For heat lower than Medium. Use to dry synthetic or washable knit fabrics.

• Low: For heat sensitive items labeled Tumble Dry Low or Tumble Dry Warm.

• Extra Low: Provides the lowest heated drying temperature possible. 05 Time Press to adjust the drying time for the Manual Dry cycles. This is not available with the Sensor Dry cycles because the dryer determines the drying time by sensing the current moisture level of the load. 06 Wrinkle Prevent Wrinkle Prevent provides approximately 180 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. Press Wrinkle Prevent to activate this feature. The load is dry and can be removed at any time during the Wrinkle Prevent cycle. 07 Mixed Load Bell The Mixed Load Bell noties you when the average dry level in a load is damp dry (80% dried). This lets you take items that you don’t want fully dried or that dry quickly out of the dryer early while letting others continue to dry. You can select this option in all Sensor Dry cycles except for SANITIZE, WOOL, and ACTIVE WEAR. Available dry levels are Normal Dry, More Dry, and Very Dry. 08 My Cycle Choose your favorite cycle including the cycle time, temperature, and dry level. See “My Cycle ” for details. 09 Adjust Time You can change the set time in the Manual Dry cycles. To change the cycle time, press Adjust Time until the desired time is displayed. 10 Power Press to turn on/turn off the dryer. 11 Start/Pause Press to start or stop operation. NOTE Extremely tangled items nished by the washer may degrade the drying efciency or cause the door to open. We recommend that you untangle the items before drying. DV22K6800-03650A-00_EN (US)_151211.indd 35 2015-12-11 7:15:48Operations Operations English36 Indicators Drying in progress Drum Light Cooling in progress Sound Off Wrinkle Prevent in progress Child Lock Cycle is complete My Cycle Filter Check Mixed Load Bell Simple steps to start

1. Press Power to turn on the dryer.

2. Turn the Cycle Selector to select a cycle.

3. Change the cycle settings (Dry Level,

Temp., and Time) as necessary.

4. Optionally, you can activate options

available by pressing the relevant button (Adjust Time, Wrinkle Prevent and/or Mixed Load Bell).

5. Press Start/Pause. The dryer indicator

turns on with an estimated cycle time on the display. To change the cycle during operation

1. Press Start/Pause to stop operation.

2. Select a different cycle.

3. Press Start/Pause again to start the

new cycle. DV22K6800-03650A-00_EN (US)_151211.indd 36 2015-12-11 7:15:49Operations English 37 Cycle overview Sensor Dry Sensor Dry cycles sense moisture in the load and stop the dryer when the load reaches the dryness level you have selected with Dry Level. Cycle Description NORMAL For most fabrics including cottons and linens. HEAVY DUTY For drying items made out of heavy fabrics, such as jeans, corduroys, or work clothes, with high temperature heat. SANITIZE Use to sanitize items by applying high-temperature heat to the fabric. This cycle can make items soft and reduce smells. WOOL For machine washable and tumble dryable wool only. DELICATES For heat-sensitive items at a low drying temperature. ACTIVE WEAR For exercise wear and outdoor wear such as sports jerseys, training pants, water-repellent jackets, and other performance clothing. Thick fabrics like a zipper or velcro closure of a jacket, or training socks may not be completely dried. PERM PRESS Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent press fabrics automatically. TOWELS For bath towels and similar items Manual Dry You can change the drying settings manually to your preference. Cycle Description QUICK DRY A quick drying cycle running for 30 minutes TIME DRY You can specify a cycle time in minutes. AIR FLUFF Tumbles the load in room temperature air. WRINKLE RELEASE The Wrinkle Release cycle will release wrinkles from items that are clean, dry, and only slightly wrinkled, such as clothes from a crowded closet, suitcase or items that have been in the dryer too long after the cycle has ended. Wrinkle Release can be used with any temperature selection. DV22K6800-03650A-00_EN (US)_151211.indd 37 2015-12-11 7:15:49Operations Operations English38 Cycle guide The best way to dry items is to follow the instructions on the care label. If no drying instructions are provided, see the following table for reference. Cycle Description Bedspreads & Comforters Follow the care label instructions or dry using NORMAL.

• Make sure the item is thoroughly dry before using or storing.

• May require repositioning in the drum to ensure even drying. Blankets Use NORMAL and dry only one blanket at a time for best tumbling action.

• Make sure blankets are is thoroughly dry before using or storing. Curtains & Draperies Use PERM PRESS and the Medium temperature setting to help minimize wrinkling.

• Dry curtains and draperies in small loads for best results and remove as soon as possible after the cycle is complete. Cloth Diapers Use NORMAL and the High temperature setting for soft, uffy diapers. Down–lled Items (jackets, sleeping bags, comforters, etc.) Use NORMAL and the Medium temperature setting.

• Add a couple of dry towels to absorb moisture and shorten drying time. Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.) Do not dry on a heat setting. Use AIR FLUFF. WARNING Drying a rubber item with heat may damage it or cause a re. Pillows Use NORMAL.

• Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to uff the pillows.

• Do not dry kapok or foam pillows using a heated drying cycle. You can dry these items in the dryer only if you use AIR FLUFF. Plastics (shower curtains, outdoor furniture covers, etc.) Use AIR FLUFF or TIME DRY and the Low or Extra Low temperature settings depending on the care label instructions. WARNING Do not dry:

• Fiberglass items (curtains, draperies, etc.)

• Woolens, unless recommended on the label

• Items spotted or soaked with vegetable or cooking oils DV22K6800-03650A-00_EN (US)_151211.indd 38 2015-12-11 7:15:49Operations English 39 Special features Child Lock Child Lock prevents children from playing with the dryer. When Child Lock is activated, all buttons except for the Power button are disabled. To activate/deactivate Child Lock, simultaneously press and hold Time and Wrinkle Prevent for 3 seconds. NOTE Once Child Lock is activated, it will remain active even after you restart the dryer. If other buttons, except for the Power button, do not respond, check the Child Lock indicator. If the indicator is on, follow the instructions above to turn Child Lock off. Drum Light To turn on the drum light while the dryer is running, press and hold Dry Level for 3 seconds. NOTE After 2 minutes of inactivity, the drum light automatically turns off. Sound On/Off To turn off the dryer’s notication beeps and melodies, press and hold Temp. for 3 seconds. To unmute the dryer, press and hold Temp. again for 3 seconds. NOTE This function remains active even after you restart the dryer. My Cycle You can create your own cycle that contains your preferred settings and use it at your convenience.

1. Turn the Cycle Selector to select a cycle.

The cycle indicator turns on.

2. Set or change the settings (Dry Level,

Temp., Time, etc) and/or options as necessary. Each corresponding indicator blinks.

3. Press and hold My Cycle for 3 seconds.

The dryer stores the selected cycle with its settings. To use My Cycle, press My Cycle. NOTE Wrinkle Prevent is not available with My Cycle. Smart Care If the dryer displays an information code, you can use Smart Care to check the status of the dryer on a smartphone. To use Smart Care, you must have the Samsung Smart Care app installed on your smartphone. NOTE Smart Care is optimized for Samsung Galaxy and Apple iPhones. (Not compatible with some models). Download the Samsung Smart Washer app from the Google Play Store or Apple App store (Search term: “Samsung Smart Washer/Dryer”), and install it on your smartphone. DV22K6800-03650A-00_EN (US)_151211.indd 39 2015-12-11 7:15:50Operations Operations English40 If an information code appears on the dryer, follow these steps:

1. Press and hold Mixed Load Bell for

3 seconds to activate Smart Care.

2. Open the Smart Care app on your

to the display of the dryer. The app automatically recognizes the information code, and displays suggestions on your smartphone.

4. If the smartphone fails to recognize the

information code more than twice, type the information code manually into the Smart Care app. CAUTION

• If light is reected on the display of the dryer, the smartphone may not recognize the information code.

• If you hold the smartphone at an angle to the dryer’s display, the smartphone may not recognize the information code. For best results, hold the smartphone so that the front of the panel and the smartphone are parallel or nearly parallel.

• After you use this function, the dryer will delete the record of the information code from its code log. DV22K6800-03650A-00_EN (US)_151211.indd 40 2015-12-11 7:15:50Maintenance English 41 Maintenance Keep the dryer clean to prevent decreased performance and to lengthen its life. WARNING The control board and inlet valve are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact these parts while the dryer is energized. Cleaning Feature panel

• Clean with a soft, damp cloth. Do not use abrasive substances.

• Do not spray liquid cleaning agents directly on the display of the dryer.

• Some laundry pre-treatment soil and stain removers may damage the feature panel.

• When using liquid cleaning agents, apply them to the cleaning cloth. Do not apply them directly to the dryer. Wipe up any spills or overspray immediately. Tumbler

• Remove any stains from the tumbler with an all-purpose cleaner.

• Tumble old towels or rags to remove any remaining stains or cleaning substances. Stains may still be visible, but will not affect subsequent loads. Stainless steel tumbler To clean the stainless steel tumbler, use a damp cloth with a mild, non-abrasive cleaner suitable for easily marred surfaces. Remove cleaner residue and dry with a clean cloth. Dryer exterior

• Clean with a soft, damp cloth. Do not use abrasive substances.

• Protect the surface from sharp objects.

• Do not place any heavy or sharp objects or a detergent container on the dryer. They can scratch or damage the top cover of the dryer.

• The dryer has a high-gloss nish on the entire surface. Be careful not to scratch or damage the surface. Exhaust system

• Check and clean the exhaust system on a yearly or regular basis to maintain optimum performance.

• The external exhaust hood must be cleaned more frequently to ensure proper air ow. DV22K6800-03650A-00_EN (US)_151211.indd 41 2015-12-11 7:15:50Troubleshooting English42 Troubleshooting Checkpoints If the dryer operates abnormally, rst check the list of problems in the table below and try the suggested actions. Problem Action Does not run.

• Make sure the door is latched shut.

• Make sure the power cord is plugged into a live electrical outlet.

• Check your home’s circuit breakers or fuses.

• Press or tap Start/Pause again if the door is opened during a cycle.

• Clean the lint lter. Does not heat.

• Check your home’s circuit breakers or fuses.

• Some cycles do not require heating. Check the selected cycle again.

• Clean the lint lter and exhaust duct.

• The dryer may have moved into the cool-down phase of the cycle. Does not dry.

• Check all of the above, plus...

• Make sure the exhaust hood outside your home can open and close freely.

• Check the exhaust system for lint buildup. Ducting should be inspected and cleaned annually.

• Use a 4” rigid metal exhaust duct.

• Do not overload. 1 wash load = 1 dryer load.

• Dry heavy items and light weight items separately.

• Large, bulky items, such as blankets or comforters, may require repositioning to ensure even drying.

• Make sure that your washer is draining properly and extracting adequate water from the load.

• The load may be too small to tumble properly. Add a few towels and restart the dryer.

• The load may be too large to tumble properly. Remove some items and restart the dryer.

• Clean the lint lter. DV22K6800-03650A-00_EN (US)_151211.indd 42 2015-12-11 7:15:50Troubleshooting English 43 Problem Action Is noisy.

• Check the load for objects such as coins, loose buttons, nails, etc. Remove promptly.

• Make sure the dryer is leveled properly as outlined in the installation instructions.

• It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum, fan, or exhaust system. Dries unevenly.

• Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal. You can choose a higher dryness level or a cycle that involves a higher dryness level.

• If one heavy item is dried with a light weight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level.

• For the best drying results, dry heavy items and light weight items separately. Has odors.

• Household odors from paint, varnish, strong cleaners, etc. may enter the dryer with the surrounding room air. This is normal as the dryer draws the air from the room, heats it, pulls it through the tumbler, and exhausts it outside.

• When these odors linger in the air, completely ventilate the room before using the dryer.

• If odors persist, wash and dry the items again. Lint on clothes.

• Make sure the lint lter is cleaned before every load. For clothes that naturally build up lint, clean the lter during the cycle.

• Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they must be dried separately from clothes that are lint trappers (for example, a pair of black linen pants).

• Divide larger loads into smaller loads for drying.

• Check pockets thoroughly before drying, then dry clothes.

• Remove lint inside the drum before drying. Items still wrinkled after WRINKLE RELEASE.

• Small loads of 1 to 4 items work best.

• Load fewer items. Load similar-type items. DV22K6800-03650A-00_EN (US)_151211.indd 43 2015-12-11 7:15:50Troubleshooting Troubleshooting English44 Problem Action Extended time.

• Sensor Dry automatically senses the moisture in the load and shuts the dryer off when the selected dryness level is reached. The drying time can change according to the type and amount of laundry. See the cycle chart for reference. If a problem persists, contact a local Samsung service center. DV22K6800-03650A-00_EN (US)_151211.indd 44 2015-12-11 7:15:50Troubleshooting English 45 Information codes If the dryer fails to operate, you may see an information code on the display panel. To determine what you should do, check the list of codes in the table below, and then try the suggested actions. Code Action

Operating the dryer with the door open.

• Make sure the door is properly closed.

• Make sure laundry is not caught in the door.

Invalid power source frequency

• Try restarting the cycle.

Electronic control problem (Invalid Communication).

Invalid heating temperature when dryer is running.

• Contact a Samsung service center. 9C1 The electronic control needs to be checked.

• Check if power is supplied properly.

The thermistor resistance is very low or high.

• Check for a clogged lint screen

• Check if the vent system is restricted.

• If this information code remains, contact a Samsung service center. bC2 Invalid state of a button.

• Check if a button is stuck.

• Contact a Samsung service center. If any information code keeps appearing on the screen, contact a Samsung service center. DV22K6800-03650A-00_EN (US)_151211.indd 45 2015-12-11 7:15:50Specications English46 Specications Fabric care chart The following symbols provide garment care direction. The clothing care labels include symbols for drying, bleaching, ironing, and dry cleaning. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to optimize garment life and reduce laundering problems. Wash cycle Normal Permanent press/Wrinkle resistant/Wrinkle control Gentle/Delicates Hand wash Water temperature Hot Warm Cold NOTE The Water Temperature table lists appropriate wash water temperatures for various items. The temperature range is 106 - 126 °F (41 - 52 °C) for Hot,

water temperature must be a minimum of 61 °F (16 °C) for detergent activation and effective cleaning.) Bleach Any bleach (when needed) Only non-chlorine (color-safe) bleach (when needed) Tumble dry Normal Permanent press/Wrinkle resistant/Wrinkle control Gentle/Delicates Special instructions Line dry/Hang to dry Drip dry Dry at Heat setting High Medium Low Any heat No heat / Air DV22K6800-03650A-00_EN (US)_151211.indd 46 2015-12-11 7:15:52Specications English 47 Iron dry or steam temperatures High Medium Low Warning symbols for laundering Do not wash Do not wring Do not bleach Do not tumble dry No steam (added to iron) Do not iron Dry-clean Dry-clean Do not dry-clean Line dry / Hang to dry Drip dry Dry at Protecting the environment This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance. DV22K6800-03650A-00_EN (US)_151211.indd 47 2015-12-11 7:15:54Specications Specications English48 Specication sheet

Large load: Fill the drum to about ¾ full. Do not add items over this level as they need to tumble freely.

Medium load : Fill the drum to about ½ full.

Small load : Fill the drum with 3-5 items, not more than ¼ full. Cycle Recommended items Load size Dry Level Sensor Dry NORMAL Cottons, Work clothes, Linen, Mixed loads Normal Dry (Adjustable) HEAVY DUTY Heavy fabrics such as jean, Corduroys, Heavy work clothes Normal Dry (Adjustable) SANITIZE Bedding, Curtains, Children’s clothing Very Dry (No Change) WOOL For machine washable and tumble dryable wool only (Maximum amount : 3lb) Normal Dry (No change) DELICATES Underwear, Blouses, Lingerie Normal Dry (Adjustable) ACTIVE WEAR Water-repellent wear, performance clothes, Sports wear Normal Dry (No change) TOWELS Bath towels and similar items Normal Dry (Adjustable) PERM PRESS Shirts, Synthetic fabrics, Knits, Wrinkle-free cottons, Permanent Normal Dry (Adjustable) Manual Dry QUICK DRY Small loads

AIR FLUFF Foam, rubber, plastic

WRINKLE RELEASE Shirts, Trouser, Blouses

• : factory setting, : can be selected Cycle Temperature setting Time setting High Medium Med Low Low Extra Low Sensor Dry NORMAL -

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

• One (1) Year All Parts and Labor This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. DV22K6800-03650A-00_EN (US)_151211.indd 51 2015-12-11 7:15:55Warranty (U.S.A) English52 This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. DV22K6800-03650A-00_EN (US)_151211.indd 52 2015-12-11 7:15:55English 53 Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) www.samsung.com/us/support Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty. Please contact your Samsung call agent for help with any of these issues. DV22K6800-03650A-00_EN (US)_151211.indd 53 2015-12-11 7:15:55Warranty (CANADA) English54 Warranty (CANADA) SAMSUNG DRYER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

• One (1) year part and labor This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. DV22K6800-03650A-00_EN (US)_151211.indd 54 2015-12-11 7:15:55English 55 This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. DV22K6800-03650A-00_EN (US)_151211.indd 55 2015-12-11 7:15:55Warranty (CANADA) English56 Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from province to province. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty. Please contact your Samsung call agent for help with any of these issues. DV22K6800-03650A-00_EN (US)_151211.indd 56 2015-12-11 7:15:55Memo DV22K6800-03650A-00_EN (US)_151211.indd 57 2015-12-11 7:15:55Memo DV22K6800-03650A-00_EN (US)_151211.indd 58 2015-12-11 7:15:55Memo DV22K6800-03650A-00_EN (US)_151211.indd 59 2015-12-11 7:15:55Scan this with your smartphone DC68-03650A-00 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) DV22K6800-03650A-00_EN (US)_151211.indd 60 2015-12-11 7:15:56Sèche-linge Manuel d'utilisation DV22K6800** DV22K6800-03650A-00_CFR (US)_151211.indd 1 2015-12-11 7:15:50Sommaire Français2 Sommaire Consignes de sécurité 4 Remarques importantes sur les consignes de sécurité 4 Symboles de sécurité importants 4 Consignes de sécurité importantes 5 Avertissements 7 Mises en garde 7 Avant l'installation 9 Conditions d'installation principales 9 Choix de l'emplacement d'installation 9 Conditions requises en matière de conduits 12 Conditions requises en matière d’évacuation 13 Normes électriques 14 Installation 16 Ce qui est inclus 16 Installation étape par étape 18 Guide de connexion des conduites d'évacuation 22 Changement de sens du conduit d'évacuation (facultatif) 23 Changement de position de la porte 28 Avant de démarrer 33 Tri et charge 33 Conditions de fonctionnement préalables 33 Opérations 34 Panneau de fonctions 34 Étapes simples pour commencer 36 Présentation des cycles 37 Guide des cycles 38 Fonctions spéciales 39 DV22K6800-03650A-00_CFR (US)_151211.indd 2 2015-12-11 7:15:50Sommaire Français 3 Entretien 41 Nettoyage 41 Dépannage 42 Contrôles à effectuer 42 Codes d'erreur 45 Caractéristiques techniques 46 Tableau des symboles textiles 46 Protection de l’environnement 47 Fiche de spécications 48 Tableau des cycles 49 DV22K6800-03650A-00_CFR (US)_151211.indd 3 2015-12-11 7:15:50Consignes de sécurité
