SW 4400 - Grill plate Orbegozo - Free user manual and instructions

Product type	Sandwich toaster (grill plate)
Brand	Orbegozo
Model	SW 4400
Voltage	220-240 V ~
Power	800 W (estimated)
Dimensions (L×W×H)	24 × 24 × 9 cm (estimated)
Weight	1.5 kg (estimated)
Plate material	Non-stick coating
Capacity	2 sandwiches
Indicator lights	Red (on) and green (ready)
Thermostat	Yes, automatic regulation
Power cord	Length 0.8 m (estimated)
Safety	Hot surface (caution), do not immerse, auto shut-off not mentioned
Cleaning	Soft damp cloth, no abrasive cleaners
Use	Household only
Compliance	Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC

Frequently Asked Questions - SW 4400 Orbegozo

How to use the SW 4400 toaster for the first time?

Before first use, clean the plates with a damp cloth and dry them. Then lightly brush the plates with oil or butter and preheat the appliance for 5 to 10 minutes. Cook a slice of bread on each slot, then discard those slices.

Why does the green light turn on and off during use?

This is normal. The green light indicates that the optimal temperature has been reached. It turns on and off because the thermostat regulates the heat to maintain a constant temperature.

Can I use metal utensils on the plates?

No, never use knives or metal utensils as they may damage the non-stick coating. Use a wooden or plastic spatula.

How to clean the SW 4400 toaster?

Unplug the appliance and allow it to cool completely. Remove excess oil with absorbent paper. Clean the plates with a soft damp sponge, then dry. For stuck residues, use a wooden spatula. Clean the exterior with a damp cloth.

Can the toaster be used for something other than sandwiches?

No, this appliance is designed exclusively for making sandwiches. It is not suitable for grilling meat or other foods.

What to do if the power cord is damaged?

If the cord is damaged, do not use the appliance. Contact an authorized technical service to replace it. Do not attempt to repair it yourself.

Can children use this appliance?

This appliance can be used by children aged 8 years and above under supervision. Children must not play with the appliance or perform cleaning without supervision.

Why is my bread burning?

Cooking time depends on your taste. Start with about 2 minutes. If the bread burns, reduce cooking time or check that the plates are not too hot. Avoid placing the appliance near flammable materials.

Can I leave the appliance on unattended?

No, never leave the appliance operating unattended. Always unplug it after use.

How to store the appliance after use?

Allow the appliance to cool completely, clean it, then store it in a dry and clean place. Do not place heavy objects on it. Make sure the cord is neatly wound.

USER MANUAL SW 4400 Orbegozo

White square-shaped appliance with a logo and 'SANDA CHI 2' label, no readable text or symbols beyond branding.

SW 4400

Sonifer,S.A.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

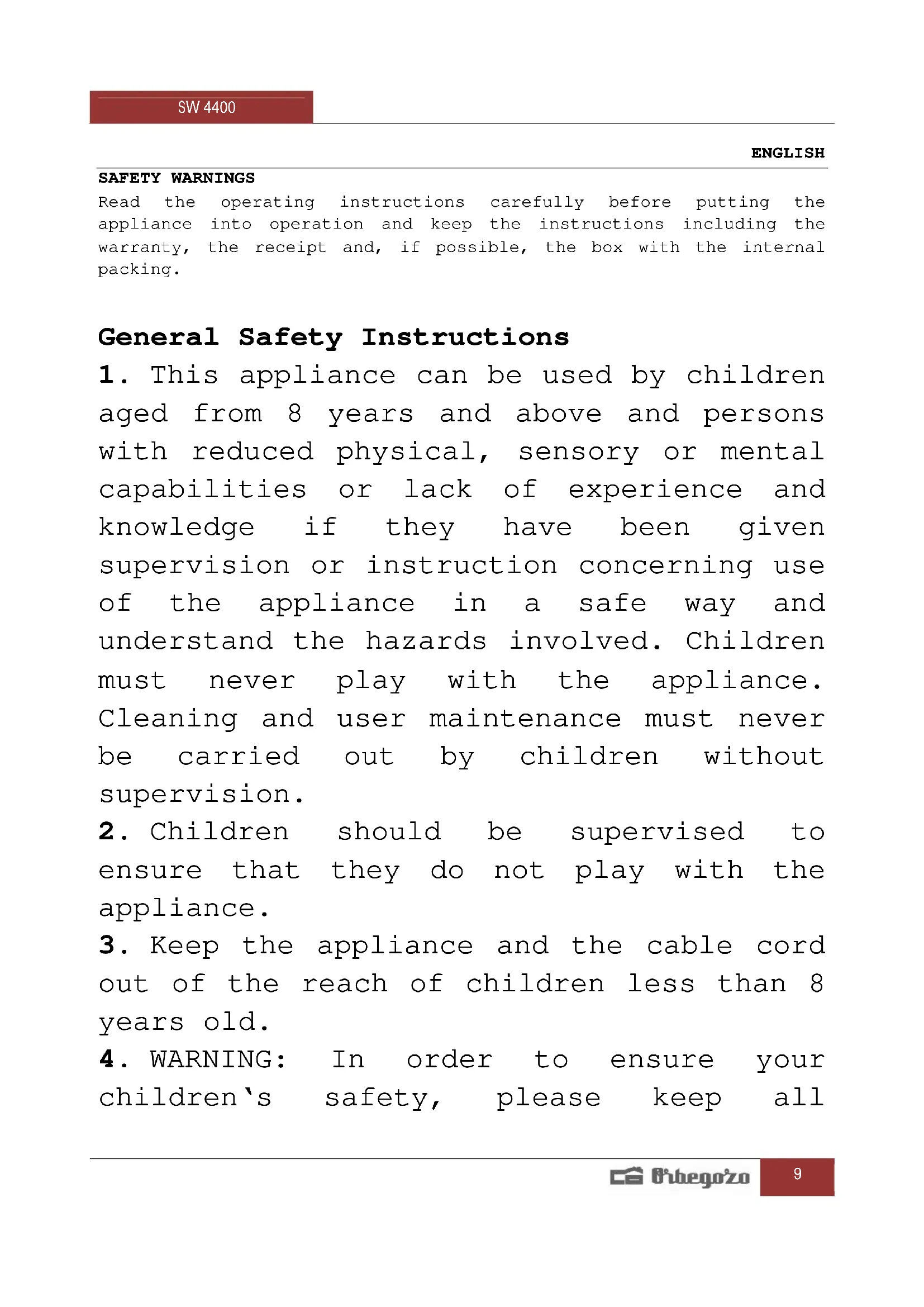

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

1. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
2. Never pull on the cord when unplugging.
3. Do not use the unit with a damaged cord or plug, or if it is not working properly.
4. Do not handle the appliance with wet hands.
5. Never immerse the appliance in water or any other liquid.
6. Make sure the appliance has been unplugged before cleaning.
7. This appliance must be installed following the national regulations for electrical installations.
8. This appliance is for household use only.
9. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
10. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

β ATTENTION. Hot surface. The surface can become hot during and after use

Do not use the device connected to an external timer or a separate remote control system.

The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation as specified in current electric safety regulations. The manufacturer does not accept responsibility for any damage resulting from a lack of earth installation.

We strongly advise against the use of adapters, extension plugs and/or leads. In the case of these being necessary, use only simple or multiple adapters and extension leads which conform to current safety regulations, taking care not to exceed the voltage limit indicated on the adapter and/or extension lead.

^B Warning: When the sandwich maker is switched on, the inside surfaces can

reach extremely high temperatures and can cause serious burns. Do not touch the appliance while it is switched on. It should be taken the necessary measures to avoid the risk of burns, fire and other damage to persons or property by contact with the sides or top of the device during use or its cooling.

B Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.

Do not use the appliance if the mains cord, the plug or the appliance itself is damaged.

Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.

B Keep the mains cord away from hot surfaces.

Do not let the appliance operate unattended.

^8 Always preheat the cooking plates before you put any sandwiches between them.

B Put the appliance on a flat, stable surface with sufficient free space around it

B Let the appliance cool down completely before cleaning the appliance or putting it away.

^8 Never touch the cooking plates with sharp or abrasive items, as they damage the non-stick surface.

^8 Always unplug the appliance after use.

^8 Always clean the appliance after use.

Put the unit down onto a heat-resistant surface.

B In order to prevent heat from building up, do not put the unit directly underneath a cupboard. Ensure that there is enough space all around.

This appliance is not a grill and is not intended for preparing other foods than sandwiches.

B Beware of steam coming out when you open the baking section.

^8 The bread can burn, so never use the sandwich maker near or below curtains and other inflammable materials.

USING THE SANDWITCH TOASTER FOR THE FIRST TIME

Before using the first time, wipe the surface of the plate with a damp cloth and dry it with a cloth, tissue etc. Then drop some cooking oil or butter on the plate and preheat it 5-10 minutes. This operation is only necessary when using for the first time.

Cook a bread slice in each gap of the device before the first use. These slices should be discarded.

HOW TO USE IT

1. Plug the connector and immediately the red light will be on. The green light will turn on once reached the optimum temperature. Close the lid and prepare the sandwich while the device gets to that point.
2. Place the sandwiches in the sandwich toaster and close the top.
3. While toasting, the upper lid would be a little bulging, don't open it halfway.
4. During use, the green light will turn on and off. This indicates that the thermostat is working correctly.
5. Leave the sandwich to toast for about two minutes. The toasting time depends on individual preference.
6. The baking section should be always closed in the intervals between baking
7. Open the lid and remove sandwich using a wooden spatula. Never use metal knife as this may damage the non-sticking coating.
8. After using, pull out the plug and open the upper lid let it get cool.

WARNING: The plates may become very hot during use. Be very careful when using the sandwich toaster.

CLEANING

• Unplug the sandwich maker. Leave it open and wait until it is completely cold
• Never use aggressive or abrasive cleaning agents and materials, as they damage the non-stick coating of the cooking plates.
• Never immerse the appliance in water nor rinse it under the tap.
• Remove excess oil from the cooking plates with a piece of kitchen paper before you remove them.
• Remove any sticky food residues (e.g. solidified cheese) from the cooking plates with a wooden spatula. Do not use metal, sharp or abrasive tools.
• Clean the plates with a sponge or a soft damp cloth. Then dry the surface.
• Clean the outside of the appliance with a damp cloth. Then dry the surface.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must

not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
