Technical Features	Orbegozo VT 2410 wine cellar, capacity of 24 bottles, adjustable temperature from 12 to 18C, digital display, LED lighting.
Usage	Designed for optimal wine storage, ideal for wine enthusiasts wishing to keep their bottles in appropriate conditions.
Maintenance and Repair	Regular cleaning of the interior with a damp cloth, check the proper functioning of the thermostat, replace the air filter if necessary.
Safety	Equipped with a locking system to prevent unauthorized openings, follow usage instructions to avoid overheating.
General Information	Compact dimensions, elegant design, low energy consumption, 2-year warranty, lightweight for easy moving.

Frequently Asked Questions - VT 2410 Orbegozo

How do I set the temperature of my Orbegozo VT 2410 wine cellar?

To set the temperature, use the control panel located at the front of the cellar. Press the temperature setting button and use the arrows to select the desired temperature.

The wine cellar makes a strange noise. What should I do?

A slight noise is normal due to the compressor. If the noise is loud or unusual, check if the cellar is level and if nothing is blocking the compressor. If the problem persists, contact customer service.

How do I clean the inside of my wine cellar?

Unplug the device and remove all bottles. Use a soft cloth and a mixture of warm water and mild soap to clean the shelves and interior. Avoid harsh chemicals.

Why does the interior light of my wine cellar not turn on?

Check if the cellar is properly plugged in and if the light switch is in the 'on' position. If the light still does not work, the bulb may be burnt out and needs to be replaced.

What is the capacity of the Orbegozo VT 2410 wine cellar?

The Orbegozo VT 2410 wine cellar has a capacity of about 24 standard wine bottles.

Does the wine cellar consume a lot of energy?

The Orbegozo VT 2410 is designed to be energy efficient. Its consumption depends on usage, but it is generally low compared to conventional refrigerators.

How can I avoid vibrations in my wine cellar?

Make sure the cellar is placed on a flat and stable surface. Avoid placing it near devices that generate vibrations, such as washing machines or dryers.

What type of wine can I store in the Orbegozo VT 2410 cellar?

You can store different types of wine, including red, white, and ros wines. Make sure to set the appropriate temperature according to the type of wine.

What should I do if my wine cellar does not cool properly?

Check that the temperature is set correctly. Also ensure the cellar is not overloaded and that air circulates well inside. If the problem persists, contact customer service.

How long does it take for my wine cellar to reach the desired temperature?

It usually takes between 4 to 6 hours for the cellar to reach the desired temperature after setting it.

USER MANUAL VT 2410 Orbegozo

Exterior view of a modern double-chamber refrigerator with illuminated windows and glass doors (no visible text or symbols)

VT 2410

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

- Do not leave the appliance exposed to the elements (rain, sun, ice...)

- WARNING: Keep vents clear of the casing of the appliance or furniture inlay.

- WARNING: Do not use electrical appliances inside compartments where food conservation.

- The use of adaptors, multiple sockets and or extension cables is not recommended.

- Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.

• After removing the packaging, check that the appliance is in perfect condition, if in doubt; contact the nearest Technical Support Service.

- The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use or for repairs conducted by nonqualified personnel.

- Keep the appliance separate from water or other liquids, to avoid electric shock; do not connect the appliance to the mains if it is on a damp surface.

- Place the appliance on a dry, firm and stable surface.

- In the event of fault or malfunction where the appliance is not to be used, turn off the appliance and do not attempt to repair. If a repair is required, contact with

Technical Assistance Service authorized by the manufacturer and request the use of original spare parts.

- Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).

- Do not use detergents or abrasive sponges to clean the appliance.

- When installing the appliance, make sure that there is at least 5 cm of free space at the sides and 10 cm at the rear of the appliance. This will allow for the appropriate amount of ventilation.

- Do not place hot food or drinks in the wine cooler until they have cooled down to room temperature.

- Close the door properly and do not open it too often or for a long period of time, as the wine will not reach the selected temperature.

- Do not place anything on top of the appliance.

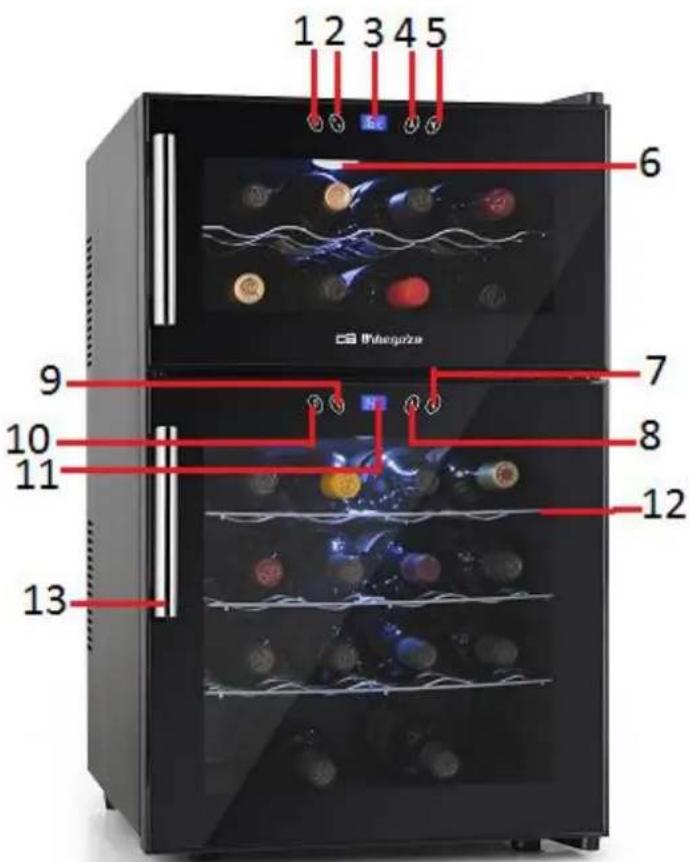

DESCRIPTION

1. LED light button upper zone

2. C°/F° button upper zone

3. LED display upper zone

4. Increase temperature upper zone

5. Decrease temperature upper zone

6. LED light

7. Decrease temperature lower zone

8. Increase temperature lower zone

9. C°/F° button lower zone

10. LED light button lower zone

11. LED display lower zone

12. Chromed removable shelf

13. Stainless steel handle

1 2 3 4 5 6 9 7 8 10 11 12 13

TECHNICAL CHARACTERISTICS

Model No.	VT 2410
Volume	68L
Rated Power	220-240V
Rated Frequency	50Hz
Input Power	130W
Power Consumption kW·h/24h	0.75 (15°C)
Temperature Control Range	8-18°C/11-18°C
Net Weight	20Kg
Gross Weight	23Kg
Shape Size(WXHXD)mm	450* 725* 525

INSTALLATION INSTRUCTIONS

Before using your wine refrigerator

• Remove the exterior and interior packing
• Clean the interior surface with lukewarm water using a soft cloth.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the front legs at the bottom of the appliance.
• Keep wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly.
• Not designed for placement in adage or basement.
  • The appliance is for indoor use only.
• Caution: Please keep the appliance away from substance, which can cause ignition.

ELECTRICAL CONNECTION

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Products service center.

This unit should be properly grounded for your safety. Do not under any circumstances cut or remove the ground wire from the power cord supplied.

Use of extension cords is not recommended.

This unit requires a standard 220V-50HZ electrical outlet.

The cord should be secured behind the wine refrigerator and not let exposed or dangling to prevent accidental injury.

This machine is designed to be only used in "N" and "SN" climate.

It is recommended that you installed the wine refrigerator in a place where the ambient temperature is between 10-26°C(50-80°F). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to fluctuate. The range of 8-18°C(45-64°F) may not be reached.

The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

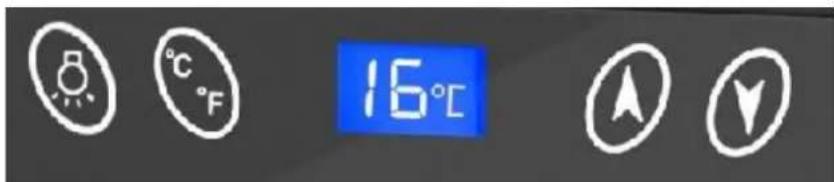

16°C

How to set temperature:

This is a duel zones wine cooler, there are two control panel with four touch-buttons each one and LED display which shows the selected temperature:

- “▲” and “▼” increases or decreases the set temperature by 1°C (temp range is 8-18°C for upper zone and 11-18°C for lower zone).

button, switch on and off the inner light.

button, select °F temperature when you push it once. Push it again to select °C temperature.

Note:

• This product is designed for max cooling of 15^ below ambient temperature.
• When the ambient temperature is 21°C or less, unit is capable of maintaining a set temperature range between 8-18°C.
• When the ambient temperature around 25^ or less, unit can maintain a temperature range between 11- 18^ .

Tip: In this duel zone design, the upper zone has better warm keeping insulation, the temperature might go up slowly than lower zone, it is normal. If you want the temperature to go up quickly, please unplug and reset.

CARE AND MAINTENANCE

Cleaning your wine refrigerator

• Unplug the wine refrigerator and remove the bottles.
• Wash the inside with cloth and warm water. Dry well once finished.
• The outside of wine refrigerator should be cleaned with mild detergent and warm water.
• Draw out the water box at the bottom, and wash.

Moving your wine refrigerator

• Remove all the bottles.
• Securely tape down all loose items inside your wine refrigerator.
• Turn the leveling legs up to the base to avoid damage.
• Tape the door.
• Be sure the wine refrigerates stays in the upright position during transportation.

PROBLEMS DISPOSAL

You can solve many common wine refrigerator problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling service center.

PROBLEM	POSSIBLE CAUSE
Wine refrigerator do not operate.	Not plugged in using different voltage. The circuit breaker tripped or a blown fuse.
Wine refrigerator is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is open too often.The door is not closed completely.The door seal does not seal properly.The wine refrigerator does not have the correct clearance.
The light does not work.	Check the service center.
Vibrations.	Check to assure that the wine refrigerator is level.
The wine refrigerator seems to make to much noise	The wine refrigerator is not level.Check the fan.
The door will not close properly.	The wine refrigerator is not level.The seal is weak.The shaves out of position.
LED could not display.	Main control board does not work.PCB Problem.There is some problem with the plug.
LED display error.	Check the service center.
Bottoms are not functional.	Temperature controller panel is damaged.

DISPOSAL

- Please remove the door before you dispose your refrigerator

- Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

- Information regarding disposal of the appliance

Flammable insulation blowing gases should be disposed appropriately. Take the cabinet to a recycling plant for flammable insulation blowing gases.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
