USER MANUAL VT 1230 Orbegozo

Black stainless steel refrigerator with three wine bottles on the glass doors (no visible text or labels)

VT 1230

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

R600a

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
   8.Do not handle the appliance with wet hands.

8. Never immerse the appliance in water or any other liquid.

9. Make sure the appliance has been unplugged before cleaning.

10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

13. WARNING: In case of misuse, there is a risk of possible injury.

14. Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).

15. WARNING: Keep vents clear of the casing of the appliance or furniture inlay.
16. WARNING: Do not use electrical appliances inside compartments where food conservation.
17. The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation, as foreseen in applicable electrical safety regulations. If in doubt, contact a qualified professional.
18. The use of adaptors, multiple sockets and or extension cables is not recommended.

19. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.

20. The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by nonqualified personnel.

21. Place the appliance on a dry, firm and stable surface.

- In the event of appliance breakdown or malfunction, turn it off and do not try to fix it. In case of it requiring repair, use only a Technical Assistance Service authorized by the manufacturer and request the use of original spare parts. You can make contact through the channels available on the website www.orbegozo.com.

- Do not use or place any part of this appliance on or near hot surfaces (gas or electric cooktops or ovens).

- Do not use abrasive detergents or cloths to clean the unit.

- When installing the appliance, make sure there is at least 10 cm of free space at the sides and 10 cm at the rear of the appliance. This will allow adequate ventilation.

- Do not place hot beverages in the wine cooler until they have cooled down to room temperature.

- Close the door tightly and do not open it too often or for a long period of time, as the wine would not reach the selected temperature.

- Do not place any objects on top of the appliance.

- To keep your wines at a stable temperature, avoid leaving the door open too long.

• Do not install your appliance near a heat source and avoid direct sunlight.
• To ensure your safety, do not place the appliance in damp places.
• Do not store perishable food in this appliance as the temperature inside may not be cold enough for proper storage.
• This refrigeration appliance is not designed to be used as a built-in appliance.
• This appliance is not suitable for freezing food.
• This wine cooler is designed to be used in a house or an apartment. For optimal use, it is essential for the room temperature where it is situated not to be lower than 16°C or higher than 32°C.
• To prevent the wine from spoiling, please observe the following instructions:
• The prolonged opening of the door can cause a significant increase in temperature in the appliance compartments.
• Regularly clean surfaces that may come into contact with food and accessible drainage systems.
• If the wine cooler is left empty for long periods, turn it off, clean it, dry it and leave the door open to prevent mould from developing inside the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance offers you unique combined advantages:

• The new thermal-absorption generation system is very silent, unlike conventional appliances with much noisier compressors.

• No vibration: to preserve the quality of the wines.
• Small size, taking up less space.

WARNING: As refrigerant gases are flammable, professional service technicians will be required to dispose of this wine cooler once it is no longer in use. This appliance contains the refrigerant isobutane (R600a), a natural gas that does not harm the environment. Although it is flammable, it does not damage the ozone layer nor does it increase the greenhouse effect. Care must be taken during the appliance transportation and installation to avoid damage to any part of the cooling system. Coolant leakage can cause eye damage.

R600a

Warning - Refrigeration units running on isobutane (R600a) cannot be placed in areas where there are ignition sources (e.g. unsealed electric contacts or where refrigerant may accumulate in the event of a leak). The type of refrigerant is indicated on the wine cooler nameplate.

Warning: Fire risk

If the cooling circuit is damaged:

• Avoid open flames and any sources of flame.
• Thoroughly ventilate the room in which the wine cooler is situated. It is dangerous to change the composition of this wine cooler in any way.

Any damage to the cord can cause a short circuit and/or electrocution.

WARNING:

When using, repairing, and disposing of the unit, pay attention to the symbol Ⓗ️, which indicates a possible fire hazard. There are flammable substances in the refrigerant lines. Keep the appliance away from sources of fire during use, maintenance and disposal.

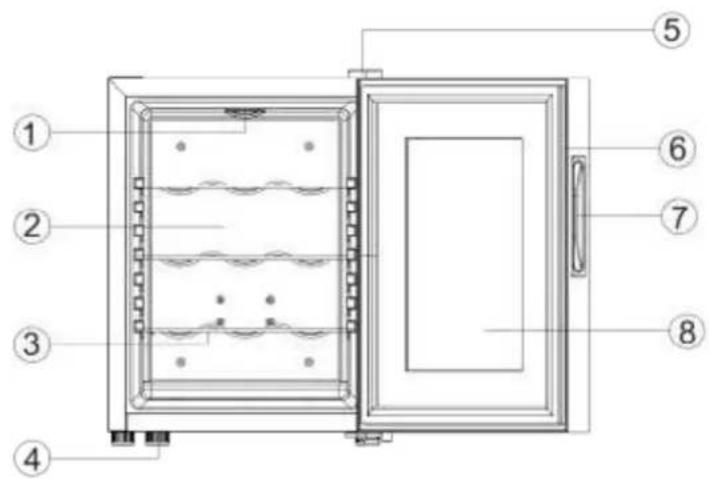

DESCRIPTION

1. LED Light
2. Cooling panel
3. Shelves
4. Feet
5. Upper hinge
6. Magnetic seal
7. Handle
8. Door

INSTALLATION INSTRUCTIONS

Before putting your appliance into operation:

• Remove all components from the inner and outer packaging.
• This appliance is designed to be installed on a table, never built-in.
  Before connecting your device to a power source, let it stand upright for about 2 hours. This reduces the risk of cooling system malfunction due to handling during transportation.
• Clean the interior surfaces of the unit with a soft cloth and warm water.
• Le ave 10 cm of free space between the rear and sides of the unit to allow ventilation of the cooling system. Failure to do so will result in poor cooling performance, dust will accumulate on components, and drastically shorten the life of the product. It may also void the warranty.

SPECIFICATIONS

MODEL VT 1230
Volume 31L
Capacity 12 bottles (75 cl)
Power supply 220-240V
Voltage 50Hz
Power consumption 70W (32°C)
Energy Class G
Temperature control range 11-18°C
Weight 13 Kg
Noise level 26 dB
Dimensions (Width x Height x Depth)mm 345*4	70*480
This appliance is designed to be used at an ambient temperature of between 16°C and 32°C.
Energy consumption of 129kWh per year, calculated on the basis of the result obtained over 24 hours under standardized test conditions. The actual power consumption depends on the operating conditions and location of the unit.

OPERATION

1. Place the wine cooler on a flat, horizontal and stable surface, away from hot surfaces and moisture.
2. Plug the wine cooler into a power outlet and select the desired temperature (see "Temperature setting").
3. Leave the wine cooler empty and running for about an hour to reach the selected temperature.
4. When the wine cooler has reached the selected temperature, open the door and place the wine bottles at room temperature on the shelves. The bottles will reach the selected temperature in about one hour.

The wine cooler automatically sets an on/off cycle to constantly maintain the selected temperature. Press the light button to turn on the interior light to see the contents of the wine cooler. To turn off the light, press the same button again. Important: Close the door tightly and do not open it too often or for a long period of time, as the wine would not reach the selected temperature

TEMPERATURE ADJUSTMENT

Select the interior temperature of the wine cooler by pressing the increase/decrease temperature buttons (4). Press the "▲" button to increase the temperature and press the "▼" button to decrease it. The selected temperature is displayed on the temperature display (3).

NOTE: The wine cooler will work properly when the ambient temperature is 32^ C or less. If the temperature is very high, it will not be able to cool at very low temperatures. The position of the bottles in the compartment, at the top, in the middle or at the bottom, can affect their internal temperature.

Tips and recommendations:

• The recommended temperature for red wine is 14-16°C
• The recommended temperature for white wine is 11-12°C.

Press the button

to switch between Fahrenheit or Celsius.

Press the button to turn the interior light on or off.

When you use the wine cooler for the first time or restart it after it has been switched off for a long time, there could be a variation of a few degrees between the temperature you select and the one indicated on the display. This is normal and is due to the activation time duration. Once the appliance has been running for a few hours, everything will return to normal.

If you are concerned that the temperature display is not correct and want to check the temperature, you will need a special refrigerator/freezer thermometer. You may also need a hygrometer to check the humidity of the appliance. You can find them in most supermarkets and hardware stores. Place the thermometer and hygrometer on the central shelf of the wine cooler, where it can be easily read. Leave it overnight, compare the temperature of the thermometer and on the wine cooler display. The relative humidity of the cooler should be between 50%-80% RH depending on the type of wine.

CARE AND MAINTENANCE

Cleaning your wine cooler

• Disconnect the wine cooler and remove the bottles.
• Clean the inside with a cloth and warm water. Once finished, dry it well.
• The outside of the wine cooler should be cleaned with a mild detergent and warm water.
• Empty the water tray at the bottom and wash it.

Moving the wine cooler

• Remove all bottles.
• Secure all loose elements inside the wine cooler with adhesive tape.

• Turn the levelling legs up towards the base to avoid damage.

• Secure the door with tape.
  • Make sure the wine cooler remains upright during transportation.

LED Light Replacement

The light is a long-lasting and energy-efficient LED. Therefore, it should not be necessary to replace it during the life of the product; however, if so, it should be replaced by a qualified technician.

Energy Saving Tips

• Try not to open the door too often, especially when the weather is humid and hot. Once you open the door, close it as soon as possible.
• Occasionally check if the appliance is sufficiently ventilated (adequate air circulation around the appliance).
• Adjust the thermostat from the highest to lowest setting (depending on the load of the appliance, ambient temperature, etc.).
• Before loading the appliance with fresh food, make sure it is cooled down to room temperature. For hot foods, please cool them down to room temperature before placing them in the appliance.
• Setting a higher temperature may minimize the appliance's power consumption at an ordinary temperature.

TROUBLESHOOTING

Problem	Possible Causes and Solution
Wine cooler does not work	Make sure the wine cooler is plugged in and the power outlet is turned on.Check that the fuse is not blown.Check to see if the power outlet works by plugging in another electrical appliance.
Wine cooler does not reach the selected temperature	Check the selected temperature.If the ambient temperature is high, the appliance will need a lower selected temperature.Check that the door has not been opening continuously.Check that the door is properly closed.Keep the wine cooler away from sunlight and other heat sources.Place the wine cooler in a place with good ventilation and respect the installation distance previously informed in this manual.
Wine cooler works continuously	The room temperature is higher than the one advisable for the correct use of the wine cooler.Check that the number of bottles stored does not exceed the maximum allowed.Check that the door has not been opening continuously.Check that the door is properly closed.The temperature controller is not adjusted correctly.
Light not working	Check that the appliance is plugged into the power outlet.Press the light buttonCheck the fuse is not blown.The LED light may be fused.
Vibrations or a lot of noise	Check if the appliance is in a level position.Check that the legs are properly adjusted.
Door does not close	Check if the appliance is in a level position.Check that the racks are properly placed and do not prevent the door from closing.
Water under the appliance	Check that the water tray is properly placed.The tray may be filled with water. In this case, empty it.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
