VT 810 - Wine cellar Orbegozo - Free user manual and instructions

Technical Features	Orbegozo VT 810 wine cellar, capacity of 8 bottles, adjustable temperature from 8 to 18C, LED lighting, tinted glass door, digital display.
Usage	Ideal for storing wine at an optimal temperature, suitable for red, white, and ros wine bottles.
Maintenance and Repair	Regularly clean the interior with a soft cloth, check the door seal, do not use abrasive products.
Safety	Avoid overloading the appliance, do not expose to heat sources, unplug before any maintenance intervention.
General Information	Compact dimensions, modern design, low energy consumption, 2-year manufacturer warranty.

Frequently Asked Questions - VT 810 Orbegozo

How do I set the temperature on my Orbegozo VT 810 wine cellar?

To set the temperature, use the control panel located on the front of the appliance. Press the temperature button to increase or decrease the desired temperature.

The wine cellar does not turn on, what should I do?

Check that the wine cellar is properly plugged into a working electrical outlet. Also ensure that the fuse is not blown.

Why is my wine cellar making noise?

A slight noise is normal due to the compressor and fan. If the noise is excessive, check that the appliance is on a flat and stable surface.

How do I clean the inside of my wine cellar?

Unplug the appliance and use a soft, damp cloth to clean the interior. Avoid abrasive chemical products that could damage the surfaces.

What is the capacity of the Orbegozo VT 810 wine cellar?

The Orbegozo VT 810 wine cellar has a capacity of about 8 standard wine bottles.

Is the Orbegozo VT 810 wine cellar noisy?

The wine cellar is designed to operate quietly, but the compressor noise can be heard during operation. This should not be disturbing.

What is the ideal temperature to store wine in my cellar?

The ideal temperature to store wine is generally between 10C and 14C, depending on the type of wine.

Can I place my wine cellar in a warm room?

It is recommended to place your wine cellar in a cool, well-ventilated area, away from direct sunlight and heat sources.

How do I know if my wine cellar is broken?

If the temperature inside the cellar does not match the set temperature, if the appliance does not turn on, or if there are unusual noises, there may be a problem.

Is there a warranty for the Orbegozo VT 810 wine cellar?

Yes, the Orbegozo VT 810 wine cellar generally comes with a two-year warranty. Check the provided documents for more details.

USER MANUAL VT 810 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).

16. WARNING: Keep vents clear of the casing of the appliance or furniture inlay.
17. WARNING: Do not use electrical appliances inside compartments where food conservation.
18. The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation, as foreseen in applicable electrical safety regulations. If in doubt, contact a qualified professional.
19. The use of adaptors, multiple sockets and or extension cables is not recommended.
20. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.
21. The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by nonqualified personnel.
22. Place the appliance on a dry, firm and stable surface.
23. In the event of fault or malfunction, turn off the appliance and do not attempt to repair. If a repair is required, contact with Technical Assistance Service authorized by the manufacturer and request the use of original spare parts.

24. Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).

25. Do not use detergents or abrasive sponges to clean the appliance.

26. When installing the appliance, make sure that there is at least 5 ~cm of free space at the sides and 10 ~cm at the rear of the appliance. This will allow for the appropriate amount of ventilation.
27. Do not place hot food or drinks in the wine cooler until they have cooled down to room temperature.
28. Close the door properly and do not open it too often or for a long period of time, as the wine will not reach the selected temperature.
29. Do not place anything on top of the appliance.

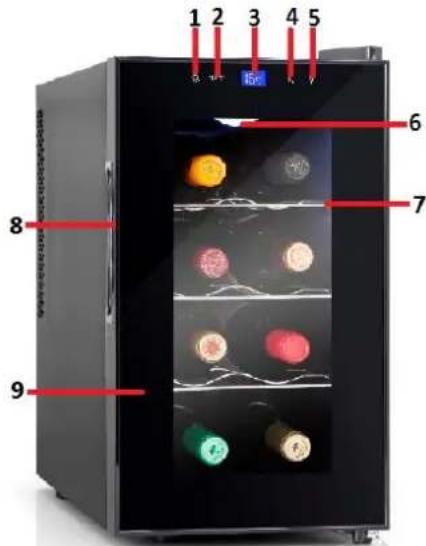

2.DESCRIPTION

1. Light button
2. ^ C / ^ button
3. Temperature display screen
4. Increase temperature button
5. Reduce temperature button
6. LED Light
7. Shelf
8. Side handle
9. Door

3. TECHNICAL CHARACTERISTICS

Model No.	VT 810
Volume	25L
Rated Power	220-240V
Rated Frequency	50Hz
Input Power	70W
Power Consumption kW·h/24h	0.438 (15°C)
Temperature Control Range	11-18°C
Net Weight	9.2Kg
Gross Weight	10.2Kg
Shape Size (WXHXD)mm	260*470*505

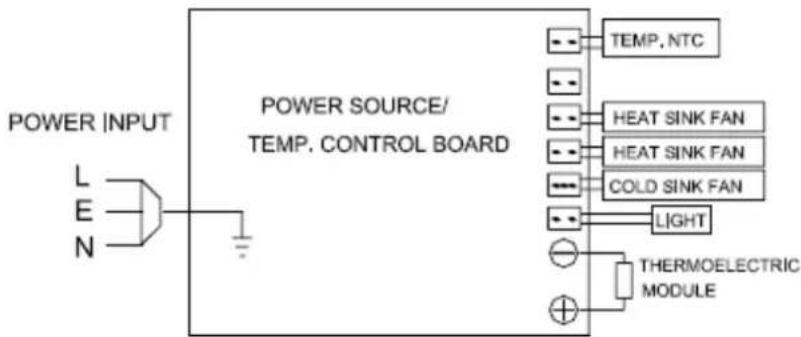

4. ELECTRIC DIAGRAM

5. OPERATING INSTRUCTIONS

1. Place the wine cooler on an even, horizontal and stable surface, well away from hot surfaces and humidity.

2. Open the door (5) and place the shelves (6) onto the guides inside the wine cooler. Close the door (5).

3. Plug the wine cooler into a power socket and select the desired temperature (see "Adjusting the temperature" section).

4. Leave the wine cooler on, and empty, for approximately one hour in order for it to reach the selected temperature.

5. Once the wine cooler has reached the selected temperature, open the door

(5) and place the bottles of wine at room temperature on to the shelves (6). The bottles will reach the selected temperature within approximately one hour.

The wine cooler will automatically set an on-and-off cycle in order to constantly maintain the selected temperature.

Press the light button (4) to turn the inside light on and see what is inside the wine

cooler. To turn the light off, press the same button again.

Important: Close the door (5) properly and do not open it too often or for a long period of time, as the wine will not reach the selected temperature.

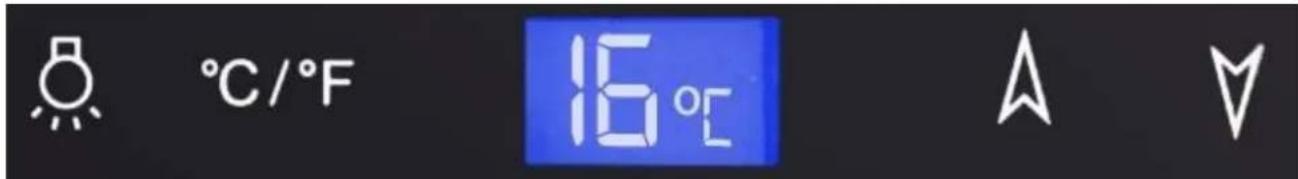

6. ADJUSTING THE TEMPERATURE

Select the temperature inside the wine cooler by pressing the increase/reduce temperature buttons (2 & 3). Press the “▲” button (2) to increase the temperature and press the “▼” button (3) to reduce it. The selected temperature will appear on the temperature display screen (1).

Advice and recommendations:

• The recommended temperature for red wine is 14 - 16^

• The recommended temperature for white wine is 11 - 12^ .

The temperature inside the wine cooler will depend on the room temperature.

7. TROUBLESHOOTING

Problem	Possible causes	Solution
The wine cooler is not working	1. Fault in the power supply. 2. A fuse has blown.	1. Make sure that the wine cooler is plugged in and that the power socket is switched on. 2. Change the blown fuse.
The wine cooler is not reaching the selected temperature	1. The wine cooler has been placed too near a heat source. 2. Lack of ventilation. 3. The door is being opened too often or for a long period of time.	1. Keep the wine cooler well away from sunlight and other heat sources. 2. Place the wine cooler in a well-ventilated position and keep all objects away from the ventilation grilles. 3. Close the door properly and do not open it too often or for a long period of time.

8. CARE AND MAINTENANCE

Cleaning your wine refrigerator

• Unplug the wine refrigerator and remove the bottles.
• Wash the inside with cloth and warm water. Dry well once finished.
• The outside of wine refrigerator should be cleaned with mild detergent and warm water.
• Draw out the water box at the bottom, and wash.
• Remove the rear filter, clean with a brush or water and put it back in place. Important: only remove the filter to clean it, do not connect the unfiltered wine bar.

Moving your wine refrigerator

• Remove all the bottles.
• Securely tape down all loose items inside your wine refrigerator.
• Turn the leveling legs up to the base to avoid damage.
• Tape the door.
• Be sure the wine refrigerates stays in the upright position during transportation.

Tips for Energy Savings

• Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.
• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation around the appliance).
• Set thermostat from higher to lower settings as soon as possible (depends on how loaded the appliance is, ambient temperature etc.).
• Before loading the appliance with packages of fresh foods, make sure they are cooled to ambient temperature. For hot foods, please cool to room temperature before placing it in the refrigerator.
• Set it on higher temperature can minimize the energy consumption of the household refrigerating appliance at ordinary temperature.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

1. PRESCRIPTIONS DE SECURITE

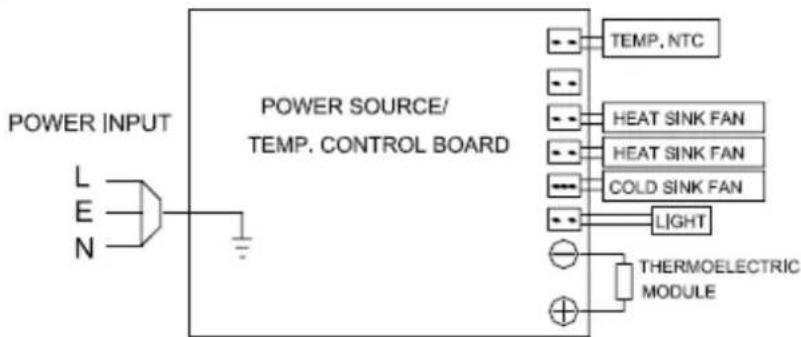

4. DIAGRAMA ELETRICO
