BA 3500 - Food Processor Orbegozo - Free user manual and instructions

Technical features	Orbegozo BA 3500 food processor, 1000 W power, 4.5 L bowl capacity, 6 speeds, pulse function.
Usage	Ideal for kneading, mixing, whipping, and emulsifying various ingredients. Included accessories: whisk, dough hook, beater.
Maintenance and repair	Easy cleaning of accessories in the dishwasher, stainless steel bowl, regularly check the condition of cables and accessories.
Safety	Overheat protection system, non-slip feet for increased stability during use.
General information	Dimensions: 38 x 24 x 30 cm, weight: 3.5 kg, 2-year warranty, color: silver.

Frequently Asked Questions - BA 3500 Orbegozo

How do I assemble the Orbegozo BA 3500 food processor?

To assemble the processor, start by fixing the bowl onto the base by aligning the notches. Then, place the whisk or dough hook as needed. Make sure all parts are properly engaged.

What type of electrical plug is compatible with the Orbegozo BA 3500?

The Orbegozo BA 3500 is compatible with type C and F plugs, which are commonly used in France.

What is the capacity of the Orbegozo BA 3500 food processor bowl?

The bowl of the Orbegozo BA 3500 food processor has a capacity of 3.5 liters.

How do I clean the accessories of the Orbegozo BA 3500?

The accessories can be washed by hand with soapy water or placed in the dishwasher, unless otherwise indicated in the user manual.

Can the Orbegozo BA 3500 be used to knead dough?

Yes, the Orbegozo BA 3500 is designed to knead dough. Use the dough hook for best results.

What should I do if the food processor does not start?

Check that the processor is properly assembled and that the bowl is correctly in place. Also ensure the device is plugged into a working outlet.

Does the Orbegozo BA 3500 come with a warranty?

Yes, the Orbegozo BA 3500 generally comes with a 2-year warranty, but please consult the provided documentation for more details.

How do I adjust the speed of the Orbegozo BA 3500?

You can adjust the speed using the speed button located on the control panel. It offers several speed levels according to your needs.

Can the Orbegozo BA 3500 be used to blend food?

No, the Orbegozo BA 3500 is mainly designed for kneading, whipping, and mixing, but it should not be used as a blender.

Where can I find spare parts for the Orbegozo BA 3500?

Spare parts can be ordered from your retailer or directly on the official Orbegozo website.

USER MANUAL BA 3500 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read and follow all the instructions in this “Use And Care” even if you feel you are familiar with the product, and find a place to keep it handy for future reference.

General Safety Instructions:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

Specific Safety Instructions:

• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved.
• Children must not play with the appliance.
• This appliance cannot be used by children. Keep the appliance and its cord out of reach of children
• The appliance is at risk for injury in the event of misuse. Care should be taken when handling the cutting blades when the glass is empty and during cleaning.
• Always use the blender on a flat, level work surface.

• The use of accessories not supplied by the manufacturer may cause accidents.

• Always disconnect the power if left unattended and before assembling, disassembling or cleaning.

• This appliance must not be used to stir or mix paints or varnishes such as flammable solvents.
• The accessories must be fitted and removed whilst the appliance is unplugged.
• Keep your hands, hair, clothing and other utensils well away from the blades during use.
• Do not use the blades to mix ingredients which are too solid.

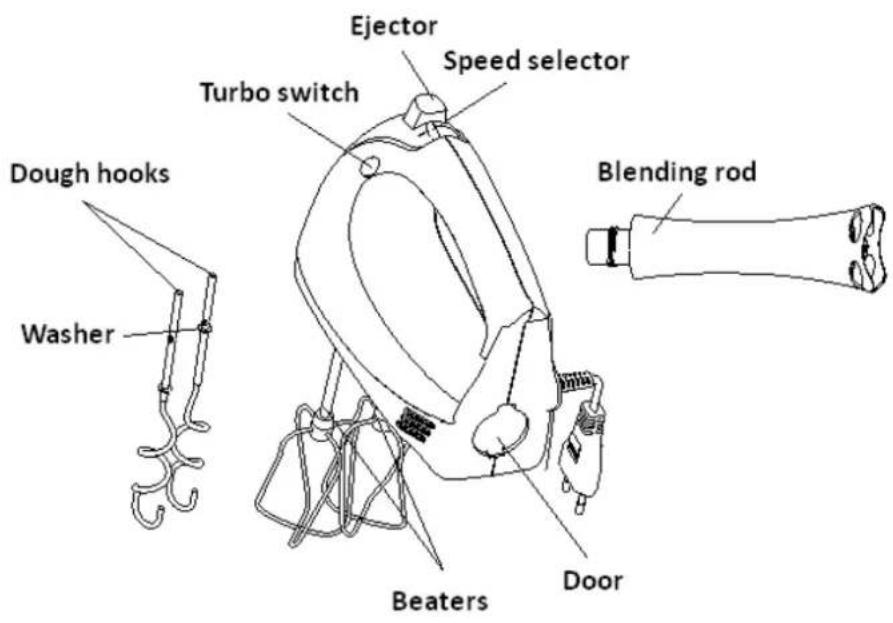

KNOW YOUR HAND MIXER

Model: BA 3500

Rated Voltage: AC 230V 50H_z

Rated Power: 300W

Accessories: Beaters, dough hooks, blending rod.

BEFORE USING HAND MIXER

Before using the hand mixer, be sure the power cord is unplugged from the power outlet and the speed selector is in the beater eject position.

1. Select the desired attachments, which are depending on the mixing task to be performed: beaters for easy mix cough, egg white, whip cream, mayonnaise and puree. They are also especially suitable for mixing/stirring suces

and pudding powders. Dough hooks for the preparation of heavy yeast dough or short pastries. Also potato dough to the dumpling and potato pancake preparation mixes one with it knead hooks easily and quickly. With the blending rod, you will be able to blend in an easy way.

1. Inserting the beaters/ dough hoods/blending rod

a) For dough hooks and beaters, the ones with washer can only be inserted into the big socket and the other one can only be inserted into small socket.
b) For attach blending rod see the below figure for illustration. First pull the door upwards (Fig. 2) and then hold it in the upper most position (Fig. 3) while turning in clockwise the blending rod.

Note: ensure beaters, dough hooks or blending rod are fully inserted into the correct sockets or your mixing results may be affected.

Note: only one type accessories can be used one time.

Fig.1

Fig.2

Fig.3

USING HAND MIXER

1. With the speed selector in the beater eject position, plug the cord into power outlet.
2. Turn the Speed selector to your desired speed and begin mixing. The mixer run at highest speed when press turbo button.
   Tip: Always start mixing at slow speeds and increase the speed gradually to prevent ingredients splashing out of the mixing bowl. When adding dry ingredients, use the lowest speed in order to prevent the snow storm effect.
3. For the blending rod, the max operation time per time shall not exceed 1 minutes; for the mixer, the max operation time per time shall not exceed 3 minutes, and minimum 10 minutes rest time must be maintained between continuous two cycles. When kneading yeast dough, suggest the speed selector is in 1 or 2 position then set in top speed to achieve best results.
   When mixing is complete, turn the speed selector to beater eject position and unplug the cord from power outlet.
4. Scrape the excess food particles from the beaters, blending rod or dough hooks by rubber or wooden spatula.
5. To remove the beaters/dough hooks, place fingers loosely around the spindles and turn speed selector to "0" position then depress it firmly down. Make sure the power cord is unplugged from the power outlet before removing the beaters/dough hooks and blending rod.

USING YOUR BLENDING ROD

Before the first use, clean the blender according to the section of "cleaning".

The time running unit without load can't exceed 15s. Max operation duration under high speed per time cannot exceed 1 minute, and 10 minutes rest time must be maintained at two consecutive cycles.

Important: Blades are very sharp, handle with care. Ensure that the hand-held blender is unplugged from the power outlet before assembling or removing attachments.

1. First pull the door upwards and then hold it in the upper most position while turning in clockwise the blending rod until tightened. For detaching blending rod, the ejector button is inactivated, just turning the blending rod in anticlockwise direction and the door would be released automatically.

2. Simply plug the hand-held blender to power outlet.

3. Dial the speed selector to blending setting, Lower the blending rod into food and depress the turbo button of the motor unit.

4. To stop the hand-held blender by releasing the turbo button of the motor unit.

SPEEDGUIDE

SPEED	FUNCTION	USE
1	Blend	To combine liquids, fold in dry ingredients, egg whites and whipped cream
2	Stir	To prepare sauscs, puddings, muffins and quick breads.
3	Mix	To prepare batters and mixes
4	Beat	To cream butter and sugar, make cookie dough, cake mixes and frostings
5/6	Whip	To whip light and fluffy mixtures, whip crem, beat eggs (whites, yolks, whole) and mash potatoes

Remember that, the use of the blender cannot exceed 3 minutes.
- Don't use Turbo function for more than 1 minute per time.

CLEANING

1. Unplug the appliance and wait it completely cool down before cleaning.
2. Wipe over the outside surface of the appliance with a dampened cloth and polish with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Wash the beaters and dough hooks in warm soapy water and wipe dry. The beaters and dough hooks may be placed washed in the dishwasher.

COOKERY TIPS

1. Refrigerated ingredients, ie butter and eggs should be at room temperature before mixing begins. Set these ingredients out ahead of time.
2. Assemble all ingredients and utensils near the mixer.
3. To eliminate the possibility of shells or deteriorated/off eggs in your recipe, break eggs into separate container first, then add to the mixture.
4. When mixing egg whites, be sure the bowls and beaters are thoroughly cleaned and dried. As even the smallest amount of oil on beaters or bowl may cause the egg whites not to aerate.
5. Always start mixing at slow speeds. Gradually increase to the recommended speed as stated in the recipe.
6. Do not over-beat. Be careful that you only mix/blend mixtures until recommended in your recipe. Fold in dry ingredients only until just combined. Always use the low speed. At any stage of mixing, overbeating can cause toughness, close texture, lack of rising or excessive shrinkage. Climatic conditions. Seasonal temperature changes, temperature of ingredients and their texture variation from area to area all play a part in the required mixing time and the results achieved.
7. During mixing, ingredients may splash to the sides of the bowl. To scrape the bowl, turn the beaters to the OFF position and using a plastic or rubber spatula, scrape the bowl. NEVER USE A KNIFE, METAL SPOON OR FORK, as this may cause damage to the beaters and bowl. A light scraping after the addition of each ingredient assists in achieving efficient mixing.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct

disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
