BV 6500 - Blender Orbegozo - Free user manual and instructions

Technical specifications	Power: 650 W, Bowl capacity: 1.5 L, Number of speeds: 2, Pulse function: Yes
Usage	Ideal for smoothies, soups, sauces, and other culinary preparations.
Maintenance and repair	Easy cleaning, removable parts dishwasher safe, regularly check the condition of the blades.
Safety	Safety system: the device only operates if the bowl is correctly positioned.
General information	Compact design, lightweight, ideal for home use, manufacturer warranty included.

Frequently Asked Questions - BV 6500 Orbegozo

How do I assemble the Orbegozo BV 6500 blender?

To assemble the blender, place the bowl on the base ensuring it is properly locked in. Then, attach the lid to the bowl making sure it is correctly positioned.

The blender won\u0027t start, what should I do?

Check that the blender is properly plugged into a working electrical outlet. Also ensure that the bowl is correctly in place and the lid is closed.

How do I clean the Orbegozo BV 6500 blender?

To clean the blender, disassemble the bowl and lid. Wash them with warm soapy water or place them in the dishwasher. Wipe the base with a damp cloth.

The blender makes noise, is this normal?

A certain level of noise is normal when using the blender. However, if the noise is excessive or accompanied by vibrations, check that all components are properly secured.

Can I blend hot foods in the blender?

It is recommended not to blend hot foods as this can cause splashing. Let the food cool before blending.

How do I adjust the blender speed?

Use the control knob on the control panel to adjust the speed according to the desired consistency. Turn the knob clockwise to increase the speed.

What safety measures should be followed when using the blender?

Never immerse the blender base in water, do not use the blender without the lid, and do not exceed the maximum bowl capacity to avoid overflow.

Where can I find spare parts for the Orbegozo BV 6500 blender?

Spare parts can be ordered from Orbegozo customer service or from stores specializing in household appliances.

How do I know if the blender is overheating?

If the blender emits a burning smell or stops working for no apparent reason, it is likely overheating. In this case, unplug it and let it cool before reuse.

The blender is leaking, what should I do?

Check that the bowl is properly fixed and that the sealing gasket is in good condition. If the problem persists, contact customer service for assistance.

USER MANUAL BV 6500 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Disconnect the appliance and unplug from power supply if machine is left unattended, of before changing the accessories or nearest parts that move when machine is used, assembled, disassembled or during cleaning

16. Always use the blender on a flat, level work surface.
17. Never insert metal utensils, such as knives or forks, into the inside of the jug while the appliance is operating.
18. The use of accessories not supplied by the manufacturer may cause accidents.
19. Never try to fit or remove the jug on the blender while the appliance is still running.
20. Do not open the lid on the blender until the motor has stopped.
21. The appliance is at risk for injury in the event of misuse. Care should be taken when handling the cutting blades when the glass is empty and during cleaning.
22. Always disconnect the power if left unattended and before assembling, disassembling or cleaning.
23. Unplug the appliance before changing accessories or parts that can move during operation of the mixer
    Wrong operation and improper handling can cause problems with the appliance and injury to the user. The unit may be used only for the intended purposes. No liability is accepted for damages arising from improper use or faulty handling.

1 Do not try to open the housing yourself! Do not introduce any kind of objects into the housing.
1 Do not ever try to repair the unit yourselves. There is danger from electrical shock!
1 Do not let the power cord hang over sharp edges and keep it away from hot objects and open flames. Pull the plug itself to remove it from the plug socket.
The cable as well any extension cable required should be laid such that there will not be any risk of anyone pulling it inadvertently or tripping over it.
When mixing hot liquids/foods excess pressure may build up inside the blender and this could make the lid come off and the contents splash out. We therefore recommend that you avoid mixing excessively hot foods and that you only put very small quantities of hot liquids or foods into the blender.
1 Do not use the blender for very hard food products, such as bones, shelled nuts, frozen meats etc., which could either damage the blade or cause the motor to seize.

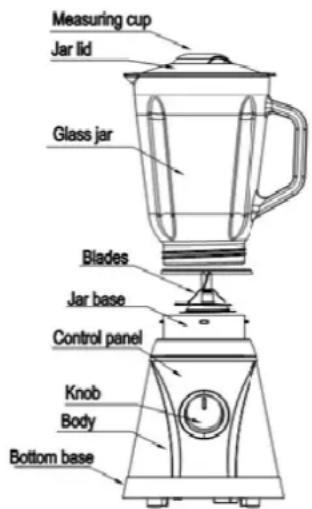

DESCRIPTION

Your blender has been designed for the following applications: chopping and mashing fruits and vegetables; preparing smoothies, shakes and juices; preparing cold soups; preparing dressings, dips and sauces. The maximum capacity of the appliance is 1500ml .

The appliance is suitable for indoor use only.

The appliance is suitable for domestic use only.

Before you proceed, we need you to pay attention to the following notes:

• The appliance has been designed for mixing cold and lukewarm ingredients (max. 55^ ).

It is recommended not to use the appliance for mixing hot liquids and solids. Hot liquids and solids can easily cause the jar to break and the jar lid to abruptly come off the appliance due to steam pressure. Keep the jar lid pressed with your hand when mixing lukewarm liquids to prevent leakage.

OPERATION

1. Connect the power.
2. This unit have safety design, it do not work if the jar is not install on main body properly.

3. Turn the turning knob P / 0 / 1 / 2 to position 0 in order to make sure the unit is turned off.

4. Fill the jug with the desired foods

5. Put the cover on top of the jar and fix it. Place the measuring cup on the center of cover, anticlockwise rock the measuring cup slightly.
6. Put the blender glass jar onto the main body, and turn it slightly in a clockwise so it locks with the motor base. And the machine was fully assembled.
7. Turning the knob to required speed (P—pulse, grade 1 to 2 means speed of blades from low to high).
8. During working mode, the blue light around the knob is on.

ASSEMBLY

Before you proceed, we need you to pay attention to the following notes:

• Before assembly or disassembly, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

Mount the jar onto the appliance. Lock the jar by turning it clockwise.

• Mount the jar lid onto the jar
• Mount the jar lid insert into the jar lid
  Lock the jar lid insert by turning it clockwise.

SWITCHING ON AND OFF

Before you proceed, we need you to pay attention to the following notes:

• Do not switch on the appliance when the jar is empty.
• Do not leave the appliance switched on continuously for more than two minutes. After that, let rest 5 minutes.

This blender has a resettable fuse, so if after prolonged use goes down, set the switch to 0 and unplug it while waiting for it to cool. When it happens don't touch the blade at any time, it is very dangerous! After 15 minutes there will be cooled and may reuse normally.

• To switch on the appliance with continuous low speed, set the on/off switch to the 'I' position.
• To switch on the appliance with continuous high speed, set the on/off switch to the 'll' position.
• To switch on the appliance in pulse mode, set the on/off switch to the 'P' position.
• To switch off the appliance, set the on/off switch to the 'O' position.

HINTS FOR USE

Before you proceed, we need you to pay attention to the following notes:

• Do not overload the appliance. Do not put too many ingredients into the jar at one time.
• Cut the fruit and/or vegetables into pieces.

Make sure that the pieces of fruit and/or vegetables fit in the jar.

• Remove the jar lid from the jar.
• Put the pieces of fruit and/or vegetables into the jar.
• Assemble the appliance.
• Insert the mains plug into the wall socket.
• Switch on the appliance. The appliance chops the pieces of fruit and/or vegetables

Turn the jar lid insert counterclockwise to remove the jar lid insert from the jar lid.

• If the pieces are too large for the filling opening of the jar lid, switch off the appliance, remove the jar lid, and add the pieces of fruit and/or vegetables.
• Mount the jar lid onto the jar.
• Mount the jar lid insert into the jar lid.
• Switch on the appliance. The appliance chops the pieces of fruit and/or vegetables in a few seconds. The longer the appliance is switched on, the finer the pieces of fruit and/or vegetables will be chopped.

After use, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

CLEANING AND MAINTENANCE

The appliance must be cleaned after each use.

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.

• Do not immerse the appliance in water or other liquids.

• Always be careful when cleaning the blade.

The blade is very sharp. Risk of personal injury.

• To remove the blade, hold fixed base and turn the jar to the left (counterclockwise to clockwise) until the bottom of the cup us unscrewed, so you can get the blades and the silicone to clean. To reassemble, glass upside down position the silicone, blades and screw the base of the glass, put the glass to secure the base and turn it clockwise until tight.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not clean the appliance in the dishwasher.
  It is not recommended to wash the removable parts of the appliance or the accessories in a dishwasher.
• Regularly check the appliance for possible damage.
• Clean the outside of the appliance with a damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.
• Clean the accessories:
• Clean the jar, the jar lid and the jar lid insert in soapy water.
• Rinse the accessories under running water.
• Thoroughly dry the accessories.
• Assemble the appliance. Refer to the section
• Put the appliance and the accessories in the original packaging.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
