Features	Details
Product type	Grill plate
Cooking surface dimensions	XX cm x XX cm
Power	XX Watts
Plate material	Non-stick
Number of cooking zones	1 zone
Adjustable temperature	Yes
Temperature indicator	Yes
Ease of cleaning	Removable and washable plate
Safety system	Overheat protection
Included accessories	Spatula, recipe book
Warranty	XX years
Weight	XX kg
Recommended use	Indoor
Energy consumption	Energy efficient

Frequently Asked Questions - ASG90XXL BESTRON

Why is my BESTRON ASG90XXL grill plate not heating properly?

Make sure the plate is properly plugged in and the outlet is working. Also check that the thermostat is set to an appropriate temperature.

How do I clean my BESTRON ASG90XXL grill plate after use?

Allow the plate to cool completely, then use a soft sponge with warm water and soap. Avoid abrasive cleaners that could scratch the surface.

Is the BESTRON ASG90XXL grill plate compatible with metal utensils?

It is recommended to use silicone or wooden utensils to avoid scratching the cooking surface.

What is the capacity of the BESTRON ASG90XXL grill plate?

The BESTRON ASG90XXL grill plate has a large cooking surface that allows preparing multiple portions at once, ideal for family or friends meals.

How can I tell if my BESTRON ASG90XXL grill plate is ready to use?

The indicator light will turn off when the plate has reached the desired temperature.

Can I use my BESTRON ASG90XXL grill plate outdoors?

No, the grill plate is designed for indoor use only. Avoid using it outdoors as this could damage the appliance.

What should I do if the BESTRON ASG90XXL grill plate emits a strange smell during first use?

This is normal during the first uses. The smell should disappear after a few minutes of operation. Make sure to use it in a well-ventilated area.

Is the BESTRON ASG90XXL grill plate covered by a warranty?

Yes, the plate is generally covered by a two-year warranty. Please refer to the user manual for specific details.

USER MANUAL ASG90XXL BESTRON

R. Neyman Quality control

FUNKTION - Allgemein

WAT U MOET WETEN OVER DIT APPARAAT

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance may be used by children over the age of 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and know-how, but only if supervised or if they have been instructed on how to use the appliance safely and are aware of its potential dangers.
  Children are not allowed to clean and maintain the appliance, except if they are over the age of 8 years old and supervised.
• Keep the appliance and the cable out of reach of children under the age of 8 years old.
• Keep an eye on children to ensure that they do not play with the appliance.

WHAT YOU SHOULD KNOW ABOUT ELECTRICAL APPLIANCES

• Check that the mains voltage corresponds with that shown on the rating plate of an electrical appliance before you use it.
• Check that the socket to which you connect the electrical appliance is earthed.
• Always install electrical appliances on a stable and level surface where it cannot fall over.
• Certain parts of an electrical appliance may become warm or sometimes hot. Do not touch them as you may burn yourself.
• Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
• Electrical appliances must be able to lose their heat to avoid fire hazards. Therefore, make sure that the appliance has sufficient clearance around it and that it does not come into contact with flammable materials. Electrical appliances must never be covered.
• Make sure that electrical appliances, cords or plugs do not come into contact with water.
• Never immerse electrical appliances, cords or plugs in water or any

other liquid.

• Do not touch electrical appliances if they have fallen in the water. Immediately pull the plug out of the socket. Stop using the appliance.
• Make sure that electrical appliances, cords and plugs do not come into contact with heat sources, such as a hot hob or open fire.
• Never let cords hang over the edge of the sink, a worktop or a table.
• Always remove plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling the plug itself and not the cord.
• Regularly check if the cord of the electrical appliance is not damaged. Do not use the electrical appliance if the cord shows signs of damage. If the cord is damaged, it should be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.
• The appliance may not be switched on with the aid of an external time switch, or by a separate system with remote control.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).
• Never move the appliance when it is switched on or is still hot. Switch off the appliance before moving it.
• Always pick up the appliance by the handles. All metal parts can be very hot.
• Always use implements with a suitable insulating handle when grilling food on the grill plate.
• Do not use sharp or metal implements on the grill plate. These will damage the non-stick coating.

ENVIRONMENT

• Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.
• Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

CE DECLARATION OF CONFORMITY

This product meets the requirements of European guidelines.

R. Neyman Quality control

OPERATION - General information

The appliance is intended only for domestic use, not for professional use.

1

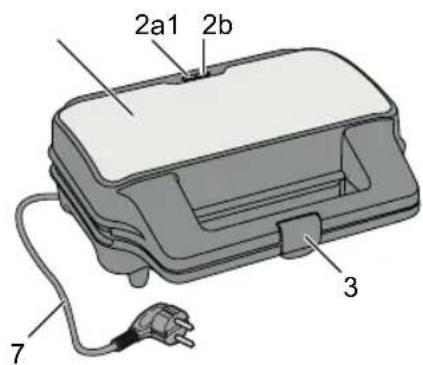

1.Housing
2a. Power indicator light (red)
2b. Ready-to-use light (green)
3. Fastening clip

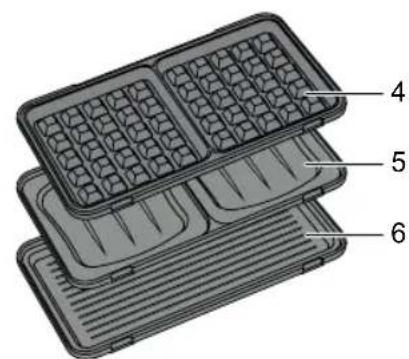

1. Baking plate for waffles (x2)
2. Baking plate for toasted sandwiches (x2)
3. Baking plate for grilling (x2)
4. Power cord and plug

OPERATION - Before first use

1. Remove the packaging.
2. Clean all the baking plates to remove any residues that may be left from the manufacturing process (see "Cleaning and maintenance").
3. Put the plug into the wall socket and allow the grill to heat up for 10 minutes. This will remove any packaging odor from the appliance.

WARNING:

The appliance may emit a little smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop on its own. Make sure the appliance has sufficient ventilation.
- During use the heating element will switch on and off to keep the temperature of the baking plates constant. Consequently, the temperature pilot light will also occasionally be illuminated.
- Keep house birds away from the appliance when it is in use. Fumes released from the non-stick coating are harmful to birds.

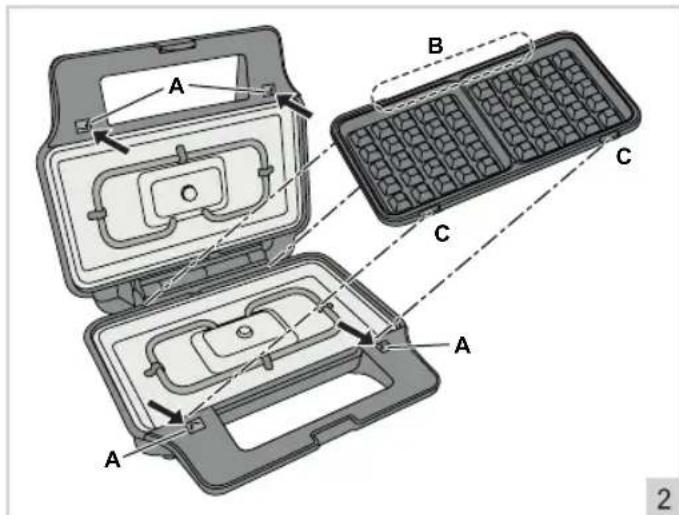

OPERATION - Changing the baking plates

1. Allow the appliance to cool down completely.
2. Open the appliance.
3. Push the black knobs next to the handle to remove the baking plates (see figure 2A).
4. Take a different baking plate.
5. Place the long recess of the baking plate in the opening under the hinge of the appliance (see figure 2B). Carefully push the baking plate down until it clicks into place (see figure 2C).
6. Repeat steps 3 to 5 for the second baking plate.

OPERATION - Toasted sandwiches

1. Place the baking plate for toasted sandwiches in the appliance (see 'Changing the baking plates').
2. Close the appliance.
3. Insert the plug into the socket. The power indicator light (red) and ready-to-use light (green) will illuminate.
4. Allow the appliance to become hot. The appliance is ready for use once the ready-to-use light is off.
5. Open the appliance and place the sandwiches to be toasted on the baking plate.
6. Close the appliance and lock the appliance using the fastening clip.
7. Toast the sandwiches until they are golden brown.
8. Open the appliance, remove the toasted sandwiches from the baking plate. They are hot.
9. Remove the plug from the wall socket once you have finished using the appliance. Bon appetit!

WARNING:

• If you cannot close the appliance and you cannot lock the appliance using the fastening clip, there are too many ingredients on the sandwich. Do not try to close the appliance with force; instead, remove some ingredients.
• Do not use a fork, knife or other sharp object! You can damage the non stick coat with it. Warranty becomes void when damaging the baking plate with sharp objects.
• Remove the food remaining from the under baking plate with a kitchen paper while it is still hot. The upper baking plate is easier to clean when it is cooled down.

OPERATION - Waffles

1. Place the baking plate for waffles in the appliance (see 'Changing the baking plates').
2. Close the appliance.
3. Insert the plug into the socket. The power indicator light (red) and ready-to-use light (green) will illuminate.
4. Allow the appliance to become hot. The appliance is ready for use once the ready-to-use light is off.
5. Open the appliance and grease the baking plates with a little oil or butter (when desired).
6. Pour the batter onto the bottom plate.
7. Close the appliance and lock the appliance using the fastening clip.
8. Bake the waffles.See the instructions on the packaging of the batter for the correct cooking time.
9. Open the appliance, remove the waffles from the baking plate. The waffles are hot.
10. Remove the plug from the wall socket once you have finished using the appliance. Bon appetit!

WARNING:

• Do not use a fork, knife or other sharp object! You can damage the non stick coat with it. Warranty becomes void when damaging the baking plate with sharp objects.
• Remove the food remaining from the under baking plate with a kitchen paper while it is still hot. The upper baking plate is easier to clean when it is cooled down.

OPERATION -Grilling

1. Place the baking plate for grilling in the appliance (see 'Changing the baking plates').
2. Close the appliance.
3. Insert the plug into the socket. The power indicator light (red) and ready-to-use light (green) will illuminate.
4. Allow the appliance to become hot. The appliance is ready for use once the ready-to-use light is off.
5. Open the appliance and grease the baking plates with a little oil or butter (when desired).
6. Place the food on the baking plate.
7. Close the appliance.
8. Grill the food until it is done. You do not have to turn the food over.
9. Open the appliance, remove the food from the baking plate. The food is hot.
10. Remove the plug from the wall socket once you have finished using the appliance. Bon appetit!

WARNING:

• Do not use a fork, knife or other sharp object! You can damage the non stick coat with it. Warranty becomes void when damaging the baking plate with sharp objects.
• Remove the food remaining from the under baking plate with a kitchen paper while it is still hot. The upper baking plate is easier to clean when it is cooled down.

CLEANING AND MAINTENANCE

Clean the appliance after each use.

1. Remove the plug from the wall socket, and allow the appliance to cool down completely.
2. The baking plates can be cleaned with hot water and washing-up liquid; use a soft cloth or a plastic washing-up brush. Dry the baking plates thoroughly. The baking plates are dishwasherproof.
3. Clean the appliance with a damp cloth and then dry it thoroughly.
4. Store the appliance and the baking plates. The appliance can be stored either horizontally or vertically, on its back.

WARNING:

• Verify that the appliance is not connected to the power supply before you clean it.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance. these could damage the non-stick coating on the baking plates.
• Never immerse the appliance, the plug or the power cord in water or other liquid. Never put the appliance in a dishwasher.

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.

5. The warranty is not valid for damage caused by: Accidents

6. Improper use

7. Wear and tear

Neglect

• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
• Unauthorised changes
• Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport
  If the serial number of the appliance is removed or changed

• Items excluded from warranty are:

Cords Lamps

Glass parts
8. The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.
9. Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department:

www.bestron.com/service
