Product type	Electric kettle
Brand	Black & Decker
Model	JKC920C
Capacity	1.7 L (7 cups)
Power	1500 W
Voltage	120 V ~ 60 Hz
Body material	Stainless steel
Swivel base	360°
Automatic shut-off	Yes, at boil and when empty
Power indicator light	Yes
Removable descaling filter	Yes, part no. JKC920C-01
Lid	Hinged with release latch
Water level indicator	Yes, with measurement scale
Cord storage	Under the base
Minimum water quantity	830 ml (3½ cups)
Maximum water quantity	1.66 L (7 cups)
Filter cleaning	Soapy water or dishwasher (utensil compartment)
Interior cleaning	Soapy water, rinse (do not immerse)
Exterior and base cleaning	Damp cloth
Descaling	Vinegar or commercial descaling agent
Warranty	1 year (United States and Canada)
Service number	1-800-231-9786 (USA/Canada)
Replacement parts	Filter (JKC920C-01), Base (JKC920C-02)

Frequently Asked Questions - JKC920C BLACK & DECKER

How to use the Black & Decker JKC920C kettle for the first time?

Before first use, remove packaging and stickers. Wash the inside of the kettle and the removable descaling filter with warm soapy water, then rinse. Fill the kettle with 600 ml of water and 300 ml of vinegar, bring to a boil, empty. Fill with clean water, bring to a boil, empty. Repeat once.

How to properly fill the kettle?

Press the lid release latch to open. Fill with cold tap water between 830 ml and 1.66 L. Ensure the level does not exceed the bottom of the spout to avoid overflow. Do not operate the kettle without water.

How to boil water?

Close the lid firmly until it clicks. Place the kettle on the swivel base, spout facing away from walls. Plug in and press the on/off switch (O/I) to position I (on). The indicator light turns on. Automatic shut-off occurs at boil. For another boil, wait for the kettle to cool down.

What to do if the kettle does not heat or turn on?

Check that the kettle is plugged in and the switch is in the on position. Make sure it is properly placed on the base. If it has been operated empty, unplug it and let it cool completely before refilling.

How to clean and maintain the kettle?

Unplug and let cool. Remove the descaling filter and clean it with soapy water or in the dishwasher (utensil compartment). Clean the interior with soapy water and rinse. Never immerse the kettle or base. Wipe the exterior with a damp cloth.

How to descale the kettle?

If the kettle heats but does not boil water, descaling is necessary. Use a commercial descaling agent or a water-vinegar mixture (600 ml water + 300 ml vinegar). Bring to a boil, let sit, empty, and rinse thoroughly.

What are the minimum and maximum water levels?

The minimum level is 830 ml (3½ cups) and the maximum level is 1.66 L (7 cups). MIN and MAX markings are indicated on the kettle.

Can I use the kettle with an extension cord?

Yes, if necessary, use a three-prong grounded extension cord with a rating at least equal to the appliance. Place it to avoid tripping hazards and out of reach of children.

How to get replacement parts or service?

For parts (filter JKC920C-01, base JKC920C-02) and service, call 1-800-738-0245 (U.S./Canada). For product questions, contact 1-800-231-9786 or visit www.prodprotect.com/applica.

What does the one-year limited warranty cover?

The warranty covers defects in workmanship or materials for one year from the date of purchase. It provides replacement with a similar new or refurbished product. Keep the receipt. The warranty does not cover damage from commercial use, misuse, or neglect.

USER MANUAL JKC920C BLACK & DECKER

Please Read and Save this Use and Care Book

1.7L Electric Stainless Steel Kettle

Exterior view of a modern stainless steel kettle with a black handle (no text or symbols visible)

Register your product online at www.prodprotect.com/applica,

for a chance to WIN \$100,000!

For US residents only

Accessories/Parts (USA/Canada)

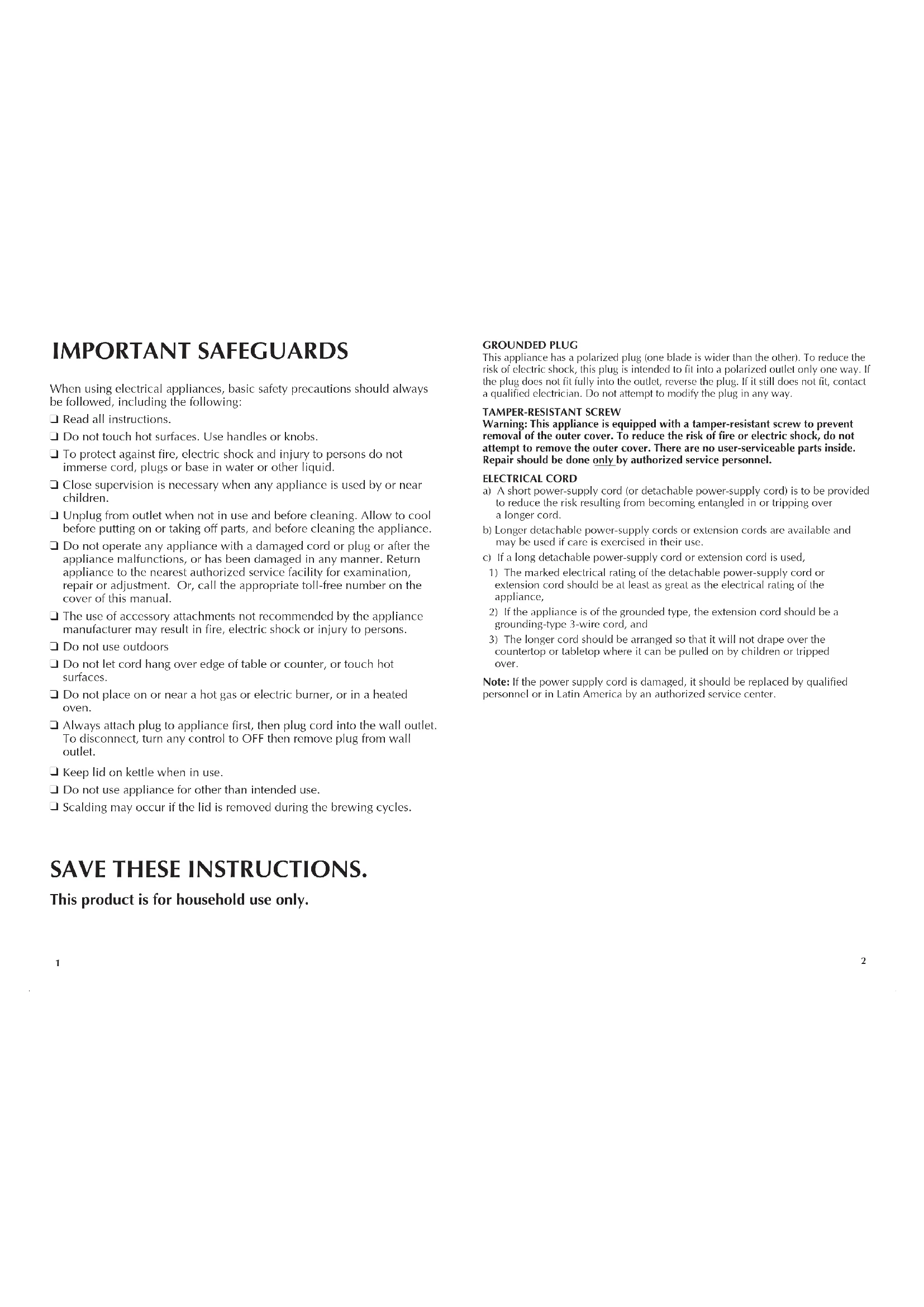

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
☐ Do not touch hot surfaces. Use handles or knobs.
☐ To protect against fire, electric shock and injury to persons do not immerse cord, plugs or base in water or other liquid.
☐ Close supervision is necessary when any appliance is used by or near children.
☐ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
☐ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
☐ The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
Do not use outdoors
☐ Do not let cord hang over edge of table or counter, or touch hot surfaces.
☐ Do not place on or near a hot gas or electric burner, or in a heated oven.
□ Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to OFF then remove plug from wall outlet.
□ Keep lid on kettle when in use.
☐ Do not use appliance for other than intended use.
☐ Scalding may occur if the lid is removed during the brewing cycles.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

GROUNDED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

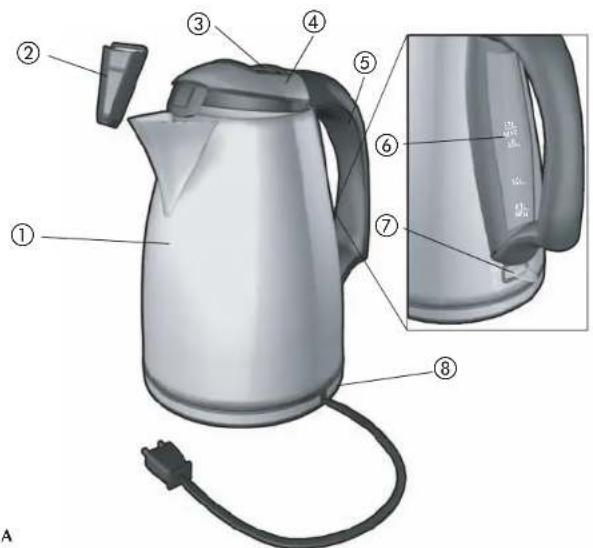

Labeled diagram of a kettle with numbered parts and an inset showing internal components

1. 1.7 L (60-oz.) kettle
   † 2. Removable scale filter (Part JKC920C-01)
2. Lid release latch
3. Stay-open hinged lid
4. Handle
5. Water level window with markings
6. O/I (On/Off) switch with indicator light
7. 1. 36θ swivel base (Part JKC920C-02)
8. Cord storage (under the base)
9. Consumer replaceable/removables parts

3D rendering of a cylindrical device with a plug and cable, labeled with number 9 (no text or symbols on the object itself)

How to Use

This unit is for household use only.

GETTING STARTED

• Remove all packing material and any stickers from the product.
• Before first use, wash the interior of the kettle and the scale filter with hot soapy water and rinse well until water is clear.
• Select a level surface where this unit is to be used allowing enough space for steam to escape without damage to counters, cabi,nets and walls.
• Uncoil power cord from power cord holder at bottom of the power base
• Fill kettle with 2½ cups cold tap water and 1¼ cup vinegar and place on power base. Close cover.
  • Plug cord into standard electrical outlet.
• Bring to a full boil and discard.
• Fill kettle with at least 6 cups of cold tap water. Bring to full boil and discard; repeat. Kettle is now ready for use.

Note: The kettle will only operate when the I/O (On/Off) switch is in the I (On) position. The kettle will automatically switch off once the water has boiled. The kettle will automatically shut off if there is no water in the kettle.

FILLING THE KETTLE

Press latch and lift cover of kettle (C). Fill with desired amount of cold tap water (from 3½ to 7 cups). Be sure water does not come above the bottom of the pour spout to prevent boiling water from spilling onto the counter.

Note:

• Do not operate the kettle without water.
• Do not overfill the kettle - keep water level below the pour spout.

- Do not open the cover while water is heating.

BOILING WATER

1. Press lid release latch to open cover of kettle (D).
2. Be sure kettle has at least 3½ cups of cold tap water in it before use.

3. Close lid on kettle securely. (Cover snaps into place.)

4. Place kettle on the power base so the element on the bottom of the kettle rests securely on the power base (E).

5. Position kettle with spout facing away from walls, cabinets and your body.

Illustration of a silver kettle with a handle and cord, connected to a power plug (no text or symbols)

1. Plug the kettle into a standard electrical outlet. The power light at the base of the kettle under the handle comes on (F).
2. Press the I/O (On/Off) switch button to the I position (there will be a click) and the water begins to heat (G).
3. When water boils the kettle will automatically shut off and the indicator light will go out. Do not try to hold the switch in the 'On' position once the water has boiled.
4. To re-boil water, it is necessary to wait several minutes for water to cool.
5. To reuse the kettle, allow it to cool down. Before pressing the I/O (On/Off) switch check that there is enough water in the kettle. Simply press the I/O (On/Off) switch to the I position or pour off any unused water and refill.

Warning: Kettle filled with boiling water is hot. Use only the stay cool handle to pick it up. When taking kettle to the table, carry kettle with caution to avoid spillage. Set it on a trivet or hot pad to protect the table surface or tablecloth.

1. Hold kettle level when pouring, especially when filled to maximum. Do not pour too fast.

Note: Make sure lid is closed before pouring hot water from the kettle.

1. To remove kettle from power base simply lift up.
2. Empty and unplug the kettle when not in use.

HELPFUL TIPS

• Always use fresh, cold water for each boiling process.
- Do not store water in the kettle. This helps to prevent build up of mineral deposits.
- For your safety, make sure cover of kettle is closed securely before pressing the I/O (ON/OFF) switch.
• Always unplug the kettle before filling.
- Never use less than the minimum amount of water (3 ½ cups). Note the MIN line on the kettle.
- Never use more than the maximum amount of water (7 cups). Note the MAX line on the kettle.
- The power supply is connected only to the power base. This allows for easy movement of the kettle to the table. (Remember to use a trivet or hot pad under the hot kettle.)
- Do not try to hold the switch 'On' (I) when water has boiled.
- Use your kettle to boil water for beverages, soups, cereal, noodles, rice and pasta.

TROUBLESHOOTING

PROBLEM POSS	BLE CAUSE SOLUTION
Kettle is not heating. Kettle	is not plugged in.Kettle is not properly placed on power base.	Check to be sure appliance is plugged into a working outlet, the I/O (On/Off) button has been engaged and the kettle is securely placed on the power base.
Kettle has boiled dry Kettle	was accidentally turned on without water.	Unplug kettle and allow to fully cool down before refilling.
Kettle heats but does not boil or works intermittently.	Appliance may need descaling	Follow directions for descaling the kettle.
The ‘On’ (I) button will not stay on.	The kettle is too hot. Allow	the kettle to cool down at least 5 to 10 minutes. Make sure there is enough water in the kettle.

BUILT-IN SCALE PROTECTION

Lime scale forms over time when water is heated. Though harmless, it may be bothersome. The concealed heating element in the kettle is designed to help reduce scale buildup. The kettle has a scale filter at the bottom of the pour spout to prevent particles from pouring into your beverage.

Care and Cleaning

This appliance contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING

• Before cleaning, be sure the base is unplugged and the kettle has cooled completely. Empty any remaining water from the kettle.
• Pull out the scale filter for cleaning. Wash the filter in hot soapy water and rinse or place it in the utensil holder of the dishwasher.
• Wash the inside of the kettle with soapy water and rinse. NEVER IMMERSE THE KETTLE IN WATER OR OTHER LIQUIDS or place in a dishwasher.
• Wipe the exterior of the kettle and base with a damp cloth or sponge and dry. The concealed heating element at the bottom of the interior may discolor. This will not affect performance. Do not use abrasive soaps, cleansers, or scouring pads.
• Over time, the kettle may heat up but will not boil, depending on your use and the hardness of the water in your area. When this happens, it is time for descaling. Use a scale/lime remover and follow its manufacturer's directions.

CORD STORAGE

Conveniently store the cord beneath the base by wrapping it around the grooves on the base (H).

Labeled diagram of a water heater with numbered parts and an inset showing its internal structure.

A

3D diagram of a device with a plug and cable, labeled with number 9 (no text or symbols on the object itself)

Como usar

Illustration of a kettle being placed on a base with a cord, showing liquid level and a hand holding the lid (no text or symbols)

Labeled diagram of an electric kettle with numbered parts and a magnified inset showing internal measurement scale.

3D rendering of a cylindrical device with labeled component (no text or symbols visible)

Utilisation

Illustration of a kettle with a cord and plug, no text or symbols present

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center.

You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• One year after the date of original purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
- Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

¿NECESITA AYUDA?

BLACK&DECKER. is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Marca registrada de The Black & Decker Corporation, Towson, Maryland, E.U.

Applica Consumer Products, Inc.

R12008/3-12-35E/S/F

Printed on recycled paper.

Copyright © 2008 Applica Consumer Products, Inc.

Made in People's Republic of China
