Features	Details
Device type	Microwave oven
Capacity	34 liters
Microwave power	900 W
Grill power	1000 W
Cooking modes	Microwave, grill, combined
Dimensions (W x D x H)	54 x 40 x 32 cm
Control panel	Electronic with LED display
Defrost function	Yes
Included accessories	Grill rack, turntable
Child safety	Yes
Energy consumption	Energy class A
Weight	15 kg
Warranty	2 years

Frequently Asked Questions - CEMO34CS CONTINENTAL EDISON

How do I set the cooking time on the CONTINENTAL EDISON CEMO34CS microwave?

To set the cooking time, turn the time selection knob clockwise until you reach the desired duration.

Why is my microwave not heating?

Make sure the door is properly closed, the device is plugged in, and you have selected the appropriate cooking power.

How do I clean the inside of the microwave?

Use a damp cloth with a little mild soap. Avoid abrasive products that could scratch the interior.

Can I use plastic containers in the microwave?

Yes, but make sure they are specifically labeled as microwave-safe to avoid melting or releasing harmful substances.

What types of food should not be cooked in the microwave?

Avoid cooking eggs in their shell, unopened canned foods, and foods with thick skin without piercing them.

How do I unlock the child safety lock on the microwave?

Press the 'Stop' and 'Start' buttons simultaneously for a few seconds until the child safety symbol turns off.

What is the capacity of the CONTINENTAL EDISON CEMO34CS microwave?

The capacity of this model is 34 liters, allowing you to cook large quantities of food.

How do I use the defrost function?

Select the defrost mode, enter the weight of the food, and press 'Start'. The microwave will automatically adjust the time.

The microwave is making a strange noise, what should I do?

Check if any objects are stuck in the turntable. If the noise persists, it is recommended to contact after-sales service.

How do I adjust the microwave power?

Use the power selection button to choose between different power levels, such as 100%, 80%, 50%, etc.

USER MANUAL CEMO34CS CONTINENTAL EDISON

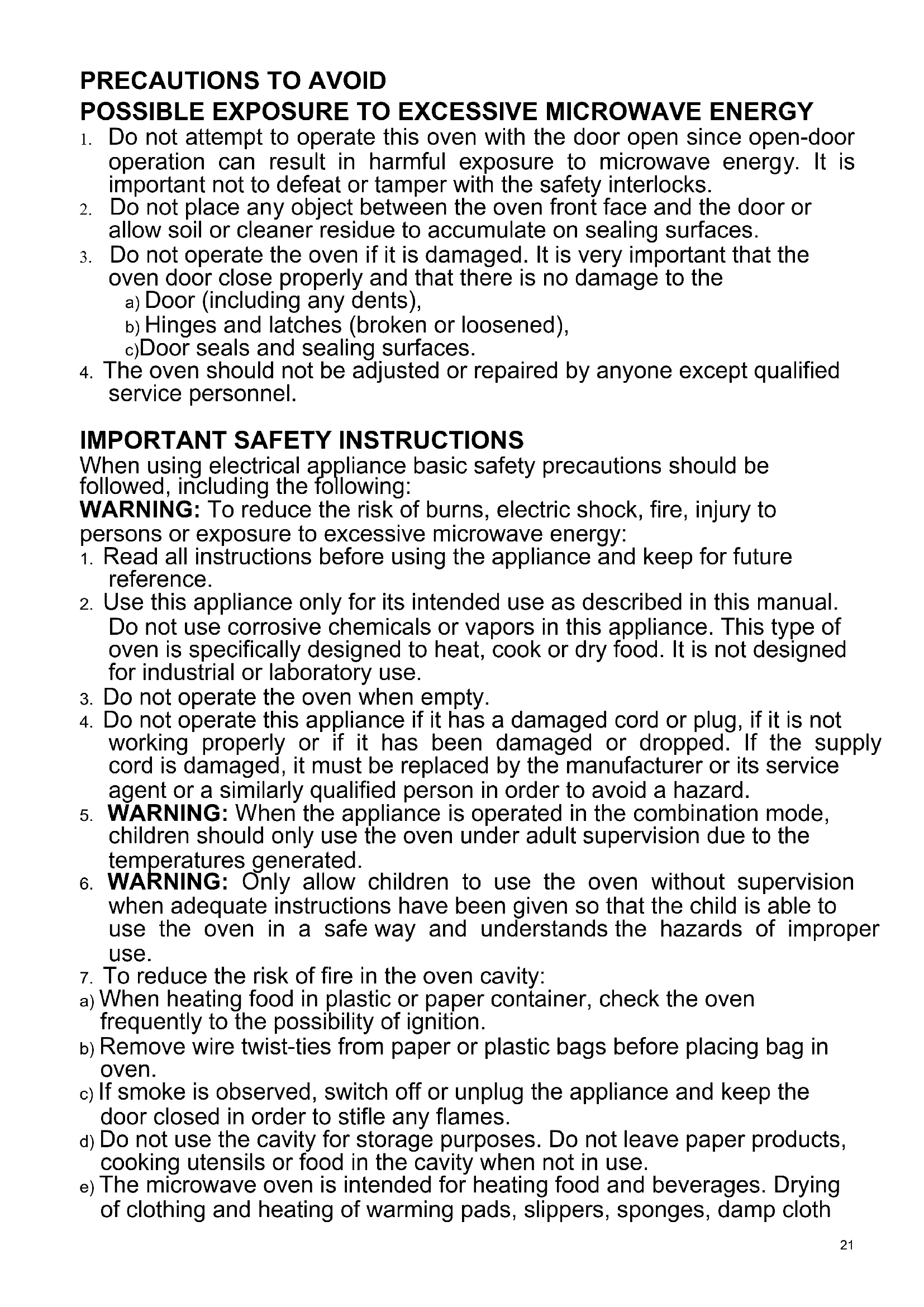

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the

a) Door (including any dents),
b) Hinges and latches (broken or loosened),
c) Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance and keep for future reference.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
7. To reduce the risk of fire in the oven cavity:
   a) When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
   b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
   c) If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
   d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
   e) The microwave oven is intended for heating food and beverages. Drying of clothing and heating of warming pads, slippers, sponges, damp cloth

and similar may lead to risk of injury, ignition or fire.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
   This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
11. Children should be supervised to ensure that they do not play with the appliance.
12. The microwave oven is only used in freestanding.
13. WARNING: Do not install oven over a range cook top or other heat-producing appliance. If
    installed could be damaged and the warranty would be avoid.
14. The microwave oven shall not be placed in a cabinet.
15. The door or the outer surface may get hot when the appliance is operating.
16. WARNING: Accessible parts may become hot during use. Young children should be kept
    away.
17. When in use, the unit becomes hot. Do not touch the heating elements inside the oven.
18. The temperature of accessible surfaces may be high when the

appliance is operating.

1. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
2. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person
3. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
4. The microwave oven is for household use only and not for commercial use.
5. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
6. Please secure the turntable before you move the appliance to avoid damages.
7. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
8. The microwave oven is intended for defrosting, cooking and steaming of food only.
9. Use gloves if you remove any heated food.
10. Caution: Steam will escape, when opening lids or wrapping foil.
11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children under 8 years old.
12. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
13. This device is intended for use in domestic and similar applications such as:
14. Kitchen corners reserved for store staff, offices and other professional environments;
15. The farms;
16. The use by customers of hotels, hotels and other residential environments;
17. Bed and Breakfast environments.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.

2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow minimum 20cm of free space necessary above the top surface of the oven and 5cm at both sides. The microwave oven rear plate must be placed close to the wall. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

CLEANING AND CARE

1. Turn off the oven and unplug the power cord from the wall when cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners. They may stain, streak or dull the door surface.
3. The outside of the oven should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. A steam cleaner is not be used.
6. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
7. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
8. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
9. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild, soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper position.
10. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
11. If the light bulb burns out, please contact customer service to have it replaced.
12. The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to

deterioration of surface that could adversely affect the life of the unit and could possibly result in a hazardous situation.

1. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

2. When the microwave ovens have grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

SPECIFICATIONS

Reference CEMO34CS
Model D10034ESPR-G4
Power Consumption	230-240V~50Hz, 1500W(microwave); 1250W(grill); 2050(convection)
Frequency of operation 2 450 MHz
Dimensions of the product	300mm(H) x 539mm (W) x 462mm (D)
Dimensions of the oven cavity	240mm(H) x 376mm (W) x 404mm (D)
Oven volume 34 liters
Turntable diameter 32,5 cm
Net weight Approx. 19,6 kg

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

NOTE:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown= LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven. IF NONE OFTHEABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

COOKING TECHNIQUES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
3. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
4. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

COOKING UTENSILS GUIDE

1. Only use utensils that are suitable for use in microwave ovens. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware	Microwave	Grill	Convection	Combination*
Heat-Resistant Glass	Yes	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No	No
Kitchen Paper	Yes	No	No	No
Metal Tray	No	Yes	Yes	No
Metal Rack	No	Yes	Yes	No
Aluminum Foil & Foil Containers	No	Yes	Yes	No

• Combination: applicable for both «microwave + grill», and «microwave + convection» cooking.

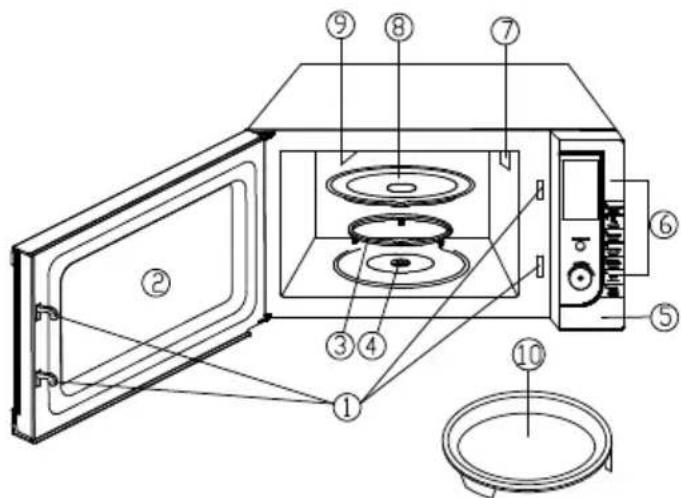

PRODUCT DIAGRAM

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Door Release Button
6. Control Panel
7. Wave Guide (Please do not remove the mica plate covering the wave guide)
8. Glass Tray
9. Grill Heater
10. Baking plate

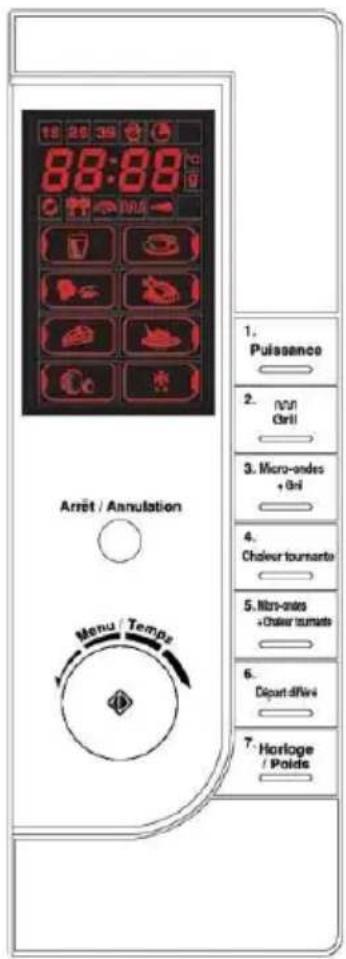

CONTROL PANEL

STOP/CANCEL

Use to pause a cooking or cancel all settings or set child lock.

• MENU/TIME

Use to set time or select auto cook menus.

• QUICK START/ START~

Use to start the oven or set quick start program.

POWER LEVEL

Cooking time, power, indicators and clock

time are displayed.

Use to select power level.

GRILL

Use to set grill cooking.

MICRO+GRILL

Use to set microwave and grill combination cooking

CONVECTION

Use to set convection cooking.

MICRO+CONVECTION

Use to set microwave and convection

combination cooking.

TIMER

Use to set timer function.

CLOCK/WEIGHT

Use to set the current time or select the weight or amount of food.

OPERATION INSTRUCTIONS

• Please place the glass tray in your microwave oven to heat your food.

• When the oven first plugged in, beep will sound and the display will show "1 :01" and "

• During cooking, if press STOP/CANCEL pad once or open the door, the program will be paused, then press START/QUICK START pad to resume, but if press STOP/CANCEL pad twice, the program will be canceled.

After ending cooking, the system will sound beeps to remind user every two minutes until user press any pad or open the door.

A - Setting Clock

This is a 24 or 12 hour clock, you can select it by pressing CLOCK/WEIGHT pad.

1. Touch CLOCK/WEIGHT pad once or twice to choose 12 or 24 hour clock.
2. Turn MENU/TIME knob to set the hour digit.
3. Touch CLOCK/WEIGHT pad to confirm.
4. Turn MENU/TIME knob to set the minute digit.
5. Touch CLOCK/WEIGHT pad again to confirm.

NOTE: During cooking, the current time can be seen by touching CLOCK/WEIGHT pad.

B - Microwave Cooking

Microwave cooking allows you to customize cooking power and time. First, select a power level by pressing the POWER LEVEL button (see the table below). Then turn the MENU/TIME dial to enter cooking time. Maximum cooking time is 95 minutes. The oven will start cooking after you press START/QUICK START pad. Suppose you want to cook for 5 minute at 60% power level.

1. Open the oven door and place the food, close it.
2. Presses POWER LEVEL button a number of times till the screen show the intended power.
3. Turn MENU/TIME knob to enter cooking time.
4. Press START/QUICK START button to start.

NOTE: You can check the power while cooking is in progress by pressing the POWER LEVEL button.

Press POWER LEVEL button	Power Level(Display)
Once	100%(P100)
Twice 80%(P-80)
Thrice 60%(P-60)
4 times	40%(P-40)
5 times 20%(P-20)
6 times	0%(P-OO)

C - Quick Start

In standby mode, press START/QUICK START pad continually to enter cooking time, the longest time is 10 minutes, and the oven will start automatically at 100% high power level. During cooking, you can add the cooking time by pressing START/QUICK START pad.

D - Speed Defrost

1. Turn MENU/TIME knob anti-clockwise until the display shows 008.
2. Touch CLOCK/WEIGHT pad once.
3. Turn MENU/TIME knob to enter defrosting time. The longest time is 95 minutes.
4. Touch START/QUICK START pad.

NOTE: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START/QUICK START pad to resume.

E - Grill Cooking

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. The longest cooking time is 95 minutes.

1. Touch GRILL pad.
2. Turn MENU/TIME knob to enter cooking time.
3. Touch START/QUICK START pad.

F - Microwave+ Grill Cooking

Grill works more time than microwave in combination 1 cooking mode, use for fish and au gratin. But microwave works more time than grill in combination 2 cooking mode, use for pudding, omelets, baked potatoes and poultry.

1. Touch MICRO+GRILL pad once or twice to select the combination mode.

2. Turn MENU/TIME knob to enter cooking time. The longest time is 95 minutes.

3. Touch START/QUICK START pad.
   NOTE: During cooking you can check the current cooking power level by touching MICRO+GRILL pad.

G - Convection Cooking

During convection cooking, hot air is circulated throughout the oven cavity to make crisp foods quickly and evenly. This oven has ten different cooking temperatures from 110^ to 200^ . The longest cooking time is 95 minutes. During cooking, the current temperature can be seen by touching CONVECTION pad.

To Cook with Convection:

1. Touch CONVECTION pad to select desired temperature.
2. Turn MENU/TIME knob to enter cooking time.
3. Touch START/QUICK START pad.

To Preheat and Cook with Convection:

Your oven can be programmed to combine preheating and convection cooking operations.

1. Touch CONVECTION button to select desired temperature.
2. Touch START/QUICK START pad. When the oven reaches the programmed temperature, beeps will sound.
3. Open the door and place container of food at the center of the turntable.
4. Turn MENU/TIME knob to enter cooking time.
5. Touch START/QUICK START pad.

NOTE: The preheat time cannot be set. When the temperature reaches the preheat temperature, the countdown stop with sound every 5 seconds for 30 minutes. If you don't open the oven door within the 30 minutes, the system will stop automatically

H - Microwave + Convection Cooking

This oven has four different combination cooking temperatures from 110^ to 200^ . It's easy to cook with both convection heat and microwave automatically. The longest cooking time is 95 minutes. During cooking, the current combination temperature can be seen by touching MICRO+CONVECTION pad.

1. Touch MICRO+ CONVECTION pad to select desired combination temperature.
2. Turn MENU/TIME knob to enter cooking time.
3. Touch START/QUICK START pad.

Timer Function

1. In standby state or during cooking, touch TIMER pad.
2. Turn MENU/TIME knob to enter desired time. The longest time is 95 minutes.
3. Touch START/QUICK START pad.

NOTE: You can check the countdown time by pressing TIMER pad, if press STOP/CANCEL pad when the display shows the time, the function is cancelled.

J - Multistage Cooking

First stage	Speed Defrost / Microwave cooking / Grill cooking / Microwave + Grill cooking / Convection cooking (without preheating)/ Microwave+ Convection cooking
Second stage	Microwave cooking / Grill cooking / Microwave + Grill cooking / Convection cooking (without preheating)/ Microwave+ Convection cooking
Third stage	Microwave cooking / Grill cooking / Microwave + Grill cooking / Convection cooking (without preheating)/ Microwave+ Convection cooking

1. Set the first stage cooking program. NOT TOUCH START/QUICK START.
2. Set the second stage cooking program. NOT TOUCH START/QUICK START.
3. Set the third stage cooking program.
4. Touch START/QUICK START pad.

NOTE: If you need two stages cooking program, only omit the third step.

K - Setting Child Lock

The lock prevents unsupervised operation by children.

• To set the child lock: In standby mode, press and hold STOP/CANCEL pad for 3 seconds, then a beep will sound. In the lock state, the oven can't be operated.
• To cancel the child lock: Press and hold STOP/CANCEL pad for 3 seconds, then a beep will sound, and the oven can be operated.

L - Automatic Protection Mechanism

Cooling Feature: The controlling system of the microwave oven has the feature of cooling. As for any cooking mode which cooking time above 2 minutes, after finishing cooking, the oven fan will work about 3 minutes automatically to cool the oven for prolonging the life of the oven.

High Temperature Protection: While entering into super high temperature protection status, the system sounds beeps and the display shows "E01" until user press STOP/CANCEL pad to return normal condition. Please open the door to cool the oven cavity or call for consumer service to check.

Low Temperature Protection: While entering into super low temperature protection status, the system sounds beeps and the display shows "E02" until user press STOP/CANCEL pad to return normal condition. Please call for consumer service to check.

Sensor Malfunction Protection: When the sensor is short circuited, the system enters into protection mode and sound beeps, the display shows "E03" until user press STOP/CANCEL pad to return normal condition. Please call for consumer service to check and replace the faulty sensor.

M -Auto Cook

For food or the following cooking mode, it is not necessary to program the time and the cooking power. It is sufficient to indicate the type of food that you want to cook as well as the weight of this food.

1. Turn MENU/TIME knob anti-clockwise once and then turn it again to select the code of food.
2. Touch CLOCK/WEIGHT pad to select the weight or amount of food.
3. Touch START/QUICK START pad.

Auto cook menus:

Code	Menu NOTE
001	Popcorn (g)	For menu 004, use microwave + convection cooking, for menu 005, use convection cooking, the others use microwave cooking, please choose suitable cookware. For menu 004, during cooking, the system will pause and sound beeps to remind you to turn food over for uniform cooking, and then close the door and press START/QUICK START pad to resume. The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
002	Coffee (200ml/cup)
003	Fresh Vegetable (g)
004	Grilled Chicken (g)
005	Cake (g)
006	Reheat (g)
007	Potato (230g/unit)

Environmentally friendly waste

Electrical and electronic equipment is subject to selective collection. Do not dispose of waste electrical and electronic equipment with unsorted municipal refuse, but proceed to Their selective collection.

IMPORTER

A.M.C.
