ADH2081 - Watch ADIDAS - Free user manual and instructions

Technical Features	ADIDAS ADH2081 watch, analog display, stainless steel case, silicone strap, water resistance up to 50 meters.
Usage	Ideal for sports and daily use, easy to read thanks to its clear dial.
Maintenance and Repair	Regularly clean with a soft cloth, avoid chemical products. For repairs, contact an authorized service center.
Safety	Do not expose to extreme temperatures, avoid strong shocks to preserve the mechanism.
General Information	2-year warranty, available in several colors, suitable for wrists of different sizes thanks to its adjustable strap.

Frequently Asked Questions - ADH2081 ADIDAS

How do I set the time on the ADIDAS ADH2081 watch?

To set the time, pull the watch crown out to the first or second position, then turn it clockwise or counterclockwise to adjust the hours and minutes.

How do I change the battery of the ADIDAS ADH2081 watch?

To change the battery, it is recommended to consult a professional watchmaker. Opening the case may damage the watch or void the warranty.

Is the ADIDAS ADH2081 watch waterproof?

Yes, the ADIDAS ADH2081 watch is water resistant up to 50 meters, making it suitable for activities like swimming but not for deep diving.

How do I clean my ADIDAS ADH2081 watch?

Use a slightly damp soft cloth to clean the case and strap. Avoid harsh chemical products that could damage the materials.

What should I do if my ADIDAS ADH2081 watch is not working?

First check if the battery is dead. If the watch still does not work after replacing the battery, contact ADIDAS customer service for repairs.

Can I wear my ADIDAS ADH2081 watch during training?

Yes, the ADIDAS ADH2081 watch is designed for daily use and can be worn during your training sessions. Just make sure to dry it after intense exercise.

How do I adjust the strap of my ADIDAS ADH2081 watch?

To adjust the strap, use an adjustment tool to remove or add links, or consult a professional if you are not comfortable doing it yourself.

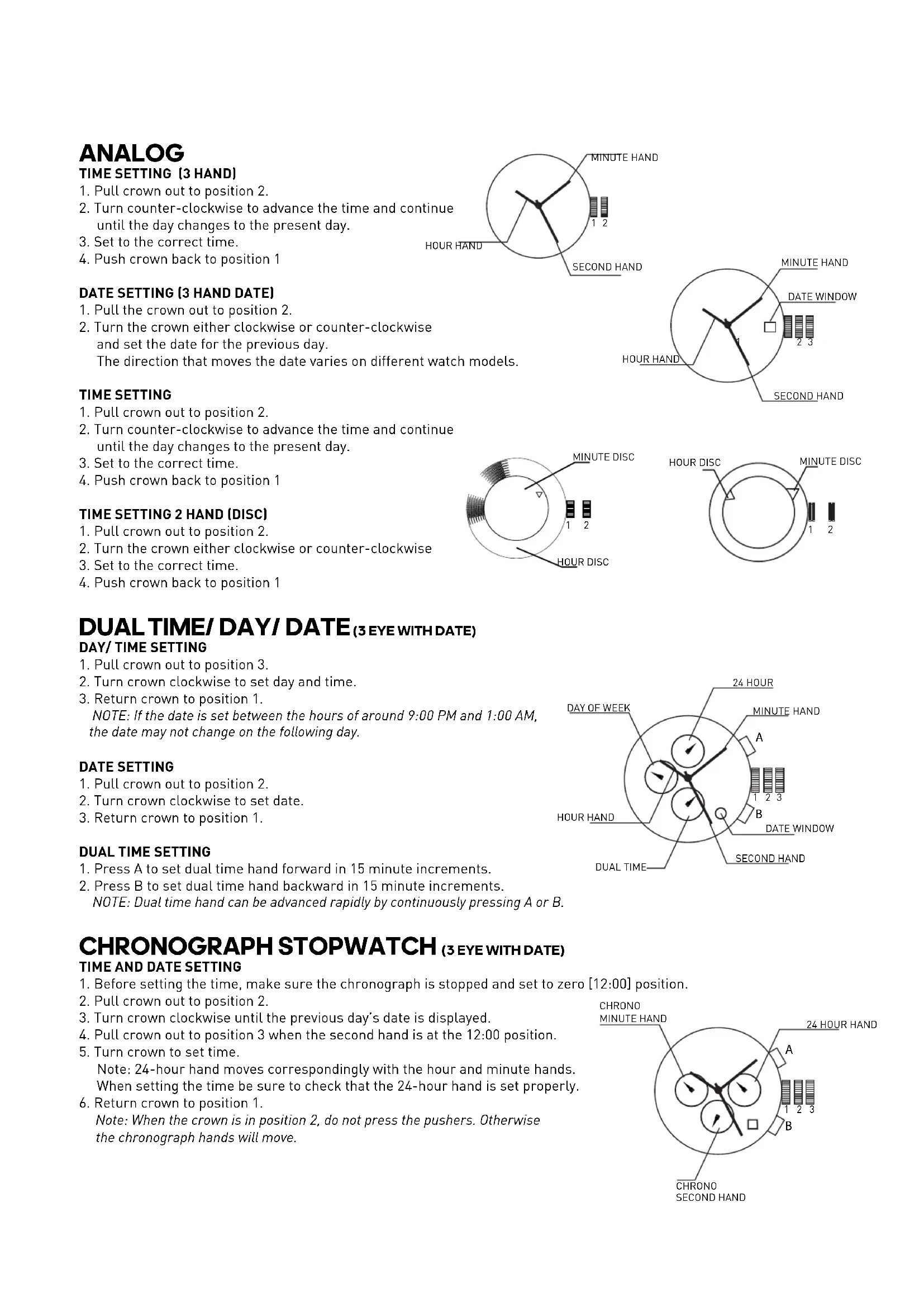

USER MANUAL ADH2081 ADIDAS

1. Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

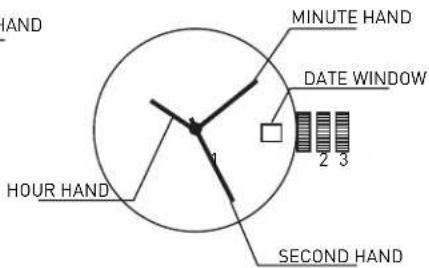

DATE SETTING (3 HAND DATE)

1. Pull the crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day. The direction that moves the date varies on different watch models.

TIME SETTING

1.Pull crown out to position 2.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.
4. Push crown back to position 1

TIME SETTING 2 HAND (DISC)

1.Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise
3. Set to the correct time.
4. Push crown back to position 1

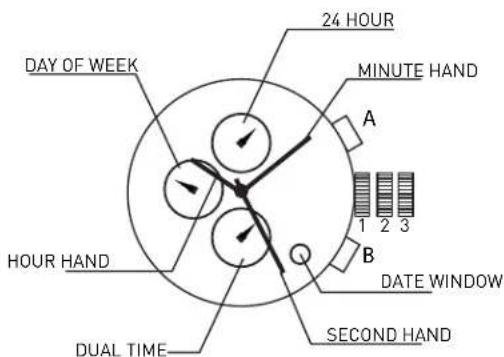

DUAL TIME/ DAY/ DATE (3 EYE WITH DATE)

DAY/TIME SETTING

1. Pull crown out to position 3.
2. Turn crown clockwise to set day and time.
3. Return crown to position 1. NOTE: If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may not change on the following day.

DATE SETTING

1. Pull crown out to position 2.
2. Turn crown clockwise to set date.
3. Return crown to position 1.

DUAL TIME SETTING

1. Press A to set dual time hand forward in 15 minute increments.
2. Press B to set dual time hand backward in 15 minute increments.

NOTE: Dual time hand can be advanced rapidly by continuously pressing A or B.

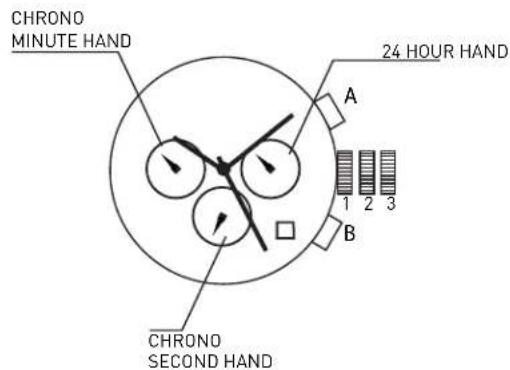

CHRONOGRAPH STOPWATCH (3 EYE WITH DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.
4. Turn crown to set time.

Note: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.

1. Return crown to position 1.

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press A to start/slop the chronograph.
2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero [12:00] position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

CHRONOGRAPH 2 EYE WITH DATE (WITH OR WITHOUT DATE)

TIME AND DATE SETTING

1. Before setting the time, make sure the chronograph is stopped
   and set to zero [12:00] position.
   2.Pull crown out to position 2.
2. Turn crown clockwise until the previous day's date is displayed.
3. Pull crown out to position 3 when the second hand is at the 12:00 position.

Turn crown to set time.
Note: 24-hour hand moves correspondingly with the hour and minute hands.
When setting the time be sure to check that the 24-hour band is set properly.

1. Return crown In position 1

Note: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

CHRONOGRAPH

1. Press B to start/slop the chronograph.
2. Press A for Split time, Press A again to restart
3. Press A to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1

CALAGARY (QFL769BB/QFL873AC)

NORMAL TIME DISPLAY

1. Press A for EL
2. Press C to select T1 or T2 format.
3. Press D to toggle chime on/off

TIME/CALENDAR SETTING

1. In time mode, press and hold D for 2 seconds to enter time setting; hour will begin flashing.
2. Press C to increase selling value. Press D to decrease selling value.
3. Press B to enter next setting field
4. Setting sequence is hour, minute, second, year month, date,12/24 hr
5. Press A to exit setting mode.

CHRONOGRAPH MODE

1. Press B to enter chrono mode.
2. Press D to select split or lap mode. Split mode will display the full time of all records after
   each split. Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again to split time.
5. Repeat step 4 until desired number of laps have been reached (maximum 10).
6. Press D to stop chrono.
7. To review, press B to enter recall mode before resetting.
8. Press D again to reset chrono

RECALL MODE

1. Press C to recall each lap [10 maximum].
2. Press D to return to chronog.

ALARM MODE

1. Press B to enter alarm mode.
2. Press C to toggle alarm on/off
3. Press D to select T1 Alarm 1 or T2 Alarm 2.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set minutes.
4. Press A to exit setting mode
   NOTE: Alarm turns on automatically when exiting setting mode.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing.
3. Press C to increase setting value. Press D to decrease setting value.
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second
6. Press A to exit setting

PEACHTREE (FL145GB)

NORMAL TIME DISPLAY

1. Press A for EL in any mode
2. Press C to toggle between Time 1 and Time 2
3. Press and hold C to set Time 1 or Time 2 as the default timer.
4. Press D to toggle chime on/off.

TIME/CALENDAR SETTING

1. In normal time display, press and hold A to enter setting mode; chime will begin flashing.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to set and advance to next setting value.
4. Setting sequence is chime, 12/24-hour time, hour, minute, second, year, month, date, Auto EL
5. Press A to save data and exit setting mode.

CHRONOGRAPH MODE

1. Press B to change to chronograph mode.
2. Press C to start chronograph: press D for lap when the chronograph is running.
3. Press D to change views while chronograph is running
4. Press C to stop chronograph.
   NOTE: When running, there is a maximum of 10 taps, afterward last tap will be overwritten each time
   additionol tap is recorded.

RECALL MODE

1. Press A to recall the memory when the chronograph is stopped.
2. Press A to view the next lap.
3. Press C or D to exit Recall Mode and go back to chronograph mode.

TIMER MODE

1. Press B to change to timer mode.
2. Press C to start timer.
3. Press C to stop timer. Press D to reset the timer when it is stopped.

TIMER SETTING

1. In timer mode, press and hold A to enter setting mode; timer type will begin flashing.
2. Press C and D to select count down stop, count down repeat, or count up timer.
3. Press B to advance to next setting field.
4. Press C to decrease and D to increase.
5. Press B to set and advance to next setting value.
6. Setting sequence is timer type, hour, minute, second.
7. Press A to save data and exit setting mode

NOTE: Alarm will sound at 2 beeps per second, and will beep for 30 seconds after timer reaches zero.

ALARM MODE

1. Press B to change to alarm mode.
2. Presse C to loop between alarms 1, 2, 3, 4
3. Press D to enable the alarm; press D again to disable the alarm.
4. Press B to exit alarm mode.

ALARM SETTING

1. In alarm mode, press and hold A to enter setting mode, hour will begin flashing.
2. Press C to increase; press D to decrease.
3. Press B to set and advance to next setting value
4. Setting sequence is hour, minute.
5. Press A to exit setting mode.

DENVER/CANDY/SYDNEY (UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16)

NORMAL TIME DISPLAY

1. Press A for E.

2. Press C to select T1 or T2 format.

TIME/CALENDAR SETTING

1. In time mode, areas and holds 0 for 2 seconds to enter time
   setting; hour will begin flashing.
2. Press C to increase setting value
3. Press B to enter next setting field
4. Setting sequence is hour, minute, day, year, month, date.
5. Press D to exit setting mode.

ALARM MODE

1. Press B to enter alarm mode.
2. Press C to toggle alarm/chime on/off
3. Press D to select Home Alarm or T2 Alarm.

ALARM SETTING

1. Press and hold D for 2 seconds to enter alarm setting; hour will begin flashing.
2. Press C to increase setting value.
3. Press B to set minutes.

Press D to exit setting mode.

NOTE: Alarm turns on automatically when exiting setting mode.

CHRONOGRAPH MODE

1. Press Big eni r chnp mode
2. Press D to select split or lap mode. Split mode will display the full time of all records after each split.
   Lap mode will display only the new lap time after each record has been recorded.
3. Press C to start chrono.
4. Press C again in split limnc
5. Repeat step 4 until desired number of laps have been reached (maximum 10).
6. Press D to stop chrono.
   7.To review,press B to enler recall mods before rsslling.
7. Press D again to reset chrono.

RECALL MODE

1. Press C to rseall each lap [10 maximum]
2. Press D to return to chrono.

TIMER MODE

1. Press C to start countdown timer.
2. Press D to stop countdown timer. Press D again to reset timer.

TIMER SETTING

1. Press B to enter timer mode.
2. Press and hold D to enter setting mode; hour will begin flashing
3. Press C to increase setting value.
4. Press B to enter next setting field.
5. Setting sequence is hour, minute, second
6. Press D to exit setting mode

Seoul / Curitiba [9FL657]

NORMAL TIME DISPLAY

1. Press A to change mode. Mode sequence is normal time,
   shrnooggh, hmsr, alarm.
2. Press B for E.L.
3. Press C to Flash time zone 2. Press and hold C 2 seconds
   To logals normal time displaytime zone 2.
4. Press D to toggle key tone and/off.

NOTE: At any point in any setting mode, press B to exit setting mode.

NOTE: In any setting mode, if no pusher is operated for 30 seconds,
all changes will be saved and the setting will automatically return
to normal time

TIME/CALENDAR SETTING

1. In normal time display, press and hold B 2 seconds; auto EL
   spall will begin fashng.
2. Press C toggle auto EL on/off.
3. Press to set and advance to next setting value.
4. Press C to increase dipol: press D in decrease dipol. Erss and hold C or D for (as) increment/decrement.
5. Repeat steps 3 and 4 through setting sequence. Setting sequence is: auto EL, chime on/off
   12/24 hour formal, hour, minutes, second year, month/dale or date/ month formal, month and date.
6. Press B to exit setting mode.
   NOTE: Weekday is automatically updated upon opening setting mode.

TIME ZONE 2 SETTING

1. To set Time Zone 2, press and hold C 2 seconds to change to Time Zone 2.
2. Press and hold B 2 seconds; time difference between time zone 1 and time zone 2 will begin flashing.
3. Press C to increase value; press D to decrease value. Press and hold C or D for
   fast increment/decrement.
4. Press B to exit setting mode.

CHRONOGRAPH MODE

1. Press A to change to chronograph mode.
2. Press B to recall lap data. Press B to scroll through laps.
3. Press C to start/slop the chronograph.
4. Press and hold D 2 seconds to reset to zero.
   NOTE: Insert chronograph indicolor here will flash in all modes if the chronograph is running.

LAP COUNTING

1. Press D while the chronograph is running for lap counting [up to 10 laps].
   NOTE: After 8 seconds, display will show total chronograph time in the lower portion of the display; next lap running time will show in upper portion of the display.
2. Press C to stop chronograph
3. Press B when the chronograph is stopped to recall chronograph lap data.
4. Press C or D to exit recall mode and return to chronograph.

TIMER MODE

1. Press A to change to timer mode.
2. Press C to start/stop timer.
3. Press D to reset the timer.

NOTE: Alarm will sound for 30 seconds when countdown reaches zero. Press any pusher to silence alarm.

TIMER SETTING

1. In timer mode, press and hold B 2 seconds to enter setting mode; timer type will begin flashing.
   Press C to select countdown-stop ("CD-STP"), countdown-repeat ("CD-REP"), or countdown-then up timer ("CD-UP").
2. Press A to set and advance to next setting value.
3. Press C to increase digit, press D to decrease digit. Press and hold C or D for fast increment/decrement.
4. Repeat steps 3 and 4 through selling sequence. Setting sequence is: timer type, hour, minute, seconds.
5. Press B to exit setting mode.

ALARM MODE

1. Press A to change to alarm mode.
2. Press C to select alarm 1-4.
3. Press D to toggle alarm on/off.

ALARM SETTING

1. In alarm mode, press and hold B 2 seconds; hour will begin flashing.
2. Press C to increase digit; press D to decrease digit. Press and hold C or D for fast increment/decrement.
3. Press A to set and advance minute.
4. Repeat step 2.
5. Press B to exit setting mode.

NOTE: Alarm will sound for 30 seconds. Press any pusher to silence alarm.

ANALOG

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

AFFICHAGE NORMAL DE L'HEURE

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

VISUALIZACION NORMAL DE LA HORA

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

SCHERMO CON L'ORA STANDARD

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

VISUALIZACAO NORMAL DA HORA

[UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16]

OTOBPAXEHNE ObbyHOro BPEMEHN

1. Haxmte KhoNky A JIAEL.
2. HaxmTe KhoNky C nIy Bb6opa foMpTa T1 nnT2.

YCTAHOBKA BPEMEHN

1. HaxoJcB bpeKmE BpeMeHn, HaxMnte n ydepKnBaTe KhoNky D B TeueHne 2 cekyH, UTObI BoHTn B peKm ycTaHOBKn; uO3HaauOpune Yacbl, HaHyT MrraTb.
2. HaxmTe KhoNky C, yTo6bIyBEnuHTb 3HaueHne ycTaHOBKn.
3. Haxmte KhoNky B, yTo6bI nepeuTn K cJeDyUoEmy npaMeTpY ycTaHOBKn.
4. NocJeIOBATEbHOCTb yCTaHOBKN - Yac, MHyTa, DeHb, RoD, MeCra, DaTa.
5. Haxmte KhoNky D IaI BbIXOa n3 peXnMa yCTaHOBKn.

PEXKIM BUDINJIbHnKA

1. HaxmTe KhoNky B Dny BxOda B pexM 6yDnIbHnKa.
2. HaxmTe KhoNky C nIe BkIoueHnry/BbIKIOueHnry 6yDnIbHnKa/3ByKOBOrO cnHaAna.
3. HaxmTe KhoNky D nIy Bbl6pa domaaHero 6yDnJIbHnKa nn 6yDnJIbHnKa T2.

YCTAHOBKA BydNJIbHnKA

1. Haxmte u ydepunBaTe KhoNky D TeueHne 2 cekyH, YTo6bl BoTn B pexm ycTaHOBKn 6yDnIbHnka; Cnpbl, o03HaayIoune Yacbl, HauHyT MmraTb.
2. Haxmnte KhoNky C, yTo6bIyBEnuHTb 3HaueHne yctaHOBKn.
3. Haxmte KhoNky B, yTo6bl yCtHaOBuTb MHyTbI.
4. HaxmTe KhoNky Dnla BbIXoJa n3 peXIma yctahOBKn.

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

正常时间显示

{UPCR-780A-P07/QUPCR-823A-P03/QUPCR-780A-3-P16}

五圣山阿五

1. EL（前日告白福社）到自A
   2.C将T10N T2F

#
