Product type	Analog wristwatch
Brand	Auriol
Model	IAN 101506
Water resistance	3 bar (30 meters) according to DIN 8310
Display type	Hands (hours, minutes, seconds) and date window
Power supply	Battery (replacement recommended at a specialist shop)
Main functions	Time display, date display, time marker (rotating bezel on some models)
Movement	Quartz
Strap	Removable, replaceable (models 101506-14-01/02/04/05)
Case material	Not specified, probably stainless steel or alloy
Case dimensions	Approximately 40 mm diameter (estimate)
Weight	Approximately 80 g (estimate including strap)
Care and cleaning	Clean the exterior with a soft dry cloth
Safety	Do not open yourself; entrust repairs to a watchmaker
Spare parts and repairability	Strap and battery replaceable; other parts by a professional
Warranty	3 years from date of purchase, subject to proper use
General information	Manual available in several languages, free to download

Frequently Asked Questions - IAN 101506 AURIOL

How to set the time and date on the Auriol IAN 101506 watch?

Pull the crown to position 2 (click) to set the time by turning the crown. For the date, pull to position 1 and turn until desired date. Push the crown in to start the second hand.

Is the watch waterproof?

Yes, it is water-resistant up to 3 bar (30 meters) according to DIN 8310. However, water resistance is not permanent; have it checked once a year.

How to replace the watch battery?

It is recommended to have the battery replaced by a watchmaker or a specialist shop to maintain water resistance.

How to change the watch strap?

Press the pin in the direction of the arrow (see figure G) to detach the strap. Install the new strap by reversing the procedure.

What to do in case of a malfunction?

First consult the manual. If the problem persists, contact the seller or an authorized watchmaker. Do not open the watch yourself, as the warranty may be voided.

How to use the rotating bezel to measure time?

Turn the bezel counterclockwise to align the marker with the minute hand at the start of measurement. Then read the elapsed time on the bezel.

How to clean the watch?

Clean the exterior with a soft, dry cloth. Do not use chemical or abrasive products.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the receipt as proof.

How to dispose of the watch and used battery?

Do not dispose of the watch with household waste. Take it to a collection point for recycling. Used batteries must be placed in containers provided for this purpose.

Where to download the full manual?

Go to notice-facile.com and search for the model IAN 101506 by Auriol. The manual is available for free in PDF format.

USER MANUAL IAN 101506 AURIOL

Operation and Safety Notes

SE

ARMBANDSUR

GB/IE Operation and Safety Notes Page 6

F
3 BAR WATER RESISTANT	✓	×	×	×
5 BAR WATER RESISTANT	✓	✓	×	×
10 BAR WATER RESISTANT	✓	✓	✓	×

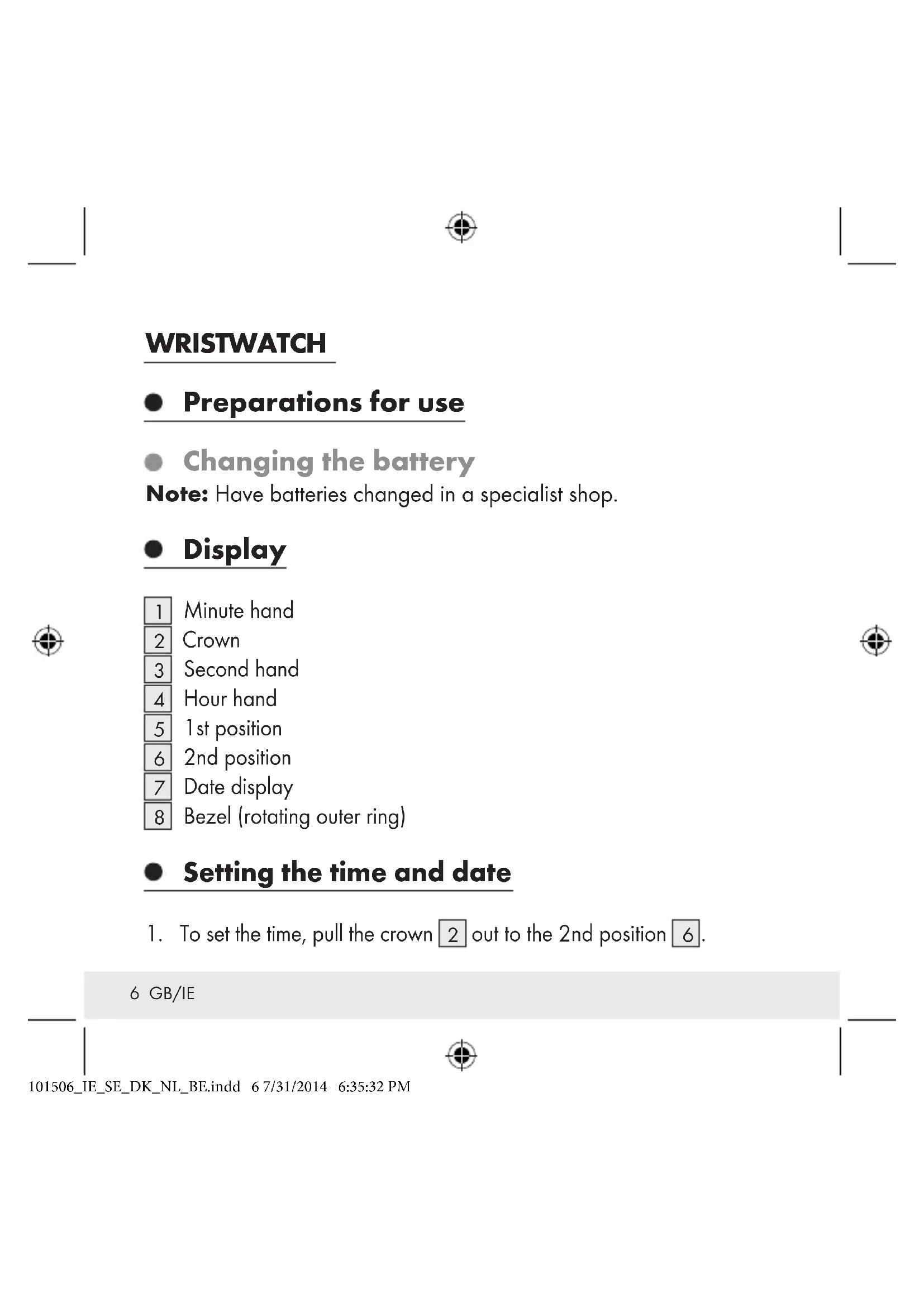

WRISTWATCH

Preparations for use
- Changing the battery

Note: Have batteries changed in a specialist shop.

Display

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 1st position
6 2nd position
7 Date display
8 Bezel (rotating outer ring)

• Setting the time and date

• To set the time, pull the crown 2 out to the 2nd position 6.

6 GB/IE

1. Turn the crown 2 to set the hour and minute hands 4, 1.
2. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.
3. To set the date, pull the crown 2 out to 1st position 5. Turn the crown 2 until the required date is set on the date display 7. (101506-14-02, 101506-14-04, 101506-14-05)

- Watertightness

This watch is watertight to 3 bar in accordance with DIN 8310. Figure F shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.
- Exchanging the watch strap (101506-14-01 / 101506-14-02 / 101506-14-04 / 101506-14-05)

Note: The wach strap can be exchanged.

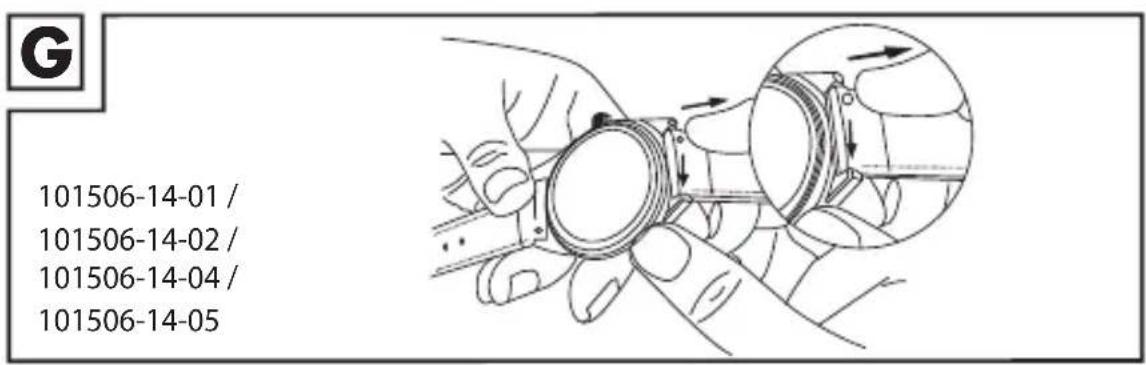

Push the pin downwards in direction of the arrow (see fig. G) and

7GB/IE

detach the strap from the watch. Exchange the strap and proceed in reverse order to install the new strap.

- Timing (101506-14-02)

The bezel 8 is used to indicate a period of time (e.g. jogging time). The amount of time elapsed can be read easily from the bezel.

Turn the bezel 8 in anti-clockwise direction to mark the start of timing.
- Removing Segments (101506-14-02, 101506-14-05)

Note: The segments that can be removed are marked with an arrow. They are connected together with pins. The pins can be pushed out in the direction of the arrow.

- Cleaning and maintenance

Clean the product on the outside only with a soft, dry cloth.

8 GB/IE

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

9GB/IE

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

WARRANTY

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has

10 GB/IE

been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

C E

11GB/IE
