| Product type | Workshop heater (fan-assisted space heating) |
| Brand | Euromac |
| Model | EK3001 |
| Dimensions (L x D x H) | 26 x 25 x 40 cm |
| Weight | 5.1 kg |
| Power supply | 230 V / 50 Hz |
| Maximum power | 3000 W |
| Available power levels | 0 (fan only), 1500 W (low), 3000 W (high) |
| Protection rating | IP24 (suitable for damp rooms) |
| Insulation class | IP24 (compliant) |
| Thermostat | Yes, progressive adjustment with automatic shut-off of heating elements |
| Overheat protection | Yes, automatic shut-off in case of overheating |
| Fan | Integrated, powerful air circulation (fan-only function) |
| Recommended heating area | Rooms of at least 9 m² |
| Usage | Indoor use only, for workshops, garages, warehouses, etc. |
| Cleaning | Dry or well-wrung damp cloth; vacuum grilles with a vacuum cleaner |
| Maintenance | No parts requiring maintenance; check cleanliness regularly |
| Housing material | Not specified in the manual (estimated: metal/resistant plastic) |
| Spare parts | Not specified; insist on original parts if repair is needed |
| Included accessories | No accessories mentioned |
| Safety standards | LVD 2006/95/CE, EMC 2004/108/CEE, EN 60335-1, EN 60335-2-30, EN 55014-1, EN 55014-2, EN 62233, EN 61000-3-2, EN 61000-3-3 |
| Warranty | Warranty void if instructions are not followed |
Frequently Asked Questions - EK3001 Euromac
User questions about EK3001 Euromac
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual EK3001 - Euromac and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EK3001 by Euromac.
USER MANUAL EK3001 Euromac
EUROM®
EK3001
ELEKTRISCHE WERKPLAATSKACHEL met thermostaat ELEKTRISCHER WERKSTATTOFEN mit Thermostat ELECTRICAL WORKSPACE HEATER with thermostat POELE D'ATELIER ELECTRIQUE avec thermostat ELEKTRISK BYGGFLÄKT med thermostat
ELEKTRICKÉ DÍLENSKÉ TOPENÍ s termostatem
ELEKTRICKÝ DIELENSKÝ OHRIEVAČ s termostatom
RADIATOR ELECTRIC PENTRU SPATII DE LUCRU cu termostat


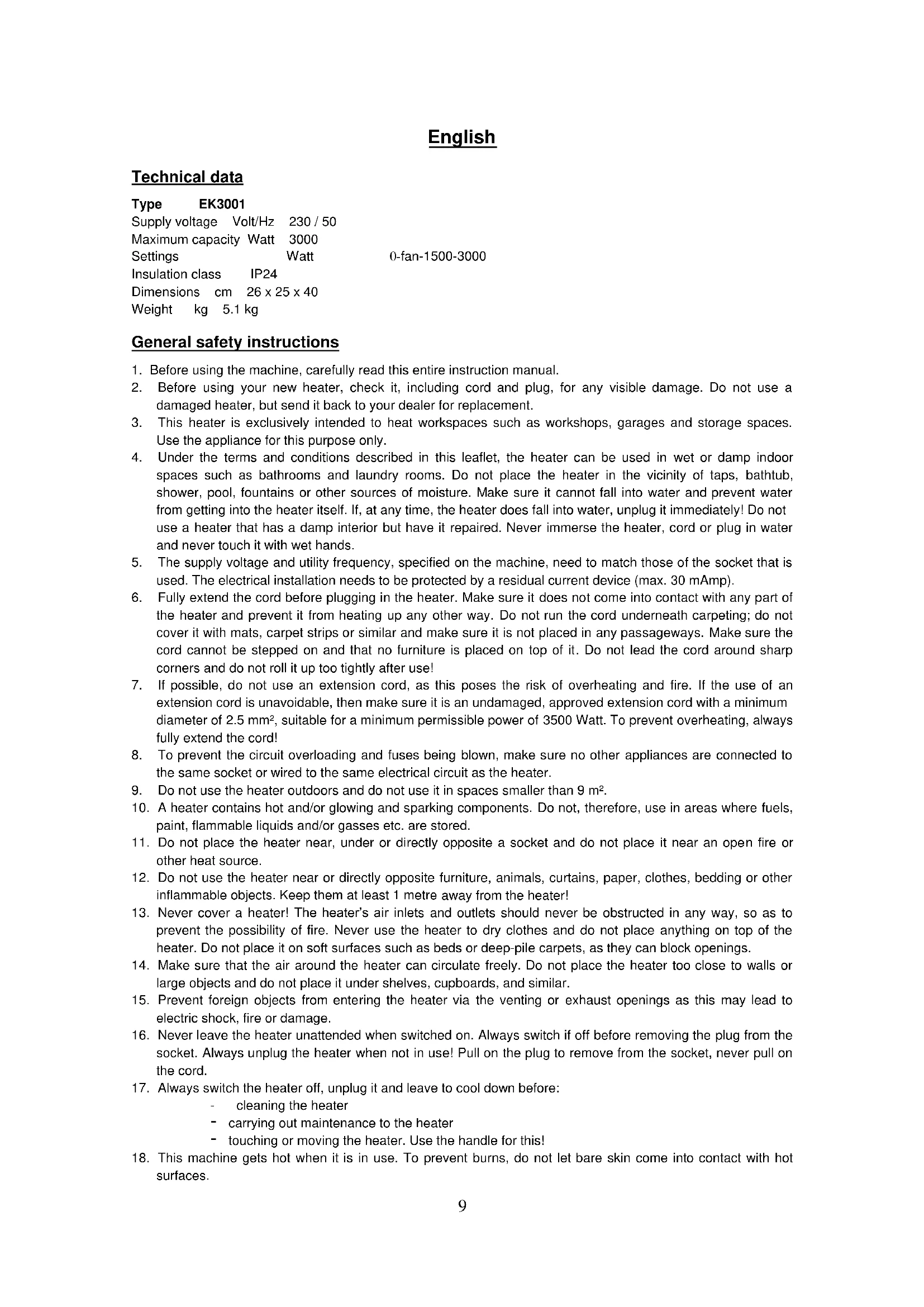

Supply voltage Volt/Hz 230 / 50
Maximum capacity Watt 3000
Settings Watt 0-fan-1500-3000
Insulation class IP24
Dimensions cm 26 x 25 x 40
Weight kg 5.1 kg
General safety instructions
-
Before using the machine, carefully read this entire instruction manual.
-
Before using your new heater, check it, including cord and plug, for any visible damage. Do not use a damaged heater, but send it back to your dealer for replacement.
-
This heater is exclusively intended to heat workspaces such as workshops, garages and storage spaces. Use the appliance for this purpose only.
-
Under the terms and conditions described in this leaflet, the heater can be used in wet or damp indoor spaces such as bathrooms and laundry rooms. Do not place the heater in the vicinity of taps, bathtub, shower, pool, fountains or other sources of moisture. Make sure it cannot fall into water and prevent water from getting into the heater itself. If, at any time, the heater does fall into water, unplug it immediately! Do not use a heater that has a damp interior but have it repaired. Never immerse the heater, cord or plug in water and never touch it with wet hands.
-
The supply voltage and utility frequency, specified on the machine, need to match those of the socket that is used. The electrical installation needs to be protected by a residual current device (max. 30 mAmp).
-
Fully extend the cord before plugging in the heater. Make sure it does not come into contact with any part of the heater and prevent it from heating up any other way. Do not run the cord underneath carpeting; do not cover it with mats, carpet strips or similar and make sure it is not placed in any passageways. Make sure the cord cannot be stepped on and that no furniture is placed on top of it. Do not lead the cord around sharp corners and do not roll it up too tightly after use!
-
If possible, do not use an extension cord, as this poses the risk of overheating and fire. If the use of an extension cord is unavoidable, then make sure it is an undamaged, approved extension cord with a minimum diameter of 2.5 mm^2 , suitable for a minimum permissible power of 3500 Watt. To prevent overheating, always fully extend the cord!
-
To prevent the circuit overloading and fuses being blown, make sure no other appliances are connected to the same socket or wired to the same electrical circuit as the heater.
-
Do not use the heater outdoors and do not use it in spaces smaller than 9 m^2 .
-
A heater contains hot and/or glowing and sparking components. Do not, therefore, use in areas where fuels, paint, flammable liquids and/or gasses etc. are stored.
-
Do not place the heater near, under or directly opposite a socket and do not place it near an open fire or other heat source.
-
Do not use the heater near or directly opposite furniture, animals, curtains, paper, clothes, bedding or other inflammable objects. Keep them at least 1 metre away from the heater!
-
Never cover a heater! The heater's air inlets and outlets should never be obstructed in any way, so as to prevent the possibility of fire. Never use the heater to dry clothes and do not place anything on top of the heater. Do not place it on soft surfaces such as beds or deep-pile carpets, as they can block openings.
-
Make sure that the air around the heater can circulate freely. Do not place the heater too close to walls or large objects and do not place it under shelves, cupboards, and similar.
-
Prevent foreign objects from entering the heater via the venting or exhaust openings as this may lead to electric shock, fire or damage.
-
Never leave the heater unattended when switched on. Always switch if off before removing the plug from the socket. Always unplug the heater when not in use! Pull on the plug to remove from the socket, never pull on the cord.
-
Always switch the heater off, unplug it and leave to cool down before:
- cleaning the heater
- carrying out maintenance to the heater
- touching or moving the heater. Use the handle for this!
-
This machine gets hot when it is in use. To prevent burns, do not let bare skin come into contact with hot surfaces.
-
Do not use a timer or a similar product to automatically switch on the heater. Always perform safety checks before using the heater!
- Close supervision is necessary when the product is used near children or incapacitated persons. Do not let children use the appliance as a toy. This appliance is not suitable to be operated by children or persons who have physical, sensory and/or mental limitations, or by persons who have no knowledge of, or experience with, this appliance.
- Keep the heater clean. Dust, dirt and/or a build up of deposits in the heater are a common cause of overheating. Make sure these deposits are removed regularly.
- Do not turn on the appliance if you have discovered damage to the appliance, cord or plug, if the appliance is malfunctioning, if it has been dropped or if there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts.
- Do not use attachments and/or accessories that have not been recommended or supplied by the manufacturer.
- The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorised and qualified persons.
- Only use this heater for its intended purpose and as described in this instruction manual.
Not abiding by instructions 23, 24 and 25 may lead to damage, fire and/or personal injuries. A failure to adhere to these rules also immediately nullifies the guarantee and vendor, importer and/or manufacturer do not take responsibility for any of the consequences!
Description
EUROM EK heaters are 'real space' heaters, with a powerful fan which disseminates a great deal of air.
Cold air is sucked in at the back, heated, and then blown out as hot air. Because a relatively large quantity of air is sucked in and blown out, the air expelled by the heater does not feel particularly hot. As a great deal of air is heated and blown out, however, the entire space (not just the air around the heater!) is gradually warmed up.

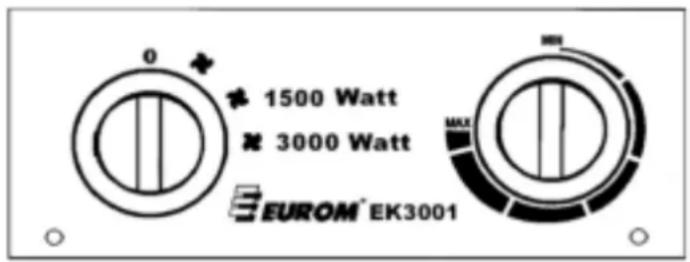

Control panel EK3001:
* The mode selector dial with 4 positions is located on the left.
From top to bottom: - O or off
- fan only
- 1500W power (low)
- 3000W power (high)
* The continuously adjustable thermostat dial is located on the right.
Location and Connection
- Remove all packaging material and keep out of reach of children. After removing packaging, check the appliance for damage or other signs that could indicate a fault/defect/malfunction. In case of doubt, do not use the appliance, but contact your vendor for inspection or replacement.
- Choose a suitable location for the heater, i.e. at least one metre away from any obstructions, walls or inflammable materials (see also safety instructions). Always ensure that the heater has sufficient space at the back to suck in air and at the front, to blow out hot air (1 metre).
• Make sure the heater is always in an upright position on a solid, flat, horizontal and non-flammable surface. - Make sure the heater is switched off (switch to O position), then plug into a correctly functioning, properly grounded 230V-50Hz socket.
Set-up and Operation
If the heater is being used for the first time (or if you want to reset the desired temperature), turn the thermostat dial to the maximum position (clockwise as far as it goes).
With the mode selector dial, adjust the heater to suit your preferences: fan only, low power or high power.
Once the temperature in the area being heated has reached the right level, slowly turn the thermostat dial anticlockwise until you hear a soft click; leave the dial in that position. The heater will automatically maintain the temperature at this level. It does this by switching the heating elements off and on when the temperature rises or falls too much.
Note! After the thermostat has switched the heating elements off, the fan will keep turning. This means that the air is constantly moved, allowing the heater to accurately detect if the area is cooling down.
The thermostat dial is continuously adjustable. A higher temperature is set by turning it clockwise; a lower temperature by turning it anticlockwise.
Safety features
In case of internal overheating, the overheating safeguard will switch the heater off. If this occurs, immediately turn the mode selector dial to O, unplug and allow heater to cool down for at least 10 minutes. In theory, the heater can now be used as normal. There is, however, generally a reason for an appliance overheating. This may be because the heater cannot adequately release its heat or take in fresh air (because the heater is covered, the grills are blocked, the heater is placed too near a wall etcetera). Before using the heater again, therefore, remove or adjust whatever caused the appliance to overheat. If you cannot find the cause and overheating recurs, stop using the heater and contact your vendor or a certified electrician for inspection/repair. Overheating poses a serious fire risk!
Cleaning and Maintenance
Keep the heater clean. Deposits of dust and dirt in the appliance are a common cause of overheating so these should be removed regularly. Switch off the heater, remove the plug from the socket and allow the heater to cool down before cleaning or carrying out maintenance work..
- Wipe the outside of the heater regularly with a dry or slightly damp cloth. Do not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or chemical solutions!
- Use a vacuum cleaner or compressor to carefully remove any dust and dirt from the grills and ensure that the air intake and outlet openings are clean. Be careful not to touch or damage any internal parts during cleaning!
- The heater contains no other parts which need maintenance.
- At the end of the season, store the cleaned heater in the original packaging if possible. Store upright in a cool, dry and dust-free place.
- Do not dispose of the heater with household waste when it becomes worn or damaged beyond repair. Take it to your local authority's collection point for electrical appliances where any reusable materials will be collected and redistributed.
CE-statement
Euromac bv., Genemuiden-NL hereby declares that the EUROM workspace heaters, type EK3001, comply with the LVD guideline 2006/95/EC and the EMC guideline 2004/108/EEC and meet the following standards:
EN 60335-1:2012 EN 55014-1:2006/+A1 :2009/+A2 :2011
EN 60335-2-30:2009+A11:2012 EN 55014-2:1997/+A1 :2001/+A2 :2008
EN 62233 :2008 EN 61000-3-2:2006/+A1 :2009/+A2 :2009
EN 61000-3-3 :2013
Genemuiden, 17-07-2014
W.J. Bakker, alg. dir.
Données techniques
Type EK3001
Tension Volts/Hz 230 / 50
Puissance max. Watts 3.000
e-mail: info@euromac.nl www.euromac.nl
