Freshboost KB181D - Blender KRUPS - Free user manual and instructions

Product type	Personal blender
Brand	Krups
Model	Freshboost KB181D
Maximum capacity	600 ml
Mixing programs	Blend (1 min), Pulse Ice Crush, Vacuum (50 s), Vacuum Blend (1 min 50 s)
Technology	NutriKeep (maintains a vacuum to preserve nutrients)
Blade material	Stainless steel
Control type	Rotary knob + Start/Stop button
Safety	Safety locking system (only works if bottle is correctly assembled)
Cleaning	Bottle, blade holder and cap dishwasher safe (top rack, ECO or gentle program)
Power supply	Mains (220-240 V)
Frequency	50/60 Hz
Power	600 W (estimated)
Weight	1.2 kg (estimated)
Dimensions (H x W x D)	Approximately 35 x 10 x 10 cm (estimated)

Frequently Asked Questions - Freshboost KB181D KRUPS

How to use the vacuum function (Vacuum)?

To use the vacuum function, place the selector on top of the vacuum bottle (B3) on the 'Air out' icon before starting the program. The Vacuum program lasts 50 seconds and draws the air out of the bottle. You can also use the Vacuum Blend program which combines vacuum and blending for 1 minute 50 seconds.

What to do if the appliance does not start?

Check that the appliance is plugged into a suitable electrical outlet. Make sure the bottle (B) is correctly assembled and positioned on the motor unit by aligning the arrows. If the problem persists, press the bottle continuously during use. Refer to the section 'What to do if the appliance no longer works' in the manual.

Can I blend hot ingredients?

No, the appliance should not be used with hot liquids. Wait for the ingredients to cool before blending.

How to clean the blade holder?

Unscrew the blade holder (B1) from the bottle. Handle with care as the blades are very sharp. You can wash it in the dishwasher (top rack, ECO or gentle program) or rinse under running water with a sponge. Never remove the seal from the blade holder to guarantee the effectiveness of the NutriKeep Technology.

What is the maximum capacity of the bottle?

The maximum capacity is 600 ml (see marking on the bottle). Do not exceed this level to avoid overflow.

Can I use bottles from other brands?

It is recommended to use only the bottles and accessories provided by Krups to ensure safety and proper operation of the appliance.

How to correctly assemble the parts?

Screw the blade holder (B1) firmly onto the bottle (B2). Place the bottle on the motor unit by aligning the arrow on the blade holder with the arrow on the motor unit. For the vacuum bottle (B3), also align the arrows. Make sure the assembly is securely engaged.

What to do if there are leaks?

Check that the blade holder seal is correctly positioned and not deformed. Make sure the blade holder is tightly screwed onto the bottle. If the problem persists, the seal may be damaged; contact customer service.

Are the parts dishwasher safe?

Yes, the bottle (B2), the blade holder (B1) and the cap (C2) can be washed in the dishwasher on the top rack with an ECO or gentle program.

How long does each program last?

The Blend program lasts 1 minute, Pulse Ice Crush works as long as the Start/Stop button is pressed, Vacuum lasts 50 seconds, and Vacuum Blend lasts 1 minute 50 seconds.

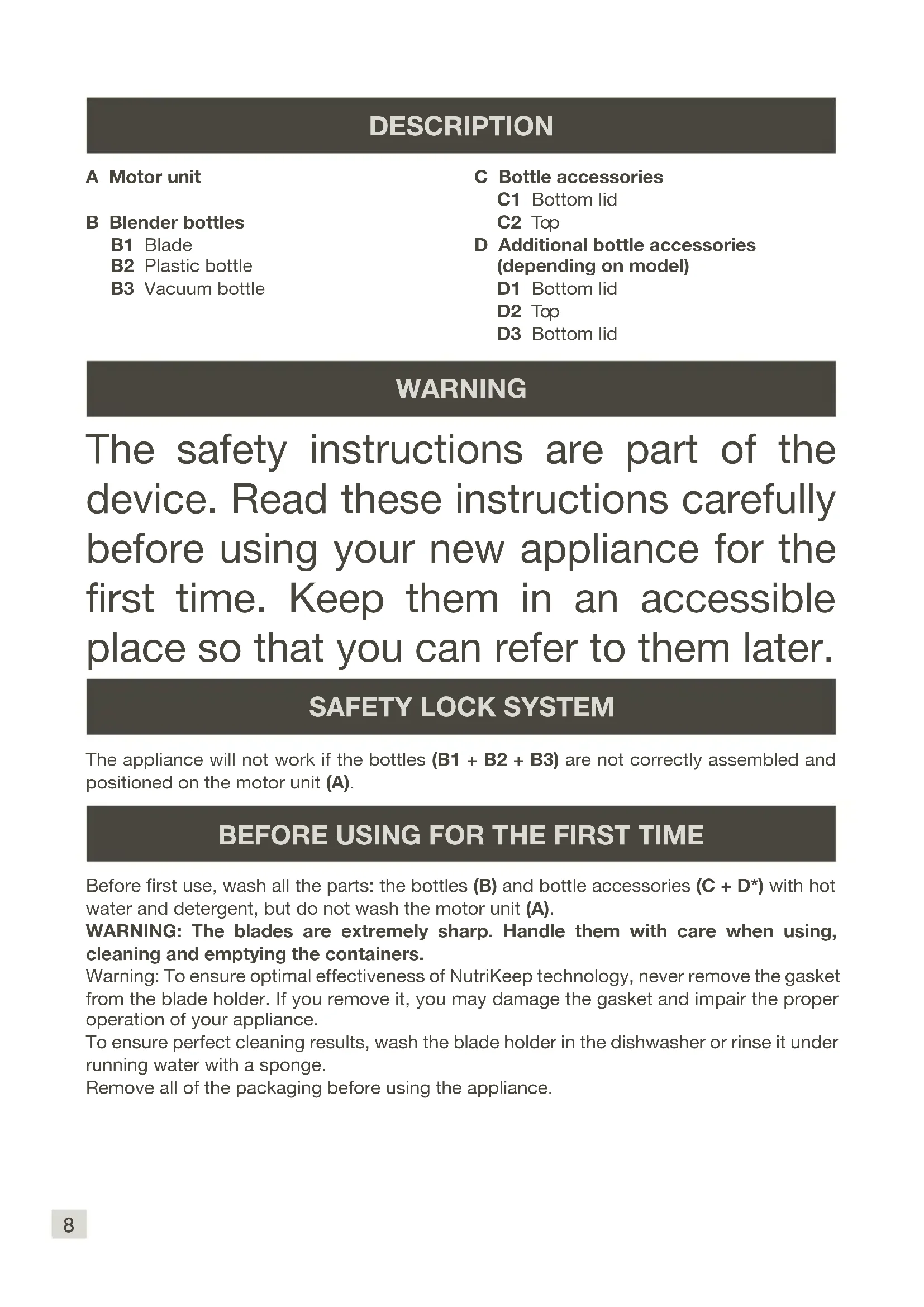

USER MANUAL Freshboost KB181D KRUPS

B1 Blade
B2 Plastic bottle
B3 Vacuum bottle

C Bottle accessories

D Additional bottle accessories (depending on model)

The safety instructions are part of the device. Read these instructions carefully before using your new appliance for the first time. Keep them in an accessible place so that you can refer to them later.

SAFETY LOCK SYSTEM

The appliance will not work if the bottles (B1 + B2 + B3) are not correctly assembled and positioned on the motor unit (A).

BEFORE USING FOR THE FIRST TIME

Before first use, wash all the parts: the bottles (B) and bottle accessories (C + D^) with hot water and detergent, but do not wash the motor unit (A).

WARNING: The blades are extremely sharp. Handle them with care when using, cleaning and emptying the containers.

Warning: To ensure optimal effectiveness of NutriKeep technology, never remove the gasket from the blade holder. If you remove it, you may damage the gasket and impair the proper operation of your appliance.

To ensure perfect cleaning results, wash the blade holder in the dishwasher or rinse it under running water with a sponge.

Remove all of the packaging before using the appliance.

USING YOUR APPLIANCE

Set the motor unit (A) on a flat and stable surface.
- Add the ingredients to the blender bottle (B2). The maximum level of 600ml (refer to the gauge on the bottle) must not be exceeded. For best results, we recommend first filling the bottle with liquid ingredients, then with the fresh or frozen ingredients (cut the ingredients into a maximum of 2cm pieces). Do not fill the bottle excessively.
Screw the blade firmly (B1) onto the opening of the blender bottle (B2) (Image 1). Then place the bottle with the blade on the motor unit, aligning the arrow on the outside of the blade with the arrow on the edge of the motor unit (Image 2). Then place the vacuum bottle on the motor unit, aligning the arrow on the outside of the blade with the arrow on the edge of the motor unit.
Turn on the device. Select a blending function using the selection button:

• Blend: 1-minute automatic blending program.

-Pulse ice crush: Crushed ice function. It starts each time the "Start Stop" button is pressed and stops when the button is released.

-Vacuum: 50-second automatic program that removes the air in the blender bottle.

• Vacuum blend: 1 minute 50 second automatic program that combines the vacuum and blend functions.

A light appears beside the selected program. Press the central "Start Stop" button to start the program. Warning: for the programs with the "air out" function, the selector must be placed above the vacuum bottle (B3) on the "Air out" icon before starting the program (image 5).
■ When you have finished blending, unlock the vacuum bottle then the blender bottle from the motor unit (Image 8 and 9). Warning: for the programs with the "air out" function, the selector must be placed above the vacuum bottle (B3) on the icon (image 6) before unlocking the bottles from the motor unit. (image 7) Turn the blender bottle upside down so that the blade (B1) is at the top and unscrew it from the bottle (B2) (Image 10). Then position the top on it and screw it in place (C1 + C2) . Then position the bottom lid beneath the bottle (Image 11). You can then drink directly from the blender bottle or take it with you.
This appliance is not suitable for blending potatoes, cream, egg whites, dough, etc.

The appliance must not be used with hot liquids.

If the motor stops during use, unplug the appliance and remove the bottle (B) from the motor unit (A). Leave the appliance to rest for at least 10 minutes before reusing.

RECIPES

*	130 g 270 g	Vacuum Blend	1 min 50
	130 g 270 g	Vacuum Blend	1 min 50
*	80 g	Pulse	5 secs

CLEANING YOUR APPLIANCE

Unplug the appliance and remove the bottle (B).
■ Handle it with care, as the blades are sharp.
- Immediately after use, rinse the bottle (B2) and blade (B1) under running water, and the removable parts with hot water and a little detergent.
To aid cleaning, the blade (B2) can be unscrewed from the bottle (B2). The bottle (B2), the blade (B1) and the top (C2) can be washed on the top rack of the dishwasher on the "ECO" program.
Clean the motor unit (A) with a damp cloth then dry it carefully. Never submerge the motor unit (A) in water or any other liquid.
■ Warning: To ensure optimal effectiveness of NutriKeep technology, never remove the gasket from the blade holder. If you remove it, you may damage the gasket and impair the proper operation of your appliance.
To ensure perfect cleaning results, wash the blade holder in the dishwasher or rinse it under running water with a sponge.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

PROBLEMS CAUSE SOLUTIONS
The appliance does not work.	It is not plugged in. Plug the appliance in using a plug with the same voltage.
	The bottle (B) is not correctly assembled or positioned on the motor unit (A).	Check that the bottle is correctly assembled; dismantle and assemble again Fig.1 and Fig.2 and check that it is far down enough on the motor unit.
		Maintain pressure on the blender bottle assembly (B) during operation Fig.3.
Excessive vibration. The appliance is not on a flat, stable surface.	Put the appliance on a flat stable surface.
	Volume of ingredients is too high.	Reduce the quantity of ingredients processed.
	Error in assembling the accessories.	Check that the bottle (B2) is correctly assembled with the blade unit (B1).
Leak from the bottle In correct positioning of the seal on the blade unit (B1).	Make sure that the seal is correctly positioned, the lips of the seal should be visible and it should not be buckled Handle the blade units (B1) with care because the blades are sharp. To ensure optimal effectiveness of NutriKeep technology, never remove the gasket from the blade holder. If you remove it, you may damage the gasket and impair the proper operation of your appliance.
	The blade unit (B1) is insufficiently or incorrectly locked on the bottle (B2).	Make sure that the blade unit and the bottle are fitted together correctly.
The blade does not rotate easily.	Pieces of food are too big or too hard.	Reduce the size or quantity of the ingredients processed.
		Add liquid to the bottle without exceeding the maximum level.

Is your appliance still not working?
Contact customer service (see contact details in the separate booklet).
