Technical features	3-in-1 car seat: group 0+/1/2, suitable from birth to about 7 years (0-25 kg)
Installation	Easy installation with seat belt or ISOFIX system
Adjustment	Adjustable recline in multiple positions for optimal comfort
Materials	Breathable fabric cover and foam padding for increased comfort
Maintenance	Removable and machine washable cover for easy care
Safety	Reinforced side protection and 5-point harness for secure restraint
Safety standards	Compliant with ECE R44/04 standards
Product weight	Approximately 8 kg
Dimensions	Compact dimensions for better fit in the vehicle
Warranty	2-year warranty

Frequently Asked Questions - Optyma 3in1 Deluxe Harmony

How do I install the Harmony Optyma 3in1 Deluxe car seat?

To install the seat, place it on the rear seat of your vehicle, using the seat belt or the ISOFIX system if available. Make sure the seat is securely fastened and that the safety indicators are green.

What are the weight limits for the Harmony Optyma 3in1 Deluxe seat?

The seat is designed for children weighing between 0 and 36 kg, making it suitable for groups 0+, I, and II.

How do I clean the seat cover?

The seat cover can be removed and machine washed at 30C. Avoid using bleach agents or tumble drying.

How do I adjust the safety harness?

To adjust the harness, pull the strap located at the back of the seat. Make sure the harness is properly fitted and that the chest clip is at the childs armpit level.

Is the Harmony Optyma 3in1 Deluxe car seat certified?

Yes, the seat is certified according to the current European safety standards (ECE R44/04).

Can I use the seat for a newborn?

Yes, the seat can be used for newborns from 0 kg, but make sure they are properly installed in the reclined position.

What are the usage modes of the Harmony Optyma 3in1 Deluxe seat?

The seat can be used in rear-facing mode for newborns, forward-facing mode for older children, and booster mode for bigger children.

What warranty is offered on the product?

The product is generally covered by a 2-year warranty against manufacturing defects. Please keep your receipt for claims.

USER MANUAL Optyma 3in1 Deluxe Harmony

This child restraint is designed for use by children who meet the following requirements:

WITH HARNESS:

Weight: 10 - 22.7 ~kg (22 - 50 pounds)

Height: 68.6 - 124.5 cm (27 - 49 inches)

WITHOUT HARNESS:

Weight: 18.1 - 50 ~kg (40 - 110 pounds)

Height: 86.4 - 144.8 cm (34 - 57 inches)

FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN STOP OR CRASH. KEEP INSTRUCTIONS FOR FUTURE USE.

IF YOU HAVE ANY PROBLEMS, PLEASE DO

NOT RETURN THIS PRODUCT TO THE PLACE

OF PURCHASE. PLEASE CONTACT HARMONY

CUSTOMERSERVICEAT1-877-306-1001ORAT

WWW.HARMONYJUVENILE.COM

WELCOME TO THE HARMONY FAMILY!

Thank you for choosing the Harmony® Optyma 3-in-1 Deluxe Car Seat. You have chosen one of the safest and most comfortable options available for your child on the market.

At Harmony, we pride ourselves on bringing the most innovative, feature-rich products to our valued customers. We have designed this child restraint to be safe, comfortable and easy-to-use so that you can have peace of mind knowing your family is well protected.

Although it is not possible to predict if the use of a child restraint will prevent injury or death in the event of a collision, extensive testing has shown that this child restraint, when used properly, can reduce the risk of a child's injury or death in most accidents.

Please take the time to read and understand all the instructions and warnings for this child restraint. The safety of your child depends on the proper installation and use of this child restraint.

REMEMBER TO ALWAYS BUCKLE UP AND DRIVE SAFELY!

Harmony Juvenile Products

Website: www.harmonyjuvenile.com

Mailing Address: 2450 Cohen Street Montreal, Quebec, Canada H4R 2N6

Telephone: [phone]

TABLE OF CONTENTS

Welcome to the Harmony family! 1

Registration information 4

If you need help. 5

Warnings 5

General warnings 5

Usage warnings 8

Injury warnings 9

Vehicle warnings 10

Certifications 11

Airbag warnings 12

Damage warnings 12

Mass and height limitations 13

With built-in harness 14

Without built-in harness 14

Maximum height 15

Parts list 16

Vehicle seating positions 18

Safe vehicle seat belt systems 19

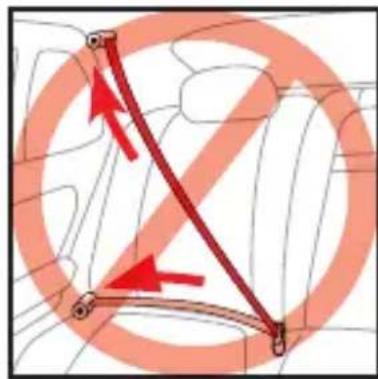

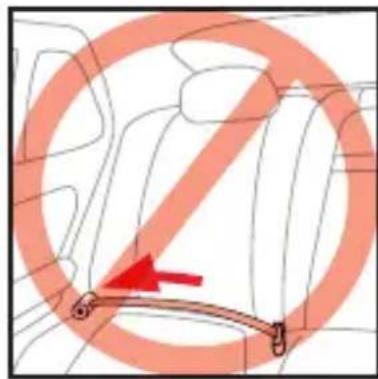

Unsafe vehicle seat belt systems 20

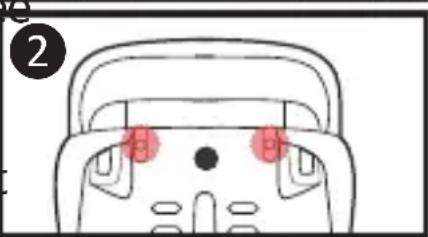

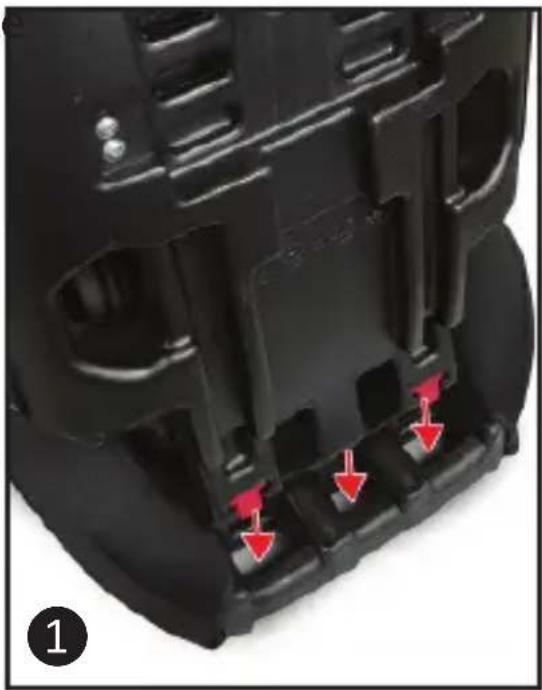

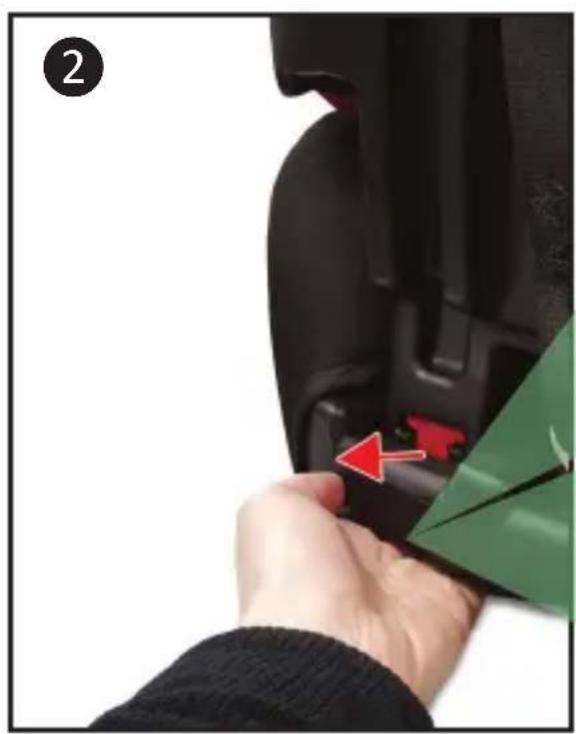

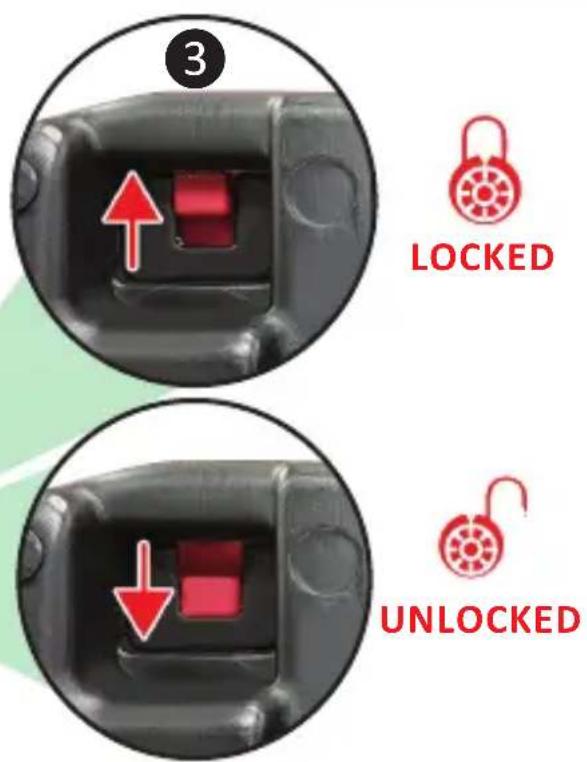

Assembling/disassembling backrest 21

Preparing child restraint for use 22

Adjusting harness shoulder straps 22

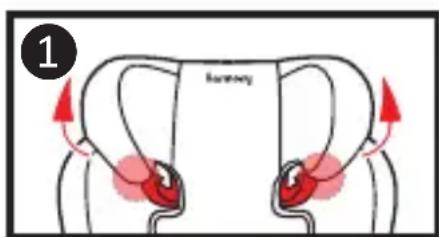

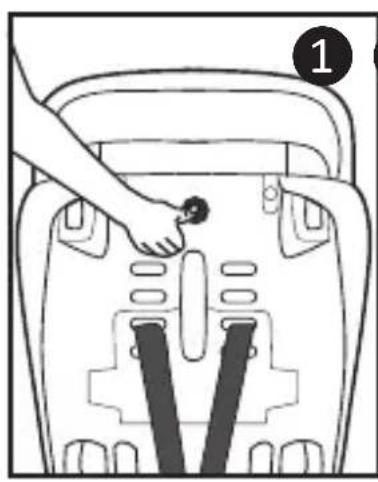

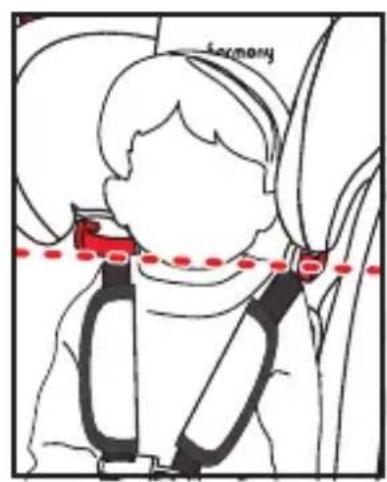

Headrest height adjustment. 24

Installing child restraint in harness mode:

UAS or vehicle seat belt 24

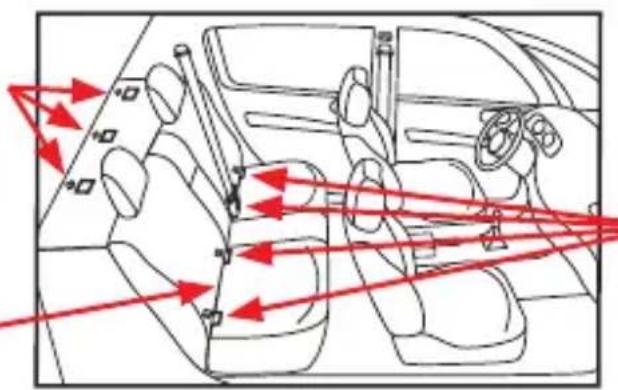

UAS (Universal Anchorage System) 25

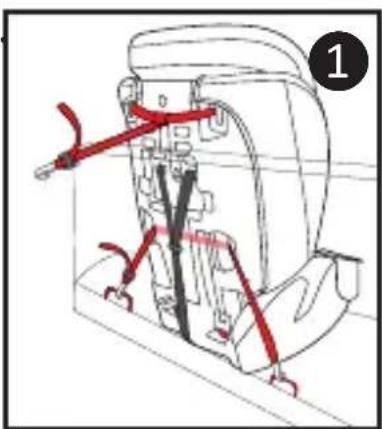

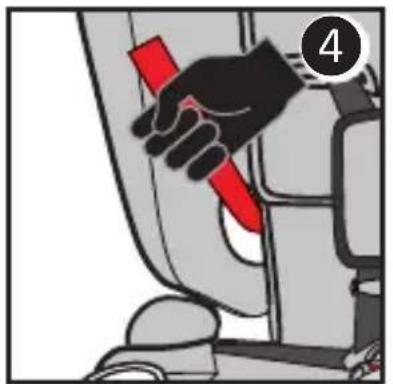

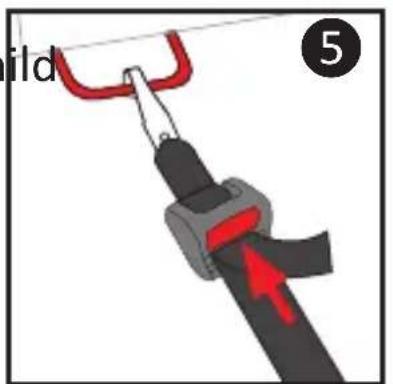

Installing with UAS system. 25

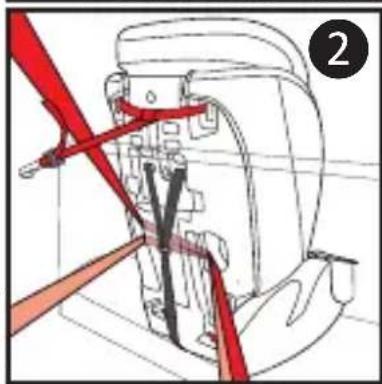

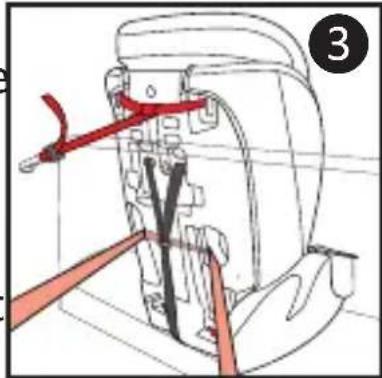

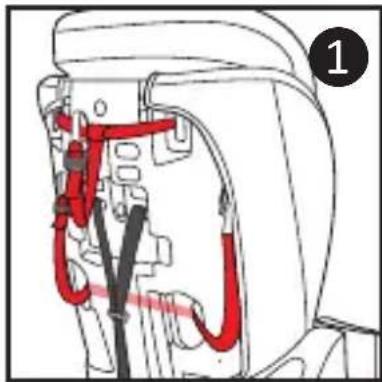

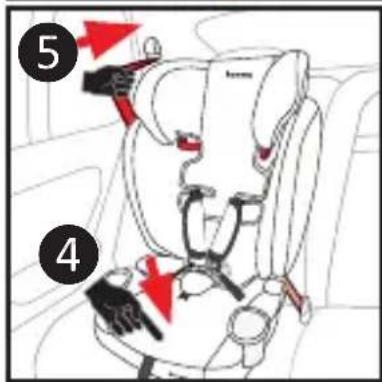

Installing with lap-and-shoulder or lap-only belt system..... 27

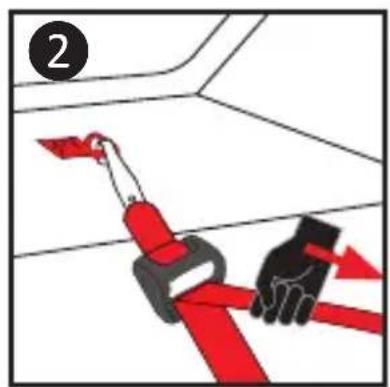

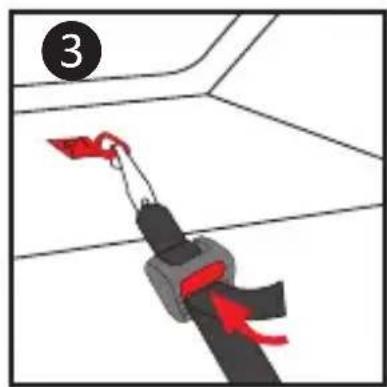

Using Top Tether 28

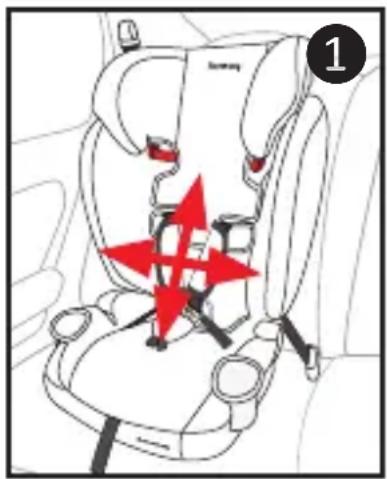

Installation safety check. 29

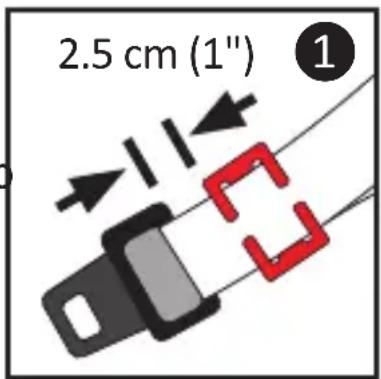

Installing locking clip. 29

Using child restraint with built-in harness 31

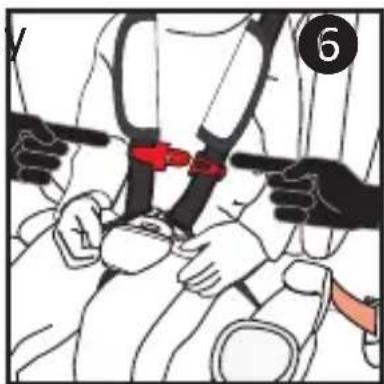

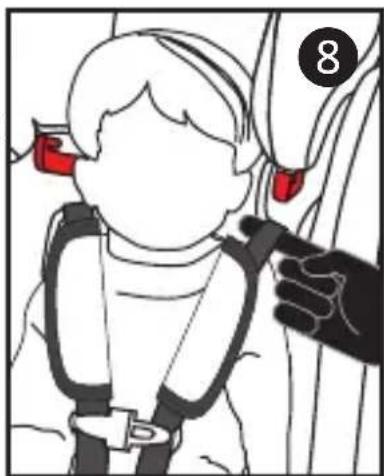

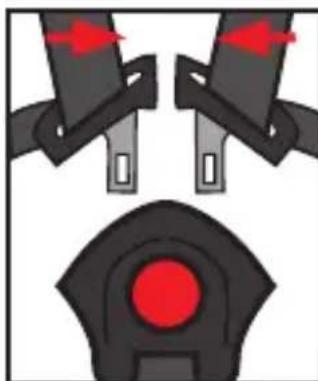

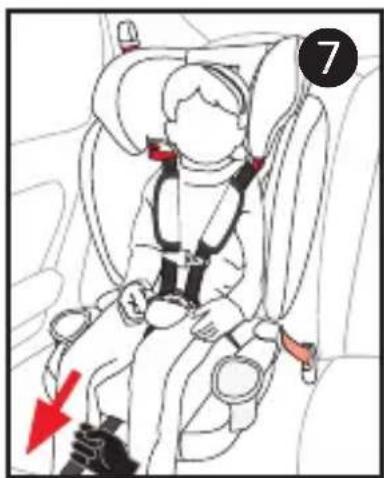

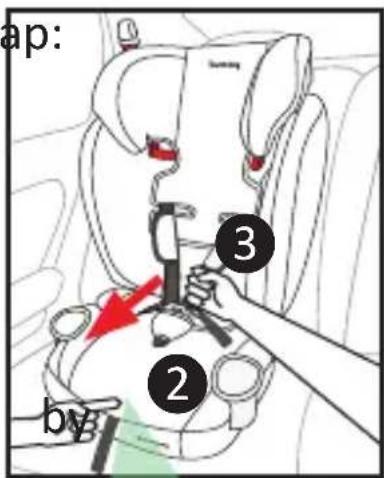

Securing child in child restraint 31

Removing child from child restraint 33

Using child restraint in booster mode

(without internal harness) 34

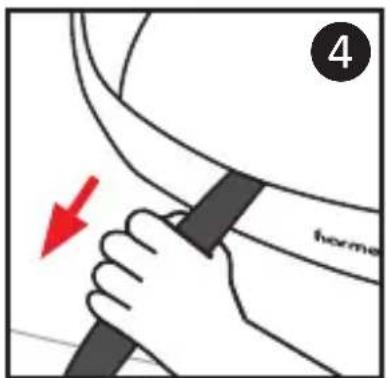

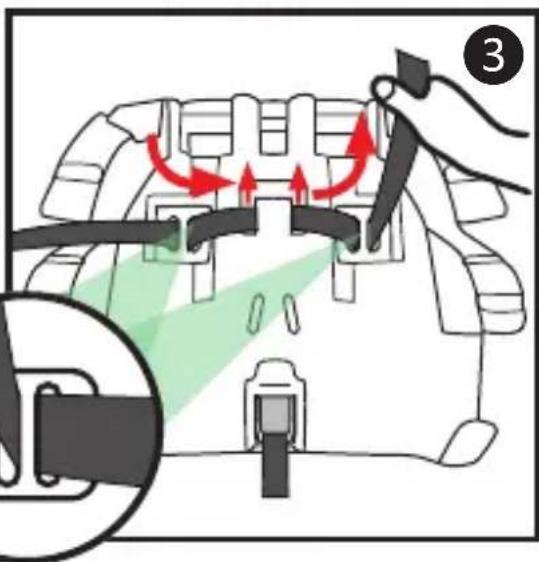

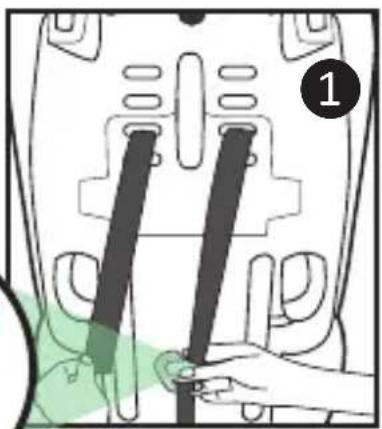

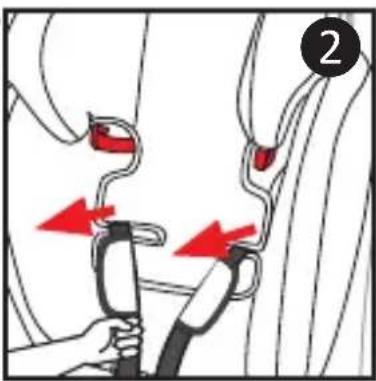

Removing/installing harness 34

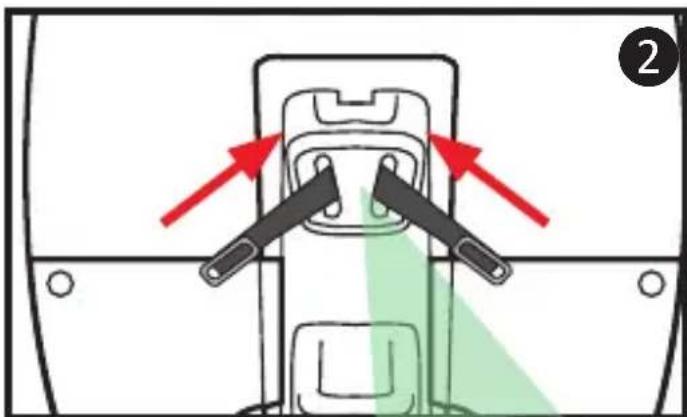

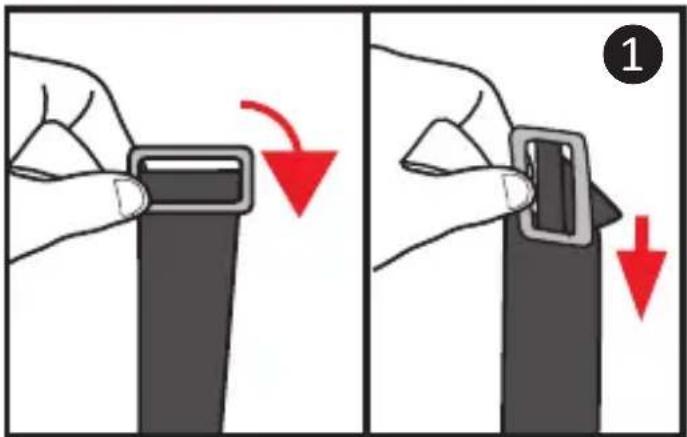

Removing the crotch buckle 35

Preparing booster seat for use 36
Securing child and booster seat in vehicle 37
Installation - booster with backrest 39

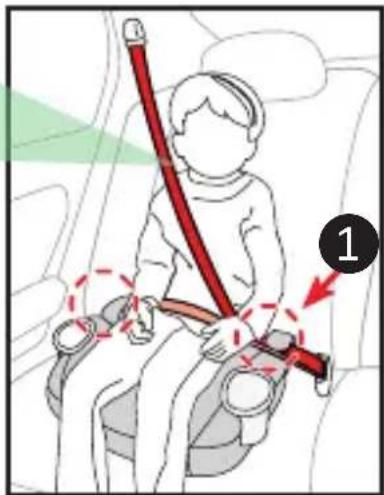

Installation - booster without backrest 40
Installing/removing shoulder belt guide. 42

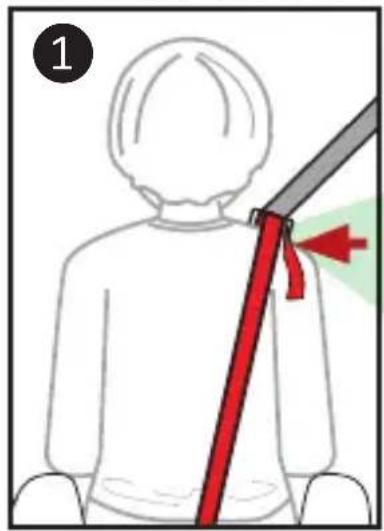

Using shoulder belt guide. 42
Entanglement with vehicle seat belt 43

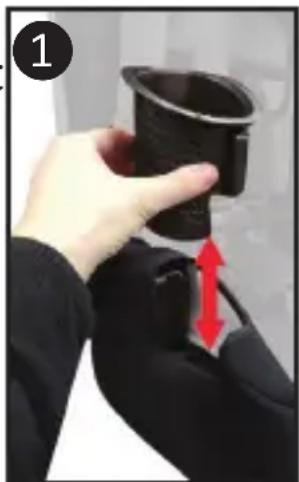

Using cup holders. 43
Aircraft installation 44
Instruction manual storage 44
Removing/installing fabric seat cover 44
Care and maintenance 45
Warranty 46

REGISTRATION INFORMATION

REGISTER YOUR CHILD RESTRAINT TODAY! Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall, and to be eligible to receive replacement parts while under warranty.

The model number, serial number and manufacturing date can be found on a label on the underside of the child restraint base.

Visit www.harmonyjuvenile.com/register to register your child restraint online, mail-in the registration card or send your name, address, the restraint's model number, manufacturing date and date of purchase to:

Harmony Juvenile Products

2450 Cohen Street

Montreal, Quebec, H4R 2N6, Canada

or call: 1-877-306-1001

or register online:

http://www.harmonyjuvenile.com/register

For recall information, any questions you may have, or to make a change of address or contact information, please call Customer Service at 1-877-306-1001 or visit us online at www.harmonyjuvenile.com.

PLEASE DO NOT SEND IN YOUR REGISTRATION CARD IF YOU HAVE REGISTERED YOUR RESTRAINT ONLINE.

IF YOU NEED HELP

Please fill in the information below for future reference. The model number and manufacturing date can be found on a label on the underside of the child restraint.

Model Number:

Manufacture Date:

Date of Purchase:

Our Customer Service Department is standing by to help you with any questions or concerns you may have regarding installation, use, care and/or parts. Please have your product's model number and manufacturing date available when contacting us.

WARNING

GENERALWARNINGS

WARNING!

The safety of your child and the effectiveness of this child restraint depend on:

1. Selecting a suitable location for the child restraint in your vehicle.
2. Properly routing the UAS or vehicle seat belt.
3. Properly securing both your child and the child restraint in the vehicle using the harness system, or a seat belt designed to restrain both the child restraint and your child. Many seat belts are NOT safe to use with this child restraint. Please review the sections "Safe/Unsafe vehicle seat belt systems" carefully. If in doubt about installing this child restraint, consult the vehicle owner's manual or call the Harmony Customer Service Department.

WARNING!

FAILURE TO PROPERLY READ, FOLLOW AND USE THESE INSTRUCTIONS AND THE CHILD RESTRAINT LABELS INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN STOP OR CRASH. Your child's safety depends on the proper installation and use of this child restraint. Even if this child restraint seems easy to install and use on your own, it is VERY IMPORTANT to read and understand these instructions and the vehicle owner's manual.

Follow all labels on this child restraint and in these written instructions. DO NOT INSTALL OR USE THIS CHILD RESTRAINT UNTIL YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OWNER'S MANUAL.

NO CHILD RESTRAINT CAN GUARANTEE PROTECTION WHEN THE VEHICLE IS SERIOUSLY IMPACTED. However, when correctly installed, a child restraint will substantially improve the chances for survival and reduce the risk of serious injury in most crashes.

Carefully follow the instructions in this manual and in your vehicle owner's manual. If there is a discrepancy between the two, the vehicle owner's manual must take precedence with regards to UAS, seat belts, top tethers and/or airbags.

! USE THIS CHILD RESTRAINT FORWARD-FACING ONLY.
! DO NOT USE THIS CHILD RESTRAINT without properly assembling it.
! DO NOT allow children to play with this child restraint.
! NEVER leave children alone in a vehicle under any circumstance.
It is recommended that children are not left in their child restraint system unattended.
! Set a good example by ALWAYS wearing your seat

belt. Make it a firm rule that the vehicle does not move until everyone is buckled up. MAKE NO EXCEPTIONS.

! Harmony Juvenile Products advises against loaning or passing along a child restraint. DO NOT USE A SECOND-HAND CHILD RESTRAINT or a child restraint whose history you do not know.
! To prevent injury due to deterioration, hidden damage, etc., discontinue use of this child restraint if it is older than TEN (10) YEARS. There is an expiry date for use of this child restraint indicated on the underside of the child restraint base. STOP USING THE CHILD RESTRAINT AND THROW IT AWAY after the date indicated. Please dispose of the unit in a way others cannot reuse it (e.g. use a dark trash bag, do not sell to a thrift shop or in a garage sale, etc.).
! Store the child restraint in a safe place when not in use. DO NOT place heavy objects on top of the child restraint while in storage.
!DO NOT remove any stickers or warnings as they contain important information.

WARNING!

!ALWAYS ASSIST YOUR CHILD WHEN GETTING INTO AND OUT OF THE CHILD RESTRAINT.

!NEVER LET YOUR CHILD LEAN ON THE ARMREST WHEN GETTING INTO OR EXITING THE CHILD RESTRAINT TO PREVENT THE SEAT FROM TIPPING.

!ENSURE THAT THE CHILD RESTRAINT IS LEVEL, STABLE AND DOES NOT ROCK SIDE-TO-SIDE. IF THE CHILD RESTRAINT IS NOT STABLE, TRY ANOTHER SEATING LOCATION.

! DO NOT ADD ANYTHING BEHIND OR UNDER THE CHILD RESTRAINT.

Harmony Juvenile Products recommends keeping your child in a forward-facing car seat with a harness until they reach the top height or mass limit allowed by your car seat's manufacturer. Once your child outgrows the forward-facing car seat with a harness, it's time to travel in a booster seat, but still in the back seat.

Transport Canada recommends that children under the age of 13 years be placed in the back seat of the vehicle and away from active front airbags.

According to accident statistics, CHILDREN ARE SAFER WHEN PROPERLY RESTRAINED IN THE REAR SEATING POSITIONS THAN IN THE FRONT SEATING POSITION.

Please study the section "Vehicle seating positions".

Many local police and fire departments frequently hold safety inspection events to ensure that child restraints are properly installed. Please contact your local emergency services department to see if and when they offer this service.

! THE TOP TETHER MUST ALWAYS BE USED WHEN

USING THIS CHILD RESTRAINT WITH HARNESs. Failure to use the vehicle seat belt AND top tether, or UAS AND top tether, or to adjust it properly can result in your child striking the vehicle's interior in a sharp turn, sudden stop or crash, which may result in serious injury or death.

! DO NOT use any load bearing contact points other than those described in the instructions and marked in the child restraint.
! DO NOT allow others to install or use this child restraint unless they read and understand all the instructions and labels.
! DO NOT GIVE THIS CHILD RESTRAINT to someone else without also giving them this instruction manual. Additional instruction manuals can be downloaded directly from www.harmonyjuvenile.com.
! To ensure proper child restraint use, keep and store this instruction manual and refer to it when necessary.
! DO NOT LEAVE A CHILD RESTRAINT UNSECURED IN YOUR VEHICLE. In a collision, sharp turn or sudden stop, an unsecured child restraint can injure other occupants. Remove it or make sure that it is securely

attached with the vehicle seat belt AND top tether, or UAS AND top tether, even when not in use. If not using UAS and/or top tether, make sure UAS and top tether connectors are properly stored on back of the child restraint 1.

INJURYWARNINGS

! INJURIES MAY OCCUR EVEN IF YOU ARE NOT IN A CRASH if the child restraint is not properly installed or if your child is not properly secured in the child restraint.
! The rigid items and plastic parts of a child restraint 9

shall be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of the vehicle.

! DO NOT leave folding vehicle seats unlatched. In the event of a sharp turn, sudden stop or crash, a loose seat back could prevent the child restraint from protecting the child as well as it should.
! It is recommended that any luggage or other loose objects liable to cause injuries in the event of a collision shall be properly secured. In the event of a sharp turn, sudden stop or crash, loose objects will keep moving, potentially causing serious injuries.
! The child restraint shall not be used without the cover. It MUST always be used with the fabric cover provided by the manufacturer.
! The seat cover should not be replaced with any other than the one recommended by the manufacturer.
! PARTS OF THE CHILD RESTRAINT COULD BECOME HOT ENOUGH TO BURN THE CHILD IF LEFT IN THE SUN. Contact with these parts can injure your child. ALWAYS touch the surface of any metal or plastic parts before putting your child in the child restraint. Cover the child restraint with a towel or blanket when the vehicle is parked in direct sunlight. KEEP AWAY FROM SUNLIGHT, OTHERWISE IT MAY BE TOO HOT FOR THE CHILD'S SKIN.

VEHICLEWARNINGS

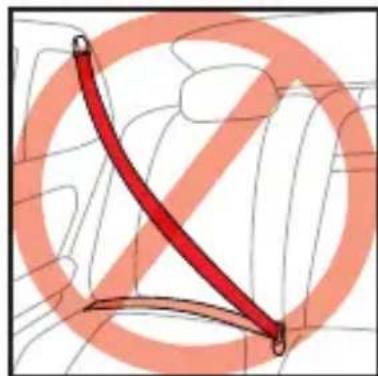

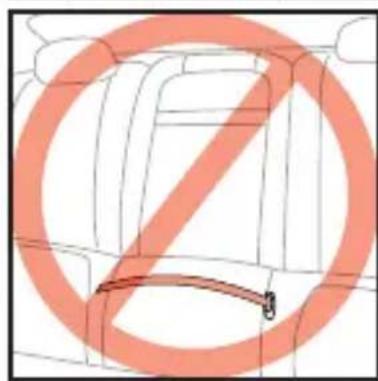

! DO NOT use this child restraint with 2-point vehicle belts (lap-belt only or shoulder-belt only). Your child would be seriously injured in the event of a crash.
! DO NOT use this child restraint with unsafe vehicle seat belts listed in section "Unsafe vehicle seat belt systems" of this manual.
! DO NOT use this child restraint if it can't be properly

installed. It is possible that your vehicle has no suitable seating position for this child restraint due to seat belt type, airbag system and/or lack of location of a tether strap anchor. Read and follow these instructions, and your vehicle owner's manual carefully.

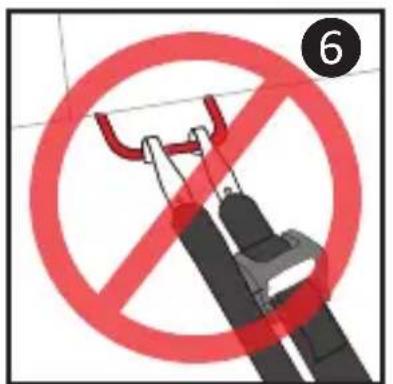

! NEVER attach two UAS lower connectors to the same anchor point.

CERTIFICATIONS

This child restraint conforms to the Canadian Motor Vehicle Safety Standards (CMVSS) 213 and 213.2 and IS CERTIFIED for use in the following classes of vehicles ONLY: multi-purpose passenger vehicles, passenger cars, and trucks. Harmony Juvenile Products has also validated compliance through independent laboratory testing.

WHEN USED WITH HARNESS SYSTEM: This child restraint conforms to Canada Motor Vehicle Safety Standards (CMVSS) 213 and IS CERTIFIED for use in passenger motor vehicles and aircraft.

WHEN USED WITHOUT HARNESS SYSTEM: This child restraint (booster seat) conforms to Canada Motor Vehicle Safety Standards (CMVSS) 213.2 and IS CERTIFIED for use in passenger motor vehicles only. This child restraint is NOT CERTIFIED for aircraft use when used as a booster WITHOUT the harness.

! Only suitable for use in the listed vehicles fitted with 3-point with retractor safety-belts.

This child restraint must NOT be used in homes, boats, buses, motorcycles, motor homes, or any other vehicles that have non-forward-facing seats, missing seat belts, or whose seat belts do not meet the requirements of this child restraint.

This child restraint is compatible with vehicle child restraint Universal Anchorage Systems (UAS).

AIRBAGWARNINGS

! NEVER PLACE THIS CHILD RESTRAINT IN A VEHICLE SEATING LOCATION THAT HAS AN ACTIVE FRONTAL AIRBAG. An inflating airbag may cause serious injury or death. Refer to your vehicle owner's manual for information about airbags and child restraint installation.

This child restraint may be used in a rear seating position equipped with side impact airbags providing they are:

• Roof mounted;
• "Curtain" type deployment;
• Will NOT interfere with, impact or in any way reposition the child restraint when inflated.
  ! If a vehicle's front seat location must be used, ALWAYS disable the airbag. Failure to disable the airbag system can result in serious injury or death. Follow the vehicle owner's manual for instructions on disabling the front airbag system.

Please refer to your vehicle owner's manual for airbag type, and for appropriate use with child restraints.

DAMAGE WARNINGS

! DO NOT USE A CHILD RESTRAINT THAT HAS BEEN IN AN ACCIDENT OF ANY KIND. An accident can cause damage to the child restraint that you cannot see.
! DO NOT use this child restraint if it is damaged in any way or has missing parts.
! NEVER use a cut, frayed or damaged vehicle seat belt, UAS belt, or harness.
! DO NOT tamper with or modify the child restraint, including the buckles, harness system or UAS, for any reason. Any unauthorized or additions to the device without the approval of the Type Approval Authority can cause serious injury or death in a sharp turn, sudden stop, or crash.

!DONOT use anything to raise the child restraint off the vehicle seat. Untested modifications, such as adding extra padding, could affect the safety of the child restraint and result in serious injury or death in a crash.
! DO NOT, EXCEPT AS DESCRIBED IN THESE INSTRUCTIONS, MODIFY YOUR CHILD RESTRAINT, DISASSEMBLE ANY PART OR CHANGE THE WAY THE VEHICLE SEAT BELTS ARE USED. This includes any accessories or parts by other manufacturers as non-tested accessories can affect the safety of the child restraint.

MASS AND HEIGHT LIMITATIONS

WARNING!

THIS CHILD RESTRAINT HAS DIFFERENCES IN INSTALLATION AND USAGE DEPENDING ON THE MASS AND HEIGHT OF YOUR CHILD. FAILURE TO USE THIS CHILD RESTRAINT WITHIN THESE GUIDELINES MAY INCREASE THE RISK OF SERIOUS INJURY OR DEATH.

WARNING: Verify your child's height and mass frequently. DO NOT guess before choosing the proper setup for your child.

FOR MAXIMUM SAFETY:

If child is between 10 - 22.7 kg (22 - 50 pounds) and shoulders are below the upper harness slots, Harmony Juvenile Products recommend use of the built-in harness or booster with backrest for as long as possible.

Harmony Juvenile Products recommends that you ALWAYS confirm provincial laws with local authorities. Laws vary from province to province regarding minimum/maximum child restraint requirements for age, mass and height.

WITH BUILT-IN HARNESS

To use this child restraint, your child MUST MEET ALL of

the following requirements:

• Mass: Between 10 - 22.7kg (22 - 50 pounds).
• Height: Between 68.6 - 124.5 cm (27 - 49 inches).
• At least one (1) year old.

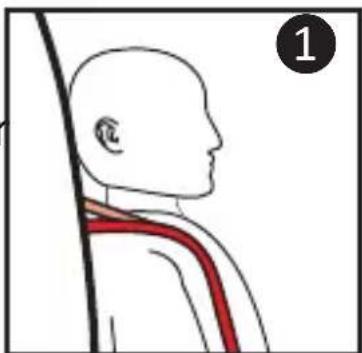

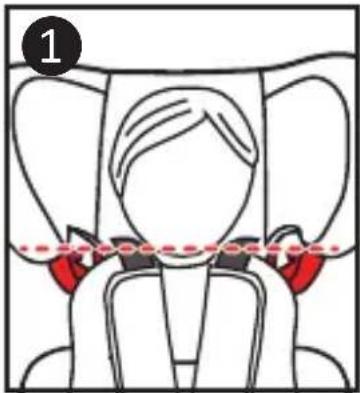

• ShouldersareBELOW top harness slots 1.

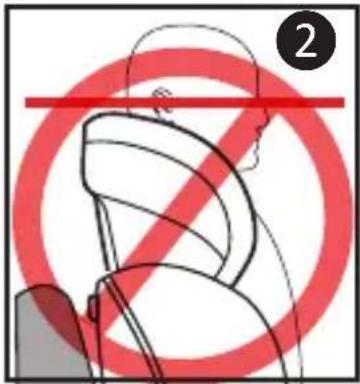

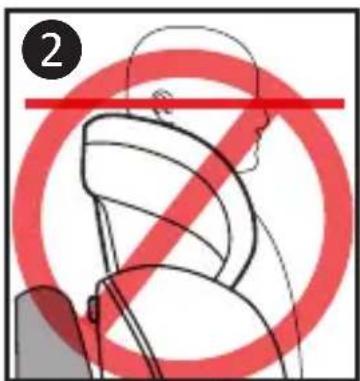

• Child'searsMUST BE BELOW top of the headrest. If tops of ears are above the top of the headrest at its maximum height, the child is too large for the child restraint ②.

WITHOUT BUILT-IN HARNESS

To use this booster seat, your child MUST MEET ALL of the following

requirements:

Mass:

Between 18.1 - 50 kg (40 - 110 pounds).

• Height:

Between 86.4 - 144.8 cm (34 - 57 inches).

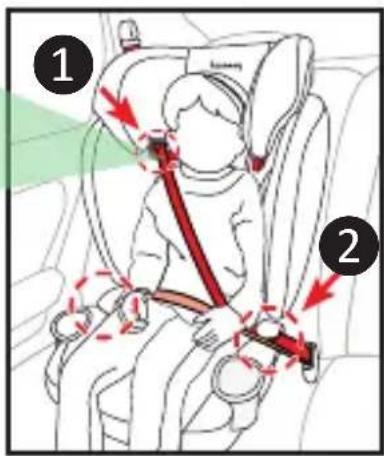

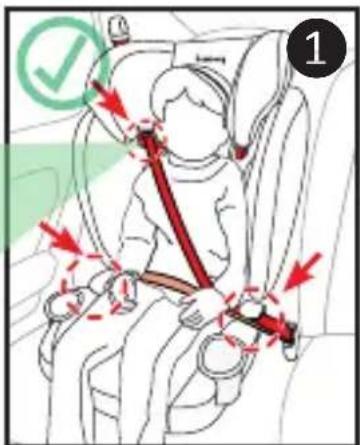

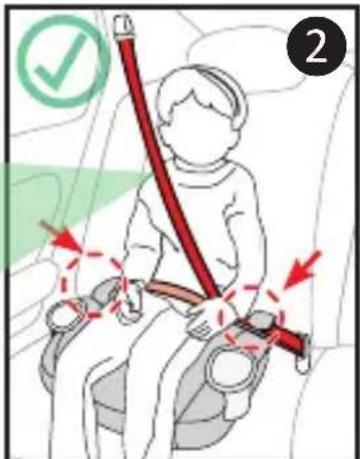

ShoulderbeltMUST

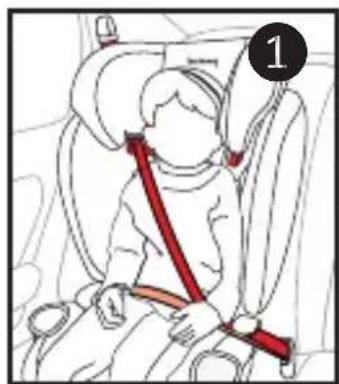

lie across the MIDDLE of the child's shoulder and chest 1, and lap portion MUST be positioned low across child's hips 2

• Child'searsMUST BE BELOW the top of the booster seat (with backrest) 3 or the top of the vehicle seat back/vehicle headrest (without backrest) 4. If tops of ears are above the top of the booster seat or vehicle seat back/vehicle headrest, child is too large for the booster seat.

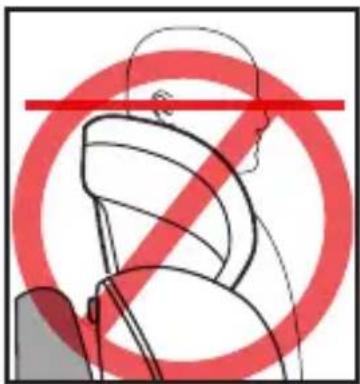

MAXIMUMHEIGHT

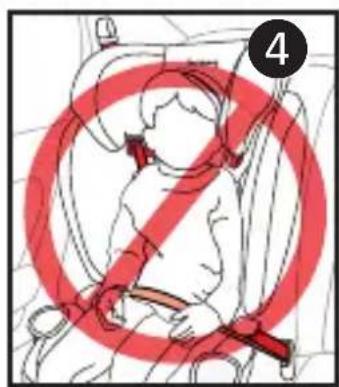

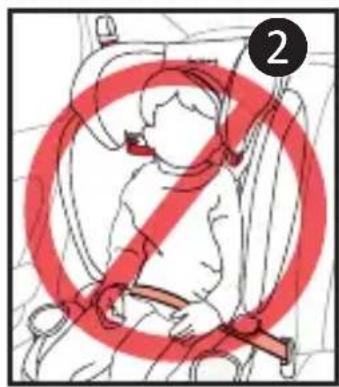

WARNING!

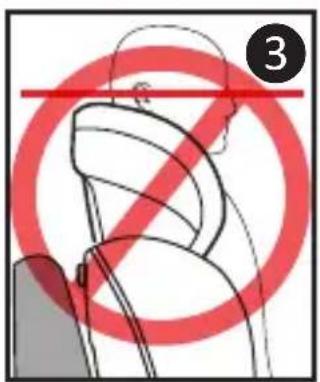

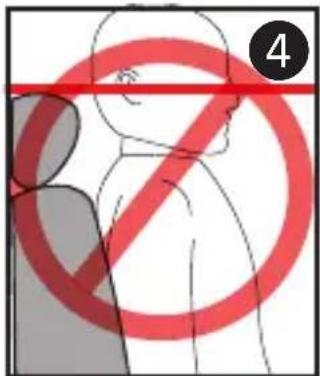

With Back Support: Child is too tall when top of ears (mid-point of child's head) are above the top of the child restraint/booster seat headrest at its maximum height.

Without Back Support: Child is too tall when top of ears (mid-point of child's head) are above the top of the vehicle headrest.

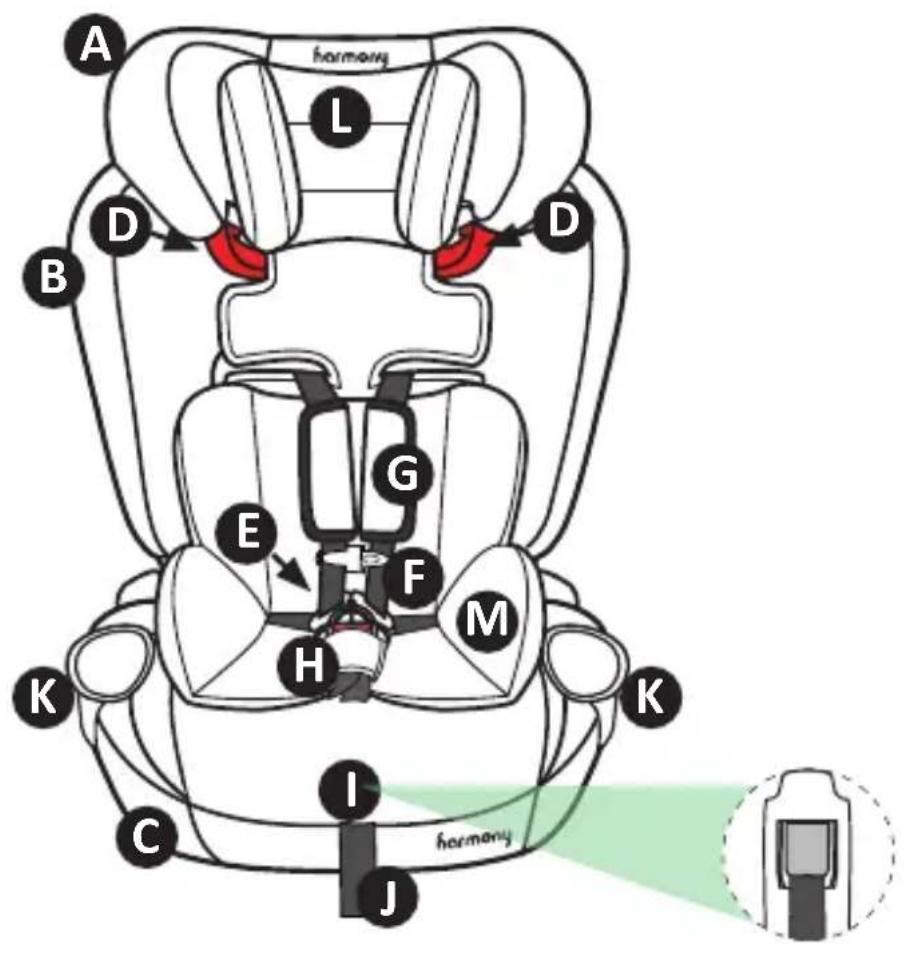

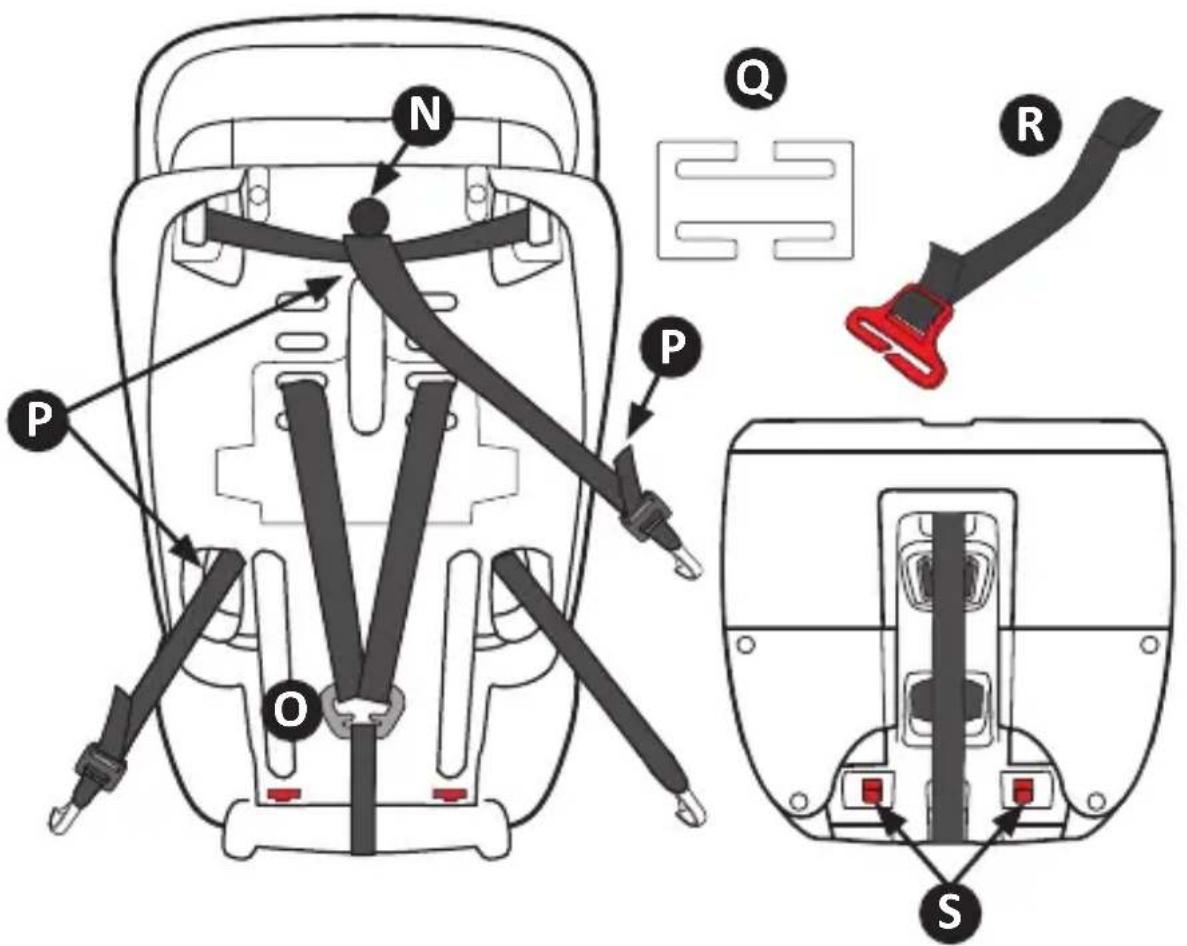

PARTS LIST

A. Headrest fabric cover (pre-installed)
B. Backrest fabric cover (pre-installed)
C. Base fabric cover (pre-installed)
D. Shoulder belt positioning guides
E. Harness straps, buckle and clips
F. Chest clip
G. Shoulder pads
H. Crotch straps and pad
I. Metal up-front harness adjustment button (under fabric seat pad)
J. Up-front harness adjustment strap (under fabric seat pad)
K. Cup holders
L. Head insert cushion (when applicable)
M. Body insert cushion (when applicable)
N. Headrest height adjustment button
O. Harness splitter plate
P. UAS system and Top Tether
Q. Locking clip

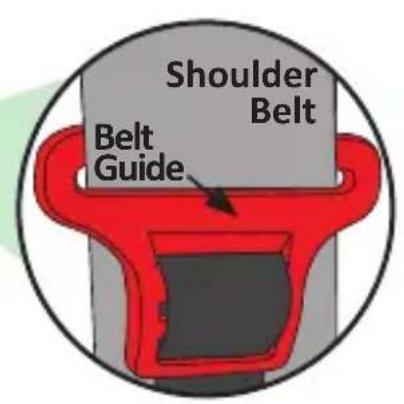

R. Shoulder belt guide
S. Backrest locks (x2)

The seat comes pre-installed with EPE foam in the backrest and base under the fabric seat pad.

TO PURCHASE REPLACEMENT PARTS:

In Canada or the United States, please contact us at www.harmonyjuvenile.com or by calling 1-877-306-1001.

IF YOU HAVE ANY PROBLEMS, PLEASE DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE. PLEASE CONTACT HARMONY CUSTOMER SERVICE AT 1-877-306-1001 OR AT www.HARMONYJUVENILE.COM

PARTS LIST

WARNING!

FAILURE TO PROPERLY SECURE YOUR CHILD AND THE CHILD RESTRAINT IN YOUR VEHICLE INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE EVENT OF A SHARP TURN, SUDDEN STOP OR CRASH.

WARNING!

IMPROPER PLACEMENT OF THE CHILD RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH.

Some seating positions in your vehicle may NOT be safe for this child restraint. Some vehicles have NO seating positions which are compatible with this child restraint due to seating surface, seat belt type and/or airbag system. Read and follow these instructions, and your vehicle owner's manual carefully.

WARNING!

Children aged 13 and under MUST ride in the rear seats, away from front airbags. The only exception is if the airbags are turned off. When using a child restraint in a vehicle with active airbags, refer to the vehicle owner's manual for additional installation instructions and precautions. For rear seat installation, adjust the front seat forward

enough to ensure the child's feet do not hit the backrest of the front seat.

WARNING!

Only use this child restraint in forward-facing vehicle seats. Side-facing or rear-facing seats in vans, station wagons or trucks CANNOT be used.

THE VEHICLE SEAT MUST FACE FORWARD. DO NOT

use the child restraint with the following vehicle seats:

• Seats which face sides of vehicle.
• Seats which face rear of vehicle.
• Rear seats of small extended cab pickup trucks.

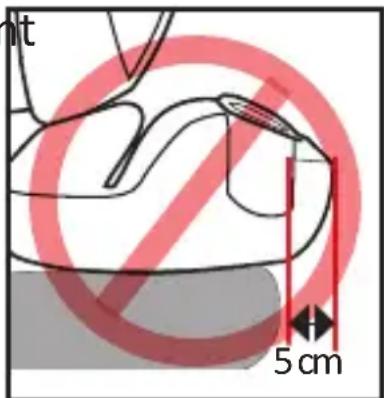

• The front of the child restraint MUST NOT hang over the edge of the vehicle seat by more than 5 cm (2 inches).

Refer to the vehicle owner's manual for child restraint installation instructions for your specific vehicle.

! DO NOT use this child restraint in a seating position where the vehicle seat belt or seat belt buckle is not easily accessible with the child restraint secured in place.

SAFE VEHICLE SEAT BELT SYSTEMS

WARNING!

SEAT BELTS DIFFER FROM VEHICLE TO VEHICLE AND FROM SEATING LOCATION TO SEATING LOCATION WITHIN THE SAME VEHICLE. NOT ALL VEHICLE SEAT BELTS CAN BE USED WITH THIS CHILD RESTRAINT.

You must determine if your vehicle's seat belts are compatible for use with this child restraint. If you are unsure, consult your vehicle owner's manual or call Harmony Juvenile Products.

! This child restraint is suitable for use in the listed vehicles fitted with 3-point with retractor safety-belts (lap-and-shoulder).

Review your vehicle owner's manual for vehicle seat belt use with child restraints.

UNSAFE VEHICLE SEAT BELT SYSTEMS

This child restraint can be installed properly using MOST vehicle 3-point lap-and-shoulder seat belts. However, some vehicle seat belts are not safe to use as their anchoring points for the lap belt may not allow for a secure installation. NEVER use any unsafe vehicle seat belt systems.

DO NOT USE ANY OF THE FOLLOWING VEHICLE SEAT BELT SYSTEMS WITH THIS CHILD RESTRAINT:

! NEVER use a lap-only belt.
NEVER use a non-locking vehicle seat belt (ELR). This seat belt type locks only when the vehicle slows, changes direction or stops suddenly.
NEVER use motor driven automatic seat belts.
NEVER use a vehicle seat belt system where the lap and shoulder belts have independent retractors.
NEVER use a vehicle seat belt system with top or bottom anchorage points attached to the door in any way.
NEVER use lap belts whose anchor points are forward of the seat crease.
NEVER use a seat belt system whose anchor points allow the child restraint to slide from side to side when buckled in.

ASSEMBLING/DISASSEMBLING BACKREST

1. Insert backrest into bas as shown 1.
   2.LockBOTH backrest locks as shown 2.
2. ENSURE THAT BOTH LOCKS ARE FULLY ENGAGED ③.
3. To remove backrest, repeat previous steps in reverse order.

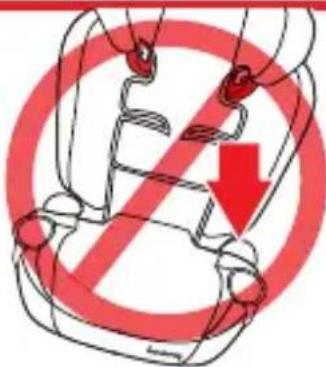

WARNING!

FAILURE TO LOCK BOTH BACKREST LOCKS CAN RESULT IN SERIOUS INJURY OR DEATH.

WARNING!

INCORRECT USE OF THE HARNESSE SYSTEM IS THE MOST COMMON MISTAKE PEOPLE MAKE. IT IS VERY IMPORTANT TO READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS. DO NOT MISTAKE COMFORT FOR SAFETY. THE HARNESSE SYSTEM MUST BE SNUGLY ADJUSTED AT ALL TIMES.

WARNING: The shoulder harness must be EVEN OR SLIGHTLY ABOVE the child's shoulders 1. If the upper most harness position is below the child's shoulders, DO NOT use this child restraint with harness.

! ENSURE the harness height is correct for your child's size. VERIFY OFTEN.

!WARNING: DO NOT use this child restraint if the midpoint of your child's head is above the top of the child restraint's headrest at its maximum height ② .

1. Loosen harness system by pushing the up-front metal harness adjuster at the front of the seat JUST ABOVE the adjustment strap

(under the fabric) 1 and by simultaneously pulling the chest harness straps towards you 2.

1. Face the rear of the child restraint and remove the harness straps from the splitter plate (see “Removing/ installing harness”) ③.
2. Gently pull the straps out from the front harness slots.
3. Select the proper harness slot height and feed the straps back through. ENSURE THAT THE HARNESSTRAPS ARE THREADED AT THE SAME LEVEL, ARE NOT TWISTED AND ARE IN THE CORRECT SLOTS.
4. Reattach the harness straps to the metal splitter plate.

! ENSURE BOTH HARNES STRAPS ARE PROPERLY SECURED ON THE SPLITTER PLATE.

WARNING!

FAILURE TO REINSTALL THE HARNESSTRAPS CORRECTLY COULD RESULT IN SERIOUS INJURY OR DEATH.

REMEMBER to check the shoulder straps position

frequently and move them to the next position when necessary. The harness straps MUST be in the height position EVEN WITH or just ABOVE the shoulders. The harness pads and crotch pads are optional and are not a safety feature.

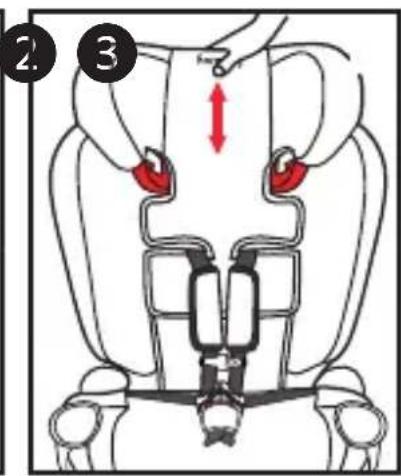

HEADREST HEIGHT ADJUSTMENT

Your child restraint has seven (7) height adjustments.

• Use one hand to press the headrest adjustment button found on the back of the seat 1 while simultaneously pulling the headrest up or down to the desired height with the other hand 2.

Adjust headrest height so that the bottom of the headrest is EVEN with the top of the child's shoulders ③.

INSTALLING CHILD RESTRAINT IN HARNESSE MODE: UAS OR VEHICLE SEAT BELT

You can install the child restraint using EITHER the UAS or vehicle seat belt.

UAS: The lower Universal Anchorage System (UAS) is used for installing the child restraint WITHOUT using the vehicle seat belts.

! The UAS can ONLY be used if your vehicle has the UAS anchors installed and designated UAS seating positions. Check your vehicle owner's manual to see which seating positions may be equipped with UAS.

Vehicle Seat Belts: If UAS is not an option, you MUST use the vehicle's lap-only or lap-and-shoulder belt to install the child restraint in your vehicle.

UAS (UNIVERSAL ANCHORAGE SYSTEM)

If your vehicle is equipped with UAS, the vehicle UAS anchorage points may be visible at the seat crease. If not visible, they may be marked with this symbol.

Check your vehicle owner's manual for your vehicle's exact UAS locations, anchor identifications and usage requirements for use with a child restraint.

Top Tether anchors points

Vehicle seat crease

UAS anchor points

WARNING: CONSULT YOUR VEHICLE OWNER'S MANUAL FOR THE EXACT PLACEMENT OF THESE ELEMENTS IN YOUR VEHICLE, AND FOR MAXIMUM UAS WEIGHT ALLOWANCES PRIOR TO INSTALLATION AS SOME MANUFACTURERS HAVE LOWER MAXIMUM WEIGHT ALLOWANCES FOR UAS USAGE.

INSTALLING WITH UAS SYSTEM

1. Unhook UAS from storage loops For ease of installation, extend UAS to its maximum length. Ensure the UAS strap is NOT twisted and that the UAS connectors are facing down 1.

2. Place the child restraint flush against a forward-facing vehicle seat, centered between the UAS a

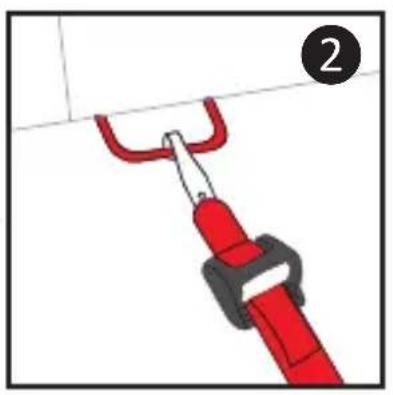

1. Fasten UAS hooks to vehicle lower anchors ensuring the hooks are facing downwards ② . Pull firmly to

be sure that they are attached. BELT MUST LAY FLAT AND NOT BE TWISTED.

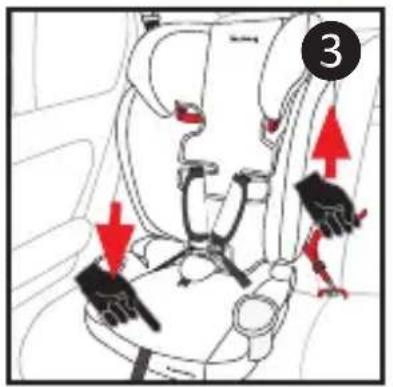

1. Tighten UAS by placing your knee on the child restraint base and by using your full weight to push the child restraint down as you simultaneously pull upwards on the free end of the adjustment belt 3

TIP: If you are not able to tighten UAS using the method above, try pulling the UAS strap up through the belt path (under the fabric) 4, then tighten.

1. Should you need to loosen the UAS, push the UAS release button ⑤.

WARNING: NEVER put two UAS connectors on one vehicle UAS anchor unless specifically allowed by the manufacturer 6.

1. Secure the top of the ch restraint using the Top Tether strap (see "Using Top Tether").

Conduct a safety check for a secure installation (see "Installation safety check"). Perform this test every time you drive with your child and whenever you readjust the child restraint as your child grows.

INSTALLING WITH LAP-AND-SHOULDER

OR LAP-ONLY BELT SYSTEM

If a UAS installation is not an option, then use the following belt-only installation method.

WARNING: UAS must be stored when using the vehicle belt. Secure both UAS hooks to the storage loops on each side of the backrest 1.

1. Place the child restraint flush against the back of a forward-facing vehicle seat.

2. Thread the vehicle seat belt through the belt slot opening and out the other side. See illustrations for proper routing path of Lap-and-Shoulder Belt 2 or Lap-Only Belt 3.

3. Buckle the vehicle seat belt. The vehicle seat belt MUST NOT be twisted.

To engage vehicle seat belt retractor:

1. Pull out the full length of the seat belt (until you cannot pull out any more slack). This locks the retractor.

2. Tighten vehicle seat belt by placing your knee on the seat base and by using your full weight to push the child restraint down 4 as you simultaneously release the extra belt length until seat belt is taught and has no slack 5.

1. The locked seat belt retractor will not allow you to add any length to the belt until you unbuckle the seat belt.

For more information on how to tighten the belt for your seat belt system, see your vehicle owner's manual.
7. Secure the top of the child restraint using the Top Tether strap (see section "Using Top Tether").

USING TOP TETHER

! THE TOP TETHER MUST BE USED AT ALL TIMES WHEN USING CHILD RESTRAINTN IN HARNESSE MODE. Using your child restraint with the Top Tether strap properly anchored to the vehicle, as indicated in these instructions, may reduce the chance and severity of injury or death to your child in the event of a sudden stop or crash.

All UAS seating positions have Top Tether anchors. Check your vehicle owner's manual for Top Tether anchor locations. If your vehicle is not equipped with a Top Tether anchor, it may be possible to have one installed. Contact your vehicle dealership or a certified mechanic for the proper anchor location and installation.

Your vehicle's Top Tether Anchor Points may be identified using one of these symbols:

• Check that the Top Tether is securely attached to the child restraint.
• Fasten Top Tether clip to anchor point ensuring the clip is facing downwards and the strap is not twisted 1.
• With the child restraint installed with the UAS or vehicle seat belt, tighten the Top Tether strap securely by pulling on the free end of the Top Tether strap ② .
• To loosen, press the Top Tether release button 3.

!WARNING: Ensure that Top Tether strap is NOT twisted.

INSTALLATION SAFETY CHECK

Perform this test EVERY TIME you drive with your child and whenever you readjust the child restraint as your child grows:

Rock the child restraint back and forth and side to side to make sure the UAS or vehicle seat belt does not lengthen or loosen, and the child restraint does not move easily 1.

The back of the child restraint (connection point) should not move more than 2.5cm (1 inch) in any direction.

If the child restraint is loose or not properly secured, repeat procedure OR find another location for the child restraint (see "Vehicle seating positions").

INSTALLING LOCKING CLIP

A locking clip is used to prevent certain vehicle seat belts from loosening before a sudden stop or crash. The locking clip can ONLY be used on a vehicle lap-and-shoulder belt. A locking clip will not fix all types of vehicle seat belt problems.

If your vehicle's 3-point lap-and-shoulder seat belt is equipped with an Emergency Locking Retractor (ELR) that is NOT convertible to function as an Automatic Locking Retractor (ALR), then the locking clip MUST be used.

If you have any questions about the specific type of seat belt system in your vehicle and/or its operation, consult your vehicle owner's manual.

• Follow the steps to properly secure vehicle lap-and-shoulder seat belt (see "Installing with lap-and-shoulder or lap-only belt system").

• Once seat belt is attached and properly adjusted, grasp the two straps (lap and shoulder) together as close to the vehicle belt buckle plate as possible. Unbuckle the belt without allowing it to slip.

• Attach the locking clip around both lap and shoulder belts 1.

• Position the locking clip about 2.5cm (1 inch) from vehicle belt's buckle plate.

• Rebuckle belt. Check that the lap belt does not move by pulling hard. If belt loosens or lengthens, repeat the procedure.

Test installation to see if child restraint is secure. The child restraint should NOT be able to move in any direction where it connects to the vehicle. If the child restraint can be moved more than 2.5cm (1 inch) in any direction at the connection point, then unbuckle the seat completely and repeat the steps above until secure (see "Installation safety check"). If you have any questions, please contact Harmony Juvenile Products customer service.

! Store locking clip when not in use.

! DO NOT use locking clip in booster mode.

WARNING!

FAILURE TO FASTEN AND TIGHTEN THE HARNESSE SYSTEM CORRECTLY MAY CAUSE THE CHILD TO BE EJECTED FROM THE RESTRAINT SYSTEM IN CASE OF A SHARP TURN, SUDDEN STOP OR CRASH CAUSING SERIOUS INJURY OR DEATH. In a crash, the child restraint will provide NO protection for your child unless the harness straps are properly secured. DO NOT mistake comfort for safety. Harness system MUST be snugly adjusted. Follow these instructions carefully.

Incorrect use of the harness system is the most common mistake people make. It is VERY important to read, understand and follow ALL instructions and warnings. DO NOT mistake comfort for safety. The harness system MUST be snugly adjusted at all times.
! Snugly adjust the harness provided with this child restraint around your child. A snug strap is one with no slack. It should not press on the child's flesh or cause your child's body to be in an unnatural position. You should only be able to slide ONE FINGER between the shoulder straps and the child's shoulder.
! Avoid unnecessary bulky clothing.

SECURING CHILD IN CHILD RESTRAINT

• Adjust harness height (see "Preparing child restraint

for use").

! INSERT CUSHIONS MUST BE USED FOR CHILDREN UP TO 15.8 KG (35 POUNDS).

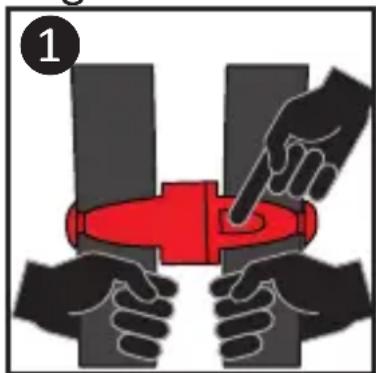

1. Open harness chest clip by pressing the button while pulling apart the two-piece chest clip 1

1. To loosen the harness strap Push the up-front metal harness adjuster at the front of the seat just ABOVE the adjustment strap (under the fabric) ② and simultaneously pull the chest straps towards you ③.

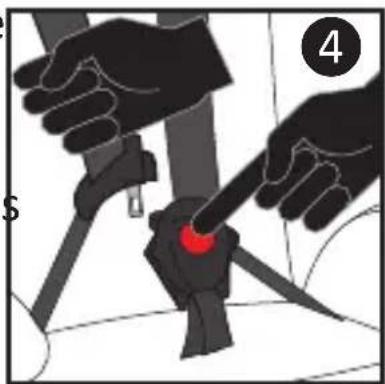

2. Unbuckle harness straps pressing on the RED buckle release button and by pulling the buckle clips out 4. Move harness straps to the side.
3. Place child in child restraint with child's back flat against back of the backrest.
4. Adjust headrest height so that the bottom of the headrest is even with the top of the child's shoulders.
5. Place harness straps over child's shoulders and insert the two-piece buckle clip into buckle until they 'click' into place 5.

I ENSURE that the buckle is properly fastened by gently tugging on it.

!ENSURE that the straps are NOT twisted.

! DO NOT use child restraint if harness does not lock.

1. Re-fasten chest clip 6

2. Tighten harness system by gently pulling on the up-front harness adjuster strap until all slack is removed from the system 7.

! ENSURE straps are flat and snug against child's shoulders and thighs. You should NOT be able to slide more than one finger between the strap and the child's shoulder ⑧ .

A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It should not press the child's flesh or cause your child's body to be in an unnatural position.

1. Position the chest clip at midchest, in line with your child's armpits and away from your child's neck.

! Any straps holding the restraint to the vehicle should be tight, any straps restraining the child should be adjusted to the child's body, and all straps should not be twisted.

REMOVING CHILD FROM CHILD RESTRAINT

1. Open harness chest clip by pressing the button while pulling apart the two piece chest clip.
2. Loosen the harness system by pressing on the up-front metal harness adjuster (under the fabric), and simultaneously pulling the shoulder straps towards you.
3. Unbuckle harness by pressing on the RED buckle release button.

USING CHILD RESTRAINT IN BOOSTER MODE (WITHOUT INTERNAL HARNESS)

REMOVING/INSTALLING HARNESS

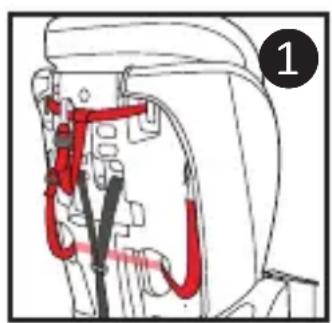

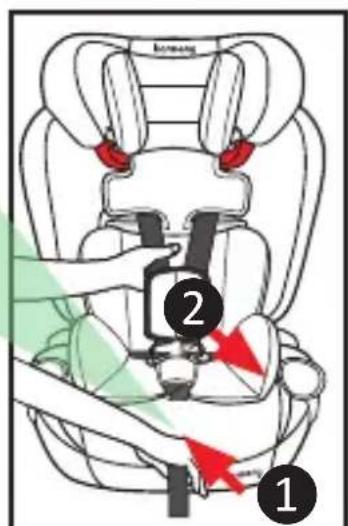

1. Keep the harness buckled. Loosen the harness system by pressing on the up-front metal harness adjuster (under the fabric), and simultaneously pulling the shoulder straps towards you.

2. Face the rear of the child restraint and remove the harness straps from the splitter plate 1.

1. Pull the harness straps out of their respective slots in the backrest 2 and remove shoulder pads and buckle clips.

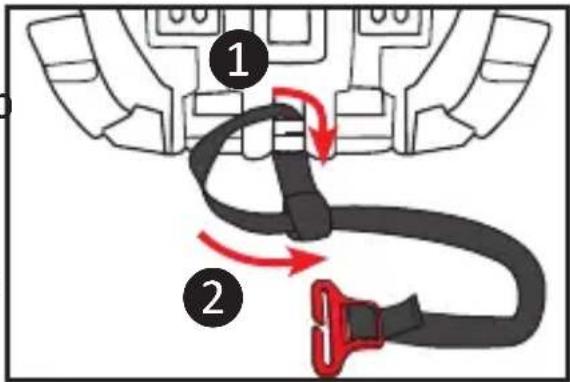

2. Pull one end of the harness strap through the plastic base and completely remove it 3. Replace shoulder pads and buckle clips.

3. Store complete harness system for future use.

4. To remove the crotch buckle, please see section "Removing the crotch buckle".

5. Pull the up-front harness adjustment strap as far as it will go. This will lock the splitter plate into the base of the seat 4.

6. Roll strap tightly,

secure roll with an elastic band and store rolled strap under the fabric seat pad in the opening of the up-front adjuster.

To reinstall, reverse the above steps.

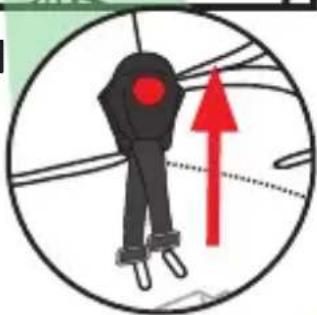

REMOVING THE CROTCH BUCKLE

To remove the crotch buckle:

1. From the underside of the seat base, turn the metal crotch plates so that they can slide through the openings in the seat base 1. Push the metal crotch plates through the seat base and completely remove them 2.

To reinstall, reverse the above steps.

! ENSURE THAT THE METAL CROTCH PLATES ARE COMPLETELY SECURED IN THE SLOTS, AND THE CROTCH STRAPS ARE NOT TWISTED.

WARNING!

FAILURE TO REINSTALL THE CROTCH STRAPS CORRECTLY COULD RESULT IN SERIOUS INJURY OR DEATH.

! ENSURE that the buckle is facing FORWARD ③ .

PREPARING BOOSTER SEAT FOR USE

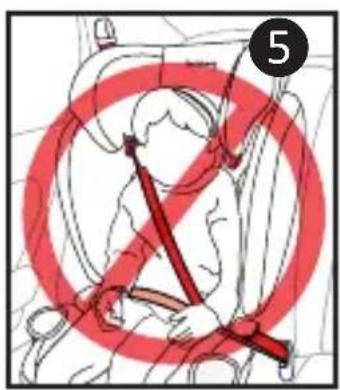

WARNING!

INCORRECT USE OF THE VEHICLE'S 3-POINT LAP-AND-SHOULDER SEAT BELT SYSTEM IS THE MOST COMMON MISTAKE PEOPLE MAKE. IT IS VERY IMPORTANT TO READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS. DO NOT MISTAKE COMFORT FOR SAFETY. THE VEHICLE'S 3-POINT LAP-AND-SHOULDER SEAT BELT MUST BE SNUGLY ADJUSTED AT ALL TIMES.

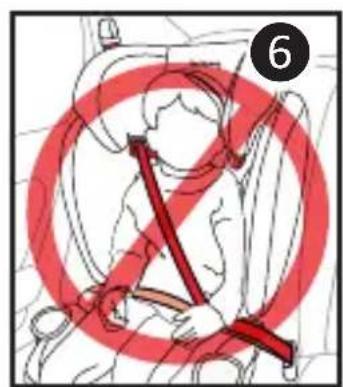

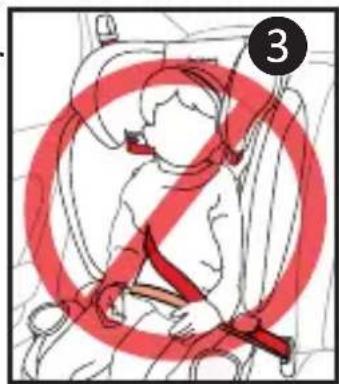

!ENSURE the vehicle shoulder belt's position is correct for your child's size. VERIFY OFTEN.

!WARNING: DO NOT use this booster seat if the midpoint of your child's head is above the top of the booster seat headrest at its maximum height.

WARNING!

!ALWAYS ASSIST YOUR CHILD WHEN GETTING INTO AND OUT OF YOUR CHILD RESTRAINT/BOOSTER SEAT.

! NEVER LET YOUR CHILD LEAN ON THE ARMREST WHEN GETTING INTO OR EXITING THE BOOSTER SEAT TO PREVENT THE SEAT FROM TIPPING.

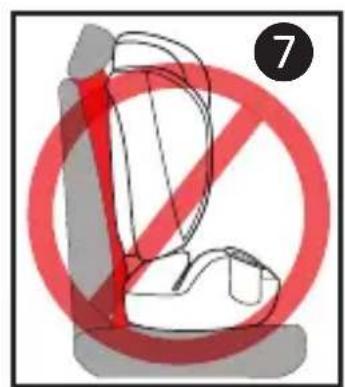

! ENSURE THAT THE BOOSTER SEAT IS LEVEL, STABLE AND DOES NOT ROCK SIDE-TO-SIDE. IF THE BOOSTER SEAT IS NOT STABLE, TRY ANOTHER SEATING LOCATION. IN VEHICLES WITH WIDE, FLAT SEATS, A ROLLED TOWEL CAN BE USED ON THE OUTBOARD (DOOR) SIDE TO ADD STABILITY TO THE BOOSTER SEAT. DO NOT ADD ANYTHING BEHIND OR UNDER THE BOOSTER SEAT.

SECURING CHILD AND BOOSTER SEAT IN VEHICLE

WARNING!

FAILURE TO PROPERLY SECURE YOUR CHILD IN THE BOOSTER SEAT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN THE EVENT OF A SHARP TURN, SUDDEN STOP OR CRASH. In a crash, the booster seat provides NO protection for your child unless the vehicle 3-point lap-and-shoulder belt is properly secured. Follow these instructions carefully to properly secure your child.

!DONOT use this booster seat if it can't be properly leveled, stabilized, and installed as per this instruction manual. It is possible that your vehicle has no suitable seating position for this booster seat due to seating surface, seat belt type and/or airbag system. Read and follow these instructions, and your vehicle owner's manual carefully.

!DONOT use infant inserts in booster mode (when applicable).

WARNING: You MUST use the vehicle 3-point lap-and-shoulder belt when restraining the child in the booster seat. UAS WILL NOT secure your child in the booster seat ① .

WARNING: Vehicle belts MUST be tight, adjusted to the child's body, and should not be twisted 1.

NEVER use a vehicle lap-only belt to secure child in booster seat 2.

! NEVER USE A LOOSE SHOULD BELT.

NEVER position the shoulder belt under the child's arm ③ or place the shoulder belt behind the child's back ④ .

! Lap portion of lap-and-shoulder belt MUST be low and snug across the hips, with the pelvis firmly engaged, just touching the child's thighs. The lap portion MUST NOT be lying across the child's stomach as this can cause major injuries to the child in case of a sharp turn, sudden stop or crash.

! DO NOT allow the child to slouch, slide down in the seat, or create slack in the belt system 5. If child will not keep vehicle belt properly positioned, DO NOT use this booster seat.

! DO NOT position vehicle belt over top of the armrests ⑥.

! The vehicle seat headrest should not create a gap between vehicle seat and booster seat ⑦ . If so, remove the vehicle headrest.

! DO NOT use any load bearing contact points other than those described in the instructions and marked in the child restraint.

IF IN DOUBT ABOUT THESE POINTS OR ANY QUESTIONS RELATED TO INSTALLATION, PLEASE CONTACT HARMONY JUVENILE PRODUCTS.

INSTALLATION - BOOSTER WITH BACKREST

WARNING!

DUE TO VARYING ANGLES OF VEHICLE SEAT BELT RETRACTORS, EXCESS SLACK IN THE VEHICLE BELT SYSTEM MIGHT NOT BE REMOVED AUTOMATICALLY. Once the lap and shoulder portions of the seat belt are properly positioned and the buckle is attached, FEED ANY REMAINING SLACK OF THE SEAT BELT MANUALLY BACK INTO THE RETRACTOR TO TIGHTEN THE WHOLE SYSTEM.

1. Place the booster seat flush against a forward-facing vehicle seat. The vehicle seat MUST be equipped with a 3-point lap-and-shoulder belt. Booster must be level, stable and not rock side-to-side (see "Vehicle seating positions").
2. Place child in the booster seat with child's back flat against the back of the booster seat.

3. Thread shoulder belt portion of the 3-point lap-andshoulder belt system through the shoulder belt guide 1 and ensure that shoulder belt lies across child's shoulder and chest, and NOT across child's face or neck.

4. Thread both sides of the lap belt under BOTH armrests. Thread the lower end of the shoulder belt

under the armrest on the buckle side 2.ENSURE that the belt is snug across the child's hips. It is important to ensure that any low down, so that the pelvis is just touching their thighs and is stomach.

1. Buckle the vehicle seat belt into place and ensure it is secure by gently pulling on it.

! BOTH SIDES OF THE LAP BELT MUST PASS UNDER BOTH ARMRESTS, AND THE LOWER END OF THE SHOULDER BELT MUST PASS UNDER THE ARMREST ON THE BUCKLE SIDE.

! Any straps holding the restraint to the vehicle should be tight, any straps restraining the child should be adjusted to the child's body, and all straps should not be twisted.

! NEVER USE A VEHICLE LAP-ONLY BELT WHEN USING THIS BOOSTER SEAT.

WARNING: To avoid possible entanglement hazard, see "Entanglement with vehicle seat belt".

INSTALLATION - BOOSTER WITHOUT BACKREST

See "Assembling/disassembling backrest" for instructions for removing the backrest.

1. Place the booster seat flush against a forward-facing vehicle seat. The vehicle seat MUST be equipped with a 3-point lap-and-shoulder belt. Booster must be level, stable and not rock side-to-side (see "Vehicle seating positions").

2. Place child on the booster seat with child's back flat against the vehicle seat.

3. Thread both sides of the lap belt under BOTH armrests. Thread the lower end of the shoulder

belt under the armrest on the buckle side ① . ENSURE that the belt is snug across the child's hips. It is important to ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, j thighs and is NOT across their stor

1. Buckle the vehicle seat belt into place and ensure it is secure by gently pulling on it.

! BOTH SIDES OF THE LAP BELT MUST PASS UNDER BOTH ARMRESTS, AND THE LOWER END OF THE SHOULDER BELT MUST PASS UNDER THE ARMREST ON THE BUCKLE SIDE.

! Any straps holding the restraint to the vehicle should be tight, any straps restraining the child should be adjusted to the child's body, and all straps should not be twisted.

! NEVER USE A VEHICLE LAP-ONLY BELT WHEN USING THIS BOOSTER SEAT.

WARNING: To avoid possible entanglement hazard, see "Entanglement with vehicle seat belt".

! THE VEHICLE'S SHOULDER BELT MUST LIE ACROSS THE CHILD'S SHOULDER AND LAY ACROSS THE CHEST - NOT THE FACE OR NECK. If the belt does not lie properly across the child's shoulder and chest, the RED shoulder belt guide ("Parts list - R") MUST be used to ensure proper placement (see "Using shoulder belt guide").

INSTALLING/REMOVING

SHOULDER BELT GUIDE

TO INSTALL:

1. Insert loop end of strap around center bar on rear of seat 1.
2. Pass the red clip and strap through the loop end ② and pull strap tight ③.

It is recommended to store the unused shoulder belt guide along with any other parts from the booster seat for future use.

USING SHOULDER BELT GUIDE

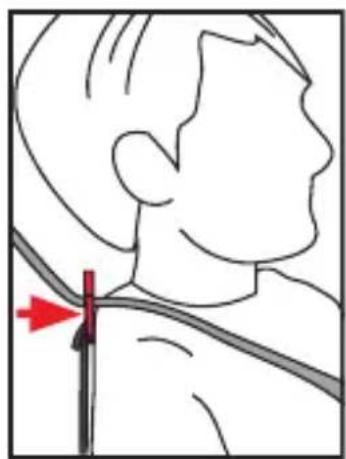

1. Slide the vehicle's shoulder belt into the RED clip ensuring it is flat. Position the belt guide just above the child's shoulder 1.
   ! THE VEHICLE'S SHOULDER BELT MUST LIE ACROSS THE CHILD'S SHOULDER.
   ! All straps MUST be tight and NOT twisted. ALL slack MUST be removed from lap and shoulder portions of the vehicle belt to ensure a snug fit. THE LAP BELT PORTION MUST PASS UNDER BOTH ARMRESTS AND BE POSITIONED LOW ON THE HIPS.

ENTANGLEMENT WITH VEHICLE SEAT BELT

WARNING: To avoid possible entanglement and choking with your vehicle's shoulder belts, Harmony Juvenile Products recommends that the following precautions are taken when installing your booster seat:

1. Pull the shoulder portion of the vehicle seat belt all the way out until the retractor locks.
   2.SLOWLY let the seat belt retract until it is snug against your child.
2. ENSURE that the seat belts do not press on the child's flesh or push the child's body into an unnatural position.
3. Do the same for all unused vehicle seat belts.

! Teach your child that seat belts are not toys and should NEVER be played with, regardless of whether the car is in motion or not.
! ALWAYS be aware of what your children are doing in the back seat.

USING CUP HOLDERS

TO INSTALL:

1. Slide cup holder into respective slot 1 2 on either side and push down until locked in place.

TO REMOVE:

1. Pull cup holder upwards.

AIRCRAFT INSTALLATION

This child restraint is certified for use in aircraft ONLY when used WITH the harness.

This child restraint is NOT CERTIFIED for aircraft use when used as a booster WITHOUT the harness.

IMPORTANT POINTS TO REMEMBER:

1. Contact your airline before using this child restraint on the aircraft in order to comply with their restrictions and regulations.
2. Install this child restraint on an aircraft in the same way it is installed in an automobile with a lap belt.
3. Check that the aircraft seat belt holds the child restraint securely in place at all times. If it does not, DO NOT use this child restraint.

INSTRUCTION MANUAL STORAGE

We recommend that you store your instruction manual under the fabric on the side of the child restraint.

REMOVING/INSTALLING FABRIC SEAT COVER

Headrest:

Gently pull the elastic sides up and over the headrest 1.

Backrest:

• Remove the harness (see "Removing/installing harness").
• Unhook the elastic loops found at the top (x2) ② of the backrest behind the seat. Detach backrest

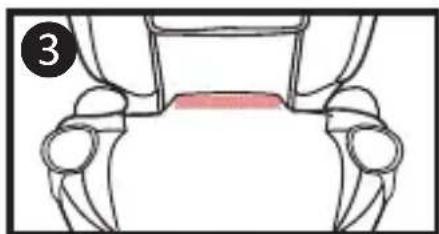

fabric from base fabric by unfastening hook-and-loop strip 3. Gently slide the pad downwards and remove.

Base:

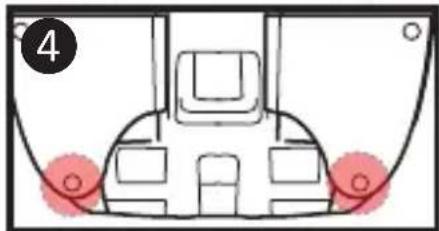

Unhook the elastic loops found under the base toward the back of seat (x2) 4. With both cup holders removed, unhook the elastic loops (x4) found inside both cup holder slots on top of the base 5. Gently pull the elastic sides of seat pad up and over the seat base and remove.

TO INSTALL:

To reinstall fabric pads, repeat previous steps in reverse order.

CARE AND MAINTENANCE

CLEANING YOUR SEAT PAD:

• MACHINE WASH SEPARATELY using cold water - delicate cycle.
  DO NOT BLEACH.
• DRIP DRY to prevent cover from shrinking.

!DO NOT wash EPE foam pad insert under seat pad.

CLEANING THE PLASTIC SHELL:

• SPONGE CLEAN using warm water and mild soap.
• TOWEL DRY.
• DO NOT use solvents, abrasive cleaners, or disassemble child restraint in any way, except as instructed.

CLEANING HARNES AND UAS STRAPS:

• Spot clean with a damp cloth. DO NOT BLEACH. DO NOT immerse the straps in water. Doing so may weaken the straps.

CLEANING METAL AND PLASTIC HARNESS PARTS:

• Use mild soap and cool water on a damp cloth.

! NEVER lubricate the buckle. If buckle or harness adjuster sticks or will not remain tight, check for foreign objects such as food, dirt, etc. Remove objects

with tweezers and/or clean with a cotton swab. If you cannot get the harness to remain tight with the buckle securely locked, DO NOT USE this child restraint. Call Harmony Juvenile Products to purchase a replacement harness or buckle.

WARRANTY

This child restraint was manufactured by Harmony® Juvenile Products (HJP). HJP warrants this product to the original retail purchaser as follows:

LIMITED 1-YEAR WARRANTY

This child restraint is warranted against defective materials and workmanship for ONE (1) YEAR from the date of original purchase. An original receipt is required to validate your warranty. HJP will, at its option, provide replacement parts for this product or replace this product. HJP reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions.

To make a claim under this warranty, you must contact HJP Customer Service at www.harmonyjuvenile.com, or call 1-877-306-1001, or write to 2450 Cohen Street, Montreal, Quebec, Canada, H4R 2N6.

Proof of purchase is required and shipping charges are the responsibility of the consumer.

WARRANTY LIMITATIONS

This warranty does not include:

1. Damages which arise from negligence, misuse, or use not in accordance with this instruction manual.
2. Damage and wear arising from excessive stress.
3. Replacement of fabric as a result of natural wear or fading of the fabric as a result of exposure to the sun or UV radiation.

The use of non-Harmony branded covers, inserts, toys, accessories or tightening devices is not approved by HJP.

Their use could cause this child restraint to fail federal safety standards or perform worse in a crash. Their use automatically voids the HJP warranty.

LIMITATIONS OF DAMAGES

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, expressed or implied. In no event will HJP or the retailer selling this product be liable to you for any damages, including incidental or consequential damages, or loss of use arising out of the use or inability to use this product.

PLEASE REGISTER THIS CHILD RESTRAINT WITHIN 30 DAYS OF PURCHASE TO EXPEDITE WARRANTY CLAIMS AND TO VERIFY ORIGINAL DATE OF PURCHASE.

harmony®

OPTYMA SIÈGE D'AUTO DE LUXE 3-EN-1 MANUEL D'INSTRUCTIONS

Harmony Juvenile Products

Site web: www.harmonyjuvenile.com

Adresse postale: 2450 rue Cohen Montreal, Quebec, Canada H4R 2N6

Telephone: [phone]

TABLE DES MATIÈRES

Harmony Juvenile Products

2450 rue Cohen

Montréal, Québec, H4R 2N6 Canada

RANGEMENT DU MANUEL D'INSTRUCTIONS
