Technical Specifications	Connected robot vacuum cleaner, LaserSmart navigation technology, suction power of 2000 Pa, compatible with voice assistants.
Battery Life	Up to 120 minutes of runtime on a single charge.
Dustbin Capacity	0.7-liter dustbin for collecting dust and debris.
Dimensions	Dimensions: 32.5 cm diameter, 10 cm height.
Weight	Weight: 3.5 kg.
Usage	Programmable via mobile app, remote cleaning, customizable cleaning modes.
Maintenance	Washable filters, brushes easy to remove for regular cleaning.
Safety	Obstacle detection, fall protection, automatic shut-off in case of overheating.
General Information	Compatible with hard floors and carpets, 2-year warranty, customer service available.

Frequently Asked Questions - Botvac D6 Connected Neato Robotics

Why won\u0027t my Neato Botvac D6 start?

Check that the vacuum is fully charged. Make sure the charging station is plugged in and the cable is in good condition. If the vacuum still doesn\u0027t respond, reset it by unplugging it for 10 seconds.

How do I reset my Neato Botvac D6?

To reset your Botvac D6, hold down the "Start" button for 10 seconds until the screen turns off and back on.

My vacuum won\u0027t return to its charging station, what should I do?

Check that the charging station is clean and clear. Make sure it\u0027s placed against a wall and no objects are blocking access. Try restarting the vacuum.

How do I clean the brushes on my Neato Botvac D6?

To clean the brushes, remove them from the vacuum following the manual\u0027s instructions. Remove hair and debris using scissors or your fingers, then rinse with water if necessary.

Why doesn\u0027t my vacuum detect dirty areas?

Make sure the "Cleaning Zone" feature is enabled in the Neato app. If the problem persists, try cleaning the vacuum\u0027s sensors.

How do I update the software on my Neato Botvac D6?

Open the Neato app on your smartphone, connect to your vacuum, and follow the instructions to check for and install available software updates.

What should I do if my Botvac D6 is making noise?

Excessive noise may indicate a problem with the brushes or a stuck debris. Check the brushes and dust compartment for any blocking objects.

How do I extend the battery life?

To extend battery life, avoid leaving the vacuum plugged in constantly. Use it regularly and clean the battery and charging station contacts.

My vacuum won\u0027t connect to Wi-Fi, what should I do?

Check that the Wi-Fi password is correct and the network is stable. Try resetting the Wi-Fi connection in the Neato app and restarting the vacuum.

How do I empty the dustbin?

Remove the dustbin from the vacuum, open it over a trash can, and empty it. Make sure to put it back correctly before restarting the vacuum.

USER MANUAL Botvac D6 Connected Neato Robotics

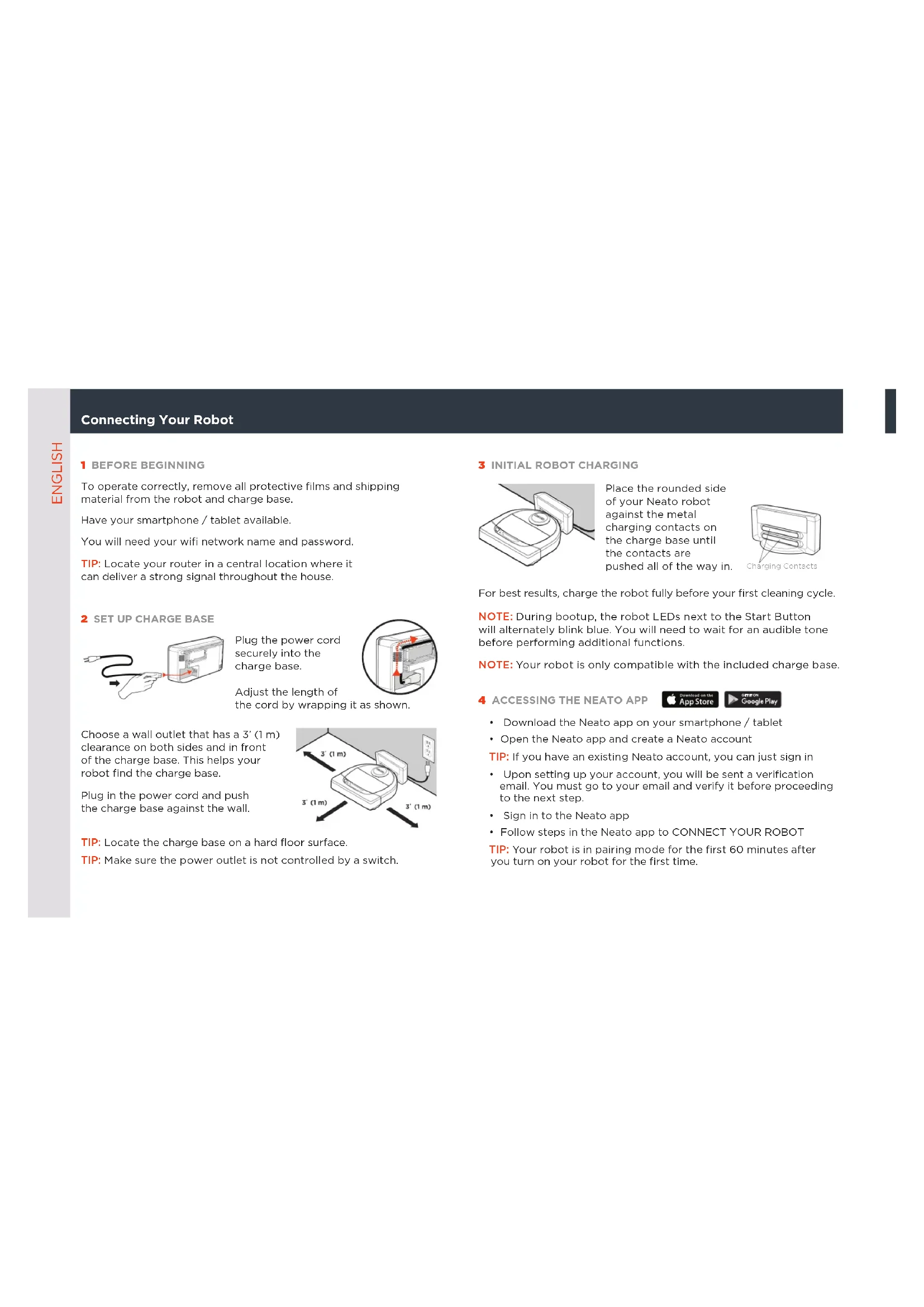

Connecting Your Robot

1 BEFORE BEGINNING

To operate correctly, remove all protective films and shipping material from the robot and charge base.

Have your smartphone / tablet available.

You will need your wifi network name and password.

TIP: Locate your router in a central location where it can deliver a strong signal throughout the house.

2 SET UP CHARGE BASE

Plug the power cord securely into the charge base.

Adjust the length of the cord by wrapping it as shown.

Choose a wall outlet that has a 3' (1 m) clearance on both sides and in front of the charge base. This helps your robot find the charge base.

Plug in the power cord and push the charge base against the wall.

3' (1 m) 3' (1 m) 3' (1 m)

TIP: Locate the charge base on a hard floor surface.

TIP: Make sure the power outlet is not controlled by a switch.

3 INITIAL ROBOT CHARGING

Place the rounded side of your Neato robot against the metal charging contacts on the charge base until the contacts are pushed all of the way in.

For best results, charge the robot fully before your first cleaning cycle.

NOTE: During bootup, the robot LEDs next to the Start Button will alternately blink blue. You will need to wait for an audible tone before performing additional functions.

NOTE: Your robot is only compatible with the included charge base.

4 ACCESSING THE NEATO APP

• Download the Neato app on your smartphone / tablet
• Open the Neato app and create a Neato account

TIP: If you have an existing Neato account, you can just sign in

• Upon setting up your account, you will be sent a verification email. You must go to your email and verify it before proceeding to the next step.
  • Sign in to the Neato app
• Follow steps in the Neato app to CONNECT YOUR ROBOT

TIP: Your robot is in pairing mode for the first 60 minutes after you turn on your robot for the first time.

Troubleshoot Pairing Issues Start Using Your Robot

If you are not able to connect your robot, you may need to restart the pairing mode. Follow these steps:

- Press and hold the Start Button and Right Side Bumper for 10 seconds to turn robot off.

Start Button Right Side Bumper

• Press the Start Button again to turn robot on. The Info indicator i will be slow blinking blue showing the robot is in pairing mode.
• Follow steps in the Neato app to CONNECT YOUR ROBOT.

During pairing the Info indicator will change based on the connection status:

INDICATOR COLOR WHAT IT MEANS

Very Slow Blinking Blue Robot is in Pairing Mode

Fast Blinking Blue Pairing to Neato app/account

Solid Blue Pairing successful (shows for 5 seconds)

Solid Red Pairing unsuccessful (shows for 5 seconds)

NOTE: If you've already paired, Fest Blinking Blue means the robot has lost connection. The robot could be out of range, your Wi-Fi network may be down, or another Wi-Fi issue may have occurred. If out of range, the robot will automatically reconnect when it comes back within range. Otherwise, check your router to make sure it's operating normally.

Use the Neato app to start using your robot, or press the Start Button on the robot.

TIP: Before the robot starts to vacuum, pick up items that could become tangled, such as cables, socks, and shoelaces. Tuck fringes under rugs

	ACTION INFO INDICATOR
Start Cleaning Press start button one time for a full house cleaningPress start button two times for a spot cleaning Solid White		Solid Blue
Pause/Resume Cleaning	Press Start Button during cleaning to pause robot.Press Start Button again to resume cleaning.	It will blinkIt will blink
Cancel Cleaning Press & hold Start Button for 5 seconds Robot and lightsturn off and robot plays a tone.

NOTE: Spot, cleaning lets you clean a small 7 feet by 7 feet area.

NOTE: If the lights are blinking red or are solid red, your robot may need maintenance. Please refer to the online user guide or call the customer service number.

FloorPlanner™ with No-Go Lines

FireHunter AIR AND LINE

Use the Neato app and the FloorPlanner map of your home to set up virtual boundaries called No-Go Lines so you can tell the robot where not to go.

To set up virtual No-Go Lines, please be sure that the Neato App is installed on your selected device, then follow the next steps:

Launch the Neato App and tap the "Tri-Bar" symbol in the left upper corner.

Select the "MY FLOOR PLAN" option.

MY FLOOR PLAN Edit floor plan

Tap the "Get Started" button and follow the instructions to allow the robot to do a special cleaning run to create a floor map.

Once the cleaning is complete, you'll be notified that the robot has created your new floor plan. Give the new floor plan a name and save.

Architectural floor plan with room layouts and a red marker, no visible text or labels

Tap the "ADD NO-GO LINE" icon and draw your boundary line directly on the map.

Continue tapping the "ADD NO-GO LINE" button to create multiple boundary lines.

TIP: Draw No-Go Lines more accurately by zooming into the floor plan. Double tap or use the pinch gesture to zoom. Ensure there are no gaps in the boundaries created with the No-Go Lines.

No-Go Lines Seven

To clean with No-Go lines, only use the app to start your robot

DK

When finished setting your boundaries, tap the "Save" icon to store your floor plan with virtual No-Go Lines added

A confirmation prompt will appear, letting you know that "No-Go" lines have been saved.

Once saved, your new floor plan with virtual No-Go Lines will become your default map, and be utilized for future cleaning events.

NOTE: Botvac D4 can only store one floor plan at a time and accompanying virtual No-Go Lines.

NOTE: Botvac D6 can store more than one floor plan and accompanying virtual No-Go Lines. To clean with No-Go Lines, the robot must be started from a charge base on each floor. It is recommended to have additional charge bases (sold separately) for each floor plan.

Cleaning with No-Go Lines

To clean with No-Go Lines enabled, the robot must start from the charge base and the cleaning must be initiated from the Neato app. Press the Start button on the app, or schedule a cleaning on the app.

NOTE:

• After each cleaning, tap the 📋, to see a Cleaning Summary which shows where the robot has cleaned on the coverage map.
• To use No-Go Lines, the charge base must stay in the original location where the floor plan was created.
• If cleaning is initiated using the Start button on the robot, Amazon Alexa, Google Home, Chatbots, or IFTTT, it will not adhere to the No-Go Lines boundaries.

Accessories

You can find information about accessories and replacement parts for your Neato robot at NeatoRobotics.com.

Always purchase Neato Genuine accessories and parts:

• Batteries
• Filters
• Brushes
  • Boundary Markers
• Cleaning Tool
• Dirt Bin
• Charge Base

Using unauthorized or 3rd party accessories (non-Neato Genuine) can damage your robot and will void your warranty.

Recommended replacement schedule depends on use.

• Filters - every 1 to 2 months
- Batteries – every 12 to 18 months

Need Assistance?

User guide can be found at www.NeatoRobotics.com/UG

Watch How-To Video here www.NeatoRobotics.com/support

Go to www.NeatoRobotics.com/support for a contact phone number in your area

Email [e-mail]
