Technical specifications	Gas barbecue with 3 stainless steel burners, total power of 9.6 kW, cooking surface of 3,300 cm8.
Dimensions	Dimensions of 145 x 55 x 110 cm (L x W x H).
Weight	Weight of 45 kg.
Usage	Ideal for cooking meat, vegetables, and fish, with electronic ignition for easy use.
Materials	Construction in enameled steel and stainless steel for increased durability.
Maintenance	Regular cleaning of grills and burners is recommended after each use.
Safety	Equipped with safety devices to prevent gas leaks.
Included accessories	Cooking grills, grease collection tray.
Warranty	2-year warranty on parts.
General information	Compatible with gas bottles from 5 to 13 kg, recommended to use a suitable regulator.

Frequently Asked Questions - Meridian 3 CADAC

How do you light the CADAC Meridian 3 barbecue?

To light the barbecue, open the lid, open the gas valve, then use a lighter to ignite the burner. Make sure to follow safety instructions.

How do you clean the barbecue after use?

Let the barbecue cool down, then remove the grills and grease trays. Clean them with warm soapy water and a brush. Wipe the inside with a damp cloth.

What is the cooking capacity of the CADAC Meridian 3?

The CADAC Meridian 3 can cook up to 6 to 8 hamburgers or 12 to 14 sausages simultaneously, depending on the size of the food.

Can the barbecue be used indoors?

No, the CADAC Meridian 3 is designed for outdoor use only. Do not use it in enclosed spaces to avoid the risk of carbon monoxide poisoning.

How do you adjust the temperature of the barbecue?

The temperature can be adjusted by turning the gas valve. For higher temperatures, open the valve more. For gentler cooking, reduce the flow.

What size gas bottle is compatible with the CADAC Meridian 3?

The barbecue is compatible with gas bottles from 5 kg to 13 kg. Make sure the bottle is properly connected and in good condition.

What should you do if the barbecue does not light?

Check that the gas bottle is full and properly connected. Make sure the gas valve is open. If the problem persists, consult the user manual for further troubleshooting.

Is it possible to replace the grills of the CADAC Meridian 3?

Yes, the grills can be replaced. Contact CADAC customer service to order compatible spare parts.

Is the barbecue portable?

Yes, the CADAC Meridian 3 is designed to be portable, with wheels and a lightweight structure that make transport easy.

What is the product warranty?

The CADAC Meridian 3 is generally covered by a 2-year warranty against manufacturing defects. Check the specific conditions in the user manual.

USER MANUAL Meridian 3 CADAC

CAUTION Provide ample ventilation. This gas appliance consumes air (oxygen). Do not use this appliance in an unventilated space to avoid endangering your life. If still more gas appliances and/or occupants using gas are added to the space, additional ventilation must be provided. IMPORTANT Read these instructions carefully so as to familiarise yourself with the appliance before ting the appliance to a gas cylinder. Retain these instructions for future reference.

• This appliance complies with EN 498:2012, EN 484:2019 and SANS 1539:2017.

• This appliance may only be used with an approved hose and regulator (A 2.8kPa hose and regulator supplied with this unit in South Africa)

• The gas cylinder is to be used in the upright position.

• Only to be used with a gas cylinder that does not exceed 500mm in height(Regulator is included) and 400 mm in width.

• Gas appliances require ventilation for efcient performance and to ensure the safety of users and other persons in close proximity.

• Warning: Accessible parts may be very hot. Keep young children away.

• After use, turn off the gas supply at the cylinder, and then at the control knobs.

• When using a pot, the minimum recommended pot size is 150mm and maximum recommended size is 300mm.

• Use outdoors only! Country of use DK, FI, NO, NL, SE, AT, SI BE, ES, FR, IE, IT, PT, GB, CH

• The hose and seal on the regulator must be checked for wear or damage before every use and before connecting to the gas cylinder.

• Ensure the appliance is used away from ammable materials. Minimum safe distances are 1.2m above the appliance and 600mm to the rear and sides of the appliance.

• Do not use an appliance that is damaged, leaking, or which does not operate properly.

• Keep gas cylinders away from heat and ames. Do not place on a stove or any other hot surface.

• Ensure that the assembled unit is stable and does not rock.

• Do not cover or change the primary air supply openings in the burners as this will affect the performance of the product and may lead to an unstable ame.

• In the event of burn back, (where the ame burns back and ignites at the jet), immediately turn off the gas supply by rst closing the control valve on the gas cylinder and then the appliance valve. After the ame is extinguished remove the regulator and check the condition of its seal. Replace the seal if in doubt. Re-light the appliance as described in Section 3 below. Should the ame light back persistently return the product to your authorized CADAC repair agent.

• If there is a leak on your appliance (smell of gas), immediately close the control knob on the gas cylinder. If you wish to check for leaks on your appliance, do it outside. Do not try to detect leaks using a ame; use soapy water.

• The correct way is to smear the joints with soapy water. If a bubble or bubbles form then there is a gas leak. Immediately turn off the gas supply rstly by closing the control valve on the gas container and then the appliance valve. Check that all the connections are properly tted. Re-check with soapy water. If a gas leak persists, return the product to your CADAC dealer for inspection / repair.

• Do not modify the appliance or use it for anything which it has not been designed for.

• During use, part of the appliance will become hot, particularly the cooking areas and the hood. Avoid touching hot parts with your bare hands. The use of oven gloves is recommended.

• Keep young children away from the appliance at all times.

• This appliance consumes oxygen and needs ventilation for optimum performance and for the safety of those in close proximity.

• Do not move the appliance while in use.

• The parts sealed by the manufacturer or its agent must not be altered by the user. NOTE

• Do not twist or pinch the hose. Ensure that it is kept away from the BBQ body so as to prevent deterioration/damage to the hose caused by heat.

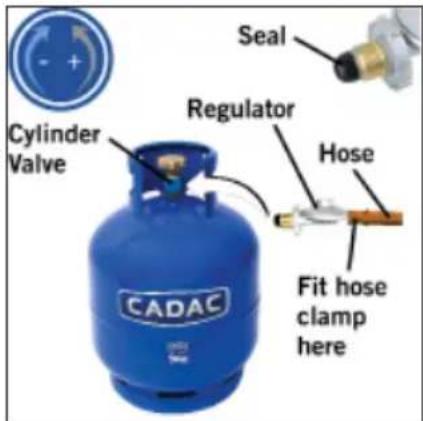

• Fit one end of the low pressure hose onto the regulator nozzle, and the other end onto the Patio BBQ nozzle by pushing the ends on as rmly as possible. Clamp into position using a hose clamp at both ends of the hose.

• Ensure that the connections are made securely and do not allow gas to leak.

• Check for gas leaks before using the appliance.

• For use with an approved hose and regulator connected to a rellable gas container not exceeding 9kg and complying with local regulation in force.

• Do not obstruct the ventilation openings of the cabinet.

• Do not modify the appliance. Modifying the appliance may be dangerous.

• Warning: Since this barbecue has no restriction in the emission of unburned gas, this barbecue must be installed and/or used OUTDOORS or in an AMPLY VENTILATED AREA. Ensure this BBQ is installed in an AMPLY VENTILATED AREA, the area must have at least 25% of the surface(sum of the walls surface) area open.

• Do not move the appliance during use.

• Any modication of the appliance may be dangerous.

• Warning: An LP cylinder not connected for use, shall not be stored in the vicinity of this or any other appliance. GB33

4. Fitting and Changing the Gas Cylinder

• Before connecting the appliance to a gas cylinder, ensure that the rubber seal on the regulator is in position and in good condition.

• Carry out this check each time you t the appliance to a gas cylinder.

• Blow out any dust from the cylinder opening to prevent possible blockage of the jet.

• Ensure that the appliance valves are in the off position by turning the knobs fully clockwise to their stop.

• Ensure that the gas cylinder is tted or changed in a well-ventilated location, preferably outdoors, away from any source of ignition, such as naked ames and away from other people.

• Make sure that the gas cylinder is kept upright at all times. Hand tighten the regulator onto the cylinder until it is fully engaged.

• If there is a leak on your appliance (smell of gas), extinguish all sources of ignition in the vicinity of the appliance. If you wish to check for leaks on your appliance, use soapy water which is applied to the suspected area. A formation of bubbles will indicate a gas leak. Check that all the connections are securely tted and re-check with soapy water. If you cannot rectify the gas leak, do not use the appliance. Contact your local CADAC stockist for assistance.

• When changing a gas cylinder, rst close the cylinder valve and then the appliance valve, making sure the ame is extinguished and unscrew the regulator. Re-t the regulator to a full cylinder following the same precautions as described above.

• After the appliance has been fully assembled, perform a gas leak test before operating the appliance.

• Make sure that the gas cylinder is kept upright at all times. Hand tighten the regulator onto the cylinder until it is fully engaged.

• If there is a leak on your appliance (smell of gas), extinguish all sources of ignition in the vicinity of the appliance. If you wish to check for leaks on your appliance, use soapy water which is applied to the suspected area. A formation of bubbles will indicate a gas leak. Check that all the connections are securely tted and re-check with soapy water. If you cannot rectify the gas leak, do not use the appliance. Contact your local CADAC stockist for assistance.

• When changing a gas cylinder, rst close the cylinder valve and then the appliance valve, making sure the ame is extinguished and unscrew the regulator. Re-t the regulator to a full cylinder following the same precautions as described above.

• After the appliance has been fully assembled, perform a gas leak test before operating the appliance.

3. Assembly Instructions

• Place the cylinder inside the cabinet in the space provided.

• Use this appliance only on a rm level surface.

• Before use ensure that the drip cup is in place.

• Make sure the gas cylinder is correctly tted to the appliance.

• Ensure the cylinder control valve is in the open position.

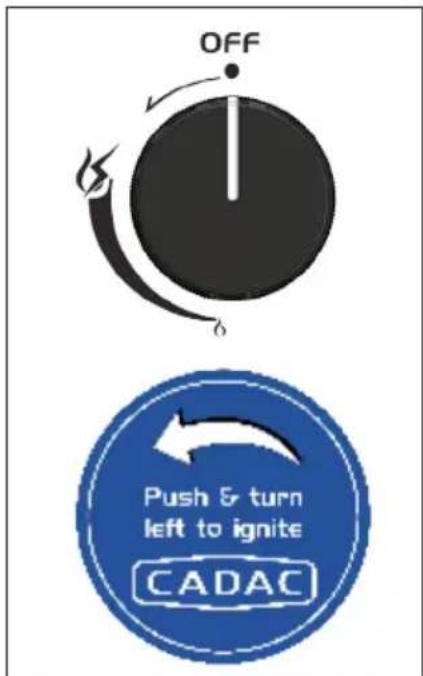

• To light the appliance using the automatic igniter, push in and turn the control knob in an anti-clockwise direction until spring resistance is felt. Hold the knob in this position for 3 – 5 seconds to allow the gas to ow and then turn the knob fully anti-clockwise to the HIGH position. This will cause the automatic lighter to light the burner. Should the burner not ignite the rst time, turn the control knob to the OFF position and wait 5 minutes, repeat the process until the burner ignites.

• Note! All burners are tted with an automatic igniter.

• Cross lighting: To light the burners using cross lighting, light the left burner as described above.

• To light the remainder of the burners, simply turn their control knobs to the HIGH position while ensuring that the lighting sequence is such that any burner to be lit up is directly adjacent to a burner which is already burning.

• Manual ignition: To light the burners manually, rst remove the cast iron grill plate and the deector plate directly underneath it. Ignite a match or relighter and position it next to the left hand burner. Turn on the gas supply to that burner only by pushing the control valve in and turning it in an anti-clockwise direction. This will ignite the burner. Once the burner is ignited, carefully replace the deector plate and cast iron grill plate. You will now be able to light the remainder of the burners as described in ‘Cross lighting’ above.

• Use the control knobs to adjust the individual burner ame intensity to the desired level by turning the knob anti-clockwise to decrease the ame and clockwise to increase it.

• After use, rst close the valve on the gas cylinder. When the ame is extinguished, close the burner control valves on the appliance by turning control knobs fully clockwise.

5. General Maintenance

• There are no predetermined maintenance intervals for this appliance.

• It is dangerous to use an appliance with a cracked or perished seal and/or hose. Inspect both seals and hose regularly and replace if they are not in order before using the appliance.

• If the appliance was in use it will be hot. Allow to cool sufciently before attempting any maintenance.

• CADAC Patio BBQ’s are tted with specic CADAC jets to regulate the correct amount of gas. Should the hole in the jet become blocked this may result in a small ame or no ame at all. Do not attempt to clean the Jet with a pin or other such device as this may damage the orice, which could make the appliance unsafe. Refer to Table 1 for jet sizes. Replacing a blocked jet

• Ensure that the cylinder valve is closed, then disconnect the appliance from the gas cylinder.

• Remove the grill plates. Remove the ame tamers to expose the burners. Remove the retaining screws of the affected burner.

• Remove the affected burner by lifting it out of its location taking care not to damage the control valve whilst doing so. This will expose the jet.

• Unscrew the blocked Jet with a suitable spanner and replace it with a new Jet. Do not use pliers on the Jet as they can cause damage, making the Jet unusable or impossible to remove.

• Do not over tighten as this may damage the Jet. To re-assemble, reverse the above procedure. GB44

• A normal ame is blue and may have an orange or yellow tip. If the ame is completely yellow, it may be that the jet is not securely tted. Re-tighten the jet to ensure there is no gas leakage. An overlled gas cylinder can also cause large yellow ames. If this is the case the cylinder should be returned to the lling station and checked by weight.

• Check that the primary air supply apertures (holes) in the Burners are clear and free of obstructions.

• If the ame power drops or the gas will not light, check that the gas cylinder still contains gas (shake to hear the noise made by a liquid). If there is still gas, the jet might have become blocked or partially blocked.

• If you suspect a blocked jet, follow the instructions above.

• Check for spider webs or insect nests in the gas tube or primary air inlet.

• To clean the body, simply wipe with a damp cloth using a little detergent if necessary.

• Do not use abrasive cleaners or scourers as this will cause permanent damage to the painted surface.

• Even though stainless steel is remarkably resistant to tarnish and rust relative to ordinary steels, it still requires proper care. We recommend the following:

• After use, clean the stainless steel surfaces with clean water and a soft cloth for light cleaning, while a commercially available stainless steel cleaner with a soft cloth should be used for tougher areas. Ensure that you remove all excess stainless steel cleaner after cleaning your BBQ.

• To repair minor tea staining or pitting, you can use a light, non-metallic scourer. It is important that you rub with the natural grain of the stainless steel surface to avoid leaving visible scratch marks.

• Between uses, it is a good idea to leave the barbeque covered to prevent dust and air borne salts settling on the stainless steel surfaces. If left for too long, these particles can act as rust centres.

• With a small amount of care, your investment in quality stainless steel will keep its beautiful nish as well as its value for a long time to come

• Handle the appliance with care. Do not drop it.

• After use, wait until the appliance has cooled down, disconnect it from the gas cylinder and store in a cool dry place away from heat.

• Keep the hood closed when not in use to prevent dirt and insects falling into the unit, which may affect the gas ow.

• Use a CADAC BBQ cover, especially if the unit is stored outdoors.

• Before every use, ensure that the burners and venturies are free of insects, dust and spider webs. Description Part Number Description Part Number Description Part Number Jet (BBQ Unit) 0.92 Warmer Pan 98507 105mm Cast Iron Grill Plate 98510-4 Jet (Side Burner) 0.84 Baking Stone 98394 265mm Cast Iron Grid 98510-5 Reversible Grill Plate 98505 Argentine Grill 98396 105mm Cast Iron Grid 98510-6 Flame Tamer 98512-SP010 Teppanyaki 98506 263mm Pressed Grid 98510-1 Rotisserie 3B 98354 265mm Cast Iron Grill Plate 98510-3 113mm Pressed Grid 98510-2 Rotisserie 4B 98357 263mm Plancha 98510-100 Replacement of hose

• The hose length should not be less than 0.8m or exceed 1.2m. Check the date of manufacture on the hose and replace if it shows signs of cracking or brittleness. Only an LPG hose that complies with local regulations may be used with this appliance. Replacement of regulator

• Use a 30mbar (for butane or propane) regulator with gas category I3B/P(30).

• Use a 30mbar (for butane) regulator or a 37mbar (for propane) regulator with gas category I3+(28-30/37).

• Use a 37mbar butane(or propane) regulator with gas category I3B/P(37).

• It is important that the connection between the regulator outlet and the low pressure hose is tight and that it is secured with a metal hose clamp. Always check the joint for gas leaks as described in section 4 above.

9. Spares and Accessories

• Always use genuine CADAC spares as they have been designed to give optimum performance. GBGB55

10. Returning the Appliance for Repair or Service

• Do not modify the appliance. This may cause the appliance to become unsafe.

• Any modications will render the CADAC warranty null and void.

• If you cannot rectify any fault by following these instructions, contact your local CADAC distributor for inspection/repair

CADAC (Pty) Ltd hereby warrants to the ORIGINAL PURCHASER of this CADAC gas appliance, that it will be free of defects in material and workmanship from the date of purchase as follows: Valves: 5 Years Plastic parts: No Warranty Enamel parts: 2 Years (Only valif if VE has not been damaged or chipped) Cast Iron: 5 Years Painted frames 1 Year Burners: 2 Years The warranty will only apply if the unit is assembled and operated in accordance with the printed instructions. CADAC may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to CADAC’s satisfaction, they are defective. Before returning any parts, contact the customer service representative in your region using the contact information provided with your manual or call 0860 223 220 (RSA only). If CADAC conrms the defect and approves the claim, CADAC will elect to replace such parts without charge. CADAC will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or operating difculties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not cover by this Limited Warranty. There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and tness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. CADAC is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, to this limitation or exclusion may not apply to you. CADAC does not authorize any person or company to assume for it any obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on CADAC. This Warranty applies only to products sold at retail. To enjoy and ensure longevity of your CADAC product, please refer to the cleaning and maintenance section of the user manual with particular attention to the care of the Stainless Steel. GBGB66 VORSICHT Für ausreichende Belüftung sorgen. Dieses Gasgerät verbraucht Luft (Sauerstoff). Benutzen Sie dieses Gerät nicht an einem Ort ohne Belüftung, anderenfalls besteht Lebensgefahr. Wenn noch weitere Gasgeräte und/ oder Verbraucher, die Gas verwenden, in dem Raum hinzukommen, muss für eine zusätzliche Belüftung gesorgt werden. WICHTIG Lesen Sie diese Gebrauchsanweisung sorgfältig und machen Sie sich mit dem Gerät vertraut, bevor Sie es anschließen. Bewahren Sie diese Anleitung zum späteren Nachschlagen auf.
