SA102 - Smoke detector ALECTO - Free user manual and instructions

Feature	Details
Product type	Smoke detector
Power supply	9V battery
Sensitivity	Ionization smoke detection
Sound signal	85 dB at 3 meters
Low battery indicator	Yes
Installation	Wall or ceiling mounting
Dimensions	Diameter: 10 cm, Thickness: 3 cm
Weight	250 g
Safety standards	Compliant with EN 14604 standard
Battery life	About 1 year
Maintenance	Test the detector monthly, replace the battery annually
Warranty	2 years

Frequently Asked Questions - SA102 ALECTO

How do I install the ALECTO SA102 smoke detector?

To install the ALECTO SA102 smoke detector, choose a central location in the room, at least 30 cm from walls and at a height of at least 2.5 m. Attach the supplied wall mount, then clip the detector onto the mount.

What should I do if the smoke detector emits regular beeps?

If the detector emits regular beeps, this may indicate that the battery is low. Replace the battery with a new 9V battery and test the detector after replacement.

How do I test the proper functioning of the ALECTO SA102 detector?

To test the detector, press the test button located on top of the device. You should hear a loud beep. If the detector does not respond, check the battery and ensure the device is installed correctly.

What should I do if the smoke detector triggers without apparent reason?

If the detector triggers without reason, check for dust or insects inside the device. Clean it with a vacuum cleaner. If the problem persists, reposition the detector or replace it.

How often should I replace the ALECTO SA102 smoke detector?

It is recommended to replace the smoke detector every 10 years. Check the manufacturing date on the device and replace it if necessary.

Does the smoke detector work during a power outage?

Yes, the ALECTO SA102 operates with a 9V battery, allowing it to continue functioning even during a power outage.

How do I clean the ALECTO SA102 smoke detector?

To clean the detector, use a vacuum cleaner with a soft nozzle to remove dust. Avoid using chemical products or water.

What should I do if the smoke detector does not work after replacing the battery?

If the detector does not work after battery replacement, check the battery orientation and ensure it is installed correctly. If the problem persists, the detector may be defective.

USER MANUAL SA102 ALECTO

Smoke detector for domestic use

INSTALLATION ET INFORMATION:

EN The SA-100 is a smoke detector set for discovery of fire in the first stage. If smoke develops, the SA-100 will give a loud beep of at least 85dB (A). As part of the link function all the smoke alarms within range will sound the alarm. We advice to test the smoke detectors weekly using the test button on the detectors. Save this manual in a safe place or inside of the electricity meter cupboard.

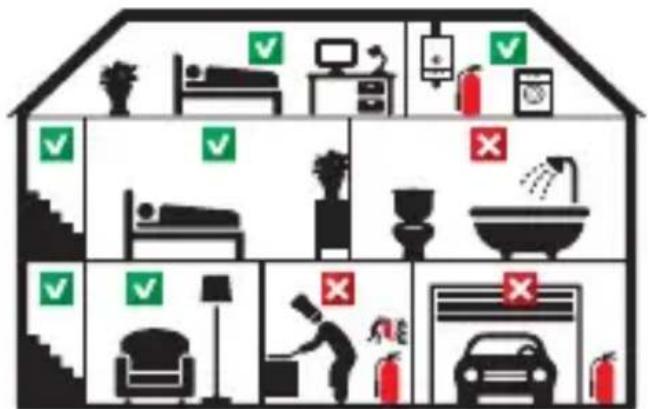

RECOMMENDED INSTALLATION LOCATIONS FOR THE SA-100:

• Install the first smoke detector near the bedroom. Ensure that it is placed so, if it would detect fire, at least one exit route would still be accessible. We recommend to place one alarm near each potential blockade of your exit route, so you are alerted before a fire would block off escape.
• Use multiple detectors to increase safety and ensure alert before the escape route is blocked.
• Install at least one smoke detector on each floor of your house.
• Install at least one smoke detector in each room where people smoke or where there is equipment that may potentially cause a fire.
• Smoke and heat will first move upwards towards the ceiling; after that the smoke and heat will travel horizontally.

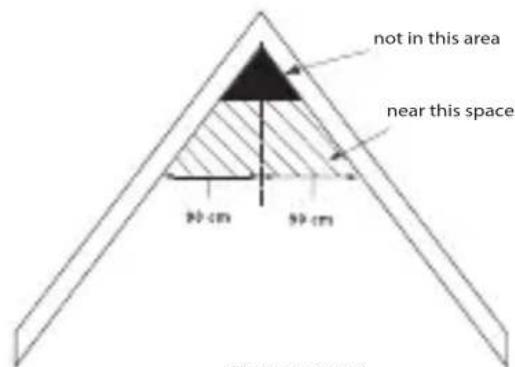

• Install the detector on the ceiling. Except for rooms smaller than 1m , you should stay at least 50~cm away from the wall and 61cm from any corner. Smoke and heat do not gather in such corners, preventing the detector from alerting you on time.

IMPORTANT: For optimal operation, we recommend mounting the smoke detector on the ceiling. See also the installation instructions. If ceiling mounting is not possible, we recommend that you place the smoke detector in the middle of a wall. The installation location must be in the natural airflow of the room and free of side walls or slope.

Required Do not use

DO NOT INSTALL IN THE FOLLOWING LOCATIONS:

• The kitchen; Steam from cooking might give a false alarm.
• The shower or bathroom; water damp might cause a false alarm and the moist environment might damage the detector.
• The garage: The car exhaust might cause a false alarm.
• In front of a fan or nearby the exhaust of an air conditioner or heater.
  In a ceiling nook.
• In rooms where the temperature could reach below -10^ or beyond 40^ .
• Do not paint or otherwise cover this smoke detector.

INSTALLATION INFORMATION:

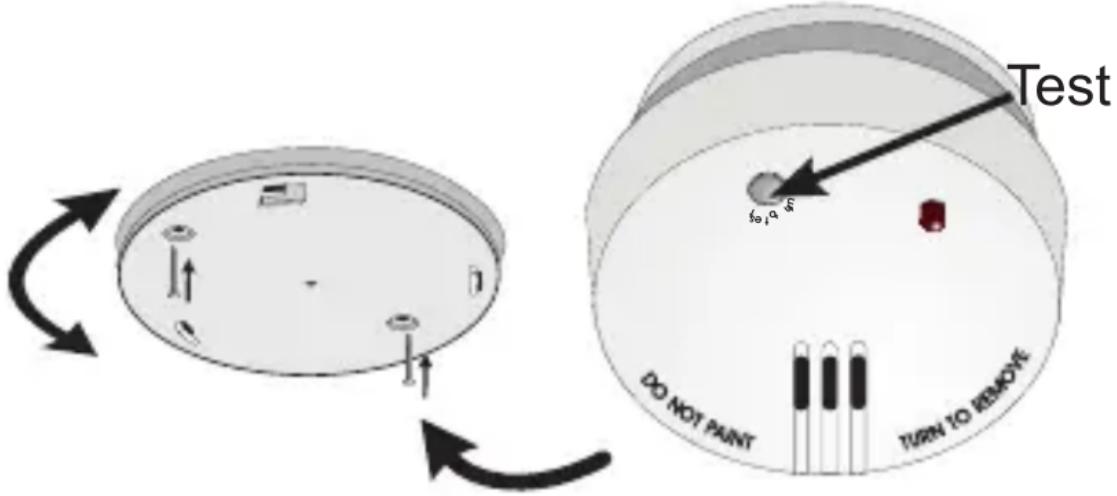

Attach the ceiling plate using the included plugs and screws to the ceiling on a location of choice. Wall mounting is not recommended for smoke detection. Put the batteries in the detector. Then put the detector to the ceiling plate and, twist clockwise to lock it in place. Perform a first test by holding the test key for two seconds. Also see the paragraph: "Testing".

USING, TESTING AND MAINTENANCE:

Using: The smoke detector works if the 3 × 3V lithium batteries have been placed and/or the red strip is removed and the SA-100 is mounted to the ceiling. The unit can only be mounted to the plate if the batteries have been installed. The LED underneath the test button will now flash ± every 50 seconds. Once smoke is detected, the alarm will sound. Once the smoke disappears, the smoke alarm will stop automatically

Test: Hold the test key for at least 2 seconds. The operation is still correct if you hear two or three signal tones. Check the smoke detectors weekly. In alarm status the smoke detector will generate about 85dB(A). Do not use candles, open fire or cigarettes to test the smoke detector.

ATTENTION:

• If the cause of an alarm is unclear, assume it's caused by fire. Immediately evacuate the building.
• Keep the smoke detectors out of range of children.
• Protect against dust during rennovations. Without protection the smoke detectors will lose their functionality.

Maintenance: The smoke detector is maintenance-free. In very dusty rooms they may be cleaned by vacuum.

PLAN AN ESCAPE ROUTE:

• Make a map and mark all locations of doors and windows and a possible escape route. Note that you may

need an escape ladder on high floors.

• Ensure everyone in the house knows the sound the smoke alarms produce and regularly practice use of the escape route.
• Leave the house immediately according to the plan when hearing the alarm. Every second counts: so respond quickly. If you do not notice smoke or heat, check if everyone in the house is in a secure location.
• Do not open any doors without feeling wether the door is warm or if there is smoke coming from underneath the doors. If it is, do not open that door. If the door is cold, put your shoulder firmly against the door and open it a small amount to check for any heat or smoke first.
• If there is much smoke, keep low and take shallow breaths, preferably through a moist towel. Call the fire department as soon as you are safe outside.

REPLACING THE BATTERIES:

The detector is supplied using 3 x 3V Lithium batteries. Only use the recommended type Newsun CR-2450. Under normal conditions the battery will last at least five years. If it is about to need replacement, the smoke detector will make a chirping sound every 30 to 40 seconds. Pay attention to the polarity when replacing batteries. Test the detector after every battery replacement. If the smoke detector does not function, please contact your supplier.

ENVIRONMENT:

Do not throw away used batteries, but recycle them using your local chemical depot. Product may not be thrown out as normal waste, but must be recycled as electrical waste.

Mounting type Ceiling
Main power source 3x Batteries, 3V Lithium, included.
Autonomy At least: 5 years
Interconnectible device No
Suitable for installation in a recreational vehicle	No
Individual alarm indicator Yes
Alarm prevention facility No

18 1134 1134-CPR-210 DOP nr: SA-100_DOP_1 EN14604 : 2005 / AC: 2008 SA-100

Commaxx B.V., Wiebachstraße 37, 6466 NG Kerkrade,The Netherlands

Smoke Alarm Device SA-100

Fire detection in buildings

Essential characteristic 1: Pass Essential characteristic 2: Pass Essential characteristic 3: Pass Essential characteristic 4: Pass Essential characteristic 5: Pass Essential characteristic 6: Pass Essential characteristic 7: Pass Essential characteristic 8: Pass
