Technical Features	PowerPlus POWXG6281 lawn mower, electric motor, 38 cm cutting width, cutting height adjustable in 6 positions (25 to 75 mm), 40-liter collection box capacity.
Usage	Ideal for small to medium-sized gardens, quiet operation, suitable for domestic use.
Maintenance and Repair	Regularly check the blades, clean the collection box after each use, store in a dry place.
Safety	Wear gloves when handling, do not touch moving blades, unplug the device before any intervention.
General Information	Lightweight for optimal maneuverability, 2-year manufacturer warranty, spare parts available.

Frequently Asked Questions - POWXG6281 PowerPlus

The lawn mower won't start, what should I do?

Check that the fuel tank is full and the power switch is in the "ON" position. Also ensure the spark plug is clean and properly installed.

The lawn mower is not cutting the grass properly, what should I check?

Make sure the blades are sharp and there is no grass or debris stuck under the mower. Also check the set cutting height.

How do I maintain my PowerPlus POWXG6281 lawn mower?

To maintain your mower, regularly clean the underside, change the oil each season, and check and replace air filters and spark plugs if necessary.

What should I do if the mower vibrates too much during use?

Excessive vibrations can be caused by unbalanced or damaged blades. Check the condition of the blades and ensure they are properly installed and balanced.

The mower stops during use, what is the cause?

This may be due to lack of fuel, a clogged air filter, or engine overheating. Let the mower cool down, check the fuel level, and clean the air filter if necessary.

How do I adjust the cutting height of the mower?

The cutting height can usually be adjusted using a lever or wheel system. Consult the user manual for specific instructions for your model.

Where can I find spare parts for my mower?

Spare parts can be found at authorized PowerPlus dealers, hardware stores, or online on specialized websites.

Can I use my mower in wet weather?

It is recommended to avoid using the mower in wet weather as this can damage the mower and result in an uneven cut. Wait until the grass is dry before mowing.

USER MANUAL POWXG6281 PowerPlus

16/09/2020, Lier - Belgium

8.6 Differents usages

a_w (Vibrations):

POWXG6281

K = 1,5 m/s²

2.5 m/s²

11 NETTOYAGE & ENTRETIEN

16/09/2021, Lier - Belgium

1 INTENDED USE 3
2 DESCRIPTION (FIG. 1A & 1B) 3
3 PACKAGE CONTENT LIST 3
4 SYMBOLS 4
5 GENERAL SAFETY WARNINGS. 5
5.1 Working area 5
5.2 Electrical safety 5
5.3 Personal safety 5
5.4 Power tool use and care 6
5.5 Service 6
6 ADDITIONAL SAFETY INSTRUCTIONS FOR LAWN MOWERS....6
7 ASSEMBLY 8
8 OPERATION 9
8.1 Adjusting the cutting height (Fig. 3a & 3b). 9
8.2 Power connection 9
8.3 Switching on and off (Fig. 4) 9
8.4 Mowing your lawn (Fig. 5). 10
8.5 Blade (Fig. 6) 10
8.6 Different use 11
8.6.1 Mowing without the grass box 11
8.6.2 Mowing with the grass box 11
8.6.3 Mulching (Fig. 8) 11
8.7 Gras box warning system (Fig. 7) 11
9 TECHNICAL DATA 11
10 NOISE 12
11 CLEANING & MAINTENANCE 12
11.1 Cleaning 12
11.2 Expert inspection is required: 12
11.3 Maintenance 12
11.4 Replacing and re-sharpening the mowing blade. 12

11.5 Replacing the blade. 13
12 STORAGE 13
13 WARRANTY 13
14 ENVIRONMENT 14
15 DECLARATION OF CONFORMITY 15

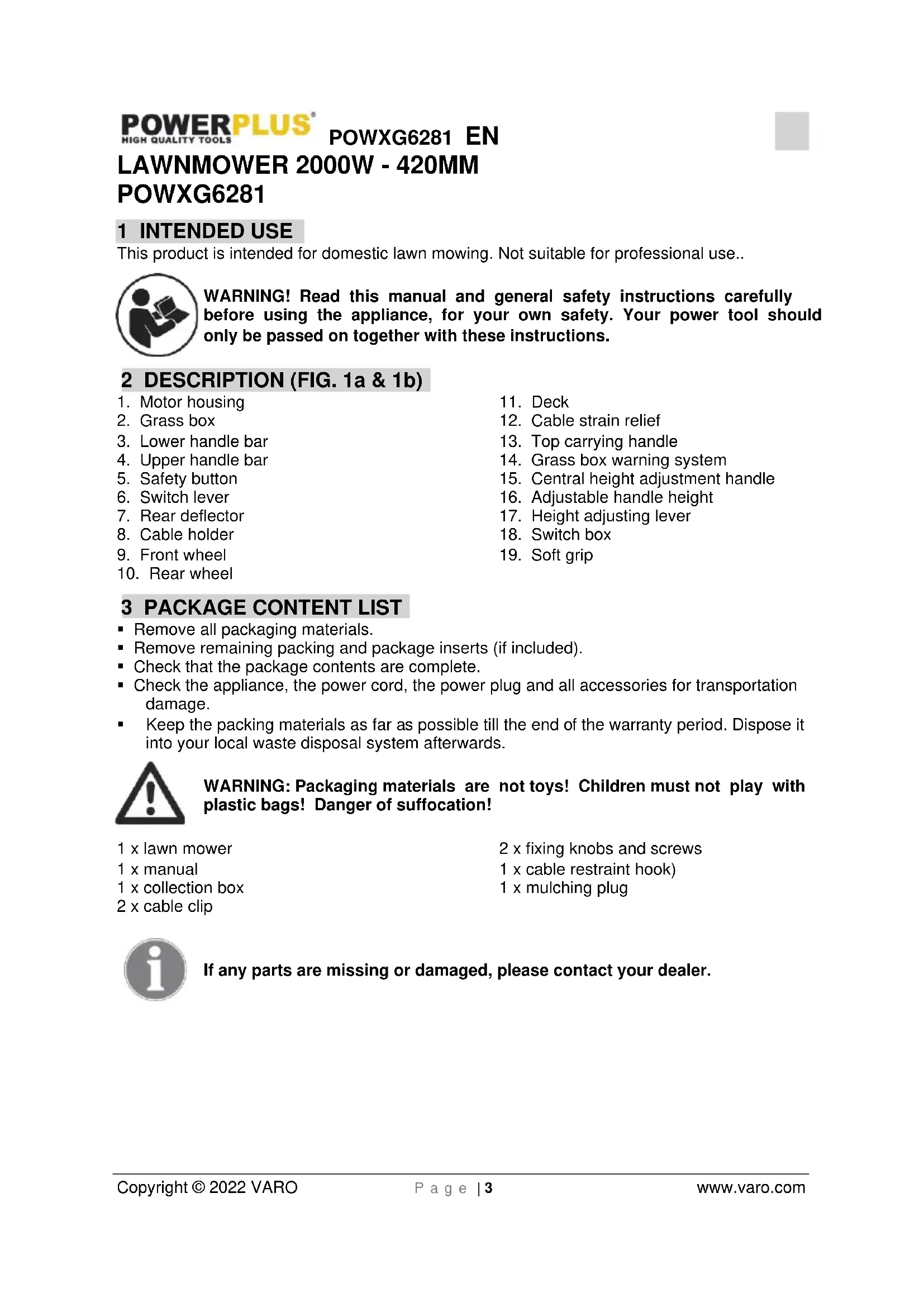

POWERPLUSPOWXG6281 EN LAWNPOWER 2000W - 420MM POWXG6281

1 INTENDED USE

This product is intended for domestic lawn mowing. Not suitable for professional use..

WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

2 DESCRIPTION (FIG. 1a & 1b)

1. Motor housing
2. Grass box
3. Lower handle bar
4. Upper handle bar
5. Safety button
6. Switch lever
7. Rear deflector
8. Cable holder
9. Front wheel

10. Rear wheel

11. Deck

12. Cable strain relief
13. Top carrying handle
14. Grass box warning system
15. Central height adjustment handle
16. Adjustable handle height
17. Height adjusting lever
18. Switch box
19. Soft grip

3 PACKAGE CONTENT LIST

• Remove all packaging materials.
• Remove remaining packing and package inserts (if included).
• Check that the package contents are complete.
• Check the appliance, the power cord, the power plug and all accessories for transportation damage.
• Keep the packing materials as far as possible till the end of the warranty period. Dispos it into your local waste disposal system afterwards.

WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation!

1 x lawn mower
1 x manual
1 x collection box
2x cable clip

2 x fixing knobs and screws
1 x cable restraint hook)
1 x mulching plug

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

In this manual and/or on the machine the following symbols are used:

Read the operation and service instruction manual carefully. Be thoroughly familiar with the controls and the proper use of the equipment.

Never mow while people, especially children, or pets are nearby.

WARNING! Do not put hands or feet near or under rotating parts. Keep clear off the discharge opening at all times. The blades continue to rotate after the unit is switched off.

Always disconnect your machine from the electrical supply before clearing, inspecting or adjusting any part of it, or if the supply cable has become damaged or entangled

Always keep the electrical supply cable away from the blades-be aware of its position at all times.

Never operate the machine in the rain or in damp or wet conditions. Moisture is an electrical shock hazard.

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

In accordance with essential requirements of the European directive(s)

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Wear eye protection.

Wear noise protection.

Wear gloves.

5 GENERAL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.

• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewelry or long hair can become entangled in the moving parts.
• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not force the tool. Use the correct power tool for your application, the correct power tools will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.
• Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

• Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 ADDITIONAL SAFETY INSTRUCTIONS FOR LAWN MOWERS

WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury. Save owner's manual and review frequently for continuing safe operation and instructing others who may use this tool.

WARNING: This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

WARNING: The operation of any tool can result in foreign objects being thrown into your eyes, which can result in eyes severely damaged. Before beginning power tool operation, always wears safety goggles or safety glasses with side shields and a full-face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shield.

• Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations may restrict the age of the operator.

• Never mow while people, especially children or pets, are nearby.

• The operator or user is responsible for accidents or hazards occurring to other people or their property.

• Do not operate the lawnmower when barefoot or wearing open sandals, always wear substantial footwear and long trousers.

• Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones and other foreign objects.

• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.

• Mow only in daylight or in good artificial light.

• Avoid operating the lawnmower in wet grass, where feasible.

Walk, never run.

• Never operate the appliance with defective guards or shields, or without safety device, for example deflectors and/or grass catchers in place.

• Mowing on banks can be dangerous:

• Do not mow excessively steep slopes.

• Always be sure of your footing on slopes or wet grass.

• Mow across the face of slopes - never up and down.

• Exercise extreme caution when changing direction on slopes.

• Use extreme caution when stepping back or pulling the lawnmower towards you.

• Never mow by pulling the mower towards you.

• Stop the blades if the lawnmower has to be tilted for transportation when crossing surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.

• Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.

• Switch on the lawnmower according to instructions and with feet well away from the blades

• Do not put hands or feet near or under rotating parts.

• Keep clear of discharge opening at all times.

• Never pick up or carry the lawnmower while the motor is running.

• Remove the plug from the socket:

whenever you leave the machine

• before clearing a blockage

• before checking, cleaning or working on the lawnmower

• after striking a foreign object. Inspect the lawnmower for damage and make repairs as necessary if the lawnmower starts to vibrate abnormally (check immediately).

• Keep all nuts, bolts and screws tight to be sure that the lawnmower is in safe working condition.

• Check the grass catcher frequently for wear or deterioration.

• Replace worn or damaged parts for safety.

• Not to connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply. A damaged cord can lead to contact with live parts.
• Not to touch the blade before the machine is disconnected from the supply and the blade have come to a complete stop
• To keep extension cords away from the blade. The blade can cause damage to the cords and lead to contact with live parts.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If the external flexible cable or cord is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard
• Follow the instructions for safe use, including the recommendation that it must be supplied with a Residual Current Device (RCD) with a tripping current of not more than 30mA .
• Completely uncoil your extension cable before use to prevent overheating and loss of mower efficiency. When tidying away the cable, wind it carefully to avoid kinking.
• Before use check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately.
• Do not cross roads or gravel paths with the machine still running.

7 ASSEMBLY

See Fig.2 a-h

• Connect the right lower handle and the housing with supplied clamping screws.(Fig.2c) as follows:
• insert the screw pin (B) into the fast lock button (C), then insert the screw (A) from right to left through the insert screw pin.
• slide (from left to right) the right hand lower handle (D) over screw (A), followed by ring (E), than the lower rod fixed block (F) and at last spring (G)
• Repeat in the same order the left lower handle as described above and make sure that the indicators on the left and right lower rod fixed block are at the same level (if not rotate the lower rod fixed block halfway and make sure that both left and right lower handles are at the same level).
• Put the cable strain relief (12) on the upper handle (at side of the switch).(Fig.2a)
• Connect upper and lower handle with supplied washer and clamping screws.(Fig.2b) NOTE: Keep cable on the upper side of upper handle part. Connect the cable to the handle tube using the 2 supplied cable clamps.
• Fit each wheel on the axle (respect large wheels on rear axle, small wheels on front axle), put washer over axle, insert split pen in the hole of the axle and secure it (bend split pin legs open), then press the wheel covers into place (Fig.2d &2h)
  Fix the cable holders.(Fig.2e)
• Grass collection box assembly.(Fig.2f): fix lower left and right part together, then fit the top to this assembled unit.
• Lift the flap and place the grass box over the lugs.(Fig.2g)

8 OPERATION

Before connecting to the mains supply, always check the switch is in off position!

8.1 Adjusting the cutting height (Fig. 3a & 3b)

Make sure your machine is switched off and the knife has come to a complete standstill before adjusting the cutting height.

ATTENTION: The blades continue to rotate for a few seconds after the machine is switched off, a rotating blade can cause injury.

For the first cut of the season .a high cutting adjustment should be selected.

The cutting height can be selected among 25mm to 75mm .

• To raise the blade height, grasp the height adjusting lever (17) and move it toward the back of the mower. (Fig. 3a)
• To lower the blade height, grasp the height adjustment lever (17) and move it toward the front of the mower. (Fig. 3b)

8.2 Power connection

The mains voltage (220-240 V) indicated on the rating plate must correspond with the mains power supply. Mains connection fuse: min. 10A.

• Insert the plug of the mower into the socket of the extension cable.
• To prevent the extension cord from disconnecting during use, fit the extension cord (socket end of cord) through the loop of the cable strain relief and secure over the hook before connecting the plug.

8.3 Switching on and off (Fig. 4)

WARNING! Do not switch on the unit until it has been completely assembled. Before switching on the unit, always check the connection cable for signs of damage, only undamaged connection cable may be used.

Note: Damaged connection cables are highly dangerous!

If you try to start the lawn mower in long grass, the motor might overheat and become damaged.

• Switch on: firstly press the safety button (5) on the combined switch and keep it down, then pull the switch lever (6) and hold it pressed.
• Switch off: release the switch lever (6).

Note: While mowing, lay the connection cable safely on footpaths and on areas which have already been mown.

WARNING! When the motor has been switched off, the cutter continues running for several seconds therefore do not touch the underside of the mower until the cutter has come to a standstill!

8.4 Mowing your lawn (Fig. 5)

Select the cutting height which will suit your desired grass height. If necessary, mow in several layers so that a maximum grass height of 4 cm will be cut in one single pass.

Make sure that you will avoid paths which could hamper free movement of the extension cable.

Empty the grass box (2) once it is full to avoid obstruction of the discharge opening. To avoid obstruction of the discharge opening and unnecessary motor overloading, make sure that you will not move over any grass left on that part of the lawn you have already mowed.

We recommend using your mower as outlined below in order to achieve optimum results and to reduce the risk of cutting the mains cable.

• Place the bulk of the mains cable close to the starting point.
• Switch the mower on as described above.
• Proceed as shown in fig.4
• Move from position 1 to position 2
• Turn right and proceed towards position 3
• Turn left and move towards position 4
• Repeat the above procedures as required.

8.5 Blade (Fig. 6)

Always unplug the lawn mower before checking the blade in any way. After you have stopped the motor, remember that the blade will still keep running for a few seconds before it comes to a standstill. Never attempt to stop the blade. Check at regular intervals if the blade is properly fastened, in good repair, and whether it is well sharpened. Regrind or replace it, if necessary. If the rotating blade hits any object stop the lawn mower and wait until the blade has completely come to a standstill. Then check the condition of the blade and the blade holder. Immediately replace the blade if it has got damaged.

To avoid possible damage to you, please make sure to follow the below instructions during operation:

Never use the machine without rear deflector (7) or grass box (2) connected.

Do not attempt to lift up the rear part of the machine, instead, to hold up the front part of machine to get the machine re-start when it fails to rotate owing to too strong grass.

On slopes, always mow sideways, never up and down. Avoid extremely steep slopes.

Never put your hands or feet near or under rotating parts. Always keep away from the discharge opening, if possible.

If the blade is slipping, then tighten the bolt holding the blade with a wrench. See fig.6.

Warning! Observe the following precautions:

• Disconnect the mower from the mains and wait until the blade has stopped rotating before proceeding.
• Be careful not to cut yourself. Use heavy-duty gloves or a cloth to grip the blade.
• Only use the specified replacement blade.
• Do not remove the impeller for any reason.

8.6 Different use

WARNING: only switch to different use with a stopped motor and standstill blade.

You can mowe with or without the grass box installed.

8.6.1 Mowing without the grass box

If the grass collect box is not installed, the grass will be thrown out from the rear opening (between the mower housing and the rear lid).

8.6.2 Mowing with the grass box

For mowing with the grass box, Lift the rear cover and mount the grass collecting box.

The grass will be collected into the collecting box.

Remove the mulching wedge (if installed) before positioning the grass collecting box.

• To remove the mulching wedge: Lift the rear cover and remove the mulching wedge.

8.6.3 Mulching (Fig. 8)

Your lawn mower can also be used for mulching. To do so, install the mulching wedge :

• Raise the rear cover and remove the grass box.
• Push the mulching wedge into the deck. Lock it tightly in its position.
  Lower the rear cover again.

8.7 Gras box warning system (Fig. 7)

There is a warning piece in the grass box which will indicate the grass volume.

• If the flap is open it means that there is still space for grass collection.
• If the flap is closed it means that there is no space for grass collection.

9 TECHNICAL DATA

Rated Voltage / frequency	230-240V / 50Hz
Rated Power	2000W
Rotation speed	3450min-1
Cutting width	420mm
Collect box/ bag	40L
Cutting height	25-80 mm
Material housing	PP
Grass box material	PP
Number of height positions	5
Adjustable handle height	Yes
Carbon brush motor	Yes
Diameter front wheel	150 mm
Diameter rear wheel	225mm
Insulation class	Class II (double insulated)
Central height positioning	Yes
Cable strain relief	Yes

10 NOISE

Noise emission values measured according to relevant standard. (K = 3)

Acoustic pressure level L_pA

74 dB(A)

Acoustic power level L_WA

96 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

a_w (Vibration)

K = 1,5 m/s²

POWXG6281

2.5 m/s²

11 CLEANING & MAINTENANCE

Before performing any maintenance or cleaning work, always pull out the mains plug!

11.1 Cleaning

• Do not spray the unit with water. Ingress of water may destroy the Switch/plug combination unit and the electric motor.
• Clean the unit with a cloth, hand brush, etc.

11.2 Expert inspection is required:

• If the lawn mower strikes an object.
  If the motor stops suddenly.
  If the blade is bent (do not align!).
  If the motor shaft is bent (do not align!).
  If short-circuit occurs when the cable is connected.
  If the gears are damaged.
  If the V-belt is defective.

11.3 Maintenance

• Check of grass box and any damaged parts
• Check the grass box for signs of wear at more frequent intervals.
• Replace any worn-out or damaged parts.
• For any repair work, please contact our Service Department.
• Only use original spare parts for maintenance.
• The element exposed to heaviest wear is the blade. Check the condition of the blade and its fixture at regular intervals. When the blade is worn out it must be replaced. If excessive vibration of the lawn mower should occur, it is a sign of the blade not being properly balanced or having been deformed by impact. In such case, repair or replace the blade.

11.4 Replacing and re-sharpening the mowing blade.

• At the end of the mowing season always re-sharpen the mowing blade or, if required, replace the mowing blade with a new one.
• Preferably have the mowing blade re-sharpened or replaced by a customer service center (measurement of imbalance).

Unbalanced blades will cause the lawn mower to vibrate violently-risk of accident!

11.5 Replacing the blade.

Caution: Wear protective working gloves.

To replace the blade:

• Turn the mower onto its side.
• Place blade fixing set into the shaft of motor
• Place blade aligned
• Place blade screw into the holes
• Tighten blade bolt with a 13mm spanner

12 STORAGE

• Disconnect the power cord.
• Allow the motor to cool down for approx. 30 minutes.
• Inspect, repair or replace the power cord it signs wear or damage are present.
• Tighten or replace worn, loose, or damaged parts. Clean thoroughly.
• To protect from rust, wipe over all metal parts with an oily cloth or spray with light lubricant.
• Store with the extension cord in a locked, dry location where is out of the reach of children to prevent unauthorized use or damage.
• Cover loosely with a tarp for added protection.
• If transporting. Be sure to secure the unit properly to the vehicle.
• To reduce storage space, the upper handle can be folded down by releasing the lock hand grip.

Caution: Do not trap the electric cable when folding down the handle.

13 WARRANTY

This product is warranted for a 36-month period effective from the date of purchase by the first user.
- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations: nor the cost of transportation.
- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
- Repairs may only be carried out by an authorized customer service center for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

POWXG6281 EN

Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned un-dismantled to your dealer in an acceptably clean state, (in its original blow-molded case if applicable to the unit), accompanied by proof of purchase.

14 ENVIRONMENT

Should your machine need replacement after extended use, do not put it in the domestic waste but dispose of it in an environmentally safe way. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

VARO - Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - Belgium, declares that,

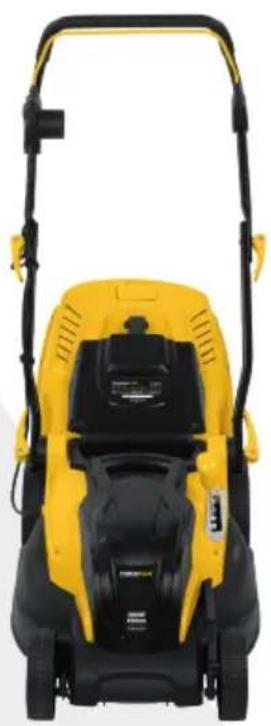

Product: Lawnmower 2000W - 420mm

Trade mark: PowerPlus

Model:POWXG6281

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature):

2011/65/EU

2006/42/EC

2014/30/EU

2000/14/EC Annex VI LwA

Measured

95dB(A)

Guaranteed

966dB(A)

Notified Body

TuV Sud

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN60335-1:2012

EN60335-2-77:2010

EN55014-1:2017

EN55014-2:2015

ENIEC61000-3-2:2019

EN61000-3-3:2013

Keeper of the Technical Documentation:

Philippe Vankerkhove, VARO - Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Philippe Vankerkhove

Regulatory Affairs - Compliance Manager

16/09/2021, Lier - Belgium

16/09/2021, Lier - Belgium

16/09/2021, Lier - Belgium

Regulatory Affairs - Compliance Manager

16/09/2021, Lier - Belgium

1 UTILIZACAO PREVISTA 3
2 DESCRIÇA(O FIG.1A&1B) 3
3 LISTADE CONTEUDO DA EMBALAGEM 3
4 SIMBOLOS 4
5 PROCEDIMENTOS GERAIS DE SEGURANCA. 5
5.1 Area de trabajo 5
5.2 Seguranga eltrica 5
5.3 Seguranta personal 5
5.4 Manuseamento e emprego de ferramentas elétricas com precauão 6
5.5 Assistance Tecnica 6

6 INSTRUÇões DE SEGURANÇA ADICIONAIS PARA CORTA-RELVAS 6

11 LIMPAR & MANUTENÇA

16/09/2021, Lier - Belgium

1 TILTENKT BRUK 3
2 BESKRIVELSE (FIG. 1A & 1B) 3
3 PAKKENS INNHOLD 3
4 SYMBOLFORKLARING 4
5 GENERELLE SIKKERHETSADVARSLER 5
5.1Arbeidsplassen 5
5.2 Elektrisk sikkerhet 5
5.3 Personsikkerhet 5
5.4 Vær noyaktig og omhyggelig nár du omgås elektroverktøy 6
5.5 Service 6

6 UTFYLLLENDE SIKKERHETSINSTRUKSER FOR GRESSKLIPPERE 6

7 MONTERING 8
8 BRUK 8
8.1 Justering av klippehoyden. Fig. 3a & 3b)
8.2 Tilkobling til stromnettet (Fig. 6) 9
8.3 Sla pa og av (Fig. 4) 9
8.4 Klippe plenen (Fig. 5) 9
8.5 Kniv (Fig. 6) 10
8.6 Ulike bruksformer 10
8.6.1 Klipping uten gressoppsamler 10
8.6.2 Klipping med gressoppsamler 10
8.6.3 Mulching (Ettermontering for bioklipping) (Fig. 8) 11
8.7 Varselfunksjon i oppsmilingsboksen (Fig. 7) 11
9 TEKNISKE DATA 11
10 STOY 11
11 RENGJØRING & VEDLIKEHOLD 12
11.1 Rengjoring 12
11.2 En specialist ma inspisere maskinen hvis: 12
11.3 Vedlikehold 12
11.4 Enten slope aller bytte ut kniven 12

11.5 Skifte kniven 12
12 OPPBEVARING 12
13 GARANTI 13
14 MILJ0 13
15 SAMSVARSERKLÄERING 14

GRESSKLIPPER 2000W - 420MMPOWXG6281

1 TILTENKT BRUK

Dette Produktet er beregnet på privat gressklipping. Egner seg/DDke til profesjonelt bruk.

11 RENGJØRING & VEDLIKEHOLD

16/09/2021, Lier - Belgium

16/09/2021, Lier - Belgium

1 UTILIZARE PREVAZUTA 3
2 DESCRIERE (FIG. 1A & 1B) 3
3 CONTINUTUL PACHETULUI 3
4 SIMBOLURI 4
5 AVERTISMENTE GENERALE DE SIGURANTA. 5
5.1 Zona de lucru 5
5.2 Siguranta electrica 5
5.3 Siguranta personala 5
5.4 Folosirea 山 intretnerea aparatului electric.. 6
5.5 Service 6

6 INSTRUCTION DE SIGURANTA SUPLIMENTARE PENTRU MAŞINILE DE TUNS IARBA 6

7 MONTAREA 8
8 MOD DE UTILIZARE 9
8.1 Reglarea inaltimii de taiere (Fig. 3a & 3b) 9
8.2 Conectarea la sursa de electricitate 9
8.3 Pornirea i oprirea (Fig. 4) 9
8.4 Tunderea peluzei (Fig. 5) 10
8.5 Lama (Fig. 6) 10
8.6 Moduri de utiliser 11
8.6.1 Täierea utilizand cutie de colectare a ierbii 11
8.6.2 Täierea utilizand cutie de colectare a ierbii 11
8.6.3 Mulcirea (Adaptarea masinii de tuns jarba pentru mulcire) (Fig. 8) 11
8.7 Sistemul de averizare pentru compartmentul de colectare a ierbii (Fig. 7)....11
9 DATE TEHNICE 12
10 ZGOMOT 12
11 CURATAREA & INTRETINEREA 12
11.1 Curataea 12
11.2 Este necessara o verificare profesionista: 12
11.3 INTRETINEREA 13
11.4 Inlocuirea si ascutirea lamei masinii 13

11.5 Inlocuirea lamei 13
12 DEPOZITAREA 13
13 GARANTIE 14
14 MEDIU 14
15 DECLARATIA DE CONFORMITATE 15

MAŠINA DE TUNS IARBA 2000W-420MM POWXG6281

1 UTILIZARE PREVÁZUTA

16/09/2021, Lier - Belgium

1 IPEdHA3HauEHNHe HA yIOTPEbATA 3
2 OINCAHNE (ФИ.1) 3
3 CnncbK HA CbIbPjAHNETo HA ONAKOBKATA. 3
4 CnMBOJIi 4
5OBsI INPEyINPEXJENH3A B63OJACHOCT PNI 3IOJ3BAHE HA EJEKTPOHHCTPYMEHTN. 5

5.1 Pa6omHa 30Ha.. 5
5.2 EneKmpo6e3onacHocm 5
5.3 1uHa6e3oNaChocm .5
5.4 3no38aHe u apuxu 3a enekmpouHcmpymema... 6
5.5 Cepeu3Ho o6cnykeane 6

6ДОПьЛНTEЛнИ ПРавиla3AБE3ОПACHOCTПРИ ⅢПОЛ3BAHEHAKOCaКИ

7 MOHTAX 9
8 PABOTA 9

8.1 Pezylupahe Ha bucouHama Ha p3aHe (U2. 3a & 3b).9
8.2 Cebp3eHaHe KbM eIeKmpo3axpaHhaHemo... 10
8.3 BknoueaHe u u3KIOueBaHe (Fua. 4) 10
8.4 Ppuuduxkeane Ha kocaykama (Pue. 5). 10
8.5 Hox (Φu2.6) 11
8.6 Pa3nueHu ynompe6u 11
8.6.1 Kocene 6e3 KyTuTa 3a TpeBa 12
8.6.2 Kocene c Top6a 3a ynaBnHe Ha TpeBaTa 12
8.6.3 HatorpaHaHe HaIpaKaHaHe 3a MyIuPaHa KocauKa) (Φnr.8).12
8.7 Ipeynpeumna cucmema 3a kymura 3a mpeama (U2.7) 12
9 TEXHnueCKn DAHHN 12
10 13
11 IOUHCTBAHE & IODINPBxKA 13
11.1 Nocmeane 13
11.2 Heo6xoduma e ekcnepmHa nposepka: 13
11.3 IOIINPbXKA 13

11.4 NopmaHa u noemopno 3amoyaehe Ha Hoxa 3a Kocene 13
11.5 PnoMnHa Ha Hoxa 14
12 CbXPAHEHNE 14
13 14
14 OKOJIHACPEIa 15
15 DEKJIAPAUJRA 3A CbOTBETCTBNE 16

EJEKTPNUCHECKA KOCAYKA 2000BT-420MMPOWXG6281

1 ПЕДHA3HAUECHNE HA YNOTPEBATA

To3n npOdykt e npedHa3Hauen 3a kocHe Ha Mopaba B domaunu ycnoBna. HenoDxoJa, 3a npOpeCNOHaHa yNoTpe6a.

IpeynpeJeHne! Ipei Da n3noJ3BaTe HnCTpyMeHTa, npoTeTe BHMateJIHO TOBA pbKOBOdCTBO n 06uNTe HnCTpyKcN 3a 6e3OnaCHocT, 3apaN BaWata co6CTBeHa cnHyPHOCT. BaWnT eNeKTPoHNCTpyMeHT Tp86Ba Da ce IpeDaBa Ha dpyr cAmO 3aeDHO C hAcToaUnte HnCTpyKcN.

2 ONICAHNE (ФИг. 1)

1. Kopnyc Ha dBirataTeJia
2. Kytna 3a TpeBa
   3.Донha KOPMUNHa pBkoXBaTka
3. TogHa KOpMnJIHa pBkoXBaTka
4. 06e3oNaCTeJIeH 6yToH
5. Ioc3a npBkIIOyBaHe
6. 3aEN dEeNekTOp
   8.Дьржаузkaбeн
7. PpeNo kOJIeNo

8. 3aHNO KOJIeNo
   11.Патфорma

9. 06JIeKUaBaHe Ha Ka6eJa

10. Topha Hocesa pBkoXbaTka
11. PpeDynpeDnTeHa CnCTema Ha KyTnTa 3a TpeBa
12. Pbkoxbatka 3a ceHTpaHno perynnpaHe Ha BncounHaTa
13. Perynatop Ha BncounHata Ha pkoxbaTkata
14. JIoCT 3a peryJinpaHe Ha BnCOunHaTa
15. PpeBkiuOyBaTeJHa KyTnA
16. Meka npbkkka

3 CnncbK HA CbIbPjXAHNETO HA ONAKOBKATA

• OTeTpaHete BCnKoOnaKOBbHyMaTePnaJI.
• OtctpaHete octaHaNTe onaKOBbHyn bPemEHN NOCTaBKn (aKO hMa TAKnBa).
• Повере Te Ддп пaketbт сьдржа BCИЧК KOMПОHEHTN.
• PpOBepTe dAnu ypeDbT, 3axpaHbuaaT Ka6eI, uencelT n akcecoapnte He ca 6nN NOBpeDeHn pRn TpaHCnpTuPaHe.
• Na3ete onakOBbHnTe MaepnaIi NoTn Do KpaHa rapaHcNHOHHn nepnoD. CneTobA n3XBpJeTe B NYKt 3a Cb6ipaHe Ha OTnabu.

BHIMAHHE! OnakobbHnTe MaTePnAn He ca nrpauK! He no3BOnBaTHe Ha deca da npraT c HainIOHOBn Top6uK! Pnck OT 3adywaBaHe!

1xHapbYHnKHaNoTpe6nteJr
1X KOHTeHep 3a TpeBa
2XKa6eJIHNCKo6N
2xΦnKcnpaun6yToHaN BnHTa
1x Kyka 3a 3aIbpxKaHe Ha Ka6eNa
1xKanayka 3a HapraHaTa TpeBa

B cnya, ye hakon qactn IINCBat nnn ca nobpeHn, CBbpxeTe ce c MeCTHnA DnCTpN6yTop.

4 CnMBOJN

B TOBA pBkoBOOCTBO n/nnn Bbpy MaunHaTa ca N3NOJ3BaHn CNeHNTe CmBOJI:

i	Пюоче тete вимателно ръководства с Иструкши 3а работа и облужва. Бъдах нально започат с органITE за управлиения, както и правлиatingуnotреба на машинatinga.
	Инкora не косе, когато наблноимахopa, осobени度过а, по домашни жевOTи.
	ПЕДУПЕЖDEHNE! He noctabяnte рьцete по Кра��ата си блно до по Вьртушite ce чAST. Винаги стоITE настpanи OT ot OBOPа 3a n3xBьрлай. Oстриета поьлжавatда ce ВьртЯ спед като машинatinga 6ьde n3Клочews.
	Винаги Источьайte Baшata машина OT eilektpruchескOTOЗхсанване п徳ида поочьатe, поberяватe посторы.Tяковая OT чastITE.N, по akо 3axpaHbaшягт кабел e nobpejen HiIMOTAH.
	Винаги пазete сilektpruchеспязгдхалчддупчЕТМОТAN.
	He paBOTete НкORA c МашинATER рди дьжд поьв Вьв Влajжни, по мokри ус��овя. Вларatura сьдада onacnoct OT eilektprucheskn ydap.
	Клас II - МашинATER e с двουн ha n3Olaця, поади koeto He e HeobхODIM 3a3emITeEN ppOBODNIK.
CE	В сьOTВETCTBVE c OCHOBNITE ИЗССВАНИЯ на Еврочickata(ITE)Директув(a).
STOP	Изчakайte ДOKATOЧASTITE Ha машинATER срраз нально, п徳ида яди дokochete. HoxkOBete пordьлжавatда се ВьртЯ спед ИЗКлочванeHa машинATER и могатда пчунят наразяванe рnis Вьртенeto сI.
	Hocete 3auntni rhькавиц.
	Използайte пedingа Знссва 3a очite.
	Използайte пedingа Знссва 3a ушite.

Hnkora He noctabraye pBcTe Hn KpaKaTa Cn B 6JN3OCT Nn NOBbptTAnTE ce yactn. Ako e Bb3MOxHo, BnHaRn cToIte HaCTpHa OT OTBopa 3a H3npa3BaHeTo Ha TpeBa.

Ako Ka6eIb7 ce nIb3ra, Toraba 3aterHeTe 6oJIta, KoITo Ibpxn HoJa c raeueH KIIIOU. BIXK qnr. 6.

PpeynpekdeHne! Cna3BaIte cJeHNTe npedna3Hm Mepkn:

• 13KIOUeTe KOCaKaTa OT KOHTaKTA N I3uKaITe Do cnpaHe Ha BbPteHTo Ha HOXa npEi Da IPODbJXKeTe.
  BnImaBaIte Da He ce nopejTe. 3noJ3BaIte pKabuC c NobuHeHa 3auTAt nn Pnata 3a Da 3axBaHETe HOXa.
• 3no3BaTe cmo onpeJeHnpe3epBEN HOK.
  He npemaxBaIe JionatKOBOTO KOJEno No KaKBaTo n da e npuHa.

BnK nparpa'za "POnmHa Ha Hoxa".

8.6 Pa3Jlu4Hu ynompe6u

PNEyPEXKDEHNE: cmo npn cnpIaBnraTeI HOK B cnpAHO CbctOAHne.

MokTe Da Kocnte C nn 6e3 MoHTnpaHa KyTna 3a TpeBa.

8.6.1 KocHe 6e3 KyTna 3a TpeBa

Ako Top6aTa 3a yIaBHe Ha TpeBa He e MOHTnpHa, TpeBaTa Ie Ce I3XBpIy OT 3aHnIy OTbOp (MeKdy Kopnyca Ha KocayKaTa I 3aHnIy KaNak).

8.6.2 Kocene c Top6a 3a yIaBraHe Ha TpeBaTa

3a Kocene c Top6ata 3a yIaNBAHe Ha TpeBa, NOBdURHeTe 3aHnK Kanak MOnTnpaIe Top6ata 3a yIaNBAHe Ha TpeBa.

Tpebata ue ce cb6npa B Top6ata 3a ynaBReHa TpeBa.

PpeMaxhe TnHa 3a HaToppaH (aKo e MOHTnpaH) Ipei N03NIOHnpaH Ha KyTna 3a cb6pHa He Ha TpeBa.

3a cHemaHe Ha KInHa 3a HATOpBaHe: NOBnHHeTe 3aHnKa n IpemaxHeTe KInHa 3a MynHpaHe.

8.6.3 HaTopraBaHe HaIrpaxDaHe 3a MyIu npaa Kocayka) (ΦIr.8)

• Повдигнеле задняkanakипемaxhte Top6ata 3a улавяне на ТpeBa.
  HaTnCHete KInHa 3a MyJUHpaHe B PnAeOpMaTa. 3aKJIouTe ro Do6pe B No3uTAt My BIOknpaIte KInHa 3a MyJUHpaHe c.
• OTHOBO cnychete 3aHnKa nak.

8.7 Ipeynpedumenha cuscema 3a kymura 3a mpeama (Fue.7)

Ima npdeynpeinteH eIemENT B yIOBNTeHa TpeBaTa, KOITyka3Ba O6ema Ha TpeBaTa.

Ako Knaata e OTbopeHa, TOBa O3HaYaba, Ye BCE Oue IMa MrcTo 3a Cb6uPaHe Ha TpeBaTa.
Ako Knaata e 3aTBopeHa, TOBa O3Hauaba, Ye Hma NoBuee MrcTo 3a Cb6npaHe Ha TpeBaTa.

9 TEXHnueCKn DAHHN

HOMINAHNO HANPEXJEHNE / YecToTa	230-240 B / 50 Xu
HOMINAHNo MOUHOCr	2000 Bt
СКорост на Вьртөнe	3450 MIn-1
ШирINA на рязанe	420 MM
Кутуг/TOPБИЧka 3a сыбранe	40 I
ВисQUнA на рязанe	25-80 MM
Kopnyс Ha MaTePnIa	PP
MaTePnAл Na KUTYRA T3a TpeBa	PP
БpoЯ Na ПОЗИСNITE 3a ВисQuHnAta	5
Adjustable handle height	Дa
Двигatel c rpaФиТнi ChETКi	Дa
ДиamEtbр Na п徳НOTO кОлERO	150 MM
ДиamEtbр Na заDHOTOKОлERO	225 MM
Клас Na ИЗOLAцЯ	Клас II (ДвойнA ИЗOLAцЯ)
ПОЗИСNHIрAne B ueNTpAlHa BICSQUHnA	Дa
МexанИЗьM 3a OCSBOбЖДаванe Na onlbBaHeto Na KaBeJa	Дa

10 WYM

CTOINHOCTNa 3ByKOBOTo HaJIraHe I3MepeHn B CbOTBeTCTBne C npNJIOXIMnA CTaHdapT. (K=3)

HnBO Ha 3ByKOBOTo HnraIe LpA

74 AB(A)

HnBO Ha 3ByKObAta MOUHOCT LwA

96 AB(A)

BHIMAHNE! Hocete INHINBnDyalHn npedna3HN cpeCTBa 3a cnlyxa (aHTnΦoH), ako 3ByKOBOTHaJraHe npebuN 85 dB(A).

aw(Bn6paunu)

K=1,5M/c²

POWXG6281

2.5 m/c²

11 NOUHCTBAHE & NOIDPbJKA

Ppei npednpemae Ha KaKaBoTo n da e noOpBxKa nn pa6oTa no NoocntBaHe, BnHaHn n3BaXdaTe rnaBnnae ence!

11.1 Nocmeahe

He npbckaIte yctpoiCTBOTO c BOa. HABn3aHTo Ha BOa MoKe da yHnIOxN KOM6nHnpaHm MexaHn3bM Ha KInOua/IIeNCena n eJekTpnuYeCKn DnurTaTeI.
-Поунстваиустоьотocкbpna,pbuaЧтka nT.H.

11.2 Heo6xoduma e ekcnepmHa npoeepka:

Ako JnBaHaTa KocaKa ydapn npedMeT.
AkoDBrVaTeJrBHe3aHcnppe.
- Ako HOXbTe OrbHaT (He n3npaBnTe!).
Ako BaIbT Ha DnIraTeJne oRbHaT (He n3npaBnTe!).
Ako Bb3HnKHe KbCO cBeDnHeHne, KOraTo Ka6eJbTe Cbbp3aH.
Ako peykTopte ca nobpeHn.
AkoV-06pa3HnTpeMbKeJeΦeKTeH.

11.3 NOAaPbXkA

• Поверете Ктугая за Трува и Камбуто Ида e посыен часту.
• ПоверяBaTe KyTЯТа 3a TpeBa 3a CneДи OT ИЗнOCBaHe Ha NO-Чecт NiHTepBaJI.
  IopmeHeteKaKBHTO n da e N3HOceHN IIN NOBpeEH Yactn.
  3a KaKbATO n da e peMOHTHa pa60Ta, MoJra CbPkeTe ce Haunr O6cnykBaU oTJeI.
• 3no3BaTe cmo opuHaJIHn pe3epBn Yactn 3a noDpBkka.
• DeTaIbT n3IOXeH Ha HAI-BnCOKO HA TOBAPBaHe e HOXbT. IPOBepraTe cCTOAHneTo Ha HOx a N HeROBTO fIKCnpaHe Ha peoBHN INTEpBaNN. Korato HOx bT e n3HOceH, TpaBA da ce NOdMeHH. Ako Bb3NkHe pekomepHa Bn6paun Ha KocaykaTa 3a TpeBa, TOBa e np3Hak 3a HENpABUNHO 6anaHCnpan HOx nn DeΦopMnpan OT ydpap HOx. B TaKbB cnYuHa, nonpaBeTe nn IOdMeHete HOxA.

11.4 NodmaHa u nozmopno 3amoyaHe Ha Hoka 3a KoceHe

IodmaHa n NOBTOPO 3aTOUBAHe Ha HOx a KOceHe N3BbPbBaTe B KpaHa Ce3OHa.
BnHarn 3aTOUBAHrTe NOBTOPO HOx a KOceHe NJI, aKO e Heo6XoDmO, IODMeHeTe HOx a KOceHe c HOB.

PnpOpTeTNO pOnIbPkaTe HOka 3a KocHe 3aToueH INn POnMeH eTbpa 3a 06cnyXbaHe Ha KIneHTn (N3MepBaHe Ha De6anAHC).

Ie6aHnCnpaHnTe HOXOBe ige npuHHr TcHn Bn6paun Ha Kocaykata 3a TpeBa - pnc ot 3JonoJyka!

11.5 NodmHa Ha Hoxa

BhImaHHe: Hocete npedna3Hn pIbKaBnCn.

3a noDmHa Ha Hoxa:

3abbpTeTe KocayKaTa CtpaHnuHO.
- Noctabete KOMJIeKta 3a ΦIKCupaHe Ha HOXa BbB BaJa Ha DBIgTaeJr.
- NocTabete Hoxa noDpaBHeH.
- NOCTABETe BnHTa Ha HOXa B OTBOPNTe.
3aterheTe 60nta Ha HOXa C raeyeH KIOU 13 MM

12 CbXPAHEHNE

• N3KJIIOUeTe Ka6eJa Ha 3axpaHbAHeTo.
  -ПозволеТе на ДвигаTeЯда се oxлади 3a пибЛ.30 MнHyTu.
• IpoBepete, nonpaBeTe uNn noMeHeTe Ka6eNa Ha 3axpaHbAHeTo, aKO ca HAnuHn cJeDN OT n3HOcBaHe uNn NOpeNa.
  3aTeHHeTe Nn noMeHeTe n3HOceHn, pa3Xna6eHn nn noBpeHn qactn. NoocTeTe CTapaTeHNO.
  3a da npedna3nte ot pbkda, n36bpuete OKONO BCNUK MeTaNH qactn C HamacJeHa Kbpna Hn HapbckaTe C neko Cma3BaUO CpeDCTBO.
  CbxpaHbAte C yIbJNKeTEn Ka6eHa 3aKIOyeHO, cyxO MCTO I3BbH DoceH Ha Deua, 3a Da IpeDnTBPaNTHe VyIbJHNOMOUeHa YNOTpeBa HIN NOBpeDa.
• POKPNIte CBO6OJNO C 6pe3eHT 3a DOnbJIHNTeJNHO IpeJNa3BaHe.
• Ipn TpaHcnpTnpaHe. YBepTe ce, ye cTe IOdCnIpynIN npaBnIHo yCTpOcTBOTKbM npeBO3HOTOCpeDCTBO.
  3a da HamaJInTe npoctpaHCTBOTO 3a cbXpaHeHne, rohpata pbkoXBaTKa MOKe da ce CbHe HADONY,ype3 OCBO6OxJaBaHe Ha 3aKJIIOyBaUaTAp bKOXBaTKa.

BHMMaHHe: He npKneuBaTe eJekTpueckn Ka6eJ, KOraTo crBbATE pkoXBaTKaTa.

13 TAPAHUN

To3n npodukT mHa rapaHcnoHeh cpoK 36 Meceua, KOITOBIN3a B CIna OT daTata Ha NOKyNka HnPBnA NOTpeBnten.
Ta3n rapaHnI NOKPbBA BCNUKn DeeEeKTH Ha MaTePnAIN I npOn3BODCTBeHN DeeEeKTHN, HO He BKNIOUBA: 6aTePN, 3apAnH yCTPOINCTBA, DeeEeKTH N AcTn BCNEIDCTBne H HopMaJHO n3HOCBaHe n 3TpNBaHe KaTo NaRePN, YETKN, Ka6eNn UenCeENn INn AkcecoApn KATO CBpeDnA, HAKpaHnCn 3a npO6NBn INHCTpyMeHTN, pexeNn DnCKOB e T.H., NOBPeDN n DeoEeKTH PON3TuHa aOnOTpe6a, 3JIONoJyKn NIn HAnpaBeHn IPOMEHN, HHTO TPAHCNOPTHTE pa3XODN.
IIOBpeHn/INn DepeKTH npOn3Tnauu OT He npaBnHNo ynoTpe6a He ce 0xbaaat OT Te3n rapaHUNOHN YCNOBna.
OcBeH ToBa He HocnM HnKaBb OTROBOpHOCT 3a TeNECHn HapaHbAHn npOn3TuHaUN OTHnPabNJHaTa VNOTpeBa Ha NHCTOVMeHTa.
PemOHn MOrat Da 6bDaT n3BbPwBaHc Camo OT yNBJHOMOeH NOTpe6ntckn cepBu3EH eHTbD 3a eNEKTPOnHCTDVMeHTN.
MokTe Da IOnyUHTe IOnbHHTHa HOpMaUNHa HOMep 00 32 3 292 92 90.
BcnuK TpaHcnpTH pa3xoJn 6bDat noEtN OT nOtpe6nte,OCBeH aKO nncMeHO He e dorobopeHo npyro.

B cIto BpeMe, He Morat da ce IpeJBAAT pTeHcNn no rapaHcYra, aKO NOpeDaTa Ha ypeJa e BCJIeDCTBHe OT IpeHe6perBaHe Ha TexHueCKOTo 0bCJyKBaHe nII npetOBapBaHe.
- Ot rapaunra KaTeOpuHo Ce n3KnUoyBa NOBpeDa, KOrTo e B pe3yIaT OT npOHKBaHe Ha TeuHOCT, MHOro npax, PpeHnAmepeHa NOBpeDa (ymnIeHa nn Iopadn TotanHO 6e3rpNkne), HeNoXoJauO n3noJ3BaHe (n3noJ3BaHe 3a cen, 3a KOnTO ypeBbT He e nOxOJa), HEKOMNeTeHTHO n3noJ3BaHe (HaNP. Hecna3BaHe Ha IHcTpkyCUNTE B pkoBOdCTBOTo), HEKOMNeTeHTeMH oMTaK, rpbMOTeBuueH yap, HenpaBnHNO HanpeKeHne. To3n cnncbk He e n3yeepNaTeJIeH.
- Примано Ha rapaциониnpeteHnнннKORA He Moxke da DoBede Do ydJIkaBaHe Ha rapaционисpoK, HTO do 3anOuBaHe Ha HOB rapaционeH cpoK B cnUyai Ha 3amHa Ha yctpoiCTBO.
- UcTpoIcTBaTa nIN DeTaIIInTe, KOnTo ca 3aMeHeH CbO6pa3HO rapaHcNIOHHTE ycNoBnA, cJeIOBaTeJIHo OCTaBAt Co6CTBeHOCT Ha Varo NV.
Hne cn 3ana3BaMe npaBTo Da OTXBpNIM BcRAKa npTeHcUra, B cIyuae ne NOKyPkata He MoKe Da 6bJe npOBepHa IIN, KOrato e ACHO, Ye npOdyKTbT He e NOdApXaH npaBnHNO. (NoHCtBaHe Ha BeHTnlaucnoHHITE OTBOpN, peoBHa NoDpBXka Ha KapboHOBNTe YETKN,...)
CbxpahraBae foakTypata 3a nokykata kato doka3aTeNCTBO 3a daTaTa,Ha KOrTo e Hapabeha T.
Tp6Ba Da BbPHeTe HeDcMoHTnpaHn HNCTpyMeH Na npOdaBau B nPnEMnBO YnCTO CbCToHne, BOpuHaHnTO My JIto Kyapue, aKO yCTPOINCTBOTO mTaKOBa, PnIDpyKaBAHO OT DOKa3aTeNCTBOTO 3a NOKyPkata.

14 OKOJIHA CPEDA

Ako cnei npoIbIgnteHa ynoTppe6a MaunHata Bn ce HxJa e OT NOmHa, He n3XbPJIte CTapa Tnp DOMaKINCKITE OTnaDbu, a r yHnOxKeTe No HaunH, 6e3onaceH 3a OKJHATA Cpea.

Henyxhnte eJeKtpueckn npOyKTn He Tp8Ba da 6bDaT n3XbBpJHn 3aeHNO CdoMaKnHcNtTe OTnaDbu. MoJ, npoyte KbDe mMa Bb3MOxHocTn 3a peunKnpaHe. POnCKaIte OT MeCTHnte BJaCTn nJIn OT npOdaBaay cBBeTN OTHOCHO peunKnipaHeTo.

VARO - Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BeIJra Пюдукт: EJIEKTPUCHECKA KOCACHKA 2000BT - 420MM

Mapka: POWERplus

MoeJ:POWXG6281

e B CbOTBcTCTBnE C OCHOBHnTe N3NCKBaHnry I npyri CbOTBeTHn pa3nope6n Ha npnIOxHMnTe Ebponeckn DnpeKtNB, 6a3npaHn Bbpxy npJaraHeTo Ha EbponecknTe xapMOH3npaHn CTanDapTN. Bcya HeynbHOMoSeHa MoiΦnKauaHa anapaTa aHynpa Ta3n DeKnapaua.

Ebponeckn DnpekTbN (BkHIOHTeJIHO TexHITe npomeH NbM daTaTa Ha noDnncBaHe, aKO ca npNJIOXUMN):

2011/65/EU

2006/42/EC

2014/30/EU

DonyoDncaHnT DeiCTBa O T IMeTo Ha N3NJIHNTeHnI DaPeKTop Ha KOMnAHnraTa,

Philippe Vankerkhove

PerylaunOHn Bbnpocn-MeHNKbp no cbotBeTCTBnTa

16/09/2021, Lier - Belgium

Vario

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

Copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM

OFFICES:

IBERICA BRICOLAGE S.L. - ESPAN

ASIA PACIFIC HONG KONG Ltd / SHANGHAI PRC

AUSTRALIA Pty Ltd / GERMANY GmbH
