USER MANUAL Soloworker BT PerfectPro

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet. Consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.3

Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged. liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. To Reduce the Risk of Fire or Electric Shock, Do not Expose This Appliance To Rain or Moisture. The Shock Hazard Marking and Associated Graphical Symbol is provided on the rear of unit. Excessive sound pressure on ear-and headphones could impair the hearing ability. Higher setting that idle on the equalizer leads to higher signal voltages on the output for ear and headphones. The power plug should be close to the radio, and easy to be approached that during the emergency, to disconnect the power from the radio, just unplug the power plug from the AC power slot. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnected device shall remain readily operable. This apparatus is provided with protection against splashing water (IP64). Use only the AC/DC adaptor which is provided by the manufacturer. The batteries shall not be exposed to excessive heat such as sunshine, re or the like To prevent possible hearing damage, do not listen at high volume levels for long periods.

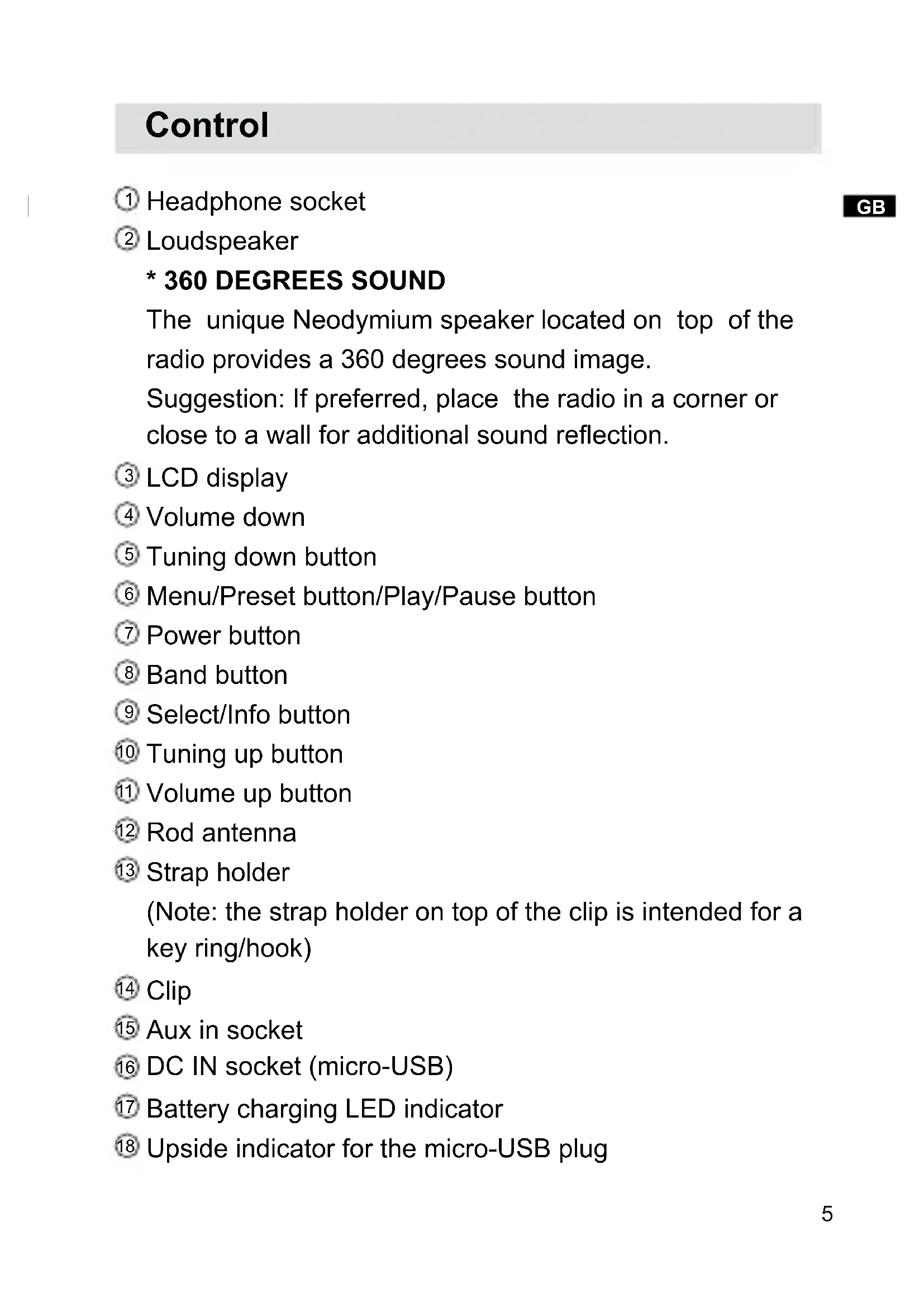

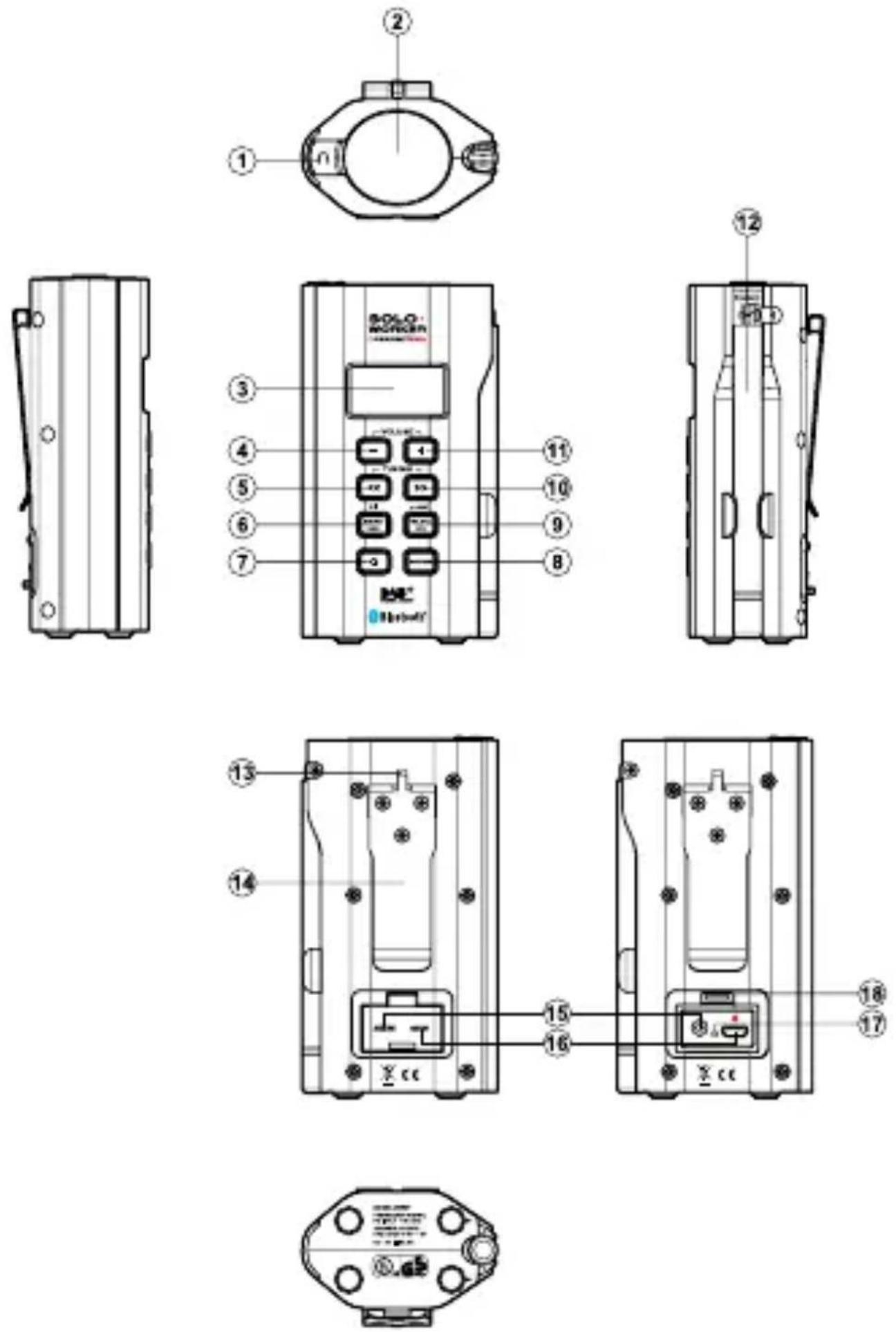

Control Headphone socket Loudspeaker

• 360 DEGREES SOUND The unique Neodymium speaker located on top of the radio provides a 360 degrees sound image. Suggestion: If preferred, place the radio in a corner or close to a wall for additional sound reection. LCD display Volume down Tuning down button Menu/Preset button/Play/Pause button Power button Band button Select/Info button Tuning up button Volume up button Rod antenna Strap holder (Note: the strap holder on top of the clip is intended for a key ring/hook) Clip Aux in socket DC IN socket (micro-USB) Battery charging LED indicator Upside indicator for the micro-USB plug

Charging the radio This unit features a built in 1850mAH Lithium rechargeable battery to power the radio. Before operating the radio for the first time please fully charge the battery with a supplied 5V/500 mA AC adaptor. Carefully insert the mini-usb plug into the DC IN socket on the rear of your radio. A red dot on the mini-usb plug indicates the upside of the mini-usb plug. This red dot is also indicated above the mini-usb socket. Plug the adaptor into a standard mains outlet and the radio will begin charging the built in battery. The LED charging indicator next to the DC IN socket will shine bright red showing charging in progress. This LED indicator will shine faint when the battery is fully charged. The radio can only be charged with radio off. Charging time is approx. 4 hours. The battery life is approx. 4-10 hours* listening through the speaker and approx 6-15 hours* with headphones. Reduced power, distortion, ‘stuttering’ sounds or battery power indicator in“low” are all signs that the battery needs to be recharged. Please note the battery power icon does not display on the LCD when charging the battery. IMPORTANT: The mains adaptor is used as the means of connecting the radio to the mains supply. The mains socket used for the radio must remain accessible during normal use. In order to disconnect the radio from the mains completely, the mains adaptor should be removed from the mains socket outlet completely.7

Safety Note: Never use charge or operate the radio on AC mains power in rainy or moist conditions to prevent moist from entering the radio. Always keep the rubber cover on the back well closed under these conditions.

• Note to battery life: This is a rough indication only as actual achieved battery life depends on many factors such as: selected volume, music type (bass heavy music consumes more energy), selected music source or radio band, selected EQ settings, temperature and age of the battery. Initial operation-DAB

1. Carefully straighten up the rod antenna and press the

2. The display will show “Welcome to Digital Radio” and start

to scan the entire DAB channel range and stop at the rst found station. If the radio has been used before, the last used station will be selected. Press the Select button to play the station.

3. Press the Tuning up/down button to display station list and

nd desired station. Press the Select button to select the station. The radio will tune to the station and display the station name.

4. Adjust the volume control for comfortable listening.8

Note: Due to the conductivity of the human body the reception of DAB stations may not be possible or become unstable when the antenna touches your body or is very close to your body. Service information-DAB The Service Information display – Technical information on the current status of the station being broadcast. While listening to DAB, continually press in the Select/Info button to cycle through information on: a. Radio text-Displays text messages such as the artist or track name, phone in number, trafc alerts, etc. b. Signal error/strength-Displays the signal error for the station being listened to. A low error number indicates a better quality of radio signal. The signal strength graph can be used when positioning the radio or its antenna. For good reception the graph should occupy three or more blocks. c. Program type (PTY)-Displays the type of station being listened to such as Pop, Classic, News etc. d. Multiplex Name-Displays the name of the DAB multiplex to which the current station belongs as well as its broadcast frequency. e. Channel and frequency-Displays the channel number and frequency for the current DAB radio station.9

f . Bit rate and audio type-Displays the digital bit rate and audio coding information for the station being listened to. g. Format-Displays the format for the station being listened to. h. Date-Displays the current date. Menu functions-DAB

1. Repeatedly press and release the Menu button until the

radio reverts to normal display (i.e. without showing ‘MEM Browse’ or ‘MEM Store’ at the bottom of the display).

2. Press and hold the Menu button to enter DAB menu list.

Then press the Tuning up/down button to scroll through the following options: EQ setting/Full Scan/Manual tune/ DRC value/Station order/Prune/System. Press the Select button to conrm your selection. A) Full scan: scan the whole DAB network in your area. Radio will tune to the rst station found after the scanning is completed. B) Manual tune: press the Tuning up/down buttonto scroll through the whole DAB channel. Press the Select button to select required channel. C) EQ setting: The sound on your radio can be adjusted to suit your personal taste for the material that you are listening to. The radio has ve preset equalizer modes. Alternatively, you may set the treble and bass levels to your own preferences.10 Press the Tuning up/down buttons to cycle through the preset mode. Press the Select button to confirm your selection. a) Normal: no tone modication is applied b) Rock c) Soul & Jazz d) Classical e) Spoken word f ) Personal: Treble-tone setting may be adjusted/Bass-tone setting may be adjusted ● If you nd the preset equalizer functions not to your liking, you may set up a custom treble and bass as following:

Then press the Select button to enter the adjustment mode.

3) Press the Tuning up/down button to adjust the treble or

bass level (-5 and +5). Press the Select button to conrm the setting. Note: To quickly cancel the effect of Personal equalizer setting, press the Tuning up/down button until ‘Normal’ is chosen on the display and press the Select button. The treble and bass settings will be memorized for the next time that you wish to use the Personal setup.11

D) DRC (Dynamic Range Control): The DRC facility can make quieter sounds easier to hear when your radio is used in a noisy environment. Use the Tuning up/down buttonto highlight the required DRC setting DRC Off: DRC is switched off, broadcast DRC will be ignored DRC High: DRC is set as sent by broadcaster. DRC Low: DRC level is set to 1/2 that sent by broadcaster. Note: Not all DAB broadcasts are able to use the DRC function. If the broadcast does not support DRC, then the DRC setting in the radio will have no effect. E) Station order: your radio has 3 station order settings from which you can choose. The station order settings are as following. Alphanumeric: sorts the station list alpha-numerically 0…9 A…Z Ensemble: organizes the station listed by DAB multiplex. Valid: shows only those stations for which a signal can be found. The current setting is indicated by an asterisk. F) Prune: If you move to a different part of the country, some of the stations which were listed may no longer be available. Also, from time to time, some DAB services may stop broadcasting, or may change location or frequency. Stations which cannot be found, or which have not been received for a very long time are shown in the station list with a question mark.12 The Prune stations function will delete the marked DAB stations from your station list.

1) Press the Select button to enter prune station function.

2) Press the Tuning up/down button to select YES to cause

the stations lists to be pruned, eliminating unavailable stations. If you do not wish to prune stations, select NO and the display will revert to the previous menu. G) System: press the Select button to select from the following settings ● Time Manual setting the clock

2) Press the Tuning up down/button to select correct hour.

Press the Select button to conrm the setting. The minute digits will flash. Press the Select button to confirm the setting. If the radio has been set to use a 12 hour format, there will be an option for setting AM or PM for the clock time

3) Follow the same procedure above for the day/month/year

setting. When the setting is completed, ‘Time Saved’ will be shown on the display. Automatically updating the clock

option from ‘Update from Any’, ’Update from DAB’, ‘Update from FM’, ‘No update.’ Press the Select button to conrm your choice. The radio will then exit to the previous menu display. Setting the clock format: The clock display can be set to 12 or 24 hour format.

1) Press the Tuning up/down button until ‘Set 12/24 hour’ is

highlighted on the display. Press the Select button to enter the clock format menu. The current clock format is marked with asterisk.

2) Press the Tuning up/down to select either 12 or 24 format.

Press the Select button to conrm your choice. ● Contrast: the contrast of the display can be adjusted. Press the Tuning up/down button to adjust the contrast. The contrast level indication on the screen will change at the same time. When you find the setting that gives the best legibility for the location in which the radio is used, press the Select button to save the setting. ● Language: your radio can be configured to a different language. Press the Tuning up/down button until your required language is highlighted on the display. Press the Select button to conrm your choice. ● Factory reset: by performing a factory reset, all user entered settings will be erased.14 Press the Tuning up/down button to select YSE or NO. Select YES to erase all saved settings and all settings will revert to factory default. ● Software upgrade Software updates for your radio may be available in the future. As software updates become available software and information on how to update your radio can be found at www.perfectpro.eu IMPORTANT: Do not perform software updates unless instructed by our technician. ● SW version: The software display cannot be altered and is just for your reference Press the Select button to view the software version installed in the radio. Press the Select button again to revert to the previous menu. ● BD address: it is an address that unique for each Bluetooth device. It cannot be altered and is just for your reference Operating your radio-FM (Manual tuning)

1. Carefully straighten the rod antenna and turn on the radio

by pressing the Power button.

2. Press the Band button to select FM radio mode.

3. Press the Tuning up/down button to control the frequency

that the radio will tune to. The frequency will change in steps of 50KHz. When the end of the waveband is reached the radio will recommence tuning from the opposite end of the waveband.15

4. Press the Volume buttons to adjust the sound level as needed.

2. The radio will search in an upwards or downwards direction

until it nds a station of sufcient signal strength. Service information-FM RDS Your radio has a range of display options when in FM mode:

1. Press the Info button cycle through the different options.

a. Radio text-Displays scrolling text messages such as artist/track name, phone in number etc. b. Program type-Displays the information for the station being listened to e.g. Pop, Classic. News, etc. c. Multiplex Name-Displays the name of the DAB multiplex to which the current station belongs as well as its broadcast frequency. d. Audio type-Displays the audio type of the station being listened to. e. Date-Displays the current date. Note: If no RDS information is available, then the radio will only be able to display the frequency. There will be no text or program type information available under these conditions. The radio only provides displays when there is information available.16 Menu functions-FM

1. Repeatedly press and release the Menu button until the

radio reverts to normal display (i.e. without showing ‘MEM Browse’ or ‘MEM Store’ at the bottom of the display).

2. Press and hold the Menu button to enter FM menu list.

Then press the Tuning up/down button to scroll through the following options: EQ setting/FM Scan zone/FM audio/ System (for the functions of EQ setting and System, please refer to the above sections described in DAB mode). Press the Select button to conrm your selection. A) FM scan zone: Your radio includes a local/distant option for the auto-scan function. Bysetting the radio to the 'local' scan option, weaker signals from more distant transmitters can be ignored by the radio, making stronger signals easier to nd. Press the Tuning up/down button to choose between ‘Local’ (Strong stations only) and ‘Distant’ (All stations including distant radio stations) options. Then press the Select button to conrm the setting. The current setting is indicated with an asterisk. B) FM audio: If the FM radio station being listened to has a weak signal, some hiss may be audible. It is possible to reduce this hiss by forcing the radio to play the station in mono rather than auto. Press the Tuning up/down button to select the options between ‘Mono’ and ‘Auto’. Then press the Select button to conrm your selection.17

Presetting stations-FM/DAB You may store your preferred DAB and FM radio stations to the preset station memories. There are 40 memory presets in your radio 20 for DAB and 20 for FM. Presets are remembered by your radio in the event of a power failure.

1. Tune to the required station following the above steps.

2. Repeatedly press and release the Menu button until ‘MEM

Store’ is shown at the bottom of the display.

3. Press the Tuning up/down button to select your required

preset number. The preset number ashes on the display indicating the preset is still empty. Press the Select button to store the currently tuned station. The display will show ‘Saved’ when the station is stored to the preset station memory. Repeat this procedure for the remaining presets. Alternatively, you can simply press the Select button (without the use of Tuning up/down button to select your required preset number) to preset the currently tuned station. The station will be stored in the remaining empty preset in sequence (i.e. if preset 1 to 4 are used, the station required to be preset will be stored in preset 5 automatically). Note: Stations stored in preset memories may be overwritten by following the above procedure. Recalling a preset station-FM/DAB

1. Press the Band button to select the required mode.

2. Repeatedly press and release the Menu button until ‘MEM

Browse’ is shown at the bottom of the display.18

3. Press the Tuning up/down button to select your required

station. Note: The display will only show the preset number which has preset stored. Listening music via Bluetooth streaming You need to pair your Bluetooth device with your radio before you can auto-link to play/stream Bluetooth music through your radio. Paring creates a `bond' so two devices can recognize each other. Pairing and playing your Bluetooth device for the rst time

1. Press the Band button until Bluetooth mode is selected.

‘Discoverable’ will show on the display indicating the radio is ready to be paired.

2. Activate Bluetooth on your device according to the device's

user manual to link to the speaker. Locate the Bluetooth device list and select the device named ‘Soloworker BT.’ With some mobiles( which are equipped with earlier versions than BT2.1 Bluetooth device), you may need to input the pass code “0000”.

3. Once connected, it will show ‘BT connected’ and the name

of your Bluetooth device will appear on the display for a few seconds. You can simply select and play any music from your source device. Volume control can be adjusted from your source device, or directly on your radio.19

4. Press the Menu button to play/pause tracks or use the

controls on your device. (Note: If you press and hold the Menu button, it will enter Bluetooth setting menu.) Note:

1) Bluetooth connectivity performance may vary depending

on the connected Bluetooth devices. Please refer to the Bluetooth capabilities of your device before connecting to your radio. All features may not be supported on some paired Bluetooth devices.

2) The effective operation range between the system and the

paired device is approximately 10 meters (30 feet). Any obstacle between the system and the device can reduce the operational range. Pairing another devices Before pairing another new Bluetooth device to the speaker, you need to make the speaker discoverable.

Then press the Select button to conrm the setting. Your Soloworker BT is discoverable again for pairing.

3. Activate Bluetooth on your device according to the device's

user manual to link to the speaker. Locate the Bluetooth device list and select the device named ‘Soloworker BT‘. With some mobiles which are equipped with earlier versions than BT2.1 Bluetooth device, you may need to input the pass code “0000”.20

4. Once connected, it will show ‘BT connected’ and the name

of your Bluetooth device will appear on the display. You can begin playing music from your Bluetooth device. Playing a previously-paired device This radio can memorize up to 8 sets of paired device, when the memory exceed this amount, the earliest paring device will be over written from the radio. If your Bluetooth device already paired with the radio previously, the unit will memorize your Bluetooth device and it attempts to reconnect with a device in memory which is last connected. If the last connected device is not available, the radio will try to connect to the second last device, and so forth. Alternatively, you can select your required Bluetooth device in the memory.

1. Make sure Bluetooth of your previously-paired device is

4. Press the Tuning up/down button to select your required

Bluetooth device and press the Select button to confirm the selection. Once connected, it will show ‘BT connected’ and the name of your Bluetooth device will appear on the display.21

Disconnecting your Bluetooth device Press the Band button to select any bands other than Bluetooth band or turn off Bluetooth on your Bluetooth- enabled device to disable the connection. Playing music via auxiliary input socket A 3.5mm Auxiliary input socket is provided on the rear of the unit to permit an audio signal to be fed into the unit from any devices that features a headphone or audio output, such as an iPod, MP3 or CD player.

MP3 or CD player) to the Auxiliary input socket (marked 'AUX IN').

3. Adjust the Volume control on your iPod, MP3 or CD player

to ensure an adequate signal and then adjust the volume on the speaker for comfortable listening.

4. After use, disconnect your player in order to listen to your

radio conventionally. Note: Never use the Aux-In socket in rainy or moist conditions to prevent moist from entering the radio. Always keep the rubber cover on the back well closed under these conditions.22 Headphone socket The 3.5 mm stereo headphone socket located on the top of your radio is provided for use with stereo headphones or an earpiece. Connecting headphones automatically mutes the built in speaker. Important: Excessive volume levels from earphones and headphones may cause damage to your hearing. Note: Never use the headphone socket in rainy or moist conditions to prevent moist from entering the radio. Always keep the rubber cover on top well closed under these conditions. Key lock The key lock function is used to prevent unintentional operation of the radio.

1. Press and hold the Select button until ‘Keys Locked’ is

shown on the display. The power button and all other buttons will be disabled to prevent accidental operation.

2. To disable the key lock function, press and hold the Select

button again until ‘Keys Unlocked’ is shown on the display.23

Safety information for internal rechargeable Lithium-ion battery The internal rechargeable lithium-ion battery used in this device is able to supply power for a long period of time. However, even lithium-ion batteries reach a point where they cannot be recharged. If the battery does not recharge after several attempts, it may be drained (has a low charge), please contact info@perfectpro.eu for repair information. However, if you do not want us to replace the battery, you will need to dispose of used batteries/device in accordance to the laws and regulations in your area. In addition, you can contact your local electronics retailers or recycling center for disposal. User Safety Precautions ● Check the room temperature range is 0°C – 45°C (32°-113° Fahrenheit) before charging the battery. ● Do not attempt to disassemble the plastic covering or any parts of the device, as the materials inside may be toxic and may damage skin and clothes. ● Do not puncture, crush, modify, throw or cause any unnecessary shock to your battery, as the battery used in this device may present a risk of re, explosion, or chemical burn if mistreated. ● Do not leave, charge or use the battery in a car under direct sunlight, near re or a heated source. ● Do not immerse, throw, wet the battery in water/seawater. ● Do not use or charge the battery if it appears to be abnormally hot, discoloration, deformation or abnormal conditions is detected during use, charge or storage. ● Do not leave a charging battery unattended. Keep the battery away from babies and children.24 WARRANTY This radio has a 2 year limited warranty. WARNING! Warranty becomes void once the radio cabinet has been opened or any modifications or alterartions to the radio have been made! The terms of the warranty of this radio do not cover the following: - Damage caused by misuse, abuse, neglect, alterations, accidents or unauthorised repair. - Normal wear and tear. - Breaking or bending of the antenna.25

Specication Power Requirement: Mains (via supplied AC adaptor) AC 100-240 V, 50/60 Hz DC 5V, 500 mA Built-in Battery: 3.7V/1850 mAH Speaker: 4 ohm Bluetooth: Bluetooth specication Prole Support Bluetooth Audio CODEC Transmitting Power Line of sight range Frequency Coverage: FM: 87.50–108 MHz DAB+ Band III: 5A–13F Bluetooth® Ver 3.0 A2DP, AVRCP, and SPP A2DP with SBC and AAC codec support Specication Power Class 1 10 meters/30 feet If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.Check with yourLocalAuthority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive) The company reserves the right to amend the specication without notice.2627
