Bollitore Elettronico B510 - Kettle BORETTI - Free user manual and instructions

Product Type	Electric Kettle
Brand	Boretti
Model	Bollitore Elettronico B510 / B511 / B512
Capacity	1.7 L (min 0.3 L)
Power	Approx. 2000 W
Power Supply	220-240 V ~ 50/60 Hz
Adjustable Temperatures	60 °C, 70 °C, 80 °C, 90 °C, 100 °C
Keep Warm Function	Yes (30 min, for temperatures < 100 °C)
Automatic Shut-off	Yes (after 5 minutes of inactivity)
Overheat Protection	Yes (safety thermostat)
Removable Filter	Yes (in the spout)
Water Level Indicator	Yes (transparent graduations)
Base with Control Panel	Yes (touch buttons, LED backlight)
Cable Storage	Yes (under the base)
Body Material	Heat-resistant plastic
Dimensions (W x D x H)	Approx. 23 x 18 x 25 cm
Weight	Approx. 1.2 kg
Care and Cleaning	Clean the outside with a damp cloth; descale regularly (white vinegar)
Safety	Automatic shut-off, overheat protection, do not immerse
Spare Parts and Repairability	Removable filter; repair by authorized professional
Warranty	2 years (excluding accessories: 6 months)

Frequently Asked Questions - Bollitore Elettronico B510 BORETTI

How to use the Boretti B510 kettle for the first time?

Before first use, boil two full kettles of water and discard. Then you can use it normally.

What temperatures can be selected?

You can choose from 60 °C, 70 °C, 80 °C, 90 °C and 100 °C. The ideal temperature for green tea is 60-80 °C, for black tea 90 °C, and for herbal teas 100 °C.

How does the keep warm function work?

Press the KEEP WARM button after the water has reached the desired temperature. The water stays at temperature for 30 minutes. This function is only available for temperatures below 100 °C.

What to do if the kettle turns off by itself before boiling?

This is normal if the water amount is insufficient (less than 0.3 L). Fill it above the MIN mark. If it turns off without water, the safety thermostat has activated: let it cool, fill with cold water and reuse.

How to clean the kettle filter?

Remove the removable filter from the spout and clean it with a soft, damp cloth. Replace it before each use.

How to descale the kettle?

Fill the kettle with 3 cups of white vinegar and the rest with water. Let it sit overnight without boiling. Discard, then boil two times with fresh water to rinse.

Can I use an extension cord?

No, the kettle is supplied with a short cord for safety reasons. Never use an extension cord.

What to do if the kettle no longer heats?

Check that the plug is properly inserted and that the kettle is correctly placed on its base. If the problem persists, contact customer service ([e-mail]). Do not attempt to repair it yourself.

How to store the power cord?

Wind the cable into the compartment provided for this purpose under the kettle base.

What is the maximum amount of water I can put?

Never exceed the MAX mark (1.7 L). Overfilling may cause boiling water to overflow.

USER MANUAL Bollitore Elettronico B510 BORETTI

Black and silver Boretta water heater with digital display, no visible text or symbols on body

B510-511-512

Water kettle ★ Instruction booklet

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Labeled diagram of a white kettle with numbered parts, showing interior and exterior views

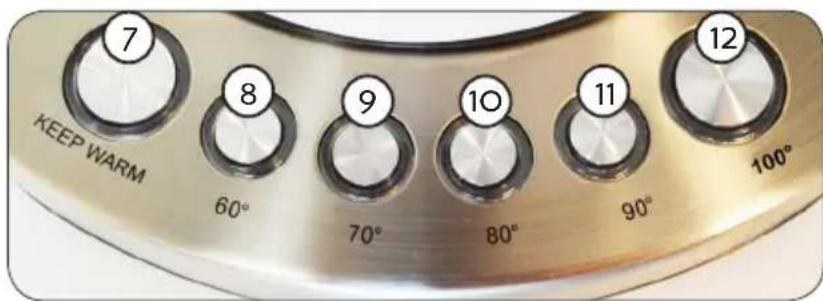

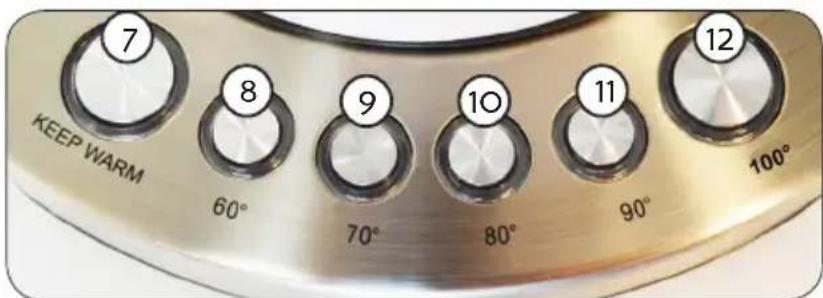

7 KEEP WARM 8 60° 9 70° 10 80° 11 90° 12 100°

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a white kettle with numbered parts and interior view showing internal components

7 KEEP WARM 8 60° 9 70° 10 11 90° 12 100°

★ AVANT LA PREMIÈRE UTILISATION

Warning symbol for a trash bin with crossed lines indicating no waste or discharge, and a black rectangular block below.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Labeled diagram of a white kettle and its interior, showing numbered parts for cooking or cleaning.

7 KEEP WARM 8 60° 9 70° 10 80° 11 90° 12 100°

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

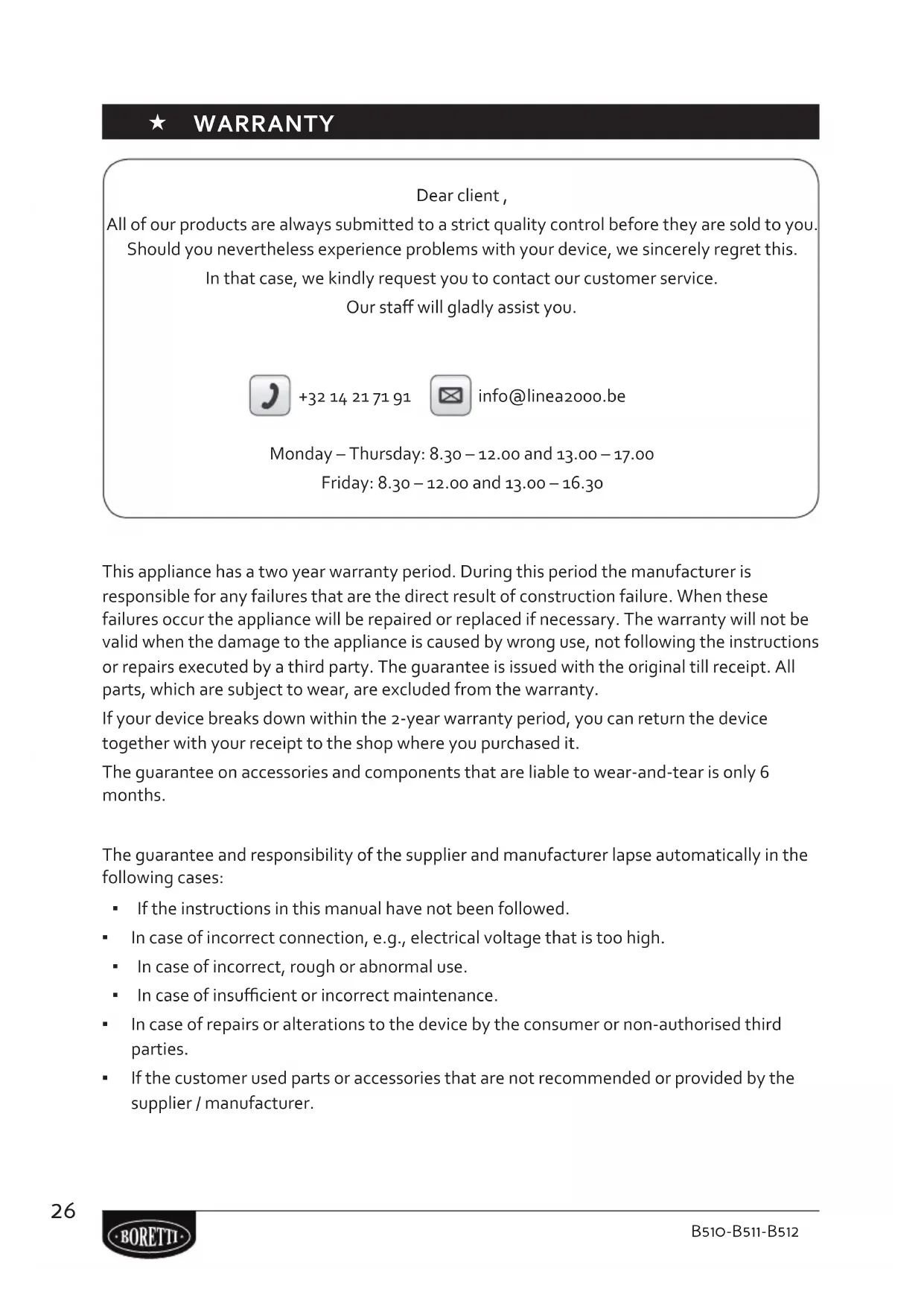

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging material.

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance shall not be used by children from 0 year to 16 years. This appliance can be used by children aged from 16 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 16 years. Cleaning and user maintenance shall not be done by children.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Do not operate the appliance with wet hands.

- A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

- Unwrap the cord completely to prevent overheating of the cord.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Do not allow the power cord supply to run underneath or around the unit.

- Do not place on or near a hot gas or electric burner or sink, or in a heated oven.

- Do not place near flammable materials, gases or explosives.

- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- During boiling, hot steam may come through the filter or any other opening. Keep hands and face at a safe distance during operation.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

- Only use the connector, stand or unit with incorporated thermostat delivered with the appliance.

- Do not overfill the kettle. Boiling water may be ejected during usage.

- This appliance is operated filled at least to the minimum level and not above the maximum level marked on the appliance.

- Do not spill any liquid on the connector.

- WARNING : Do not remove the lid while the water is boiling.

- CAUTION: Ensure that the kettle is switched off before removing it from its stand.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

PARTS

1. Spout
2. Button to open the lid
3. Lid
4. Handle
5. Water level indication
6. Base with control panel
7. Heat retention function
8. Cooking at 60 °C
9. Cooking at 70 °C
10. Cooking at 80 °C
11. Cooking at 90 °C
12. Cooking at 100^ C
13. Cord storage in the bottom of the base
14. Removable filter

BEFORE THE FIRST USE

Boil a full water kettle twice and pour away the water before actually using the water kettle for the first time.

USE

1. Remove the water kettle from its base and open the lid by pressing the top button.
2. Fill the water kettle with the desired amount of water. Make sure that the water level is always higher than the minimum indication (0.3 l) and lower than the maximum indication (1.7 l).
3. If you have not added enough water, the water kettle will switch off before the water boils.

4. If you have added too much water, the boiling water could escape through the spout. That is why you should never exceed the maximum indication when filling the kettle. Also, always make sure that the lid is properly closed before turning on the watter kettle.

5. Place the water kettle on its base.

6. Plug in the appliance. The LED light goes on. If you do not select a temperature, the device will turn off after 5 minutes.

7. Select the desired temperature: 60^ C, 70^ C, 80^ C, 90^ C, 100^ C. The light of the temperature will begin to flash until the desired temperature is reached.

8. Once the water reaches the correct temperature, the light will burn steadily and you will hear an endsignal. After 5 minutes, the kettle will turn off automatically. The device will then go into 'stand-by' mode. By pushing a random button, the device will become activated again. You will have to select a temperature again if you wish to heat the water.

9. You can also turn the kettle off sooner by pressing the selected temperature again.

10. Remove the kettle from the base and pour the water. Be careful when pouring the water, since the boiling water or hot steam may burn you. Do not open the lid when the water in the kettle is hot.

11. The water kettle can remain on its base when the appliance is not being used.

12. Make sure that the water kettle does not receive any power when it is not being used, so always unplug the appliance when not in use.
13. If by accident you would use the kettle without water in it, the boil dry protection will automatically switch off the appliance. The LED lighting of the temperature buttons will begin to flash. If this happens, let the water kettle cool down completely before filling the kettle with cold water to start the boiling process.

HEAT RETENTION FUNCTION

If the device has reached the desired temperature, you can press the 'KEEP WARM' button. The water will then stay warm for 30 minutes. You can then pour water without any problems. The memory function causes the kettle to continue to heat the water when you return it to the base.

Note: this function is not available if you boil the water at 100 °C , but it is at 60 °C , 70 °C , 80 °C and 90 °C .

TYPES OF TEA

• Black tea: this tea is made by allowing the leaves of the tea plant to oxidize completely. The recommended temperature for the tea water is 90 °C, allowing the tea to steep for 3 - 5 minutes.
• Green tea: green tea is the most healthy type of tea. The tea is obtained by heating and drying the leaves after harvesting them. The recommended temperature for the tea water is 60-80 °C, allowing the tea to steep for 3 minutes.
• Oolong tea: this type of tea is also called blue tea and is between green and black tea. This tea is at its best if you allow it to steep 6 to 8 minutes in water at 80-90 °C.
• White tea: this type of tea is rare and is made from the young buds of the tea bush. The recommended temperature for the water is 70-80 °C, allowing the tea to steep for about 5 minutes.
• Herbal tea: herbal tea cannot be regarded as tea because it is not made from the leaves of the tea plant. Herbal tea is made from herbs and/or spices and is an infusion. This tea is at its best at a temperature of 90-100 °C and allowed to steep for 5 to 7 minutes.

Caution:

• The amount of time to steep tea depends on your tastes and preferences. These are merely guidelines.
• Do not drink more than 1.5 to 2 litres of tea a day.

WHY IS TEA HEALTHY?

It is a low-calorie thirst quencher.
- It contains anti-oxidants that offer many health benefits.
- Drinking tea calms you and allows you to relax, which means less stress.
- Tea is healthier than coffee because there is less caffeine in tea.

★ CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet and let it cool down completely before cleaning. Never immerse the kettle, power cord or power base in water. Also make sure that these parts do not come in contact with moisture.

CLEANING THE HOUSING

Wipe the exterior with a damp cloth, never use a chemical or abrasive cleaner. Rub the outside of the kettle clean with a soft, damp cloth or with a mild detergent. Never use a toxic cleaning product.

Caution: Do not use any chemical, metal, wooden or abrasive cleaning products to clean the outside of the water kettle.

CLEANING THE FILTER

Remember to clean the filter on a regular basis. Detach the filter by pulling the tab of the filter out the kettle. Rince the filter and replace it after cleaning.

STORAGE

To store the appliance in a compact manner, you can wind up the cord in the bottom of the base.

DESCALING

Tap water may cause mineral deposits on the inside of the water kettle. Use a liquid descaler or a non-toxic cleaning product to remove this build-up.

An alternate solution could be the following:

1. Fill the water kettle with 3 cups of white vinegar and add water until the kettle is full (max. level). Let this soak overnight. However, do not boil this liquid!

2. Afterwards, pour away the solution. Stains that remain in the spout can be removed by rubbing it with a damp cloth.

3. Fill the kettle with clean water, boil and pour away the water.
4. Repeat once more and the water kettle is again ready for use.

ENVIRONMENTAL GUIDELINES

Warning sign with crossed-out trash bin and black rectangle, indicating no waste or discharge

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Labeled diagram of a white kettle and its interior, showing numbered parts for identification.

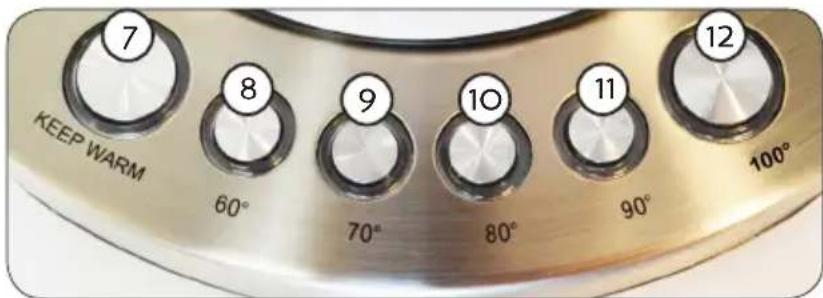

7 KEEP WARM 8 60° 9 70° 10 80° 11 90° 12 100°

Warning sign with crossed-out trash bin and a blank rectangular base, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a white kettle and its interior, showing numbered parts for cooking or cleaning.

7 KEEP WARM 60° 8 9 10 11 90° 100° 12

★ PŘED PRVNÍM POUŽITÍM

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Labeled diagram of a white kettle and its interior, showing numbered parts for cooking or cleaning.

7 KEEP WARM 8 60° 9 70° 10 80° 11 90° 12 100°

★ PRED PRVÝM POUŽITÍM

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
