NL 300 - Flashlight OLYMPIA - Free user manual and instructions

Product type	LED flashlight with night light and emergency light
Brand	Olympia
Model	NL 300
Weight	Approx. 105 g
Power supply	Li-Ion accumulator 3.7 V DC, 0.11 W; charging base 230 V ~ 50 Hz, 3.3 W
Lighting duration (flashlight)	5 hours maximum
Charging time	Approx. 12 hours
Lighting color	Approx. 6000 K (natural white light)
Operating modes	Flashlight, night light (automatic), emergency light (automatic in case of power failure)
Sensor	Brightness sensor for automatic day/night switching
Charging type	Induction charging via charging base
Use	Indoor use only
Ambient temperature	-20°C to 45°C, relative humidity 30-80%
Care and cleaning	Clean surfaces with a dry, soft, lint-free cloth; do not use cleaning agents or solvents
Safety – eyes	Do not look directly at the LEDs – risk of retinal damage
Safety – electrical	Do not touch with wet hands; avoid contact with water; unplug in case of emergency
Safety – children	Keep out of reach of children; small objects and packaging films pose a suffocation hazard
Spare parts	Available for the duration of the warranty; the device contains no user-serviceable parts
Repairability	Repairs only by qualified personnel; contact customer service
Warranty	Legal warranty of conformity (2 years); return in original packaging with receipt
Box contents	Flashlight, charging base with power plug, instruction manual
Compliance	CE marking; declaration of conformity available at www.olympia-vertrieb.de

Frequently Asked Questions - NL 300 OLYMPIA

How to charge the Olympia NL 300 flashlight?

Place the flashlight into the charging base connected to a power outlet. Induction charging begins automatically. Full charging time is approximately 12 hours.

What operating modes are available?

Three modes: flashlight (switch to ON, up to 5 hours of light), night light (switch to Auto, automatic activation by brightness sensor), and emergency light (switch to Auto, lights up in case of power outage).

Can I use the flashlight outdoors?

No, it is designed for indoor use only. Avoid humid, dusty environments or those with large temperature variations.

What to do if the flashlight no longer turns on?

Check that the switch is not set to OFF. Make sure the battery is charged (place it on the charging base). If the problem persists, contact customer service.

Can the flashlight remain on the charging base all the time?

Yes, you can leave it on the base. In Auto mode, it serves as night light and emergency light. However, if you are not using it, you can unplug the base.

Is it dangerous to look directly at the LEDs?

Yes, the LEDs are very bright and can cause retinal damage. Never look directly at the light source.

How to clean the flashlight?

Use a dry, soft, lint-free cloth. Do not use cleaning agents or solvents that could damage the housing.

What is the battery life?

The built-in Li-Ion battery provides up to 5 hours of continuous lighting in flashlight mode. Total lifespan depends on usage, but it is rechargeable.

Can I replace the battery myself?

No, the device contains no user-serviceable or replaceable parts. For repairs, contact qualified personnel.

What to do in case of malfunction or defect?

Return the device in its original packaging with the receipt to the store of purchase. The two-year statutory warranty applies. You can also check the declaration of conformity at www.olympia-vertrieb.de.

USER MANUAL NL 300 OLYMPIA

Line drawing of a handheld device with a cylindrical body and two separate components (no text or symbols)

Inhalt

Connecting the Charging Station....11

Selecting the Operating Mode....11

Technical Data....12

Declaration of Conformity 13

Cleaning 13

Disposal....13

Guarantee....13

Contenu

Read the operating manual thoroughly and observe all the information contained when handling and using the torch. Keep the operating manual in a safe place for future reference.

WARNING! Risk of injury through electric shock. Handling the device improperly can lead to suffering an electric shock. Pay attention that the device is connected to a power outlet which is easily accessible so that it can be disconnected from the power supply quickly in the event of an emergency. Never take hold of the device with wet hands. Prevent the device coming into contact with water.

WARNING! Risk of suffocation through small parts, packaging materials or protective foils. Children can swallow small parts, packaging materials and protective foils. Keep the device and its packaging materials out of reach of children.

WARNING! This device may be used by children from the age of eight and persons with limited physical, sensory or mental capabilities or a lack of experience and/or knowledge when they are under supervision or have been instructed on the safe use of the device and have understood the related risks involved. Children must never play with the device. Cleaning and user servicing must not be performed by children without supervision.

CAUTION! Risk of injury to the retina. The LEDs in the torch are very bright and could damage the eyes. Never look directly into the beam produced by the torch LEDs when it is switched on.

IMPORTANT! Risk of property damage. Prevent exposing the device to environmental influences such as smoke, dust, vibration, chemicals, moisture, heat or direct sunlight.

IMPORTANT! Risk of property damage. Never insert any object other than the torch into the charging station.

Repairs to this device may only be completed by adequately qualified personnel - please contact our Service department with regard to this.

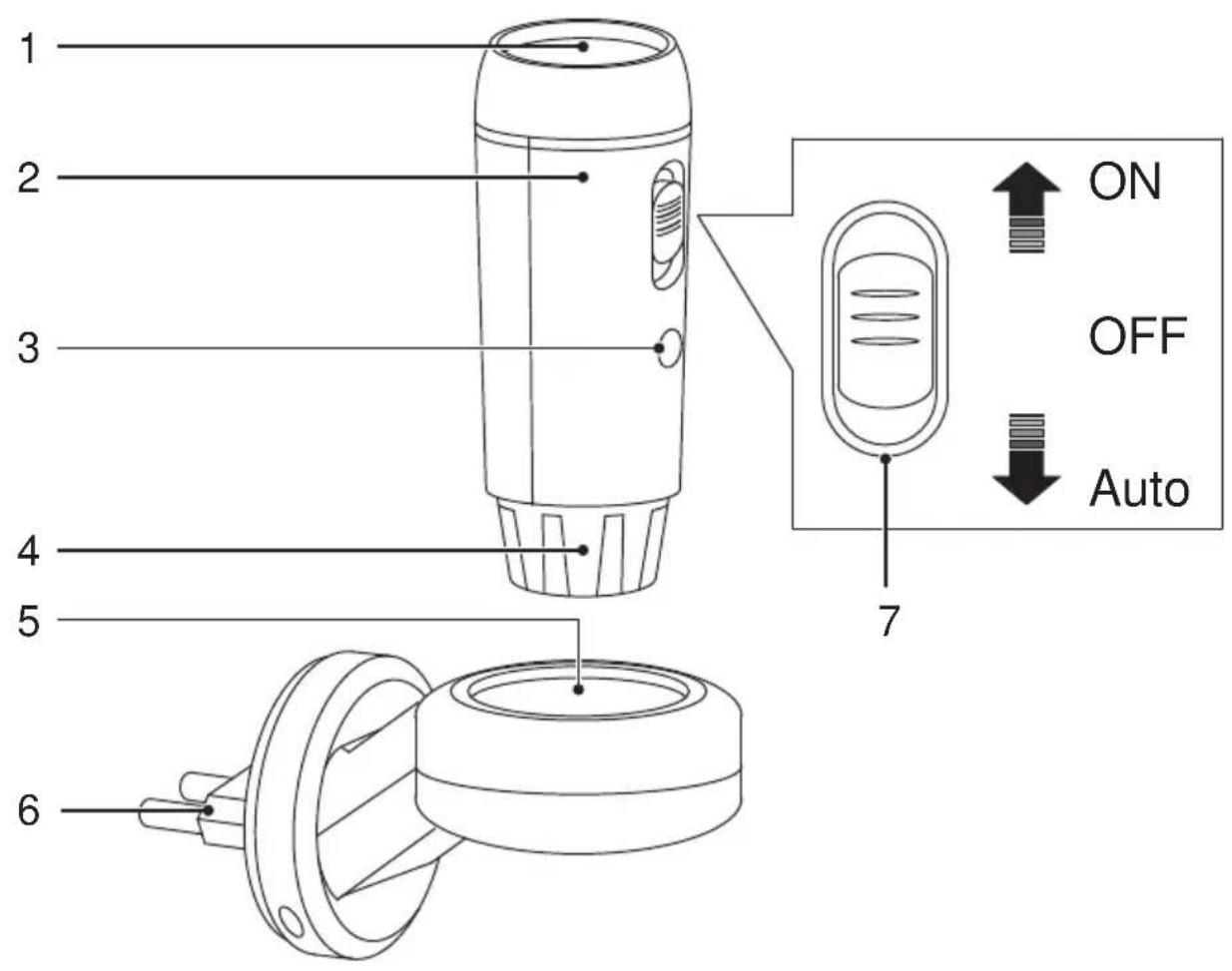

General View

The illustration below depicts the torch in detail.

1 LEDs 5 Charging station
2 Torch 6 Charging adapter (rotates 90°)
3 Brightness sensor 7 Operating mode switch
4 Night light

Intended Use

The LED torch with emergency and night light function can be used as a torch, night light and for emergency lighting. The built-in battery of the torch is charged in the charging station by means of induction. The LED torch with emergency and night light function is exclusively designed for use in rooms indoors.

Any other use is considered unintended use.

Package Contents

Check the package contents of the torch carefully before putting the torch into operation. If anything is missing or damaged, please contact our Service department.

LED torch, NL 300, with emergency and night light function

Charging station with power adapter

Operating manual

Connecting the Charging Station

The charging station is equipped with a power adapter which can be pivoted 90^ . Turn the power adapter according to the alignment of the power socket being used.

1 Plug the charging station in an easily accessible power socket.
2 Insert the torch in the charging station. The shape of the torch prevents it being inserted incorrectly.
3 The built-in battery in the torch is charged.
4 When you do not want to use the torch, unplug the charging station from the power socket.

Selecting the Operating Mode

Select the operating mode you require. Your torch can be used as a torch, night light or emergency lamp.

1 When the switch is set to OFF, all the operating modes are deactivated.

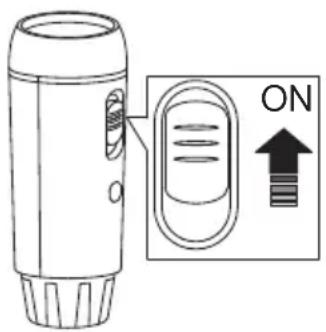

Torch

1 Remove the torch from the charging station.
2 Set the switch to ON. The torch can provide light for up to 5 hours.

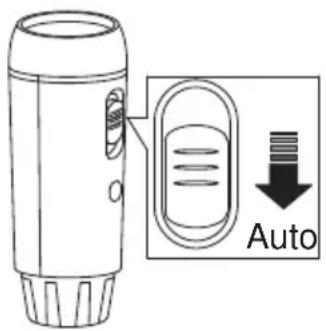

Night Light

If the torch should be used as a night light, insert the torch in the charging station.

1 Set the switch to Auto.

The brightness sensor automatically detects the level of darkness and the night light lights up. The night light goes out when the brightness sensor detects that it is sufficiently light.

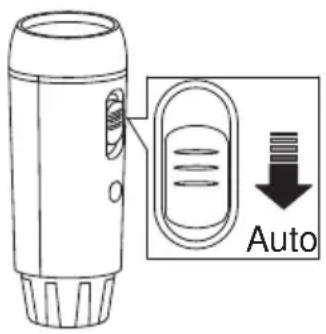

Emergency Light

The emergency light only works when the torch is in the charging station.

1 Set the switch to Auto.

In the event of a power failure, the emergency light is switched on automatically and helps orientation in the darkness.

Technical Data

Operating modes Torch, emergency/night light

Battery, torch Li-ion, 3.7 V DC, 0.11 W

Power supply, charging station 230 V \~ 50 Hz, 3.3 W

Lighting period, torch Up to 5 hours

Charging time Approx. 12 hours to full charge

Light colour Approx. 6000 K (daylight white)

Weight Approx. 105 g

Permissible ambient conditions -20 °C to 45 °C at 30 to 80 % rel. humidity

Declaration of Conformity

Conformity of the equipment to the applicable EU directives is confirmed by the CE mark. The Declaration of Conformity for this product is available at www.olympia-vertrieb.de

Cleaning

Clean the surfaces of the housing with a dry, soft, lint-free cloth. Do not use any solvents or cleaning agents.

The device has no parts which must be serviced or changed by the user.

Disposal

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. The symbol indicates that the device must not be disposed of in normal domestic waste!

Risks to health and the environment from batteries! Remove the battery from the equipment before disposing of the device. Never open, damage or swallow batteries or allow them to pollute the environment. They may contain toxic, ecologically hazardous heavy metals. You are legally obliged to dispose of batteries at shops which sell batteries or at collection points provided by the public waste authorities. Disposal is free of charge. The symbol indicates that rechargeable and standard batteries must not be disposed of in normal domestic waste and that they must be brought to collection points provided by local public waste authorities.

Packaging materials must be disposed of according to local regulations.

Guarantee

Dear Customer,

we are pleased that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.
