Technical Features	TUNTURI FitRun 70i treadmill with LCD screen, motorized incline, running surface of 140 x 50 cm, maximum speed of 20 km/h, and 36 training programs.
Usage	Ideal for home users who want to train regularly, suitable for runners of all levels.
Maintenance and Repair	Regularly check the lubrication of the belt, clean the running surface, and ensure electrical connections are secure.
Safety	Equipped with an emergency stop system, handles with heart rate sensors, and non-slip surface.
General Information	Maximum user weight: 150 kg, product dimensions: 180 x 80 x 140 cm, 2-year warranty on the frame.

Frequently Asked Questions - FitRun 70i TUNTURI

The TUNTURI FitRun 70i treadmill won't turn on, what should I do?

Check that the treadmill is properly plugged into a working power outlet. Also ensure that the power cable is not damaged.

The treadmill makes an unusual noise during use, what should I do?

Check if all screws and bolts are tightened properly. If the noise persists, contact technical support for assistance.

How do I adjust the speed on the TUNTURI FitRun 70i?

Use the control buttons on the control panel to increase or decrease the speed. You can also use shortcut keys for quick adjustments.

The treadmill displays an error on the screen, what does it mean?

Consult the user manual for the specific error code. Generally, this may indicate a sensor problem or an electrical malfunction.

How do I lubricate the treadmill belt?

Turn off the treadmill and unplug it. Lift the belt and apply silicone lubricant to the deck. Then, manually rotate the belt to evenly distribute the lubricant.

The treadmill does not respond to commands, what should I do?

Try restarting the treadmill by turning it off and then on again. If the problem persists, reset the system following the instructions in the manual.

How do I adjust the incline on the TUNTURI FitRun 70i?

Use the incline buttons on the control panel to adjust the angle of the running surface to your preference.

Can I use the treadmill without an Internet connection?

Yes, the TUNTURI FitRun 70i can be used without an Internet connection. Basic features like running at adjustable speed will work without a network.

What is the warranty period for the TUNTURI FitRun 70i?

The warranty period is generally 2 years for the frame and 1 year for parts, but this may vary depending on the retailer. Check your warranty for specific details.

How do I clean the treadmill?

Use a damp cloth to clean the control panel and a vacuum cleaner to remove dust under the treadmill. Avoid using harsh chemical products.

USER MANUAL FitRun 70i TUNTURI

Line drawing of a treadmill with control panel and wheels (no text or symbols)

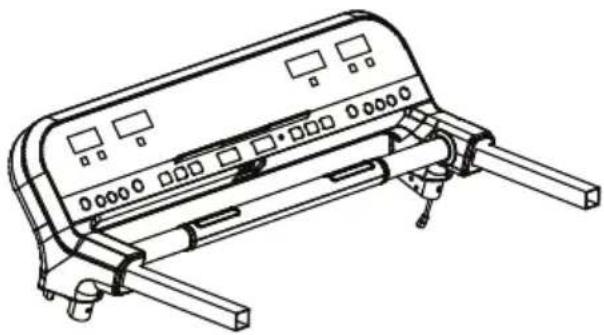

B

Technical line drawing of a mechanical component or housing (no text or symbols)

A

Line drawing of a mechanical device with multiple ports and mounting brackets (no text or symbols)

B

Line drawing of a 3D rectangular prism with rounded ends and a flat top surface (no text or symbols)

C05C06

Simple line drawing of a cylindrical object with a flanged end (no text or symbols)

Technical line drawing of a mechanical part with a recessed rectangular cutout (no text or symbols)

C14

Technical line drawing of a mechanical bracket component (no text or symbols)

C15

Line drawing of a two-tiered cylindrical device with a square top and two side handles (no text or symbols)

B01

Simple line drawing of a vertical pole with a circular base and a small object attached (no text or symbols)

D07

C

E13E Bolt (10x)M8x15	E22 Bolt (6x)M5x15	Cross solid wrench.
Lock Washer (10x)∅8	E39E Flat washer (4x)∅5*∅13*1.0	B09 Allen wrench 5#

D

100 cm 100 cm 100 cm 100 cm

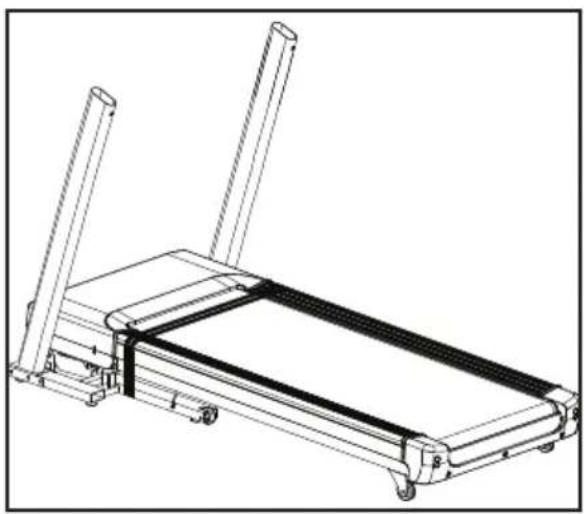

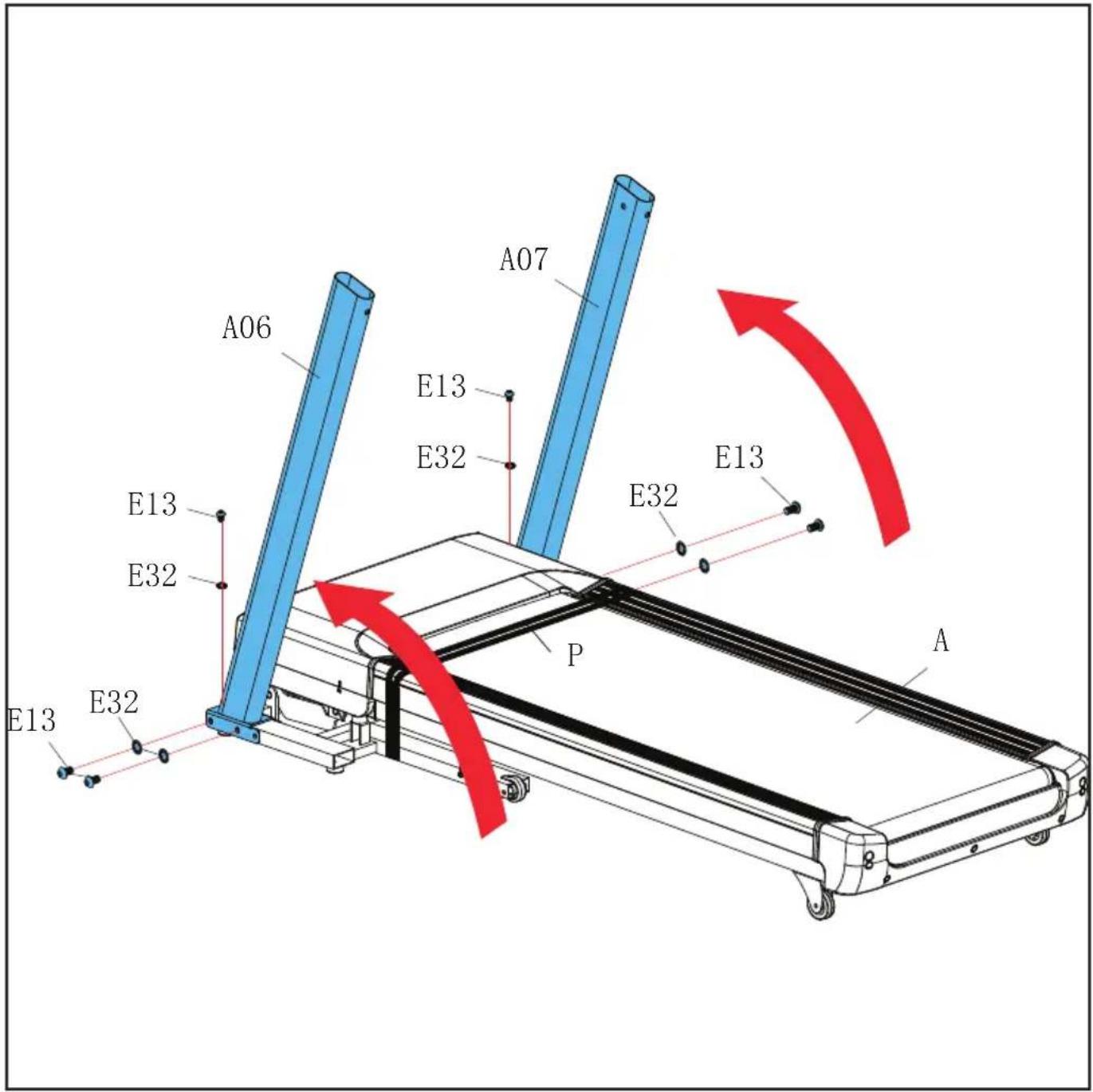

D-1

A06 A07 E13 E32 E13 E32 E13 E13 E32 P A E13 E32

Technical line drawing of a treadmill with two vertical supports and wheels (no text or symbols)

E	E22
-	E39E	B1

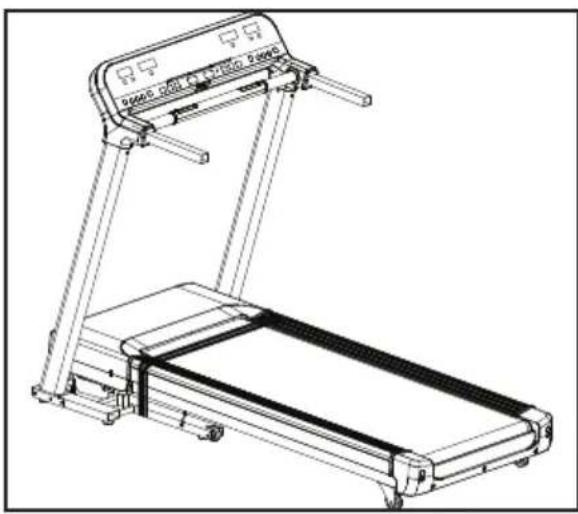

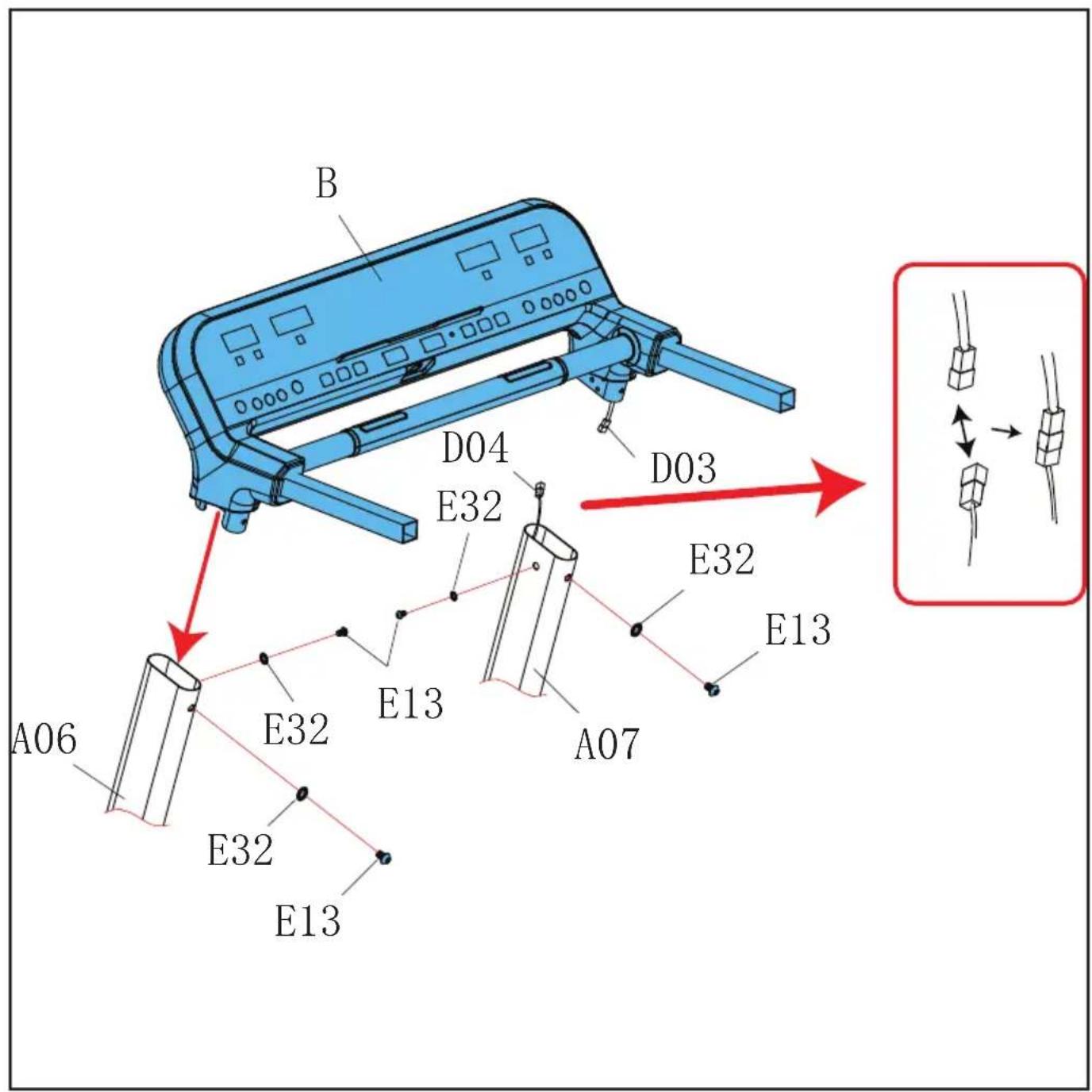

D-2

B D04 E32 D03 E32 E13 A06 E32 E13 A07

Line drawing of a treadmill with adjustable arms and legs, no text or symbols present

E13B	E22	Cross solid wrench.
—	E39	B09 Allen wrench 5#

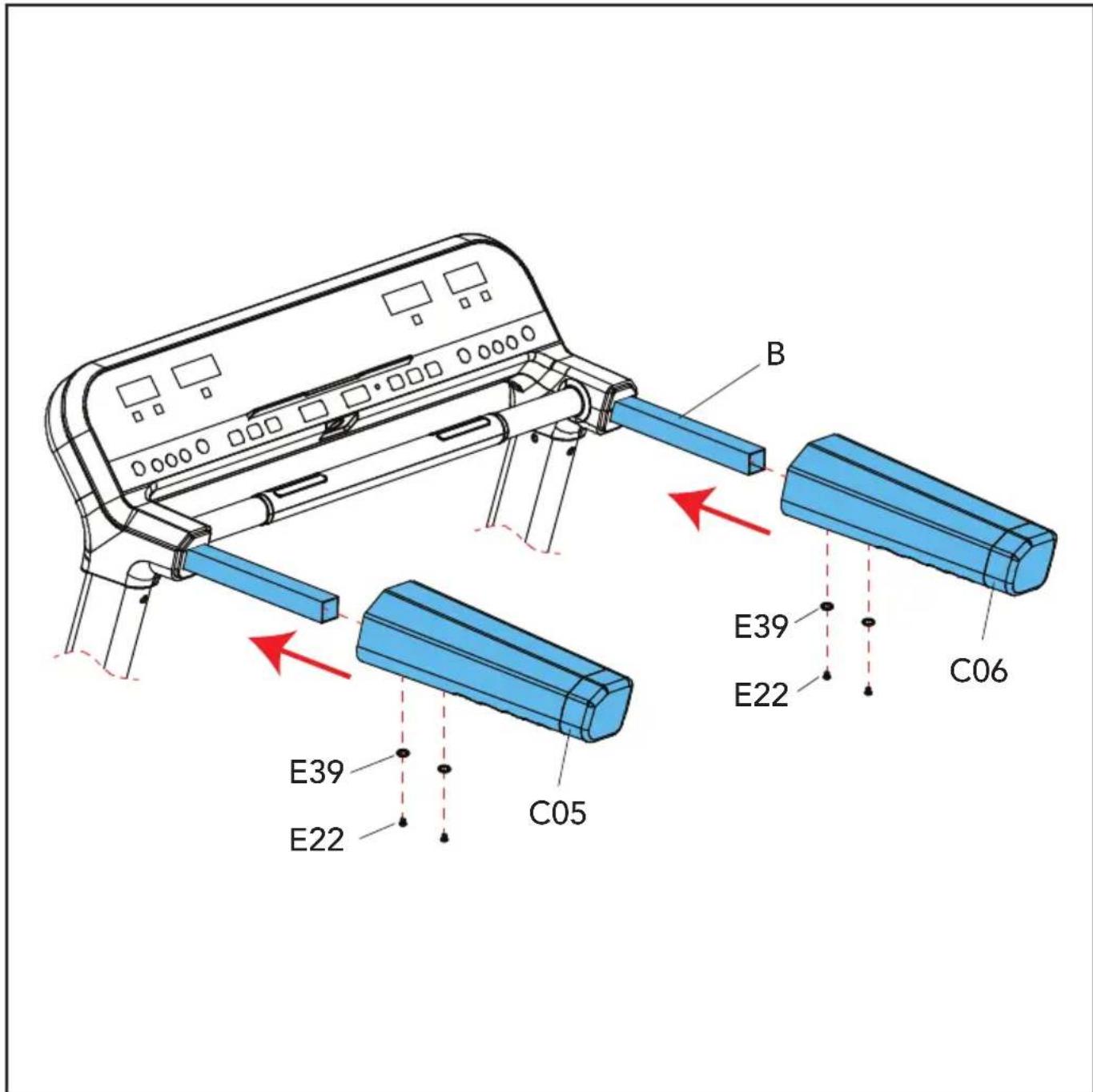

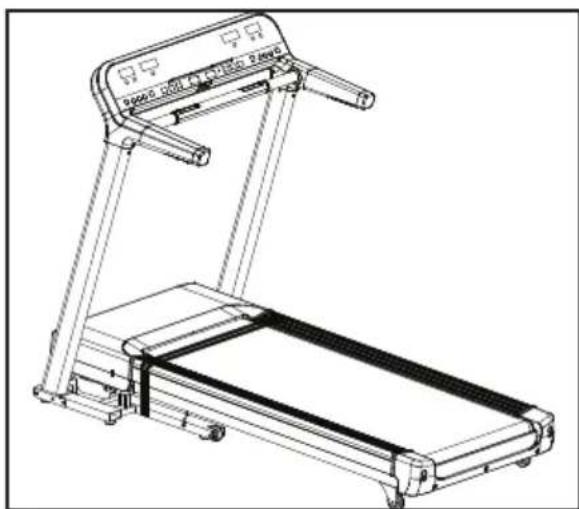

D-3

B E39 E22 C06 E39 E22 C05

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

E13B0[2A70]	Bolt (10x)M8x15	E22	Bolt (6x)M5x15[45BY]
	Lock Washer (10x)∅8	E39E[8YST]	Flat washer (4x)∅5*∅13*1.0

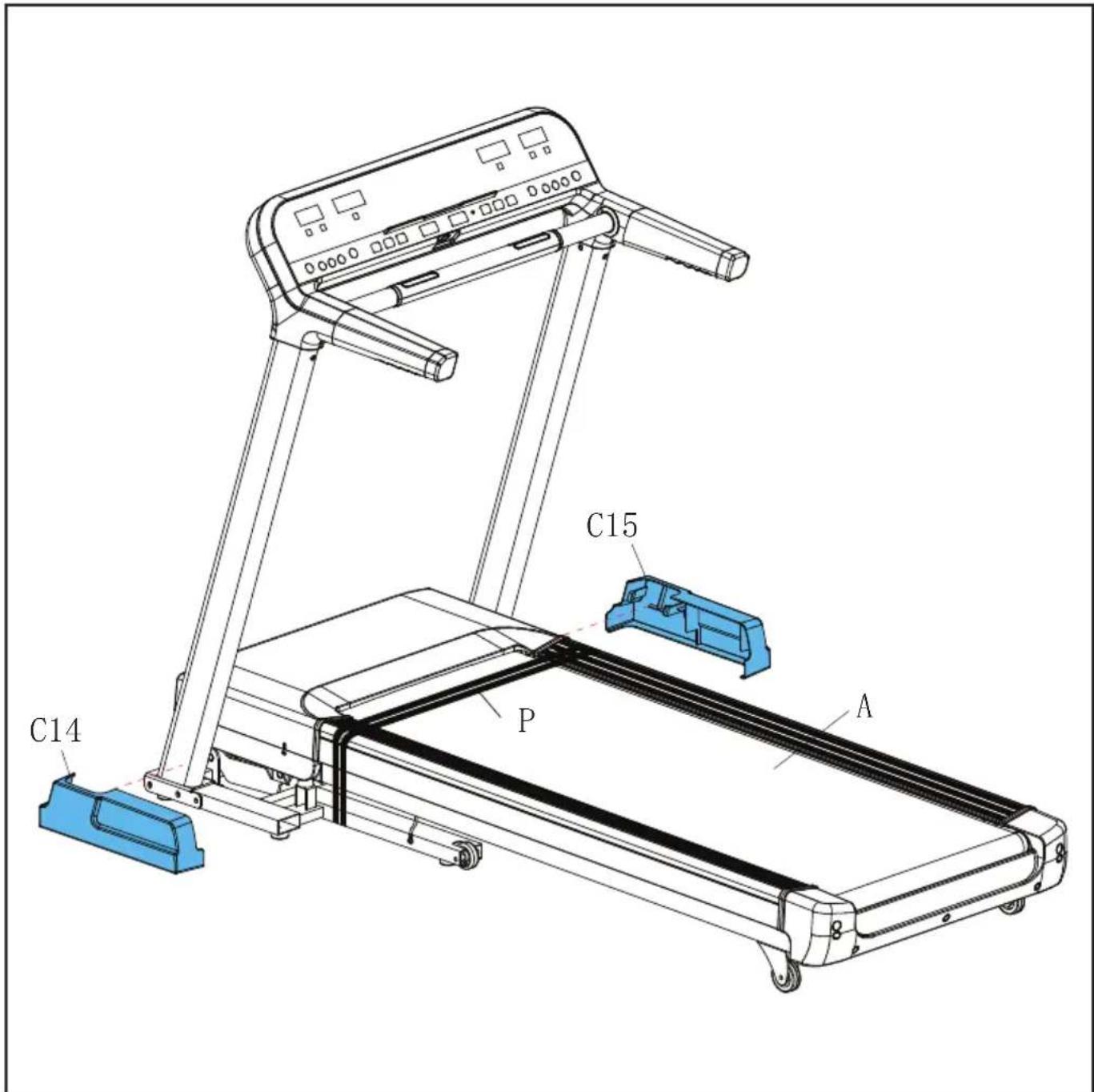

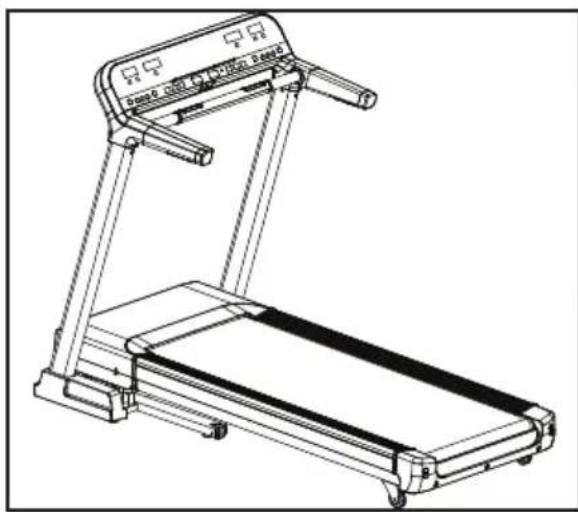

D-4

C14 P C15 A

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

E13E _ Bolt (10x)M8x15	E22 _ Bolt (6x)M5x15	Cross solid wrench.
Lock Washer (10x)∅8	E39E32 Flat washer (4x)∅5*∅13*1.0	B

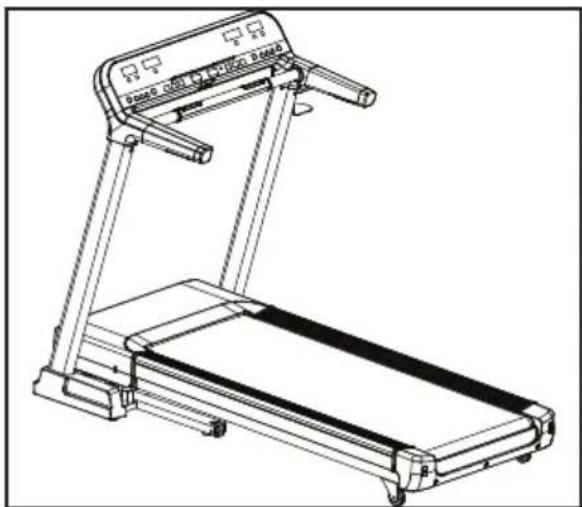

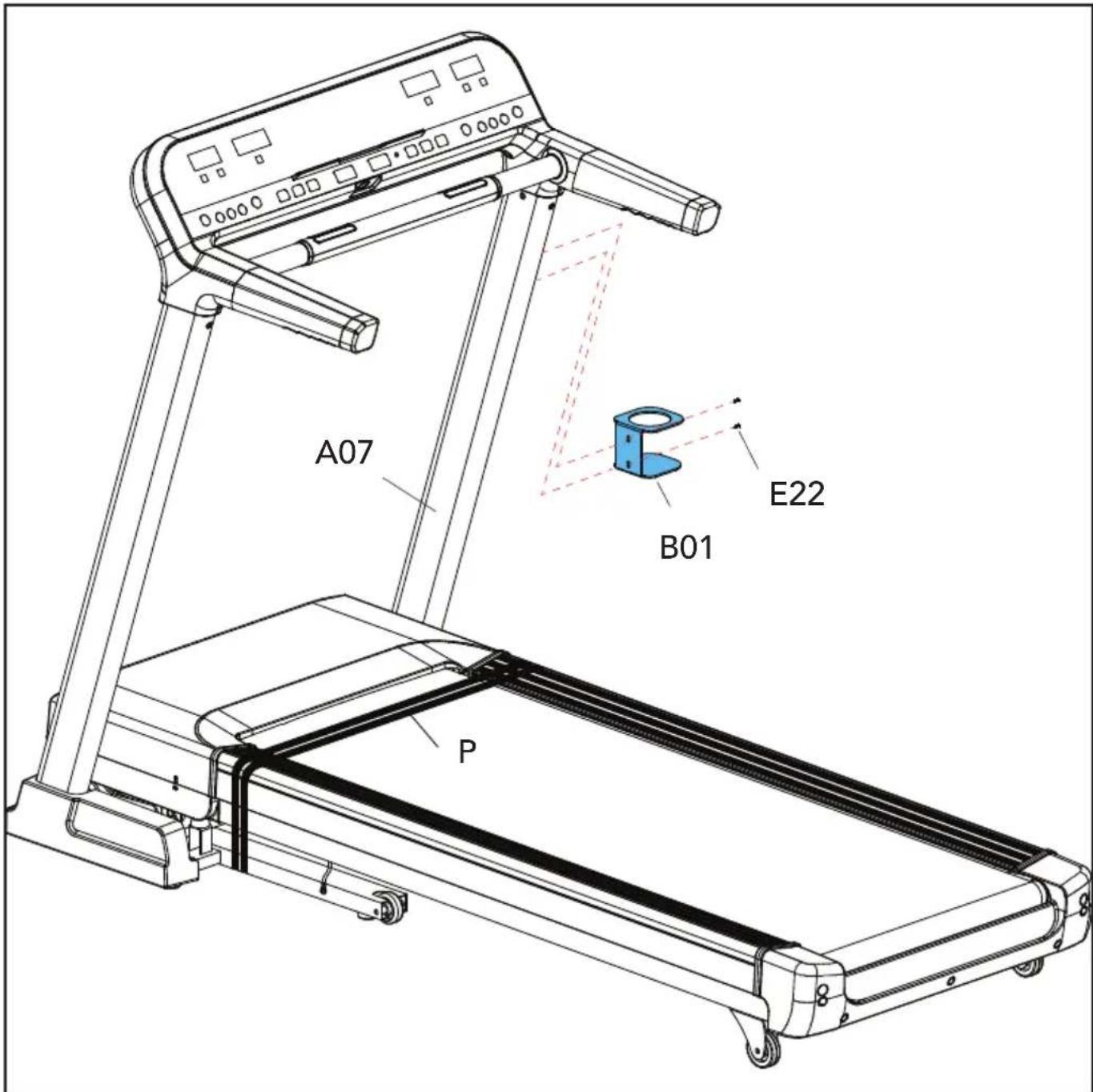

D-5

A07 E22 B01 P

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

E13 Bolt (10x)M8x15	E22 Bolt (6x)M5x15	Cross solid wrench.
Lock Washer (10x)∅8	E391 [WDHS] Flat washer (4x)∅5*∅13*1.0	E

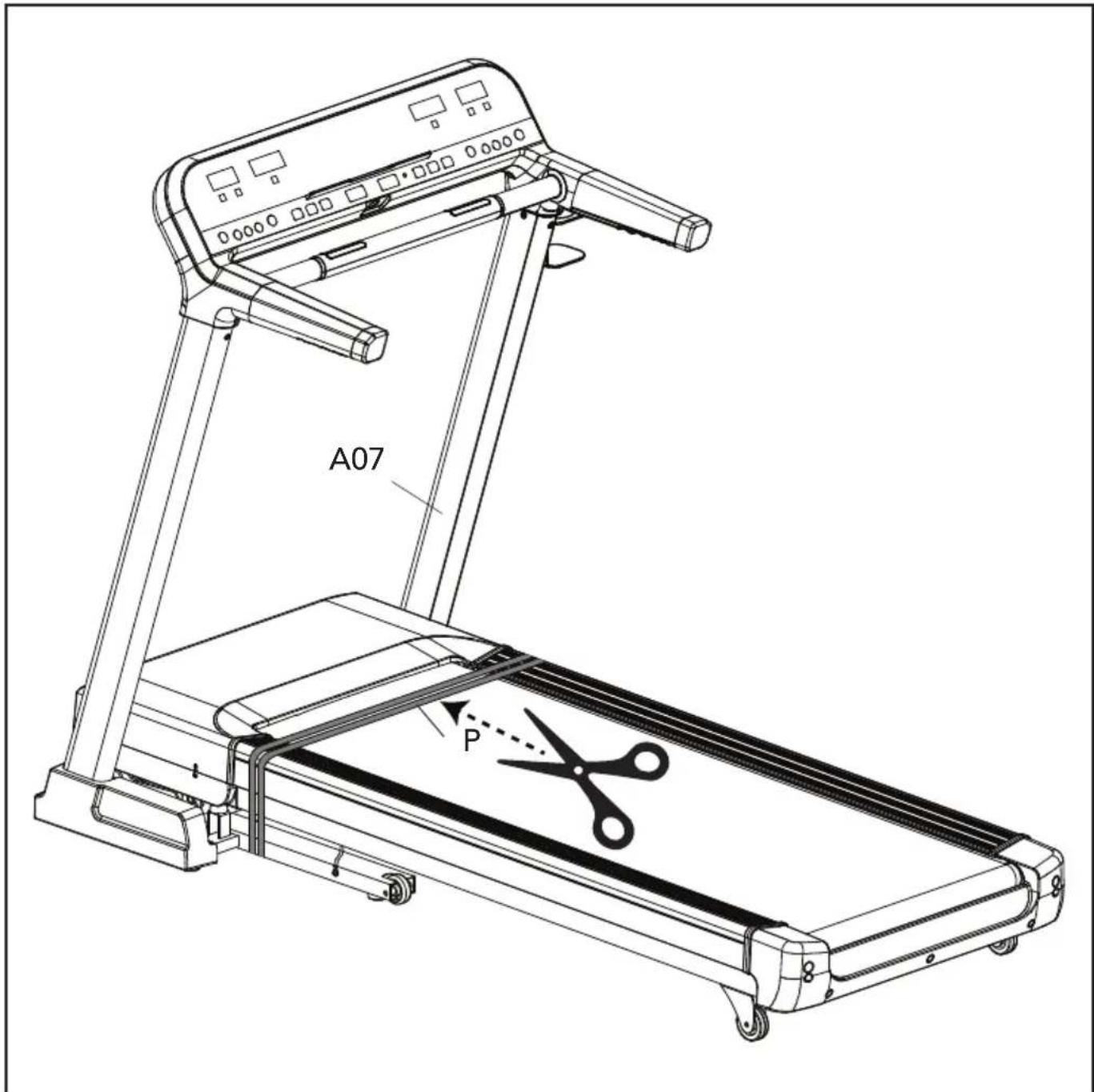

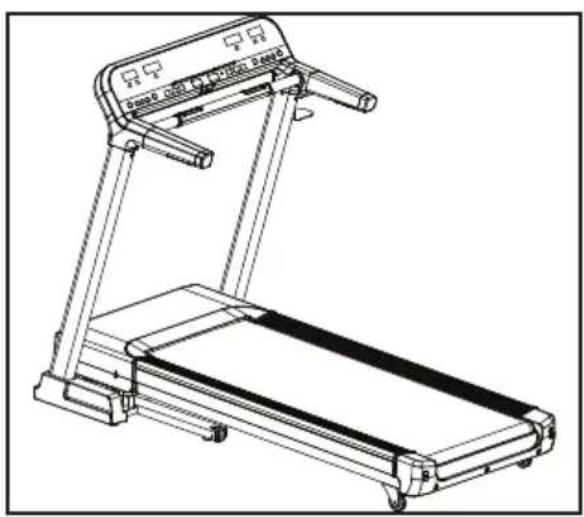

D-6

A07 P

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

Black silhouette of scissors cutting a dashed line (no text or symbols)

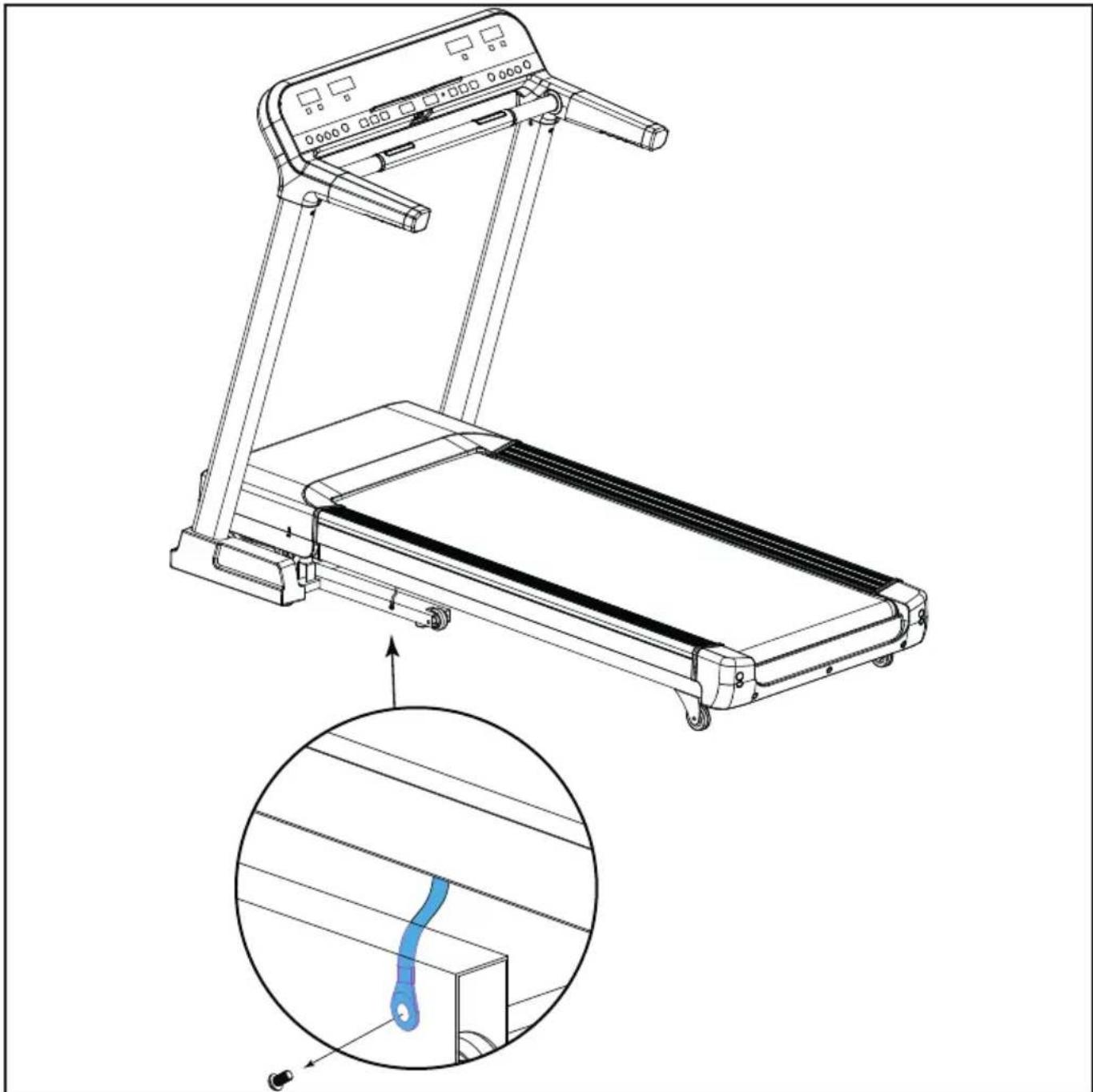

D-7A

Technical line drawing of a treadmill with an inset close-up showing the handle and base panel (no text or symbols)

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

E13I	Bolt (10x)M8x15	E22	Bolt (6x)M5x15	Cross solid wrench.
	Lock Washer (10x)∅8	E39I	Flat washer (4x)∅5*∅13*1.0	B09 Allen wrench 5#

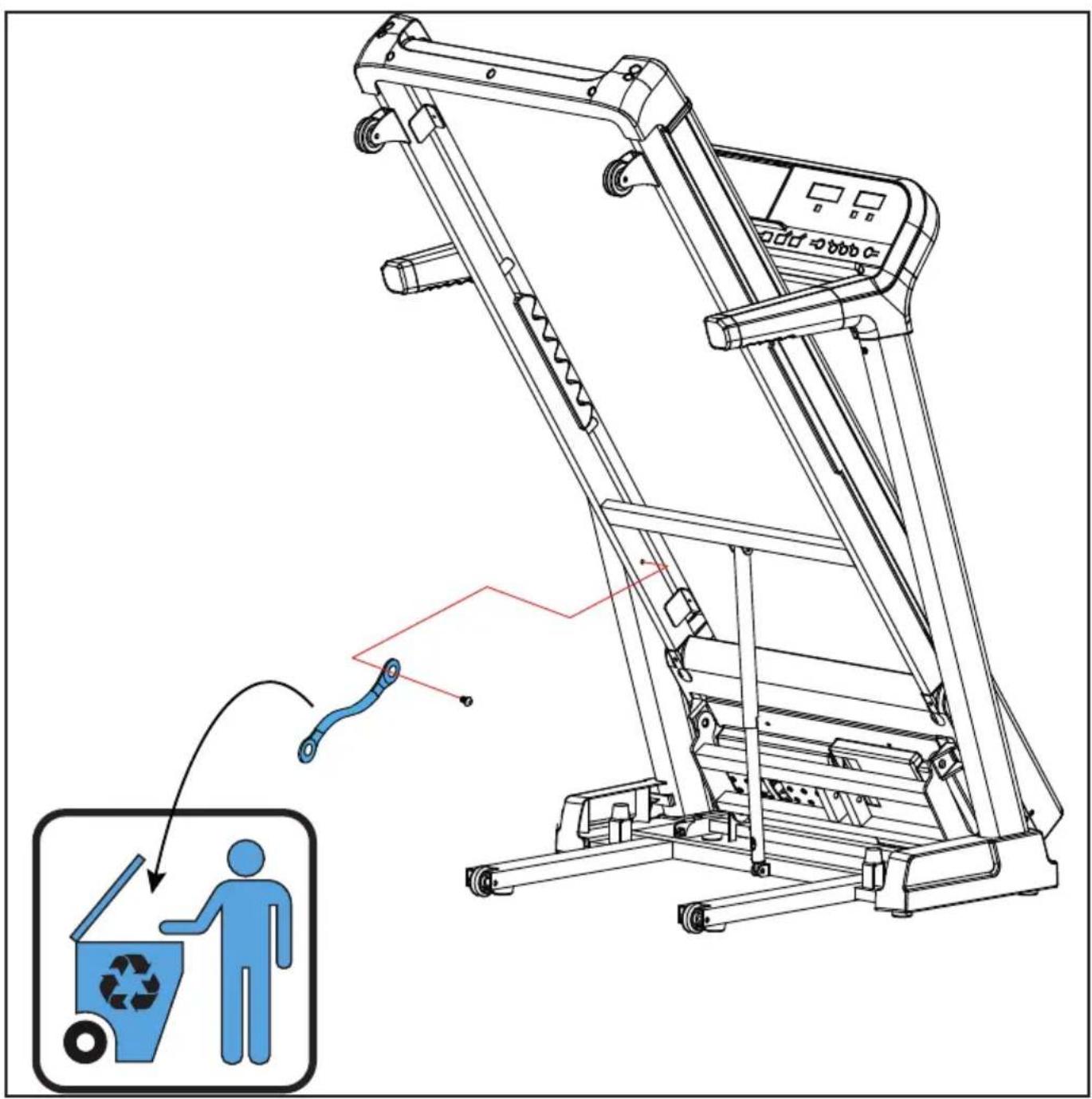

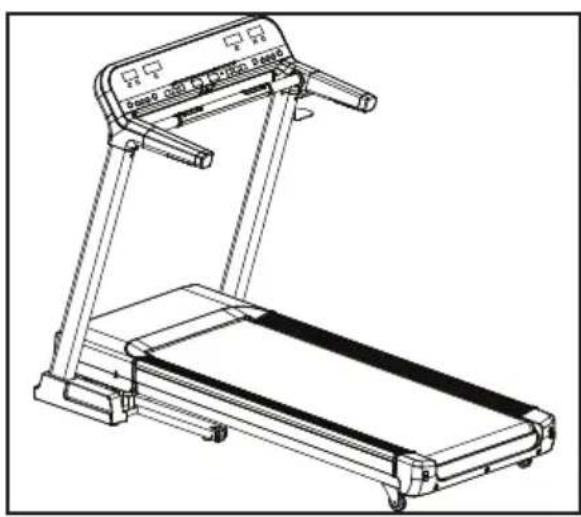

D-7B

Technical diagram of a treadmill with a robotic arm and a recycling bin, showing mechanical components and a user silhouette.

Line drawing of a treadmill with control panel and side-mounted legs (no text or symbols)

E13I _ Bolt (10x)M8x15	E22 _ Bolt (6x)M5x15	Cross solid wrench.
Lock Washer (10x)∅8	E39 Flat washer (4x)∅5*∅13*1.0	B09 Allen wrench 5#

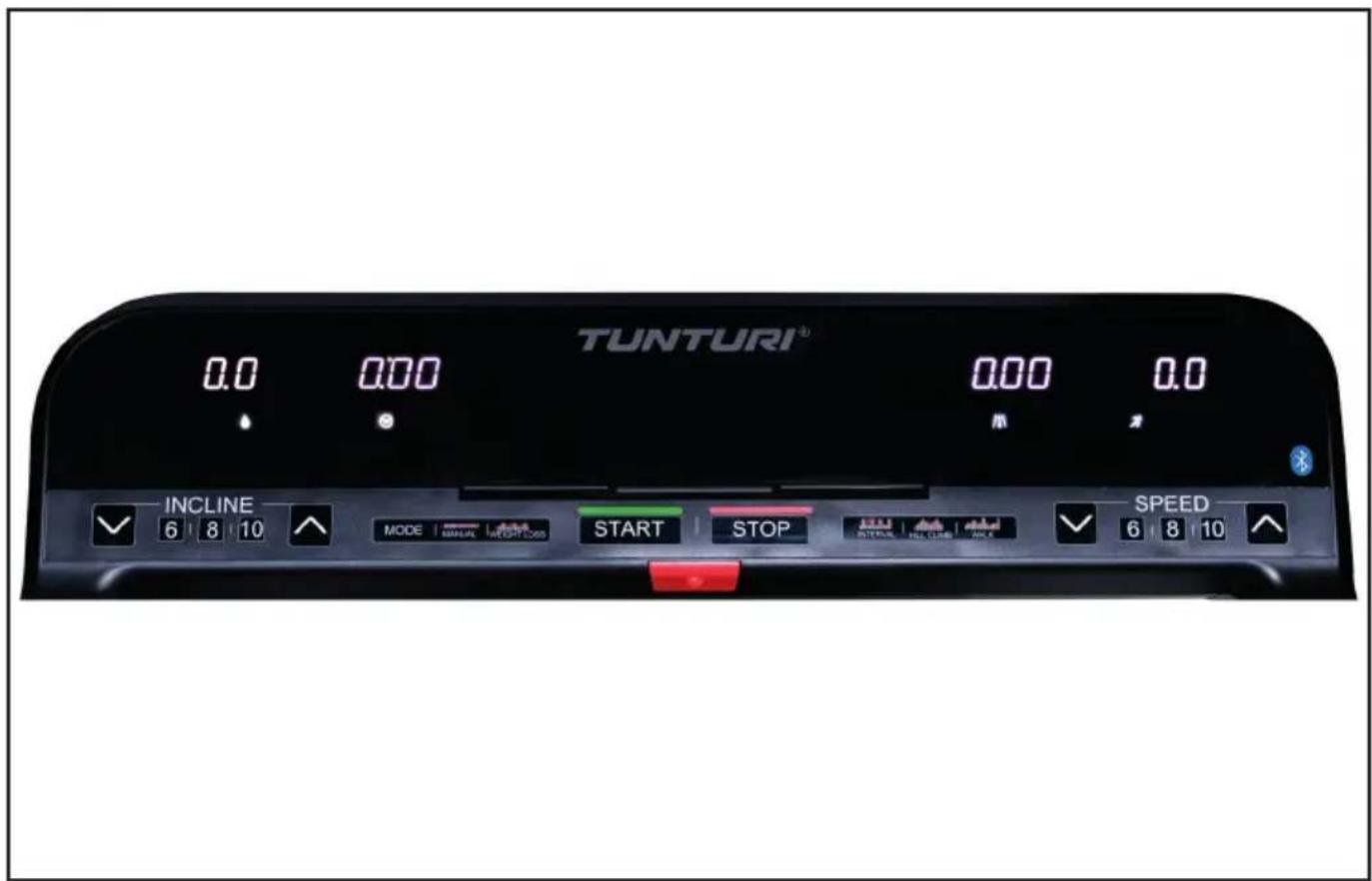

E-1

TUNTURI® 0.0 0.00 0.00 0.0 INCLINE 6 8 10 MODE | MAUL | WEIGHTLOGS START | STOP | STEIN | ALL CABB | MILE | SPEED 6 8 10

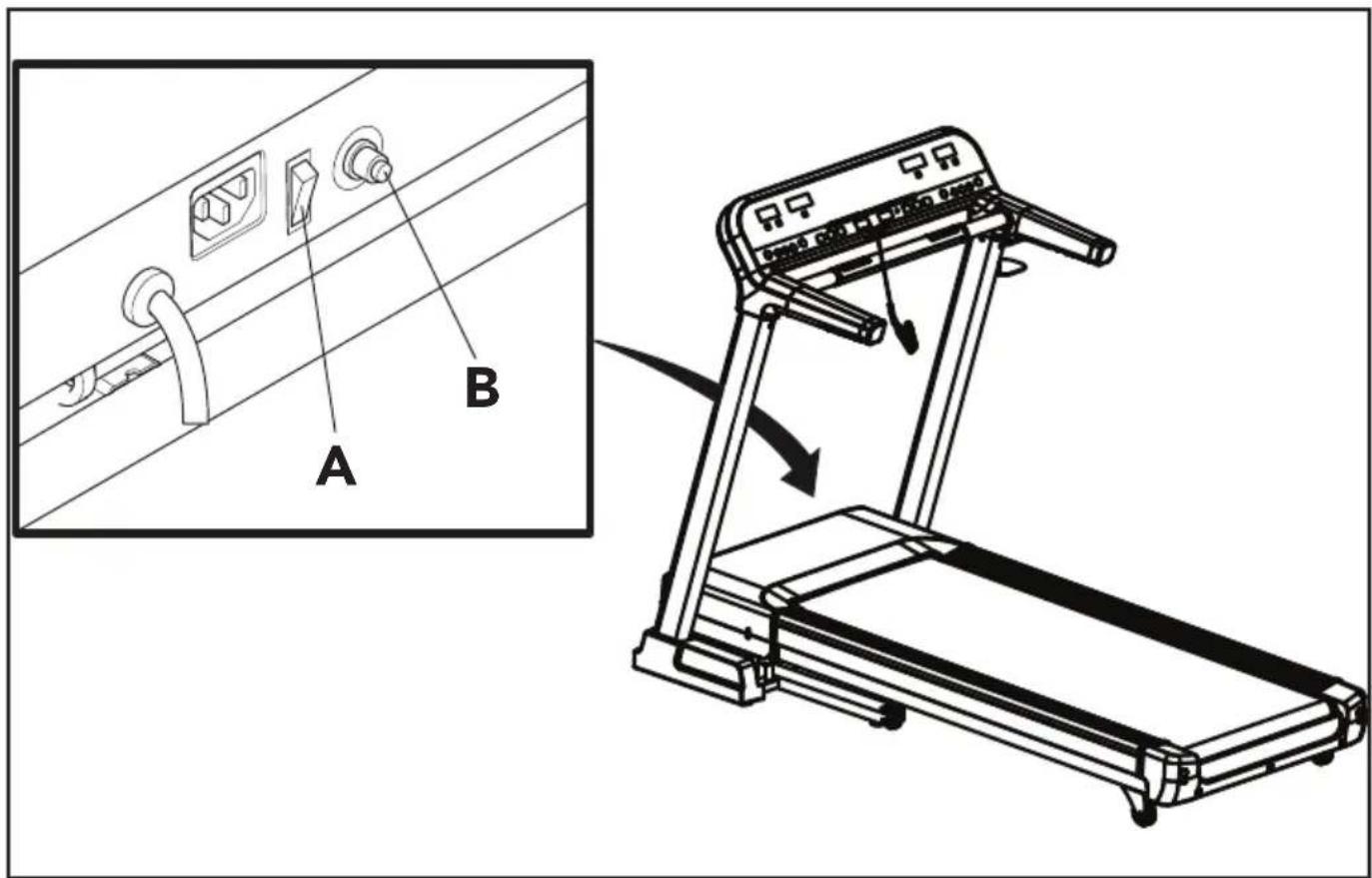

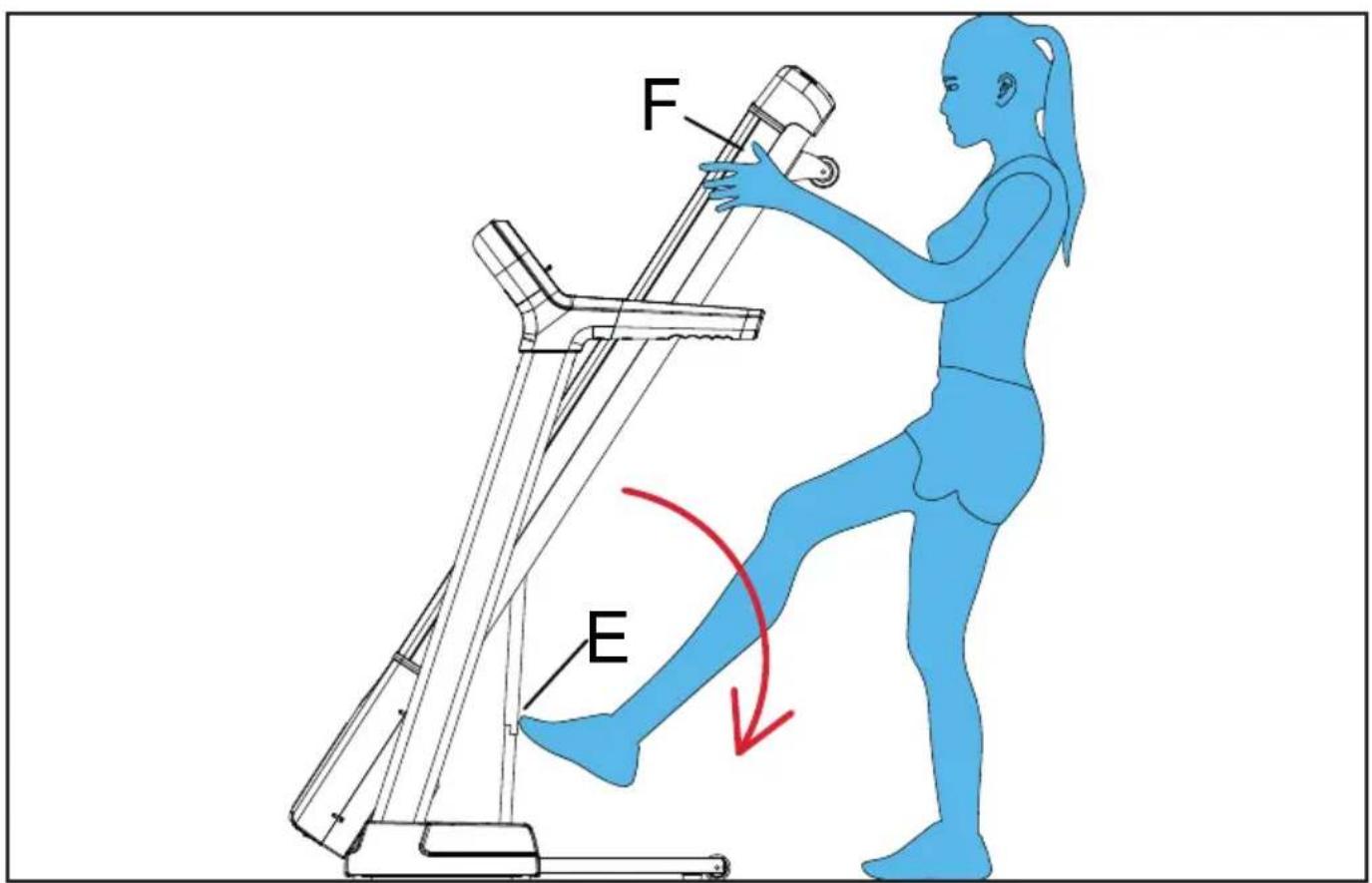

E-2

Technical diagram of a treadmill with labeled parts A and B, showing assembly instructions and component layout.

F-1

Illustration showing a person performing a exercise on a treadmill with a red arrow indicating motion direction and label 'F'

F-2

F E

F-3

Illustration showing a woman using a Pilates reformer machine with labeled parts F and D, illustrating the motion of the exercise.

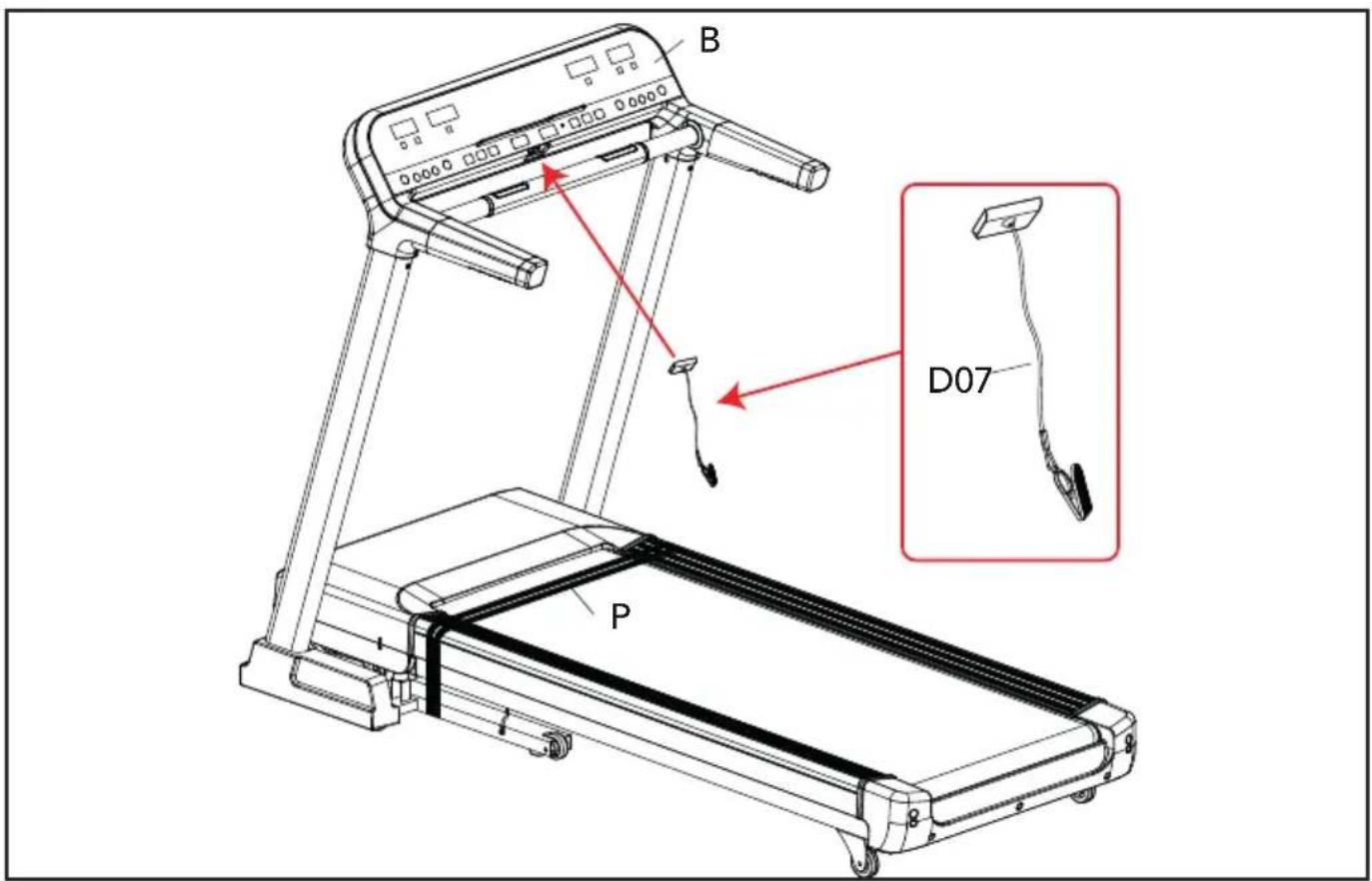

F-4

B D07 P

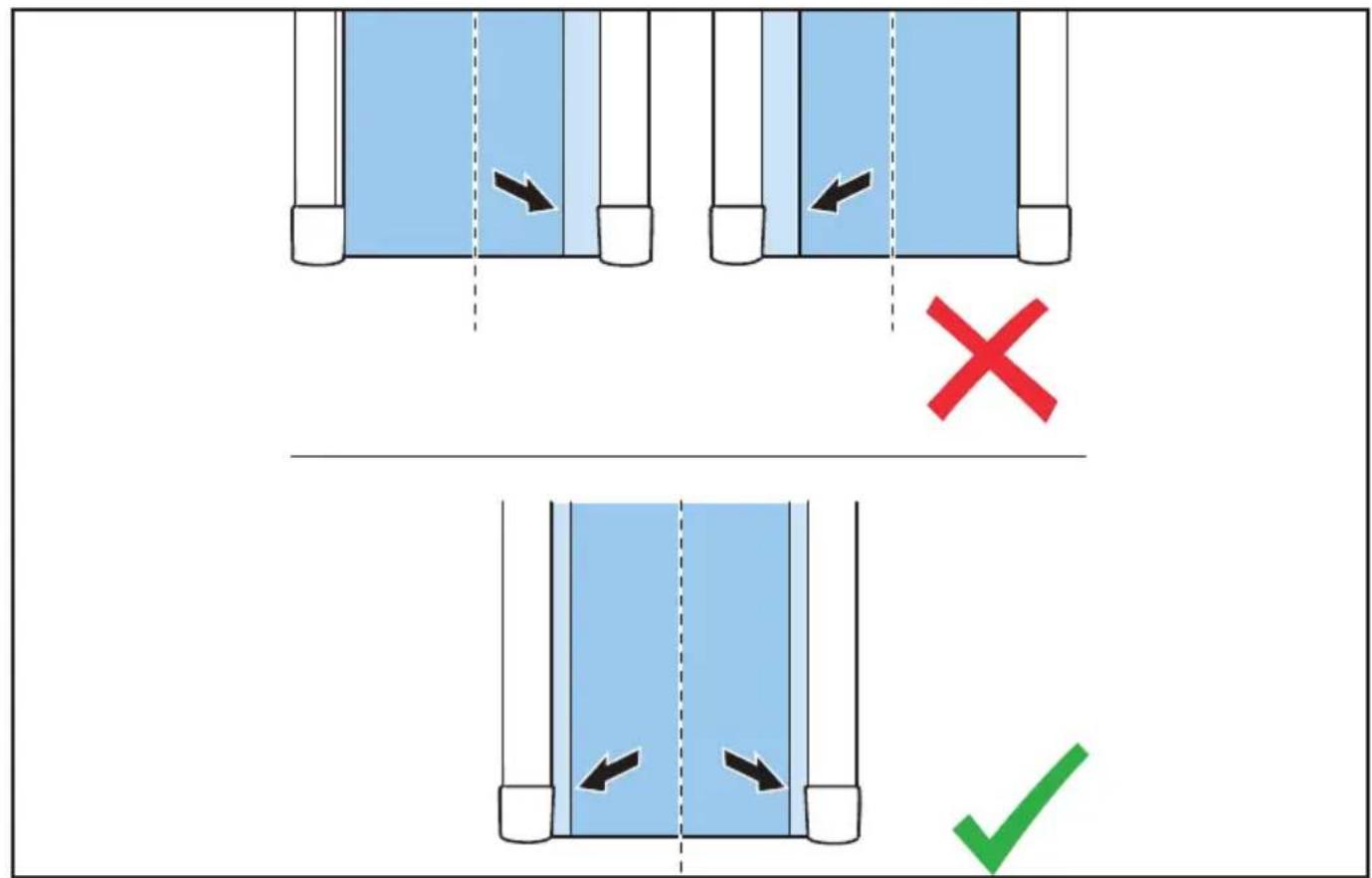

F-5

Diagram illustrating fluid flow or movement in a container with directional arrows and a red 'X' indicating failure or failure.

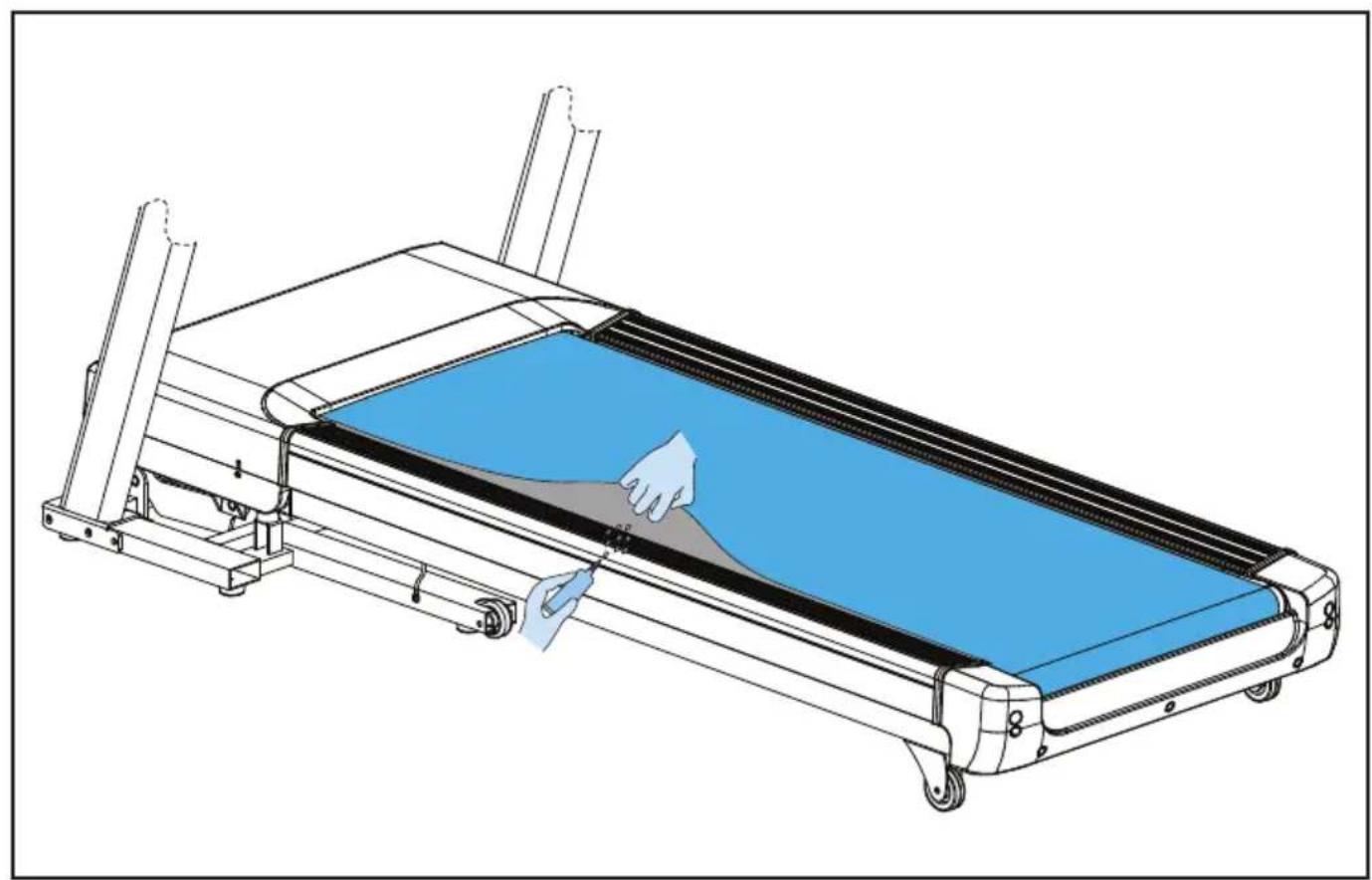

F-6

Line drawing of a treadmill with a blue cover and hand tool, no text or symbols present

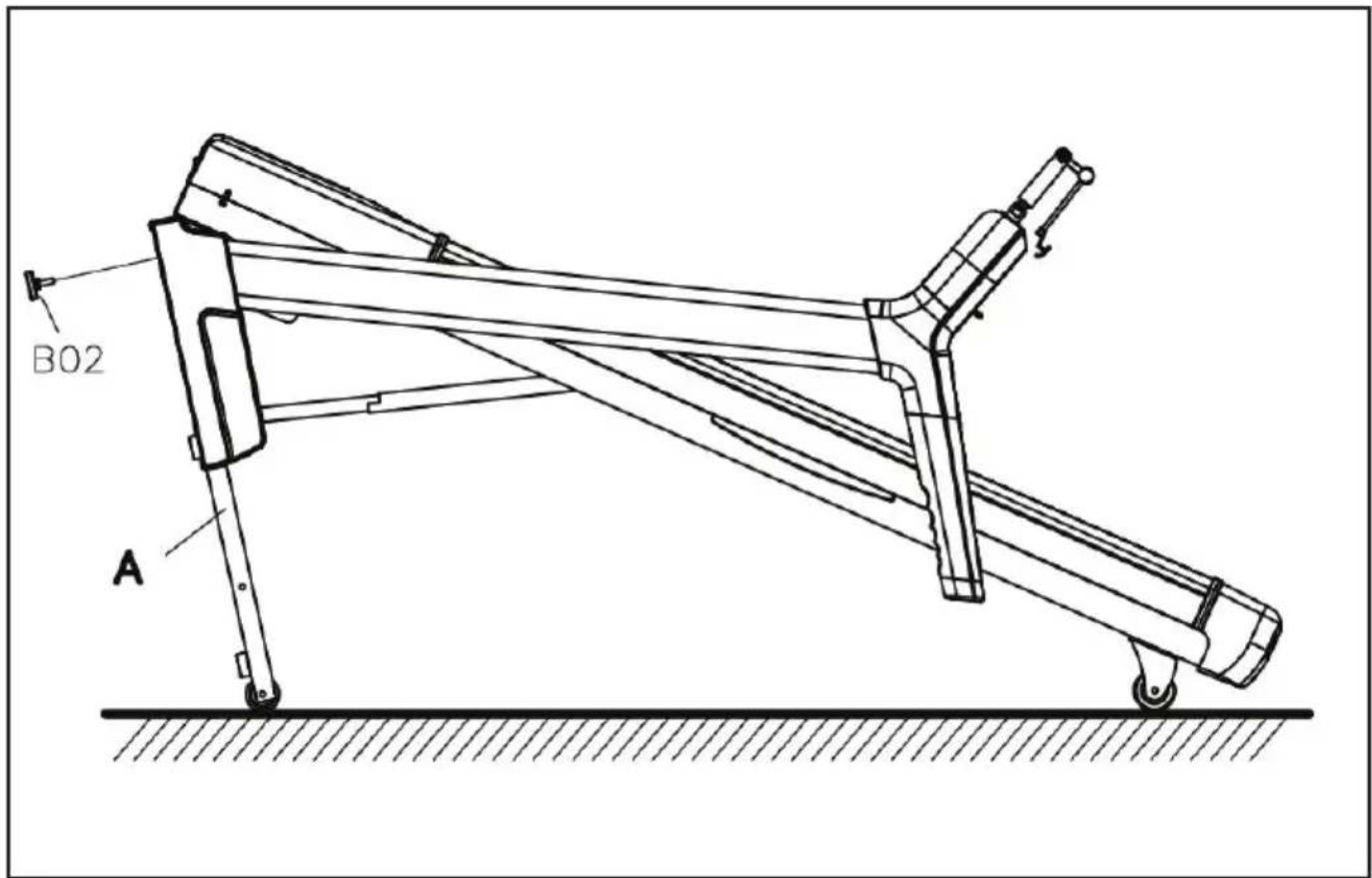

F-7A

B02 A

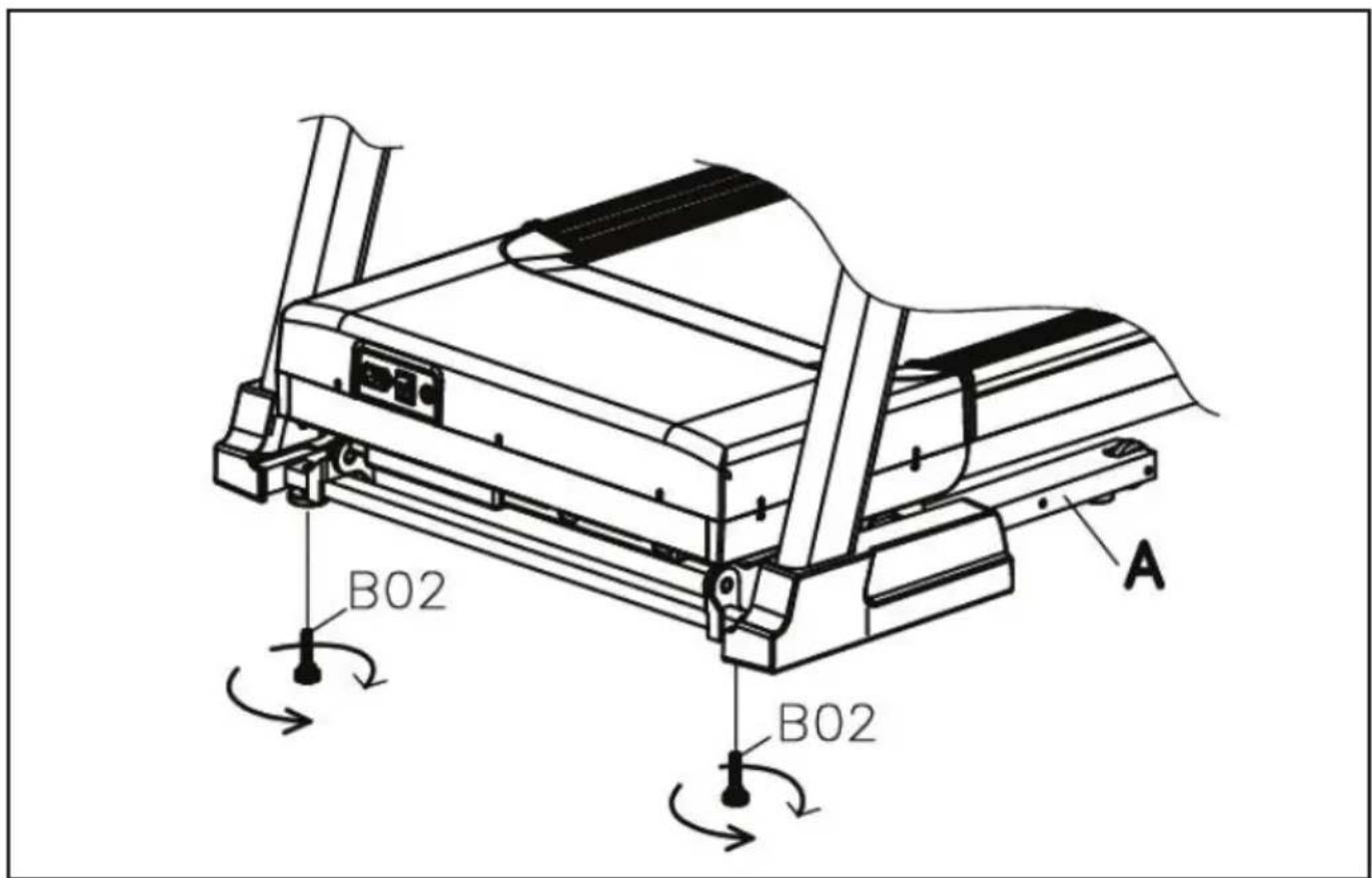

F-7B

B02 B02 A

G

Program Stage	1 2	3 4 5	6 7	8 9 10	11	12	13	14	15
„P1 Manual“	Speed 3	3 3 3	3 3 3	3 3 3	3 3 3	3 3
	Incline 2	2 2 2	2 2 2	2 2 2	2 2 2	2 2
„P2 Weight loss“	Speed 3	3 6 6	3 3 3	6 6 3	3 3 6	6 3
	Incline 2	2 4 4	4 4 4	4 4 4	4 4 2	2 2
„P3 Interval“	Speed 3	8 8 3	3 8 8	3 3 8	8 3 3	8 8
	Incline 2	2 4 4	6 6 6	6 4 4	4 4 2	2 2
„P4 Hill Climb“	Speed 3	5 6 8	10 8	6 3 3	6 8 10	8 6	5
	Incline 2	2 4 4	6 6 6	6 4 4	4 4 2	2 2
„P5 Walk“	Speed 3	5 5 6	6 5 5	8 8 5	3 3 5	5 8
	Incline 2	2 4 4	4 4 4	4 4 4	4 4 2	2 2
P6 Speed 2 4	4 4 5 6 8	8 6 7	8 8 6	4 2
	Incline 0	5 5 5	4 4 4	3 3 3	3 4 4	4 0
P7 Speed 2 3	3 3 4 5 3	4 5 3	4 5 3	3 2
	Incline 0	4 4 4	3 3 6	6 6 7	7 8 8	9 0
P8 Speed 2 3	3 6 7 7 4	6 7 4	6 7 4	4 2
	Incline 0	5 5 5	6 6 6	7 8 9	9 9 10	10 0
P9 Speed 2 4	4 7 7 4 7	8 4 8	9 9 4	4 2
	Incline 0	5 5 6	6 6 4	4 6 6	5 5 8	8 0
P10 Speed 2	4 5 6 7 5	4 6 8	8 6 6	5 4 2
	Incline 0	6 6 6	7 5 8	8 4 4	4 5 5	8 0
P11 Speed 2	5 8 10 7 7	10 10	7 7	10 10	5 5 2
	Incline 0	5 3 2	6 6 2	2 2 2	2 4 5	6 0
P12 Speed 2	4 9 9 5 9	5 8									5 9 7	5 5 7	2
	Incline 0	2 3 2	3 5 5	0 0 2	3 5 7	3 0

Index

Treadmill 20

Safety warnings......20

Electrical safety 21

Assembly instructions......22

Description (fig. A) 22

Package contents (fig. B & C) 22

Assembly (fig. D) 22

Workouts 22

Exercise Instructions 22

Heart rate. 23

Use.... 24

Console (fig. E-1) 25

Buttons ..... 25

Explanation of display items 26

Programs 26

Quick start 26

Manual Mode 26

Manual Own profile 27

End your workout 27

Preset Programs (P1\~P12) 27

HRC Program (HR1\~HR2) 27

Body Fat ... 28

Bluetooth & APP 28

Warranty......29

Cleaning and maintenance......29

Lubrication (fig. F-4) 29

Belt and Running Deck 30

Troubleshooting ....31

Transport and storage 31

Additional information 31

Technical data 32

Declaration of the manufacturer .... 32

Disclaimer 32

Treadmill

Welcome to the world of Tunturi!

Thank you for purchasing this piece of Tunturi equipment. Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes and rowers. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Important Safety Instructions

This Owner's Manual is an essential part of your training equipment: reading all instructions in this manual before you start using this appliance. The following precautions must always be followed:

Safety warnings

WARNING

• Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

WARNING

- Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death. If you feel faint stop exercising immediately.

• The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.
• Max. usage is limited to 3 hrs a day.
• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.

• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.

• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.

• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.
• Only use the equipment in environments with ambient temperatures between 10^ C \~ 35^ C. Only store the equipment in environments with ambient temperatures between 5^ C \~ 45^ C
• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80%.
• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair and other loose parts away from the moving parts and or openings.
• Do not cover the air openings.
• Do not drop or insert any objects into any of the openings.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Wear appropriate clothing and shoes.
• Keep clothing, jewellery and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 125 kg (275 lbs).
• Do not open equipment without consulting your dealer.

Electrical safety

(Only for equipment with electric power)

• Before use, always check that the mains voltage is the same as the voltage on the rating plate of the equipment.
• Do not use an extension cable.

• Keep the mains cable away from fluids, heat, oil and sharp edges.

• Do not alter or modify the mains cable or the mains plug.

• Do not use the equipment if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, contact your dealer.
• Always fully unwind the mains cable.
• Do not run the mains cable underneath the equipment. Do not run the mains cable underneath a carpet. Do not place any objects on the mains cable.
• Make sure that the mains cable does not hang over the edge of a table.
• Make sure that the mains cable cannot be caught accidentally or tripped over.
• Do not leave the equipment unattended when the mains plug is inserted into the wall socket.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Do not pull the mains cable to remove the mains plug from the wall socket.
• Remove the mains plug from the wall socket when the equipment is not in use, before assembly or disassembly and before cleaning and maintenance.

CAUTION

- If voltage varies by ten percent (10%) or more, the performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.

CAUTION

- NEVER use a RCD - Residual Current Device (U.S. ver.= GFCI) - wall outlet with this treadmill. As with any appliance with a large motor, the RCD/GFCI will trip often. Route the power mains cord away from any moving part of the treadmill including the elevation mechanism and transport wheels.

Grounding Instructions

This product must be grounded. If the treadmill's electrical system should malfunction or breakdown grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an equipment-grounding plug. The plug must be

plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.
• Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
• This product is for use on a nominal 220\~240-V circuit.

Assembly instructions

Description (fig. A)

Your treadmill is a piece of stationary fitness equipment used to simulate walking or running without causing excessive pressure to the joints.

Package contents (fig. B & C)

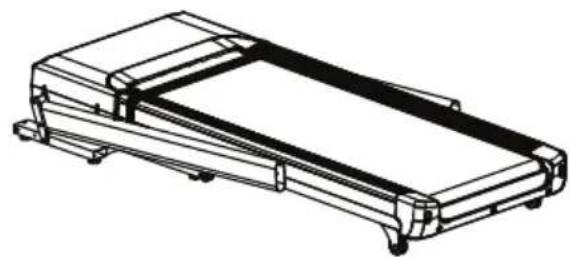

• The package contains the parts as shown in fig. B.
• The package contains the fasteners as shown in fig. C. Refer to the section "Description"

NOTE

- If a part is missing, contact your dealer.

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.

• Place the equipment on a protective base to prevent damage to the floor surface.

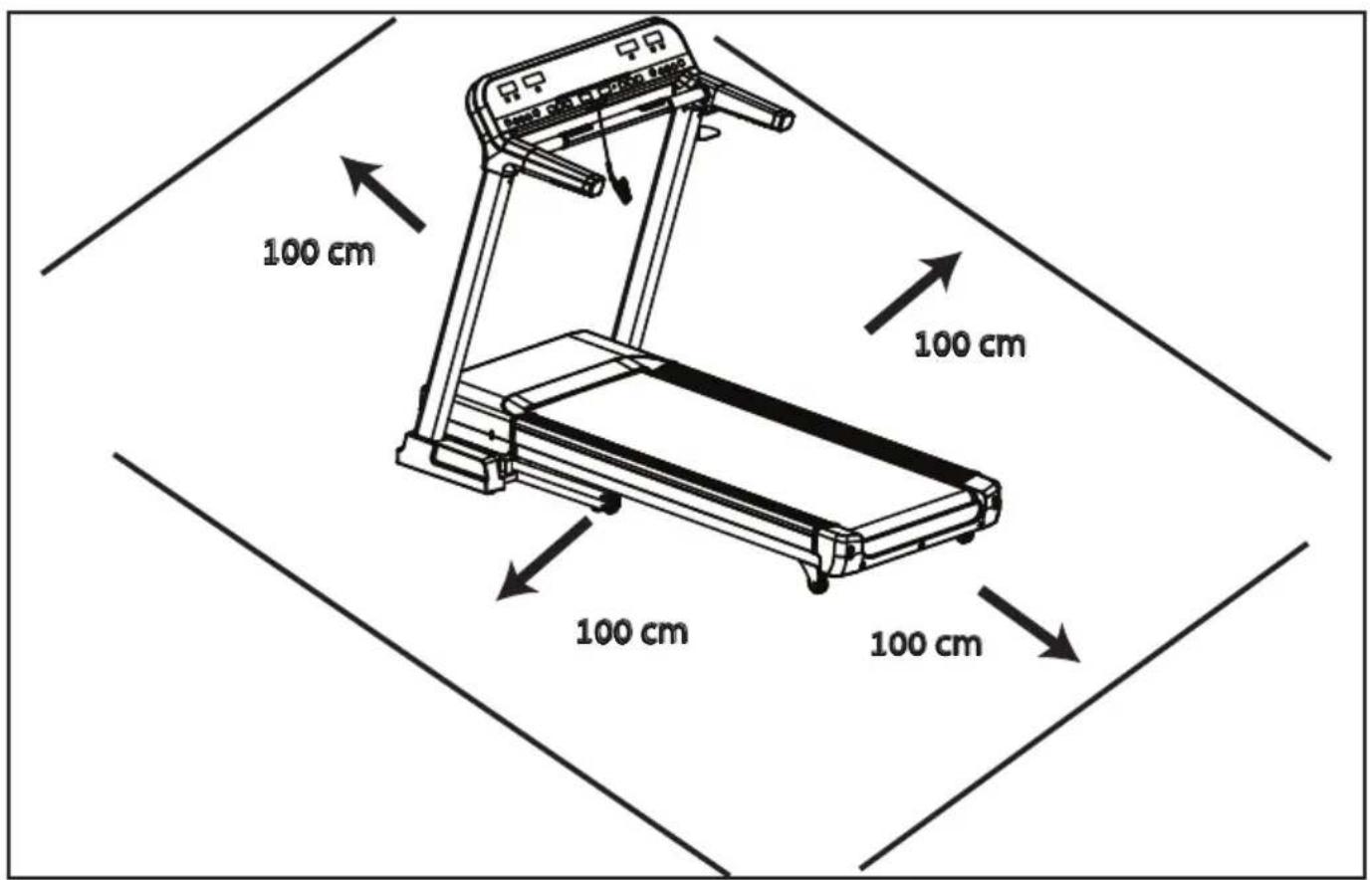

• Allow at least 100 cm of clearance around the equipment.

• Refer to the illustrations for the correct assembly of the equipment.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain.

As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Exercise Instructions

Using your fitness trainer will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with a calorie controlled diet help you lose weight.

The warming up phase

This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP

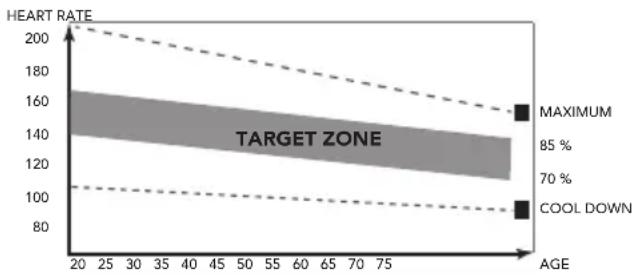

The exercise phase

This is the stage where you put the effort in. After regular use, the muscles in your legs will become more flexible. Work to your but it is very important to maintain a steady tempo throughout. The rate

of work should be sufficient to raise your heart beat into the target zone shown on the graph below.

This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes

The cool down phase

This stage is to let your Cardiovascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.

As you get fitter you may need to train longer and harder. It is advisable to train at least three times a week, and if possible space your workouts evenly throughout the week.

Muscle toning

To tone muscle while on your fitness trainer you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program. You should train as normal during the warm up and cool down phases, but towards the end of the exercise phase you should increase resistance making your legs work harder. You will have to reduce your speed to keep your heart rate in the target zone.

Weight loss

The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal.

Heart rate

Pulse rate measurement (hand pulse sensors)

The pulse rate is measured by sensors in the handlebars when the user is touching both sensors at the same time. Accurate pulse measurement requires that the skin is slightly moist and constantly touching the hand pulse sensors. If the skin is too dry or too moist, the pulse rate measurement will become less accurate.

NOTE

• Do not use the hand pulse sensors in combination with a heart rate chest belt.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.

Heart rate measurement (heart rate chest belt)

NOTE

- A chest strap does not come standard with this trainer. When you like to use a wireless chest strap you need to purchase this as an accessory.

The most accurate heart rate measurement is achieved with a heart rate chest belt. The heart rate is measured by a heart rate receiver in combination with a heart rate transmitter belt. Accurate heart measurement requires that the electrodes on the transmitter belt are slight moist and constantly touching the skin. If the electrodes are too dry or too moist, the heart rate measurement will become less accurate.

WARNING

- If you have a pacemaker, consult a physician before using a heartrate chest belt.

CAUTION

• If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 5ft. (1.5 metres).
• If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Do not use a heart rate chest belt in combination with the handpulse sensors.
• Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.
• The transmitter transmits the heart rate to the console up to a distance of 3.3ft (1 metre). If the electrodes are not moist, the heart rate will not appear on the display.
• Some fibers in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.
• Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

• Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Beginner

50-60% of maximum heart rate

Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.

Advanced

60-70% of maximum heart rate

Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.

Expert

70-80% of maximum heart rate

Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Master power switch (fig. E-2A)

The equipment is equipped with a master power switch to shut down the equipment completely.

To start the equipment:

• Insert the mains plug into the equipment.
• Insert the mains plug into the wall socket.
• Set the master power switch to the on position.

To stop the equipment:

• Set the mains power switch to the off position.
• Remove the mains plug from the wall socket.
• Remove the mains plug from the equipment.

Safety key (Fig F-4)

The equipment is equipped with a safety key that must be properly inserted into the console to start the equipment. If you remove the safety key from the console, the equipment will stop immediately.

• Insert the safety key into the slot in the console.
• Make sure that the clip of the safety key is properly attached to your clothing.
  Make sure that the clip is not removed from your clothing before the safety key is removed from the console.

Circuit breaker (Fig. E-2B)

The equipment is equipped with a circuit breaker that interrupts the circuit when the electricity load is above the maximum capacity. When this occurs, the circuit breaker must be pressed.

WARNING

- Before pressing the circuit breaker, remove the mains plug from the equipment.

If the equipment shuts down, proceed as follows to restart the equipment:

• Remove the mains plug from the equipment.
• Press the circuit breaker to restart the equipment.
• Insert the mains plug into the equipment.

NOTE

- Some circuit breakers used in homes are not rated for high inrush currents that can occur when a treadmill is first turned on or even during normal use. If your treadmill is tripping the circuit breaker (even though it is the proper current rating and the treadmill is the only appliance on the circuit) but

the circuit breaker on the treadmill itself does not trip, you will need to replace the breaker with a high inrush type. This is not a warranty defect. This is a condition we as a manufacture have no ability to control.

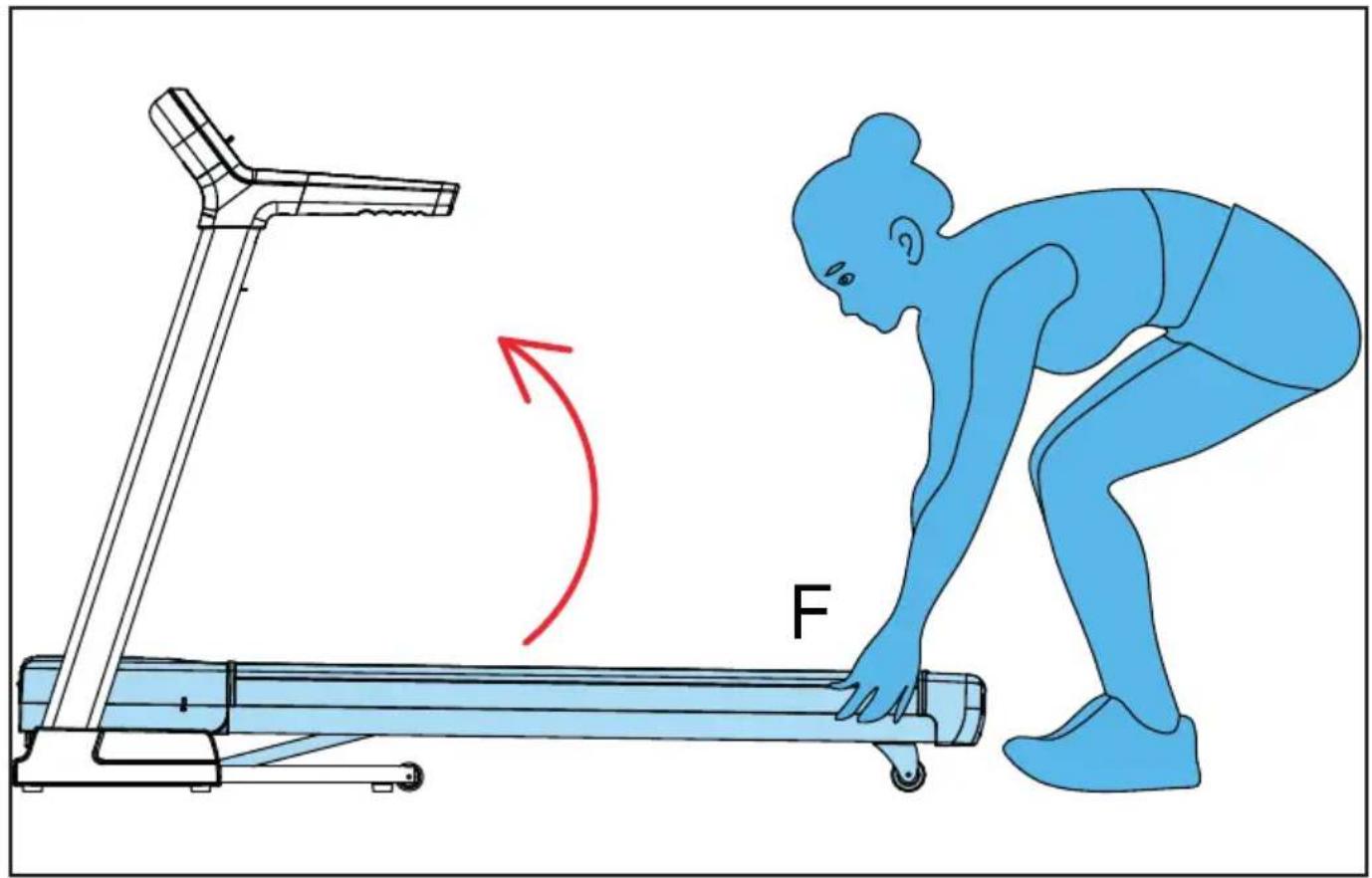

Unfolding and folding the equipment (fig. F1-F2)

The equipment can be unfolded for use (fig. F1) and folded for transport and storage (fig. F2).

Refer to the illustrations for the correct way of unfolding and folding the equipment.

CAUTION

- Before folding the equipment, make sure that the incline is 0%. If the incline is not 0%, folding will damage the mechanism.

Console (fig. E-1)

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

- The console switches to standby Mode when the equipment is not used for 10 minutes. Press any key to wake up console again when being in standby Mode.

Buttons

Start

- Start selected workout

Stop

• Pause the training (in workout Mode).
• Stop the active training. (in pause Mode)
• Clear value in programming Mode.
• Reset console when press and hold for 2 seconds in "stop Mode"

Incline up

• Increases the incline (0\~15 ±1).
• Scroll programs and change values in programming Mode.

Incline Down

• Decreases the incline (0\~15 ±1).
• Scroll programs and change values in programming Mode.

Incline hot keys.

Incline Hot Keys are set as: 6, 8 & 10.

For example, the incline level changes from any level

to 8 by pressing the Incline Hot Key 8.

Speed Up

• Increases the speed (0.8\~20.0 Km/h ±0,1Km/h).
• Pressing and holding will increase the speed faster.
• Scroll programs and change values in programming Mode.

Speed Down

• Decreases the speed (0.8\~20.0 Km/h ±0,1Km/h).
• Pressing and holding will decrease the speed faster.
• Scroll programs and change values in programming Mode

Speed hot keys:

Speed Hot Keys are set as: 6, 8 & 10 Km/h. For example, the speed changes from any speed to 8 Km/h by pressing the Speed Hot Key 8.

Mode

• Select program Mode.
• Confirm setting to enter next step in programming Mode.
• During workout Mode, change parameter for Speed/ Pulse & Calories/ Incline window.

Manual

- Select the program Mode "Manual"(P-1) quickly.

Weight loss

- Select the program Mode "Weight loss" (P-2) quickly.

Interval

- Select the program Mode "Interval" (P-3) quickly.

Hill Climb

- Select the program Mode "Hill Climb" (P-4) quickly.

Walk

- Select the program Mode "Walk" (P-5) quickly.

Explanation of display items

Speed

• Shows the actual treadmill speed in workout Mode.
• Shows target speed in programming Mode.

Pulse

- Shows the pulse rate in workout Mode, or "P" when no pulse is measured.

Distance

• Shows the ran distance workout Mode.
• Shows the target distance when being in programming Mode.
• Shows program selection when being in program Mode.

NOTE

- This parameter will only count Up/ Down when walking/ running on the treadmill. This is because of the build in movement sensing system.

Time

• Shows the ran time in workout Mode.
• Shows the target time when being in programming Mode.

NOTE

- If Time window shows "OIL" message, check section "Lubrication" in this manual.

Calories

- Shows the consumed calories in workout Mode.

NOTE

• This parameter will only count Up/ Down when walking/ running on the treadmill. This is because of the build in movement sensing system.
• This data is a rough guide for comparison of different exercise sessions which cannot be used in medical treatment.

Incline

• Shows the actual treadmill incline in workout Mode.
• Shows target incline in programming Mode.

NOTE

- If there is no operation it will return to "calories" window after 30 seconds.

Parameter range table

Item	Units	Initial	Original data	Programming range	Display range
Time Min: Sec 0:00 30:00		5:00~		99:00	0:00~99:59
Incline Step	0 0 0~15 ~15
Speed Km/H	0.0 0.8 0.8~20 0.8~20
Distance Km	0 1 0 0.50~			99.9	0.00~99.9
Heart rate Beats per minute		P N/A	N/A	50~	200
Calories Kilo	Calories	0 50	10.0~	999	0.0~999

Programs

Quick start

• Press "START" button to start your workout without any pre-set settings.
• Treadmill will start at minimum speed of 0.8 Km/h and maintains the current set incline setting.
• Adjust Speed / Incline manually at any time to change your workout, and stop/ pause at anytime.

Manual Mode

• Press "MODE" button to open programming Mode.
• Press "SPEED/ INCLINE" buttons to select P-1 program, press "Mode" button to confirm.
• Press "SPEED/ INCLINE" buttons to set your desired training time
  Default training time is set on 30:00 minutes.

Range 5:00\~99:00 min.

- Press "Mode" buttons to set your "DIST" (Distance) goal in Mile. Press "SPEED/ INCLINE" buttons to set your desired training distance. Default Distance is set on 1.0 Km. Range 0,5\~99:00 Km.

- Press "Mode" buttons to set your "CAL" (Calories) goal in Cal. Press "SPEED/ INCLINE" buttons to set your desired training calories. Default calorie goal is set on 50 K.calories. Range 10\~999 K.Cal. - Press "Start" button to start your workout.

Manual Own profile

• Press "MANUAL" button to open programming Mode. Display shows "P-1", and 30:00 as time goal setting.
• Press "SPEED/ INCLINE" buttons to set your desired training time, and press "Mode" to confirm.
• Press the "SPEED" buttons to set the speed. Press the "INCLINE" buttons to set the incline. Press and hold "Mode" key for 3 seconds to confirm and go to next programming stage.
• Repeat the above action to configure the other steps.
• Press the START button to start the program.

End your workout

• Pause your workout at any time by press "STOP" button once.
• Press "Start" button to resume training when being in pause Mode.
• Press and hold "STOP" button to stop workout and reset console.

Preset Programs (P1\~P12)

The equipment has 12 pre-set programs with different profiles (Fig G).

• Press "Mode" button to open programming Mode, keep pressing "Mode" button to select P-1\~P12 program.

• Press "SPEED/ INCLINE" buttons to set your desired training time Default training time is set on 30:00 minutes. Range 5:00\~99:00 min.

• Press "Mode" buttons to set your "DIST" (Distance) goal in Mile.
  Press "SPEED/ INCLINE" buttons to set your desired training distance.
  Default Distance is set on 1.0 Km.
  Range 0,5\~99:00 Km.

• Press "Mode" buttons to set your "CAL" (Calories) goal in Cal. Press "SPEED/ INCLINE" buttons to set your desired training calories.
  Default calorie goal is set on 50 K.calories. Range 10\~999 K.Cal.
• Press "Start" button to start your workout.

HRC Program (HR1\~HR2)

The HRC program is a "SPEED/ INCLINE" controlled program based on your heart rate. The "SPEED/ INCLINE" will automatically increase when your heart rate is under target, and decrease when over target.

NOTE

• When heart rate is ± 5 BPM. from target the console will not adjust intensity.
• First minute is always "Warm Up" Mode. During "Warm Up" the console will not adjust intensity.
• When training time is +20 minutes, the console will enter "Cool-down" Mode in latest 2 minutes. During "Cool-down Mode the training intensity will decrease gradually.
• During HR program the user is free to adjust speed and incline manually, but this will not affect the program behaviour.

HR1 Settings

• Incline controlled by: Console.
• Speed controlled by: Console.
• Max. operating speed: 9,7 Km/u
• Default training time: 10 min.
• Default age setting: 30. (15\~80)
• Default HR target (BPM): 114 (84\~195)
  Default HR is based on age setting.

HR2 Settings

• Incline controlled by: User
• Speed controlled by: Console.
• Max. operating speed: 12 Km/u
• Default training time: 10 min.
• Default age setting: 30 (15\~80)
• Default HR target (BPM): 114 (84\~195)
  Default HR is based on age setting.

- Press "Mode" button to select "HR1\~HR2" program, press "Start" button to start program with default setting or press and hold "Mode" button for 3 seconds to enter setting Mode.

In setting mode

• Set your age, use "Up/ Down" buttons to select and confirm by pressing "Mode" button.
• Set your HR target value, use "Up/Down" buttons to select and confirm by pressing "Mode" button.
  Available target range is based on age see table on page
• Set your workout time the display shows "10:00"
  Press "Up/Down" buttons to select: 10:00\~99:00
  press "Mode" button to confirm.
• Press the "Start" button to start the program.

HR1/ HR2 program operating function.

• Console will monitor actual HR every 10 seconds.
• Speed will increase 0.5 Km/h if HR is under target and maximum speed limit is not reached yet.
• Incline will increase 1 step if HR is under target and maximum speed limit is reached already.
• Speed will decrease 0.5 Km/h if HR is over target and minimum speed limit is not reached yet.
• Incline will decrease 1 step if HR is over target and minimum speed limit is reached already.
• If no heartrate is detected for more than 30 seconds the speed will decrease 0.5 Km/h & incline with 1 step each 10 seconds until lowest limits are reached.

CAUTION

- Heart rate measurement is required for this function.

Body Fat

The Body Fat program is program to indicate your fiscal state, based on your body parameters and heart rate.

• Press and hold "MODE" for 3 seconds to open "FAT"(body fat) programming Mode.

• Press "MODE" button to confirm and open programming Mode.

• "F-1" is shown in Display:
  Gender set Mode: 01=Male/02=Female
  Press "SPEED/ INCLINE" buttons to set gender, press "MODE" button to confirm.

• "F-2" is shown in Display:
  Age set Mode: 10\~99 year
  Press "SPEED/ INCLINE" buttons to set age, press "Mode" button to confirm.
• "F-3" is shown in Display:
  Height set Mode: 40\~80 Inch
  Press "SPEED/ INCLINE" buttons to set height, press "Mode" button to confirm.
• "F-4" is shown in Display:
  Weight set Mode: 44\~330 Lbs.
  Press "SPEED/ INCLINE" buttons to set height, press "Mode" button to confirm.
• "F-5" is shown in Display:
  Grab both hand-pulse sensor plates to start measuring process.
  Display will display "----" in active Mode.

CAUTION

- Holding the contact hand-grip heart rate measurement pads is required for this function.

Result Body fat test

<20 Too thin

20~25 Normal

26~29 Little overweight

>29 Too Fat

Bluetooth & APP

• This console can connect with an APP on a smart device by Bluetooth (iOS & Android).
• Establish the Bluetooth connection only via the connection Mode on the installed APP on your smart device.

NOTE

• Tunturi only provides the option to connect your fintess console throughout a blue tooth connection. Therefore Tunturi cannot be held responsible for damage, or malfunctioning of products other than Tunturi products.
• Check the website for extra information.

Warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV for that particular equipment. The product-specific approved environment is stated in the Owner's Manual provided with your equipment.

Warranty conditions

The warranty conditions commence from the date of purchase. Warranty conditions may vary per country, so please consult your local dealer for the warranty conditions.

Warranty coverage

Under no circumstances shall Tunturi New Fitness BV or the Tunturi Distributor be liable by virtue of this warranty or otherwise for any special, indirect, secondary or consequential damages of any nature arising out of any use or inability to use this equipment.

Warranty limitations

This warranty covers manufacturing defects in the fitness equipment as originally packed by Tunturi New Fitness BV. The warranty shall apply only under conditions of normal, recommended use of the product as described in the Owner's Manual and providing that Tunturi New Fitness BV's instructions for installation, maintenance and use have been complied with. Neither Tunturi New Fitness BV's nor the Tunturi Distributors' obligations apply to defects due to reasons beyond their control. The warranty applies only to the original purchaser and is valid only in countries where Tunturi New Fitness BV has an authorised importer. The warranty does not extend to fitness equipment or components that have been modified without the consent of Tunturi New Fitness BV. Defects resulting from normal wear, misuse, abuse, corrosion, or damage incurred during loading or transportation are not covered.

The warranty does not cover sounds or noises emitted during use where these do not substantially impede the use of the equipment and where they are not caused by a fault in the equipment.

The warranty does not cover defects arising from the failure to carry periodic maintenance as outlined within the Owner's Manual for the product. Furthermore, the warranty does not cover defects arising from usage and storage within an unsuitable environment as described within the Owner's Manual which should be indoors, dry, dust and grit free and within a temperature range of +15°C to +35°C. The warranty does not cover maintenance activities, such as cleaning, lubricating, and normal part adjustments, nor installation

procedures that customers can accomplish themselves, such as changing uncomplicated meters, pedals and other similar parts not requiring any dismantling/reassembling of the fitness equipment. Warranty repairs carried out by other than authorised Tunturi representatives are not covered.

Failure to follow the instructions given in the Owner's Manual will invalidate the product's warranty.

Cleaning and maintenance

WARNING

• Before cleaning and maintenance, remove the mains plug from the wall socket.
• Do not use solvents to clean the equipment.
• Do not block the ventilation openings. Keep the ventilation openings clear from dust, dirt and other obstructions.
• Clean the equipment with a soft, absorbent cloth after each use.
• Clean the visible parts of the equipment with a vacuum cleaner with a small suction nozzle
• Regularly check that all screws and nuts are tight.

Lubrication (fig. F-4)

The running belt must be checked for lubrication condition regularly. Therefore the treadmill comes with a 300 hours reminder function. The "TIME WINDOW" will display "OIL" and will make an acoustic beeping sound every 10 seconds to remind you. Follow the below checking procedure and eliminate the "OIL" message and acoustic warning signal by pressing and hold the "STOP" button for at least 3 seconds during this warning signal.

CAUTION

• We recommend to check the running belt lubrication at least once every month, as more factors than time can be effective to the lubricant conditions.
• Only lubricate the running belt if necessary. If you apply too much lubricant, the running belt will slip easily due to lack of friction.

WARNING

- Before lubrication, remove the mains plug from the wall socket.

• Stand steadily on the running belt.
• Take hold of the front handlebar and push the running belt with your feet so that it slides back and forth. The running belt must move smoothly and evenly without making sound.
• If the running belt does not move smoothly and evenly or if the running belt does not move at all, touch the underside of the running belt with your fingertips to check the lubrication:
• If you feel lubrication or your fingertips are shiny, there is sufficient lubrication on the running belt.
• If you do not feel lubrication or your fingertips are dusty or rough, apply lubricant (15-20 ml) in the middle of the running deck under the running belt and let the equipment operate at 3 Mph for at least 5 minutes.
• After lubrication, do not fold the equipment before having done a workout for 20 minutes with a speed of at least 3 Mph. The lubricant will be spread evenly over the running belt.

Belt and Running Deck

Your treadmill uses a very high-efficient low-friction bed. Performance is maximized when the running deck is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly under the belt edge. This should be done once a month to extend belt and running deck life. Use water only - no cleaners or abrasives. A mild soap and water solution along with a nylon scrub brush will clean the top of the textured belt. Allow the belt to dry before using.

Belt Dust

This occurs during normal break-in or until the belt stabilizes. Wiping excess off with a damp cloth will minimize build-up.

General Cleaning

Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. On a monthly basis: vacuum underneath your treadmill to prevent buildup. Twice a year, you should remove the black motor hood and vacuum out dirt that may accumulate.

UNPLUG POWER CORD BEFORE THIS TASK.

Belt adjustments

Adjustment must be made from the rear roller. The adjustment bolts are located at the end of the step rails in the end caps.

• Tighten the rear roller bolts (clockwise) only enough to prevent slippage at the front roller. Turn both running belt tension adjustment bolts in increments of 1/4 turn each and inspect for proper tension by walking on the belt at a low speed, making sure the belt does not slip. Keep tensioning the bolts until the belt stops slipping.
• If you feel the belt is tight enough, but it still slips, the problem may be a loose Motor drive belt under the front cover.
• Do Not Over-tighten Over tightening will cause belt damage and premature bearing failure.

Running belt tracking adjustment

The performance of your treadmill is dependent on the frame running on a reasonably level surface. If the frame is not level, the front and back roller cannot run parallel, and constant belt adjustment may be necessary.

The treadmill is designed to keep the running belt reasonably centered while in use. It is normal for some belts to drift near one side while the belt is running with no one on it. After a few minutes of use, the running belt should have a tendency to center itself. If, during use, the belt continues to move toward one side, adjustments are necessary.

EXCEPTION:

During rehabilitation where the user is using one leg much stronger than the other, it might happen that the running belt drifts to one side. In these cases you should not adjust unless the running

belt does not centre itself during normal condition usage.

To set running belt tracking (fig. F-5)

A 10 mm Allen wrench is provided to adjust the rear roller. Make tracking adjustments from the left side only. Set belt speed at approximately 3 to 5 Km/h.

Remember, a small adjustment can make a dramatic difference!

Turn the bolt clockwise to move the belt to the right. Counterclockwise to move to the left. Turn the bolt only a 1/4 turn and wait a few minutes for the belt to adjust itself. Continue to make 1/4 rotation turns until the belt stabilizes in the center of the running deck.

The belt may require periodic tracking adjustment depending on use and walking/running characteristics. Some users will affect tracking differently. Expect to make adjustments as required to center the tread-belt. Adjustments will become less of a maintenance concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills.

NOTE

- Damage to the running belt because of incorrect running-belt adjustments is not covered by the products warranty.

Troubleshooting

Despite continuous quality control, defects and malfunctions caused by individual components may occur in the equipment. In most cases it's unnecessary to take the whole device in for repair, as it's usually sufficient to replace the defective part.

If the equipment does not function properly during use, contact your Tunturi dealer immediately. Always give the Model and serial number of your equipment. Please state also the nature of the problem, conditions of use and purchase date.

If you require spare parts, always give the Model, serial number of your equipment and the spare part number for the part you need. The spare part list is at the back of this manual. Use only spare parts mentioned in the spare part list.

Error codes

If the display shows an error code (marked with "E"/ "DC" + number), restart the equipment and check whether the display still shows the error code. If the display still shows the error code, immediately contact the dealer.

Transport and storage

WARNING

• Before cleaning and maintenance, remove the mains plug from the wall socket.
• Carry and move the equipment with at least two persons.
• Make sure that there are no other persons or objects under the equipment.
• When folding the folding the equipment, make sure that you hear the equipment lock into position to prevent the equipment from dropping back down.

CAUTION

- Before folding the equipment, make sure that the incline is 0%. If the incline is not 0%, folding will damage the mechanism.

- Move the equipment as shown (fig. F3). Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface. Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars. - Store the equipment in the upright position (fig. F1). Store the equipment in a dry place with as little temperature variation as possible.

CAUTION

- Do not carry this appliance by supply cord or use cord as a handle.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Technical data

Parameter Unit of measurement	Value
Mains voltage VAC 220~240
Mains frequency Hz 50-60
Motor HP 3.0
Speed Km/h 0.8~20
Incline Steps 0~15
Length (Folded)	Cm 193
Width Cm 90
Height (Folded)	Cm 127
Weight Kg 77
Max. user weight	Kg 125
Telemetric heart rate receiver	Frequency

Declaration of the manufac- turer

Tunturi New Fitness BV declares that the product is in conformity with the following standards and directives: EN 957 (HC), 89/336/EEC. The product therefore carries the CE label.

01-2017

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2017 Tunturi New Fitness BV All rights reserved.

The product and the manual are subject to change. Specifications can be changed without further notice.

Deutsch

- Do not carry this appliance by supply cord or use cord as a handle.

Tunturi New Fitness BV Purmerweg 1 1311 XE Almere The Netherlands

Haftungsausschluss

Lubrification (fig. F-4)

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Pays-Bas

- Selecteer het programma "Weight loss" (P-2) direct.

Interval

- Selecteer het programma "Interval" (P-3) direct.

Hill Climb

- Selecteer het programma "Hill Climb" (P-4) direct.

Walk

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2017 Tunturi New Fitness BV

- Do not carry this appliance by supply cord or use cord as a handle.

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Paesi Bassi

© 2017 Tunturi New Fitness BV

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

The Netherlands

© 2017 Tunturi New Fitness BV

The running belt must be checked for lubrication condition regularly. Therefore the treadmill comes with a 300 hours reminder function. The "TIME WINDOW" will display "OIL" and will make an acoustic beeping sound every 10 seconds to remind you. Follow the below checking procedure and eliminate the "OIL" message and acoustic warning signal by pressing and hold the "STOP" button for at least 3 seconds during this warning signal.

WARNING

- Do not carry this appliance by supply cord or use cord as a handle.

Ytterligare information

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Nederländerna

Friskrivning

© 2017 Tunturi New Fitness BV

The running belt must be checked for lubrication condition regularly. Therefore the treadmill comes with a 300 hours reminder function. The "TIME WINDOW" will display "OIL" and will make an acoustic beeping sound every 10 seconds to remind you. Follow the below checking procedure and eliminate the "OIL" message and acoustic warning signal by pressing and hold the "STOP" button for at least 3 seconds during this warning signal.

VAROITUS

- Do not carry this appliance by supply cord or use cord as a handle.

Tunturi New Fitness BV

Purmerweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslauseke

© 2017 Tunturi New Fitness BV

Technical diagram of a mechanical assembly with labeled components and assembly lines, including sectional views and part numbers.

A01 Bottom frame 1
A02 mainframe 1
A03 Incline frame 1
A04 Monitor frame 1
A05 Handlebar pulse frame 1
A06 Left column 1
A07 Right column 1
A08 Motor seat 1
B01 Bottle holder 1
B03 Front roller 1
B04 Rear roller 1
B05 Air cylinder 1
B06 Sleeve ∅15*∅10.2*13	4
B07 Sleeve of transportation wheel ∅12*∅8.5*17	4
B08 Cross solid wrench	1
B09 Inner hex wrench	1
B10 Handle pulse 4
B11 safety key seat	1
C01 Top cover of the monitor	1
C02 Bottom cover of the monitor	1
C03 Left-bottom cover of the monitor	1
C04 Right-bottom cover of the monitor	1
C05 Left foam handlebar	1
C06 Right foam handlebar	1
C11 O ring	2
C12 Top cover of the motor	1
C13 Bottom cover of the motor	1
C14 Left bottom cover	1
C15 Right bottom cover	1
C16 Rear protection cover	1
C17 Side rail	2
C18 Left side rail cap	2
C19 Right side rail cap	2
C20 Foam	2
C21 Running belt	1
C22 Top cover of the pulse	1
C23 Bottom cover of the pulse	1
C24 Ribbed belt	1
C25 Black cushion ∅20*∅6.5*30	2
C26 Blue cushion ∅20*∅6.5*30 2
C27 Black cushion 2
C28 cone-shaped cushion 2
C29 Flat foot pad 6
C30 Transportation wheel 2
C31 Adjustable wheel 2
C32 Plastic washer 4
C33 O ring 2
C34 Acrylic panel 1
C35 Cushion 2
C36 Left anterior side rail cap 1
C37 Right anterior side rail cap 1
C38 End cap 2
C39 Round cover 1
D01 monitor		1
D02 Lower control board		1
D03 Upper wire of the monitor		1
D04 Lower wire of the monitor		1
D05 Upper wire of the handle pulse		1
D06 Lower wire of the handle pulse		2
D07 Safety key module		1
D08 Safety key rope		1
D09 Magnetic sensor		1
D10 AC single wire	brown 350mm	2
D11 AC single wire	blue 350mm	3
D12 Earth wire		1
D13 DC motor		1
D14 Incline motor		1
D15 Running board		1
D16 Square Switch		1
D17 Socket		1
D18 Over load protector		1
D19 Magnet ring 1
D20 Magnet core		1
D21 Power cable 1
E01 Non-locked nut	M6	4
E02 Lock nut	M8	6
E03 Lock nut	M10	6
E04 Bolt	M10*90	1
E05 Bolt M10*45 1
E06 Bolt M10*30 4
E07 Bolt M8*80 2
E08 Bolt M8*70 2
E09 Bolt M8*40 2
E10 Bolt M8*40 2
E11 Bolt M8*30 1
E12 Bolt M8*20 4
E13 Bolt M8*15 12
E14 Bolt M8*40 1
E15 Bolt M8*35 1
E16 Bolt M6*55 3
E17 Bolt M6*40 4
E18 Bolt M6*25 4
E20 Screw ST4.2*15 4
E21 Bolt M5*16 6
E22 Bolt M5*12 8
E24 Screw ST2.9*8 2
E25 Screw ST4.2*30 4
E26 Screw ST4.2*12 21
E27 Screw ST4.2*12 14
E29 Screw ST2.9*8 4
E30 Screw ST2.9*6.0 29
E31 Lock washer 6 3
E32 Lock washer 8 16
E33 Lock washer 10 2
E34 Spring washer 8 6
E35 Flat washer 8 7
E36 Big washer ∅10*∅26*2.0 8
E38 Bolt M8*45 1
E39 Big flat washer ∅5*∅13*1.0 4
F01 Filter		1
F02 Inductance		1
F03 AC single wire L500		1
F04 Grounding wire L350		1
F05 Screw ST4.2*12		4
H01 Bluetooth mould	Optional	1
H02 Bluetooth connection wire	Optional	1

Abstract green ribbon illustration with no text or symbols

TUNTURI®

WORLDWIDE FITNESS

Tunturi New Fitness BV

Purmerweg 1

NL - 1311 XE Almere

P.O. Box 60001

NL - 1320 AA Almere

The Netherlands

www.tunturi.com

[e-mail]
