LUCAS

NANO 302

MANUAL 1.0b

Important Safety Instructions! Read before connecting!

This product has been built by the manufacturer in accordance with IEC 60065 and left the factory in safe working order. To maintain this condition and ensure non-risk operation, the user must follow the advice and warning comments found in the operating instructions. If this product shall be used in vehicles, ships or aircraft or at altitudes exceeding 2000 m above sea level, take care of the relevant safety regulations which may exceed the IEC 60065 requirements.

WARNING: To prevent the risk of fire and shock hazard, do not expose this appliance to moisture or rain. Do not open case – no user serviceable parts inside. Refer service to qualified service personnel.

This symbol, wherever it appears, alerts you to the presence of regulated dangerous voltage inside the enclosure – voltage that sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to the presence normally accessible hazardous voltage. External wiring connected terminal marked with this symbol must be a "ready made complying with the manufacturers recommendations, or must being installed by instructed persons only.

This symbol, wherever it appears, alerts you to important and maintenance instructions in the accompanying e. Read the manual.

This symbol, wherever it appears, tells you: Take care! Hot To prevent burns you must not touch.

All electrical and electronic products including batteries are disposed of separately from the municipal waste stream generated collection facilities appointed by the government or authorities.

• Read these instructions.
• Keep these instructions.
• Follow all warnings and instructions marked on the product and in this manual.
• Do not use this product near water. Do not place the product near water, baths, wash basins, kitchen sinks, wet areas, swimming pools or damp rooms.

- Do not place objects containing liquid on the product – vases, glasses, bottles etc.

- Clean only with dry cloth.

- Do not remove any covers or sections of the housing.

- The set operating voltage of the product must match the local mains supply voltage. If you are not sure of the type of power available consult your dealer or local power company.

- Before connecting the device, please ensure that the mains supply you are using is equipped with adequate protection against short circuiting and grounding faults when the device is plugged in.

- To reduce the risk of electrical shock, the grounding of this product must be maintained. Use only the power supply cord provided with this product, and maintain the function of the center (grounding) pin of the mains connection at any time. Make sure the mains outlet used provides a proper protective ground connection.

- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device! Power supply cords should always be handled carefully. Periodically check cords for cuts or sign of stress, especially at the plug and the point where the cord exits the device.

- Never use a damaged power cord.

- Unplug this product during lightning storms or when unused for long periods of time.

• This product can be fully disconnected from mains only by pulling the mains plug at the unit or the wall socket. The product must be placed in such a way at any time, that disconnecting from mains is easily possible.
• Fuses: Replace with IEC127 (5x20mm) type and rated fuse for best performance only! It is prohibited to use "patched fuses" or to short the fuse-holder. Replacing any kind of fuses must only be carried out by qualified service personal.
  • Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as:
• When the power cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into the product.
• If the product has been exposed to rain or moisture.
• If the product does not operate normally when the operating instructions are followed.
• If the product has been dropped or the cabinet has been damaged.
• Do not connect external speakers to this product with an impedance lower than the rated impedance given on the product or in this manual. Use only cables with sufficient cross section according to the local safety regulations.
• Keep away from direct sunlight.
• Do not install near heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• Do not block any ventilation openings. Install in accordance with manufacturer's instructions. This product must not be placed in a built-in installation such as a rack unless proper ventilation is provided.
• Always allow a cold device to warm up to ambient temperature, when being moved into a room. Condensation can form inside it and damage the product, when being used without warming up.
• Do not place naked flame sources, such as lighted candles on the product.
• The device must be positioned at least 20 cm/8" away from walls.
• Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the product. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.
• Use only accessories recommended by the manufacturer, this applies for all kind of accessories, for example protective covers, transport bags, stands, wall or ceiling mounting equipment. In case of attaching any kind of accessories to the product, always follow the instructions for use, provided by the manufacturer. Never use fixing points on the product other than specified by the manufacturer.
• This appliance is NOT suitable to be used by any person or persons (including children) with limited physical, sensorical or mental ability, or by persons with insufficient experience and/or knowledge to operate such an appliance. Children under 4 years of age must be kept away from this appliance at all times.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock.
• This product is capable of delivering sound pressure levels in excess of 90 dB, which may cause permanent hearing damage! Exposure to extremely high noise levels may cause a permanent hearing loss. Wear hearing protection if continuously exposed to such high levels.
• The manufacturer only guarantees the safety, reliability and efficiency of this product if:
• Assembly, extension, re-adjustment, modifications or repairs are carried out by the manufacturer or by persons authorized to do so.
• The electrical installation of the relevant area complies with the requirements of IEC (ANSI) specifications.
• The unit is used in accordance with the operating instructions.
• This product is optimized for use with music and speech signals. Using this product with sine wave, square wave or other kind of measuring signals at higher level may lead to severe damage of the product.

General Notes on Safety for Loudspeaker Systems

Mounting systems may only be used for those loudspeaker systems authorized by the manufacturer and only with the mounting accessories specified by the manufacturer in the installation instructions. Read and heed the manufacturer's installation instructions. The indicated load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in

the event of improper installation or the use of unauthorized mounting accessories.

The system's load-bearing capacity cannot be guaranteed and the manufacturer will not be liable for damages in the event that loudspeakers, mounting accessories, and connecting and attaching components are modified in any way.

Components affecting safety may only be repaired by the manufacturer or authorized agents, otherwise the operating permit will be voided.

Installation may be performed qualified personnel only, and only at pick-points with sufficient load-carrying capacity and in accordance with local building regulations. Use only the mounting are specified by the manufacturer in the installation options (screws, anchors, etc.). Take all the precautions necessary to ensure bolted connections and other threaded locking will not loosen.

Fixed and portable installations (in this case, speakers and using accessories) must be secured by two independent safeties. Ent them from falling. Safeties must be able to catch series or parts that are loose or may become loose. Ensureance with the given national regulations when using fixing, attaching, and rigging devices. Factor potential dynamic (jerk) into the equation when determining the proper size and spacing capacity of safeties.

Be sure to observe speaker stands' maximum load-bearing y. Note that for reasons of design and construction, most stands are approved to bear centric loads only; that is, the s' mass has to be precisely centered and balanced. Ensure stands are set up stably and securely. Take appropriate measures to secure speaker stands, for example when:

- the floor or ground surface does not provide a stable, secure base. - they are extended to heights that impede stability.

- high wind pressure may be expected.

- there is the risk that they may be knocked over by people. Special measures may become necessary as precautions against unsafe audience behavior. Do not set up speaker stands in evacuation routes and emergency exits. Ensure corridors are wide enough and put proper barriers and markings in place when setting speaker stands up in passageways. Mounting and dismounting are especially hazardous tasks. Use aids suitable for this purpose. Observe the given national regulations when doing so.

Wear proper protection (in particular, a helmet, gloves, and shoes) and use only suitable means of ascent (ladders, pls, etc.) during installation. Compliance with this requirement sole responsibility of the company performing the installation.

WARNING!

After installation, inspect the system comprised of the mounting fixtures and loudspeakers to ensure it is properly secured.

The operator of loudspeaker systems (fixed or portable) must regularly inspect or task a third party to regularly inspect all system components in accordance with the given country's regulations and have possible defects repaired immediately.

We also strongly recommend maintaining a logbook or the like to document all inspections.

When installing speakers for longer lasting or permanent outdoor operation, be sure to take into account the stability and load-bearing capacity of platforms and surfaces; loads and forces exerted by wind, snow, and ice; as well as thermal influences. Also be sure to provide sufficient safety margins for the rigging points used for flown systems. Observe the given national regulations when doing

- Ask the manufacturer if your product is allowed for outdoor usage!

Professional loudspeaker systems can produce harmful

volume levels. Even prolonged exposure to seemingly harmless levels (starting at about 95 dBA SPL) can cause permanent hearing damage! Therefore we recommend that everyone who is exposed to high volume levels produced by loudspeaker systems wears professional hearing protection (earplugs or earmuffs).

Manufacturer: Stamer Musikanlagen GmbH, Magdeburger Str. 8, 66606 St. Wendel, Germany

LUCAS NANO 302

Welcome to the HK Audio family!

Thank you for choosing a brand-name product made by our company. Rest assured, we engineered and built it with the greatest care so it will serve you well for many tomorrows to come.

Even if your experience with sound systems runs deep, some things about this product are sure to be new to you. This is why we ask that you do not set this manual aside without reading it first. Be sure to keep it in a safe place for later reference.

Here's wishing you the best sound at every occasion!

Your HK Audio team

Warranty

Use the convenient online registration option at www.hkaudio.com.

http://warranty.hkaudio.com

The registration is only valid if the device is registered within 30 days of the date of purchase.

HK AUDIO

Technischer Service

Postfach 1509

66959 St. Wendel, Germany

Fax: [phone]

Strong electromagnetic interference or electrostatic discharge may prevent the product from functioning normally. If this happens, the product may be returned to normal operation by powering off and on again. Should this not result in the product functioning normally again, please move the product away from the source of disturbance and try again.

1 General Info

Contents

When you first unpack your LUCAS NANO 302, take a quick inventory to make sure the package comes complete with all the contents. LUCAS NANO 302 consists of a powered subwoofer and two satellites. A speaker pole adapter sleeve (M33 to M20), a protective cap for the speaker pole and a mains cable are also included, which you'll find in the box holding the power cord.

The System's Components

The Subwoofer

The subwoofer houses the 8" woofer, the system's active circuitry and the Class D power amplifiers. The speaker outputs for connecting satellites and the mains socket are located on the rear. That's where you'll also find the transport bay for the satellites and a recessed Auto Sleep button that activates an automatic power-saving function. The system's current operating modes are printed on the inside wall of the satellite bay.

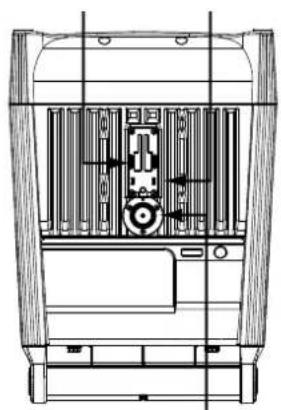

Technical line drawing of a mechanical device rear view with internal components and mounting holes (no text or symbols)

S-Connect (M33)

Speaker OutEasy-Click Signal co

L R Auto Sleep on off

On top of the housing, you'll find an Easy-Click guide rail with built-in signal-carrying terminals and an M33 pole mount that is also able to route the signal. The M33 is designed to take the S-CONNECT POLE LN speaker extension pole. The included adapter sleeve (M33 to M20) lets you attach standard M20 speaker poles, but they don't have a built-in signal bus.

Speaker pole adapter sleeve (M33 to M20)

The Satellites

Each satellite is loaded with one 3.5" broadband speaker custom-designed for HK Audio.

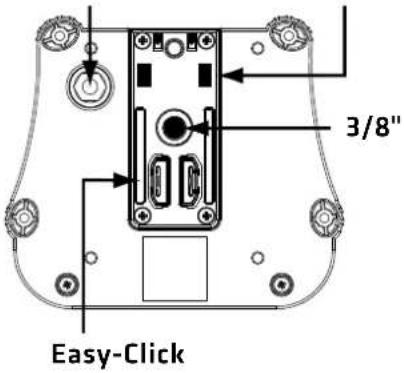

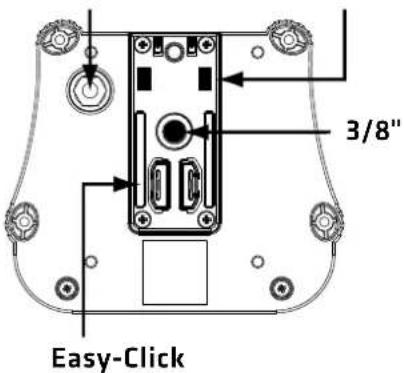

A 3/8" threaded insert on the bottom of the housing serves to mount the satellite on a standard microphone stand. The optionally available Pole Mount Adapter lets you mount the satellite on a standard 35 mm pole. On the bottom of the enclosure is an Easy-Click connector with a built-in signal bus. It lets you slot the satellites right into the subwoofer's Easy-Click locking mechanism. Two contacts establish an audio link with the subwoofer, so you don't need any speaker cords to route signals.

Speaker In Signal contacts

3/8" Easy-Click

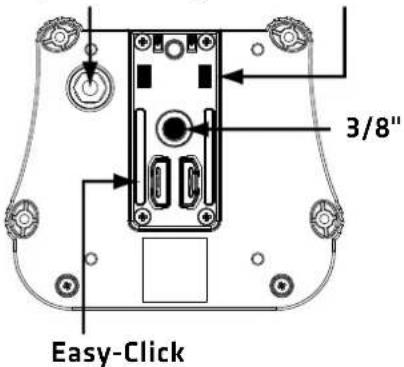

On top of the housing is another guide rail that takes two upside down satellites. It establishes audio and mechanical connections, and couples the speakers acoustically to achieve even more sound pressure and greater reach.

S-CONNECT POLE LN (optional)

3D rendering of a vertical mechanical component with a flanged top and black base (no text or symbols visible)

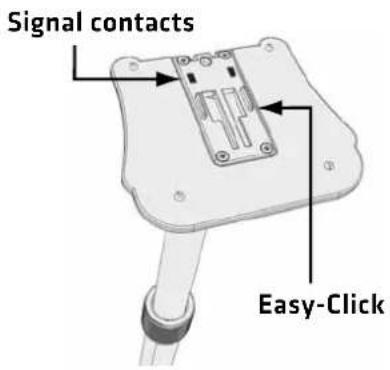

The S-CONNECT POLE LN A is a freely adjustable speaker extension pole with a built-in signal bus. It provides a very elegant way of mounting satellites on the subwoofer without having to use speaker cords. The S-CONNECT POLE LN screws into the S-CONNECT insert on the subwoofer, and the satellites snap right onto the pole's Easy-Click connector. This also links up with the built-in signal bus so you don't need an external cable.

Signal contacts Easy-Click

Setting Up

Extracting the Satellites

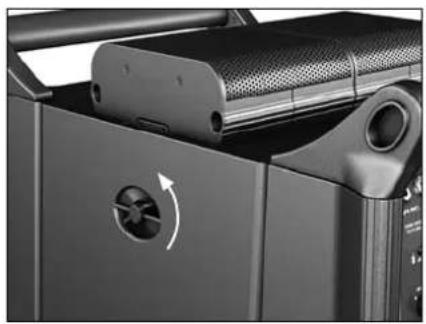

The LUCAS NANO 302 satellites are locked in place in the bay on the rear of the subwoofer. Here's how to undo the transportation latches:

- Carefully set the subwoofer face down on the speaker front and turn the T-grips on both sides to unlock the spring-mounted locking pins. Remove the two satellites from the transport bay.

Close-up of a black mechanical device with a circular vent mechanism and a rotating knob (no text or symbols visible)

- Always make sure the locking pins are engaged to fix the two satellites in place when transporting your LUCAS NANO 302.

Wireless Convenience, the Easy-Click Way

The Easy-Click connector snaps in place to physically link the two satellites; what's more, it also establishes an electrical connection.

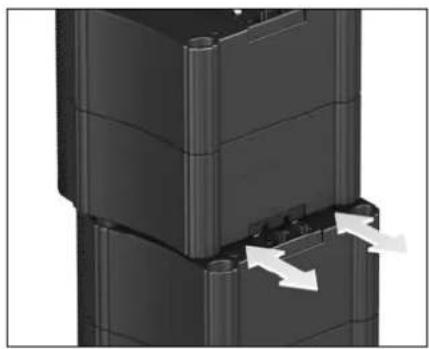

Easy Click is very easy to disconnect: Simply push the top satellite back and lift the enclosure to remove it.

3D mechanical component with arrows indicating a joint or assembly (no visible text or symbols)

To connect a satellite, set it on the top panel and push it forward.

Wireless Setup Options with Easy-Click

Signal via Easy-Click

Simple line drawing of a mechanical component with two circular holes and a central shaft (no text or symbols)

Mono Cube No cables needed

Simple line drawing of a vertical pole with two circular components and a central circle, no text or symbols present.

Mono System with S-CONNECT POLE LN No cables needed

Mono Cube

The mono cube is your simplest option for setting up LUCAS NANO 302. In this configuration, the connected pair of satellites is mounted right on top of the subwoofer. In this setup, the Easy-Click connector also serves to route the signal between the subwoofer and satellite array.

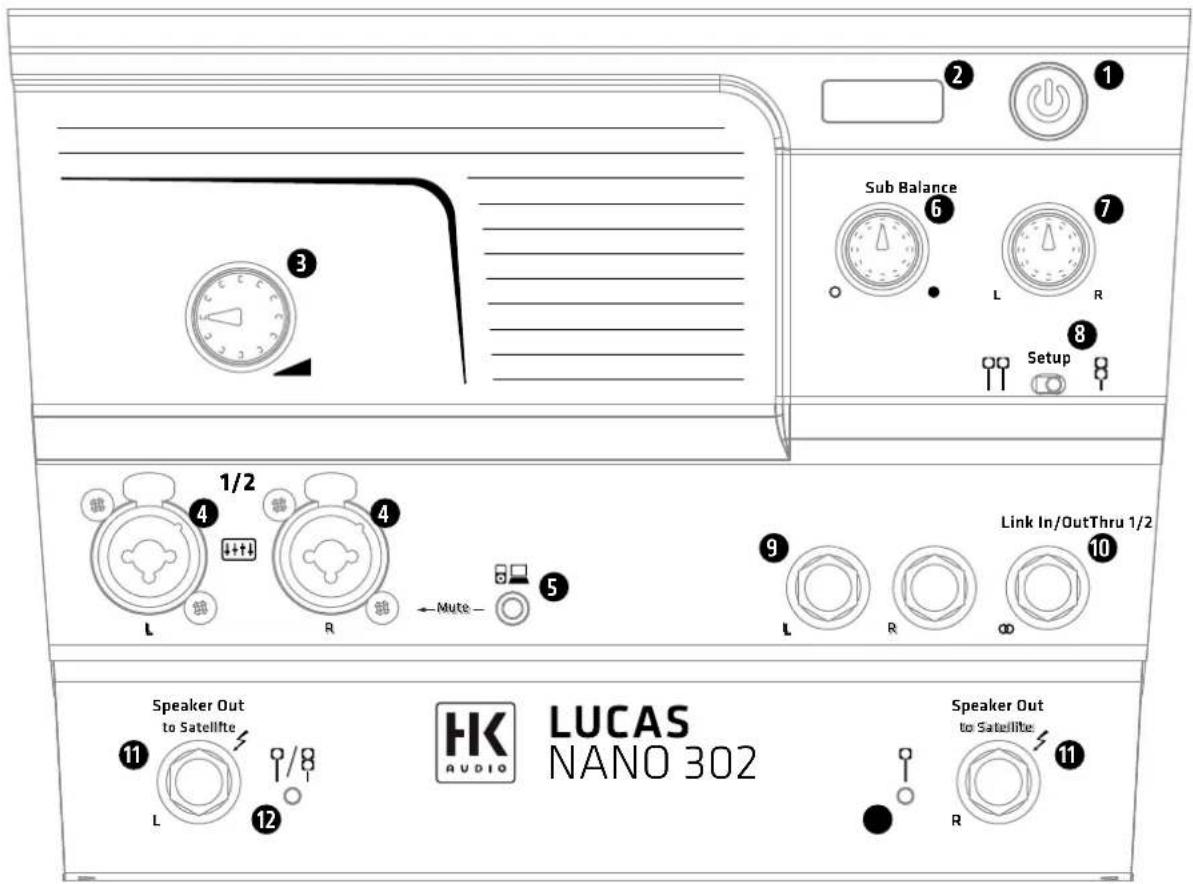

• To this end, place the subwoofer upright.

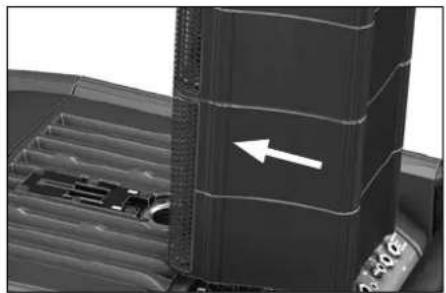

- Hold the paired satellites with the speakers facing forward as shown in the figure on the left. Now push on the back of the enclosures, sliding the pair forward into the guide rail until they click firmly into place.

Close-up of a mechanical component with a white arrow pointing to a textured surface (no visible text or symbols)

Be advised note that you will not be able to tap the system's full audio potential with this setup.

A Mono System with an S-CONNECT POLE LN

Another wireless setup option is the mono system with the optional S-CONNECT POLE LN, a signal-routing speaker pole. This pole's base end screws straight into the M33 pole mount on the subwoofer and its top end connects to the satellite array via Easy-Click.

Be sure to set the Setup selector to 'Satellite Array' when you use these two wireless setup options (for more on this, see section 8):

Your LUCAS NANO 302 is now ready to go.

For details on setup options (such as stereo and twin stereo systems) as well as descriptions of the add-ons that are available for these setups, read Chapter 3 - Setups and Accessories.

Five line drawings of speaker-mounted devices with stand and antenna, no text or symbols present

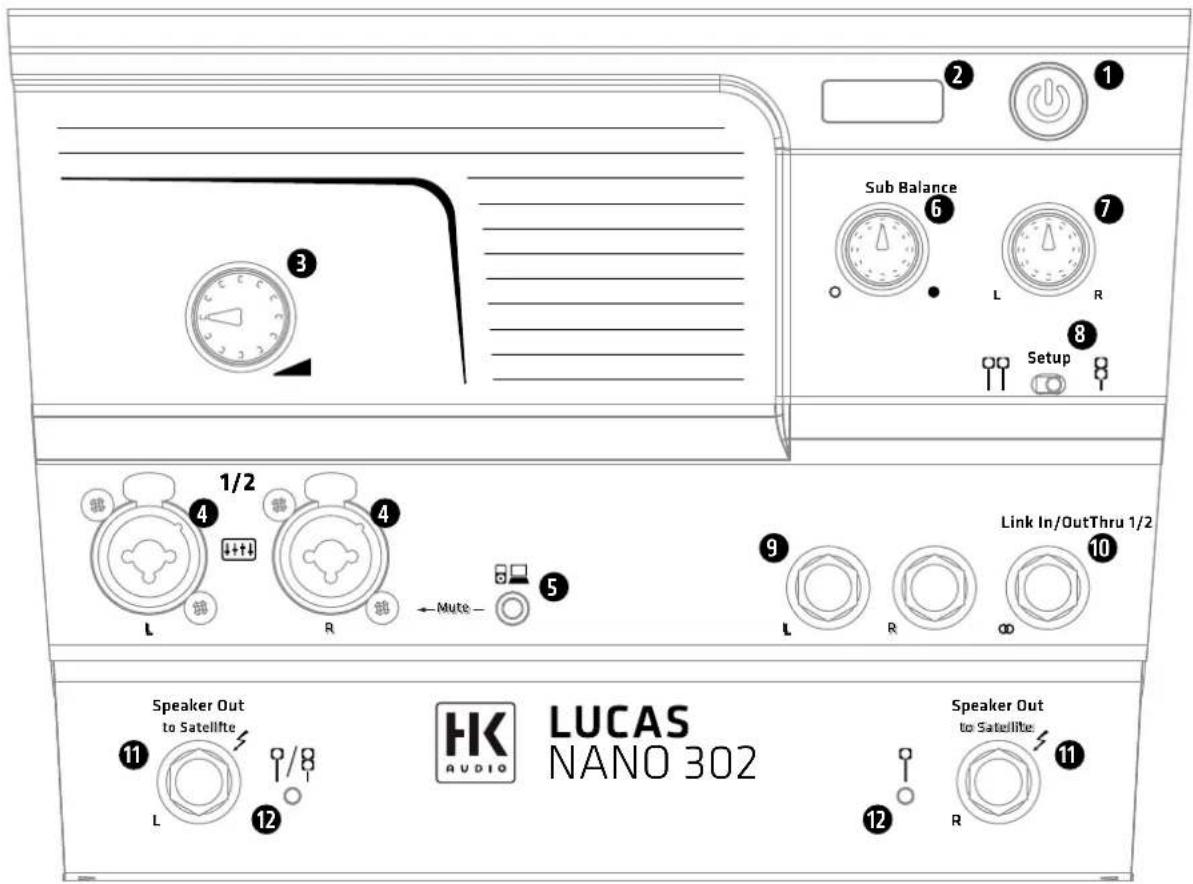

Sub Balance L R Setup Link In/OutThru 1/2 Speaker Out to Satellite L R Mute LUCAS NANO 302 Speaker Out to Satellite HK AUDIO

2 Connectors and Control Features

1 Power

This button switches LUCAS NANO 302 on and off.

② Status Indicator

This dual-color LED indicates the following statuses:

• Green = power on
• Red = limit/mute or error

If it flashes briefly red from time to time, this tells you that the limiter is responding to signal peaks.

Heads up! If the Status LED stays red while LUCAS NANO 302 is up and running, the system is being overloaded. Turn down the signal level! If you are not feeding a signal in and the Status LED stays red, a malfunction has occurred.

Note: There are situations when LUCAS NANO 302 remains muted for about two seconds to give the amplifier unit time to ramp up and to prevent switching noise (the Status LED lights up red during this time). It does this:

• when you press the Power button to switch the system on
• when you press the Setup button

If the light remains on, a malfunction has occurred and you need to get in touch with our Technical Service team.

3 Gain/Volume

Use this rotary knob to adjust the given input's signal level. Twist it counterclockwise to the far left to turn the signal level all the way down and clockwise to the far right to turn it all the way up.

4 Stereo Input 1/2 (XLR/1/4")

These balanced combination input ports - XLR/1/4" (6.3 mm) jacks - serve to connect a line signal. Channel 1's signal is routed to the left; Channel 2's to the right.

5 Stereo Input 1/2 (mini jack)

Use this 3.5 mm mini jack to connect high-gain audio devices such as CD and MP3 players, DJ mixing consoles and computers.

Heads up: The input combination ports (4) are muted when you insert a plug into this mini jack.

6 Sub

Use this rotary knob to adjust the bass level within a range of - to +6 dB, with 0 dB being at the center or 12 o'clock position.

7 Balance

Use this rotary knob to adjust the left and right channels' relative levels. The Balance knob should normally remain at the center or 12 o'clock position for a single LUCAS NANO 302 for stereo (Stereo Satellite) or mono (Satellite Array) setups.

If you're using two LUCAS NANOs as a twin stereo system, set the left LUCAS NANO system's Balance knob to the far left and the right system's knob to the far right, or vice versa if you want to flip the sides (see also 8)

10 and chapter 3).

8 Setup

Stereo Satellite

Satellite Array

This switch configures the system for the target setup. LUCAS NANO 302 provides different signals tuned specifically for Stereo Satellite and Satellite Array setups (see also chapter 3, Setups and Accessories).

Stereo Satellite mode: The left channel of the stereo signal is sent to the Easy-Click connector, the S-CONNECT mount (both are on top of the subwoofer), and the left Speaker Out on the subwoofer's rear panel. The right channel of the stereo signal is always routed to the right Speaker Out port.

Satellite Array mode: This setting optimizes the EQ for the two interconnected satellites. The signal is routed via Easy-Click and S-CONNECT to the left Speaker Out. The right Speaker Out is disabled (the right speaker LED lights up orange).

9 Thru L/R

This is a parallel, balanced circuit that routes input signals from Input 1/2 (4) to another destination such as a monitor or serves as DI output. Signals are tapped just after the XLR/1/4" (6.3 mm) Combi ports and mini jacks; that is, before they are amplified. The Thru outputs are balanced.

10 Link In/Out

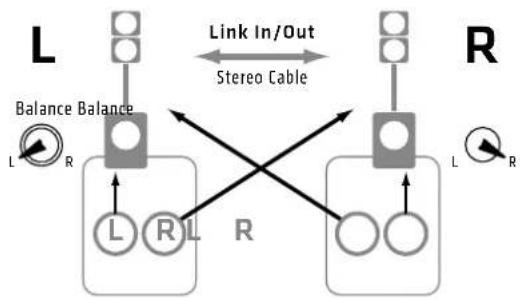

This 1/4" (6.3 mm) stereo jack serves to connect one LUCAS NANO 302 to another LUCAS NANO to confi gure a twin stereo system. It's imperative that you use a shielded cord equipped with stereo 1/4" (6.3 mm) jack plugs such as the optional LUCAS NANO LINK CABLE to do this. No other type of cable will do.

Heads up: Do not connect the two systems with the power on. Be sure both are switched off; otherwise, the volume level may spike when you plug in the Link cable.


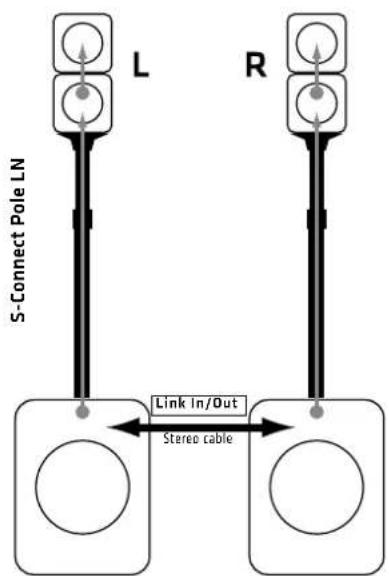

See section 3.6 for details on configuring a twin stereo system.

11 Speaker Out to Satellite L/R

These speaker outputs serve to connect the LUCAS NANO 300 Series satellites using speaker cords equipped with 1/4'' (6.3 mm) jack plugs. If you connect any other device, you may destroy it and LUCAS NANO 302 as well.

12 Speaker LED

These dual-color LEDs indicate the status of each Speaker Out port.

- Green = active speaker output

- Orange = inactive speaker output

The Setup button (8) activates and deactivates these outputs.

Heads up: After you press the Setup button, the outputs of the LUCAS NANO 302 are muted for around two seconds, during which time the LEDs light up orange.

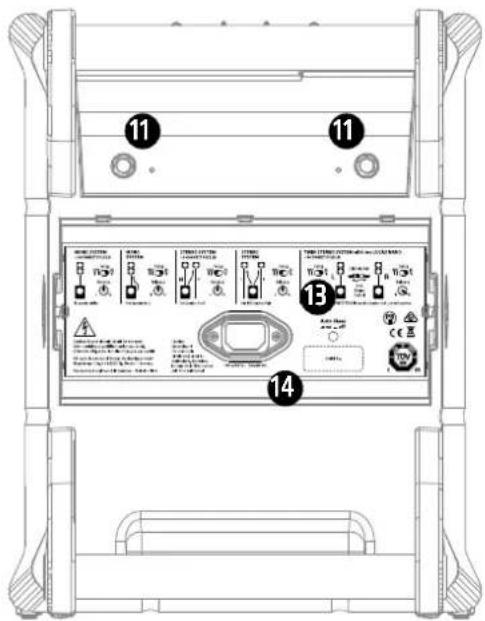

11 11 13 14

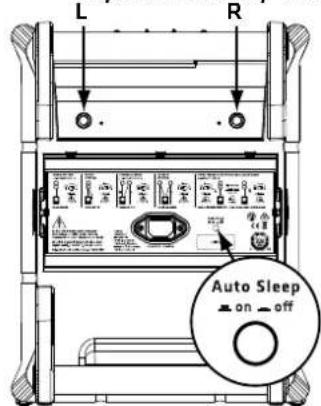

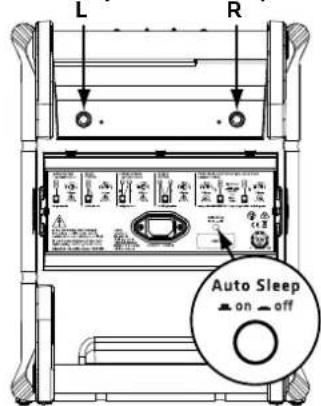

13 Auto Sleep (switch in the transport bay)

LUCAS NANO 302 features an automatic power-saving mode that is activated and deactivated using the Auto Sleep switch in the satellite transport bay at the back of the enclosure. The system ships with the switch set to the 'On' position so that Auto Sleep is activated by default. If LUCAS NANO 302 does not get an input signal for around four and a half hours, the power amp will switch over to standby mode. To power the system up again, engage the Power On/Off switch or disconnect and reconnect mains power. Set Auto Sleep to the 'Off' position if you wish to disable this standby function.

14 Mains Socket

Use the factory-included mains cord to connect this socket to a wall outlet. The multi-range power supply lets you use your NANO 302 in countries with mains power ranging from 100 to 240 volts. Caution! Make sure your LUCAS NANO 302 is operated only within the specified voltage range. Connecting it to the wrong mains voltage may destroy its electronic components.

3 Setups and Accessories

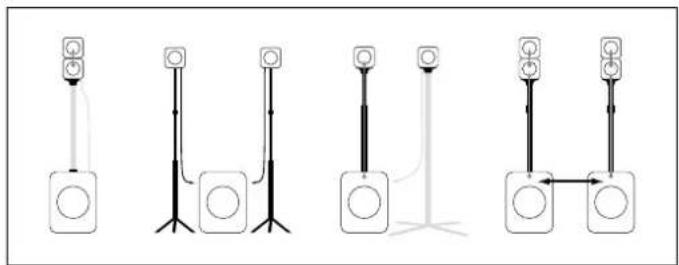

You can deploy LUCAS NANO 302 in various confi gurations. The optional HK Audio accessories listed in section 3.7 let you do this with the greatest fl exibility and convenience.

3.1 Mono System

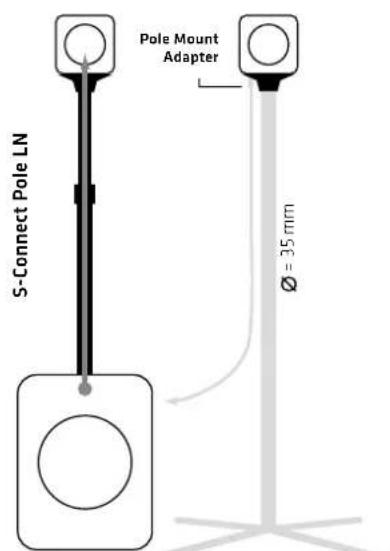

With the S-CONNECT POLE LN

(see the picture below)

No speaker cables

Screw the S-CONNECT POLE LN into the M33 pole mount on the subwoofer's top panel. Then attach the satellite array to the S-CONNECT POLE LN adapter sleeve via the Easy-Click connector. The signal bus is built in, so you don't need to connect any speaker cables for this setup. Be sure to set the Setup selector to 'Satellite Array' and the Balance knob to the center or 12 o'clock position.

- Required accessories: S-CONNECT POLE LN

3.2 Mono System

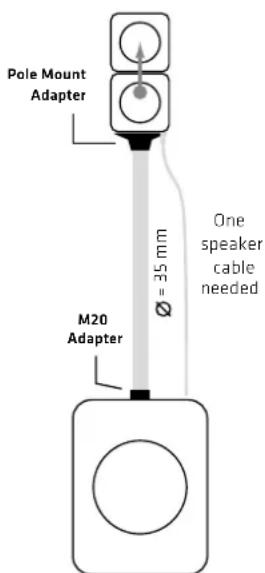

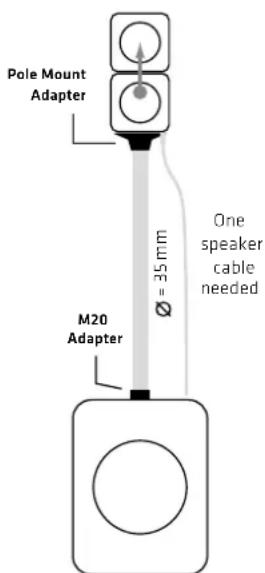

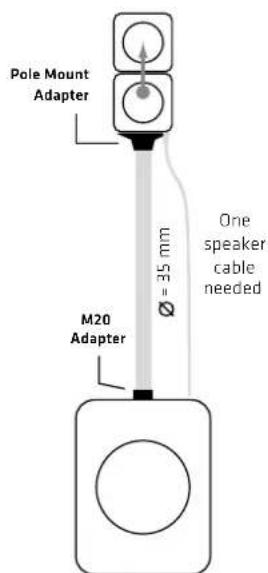

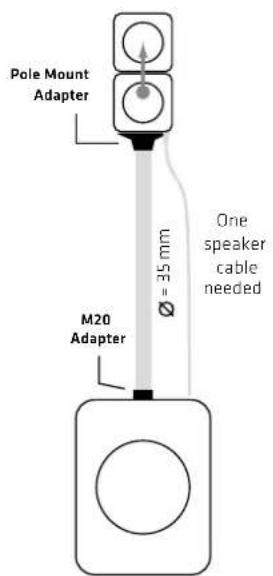

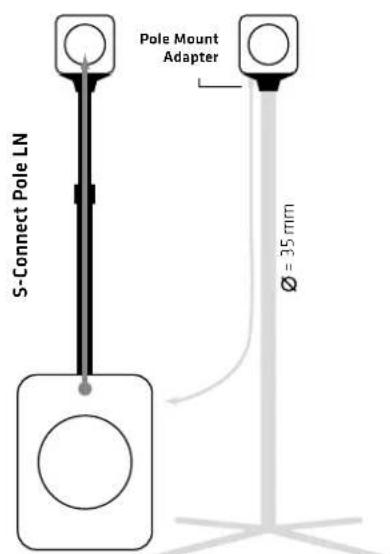

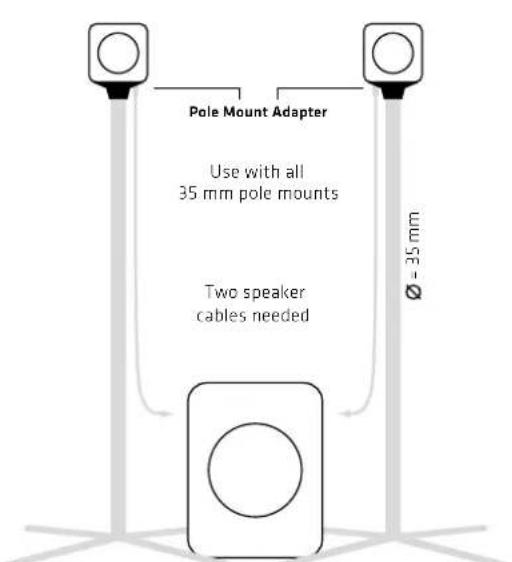

In combination with an off -the-shelf 35-mm/M20 speaker pole and the POLE MOUNT ADAPTER

(see the picture below)

Use Speaker Out L

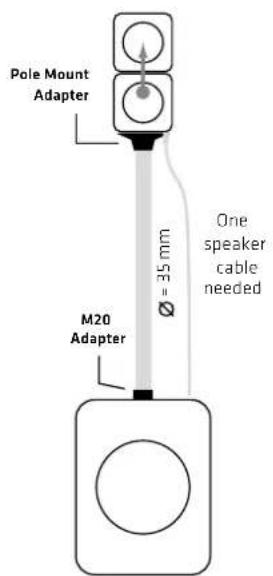

Screw the included adapter sleeve (M33 to M20) into the pole mount on top of the subwoofer. Then screw the speaker extension pole into the sleeve and attach the POLE MOUNT ADAPTER to the top end of the speaker extension pole. Attach the satellites to the POLE MOUNT ADAPTER's Easy Click connector by clicking them into place.

Please note that the POLE MOUNT ADAPTER is unable to route signals. Use a speaker cord equipped with 1/4" (6.3 mm) jack plugs to connect the subwoofer's 'Speaker Out to Satellite L' output to the paired satellites.

Be sure to set the Setup switch to Satellite Array mode and the Balance knob to the center or 12 o'clock position.

- Required accessory: POLE MOUNT ADAPTER

You can configure this setup with any standard 35-mm/M20 speaker extension pole. You will also need one speaker cord equipped with 1/4" (6.3 mm) jack plugs (at least 2x1.5 mm ^2 in diameter and 2 m in length).

3.3 Stereo System

With the STEREO STAND ADD-ON (LUCAS NANO 300 Series) or in combination with standard microphone stands with a 3/8" thread (see the picture below)

Use L/R Speaker Outs

Place the two LUCAS NANO 302 satellites on the STEREO STAND ADDON speaker stands' 3/8" threads and screw them down. Now connect the satellites to the subwoofer's two Speaker Outs using speaker cables. Be sure to set the Setup selector to 'Stereo Satellite' and the Balance knob to the center or 12 o'clock position.

- Required accessories: STEREO STAND ADD-ON 300 Series (2 height-adjustable speaker stands, 2 speaker cords, 1 bag)

This setup option works with any standard microphone stand, provided it is fitted with a 3/8" thread.

Signal via

Easy-Click

Bold black:

Part of the listed accessories

S-Connect Pole LN

3.1 Mono System

with S-CONNECT POLE LN

No cables needed

Pole Mount Adapter Ø = 35 mm One speaker cable needed M20 Adapter

3.2 Mono System

with one POLE MOUNT ADAPTER

and standard distance rod

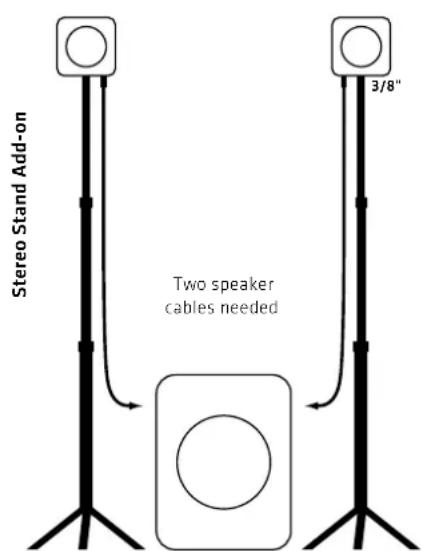

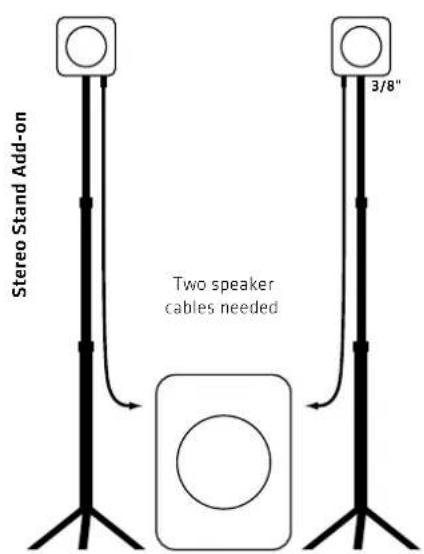

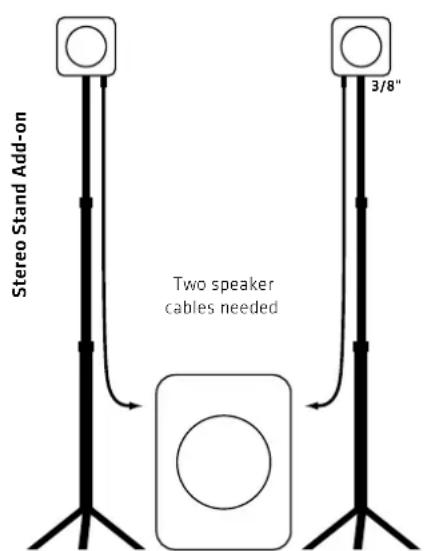

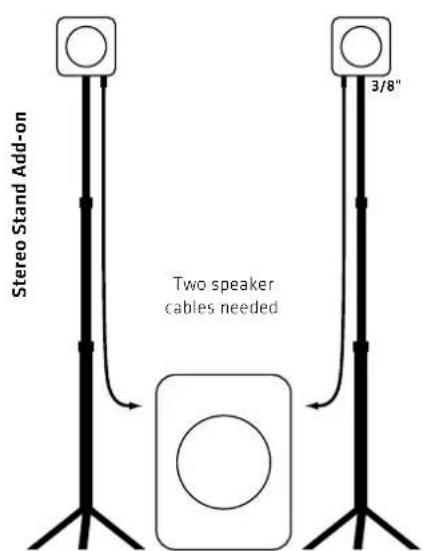

Stereo Stand Add-on 2/8" Two speaker cables needed

3.3 Stereo System

with STEREO STAND ADD-ON

(also works with microphone stands)

3.4 Stereo System

With standard speaker stands and the POLE MOUNT ADAPTER (see the picture below)

Use L/R Speaker Outs

Insert the POLE MOUNT ADAPTERs onto the 35 mm-diameter speaker stands and use the Easy-Click connector to attach each satellite to a POLE MOUNT ADAPTER. Be advised that the POLE MOUNT ADAPTER does not route the signal to the satellite; you will have to use two speaker cables to connect the subwoofer's Speaker Outs to the two satellites. Be sure to set the Setup selector to 'Stereo Satellite and the Balance knob to the center or 12 o'clock position.

- Required accessories: 2x POLE MOUNT ADAPTERs

3.5 Stereo System

With an S-CONNECT POLE LN in combination with standard microphone stands with a 3/8" thread or standard speaker tripods and the POLE MOUNT ADAPTER

(L) Use Speaker Out R Setup Balance L R

Screw the signal-carrying S-CONNECT POLE LN into the M33 mount on top of the subwoofer. Lock one satellite in place with the S-CONNECT POLE LN's Easy-Click mechanism. This satellite renders the left channel of the stereo image. Attach the POLE MOUNT ADAPTER to the (35 mm diameter) speaker pole. Connect the other satellite to the POLE MOUNT ADAPTER via Easy-Click. Be advised that the POLE MOUNT ADAPTER does route the signal in this setup. You have to plug one end of a speaker cable into the subwoofer's Speaker Out R port and the other into the satellite's Speaker In port to connect the two. Be sure to set the Setup switch to Stereo Satellite mode and the Balance knob to the center or 12 o'clock position.

This setup option works with any standard microphone stand with a 3/8" thread, in which case you won't need the POLE MOUNT ADAPTER.

- Required accessories: 1x S-CONNECT POLE LN, 1x POLE MOUNT ADAPTER

3.6 Twin Stereo System

With 2 S-CONNECT POLE LNs + 1 LUCAS NANO LINK CABLE (see the picture below)

Setup Balance L Link In/Out Use Stereo Cable! R Setup Balance L R

For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems

It takes two LUCAS NANOs to set up a twin stereo system. First set up each as a mono system as described in section 3.2, and then link the two to create a twin stereo system using the two subwoofers' Link In/Out jacks (10). You will need the LUCAS NANO LINK CABLE or a shielded stereo cord equipped with 1/4" (6.3 mm) jack plugs to do this.

Heads up: One system's Balance knob has to be turned to the left and other's to the right.

Pairing up two systems to configure a twin stereo system gives you twice the number of channels. The Master knob on each LUCAS NANO controls the overall volume of that unit's master mix; that is, the channels that have been blended to a composite signal. Be sure to set the Setup switches on both systems to 'Satellite Array'.

- Required accessories: 2x S-CONNECT POLE LN / 1x LUCAS NANO LINK CABLE

Pole Mount Adapter Use with all 35 mm pole mounts Two speaker cables needed Ø = 35 mm

3.4 Stereo System
with two POLE MOUNT ADAPTERs
and standard pole mounts

S-Connect Pole LN Pole Mount Adapter Ø = 35 mm

3.5 Stereo System
with one S-CONNECT POLE LN
+ one POLE MOUNT ADAPTER

S-Connect Pole LN L R Link In/Out Stereo cable

3.6 Twin Stereo System
with two S-CONNECT POLE LN
+ one NANO LINK CABLE

3.7 Accessories for LUCAS NANO 300 Series

1. S-CONNECT POLE LN

Content: 1 signal-routing speaker pole including a pole mount adapter (height adjustable from 83 to 137 cm), 1 bag

2. STEREO STAND ADD-ON (LUCAS NANO 300 SERIES)

Content: 2 speaker stands with tripod base (height adjustable from 76 to 170 cm), 2 speaker cables, 1 bag

3. LUCAS NANO POLE MOUNT ADAPTER

Content: 2 adapters for 35 mm-diameter speaker pole

4. LUCAS NANO LINK CABLE

Content: 1 stereo cable with 1/4" (6.3 mm) jacks for connecting two LUCAS NANO

5. ROLLER BAG (LUCAS NANO 300 SERIES)

Content: 1 padded trolley for LUCAS NANO 300 series systems

6. ADD-ON PACKAGE TWO DESK / WALL MOUNT

(LUCAS NANO 300 SERIES)

Content: 2 wall mounts/desktop stands, 2 cables with angled 1/4" (6.3 mm) jacks

7. LUCAS NANO DRUM RACK ADAPTER

Content: 2 rods with 3/8" threads, 25 cm long and 18 mm in diameter, that attach to rack clamps

4 Aiming Satellites

4.1 Vertical Alignment

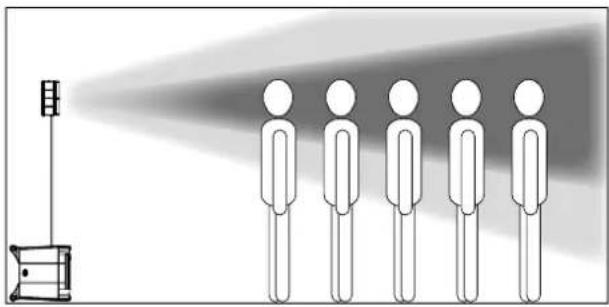

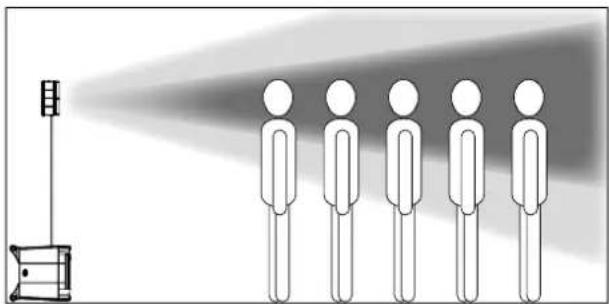

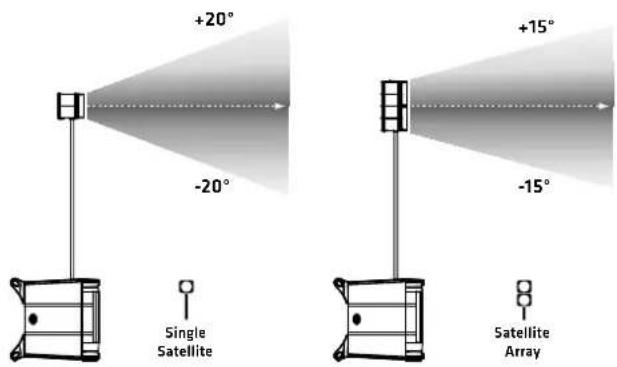

The vertical directivity of a single LUCAS NANO 300 Series satellite in stereo mode is +20° x -20°. Vertical directivity changes to 30° when you use the two satellites in an array.

+20° -20° +15° -15° Single Satellite Satellite Array

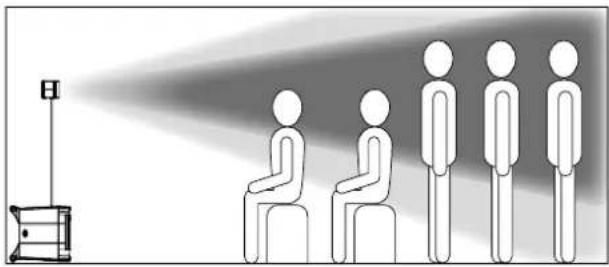

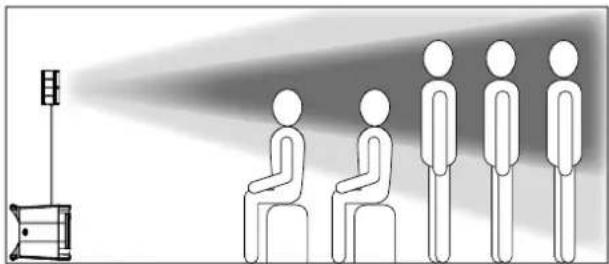

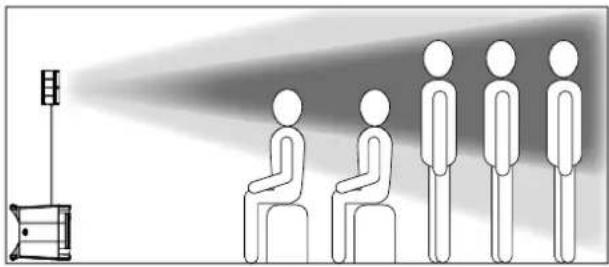

Always line up LUCAS NANO 302 satellites with the audience's ear level to achieve the most balanced audio image.

Illustration of a person standing in front of a small vehicle with a camera, emitting a beam of light (no text or symbols)

Illustration of a person sitting on a chair facing a speaker with a microphone, accompanied by five human figures in a row (no text or symbols)

Diagram showing a person standing in front of a lamp and a device, with no visible text or symbols.

4.2 Horizontal Alignment

The satellites' horizontal dispersion angle is around 60°. Depending on room size and whether it's a mono or stereo setup, you may want to turn the satellites in towards the audience area.

Mono Stereo

5 Technical Specifications

LUCAS NANO 302 System
Total power output (RMS) ^1 23	0 W Class D
Calculated peak power 750 W
Frequency response -10dB 44	Hz - 20 kHz
Active protective circuits Multi	Band Limiter, Subsonic Filter,Thermo Protection, Overload Protection
Enclosure	Coated polypropylene
Optional accessories S-Connect	Pole LN (signal-routing speaker pole), Stereo Stand Add-on 300 Series, Roller Bag 300 series (padded trolley), Add-on Package Two (Desk/Wall Mount), Link Cable, Drum Rack Adapter
Weight 10.3 kg / 22.7 lbs.

LUCAS NANO 302 Subwoofer
Max SPL peak ^2 118 dB
Frequency response -10dB 44	Hz - 190 Hz
Inputs 2 1/4" (6.3 mm) jack/XLR combo ports /3.5 mm mini jack (stereo), Link In (for Twin Stereo mode)
Outputs	Speaker Out, Easy-Click, Thru, Link Out(for Twin Stereo mode)
Bass woofer	8"
Pole mount	M33 for the (signal-routing) S-Connect Pole LN, a speaker pole adapter sleeve(M33 to M20) is included
Dimensions (WxHxD)	30 x 39 x 42 cm
Weight 8.3 kg / 18.3 lbs.

LUCAS NANO 300 Series Satellite
Max SPL peak ^2	120 dB (Satellite Array)
Frequency response -10dB 190	Hz - 20 kHz
Woofer 3,5"
Horn directivity	60" x 40" (Single Satellite)60" x 30" (Satellite Array)
Inputs Speaker In, Easy-Click
Pole Mount Adapter	3/8" thread
Dimensions (WxHxD)	13 x 13 x 11.5 cm
Weight 1 kg / 2.2 lbs.

General Technical Specifications
Current consumption pursuant to EN 600653	1.1 A / 100-240V AC
Inrush current	46 A at 120 V and 230 V

^1 Short-term RMS value measured using a sine burst signal with a 1/4 cycle rate and a resulting crest factor of 9 dB at a frequency that is representative of the system

^2 @10% THD, Halfspace

^3 Current consumption (mains power) was measured at the internal amplifier's output at 1/8 power by inputting a sine wave as specified in the EN60065 standard. This value represents the average current drawn from the mains grid when operating the system with standard music signals.

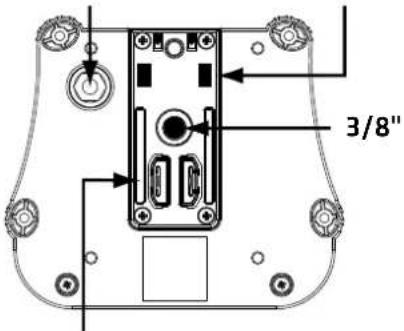

Speaker In Signal contacts

3/8"

Easy-Click

Mechanical component with a flanged top and central shaft (no visible text or symbols)

Close-up of a black handheld device with a circular vent mechanism and scroll wheel (no visible text or symbols)

3D mechanical component with arrows indicating a joint or transition (no text or symbols visible)

Signal via Easy-Click

Simple line drawing of a mechanical component with two circular holes and a central shaft (no text or symbols)

Mono Cube No cables needed

Pure electrical circuit lines without any symbols

Mono System with S-CONNECT POLE LN No cables needed

Mono Cube

Close-up of a mechanical component with ventilation grilles and a white arrow indicating direction (no text or symbols)

Five line drawings of a multi-positioned audio recording setup with speakers and standers (no text or symbols)

Sub Balance L R Setup Link In/OutThru 1/2 Speaker Out to Satellite L R Mute LUCAS NANO 302 Speaker Out to Satellite HK AUDIO

11 Speaker Out to Satellite L/R

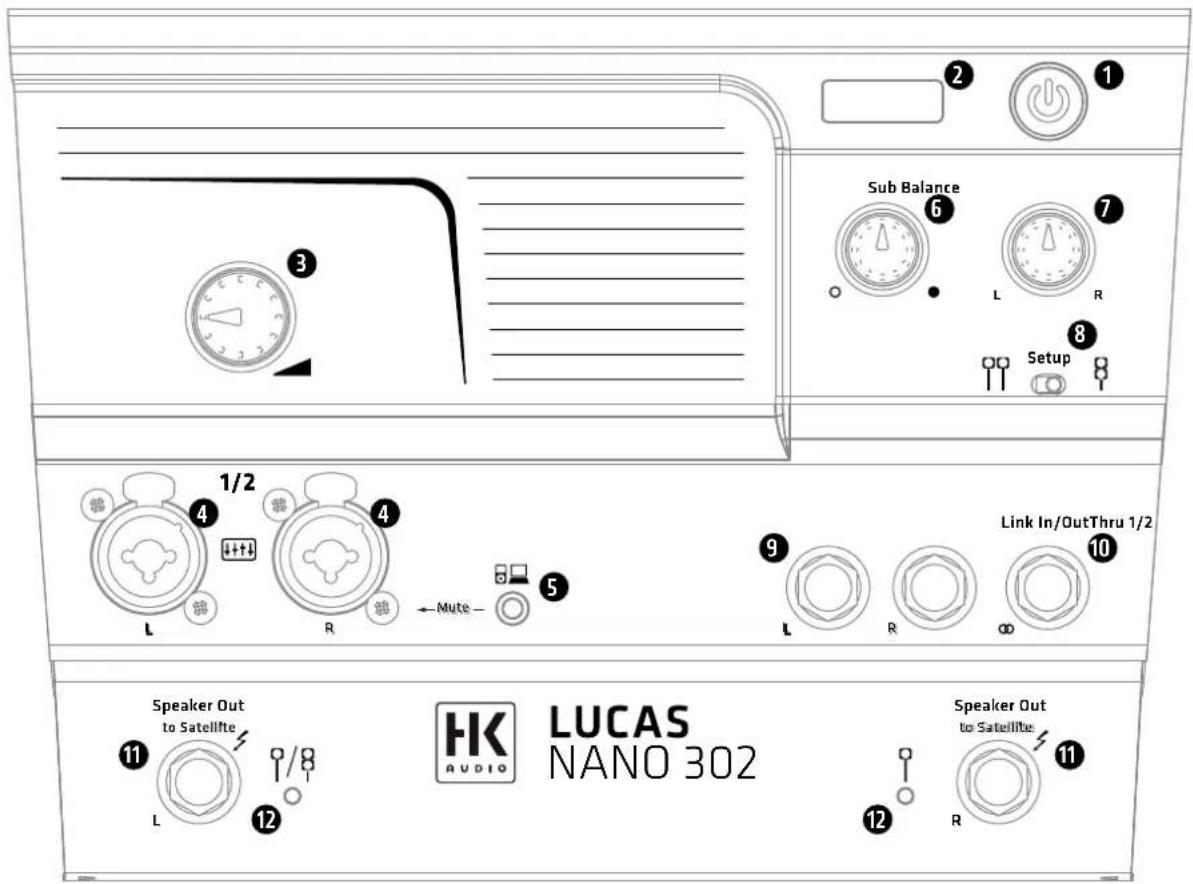

Technical diagram of a device rear panel with labeled buttons and control panels, showing numbered annotations 11, 11, 13, and 14.

L R Use L/R Speaker Outs Setup Balance L R

Signal via Easy-Click

Bold black: Part of the listed accessories

S-Connect Pole LN

3.1 Mono System with S-CONNECT POLE LN No cables needed

Pole Mount Adapter Ø = 35 mm One speaker cable needed M20 Adapter

3.2 Mono System with one POLE MOUNT ADAPTER and standard distance rod

Stereo Stand Add-on 2/8" Two speaker cables needed

3.3 Stereo System with STEREO STAND ADD-ON (also works with microphone stands)

3.4 Stereo System

Use L/R Speaker Outs

Setup Balance L Link In/Out Use Stereo Cable! R Setup Balance L R

For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems

Pole Mount Adapter Use with all 35 mm pole mounts Two speaker cables needed Ø = 35 mm

3.4 Stereo System
with two POLE MOUNT ADAPTERs
and standard pole mounts

S-Connect Pole LN Pole Mount Adapter Ø = 35 mm

3.5 Stereo System
with one S-CONNECT POLE LN
+ one POLE MOUNT ADAPTER

S-Connect Pole LN L R Link In/Out Stereo cable

3.6 Twin Stereo System
with two S-CONNECT POLE LN
+ one NANO LINK CABLE

Illustration of a person standing in front of a small device emitting a beam of light, with no visible text or symbols.

Illustration of a person sitting on a chair facing a speaker, with a lamp emitting sound waves (no text or symbols)

Diagram showing a person standing in front of a lamp and a device, with no visible text or symbols.

Speaker In Signal contacts

3/8" Easy-Click

3D rendering of a vertical cylindrical mechanical component with mounting flange (no text or symbols visible)

Signal contacts Easy-Click

Mise en fonction

Extraction des satellites

Close-up of a black electronic device with a circular vent mechanism and scroll wheel (no visible text or symbols)

3D mechanical component with arrows indicating assembly or movement (no visible text or symbols)

Signal via Easy-Click

Simple diagram of a device with two circular components and directional arrows, no text or symbols present.

Mono Cube
No cables needed

Pure diagram of a vertical structure with circular elements and arrows, no text or symbols present

Mono System with S-CONNECT POLE LN No cables needed

Mono Cube

Close-up of a mechanical component with a white arrow indicating direction, no visible text or symbols

Five line drawings of a speaker setup with three speakers and two speakers, no text or symbols present.

Sub Balance L R Setup Link In/OutThru 1/2 Speaker Out to Satellite L R Mute LUCAS NANO 302 Speaker Out to Satellite HK AUDIO

11 Sorties Speaker Out to Satellite L/R

Technical diagram of a device rear panel with labeled buttons and control panels, showing numbered annotations.

Use L/R Speaker Outs

Part of the listed accessories

S-Connect Pole LN

3.1 Mono System

with S-CONNECT POLE LN

No cables needed

Pole Mount Adapter M20 Adapter Ø = 35 mm One speaker cable needed

3.2 Mono System

with one POLE MOUNT ADAPTER

and standard distance rod

Stereo Stand Add-on 2/8" Two speaker cables needed

3.3 Stereo System

with STEREO STAND ADD-ON

(also works with microphone stands)

3.4 Stereo System

Balance

Use L/R Speaker Outs

Setup Balance L Link In/Out Use Stereo Cable! R Setup Balance L R

For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems

Pole Mount Adapter Use with all 35 mm pole mounts Two speaker cables needed Ø = 35 mm

3.4 Stereo System
with two POLE MOUNT ADAPTERs
and standard pole mounts

S-Connect Pole LN Pole Mount Adapter Ø = 35 mm

3.5 Stereo System
with one S-CONNECT POLE LN
+ one POLE MOUNT ADAPTER

S-Connect Pole LN L R Link In/Out Stereo cable

3.6 Twin Stereo System
with two S-CONNECT POLE LN
+ one NANO LINK CABLE

Illustration of a person standing in front of a small robot with a camera, emitting a beam of light (no text or symbols)

Illustration of a person sitting on a chair facing a speaker with a beam of light, next to a device (no text or symbols)

Diagram showing a person standing in front of a lamp and a device, with no visible text or symbols.

4.2 Orientation horizontale

Speaker In Signal contacts

3/8" Easy-Click

3D rendering of a vertical cylindrical mechanical component with a flanged top and base (no text or symbols visible)

Signal contacts Easy-Click

Messa in funzione

Prelevare i satelliti

Close-up of a black plastic device with a circular vent mechanism and a rotating button (no text or symbols visible)

3D mechanical component with arrows indicating assembly or movement (no visible text or symbols)

Signal via Easy-Click

Simple line drawing of a mechanical component with two circular holes and a central shaft (no text or symbols)

Mono Cube
No cables needed

Simple line drawing of a vertical pendulum with two circular heads and a central shaft (no text or symbols)

Mono System with S-CONNECT POLE LN No cables needed

Mono Cube

Close-up of a mechanical component with a white arrow pointing to a textured surface (no visible text or symbols)

Five line drawings of a multi-positioned audio recording setup with speakers and standers (no text or symbols)

Sub Balance L R Setup Link In/OutThru 1/2 Speaker Out to Satellite L R Mute HK AUDIO LUCAS NANO 302 Speaker Out to Satellite R 11 12 11 12

4 Stereo-Input 1/2 (XLR/jack)

11 Speaker Out to Satellite L/R

Use L/R Speaker Outs

Part of the listed accessories

S-Connect Pole LN

3.1 Mono System

with S-CONNECT POLE LN

No cables needed

Pole Mount Adapter Ø = 35 mm One speaker cable needed M20 Adapter

3.2 Mono System

with one POLE MOUNT ADAPTER

and standard distance rod

Stereo Stand Add-on 2/8" Two speaker cables needed

3.3 Stereo System

with STEREO STAND ADD-ON

(also works with microphone stands)

3.4 Stereo System

Use L/R Speaker Outs

Setup Balance L Link In/Out Use Stereo Cable! R Setup Balance L R

For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems

Pole Mount Adapter Use with all 35 mm pole mounts Two speaker cables needed Ø = 35 mm

3.4 Stereo System
with two POLE MOUNT ADAPTERs
and standard pole mounts

S-Connect Pole LN Pole Mount Adapter Ø = 35 mm

3.5 Stereo System
with one S-CONNECT POLE LN
+ one POLE MOUNT ADAPTER

S-Connect Pole LN L R Link In/Out Stereo cable

3.6 Twin Stereo System
with two S-CONNECT POLE LN
+ one NANO LINK CABLE

Illustration of a person standing in front of a small device emitting a beam of light, with no visible text or symbols.

Illustration of a person sitting on a chair facing a speaker with a beam of light, next to a device (no text or symbols present)

Diagram showing a person standing in front of a device emitting a beam to another person, with no visible text or symbols.

Technical line drawing of a mechanical device interior with internal components (no text or symbols)

S-Connect (M33)

Speaker OutEasy-Click Signal co

L R Auto Sleep on - off

Speaker In Signal contacts

3/8" Easy-Click

3D rendering of a vertical mechanical component with a flanged top and black base (no text or symbols visible)

Close-up of a black electronic device with a circular vent mechanism and scroll wheel (no visible text or symbols)

3D mechanical component with arrows indicating assembly or movement (no visible text or symbols)

Signal via Easy-Click

Simple line drawing of a mechanical component with two circular holes and a central shaft (no text or symbols)

Mono Cube
No cables needed

Simple line drawing of a vertical pole with two circular components and a central circle, no text or symbols present.

Mono System with S-CONNECT POLE LN No cables needed

Mono Cube

Close-up of a mechanical component with a white arrow pointing to a layered structure (no visible text or symbols)

Five line drawings of a multi-positioned audio recording setup with speakers and standers (no text or symbols)

Sub Balance 1/2 Link In/OutThru 1/2 Speaker Out to Satellite HK AUDIO LUCAS NANO 302 Speaker Out to Satellite

11 Speaker Out to Satellite L/R

Technical diagram of a device rear panel with labeled buttons and control panels, showing safety warnings and safety symbols.

Use L/R Speaker Outs

Signal via
Easy-Click

Bold black:
Part of the listed accessories

S-Connect Pole LN

3.1 Mono System
with S-CONNECT POLE LN
No cables needed

Pole Mount Adapter Ø = 35 mm One speaker cable needed M20 Adapter

3.2 Mono System
with one POLE MOUNT ADAPTER
and standard distance rod

Stereo Stand Add-on 3/8" Two speaker cables needed

3.3 Stereo System
with STEREO STAND ADD-ON
(also works with microphone stands)

3.4 Stereo System

Use L/R Speaker Outs

Setup Balance L Link In/Out Use Stereo Cable! R Setup Balance L R

For usage without S-CONNECT POLE LN, use the Speaker Out L on both systems

Pole Mount Adapter Use with all 35 mm pole mounts Two speaker cables needed Ø = 35 mm

3.4 Stereo System
with two POLE MOUNT ADAPTERs
and standard pole mounts

S-Connect Pole LN Pole Mount Adapter Ø = 35 mm

3.5 Stereo System
with one S-CONNECT POLE LN
+ one POLE MOUNT ADAPTER

S-Connect Pole LN L R Link In/Out Stereo cable

3.6 Twin Stereo System
with two S-CONNECT POLE LN
+ one NANO LINK CABLE

Illustration of a person standing in front of a camera emitting a beam of light, with other figures seated in the background (no text or symbols)

Illustration of a person standing in front of a camera emitting a beam of light, with no visible text or symbols.

Diagram showing a person standing in front of a lamp and a small device, with no visible text or symbols.
