USER MANUAL PDC75 172.827 Power Dynamics

Power Dynamics Professional Audio

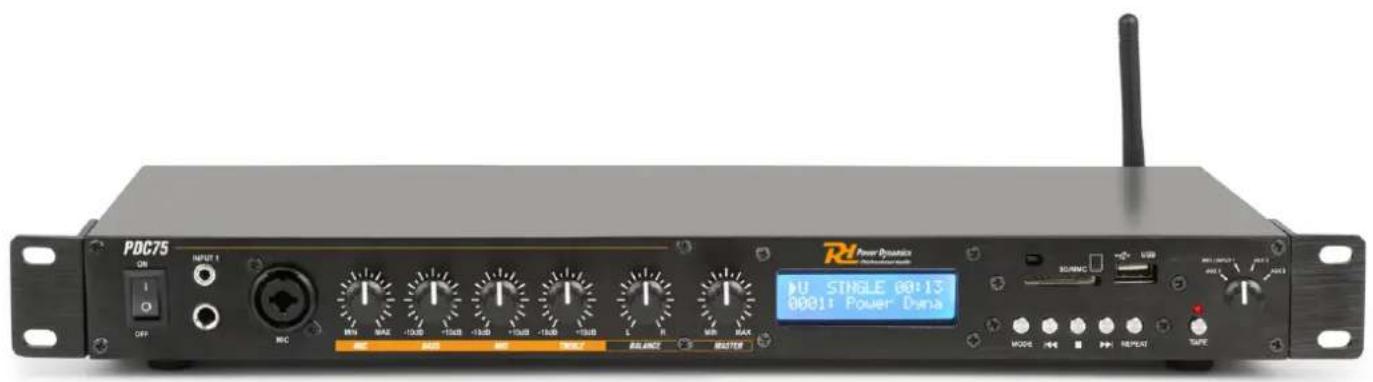

PDC75 Media Player

Ref. nr.: 172.827

INSTRUCTION MANUAL
GEBRUKSAANWIJZING
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• This unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

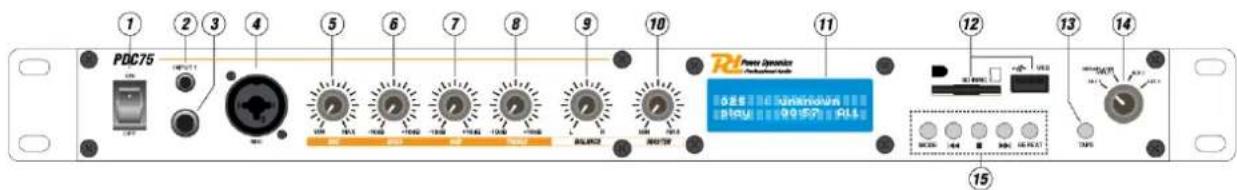

1. Power switch

Press to switch the power unit ON or OFF.

1. Input 1

To connect with other music sources with 3.5mm jack.

1. Headphone output

To connect with headphone with 6.3mm (1/4") jack.

1. Microphone input combo

XLR / 6.3mm (1/4") jack for microphone.

1. Microphone level control

For microphone level controls. Always turn back the mic level control to the minimum before disconnect/connect the microphone.

1. Bass

Adjustable bass frequency, maximum bass +10db or maximum decrease of -10db.

1. Mid

Adjustable mid frequency, maximum treble +10db or maximum decrease of -10db.

1. Treble

Adjustable high frequency, maximum treble +10db or maximum decrease of -10db.

1. Balance

Adjusts the balance of main output.

1. Master volume

Adjusts the master volume of main output. Always turn back the output volume control to the minimum before switch on.

1. Display

To show the name of the songs from USB, song time.

1. USB / SD Card slot

USB slot capacity is up to 32GB.

1. Tape

Press this button to use tape-input/output from rear panel sources only.

1. Input selector

To choose different input sources.

1. Media player buttons

MODE: Press to switch between USB/SD/FM/BT/Recording modes. The unit is set in MP3 mode by default and only by pressing the "MODE" button it is possible to switch modes.

REPEAT: There are multiple types of repeat and they will show on the screen, and you can press this button to select the favourable repeat type, such as SINGLE / REPEAT / RANDOM / ALL REPEAT. Press this button for more than 3 seconds, it will go to Folder searching function, press Prev/Next buttons to go to the previous folder or the next folder. Press "REPEAT" button again to exit FOLDER searching.

PLAY/PAUSE: Press to start or pause play. When in RECORDING MODE, hold the "PLAY" button for more than 2 seconds to start recording (the word "RECORDING" will be flashing on the display). Single press the "PLAY/PAUSE" button stop recording, or resume recording again after stopping. After recording, press "MODE" to start playing the recordings.

PREVIOUS TRACK: Press to play the previous track from USB or SD card. When in FM mode, it is for previous station.

NEXT TRACK: Press to play the next track. When in FM mode, it is for next station.

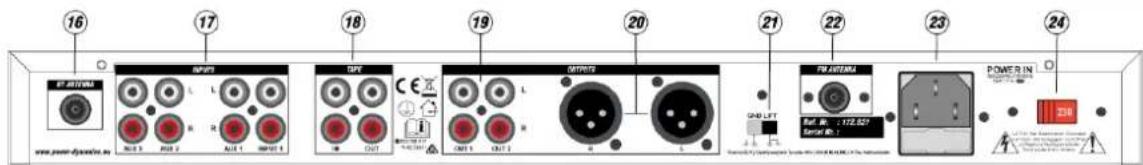

1. FM Antenna

This connector is used to fit an external FM antenna in order to use this. FM will not be supported.

1. RCA Inputs

Connect the audio output jacks of DVD/CD to these jacks.

1. Tape input and output

Press "TAPE"-button (13) on the front panel to monitor the headphone or connect with another amplifier through REC INPUT. To connect with other audio input jacks to PLAY OUTPUT.

1. Balance output

RCA types AUX OUT jacks.

1. Unbalanced output

XLR types AUX OUT jacks.

1. Ground

Switch electrical ground ON or OFF.

1. Tuner antenna

Connect for FM antenna.

1. Power socket

To connect the power cord.

1. Voltage selector

To select the correct local voltage.

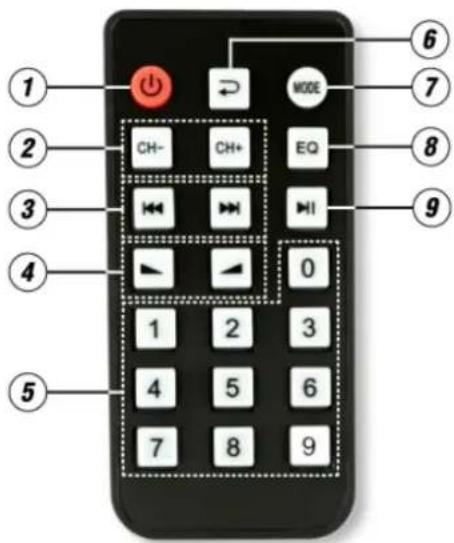

REMOTE CONTROL

1. Press this button to turn on/off the Media player.
2. When in FM mode, press this two buttons to select previous or next channel.
3. Press these two buttons to select the previous or next track in USB or SD or BT mode.
4. Volume up or down.
5. Press the numbers to select the tracks directly. The unit takes 1-2 seconds to respond.
6. Press this button to select the different repeat mode. If press this button for more than 3 seconds, it will go to folder searching.
7. Press to switch between USB/SD/FM/BT/Recording modes. The unit is set in MP3 mode by default and only by pressing the "MODE" button it is possible to switch modes.
8. EQ function.
9. Play and pause function. When in RECORDING MODE, hold the "PLAY" button for more than 2 seconds to start recording (the word "RECORDING" will be flashing on the display). Single press the "PLAY/PAUSE" button stop recording, or resume recording again after stopping. After recording, press "MODE" to start playing the recordings.

1. Botones Media player

Conectores XLR AUX OUT.

1. Toma de tierra

Frequency response : 15Hz - 20kHz

THD :<0.02%

Signal to noise ratio :>80dB

Input connections

: 3.5mm jack, 6.3mm jack, RCA, XLR (3-pin)

Output connections : RCA, XLR (3-pin)

Power supply : 100-240VAC 50/60Hz

Dimensions : 150x 430 x 50mm

Weight : 1kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

Low Voltage (LVD) 2014/35/EU
Electromagnetic Compatibility (EMC) 2014/30/EU
- Restriction of Hazardous Substances (RoHS) 2011/65/EU

Specifications and design are subject to change without prior notice..
